Every cat owner uses a litter tray daily. But making a good one is not simple. It needs to be tough enough for scratching, deep enough to stop spills, and easy to clean. And you have to make it at a reasonable cost.

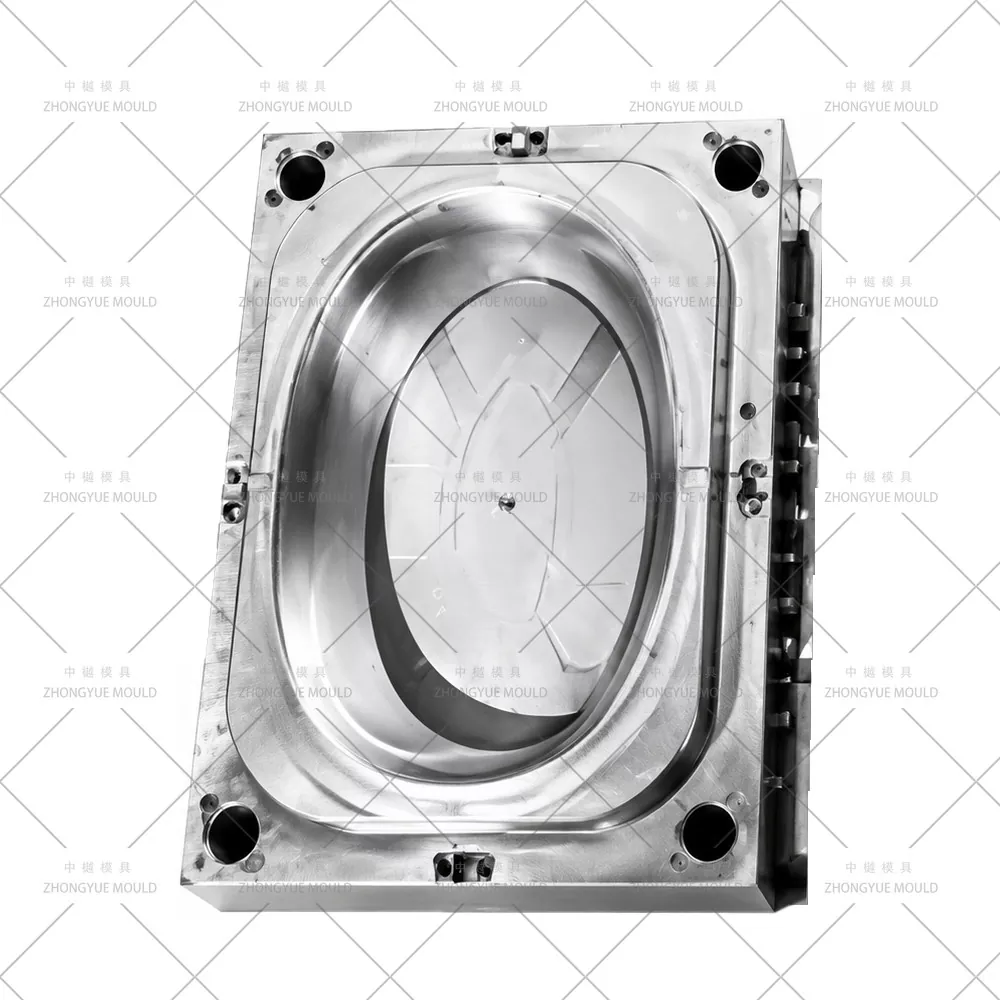

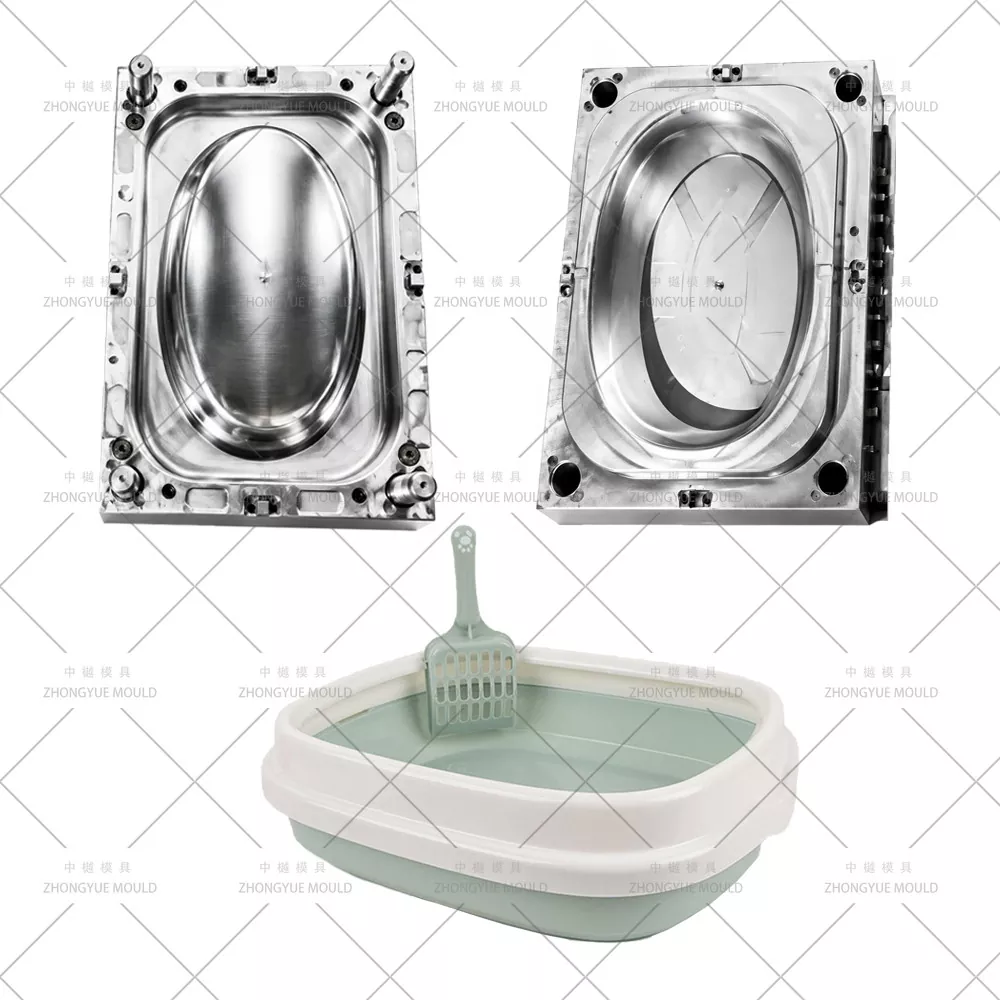

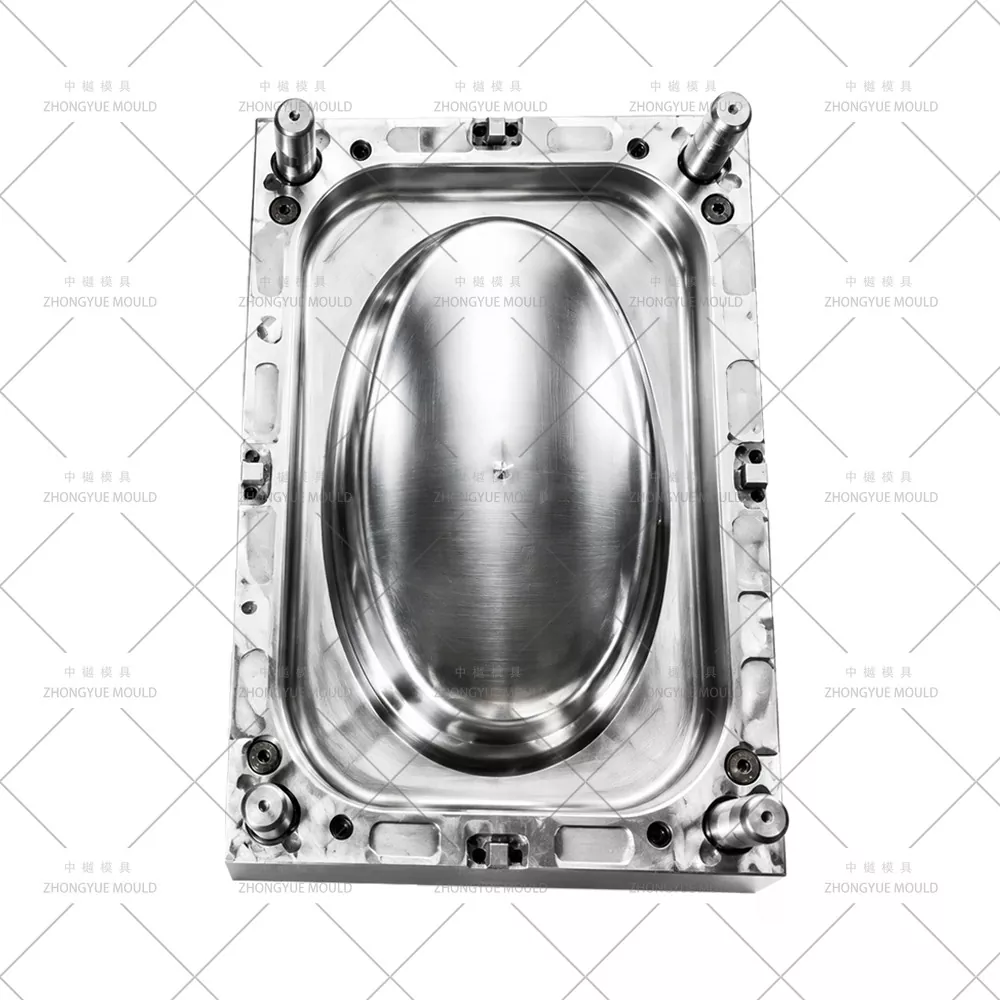

Zhongyue Mould builds Plastic Cat Litter Tray Base Moulds that work. Open tray, high-sided, or enclosed – we make the tools you need. On time. On budget.
|
Mould Name |
Plastic Cat Litter Tray Base Mould |
|
|
Mold Material |
P20,2738,718H,NAK80,2316,S136,H13,etc |
|
|
Mold Base |
Self-made,LKM,DME,ASSAB |
|
|
Cavity |
Single/multi |
|
|
Runner |
Cold runner and hot runner |
|
|
Hot Runner Brand |
Master, HUSKY,YUDO,etc. |
|
|
Design Software |
UG:Aoto CAD and so on |
|
|
Mold Life |
50-100 million Shots/ 5-6 years, Even in 10 years in good maintenance |
|
|
T1 Time |
45-60 days |
|
|
Plastic Material |
PP PE |
|
|
Gate Type |
Pinpoint Gate, Edge Gate, Sub Gate, Film Gate, Valve Gate, Open Gate, etc. |
|
|
Mould Surface Treatment |
EDM, texture, high gloss polishing |
|
|
Quality System |
ISO9001 |
|
|
HS Code |
8480719090 |
|
|
Origin |
Huangyan Zhejiang China |
|
|
Package |
Wooden Case |
|
|
Mould material |
Hardness |
Mould life |
|
P20 |
HRC 28-33 |
>300,000 shots |
|
718 |
HRC 33-36 |
>500,000 shots |
|
H13 |
HRC >43 |
>800,000 shots |
|
2344 |
HRC >48 |
>800,000 shots |
|
S136 |
HRC 48-52 |
>1,000,000 shots |
Make your next Plastic Cat Litter Tray Base Mould project brighten!

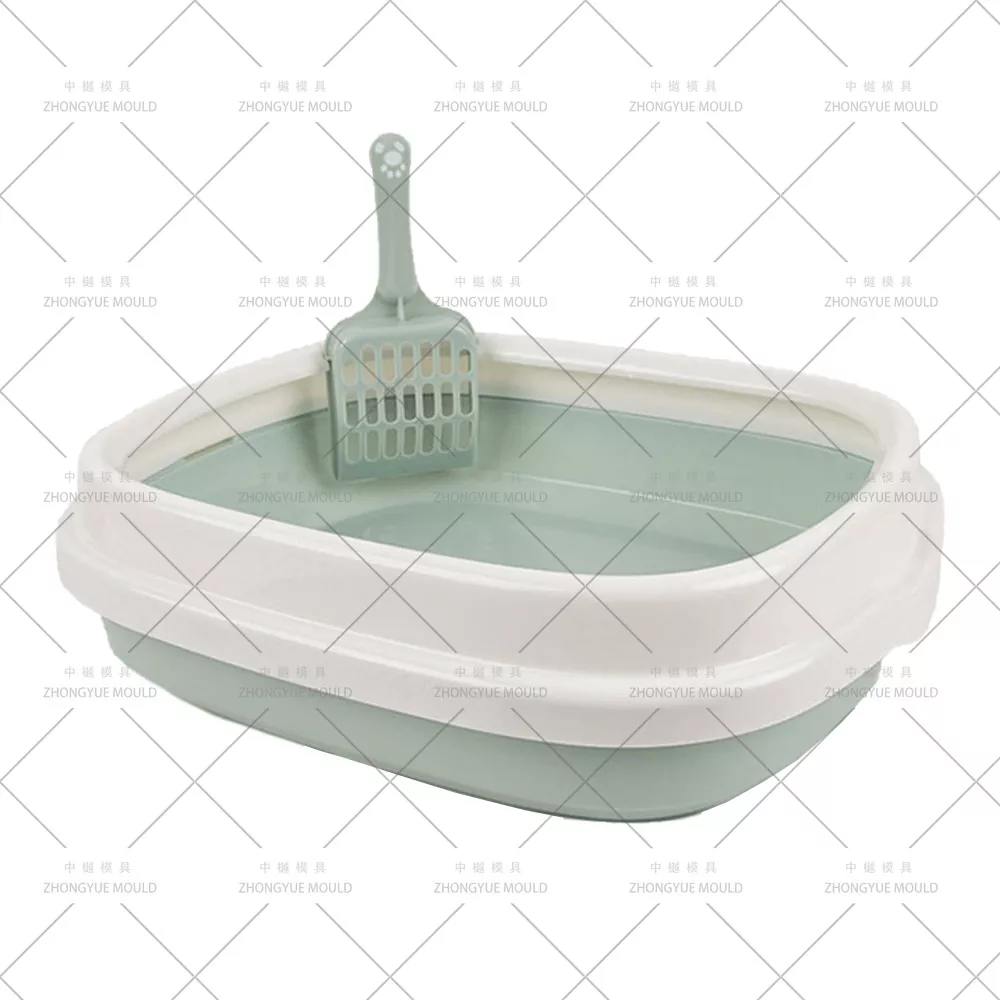

We engineer our moulds to produce litter trays that solve real-world problems for pet owners. The resulting products focus on hygiene, durability, and convenience:
|
Feature |
Consumer Benefit |
|
High-Sided & Splash-Proof Walls |
Prevents litter scatter and spray-over, keeping floors clean. |
|
Textured Anti-Stick Surface |
Moulded-in textures ensure clumps don't stick to the bottom, making daily scooping effortless. |
|
Ergonomic Cleaning & Handles |
Integrated grip handles and smooth, rounded corners make the tray easy to lift, carry, and deep-clean. |
|
Optional Enclosure & Door Holes |
Precision-machined cutouts for doors or vents to accommodate modern, privacy-focused enclosed designs. |
|
Non-Slip Footing |
Moulded-in rubber foot inserts or textured bases keep the tray firmly in place, even during enthusiastic digging. |
Cat litter trays, especially high-sided or extra-large models, are prone to warping and long cooling times. Zhongyue overcomes these hurdles with superior engineering:
|
Feature |
Zhongyue Technical Advantage |
|
Advanced Cooling for Deep Walls |
Whole Covering Type Cooling Runner: High-sided trays often warp during cooling. Our design surrounds the core with optimized water lines, ensuring uniform temperature distribution. This guaranteeswarp-free flatness and drastically reduces cycle times. |
|
Anti-Warp Mould Structure |
We utilize high-grade steel and precision machining to maintain exact wall thickness, preventing ugly sink marks around handle or rim areas. |
|
Custom Design & Optimization |

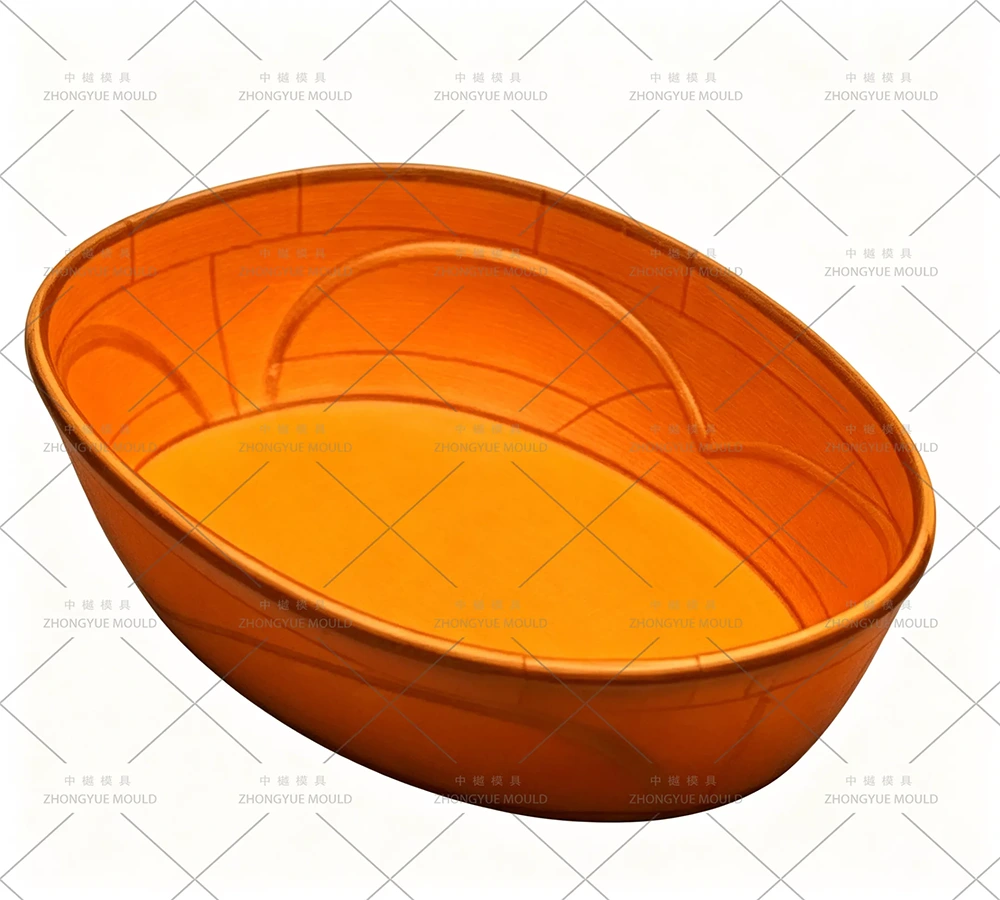

Have a unique idea? Our in-house R&D team provides2D & 3D product drawings andmould structure designs. We optimize your concept for manufacturability, ensuring a perfect balance between aesthetics and function. |
|
High-Efficiency Production |
Our facility runs onLean Manufacturing principles. Each project is managed by a dedicated senior engineer following a strictMold Schedule, ensuring your tool is delivered quickly without compromising quality. |
We guarantee your Plastic Cat Litter Tray Base Mould is production-ready and built to last:

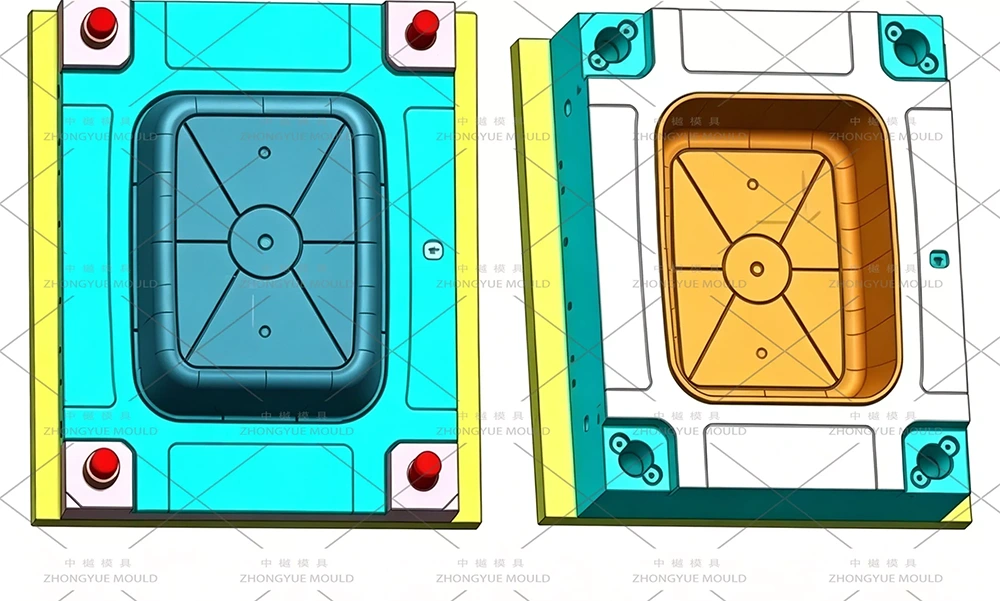

R&D and Custom Design: Share your concepts or sketches. We provide professional 2D/3D drawings, suggesting optimizations for texture flow, wall thickness, and structural ribs.
Precision Manufacturing: Using advanced CNC equipment, we machine your mould with micron-level accuracy to ensure perfect part ejection and repeatability.

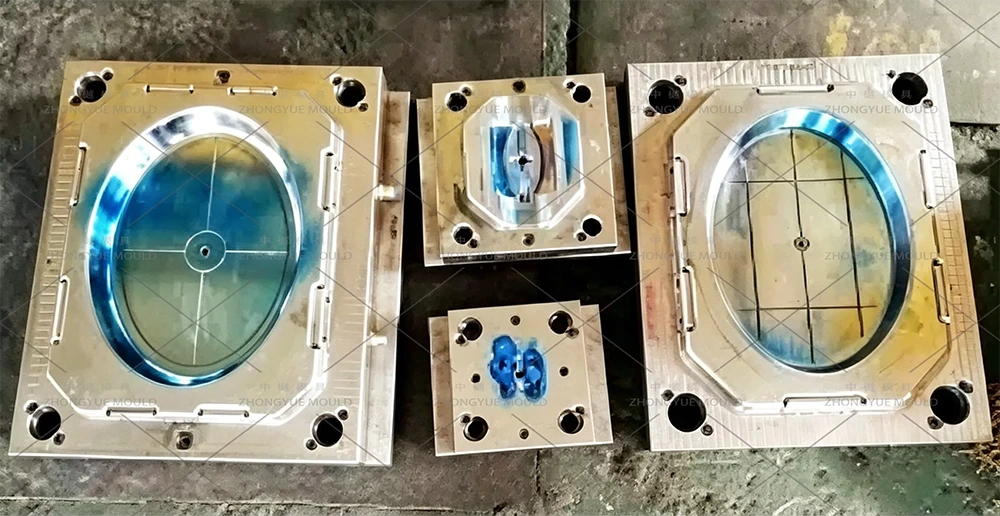

Rigorous QC & Test Injections: Before shipping, the mould is thoroughly tested in ourQC Lab and Injection Workshop. We verify the flatness, handle strength, and surface finish to ensure zero defects.
On-Time Delivery: Managed by our experienced team, your project timeline is strictly monitored, ensuring you hit your market launch date.
|
Parameter |
Zhongyue Mould Configuration |
|
Product Types |
Open Trays, High-Sided, Extra-Large, Enclosed Boxes |
|
Material Compatibility |
PP, HDPE, ABS (Durable & Easy to Clean) |
|
Cooling System |
Whole Covering Type Cooling Runner |
|
Surface Finish |
High Polish, Textured, or Anti-Stick Coating |
|
Design Software |
UG, Pro/E, Auto CAD, SolidWorks |
Don't let an underperforming mould hold back your pet product sales. Partner with Zhongyue Mould and invest in a tool engineered for speed, quality, and reliability. Let us help you build the next essential product for cat lovers worldwide.
Driven by the philosophy:
Zhongyue Mould is a leading company in the plastic injection air conditioner Cover mould industry. Our highly experienced team of engineers and designers have many decades of combined experience in plastic air conditioner Cover mould design and manufacturing. We provide a comprehensive service, specializing in the production of high-quality and high-precision air conditioner Cover moulds. We have also assisted numerous customers in customizing various types of plastic air conditioner Cover moulding lines.
We can also offer comprehensive assistance in the management of your production process. The procurement department will purchase high-quality raw materials, while the technical department will select the appropriate plastic formula. In accordance with the parameters of the plastic air conditioner Cover mould life requirements and market positioning, we will select the most suitable plastic air conditioner Cover parameters, structure, etc. Our extensive production capacity allows us to deliver plastic air conditioner Covers promptly, at competitive prices and with guaranteed quality.
