ZHONGYUE MOULD, based in Huangyan, Taizhou—China's Mould Capital—is a professional Plastic Laundry Mould manufacturer. We design and build custom injection molds for Plastic Laundry Baskets, Dirty Clothes Hampers, and Square Clothing Storage Baskets. Our molds serve global houseware brands seeking reliable, high-output tooling for ventilated, ergonomic, and aesthetically pleasing laundry organizers.
Engineered with ergonomic handle integration—either as part of the main mold or via insert—to ensure comfortable grip and structural strength. Large vent/perforation patterns are optimized to avoid flash and broken ribs.
Supports single- or multi-compartment designs for pre-sorting lights/darks. We carefully design parting lines around dividers and reinforcement ribs to maintain easy demolding and clean aesthetics.

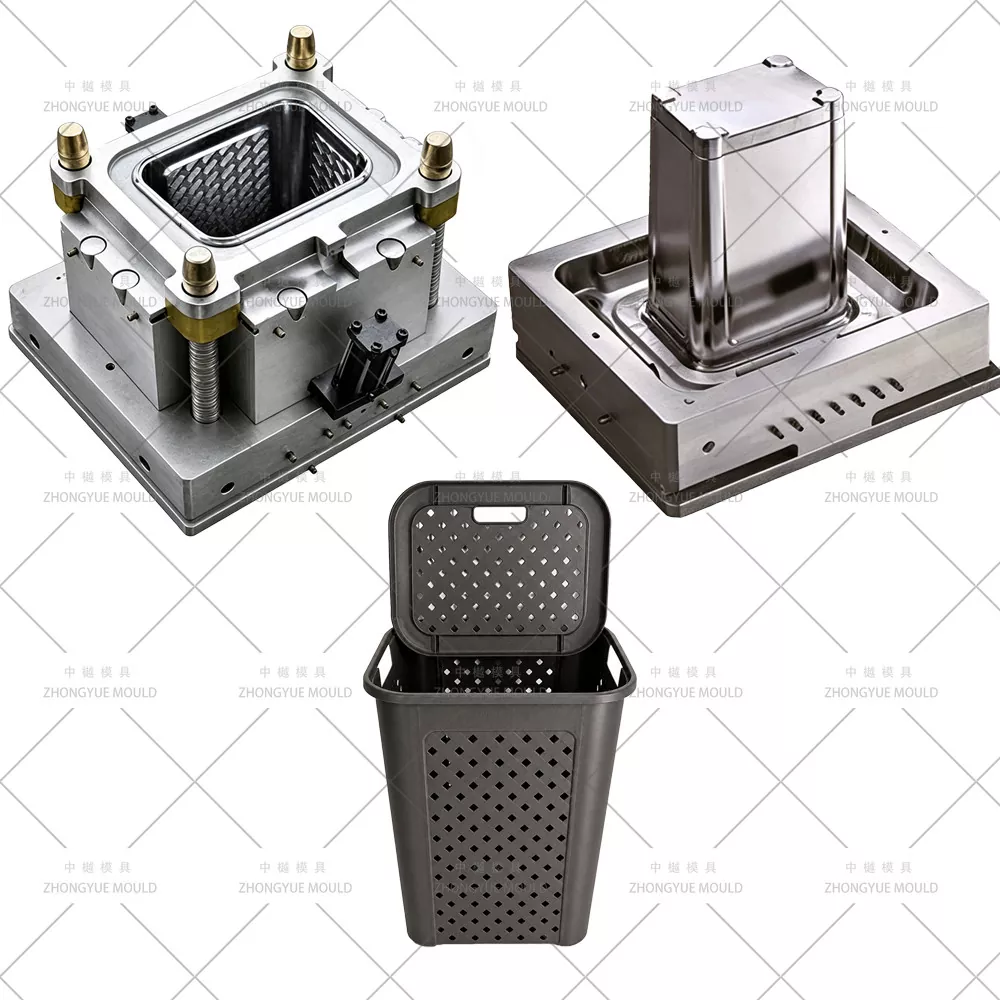

Square geometry maximizes shelf/storage space. Our molds accommodate tapered nesting for stacked display and textured or high-gloss finishes to match modern interior trends.
| Feature | ZHONGYUE Advantage |
|---|---|
| Perforation / Vent Design | Optimized R-angle & draft on holes to prevent breakthrough and flash; even wall thickness for no sink marks. |
| Cooling System | Balanced water lines in core & cavity; BeCu (Beryllium Copper) inserts optional on deep cores for faster cycle. |
| Steel Selection | P20, 2738 or 718H (pre-hardened); good polishability for gloss or texture. |
| Mold Flow Analysis | Simulates fill to locate vents/air traps—critical for tall, vented baskets prone to short shots. |
| Ejection | Stripper plate or angled lift pins to protect delicate perforated walls during knockout. |
Taizhou Zhongyue Mould Co., Ltd. produces Plastic Laundry Moulds for wash basins, laundry buckets, washing tubs, sorting baskets, clothes storage bins, and portable laundry containers.
Yes. We can develop compact and foldable structures that help end users save storage space while maintaining structural stability during repeated use.
We optimize cooling balance and reinforcement ribs to control shrinkage and prevent warping, especially in large-volume basin and tub designs.
Yes. We design handle structures with reinforced stress zones and smooth transition areas to improve comfort and reduce breakage during lifting.
Typical issues include uneven wall thickness, surface sink marks, and stress cracking. We address these through mold flow analysis and optimized injection design.
Yes. We support customized designs for household, commercial, and travel-use laundry products based on customer drawings or samples.
Backed by 50+ team numbers and 20+ CNC machines, ZHONGYUE provides full DFM feedback, T1 trial with sample video, and long-term spare parts support.
Contact ZHONGYUE MOULD today for a customized quotation and mold design proposal for your Laundry Basket Mould project.
