Operating from Huangyan, Taizhou—widely known as China's Mould Capital—Taizhou Zhongyue Mould Co., Ltd. is a professional Plastic Pet Mould manufacturer dedicated to custom mold development for global pet product brands. We design and manufacture molds for plastic dog kennels (pet houses), cat houses and cat condos, pet carriers and crates, as well as matching pet bowls and feeder components. Our pet mould solutions are engineered for PP and PE materials with UV stabilizers, enabling the production of durable, weather-resistant pet shelters suitable for both indoor and outdoor environments.
| Type | Typical Feature | Design Focus |
|---|---|---|
| Dog House / Pet Kennel Mold | 20"–48" sizes, with/without raised floor & ventilation slots | Large thin-wall shell filling, roof/double-wall insulation option, texture (wood/stone imitation) |
| Cat House / Cat Cave Mold | Enclosed or semi-open, with entry arch | Compact cavity, fine detail on arch & eave, high-gloss or matte finish |

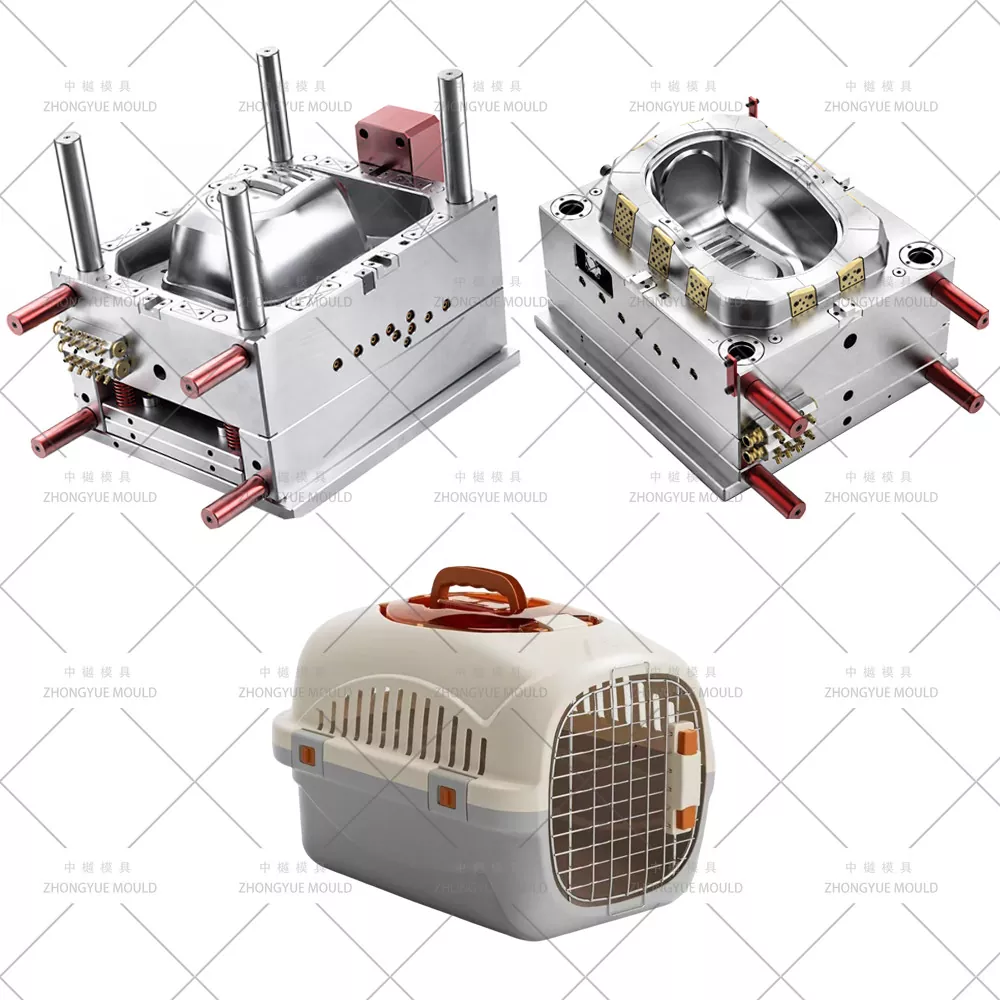

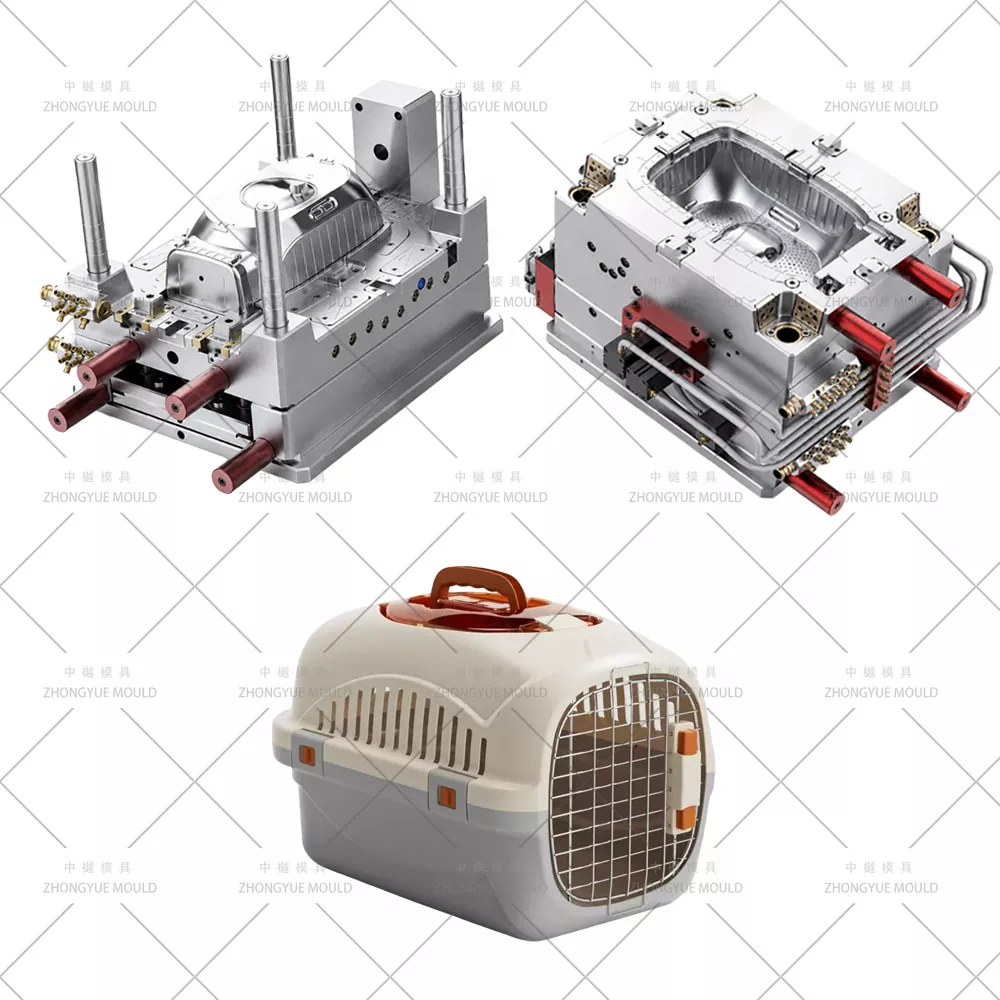

| Pet Carrier / Travel Crate Mold | Top-opening, vent holes, latch recess | Precise hinge/snap-fit design, reinforced corner ribs, air-vent perforations |
| Matching Accessories | Door flap, nameplate insert, non-slip pad | Interchangeable insert design to reduce tooling cost |
Kennel roofs and bodies are large thin-wall parts (2.5–4mm). We run MoldFlow analysis to select optimal gate location (edge or hot-tip) and predict weld lines / air traps—critical for textured surfaces where cosmetic defects are visible.
Large projected area retains heat. We design multi-loop baffled water lines in both core and cavity; BeCu (Beryllium Copper) inserts are placed at deep corners or narrow ribs to accelerate heat extraction and reduce warpage/cycle time.
Cavity can be mirror polished (SPI A1–A3) for gloss kennels or chemically textured (VDI 3400 / wood grain / stone grain) to add market appeal. Hard chrome plating optional for wear resistance.
Carrier crates and summer kennels require air vents. We engineer correct draft angles and R-fillet on perforations, with precision parting line control to prevent flash on vent holes—no secondary trimming needed.
Roof and body halves have large projected area—we equip molds with stripper plates, balanced ejector pin arrays, or air-assist ejection to prevent distortion during knockout.
| Item | ZHONGYUE Standard |
|---|---|
| Mold Steel | Core/Cavity: P20, 718H, 2738H, NAK80 (mirror polish ready); S136 optional |
| Cavity | Usually single cavity; multi-cavity for small accessories (bowls, flaps) |
| Runner | Cold runner (edge/sub-gate) or Hot Runner (YUDO/HASCO) for large shells |
| Surface Finish | High gloss polish / VDI leather / wood / stone texture |
| Mold Life | 300,000 – 1,000,000+ shots |
| Applicable Material | PP (with UV stabilizer), HDPE, ABS (cat house), PC/ABS (premium carrier) |
| Lead Time | 45–65 working days |

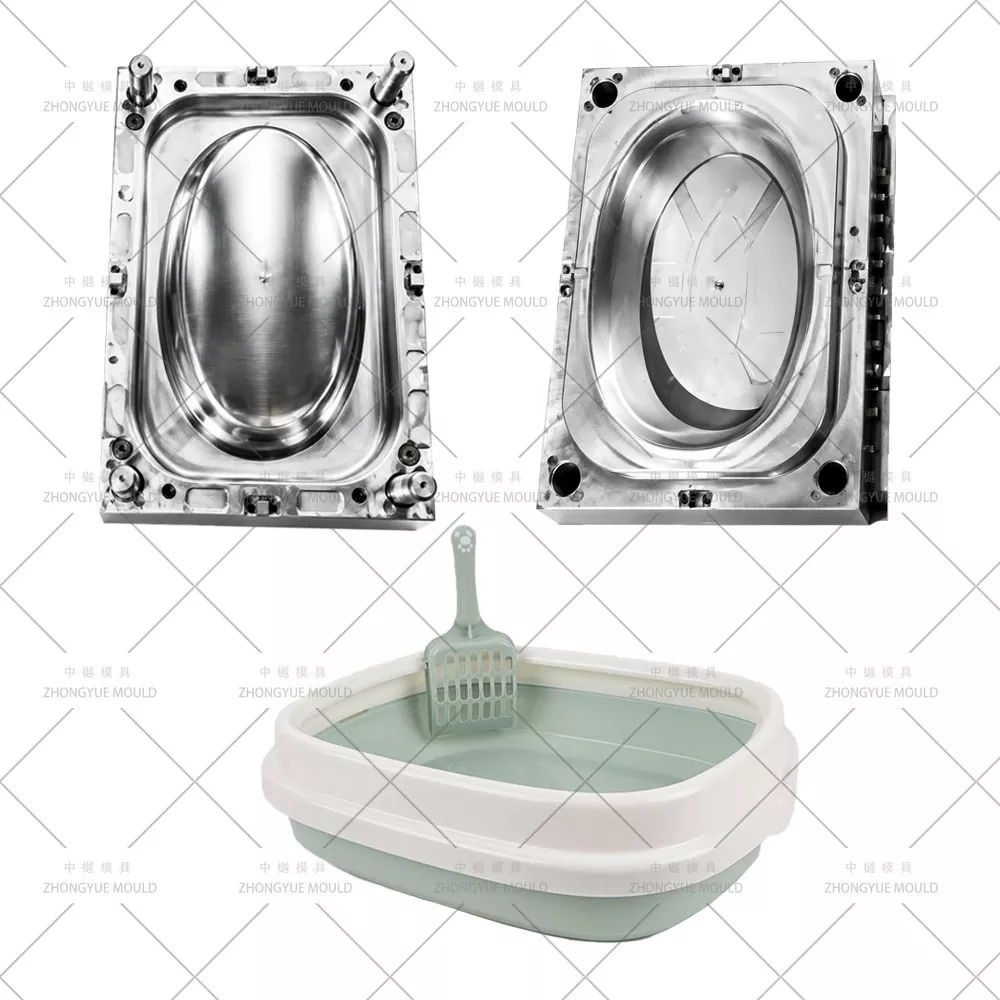

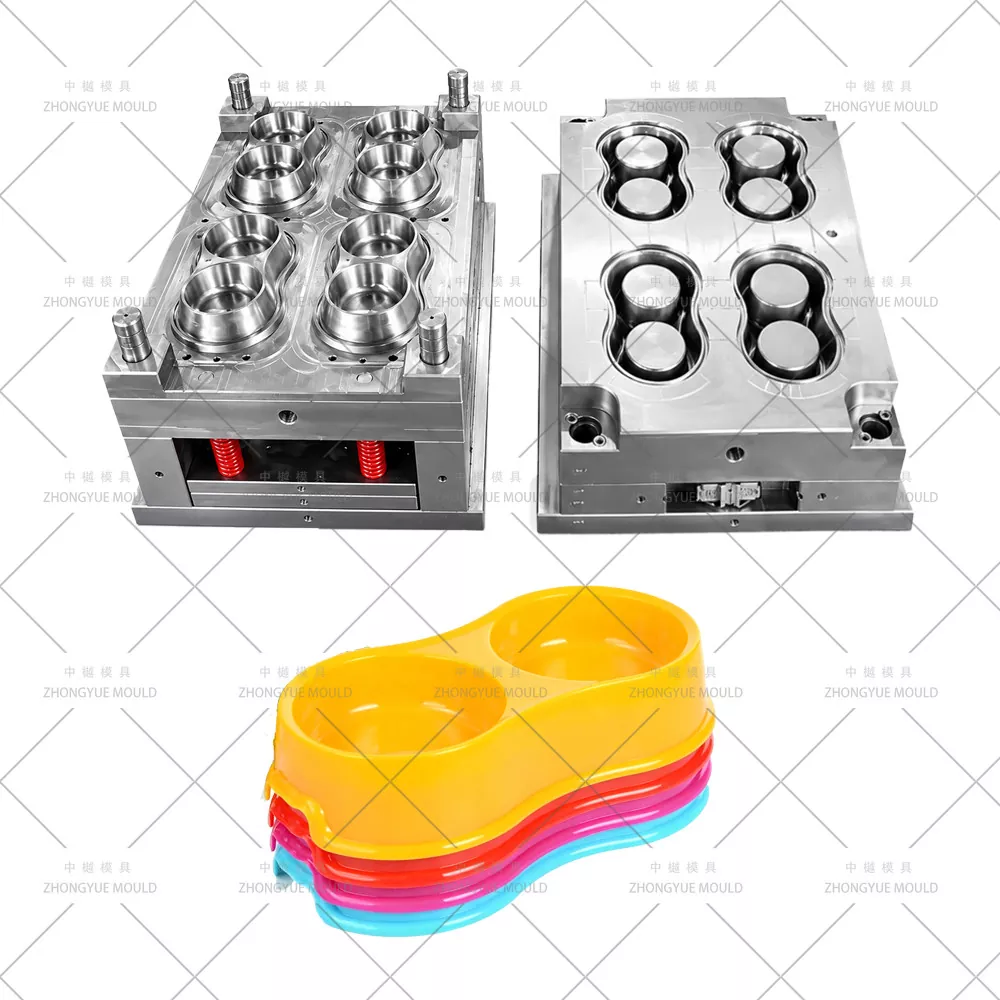

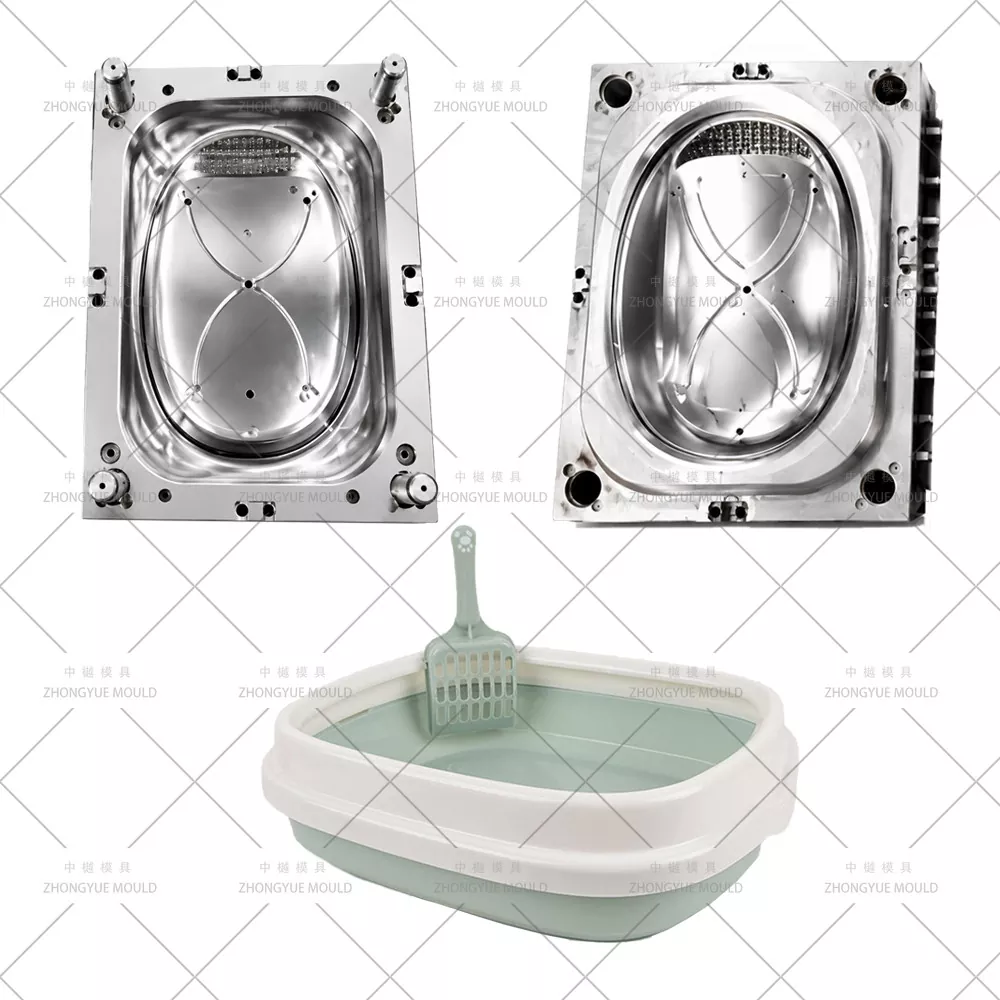

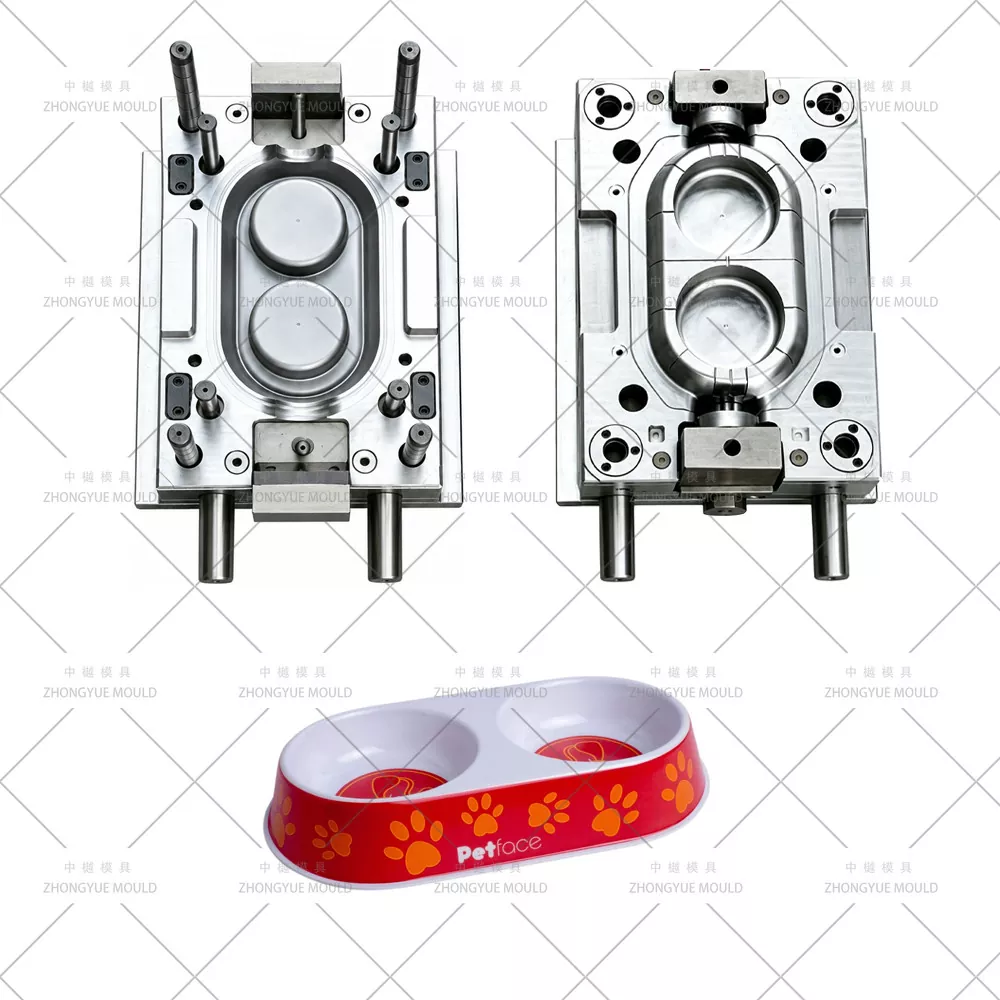

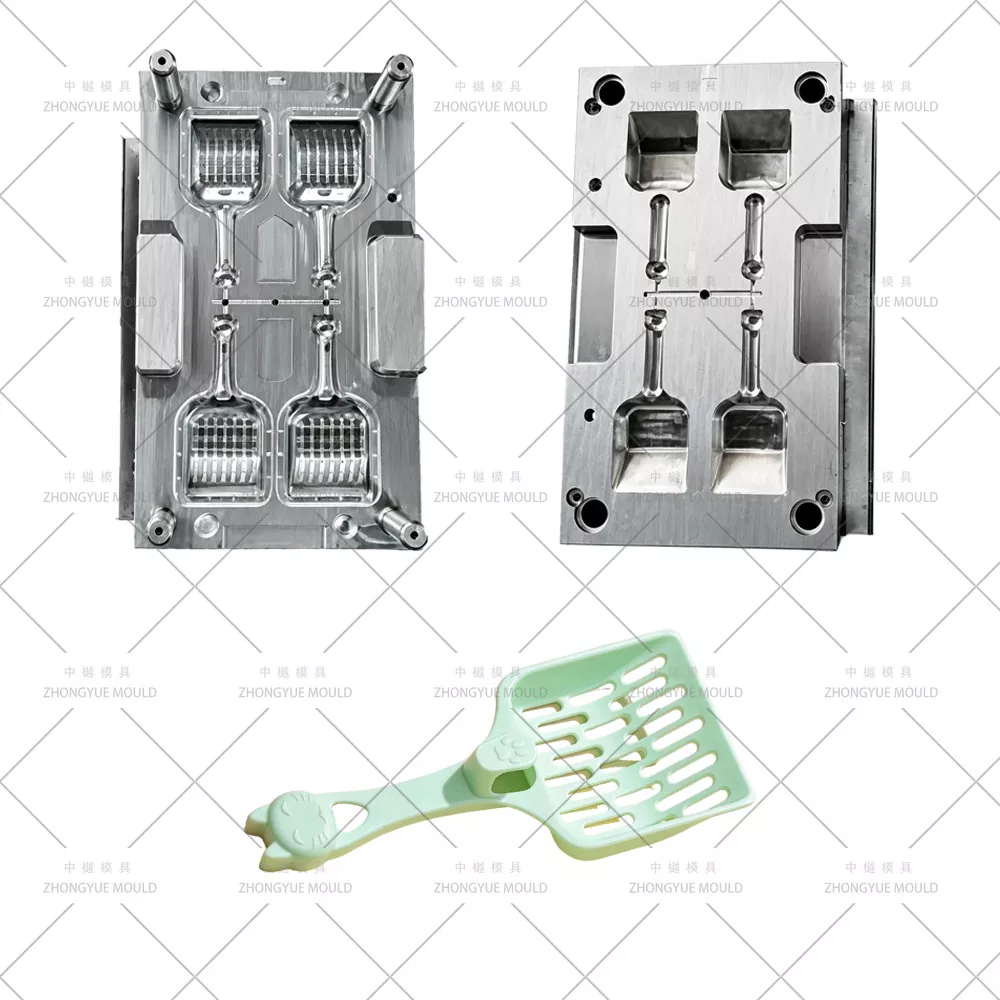

Taizhou Zhongyue Mould Co., Ltd. manufactures Plastic Pet Moulds for pet feeding bowls, water dispensers, pet storage containers, litter boxes, grooming accessories, and pet toy components.
We focus on smooth cavity surfaces, rounded edge design, and no sharp corners to ensure pet safety and reduce injury risks during daily use.
Yes. We can integrate anti-slip bottom structures and weighted base designs to improve stability during feeding or drinking.
Odor problems are often related to material selection or poor cavity finishing. We improve this by supporting pet-safe materials and high-grade polishing to reduce residue retention.
Yes. We can design molds for multi-functional products such as combined feeder and water systems or modular pet storage solutions.
We reinforce key stress areas and select impact-resistant materials to improve product lifespan under frequent pet interaction.
Backed by 50+ team numbers and 20+ CNC machines, ZHONGYUE provides full DFM reports, MoldFlow simulation, T1 trial with sample video, and worldwide spare parts support.
Contact ZHONGYUE MOULD today for a customized quotation and mold design proposal for your Plastic Pet Kennel / Dog House / Cat House Mould project.
Request a technical consultation and competitive quote for pet kennels, cat houses, carriers, or pet accessory molds.
