ZHONGYUE MOULD, based in Huangyan, Taizhou—China's Mould City—is a professional Plastic Basket Mould manufacturer. With years of hands-on experience, we design and build custom injection molds for Shopping Basket Molds, Laundry Basket Molds, Storage Basket Molds, and other perforated/vented plastic containers. Our basket molds are engineered for rapid cycling, excellent surface gloss, and long-term stability under high-pressure injection.
Basket molds require fast heat dissipation, especially around thin ribs and deep cores. We insert BeCu at the top of the core to accelerate cooling, reduce cycle time, and improve the dimensional stability and gloss of the molded basket.
Baskets have numerous bumping holes (perforations). We carefully design the parting surface and apply appropriate R-angles to prevent common defects such as hole break-through and flash (burrs), ensuring clean knock-out holes without secondary trimming.
Uniform water lines are designed on both core and cavity sides to promote even temperature distribution. This minimizes weld lines (melting lines) on visible surfaces and prevents warpage on tall/large baskets.
We typically recommend Steel 2738 (pre-hardened ~280-320 HB) for basket molds. It offers excellent polishability for high-gloss or textured finishes and delivers extended mold life under continuous high-speed, high-pressure production.
| Type | Common Uses |
|---|---|

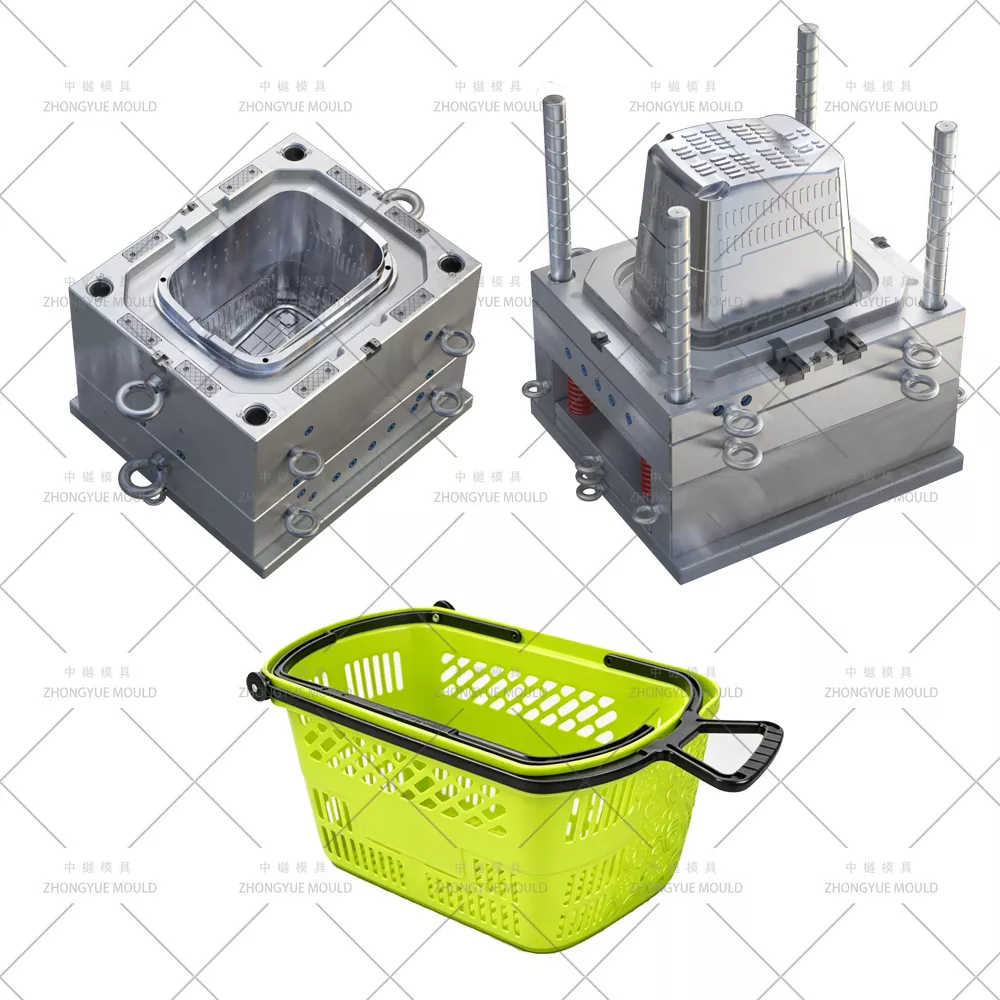

| Shopping Basket Mold | Supermarket / retail hand baskets with handle & logo area |
| Commodity Basket Mold | Ventilated hampers with cut-outs or Rattan patterns |
| Storage / Organizer Basket Mold | Home organization, vented or solid-bottom variants |
Taizhou Zhongyue Mould Co., Ltd. develops Plastic Basket Mould solutions by focusing on issues such as uneven mesh filling, weak corner strength, and deformation during high-speed cooling.
We control hole spacing, flow balance, and cavity venting to ensure uniform filling of mesh areas, preventing short shots or weak connection points in perforated designs.
Yes. By adjusting rib thickness, reinforcement layout, and material selection, we can create molds suitable for light household baskets or heavy industrial turnover baskets.
Handle cracking is usually caused by stress concentration. We improve this by strengthening handle transition areas and optimizing injection flow direction to distribute stress evenly.
Yes. We design stacking angles and edge structures precisely to ensure baskets can be stacked smoothly without sticking or deformation during transport.
Yes. We can design a mold series system so different sizes share structural logic while maintaining consistent design and stable mass production.
Cooling directly affects deformation control and cycle time. We design balanced cooling layouts to ensure stable shrinkage and reduce warpage in large basket structures.
We combine precision machining, stable steel selection, and optimized flow design to maintain consistent quality even under high-frequency production conditions.
Contact ZHONGYUE MOULD today for a technical proposal and quotation on your next Plastic Basket Mould project.
Get a tailored engineering review and competitive quotation for shopping basket molds, laundry baskets, or custom perforated containers.
