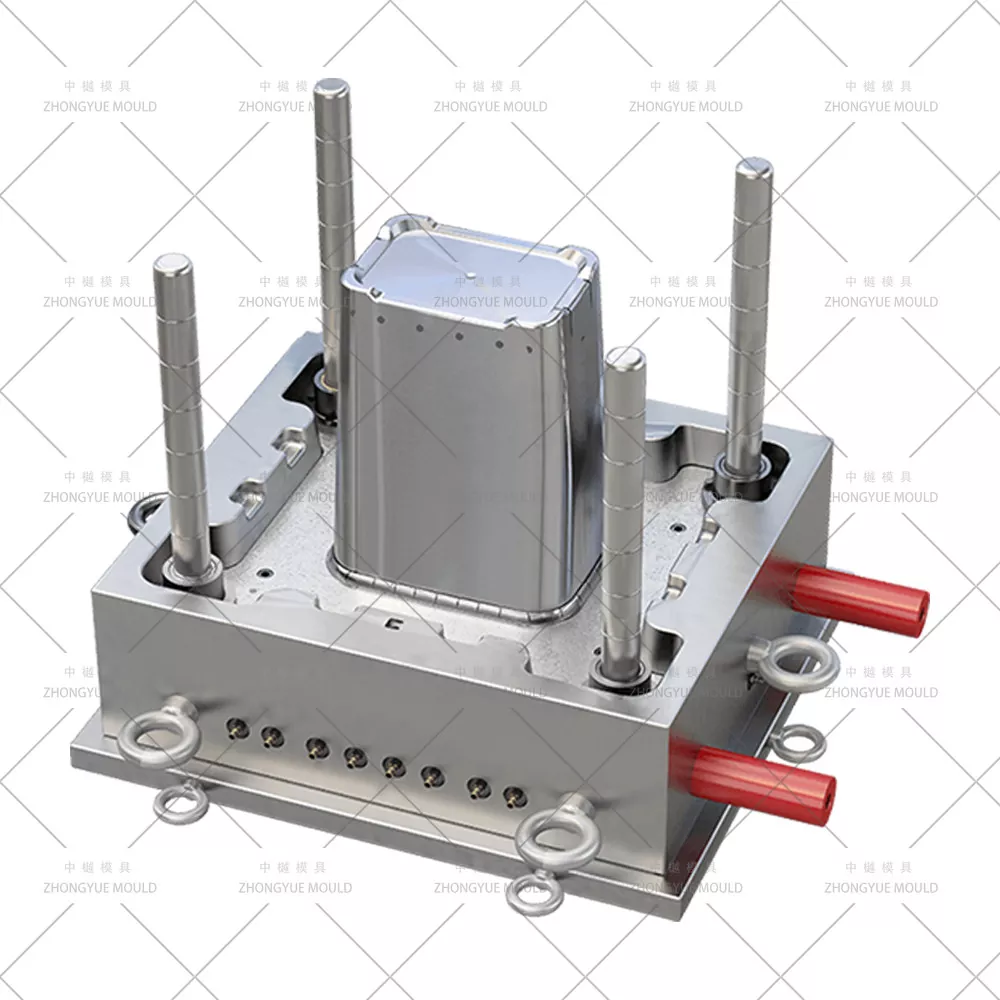

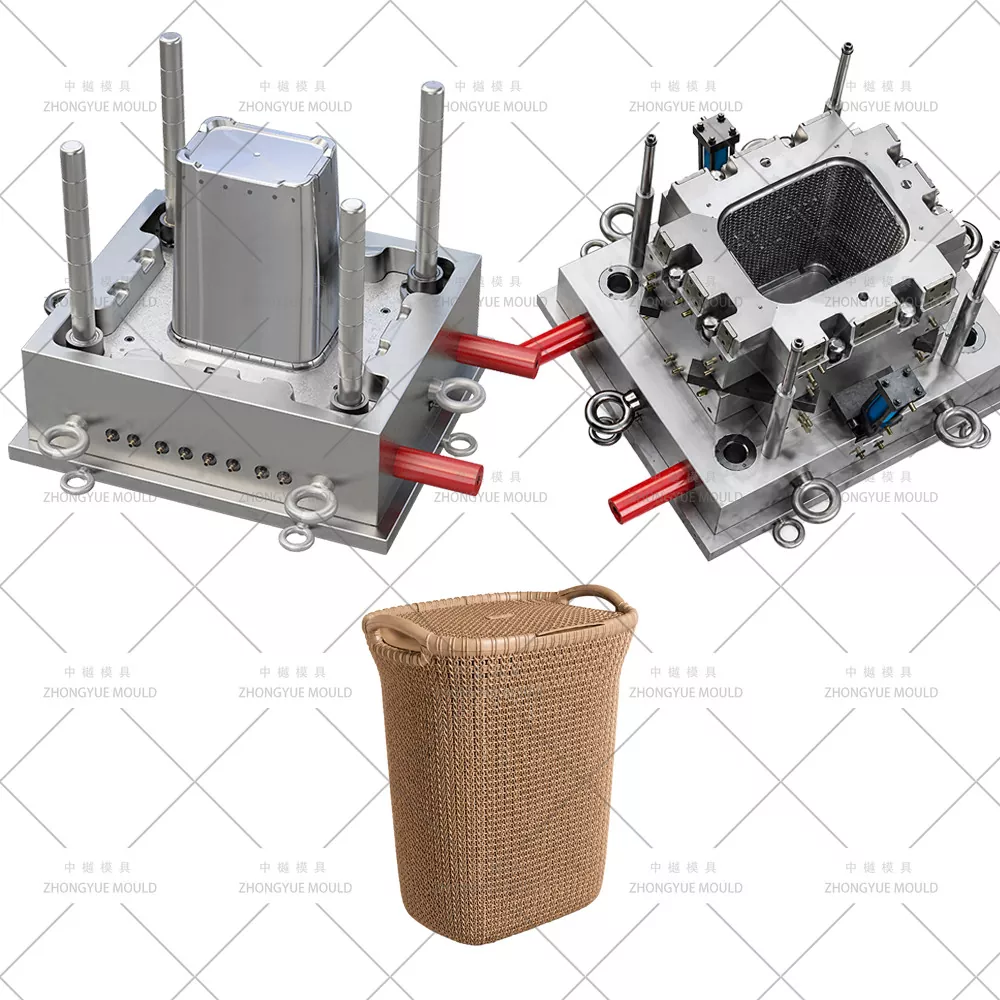

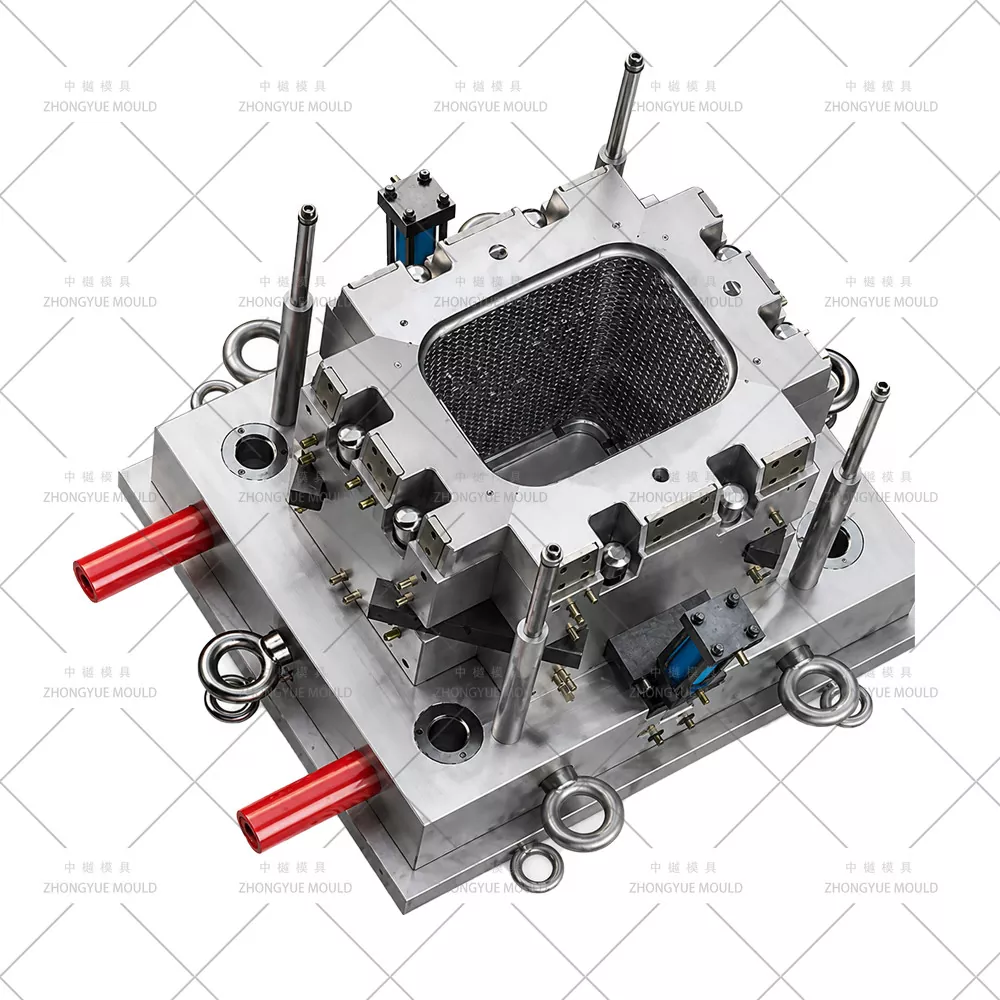

Plastic Rattan Laundry Basket Mould

Custom Plastic Rattan Laundry Basket Mould – Engineered for You

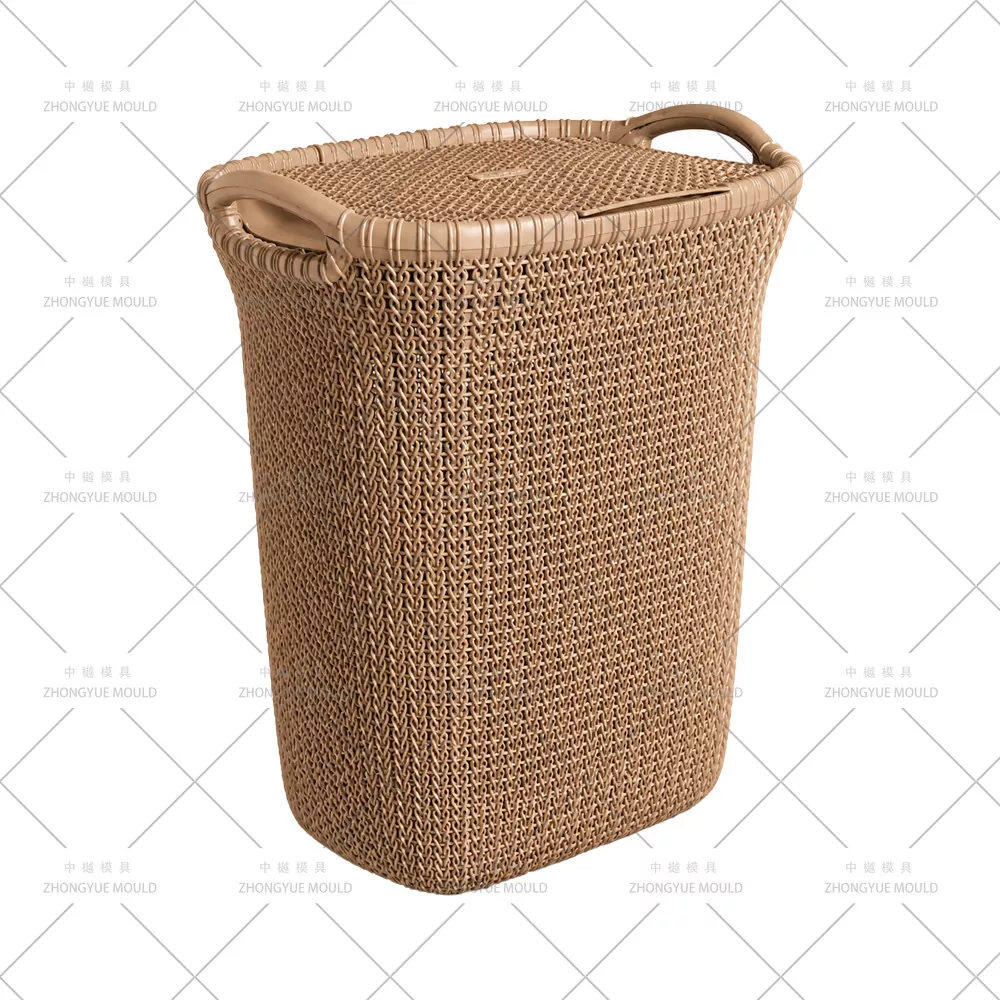

Plastic laundry baskets are essential for modern households, used for transporting both clean and dirty laundry. Depending on user habits, these baskets vary in height, structure, and lid configuration.

At Zhongyue Mould, we offer extensive experience in manufacturing fully customizable plastic laundry basket injection moulds:

Lid Options: Moulds for with-lid or open-top designs.

Handle Configurations: Side handles or sleek, handle-free structures.

Structural Variety: Standard-height or tall, space-saving profiles.

Every Mould is tailored to your market requirements. Looking for a reliable partner for high-quality laundry moulds, Contact our engineering team today.

Plastic Laundry Basket Mould specifications :

Make your next Plastic Laundry Basket Mould project brighten!

Your Expert Partner in Laundry Basket Mould Manufacturing

Technical Deep Dive: Gate Positioning & Design

The location of the gate is critical to the flow of polymer into the Laundry Basket Mould cavity. Several factors must be considered:

Aesthetics: Avoiding visible gate marks on cosmetic surfaces.

Degating Requirements: Ease of separating the part from the runner.

Weld Lines & Gas Traps: Predicting and relocating weld lines to non-critical areas.

Polymer Nature: Flow rate and shear sensitivity of the material.

Two-Plate vs. Three-Plate Moulds

Two-Plate Moulds: The Mould separates into two main halves along a single parting line. Gates must be located on this plane.

Three-Plate / Runnerless Moulds: Used when gate locations fall outside the scope of a two-plate design, allowing for pinpoint gating anywhere on the part.

Understanding Two-Plate Injection Moulds

If the Mould separates into two main pieces along the Mould split line, it is referred to as a two-plate injection Mould.

Key Components:

Sprue: A tapered channel where molten plastic enters from the machine nozzle.

Runners: Channels that distribute plastic from the sprue to each cavity.

Gate: A narrow restriction between the runner and the cavity. Its small size allows the Moulded part to be easily broken away from the runner system.

Ejection System:

The Mould is designed to retain the Moulded part in the moving half (due to cost and convenience).

A sprue puller (with a re-entrant shape) helps dislodge the sprue from the sprue bushing.

The cold slug well catches the first, cooler shot of plastic from the nozzle tip.

The ejector system activates to clear the Mouldings and runners.

Temperature Control:

For thermoplastics, water circulates through cooling channels to control Mould temperature.

For thermosets, electrical resistance elements are used.

Why Choose Our Moulds?

Premium Materials: Utilizing high-grade steel for durability.

Advanced Techniques: Precision CNC machining for smooth finishes and crisp details.

Customization: Options for ventilation holes, handles, lids, and multi-cavity layouts.

How we processing the project?

About us

Driven by the philosophy:

“Quality Makes the Future, Focus Creates Professional”

Zhongyue Mould is a leading company in the plastic injection air conditioner Cover mould industry. Our highly experienced team of engineers and designers have many decades of combined experience in plastic air conditioner Cover mould design and manufacturing. We provide a comprehensive service, specializing in the production of high-quality and high-precision air conditioner Cover moulds. We have also assisted numerous customers in customizing various types of plastic air conditioner Cover moulding lines.

We can also offer comprehensive assistance in the management of your production process. The procurement department will purchase high-quality raw materials, while the technical department will select the appropriate plastic formula. In accordance with the parameters of the plastic air conditioner Cover mould life requirements and market positioning, we will select the most suitable plastic air conditioner Cover parameters, structure, etc. Our extensive production capacity allows us to deliver plastic air conditioner Covers promptly, at competitive prices and with guaranteed quality.
