What Is a Storage Organizer Basket Mould?

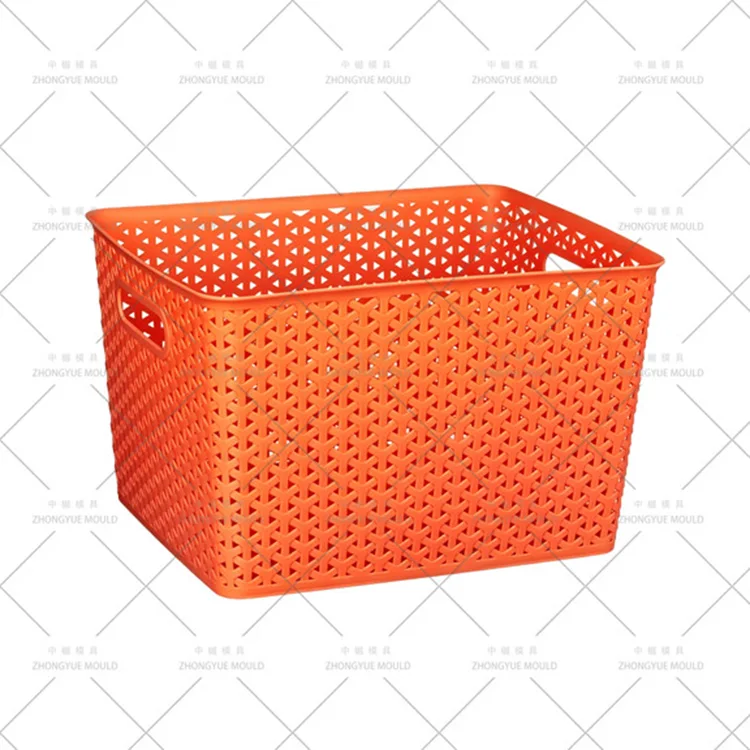

A Storage Organizer Basket Mould is a tool designed to create ventilated, lightweight containers:

Open Grid / Mesh Structure — Walls are not solid; they consist of a network of ribs forming squares, diamonds, or slots. This creates undercuts that standard ejection cannot handle.

Thin Rib Sections — Grid ribs are typically 1.0–2.0mm thick. Filling these thin sections requires high injection speed and pressure.

Ventilation Slots — Large openings for airflow mean less surface area contacting the mold, making cooling fast but ejection tricky.

Integrated Handles — Often feature side handles that are thin and prone to snapping if ejected incorrectly.

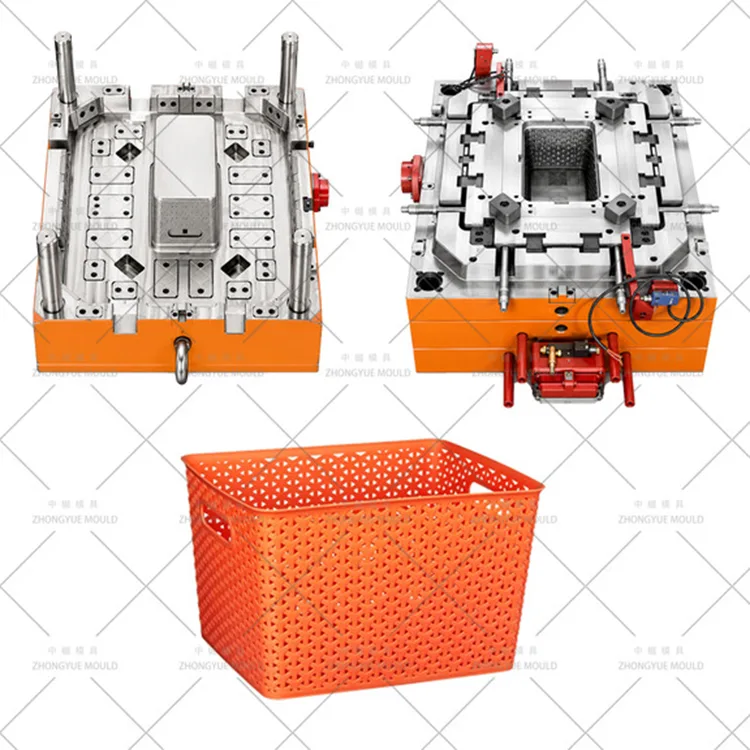

Key Mold Engineering Highlights (Grid Basket Mold)

Extreme Venting Design (The #1 Priority)

Air gets trapped easily in grid pockets. We incorporate 0.01–0.015mm parting-line vents around every grid cell and sintered porous steel vent inserts at the end of long ribs. Without this, the mold will burn the plastic before the grid fills completely.

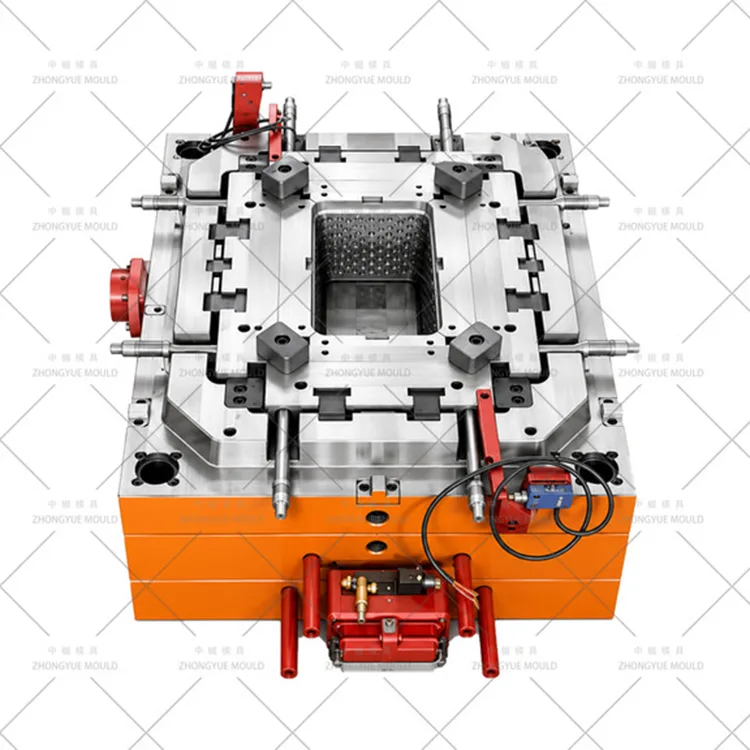

Two-Step Ejection / Stripper Plate Mechanism

Because the grid acts as an undercut, we often use:

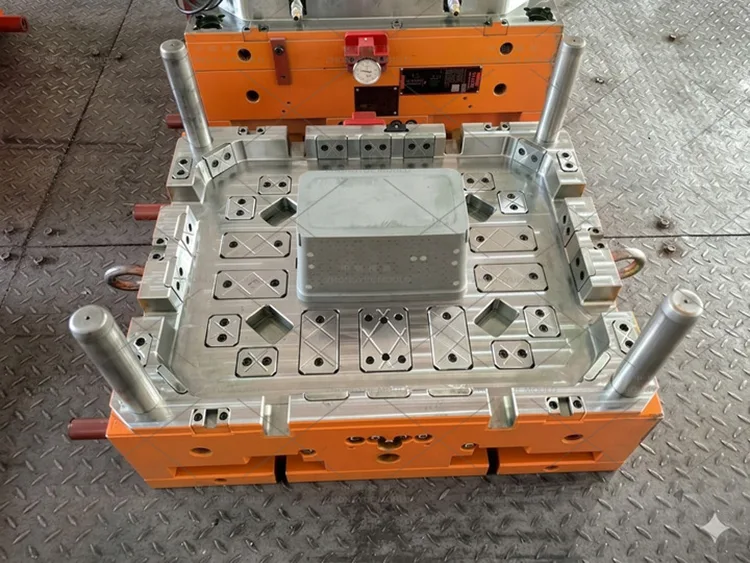

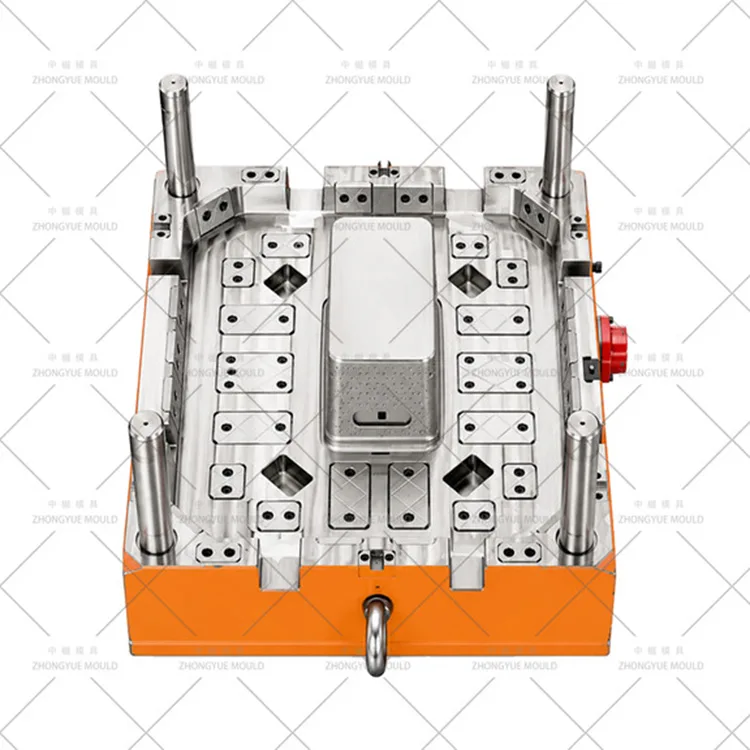

Stripper Plate: A plate that pushes the entire basket off the core uniformly, preventing grid distortion.

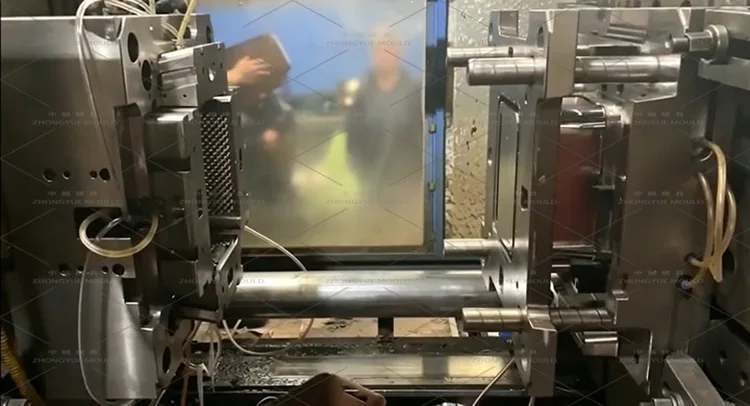

Two-Step Ejection: First, ejector pins push the basket slightly; then, a stripper plate completes the demolding. This reduces stress on individual grid ribs.

Grid Fill Simulation (Moldflow)

Thin ribs are hard to fill. We use Moldflow analysis to determine the exact gate location (usually a fan gate or multiple gates) to ensure all grid cells fill simultaneously without weld lines in the center of the mesh.

Rib Root Thickness Control

Where the thin grid ribs meet the solid base or rim, thick sections can form. We design gradual thickness transitions (30–45° tapers) to prevent sink marks on the visible outer surface of the basket.

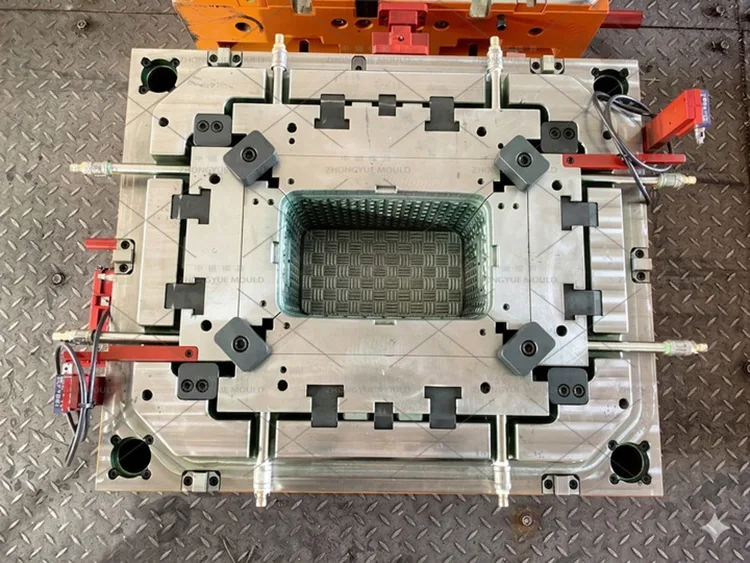

Handle Undercut Solutions

Side handles often have undercuts. We use small angled lifters or design the handle with sufficient draft so the PP material can flex over the core (flexible ejection).

Multi-Cavity Efficiency

These are high-volume items. We design 2-cavity, 4-cavity, or even 8-cavity molds with balanced Y-branch runners to maximize output.

Our Manufacturing & Validation Process (Basket Mold)

Grid Fill & Venting DFM — Analyze grid rib thickness (1.0–2.0mm). Run Moldflow to simulate fill and identify air trap locations. Design venting strategy. Free DFM report.

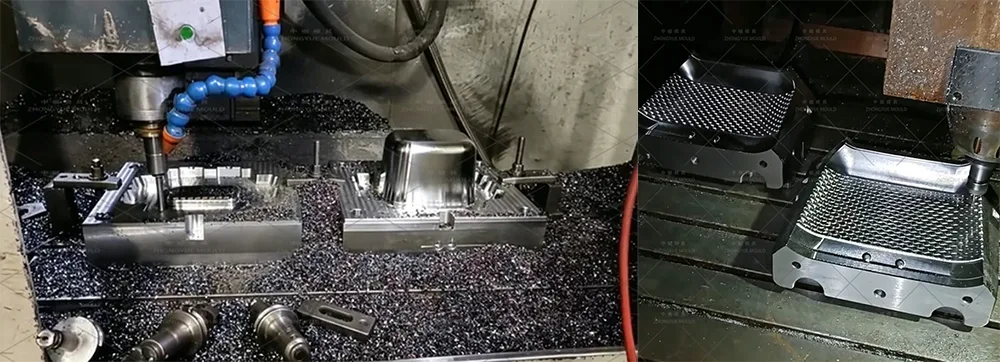

Stripper Plate Machining — Precision grind the stripper plate gap to ensure it clears the grid ribs without snagging.

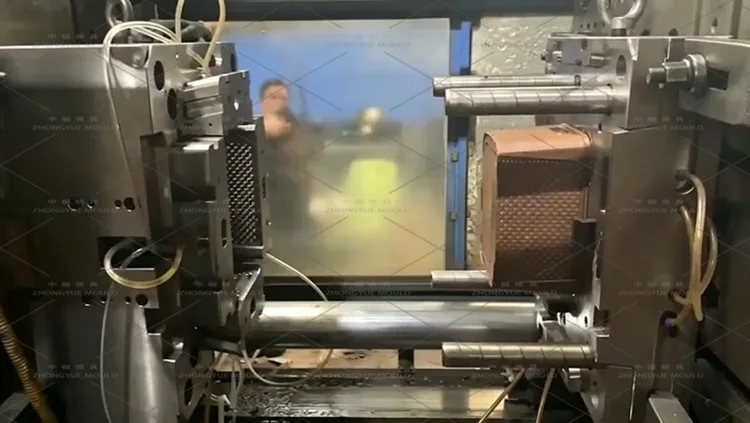

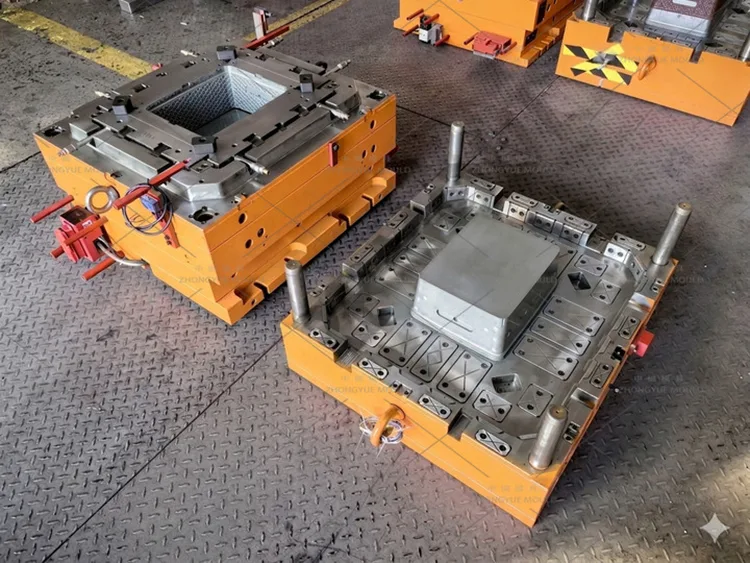

Assembly & T1 Trial — Run on in-house machine. Perform grid integrity test (manually flex the grid to ensure no breaks). Check for short shots or burn marks. Supply trial video + samples.

Optimization & Approval — Adjust venting or ejection speed if grid shows stress. Prepare mold for shipment.

After-Sales Support — 1-Year warranty, remote technical guidance, and spare parts (stripper plate springs, ejector pins).

Why Choose ZHONGYUE MOULD for Your Storage Basket Mold?

Grid Structure Experts — We understand the unique filling and ejection challenges of open mesh designs.

Venting Specialists — Our molds include advanced venting (porous steel) to prevent burn marks in thin ribs.

Safe Ejection Design — We use stripper plates and two-step ejection to prevent breaking the fragile grid during demolding.

High Cavitation — Proven experience in 2, 4, and 8-cavity layouts for maximum productivity.

Quality Assurance — We test grid strength and fill integrity during T1 trials.

Frequently Asked Questions — Storage Organizer Basket Mould

Q: Why do grid baskets often have burn marks?

A: Because air gets trapped in the small grid cells. We solve this with extensive venting (0.01mm parting lines + porous steel inserts).

Q: How do you eject a basket that is mostly holes?

A: You can't use standard pins (they would poke through the holes). We use a stripper plate that pushes the entire rim at once, or a two-step ejection system.

Q: Can you make multi-cavity molds for these?

A: Yes, for sizes under 300mm, we often do 2-cavity or 4-cavity molds. For larger laundry baskets, 1×1 is standard.

Q: What material is best for grid baskets?

A: PP (MFR 10–20) is best because it is flexible enough to release from the grid undercuts without snapping. ABS is too brittle for complex grids unless the draft is very high.

Q: What do you need for a quotation?

A: 2D drawing (PDF/DWG) + 3D model (STP/IGS) of the basket, specifying size, grid pattern, material, and desired cavities.

Request a Quote for Your Plastic Storage Organizers Baskets Mould

Send your basket drawings or specifications to ZHONGYUE MOULD. We will provide a comprehensive DFM analysis (covering grid fill, venting, and ejection) + formal quotation within 24–48 working hours.

Contact us today to optimize your storage basket production with a high-efficiency Grid Basket Injection Mold!
