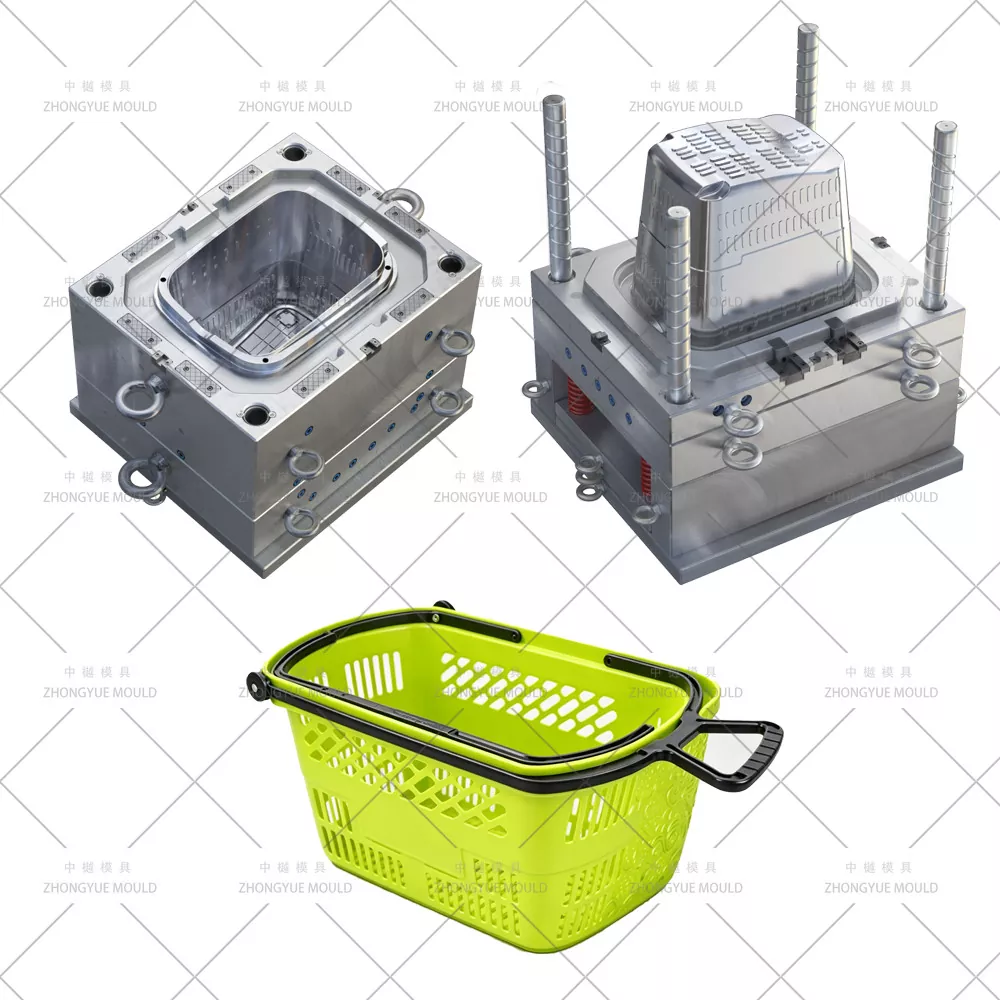

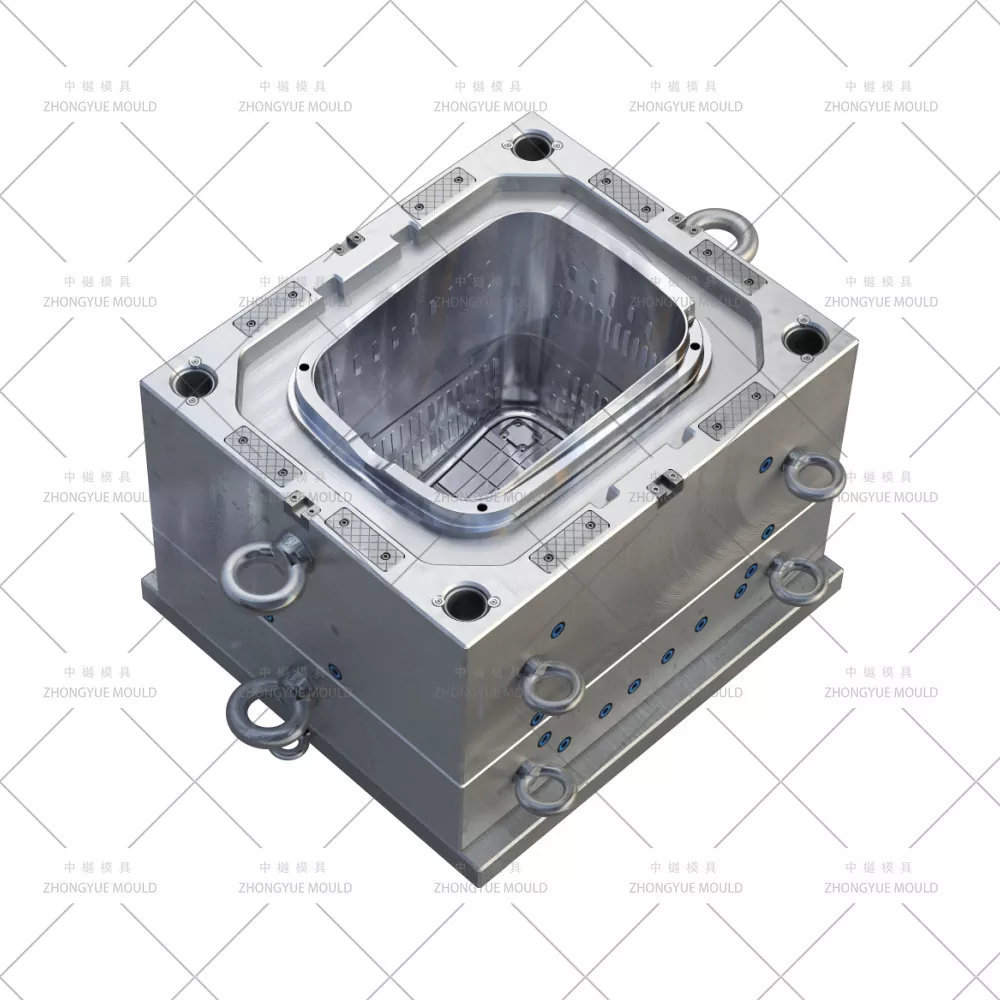

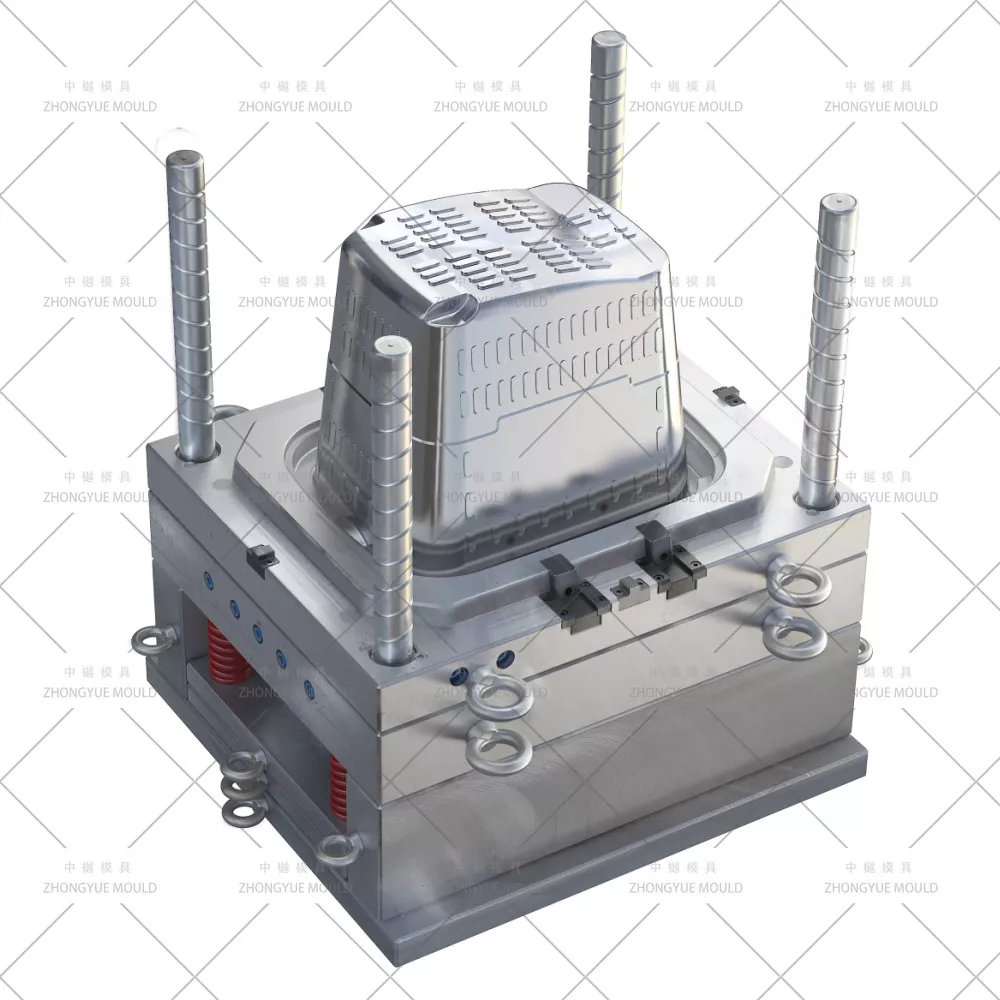

Plastic Supermarket Shopping Basket Mould

Plastic Supermarket Shopping Basket Mould – one-stop solution from Zhongyue Mould. Features: Mouldflow analysis, 45-day delivery, DIN/ISO standards. OEM/ODM. Request DFM, MOQ, lead time & price list. Send RFQ for a quote today!

Send Inquiry

Product Description

One-Stop Supermarket Basket Mould Solution

Zhongyue Mould is a leading supplier and exporter specializing in Plastic Supermarket Shopping Basket Moulds. We provide a comprehensive, turnkey solution covering:

Product Design & 3D Modeling

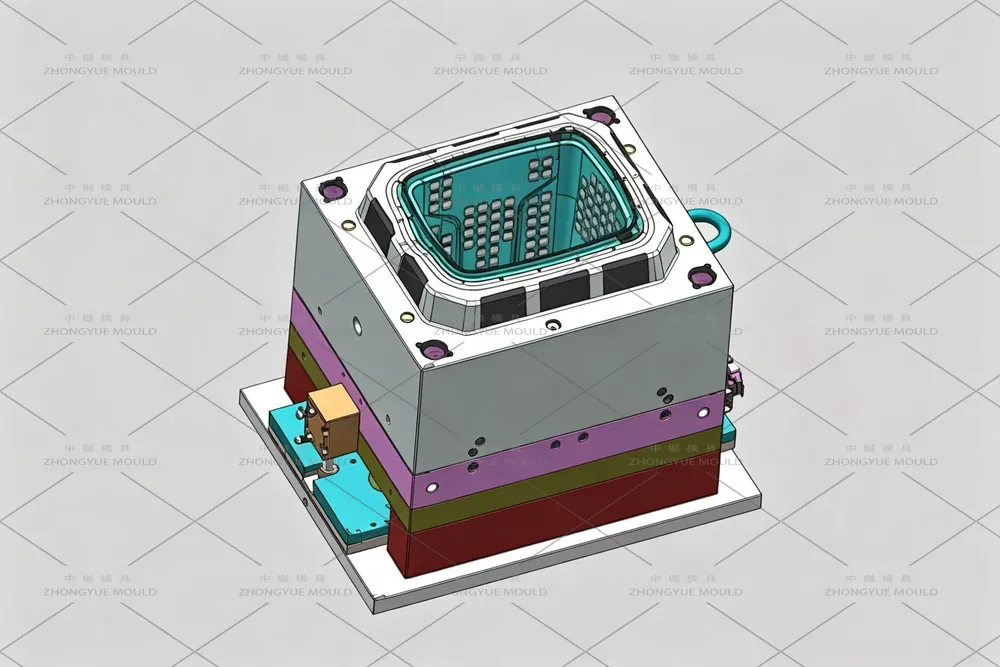

Precision Mould Design (completed within 24 hours)

Mould Manufacturing (45-day delivery)

Mass Production & Secondary Processing

Our goal is to deliver high-quality, fast-cycling Moulds that ensure consistent product appearance and maximize your production efficiency.

Specifications :

Mould Name	Plastic Supermarket Shopping Basket Mould
Mould Meterial	P20,2738,718H,NAK80,2316,S136,H13,etc

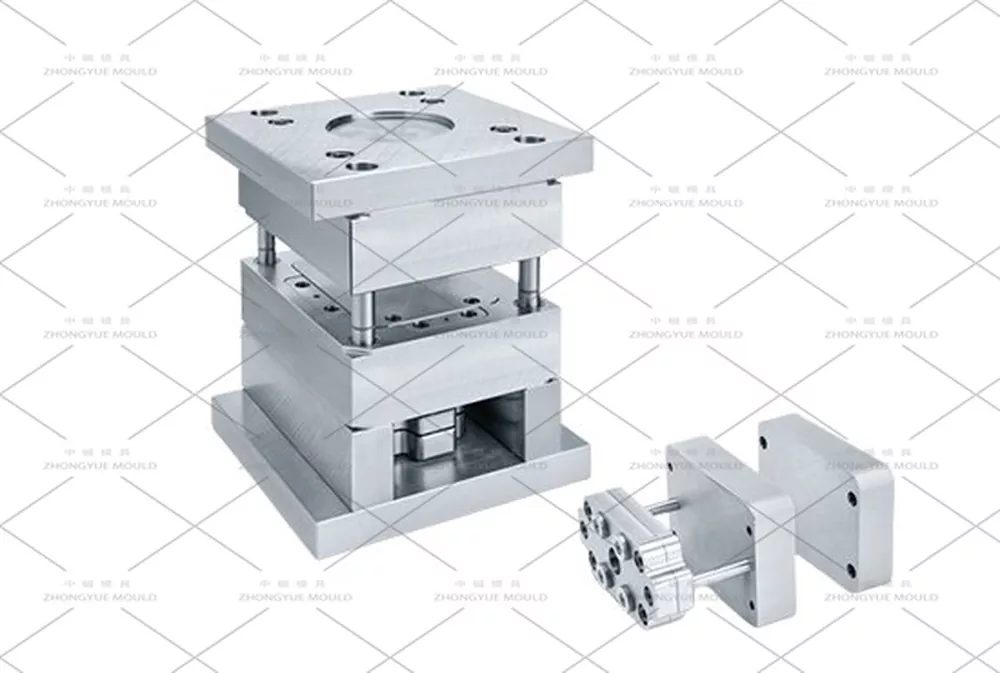

Mould Base	Self-made,LKM,DME,ASSAB
Cavity	Single/multi
Runner	Cold runner and hot runner
Hot Runner Brand	Master, HUSKY,YUDO,etc.
Degsin Software	UG:Aoto CAD and so on
Mould Life	50-100 million Shots/ 5-6 years, Even in 10 years in good maintenance
T1 Time	25-60 days
Plastic Material	PP
Gate Type	Pinpoint Gate, Edge Gate, Sub Gate, Film Gate, Valve Gate, Open Gate, etc.
Mould Surface Treatment	EDM, texture, high gloss polishing
Quality System	ISO9001
HS Code	8480719090
Origin	Huangyan Zhejiang China
Package	Wooden Case
Mould material	Hardness	Mould life
P20	HRC 28-33	>300,000 shots
718	HRC 33-36	>500,000 shots
H13	HRC >43	>800,000 shots
2344	HRC >48	>800,000 shots
S136	HRC 48-52	>1,000,000 shots

Make your next plastic Basket Mould project brighten!

The Zhongyue Manufacturing Advantage

1. Advanced Equipment for Precision

We utilize a full range of world-class machinery to ensure micron-level accuracy:

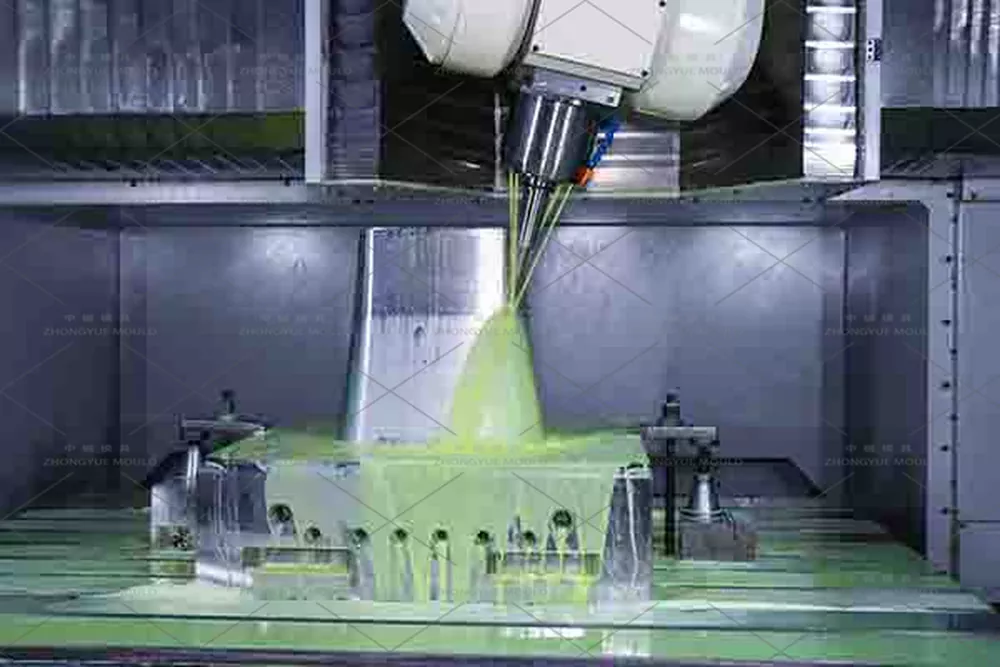

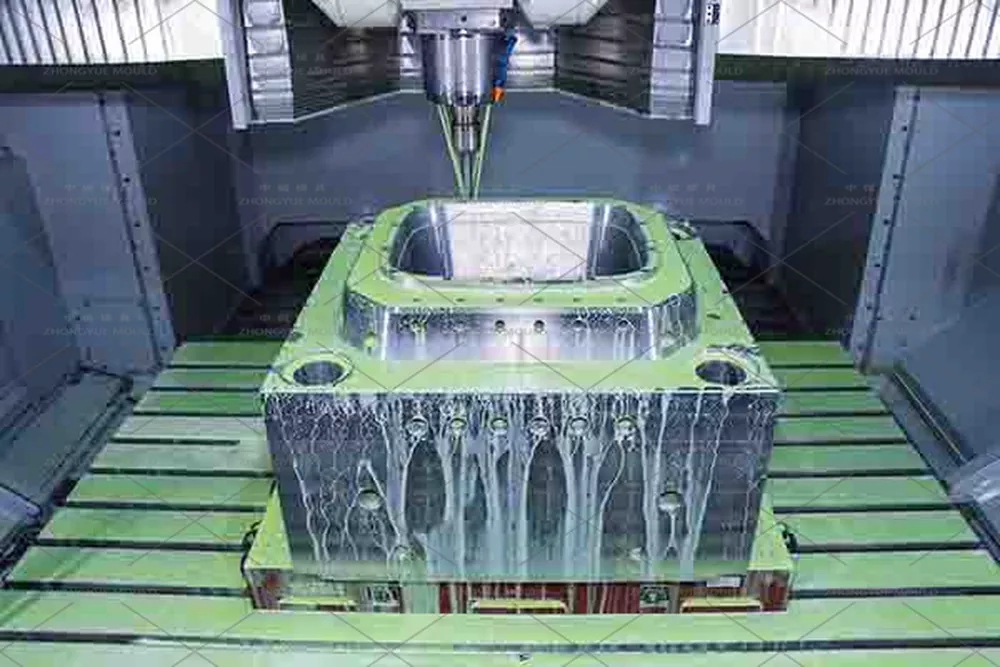

CNC Machining Centers

Large Gantry Milling Machines

CNC Engraving Machines

EDM & Wire-Cutting Machines

2. Mouldflow Analysis: Engineering Before Machining

Every Mould undergoes rigorous Mould flow Analysis to eliminate defects before production:

Analysis Type	Benefit
Flowability Analysis	Determines if the component can be filled and optimizes injection pressure.
Filling Problem Analysis	Identifies risks of short shots, bubbles, and uneven filling.
Deformation Prediction	Predicts warpage and suggests design changes to minimize it.
Cooling Efficiency Check	Optimizes cooling circuits to reduce cycle time.
Weld Line Repair	Predicts weld line locations and optimizes gate placement for better quality.

Key Technical Specifications & Standards

We adhere to strict international standards (DIN/ISO) to ensure Mould compatibility and longevity.

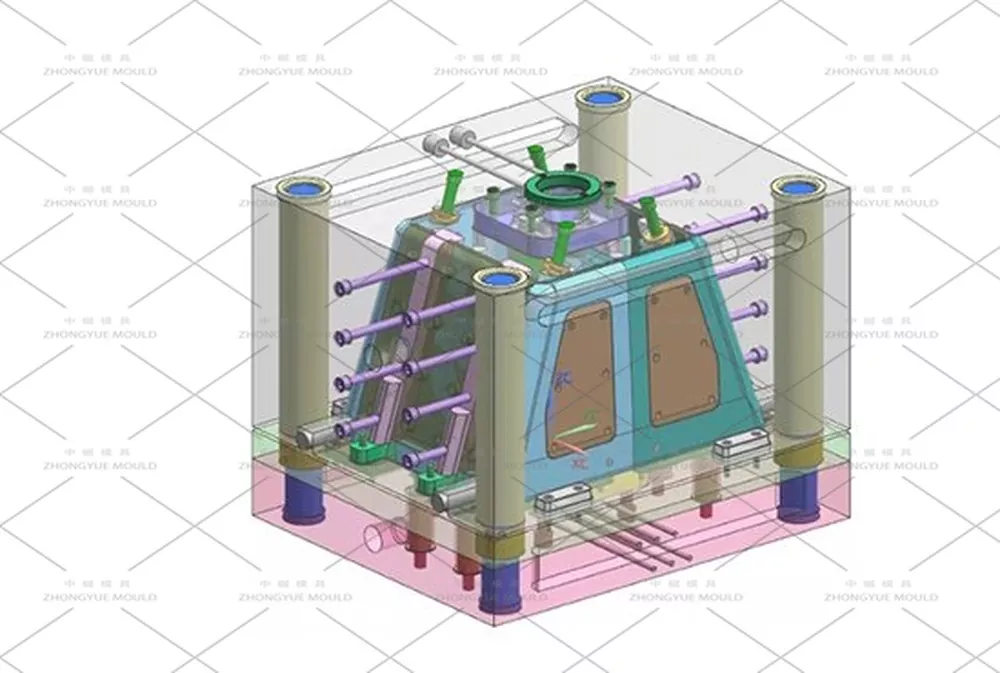

1. Cooling System Design

A complex but critical task. We ensure:

Optimal Location: Cooling channels are placed near critical components (cores, sliders).

Uniformity: Circulating water throughout the Mould reduces cooling time and production costs.

Efficiency: Optimized design for faster cycle times.

2. Premium Mould Steel

To extend Mould life for high-volume production, we exclusively use genuine steel from reputable suppliers:

Brands: LKM, SCHMOLZ + BICKENBACH, Gröditz.

Application: Essential for Moulds weighing over 8 tons.

3. Strict Mould Assembly Standards

Our assembly process follows precise guidelines:

Component	Standard Requirement
Locating Ring	Raised 10mm above the roof; fixed with ≥2 screws.
Polishing	Gate bushing and runner polished with 600# sandpaper (no sharp edges).
Markings	Stamped Mould number (lower right), IN/OUT for water, O IN/O OUT for oil.
Support Feet	Installed to protect the Mould bottom.
Chamfering	All edges >1.5mm (except special areas).
Screws	M12 and above must be Grade 12.9; no stripped threads allowed.

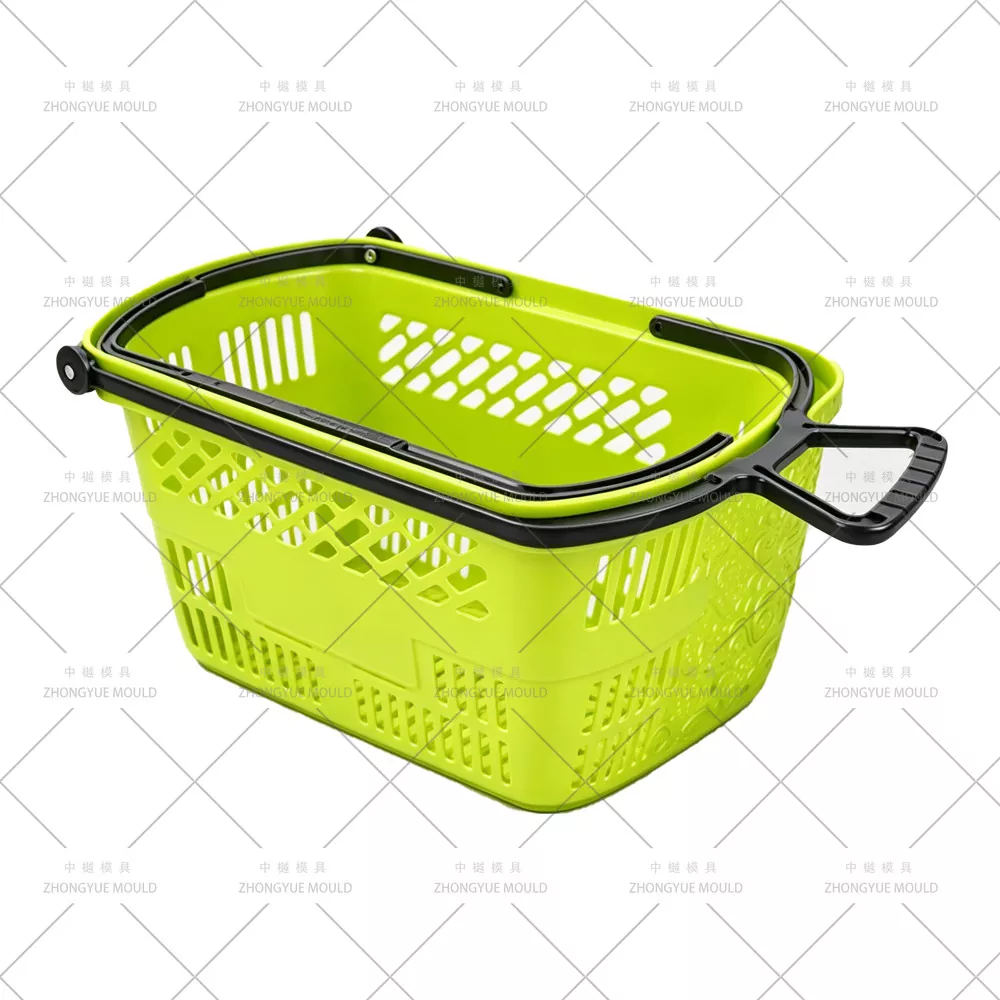

Versatile Basket Design Options

Our Moulds produce multifunctional baskets perfect for various applications:

Ergonomics: Fold-down handles for easy stacking and carrying.

Durability: Thickened wall design for high load-bearing (up to 10 kg) and wear resistance.

Material: Typically uses Polypropylene (PP) – non-toxic, easy to clean, and environmentally friendly.

Applications: Shopping, laundry, gardening, kitchen storage, camping, and beach trips.

Quality Assurance Process

We understand the importance of precision. Every Mould order undergoes rigorous inspection:

Pre-Delivery Drawing Review: Ensuring you have the latest version.

Raw Material Inspection: Verifying steel certificates upon arrival.

Electrode Inspection: Using CMM machines for accuracy.

T1 Trial Report: Providing a complete dimensional measurement report.

Final Shipment Check: Ensuring all documents and spare parts are included.
