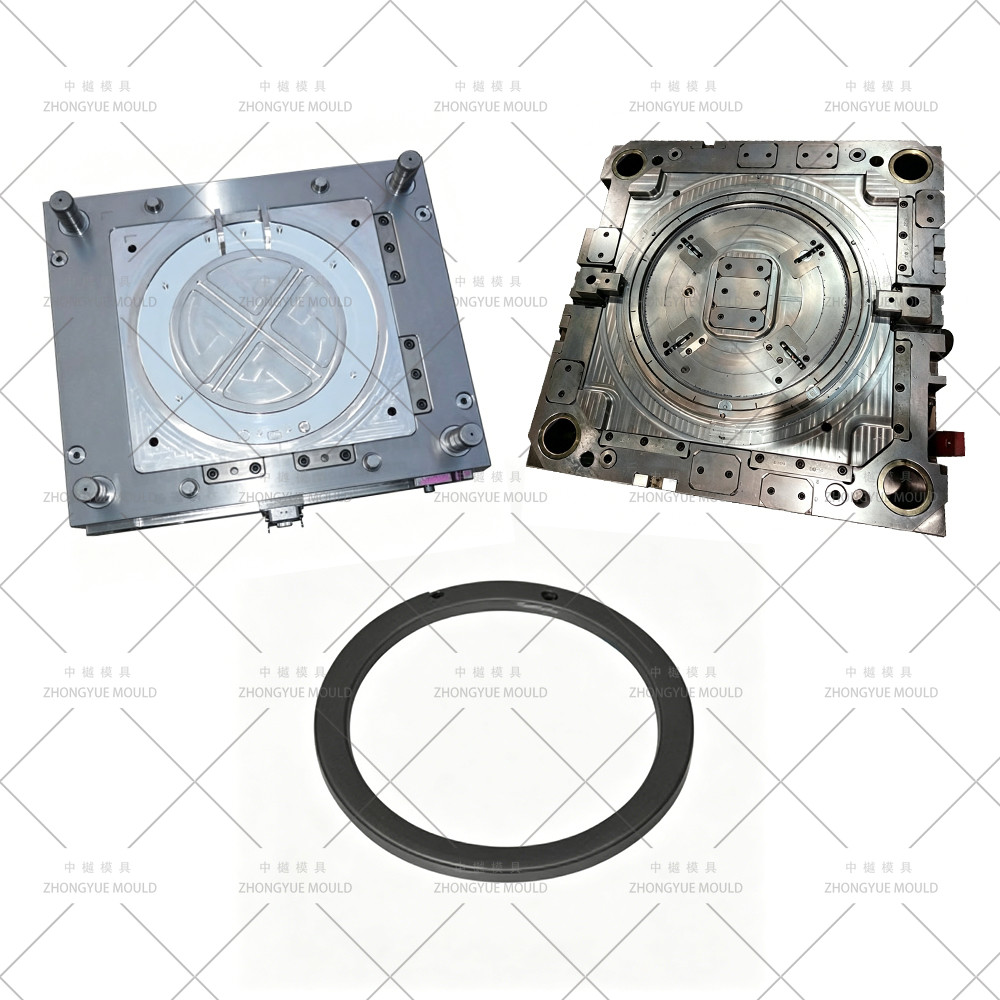

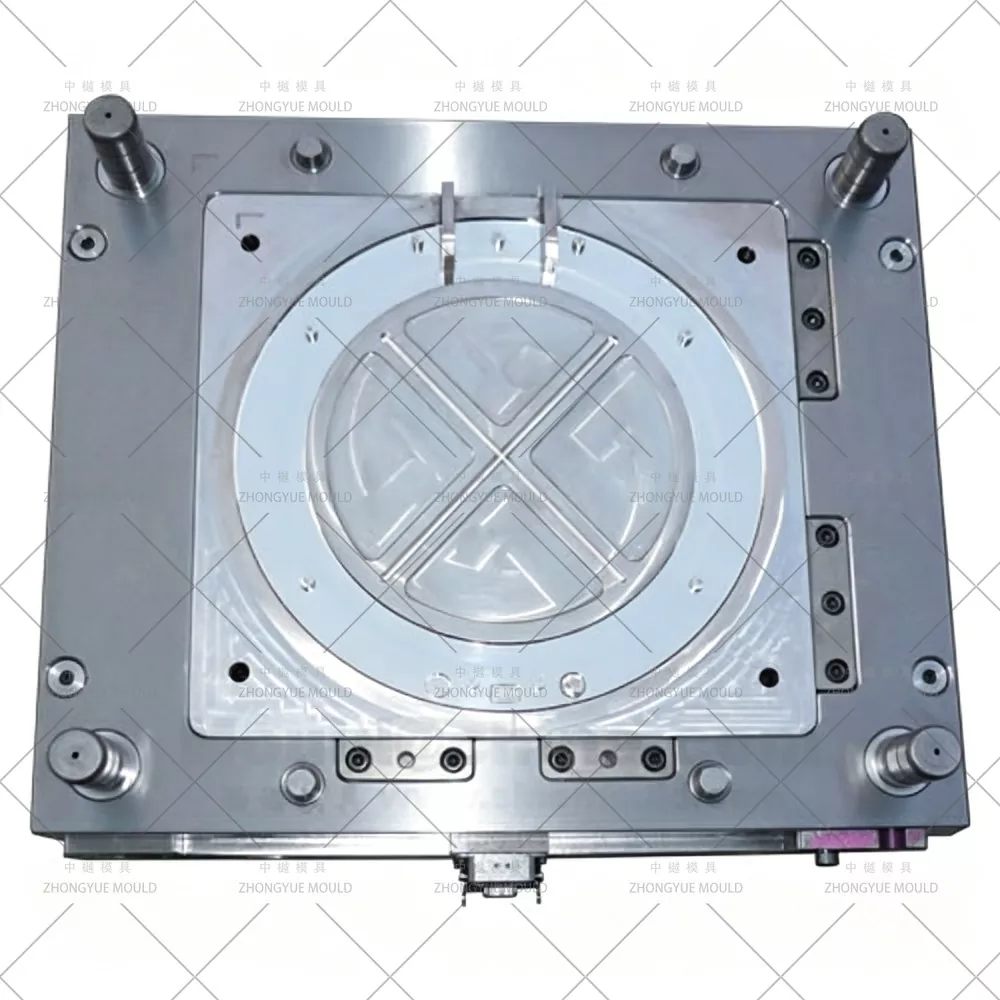

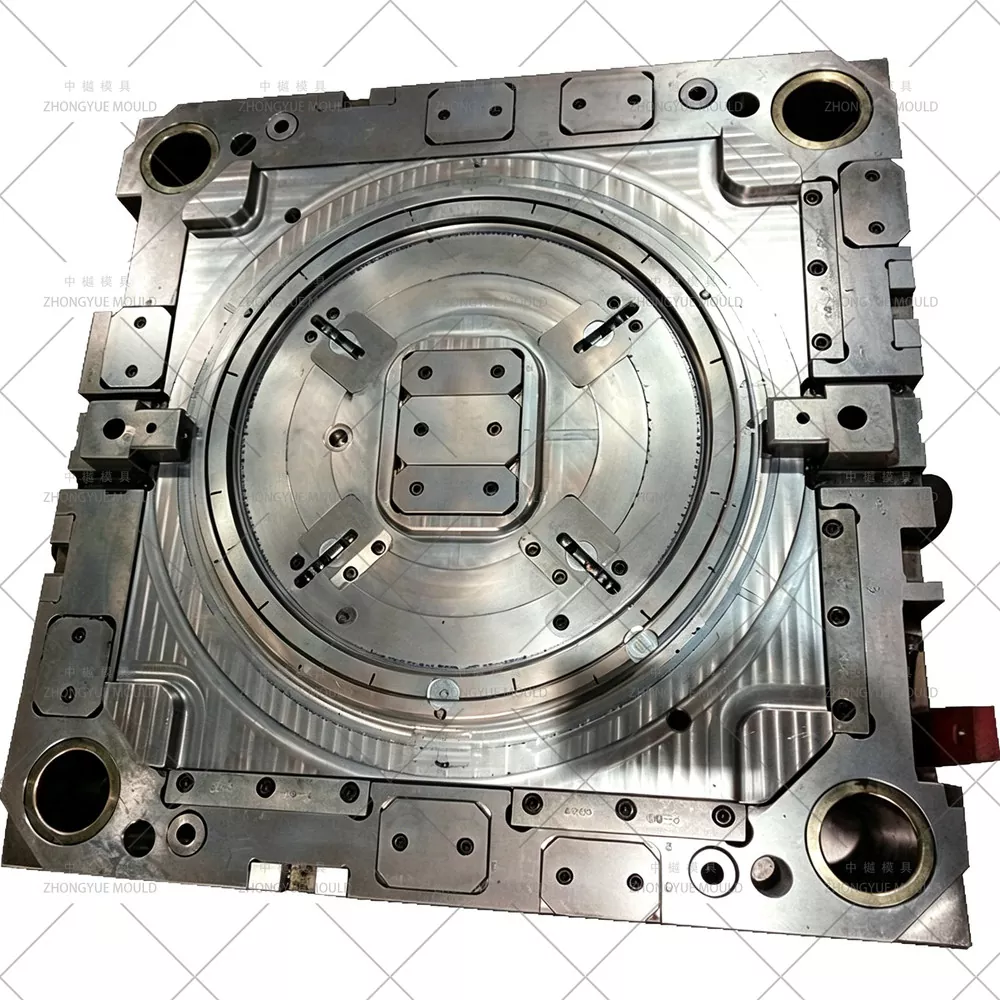

Zhongyue Mould is based in Taizhou, China – one of Asia's largest mould industrial areas. We make plastic injection moulds for washing machine parts, including the Plastic Washing Machine Balance Ring Mould – built for precision, durability, and cost-effective production.
|
Mould Name |
Plastic Washing Machine Balance Ring Mould |
|
|
Mould Meterial |
P20,2738,718H,NAK80,2316,S136,H13,etc |
|
|
Mould Base |
Self-made,LKM,DME,ASSAB |
|
|
Cavity |
Single/multi |
|
|
Runner |
Cold runner and hot runner |
|
|
Hot Runner Brand |
Master, HUSKY,YUDO,etc. |
|
|
Degsin Software |
UG:Aoto CAD and so on |
|
|
Mould Life |
50-100 million Shots/ 5-6 years, Even in 10 years in good maintenance |
|
|
T1 Time |
45-60 days |
|
|
Plastic Material |
PC ABS |
|
|
Gate Type |
Pinpoint Gate, Edge Gate, Sub Gate, Film Gate, Valve Gate, Open Gate, etc. |
|
|
Mould Surface Treatment |
EDM, texture, high gloss polishing |
|
|
Quality System |
ISO9001 |
|
|
HS Code |
8480719090 |
|
|
Origin |
Huangyan Zhejiang China |
|
|
Package |
Wooden Case |
|
|
Mould material |
Hardness |
Mould life |
|
P20 |
HRC 28-33 |
>300,000 shots |
|
718 |
HRC 33-36 |
>500,000 shots |
|
H13 |
HRC >43 |
>800,000 shots |
|
2344 |
HRC >48 |
>800,000 shots |
|
S136 |
HRC 48-52 |
>1,000,000 shots |
Make your next Washing machine Mould project brighten!
Designing a high-precision washing machine balance ring mould requires a deep understanding of both the component's function and plastic injection technology. At Zhongyue Mould, we follow a rigorous, data-driven design process to ensure optimal performance and durability.

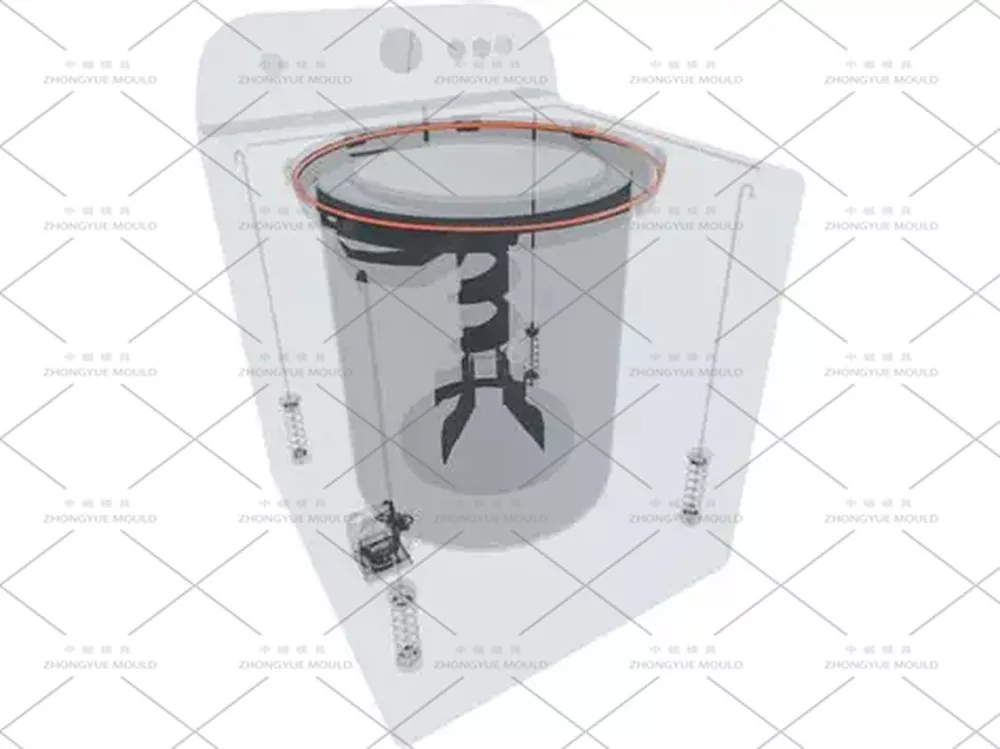

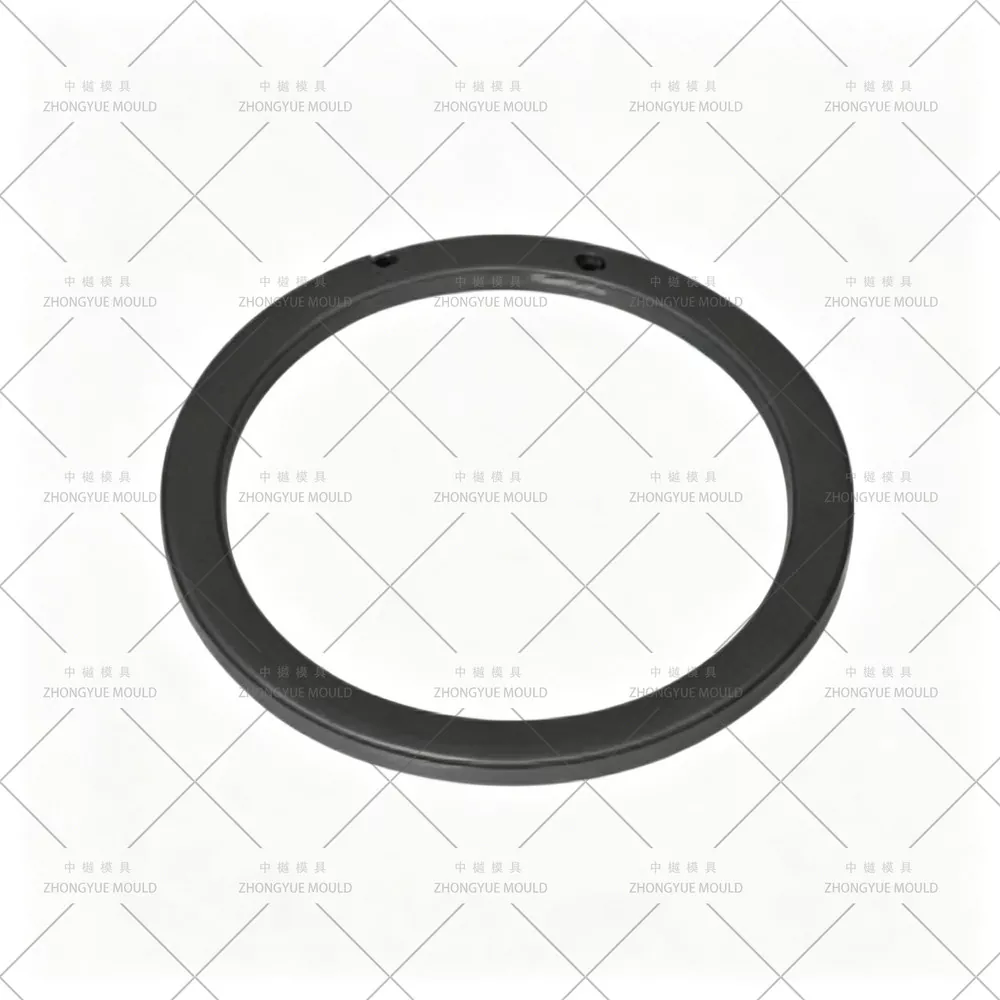

Before machining begins, we clarify the specific purpose of the balance ring and conduct a thorough analysis of the plastic part's structure and filling behavior. Based on this analysis, we determine the most suitable technical parameters:
Gate Type: Selection of an optimal gating system (e.g., Side Gate) to ensure balanced filling.
Cavity Layout: Determination of the number of cavities based on economic efficiency and production volume.
Injection Machine: Matching the mould design with the appropriate injection Moulding machine model (tonnage).

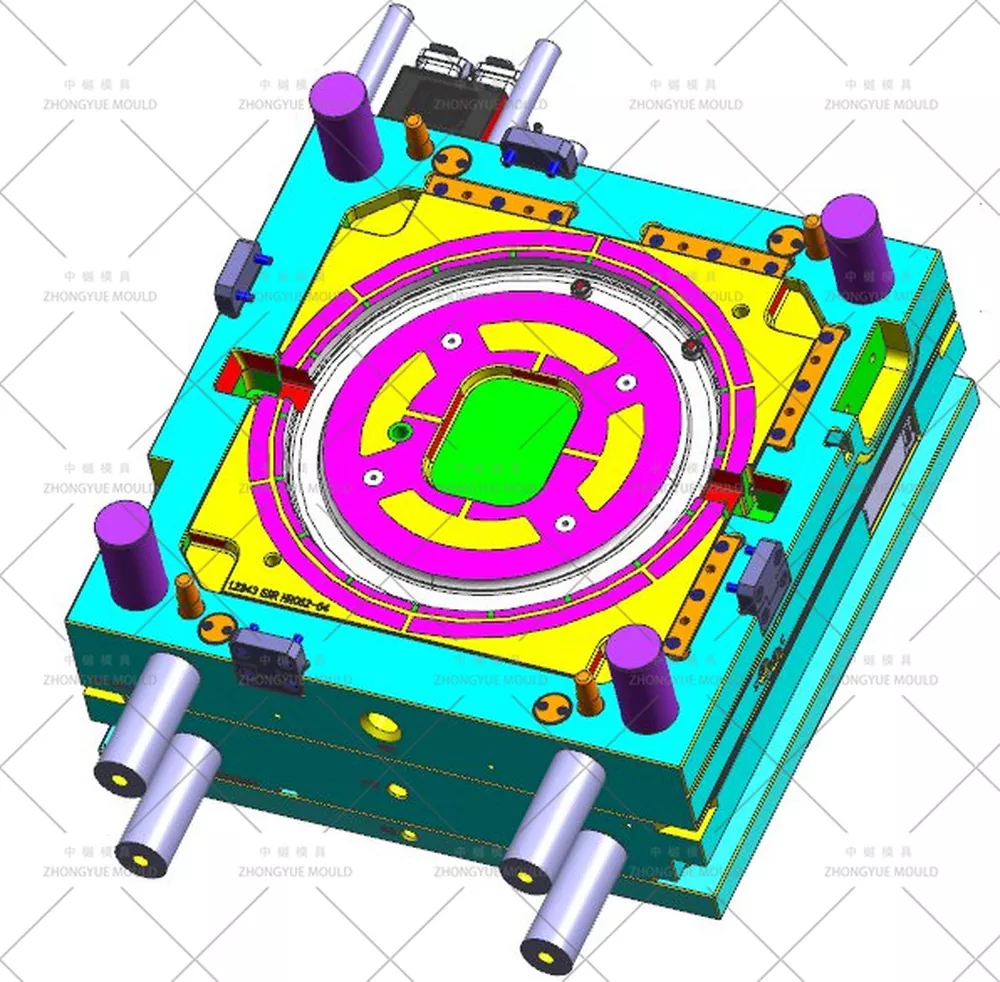

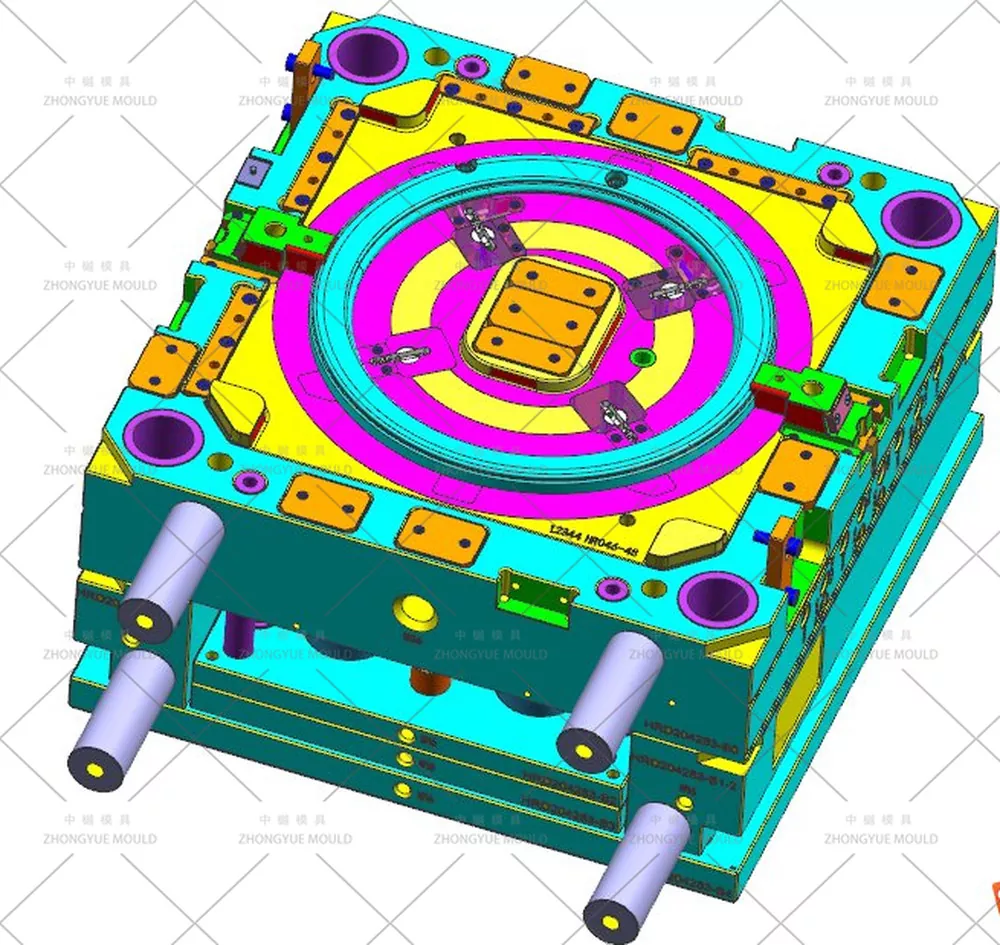

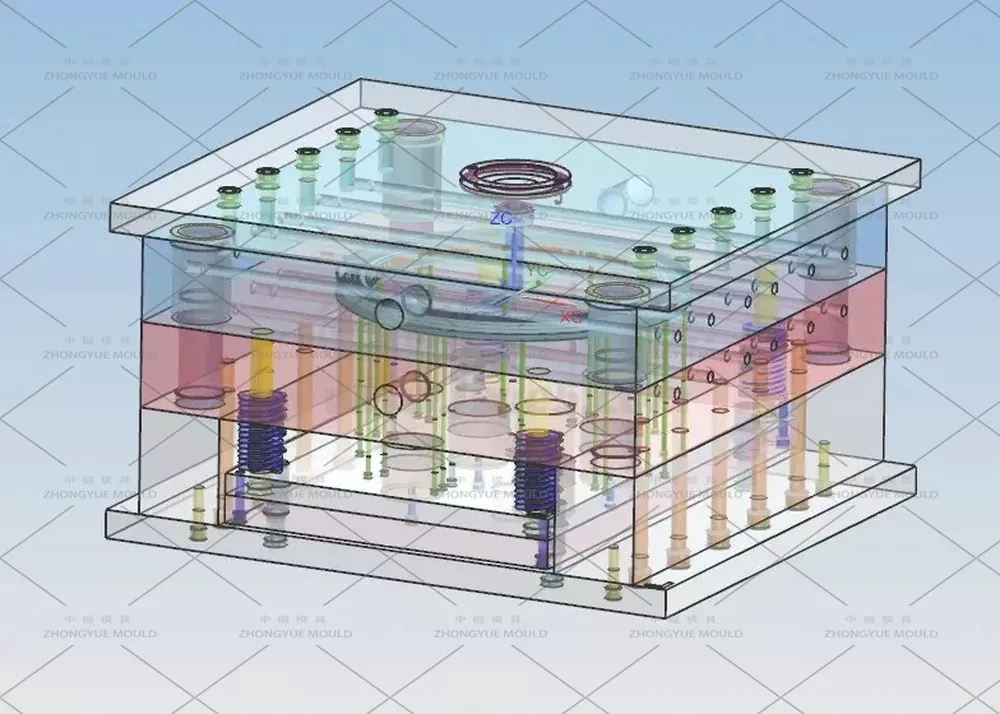

Utilizing industry-leading UG software, our engineers create detailed 3D models and 2D assembly drawings. This allows us to:
Visualize the core structure of the entire mould.
Simulate the injection process to identify and eliminate potential defects before production.
Generate concise, clear, and calculation-backed documentation for manufacturing.
The core of our design focuses on the precise mechanics of the mould:
Parting Surface & Core/Cavity: Accurate determination of the parting line and the dimensions of the core and cavity inserts.
Guidance & Ejection: Selection of a robust guiding mechanism and design of the ejection system for smooth operation.
Structural Integrity: Calculation of template thickness and the overall Mould base to withstand injection pressure.
Through precise calculations and validation of all parameters, we ensure that the final balance ring mould is not only manufacturable but also performs reliably in mass production, guaranteeing the feasibility and quality of the final washing machine component.
Driven by the philosophy:
Zhongyue Mould is a leading company in the plastic injection air conditioner Cover mould industry. Our highly experienced team of engineers and designers have many decades of combined experience in plastic air conditioner Cover mould design and manufacturing. We provide a comprehensive service, specializing in the production of high-quality and high-precision air conditioner Cover moulds. We have also assisted numerous customers in customizing various types of plastic air conditioner Cover moulding lines.
We can also offer comprehensive assistance in the management of your production process. The procurement department will purchase high-quality raw materials, while the technical department will select the appropriate plastic formula. In accordance with the parameters of the plastic air conditioner Cover mould life requirements and market positioning, we will select the most suitable plastic air conditioner Cover parameters, structure, etc. Our extensive production capacity allows us to deliver plastic air conditioner Covers promptly, at competitive prices and with guaranteed quality.
