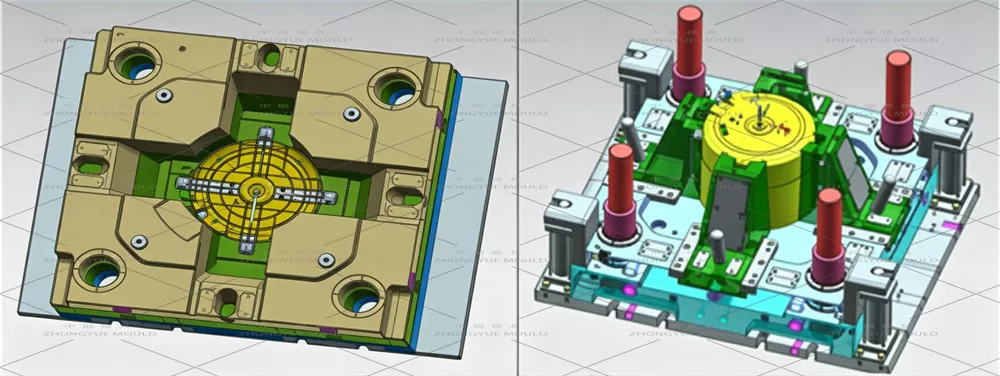

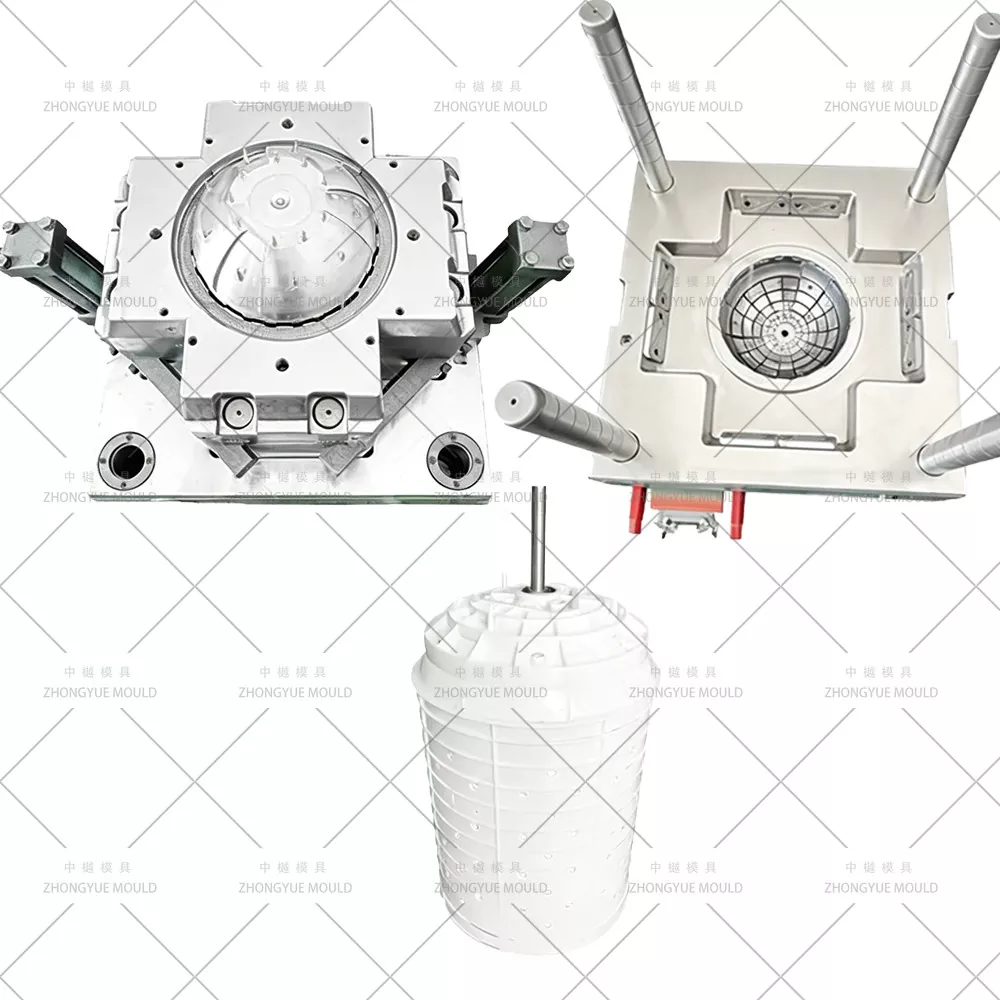

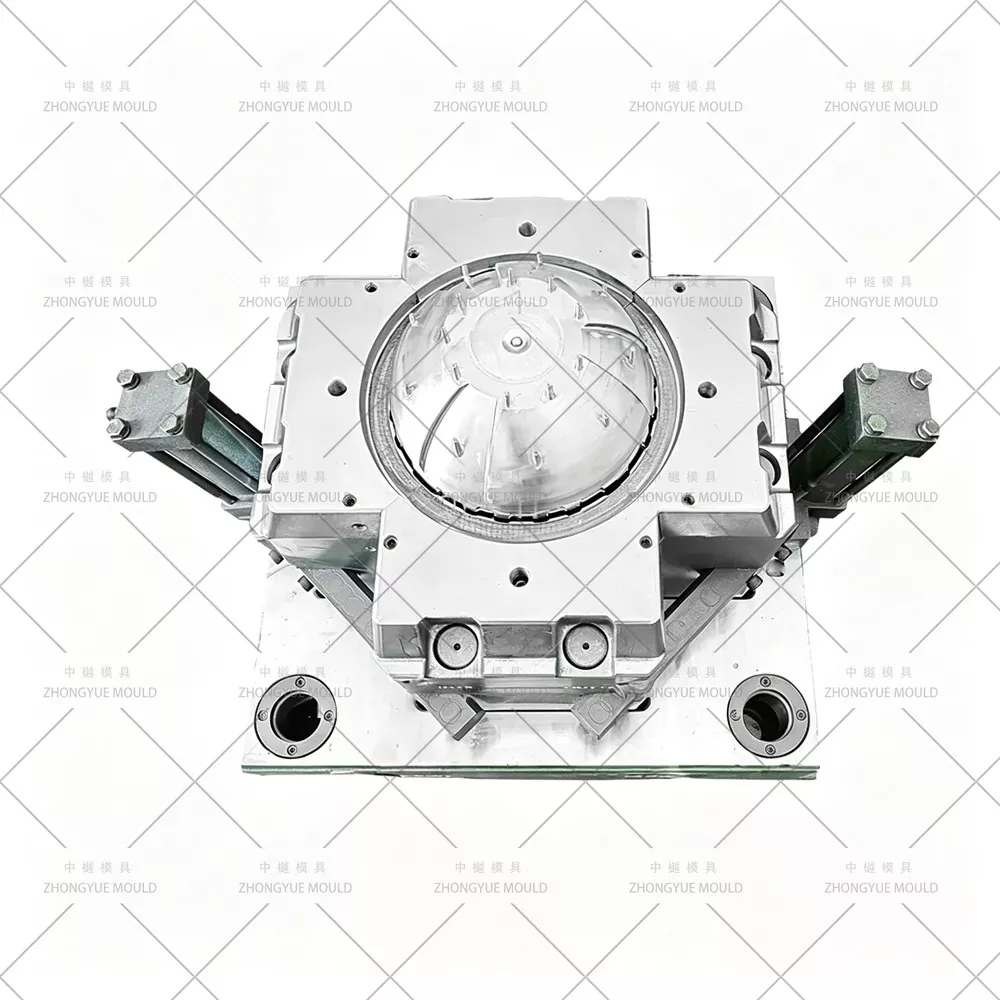

Plastic Washing Machine Spin Barrel Mould

Zhongyue Mould specializes in delivering high-precision, custom plastic Washing machine spin barrel Moulds , tailored to meet the unique specifications of each manufacturer.

Through strict control over dimensional accuracy, surface finish, and structural integrity, our plastic injection Washing machine spin barrel Moulds ensure exceptional product quality and performance for our clients.

Make your next Washing machine Mould project brighten!

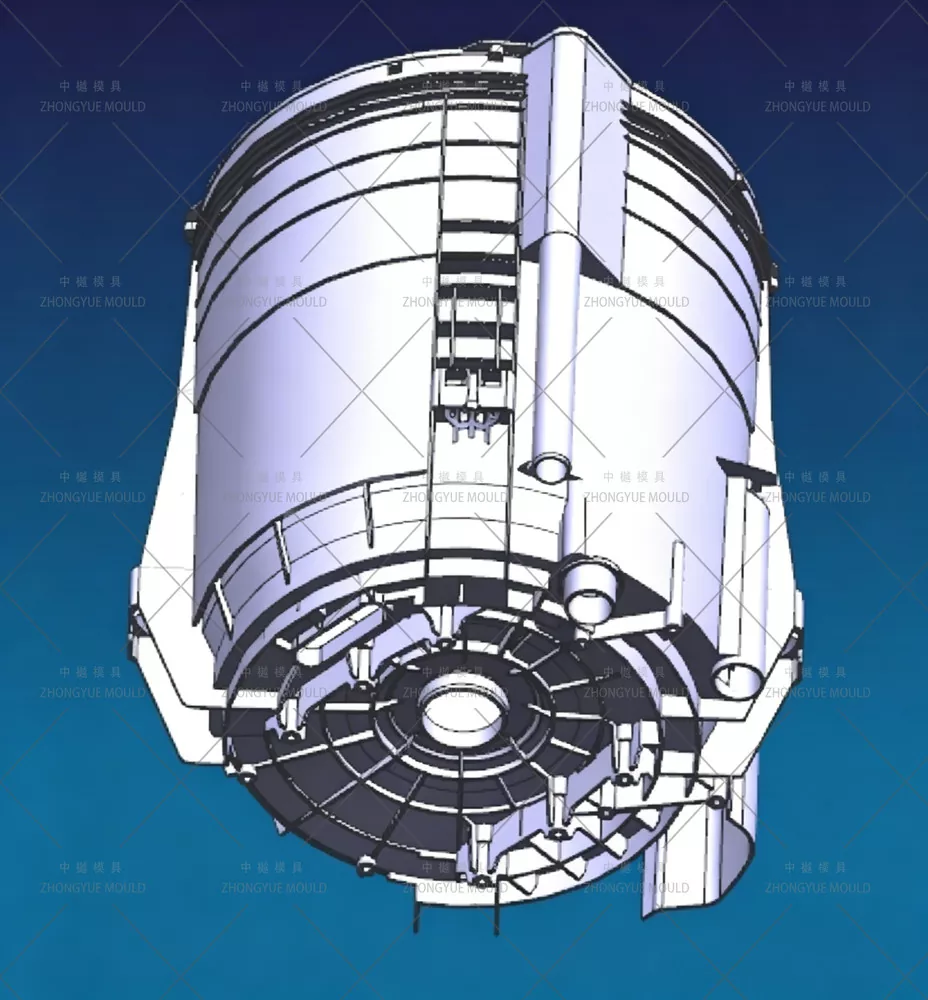

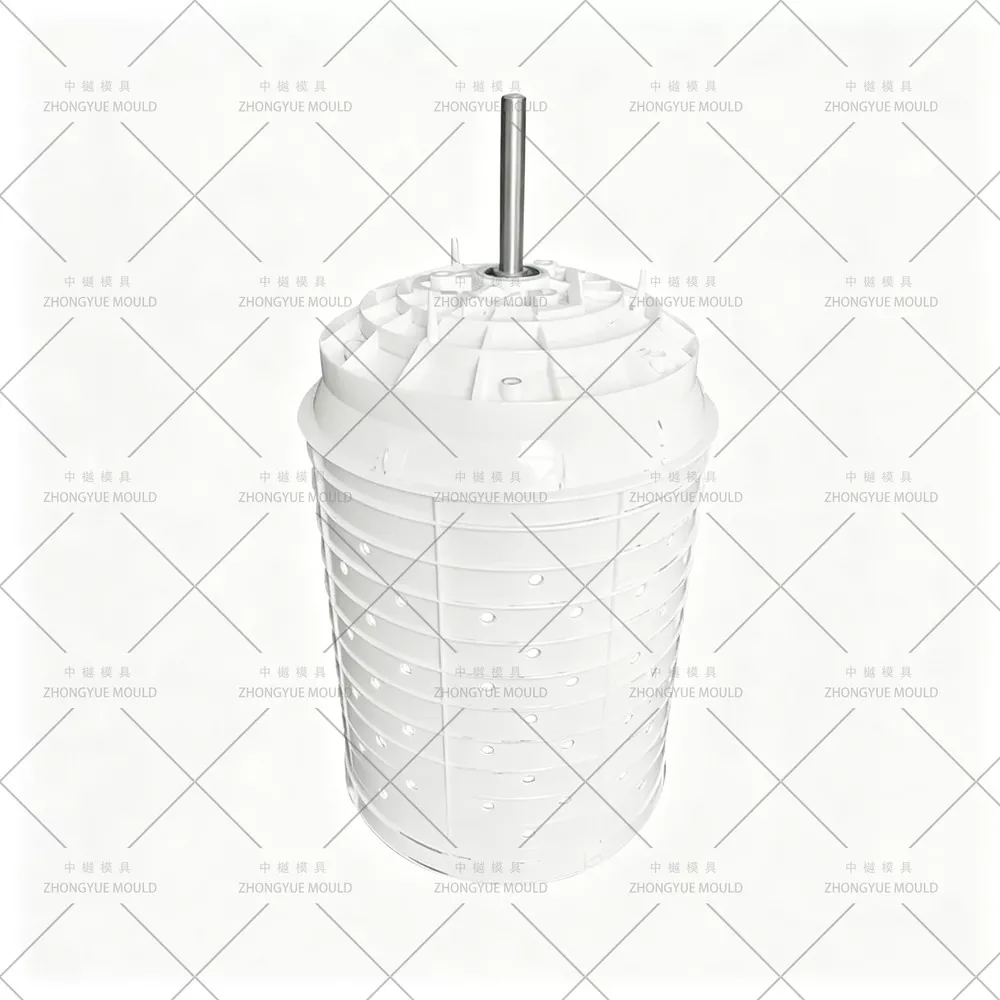

The Plastic Washing Machine Spin Barrel Mould is a cornerstone component that dictates the efficiency and durability of the final appliance. Given its complex geometry and the demand for high-speed rotation, this mould must meet the most stringent standards of precision, surface finish, and structural integrity. At Zhongyue Mould, we rise to this challenge with advanced engineering and rigorous quality control.

1. Core Challenges & Engineering Solutions

Manufacturing a spin barrel mould involves overcoming several technical hurdles:

Complex Geometry: Intricate designs featuring thin walls, reinforcing ribs, and drainage perforations.

Ultra-High Precision: Tight tolerances are mandatory to ensure the barrel balances perfectly during high-speed spinning.

Material Stress: The mould must endure millions of high-pressure injection cycles without deformation.

2. Advanced Manufacturing & Simulation

We utilize state-of-the-art technology to translate complex designs into reality:

Mould Flow Analysis (MFA): Before machining, we simulate plastic flow to predict and eliminate air traps, weld lines, and uneven cooling.

High-Speed CNC Machining: Ensures ultra-precise cuts for critical dimensions and intricate rib structures.

Precision EDM: Electrical Discharge Machining creates complex shapes and fine details that conventional tools cannot achieve, ensuring a superior surface finish.

3. Rigorous Quality Assurance (QA) Protocol

To guarantee a "zero-defect" product, Zhongyue Mould implements multi-stage inspections:

CMM (Coordinate Measuring Machine): Verifies every contour and dimension against the 3D model, ensuring micron-level accuracy.

Optical Comparators: Inspect surface finish and geometric profiles to meet Class-A standards.

Non-Destructive Testing: Includes Hardness Testers (to confirm wear resistance) and Ultrasonic Testing (to detect internal material flaws).

Through this comprehensive approach, Zhongyue Mould ensures that every spin barrel mould not only meets but exceeds industry expectations for performance and longevity.

How we processing the project?

About us

Driven by the philosophy:

“Quality Makes the Future, Focus Creates Professional”

Zhongyue Mould is a leading company in the plastic injection air conditioner Cover mould industry. Our highly experienced team of engineers and designers have many decades of combined experience in plastic air conditioner Cover mould design and manufacturing. We provide a comprehensive service, specializing in the production of high-quality and high-precision air conditioner Cover moulds. We have also assisted numerous customers in customizing various types of plastic air conditioner Cover moulding lines.

We can also offer comprehensive assistance in the management of your production process. The procurement department will purchase high-quality raw materials, while the technical department will select the appropriate plastic formula. In accordance with the parameters of the plastic air conditioner Cover mould life requirements and market positioning, we will select the most suitable plastic air conditioner Cover parameters, structure, etc. Our extensive production capacity allows us to deliver plastic air conditioner Covers promptly, at competitive prices and with guaranteed quality.
