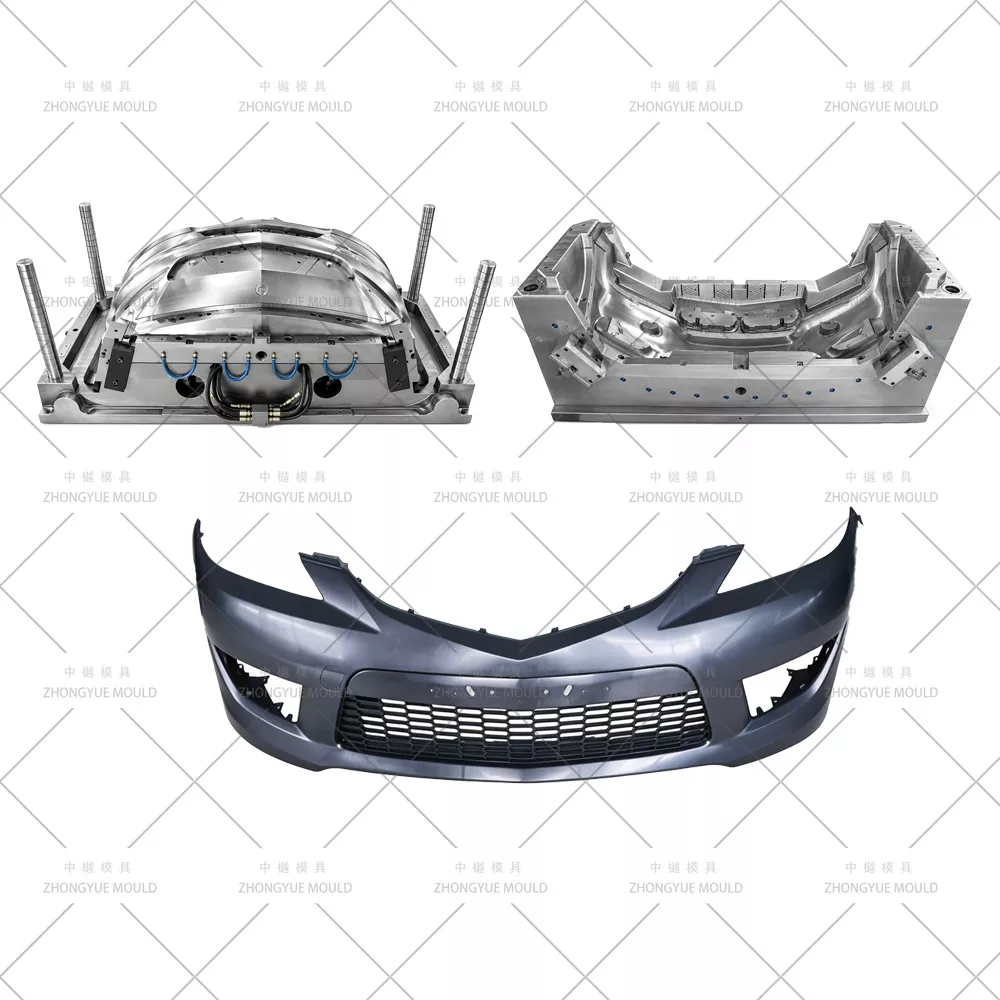

Automotive Bumper Mould

Automotive Bumper Mould – Custom Car Front & Rear Bumper Injection Mold Manufacturer

ZHONGYUE MOULD is an experienced Chinese injection mold manufacturer specializing in Automotive Bumper Moulds / Plastic Car Bumper Injection Molds for passenger vehicles, SUVs, EVs, and light trucks. Our bumper molds are engineered for large-format parts molded in PP+EPDM-T20 / PP-TD20, featuring optimized sequential valve gate (SVG) hot runner systems, deep-baffle & BeCu cooling channels, and Class-A surface texture compatibility — delivering paint-ready or grain-finished bumpers with minimal sink marks and shortened cycle times.

From front bumper fascia, rear bumper covers, to lower valance / fog lamp bezels, we provide full DFM analysis and mold flow simulation before steel cutting to ensure your program launches on time and on budget.

Plastic Automotive Bumper Mould specifications :

Make your next Plastic Automotive Bumper Mould project brighten!

Bumper Components We Tool

Key Mold Design Features for Car Bumper Molds

Sequential Valve Gate (SVG) Hot Runner System — YUDO / SYNVENTIVE / Mold-Master brands; reduces weld lines on visible surface, controls filling sequence for large-area parts.

Optimized Cooling for Thin-Wall Large Panels — Deep baffles, thermal-conductive BeCu (beryllium copper) inserts near thick bosses & corners; minimizes warpage and shortens cycle by 10–15%.

Class-A Surface & Grain Compatibility — Cavity polished to SPI B1/A2; VDI 3400 or Mold-Tech texture supported directly on cavity for grain-finished bumpers.

Robust Ejection & Automation Ready — Stripper plate, ejector blocks, or multi-point ejector pin arrays; robot take-out interface pre-designed for fully automatic demolding.

Side Action & Undercut Handling — Hydraulic / oil cylinder slides for parking sensor openings, tow hook covers, fog lamp recesses, clip snaps.

Our Mold Manufacturing & Validation Process

Project Kick-off & DFM Review — Analyze draft, wall thickness, shrink, gating & ejection feasibility; suggest improvements.

Mold Flow Simulation (Moldflow) — Fill pattern, weld line positions, clamp force, cooling uniformity & cycle time prediction.

3D Mold Design Approval — Full assembly drawing, cooling layout, slide/lifter detail, hot runner balancing.

Precision Machining — High-speed CNC rough/finish, deep-hole drilling for cooling, Sodick/Charmilles EDM for fine details.

Assembly & T1 Trial — Run on in-house large-tonnage machine; send trial video + CMM dimensional report + sample parts.

Correction & Final Approval — Adjust as needed; ship in fumigation-free case with operation manual & spare parts list.

Why Choose ZHONGYUE MOULD for Your Automotive Bumper Mold?

Proven Large Mold Capability — We build molds up to 3000T+ machine compatibility, with 5-axis capable CNC & large-format machining.

In-house DFM & Mold Flow Report — Identify risks (sink, warp, short shot) before steel cutting.

Branded Hot Runner Experience — YUDO / SYNVENTIVE / Mold-Master SVG systems integrated & tuned.

Strict QC & Progress Updates — Weekly photos, machining status report, final CMM inspection before shipment.

Export Experience — Molds shipped to Europe, North America, South America, Southeast Asia.

1-Year Mold Warranty + Spare Parts Supply

Frequently Asked Questions

Q: Can you make molds for both front and rear bumpers as a matched set?

A: Yes. We commonly design separate molds for front/rear fascias and can also tool matching small trims (fog bezel, lower grille) as insert molds or family molds.

Q: What hot runner brand do you recommend for bumper molds?

A: We typically install YUDO or SYNVENTIVE sequential valve gate systems; Mold-Master also available upon request. SVG helps push weld lines to non-visible areas.

Q: What information do you need for a quotation?

A: 3D part model (STP/IGS/X_T), target material (usually PP+EPDM-T20%), annual volume / cavitation preference, your injection machine platen & tie-bar data, surface texture/grain spec if any.

Q: What is typical lead time?

A: 50–75 days after 3D mold design approved, depending on complexity and hot runner brand lead time.

Request a Quote for Your Automotive Bumper Mould

Send your bumper 3D model (STEP/IGS/X_T) and project requirements. ZHONGYUE MOULD will provide a free DFM report + mold flow summary + formal quotation within 24–48 working hours.
