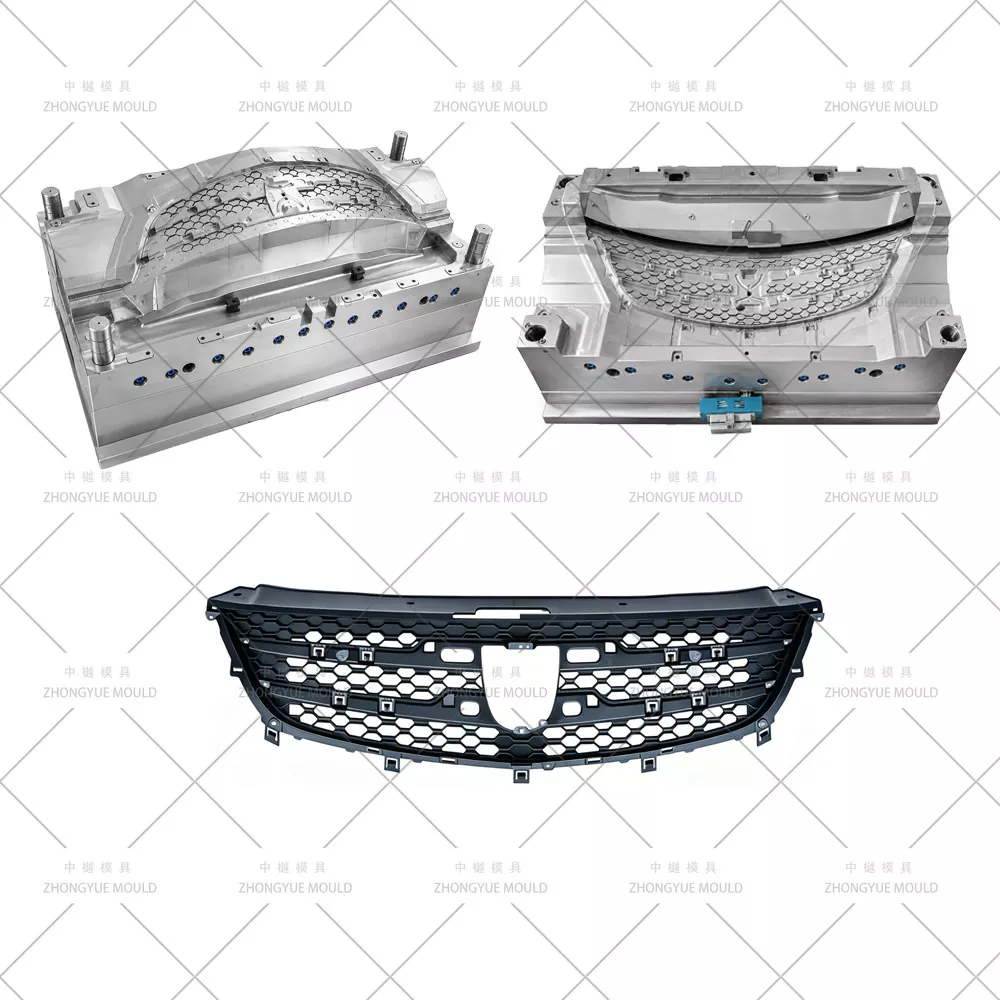

ZHONGYUE MOULD is a professional Chinese injection mold manufacturer supplying Automotive Grille Moulds / Plastic Car Front Radiator Grille Injection Molds (Auto Front Grill Molds) to global Tier-1 auto parts suppliers and OEMs. The front grille is both a brand signature and a functional air intake protector — most are molded in ABS, ASA (UV-stable), or PC/ABS for exterior durability, with chrome-plated upper/outer frame (requiring mirror-polish cavity) and matte/textured black grid (VDI grain cavity). Our grille molds feature multi-slider demolding for honeycomb/grid patterns (5–12+ slides), sequential valve gate (SVG) hot runner to minimize weld lines on visible A-surface, logo insert detailing, and precise clip-boss formation for snap-fit assembly to the front bumper and headlamp.
From luxury brand-style kidney/horizontal-bar grilles, rugged off-road mesh grilles, to lower auxiliary grille inserts, we provide full DFM review and Moldflow simulation before steel cutting.
|
Item |
Specification / Options |
|
|
Mold Name |
Automotive Front Radiator Grille / Car Front Grill Plastic Injection Mould |
|
|
Cavity & Core Steel |

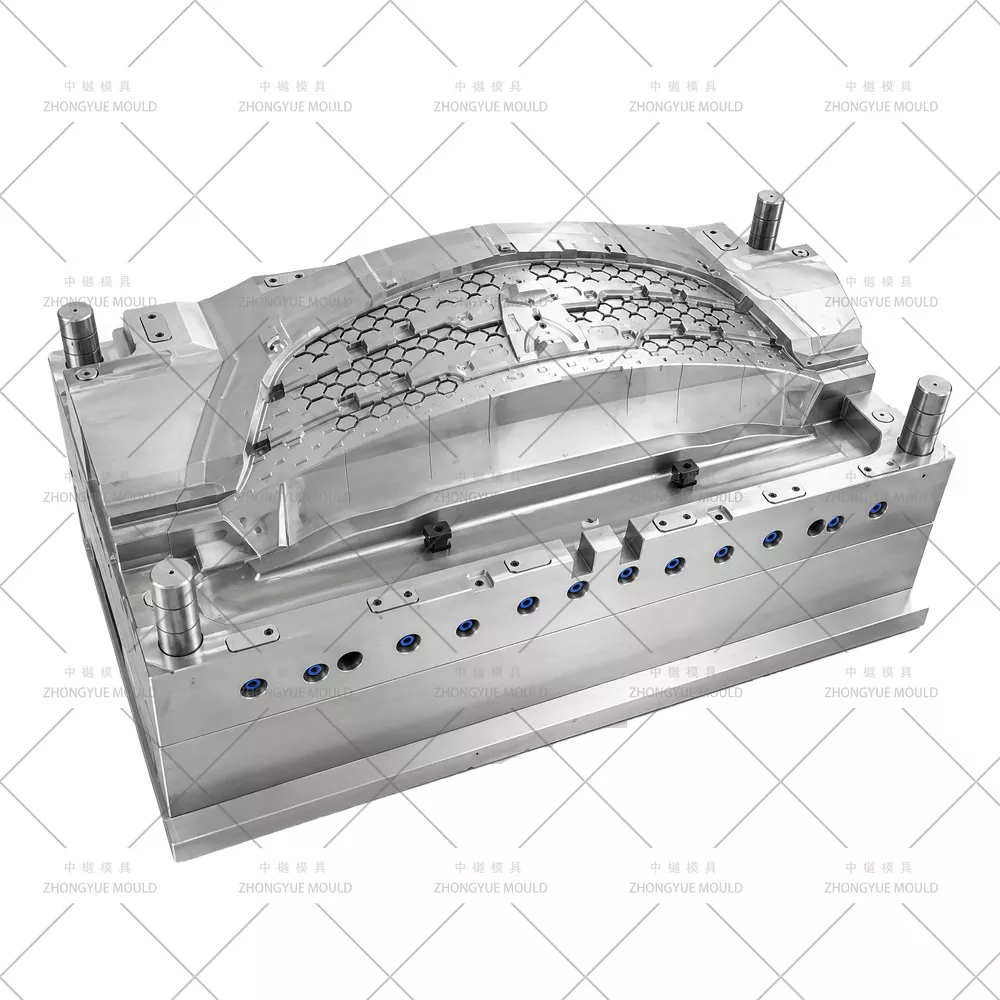

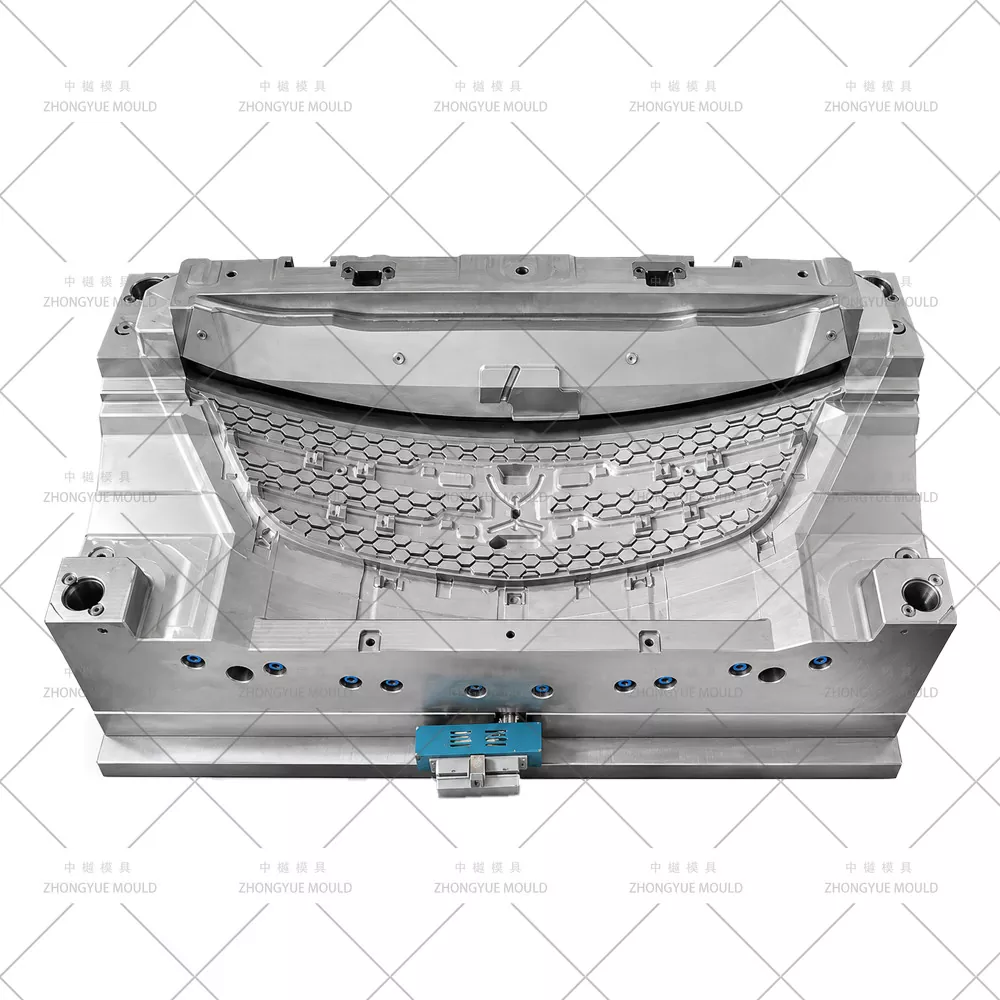

Cavity frame: S136 (HRC 48–52) for mirror polish zone + 718H(33–38) or 2738HH for textured grid; Core: 718H / 2738HH; Slides: H13(2344 ESR) nitrided |
|
|
Mold Base |
LKM / DME / HASCO / Self-designed (suitable for 650T–1800T press depending on grille size) |
|
|
Cavities |
Single cavity (1×1) for main grille; 1+1 / 2+2 for lower bumper grille inserts |
|
|
Runner System |
Hot runner — 4–10 drops sequential valve gate (YUDO / SYNVENTIVE / Mold-Master); cold runner optional for proto |
|
|
Gate Type |
Submarine gate on inner flange/back; fan gate; hot drop direct gating |
|
|
Ejection |
Ejector pins + ejector block / stripper bar; robot take-out interface |
|
|
Cooling |
Baffles Ø8–12mm, bubblers, BeCu inserts near thick emblem boss & mounting tabs, multi-circuit |
|
|
Slides / Lifters |
5–12+ angled slides / lifters for grid/honeycomb demolding; mini hydraulic cylinders optional |
|
|
Surface Finish |
S136 zone: SPI A1/A2 mirror polish; 718H/2738 zone: VDI 27–36 matte grain / MT texture; logo engraving insert |
|
|
Mold Life |
≥500,000 shots (718H cavity + H13 slides); ≥800,000–1,000,000 shots (full H13/S136 nitrided) |
|
|
Recommended Molding Material |
ABS (shrinkage ~0.4–0.7%), ASA (UV-stable, shrinkage ~0.5–0.7%), PC+ABS (high-heat), PP+EPDM-T20 (lower insert) |
|
|
Design Software |
UG NX, CATIA, Pro/E, SolidWorks, Moldflow |
|
|
Tolerance Control |
±0.05 mm general; ±0.1 mm on mounting clip pitch; perimeter contour ±0.3 mm to match bumper/headlamp |
|
|
Lead Time |
50–70 days after 3D mold design approval (multi-slider adds complexity) |
|
|
Mould material |
Hardness |
Mould life |
|
P20 |
HRC 28-33 |
>300,000 shots |
|
718 |
HRC 33-36 |
>500,000 shots |
|
H13 |
HRC >43 |
>800,000 shots |
|
2344 |
HRC >48 |
>800,000 shots |
|
S136 |
HRC 48-52 |
>1,000,000 shots |
Make your next Plastic Automotive Grill Mould project brighten!
|
Part Type |
Common Material |
Mold Design Focus |
|

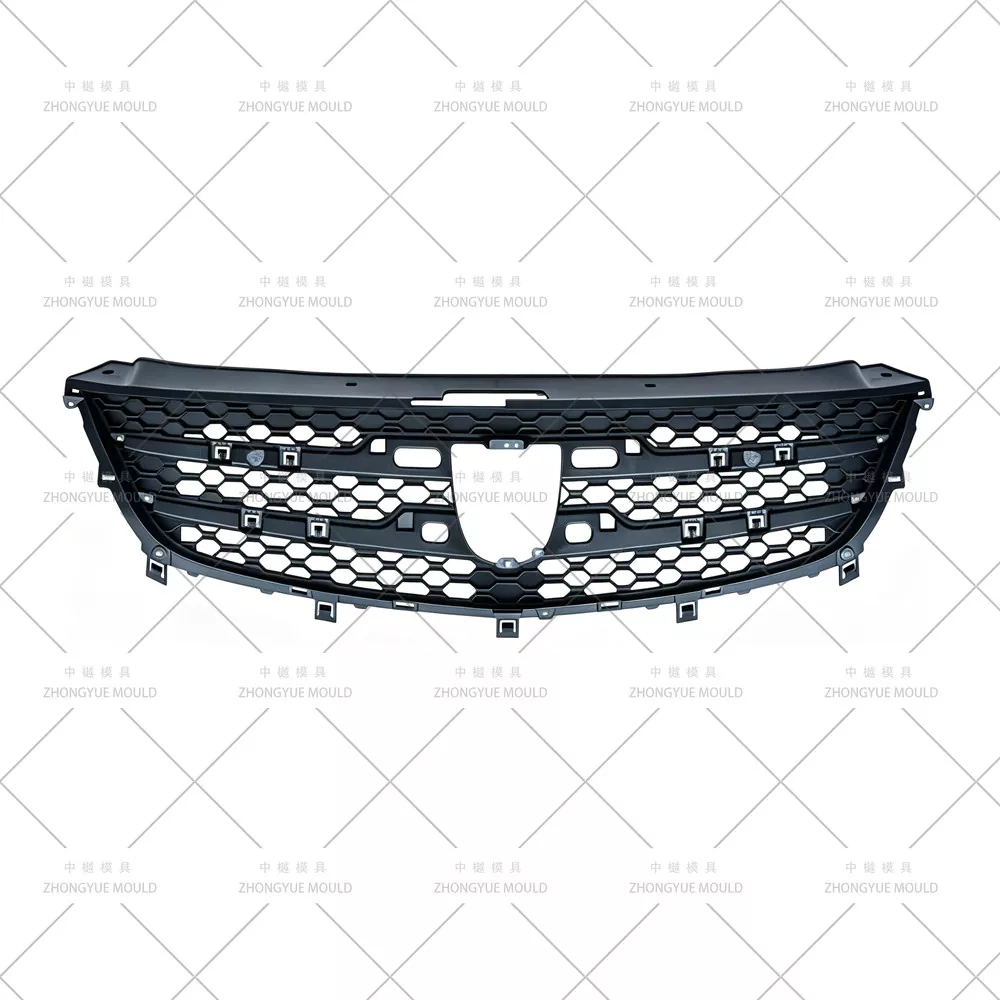

Main Front Radiator Grille (Luxury / Passenger Car) |
ABS, ASA (UV-stable), PC+ABS |
Chrome-frame mirror polish(SPI A1/A2)+grid VDI grain; multi-slider for honeycomb; SVG hot runner; emblem recess |
|
Mesh / Honeycomb Off-Road Grille (SUV / Pickup) |
Black ABS/ASA with heavy VDI 30–42 grain |
Deep grid — multi-angle slides or collapsible core; robust ejection; hidden sub-gate on back flange |
|
Chrome-Plated Grille Surround / Outer Ring Only |
ABS (chrome plated post-molding) |
Ultra-high polish cavity S136(HRC48-52); minimal parting line witness; often family mold with main grille or separate |
|
Lower Bumper Grille / Fog Lamp Grille Insert |
PP+EPDM-T20 or ABS black matte |
Simpler geometry; sometimes 1+1 or 2+2 multi-cavity; clip boss cooling emphasis |
|
Active Grille Shutter (AGS) Surround / Housing |
PA66+GF or PBT (structural) |
Tight flatness tolerance; sometimes mold for AGS blade + housing分开制作 |
Multi-Slider Grid / Honeycomb Demolding — 5–12+ angled slides or lifters to form horizontal/vertical bars & hexagonal mesh; slide angle & stroke optimized to avoid interference; nitrided H13 or SKD61 slides for wear resistance against thin-bar undercuts.
Sequential Valve Gate (SVG) Hot Runner System — YUDO / SYNVENTIVE / Mold-Master; staged filling pushes weld lines to hidden flange/back face; avoids flow marks on textured or chrome-plated visible surface.
Dual Surface Finish in One Mold — Chrome frame zone: S136 mirror polish (SPI A1/A2); grid zone: VDI 27–36 leather/matte grain (Mold-Tech, YS) etched directly on cavity; changeable logo insert for brand emblem.
Shrinkage Compensation for ABS/ASA — ABS shrinkage ~0.4–0.7%; ASA similar ~0.5–0.7%; Moldflow-verified cavity sizing especially on long bar elements prone to warpage.
Hidden Submarine / Edge Gate on Non-Visible Face — Gate vestige hidden on back flange or inner boss; cold runner option for aftermarket low-volume; hot drop direct gating where applicable.
1+1 Mirror Cavity Option (L+R for Symmetrical Lower/Insert Grilles) — Balanced runner/hot-drop design; main upper grille usually single cavity due to asymmetry/brand-specific design.
Project Kick-off & DFM Review — Analyze grid bar thickness (typically 2.0–3.5mm), draft angle on slide angles, chrome-frame vs grid parting line, gate & ejection feasibility; suggest improvements for weld line & sink mark avoidance.
Mold Flow Simulation (Moldflow) — Fill pattern, weld line position (pushed to hidden flange/back), clamp force, cooling uniformity & predicted warp for long bar elements.
3D Mold Design Approval — Full assembly with cooling layout, SVG hot runner balancing, multi-slider/lifter detail with interference check, texture zone & mirror-polish zone definition.
Precision Machining — High-speed CNC rough/finish, deep-hole drilling for cooling, Sodick/Charmilles EDM for fine grid details & texture engraving; slide way grinding.
T1 Trial & Correction — Run on in-house machine; supply trial video + CMM dimensional report + sample parts for approval.
Final Packaging & Shipment — Fumigation-free case, mold operation manual, spare parts list (extra slide springs, ejector pins), heat treatment & steel certs.
Automotive Exterior Mold Experience — Bumper, fender, grille & trim molds built in-house with large-format 5-axis capable CNC
In-house DFM & Moldflow Report — Identify filling/warp/sink risks & optimize before steel cutting; check gap/flush fit with bumper & headlamp
Multi-Slider & SVG Hot Runner Expertise — Honeycomb grid demolding, branded hot runner (YUDO/SYNVENTIVE/Mold-Master) with tuning support
Strict QC & Transparent Progress — Weekly machining photos, CMM inspection, T1 sample approval before shipment
Export Experience — Molds shipped to Europe, North America, South America, Southeast Asia
1-Year Mold Warranty + Spare Parts Supply (slides, springs, pins)
Q: Can you make both the main upper grille and lower bumper grille inserts — possibly as a family mold?
A: Main asymmetric grilles are usually single cavity. Lower inserts or fog grilles — if similar size/cycle — can be designed as 1+1 or family mold (2+2 cavities). We advise based on your annual volume and press size.
Q: What hot runner do you recommend for grille molds?
A: Sequential valve gate (SVG) hot runner is strongly recommended for ABS/ASA grilles — it lets you control fill sequence to push weld lines to non-visible areas and reduce flow marks, especially important for textured or chrome-plated surfaces.
Q: Can you achieve mirror polish for chrome-plated frame AND matte grain for grid in one mold?
A: Yes. We use S136 polished cavity for chrome frame zone (SPI A1/A2) and 718H/2738HH textured cavity for grid (VDI 27–36 or Mold-Tech pattern), with clear parting line between zones.
Q: What do you need for a quotation?
A: 3D part model (STP/IGS/X_T), target material (ABS / ASA / PC+ABS), annual volume / cavitation preference, your injection machine platen data, surface finish spec (mirror / grain standard / logo requirement).
Send your grille 3D model (STEP/IGS/X_T) and project requirements. ZHONGYUE MOULD will provide a free DFM report + mold flow summary + formal quotation within 24–48 working hours.
