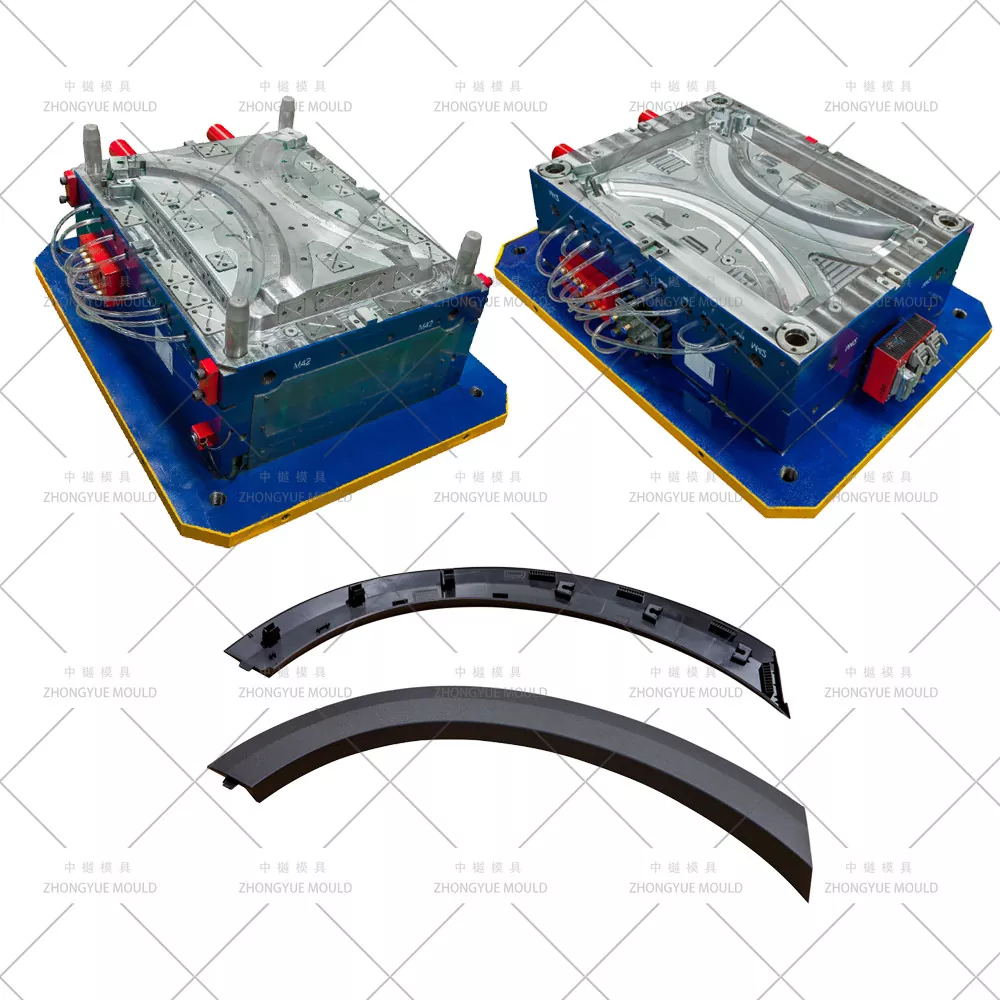

Automotive Rear Fender Flare Mould

Automotive Rear Fender Flare Mould – Custom Car Rear Wheel Arch Flare / Rear Fender Eyebrow Injection Mold

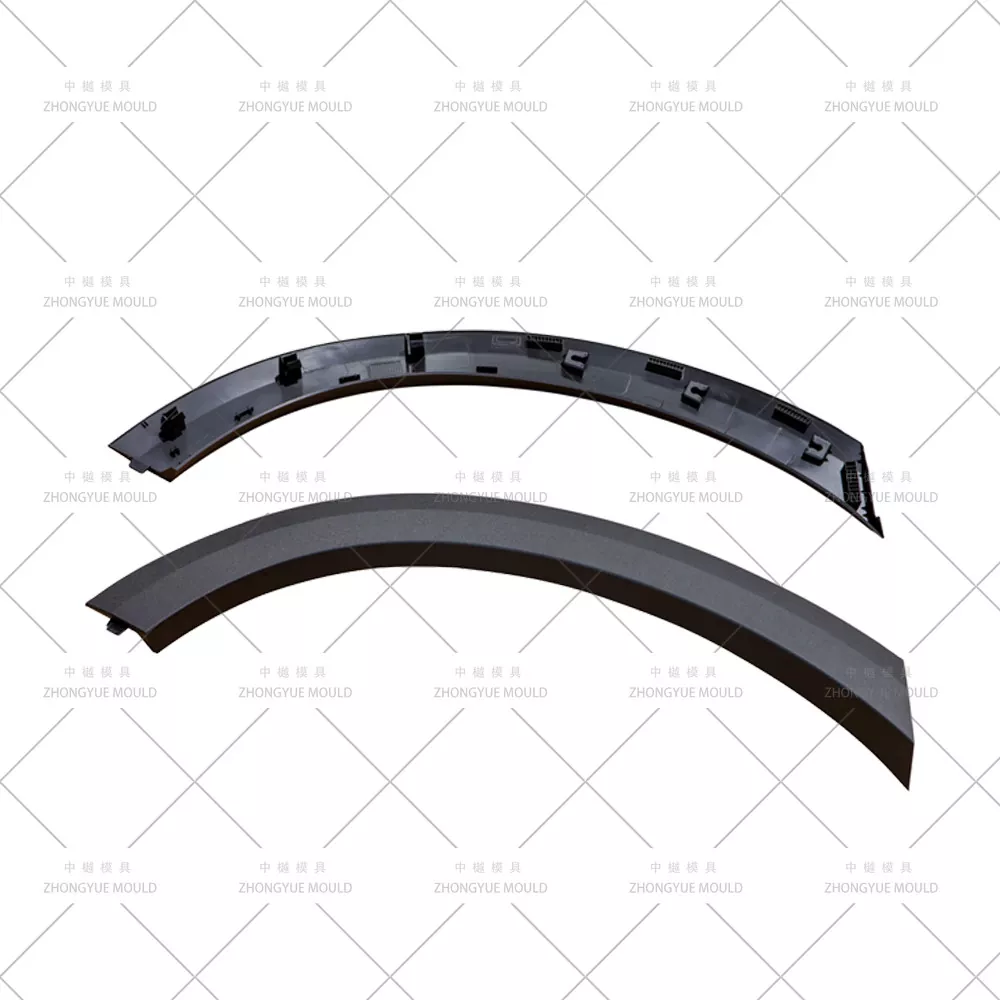

ZHONGYUE MOULD is an experienced Chinese injection mold manufacturer supplying Automotive Rear Fender Flare Moulds / Rear Wheel Arch Flare Moulds (Rear Fender Eyebrow Molds) to global Tier-1 auto parts suppliers, OEMs, and the off-road aftermarket. Rear fender flares are typically molded in black TPO or PP+EPDM-T20 with heavy matte grain (VDI 30–42), or in ABS/PC+ABS primer-ready for body-color painting. Unlike front flares, rear flares usually have no side turn-signal lamp cut-outs but may require fuel filler neck recess clearance (certain sedan/coupe models) and must maintain precise gap/flush with the rear bumper, rear door/quarter panel, and rear inner wheel arch liner. Our molds feature deep-draw ejection systems, hidden submarine gates on the back face, balanced cooling for curved panels, and robust clip-boss formation.

From OE narrow rear flares, wide-body rear fender flares (SUV/Pickup off-road kits), to rear fender eyebrows / arch trims, we provide full DFM review and Moldflow simulation before steel cutting.

Plastic Fender Flare Mould specifications :

Make your nextPlastic Fender Flare Mould project brighten!

Typical Rear Fender Flare / Rear Wheel Brow Parts We Tool

Key Mold Engineering Highlights for Rear Fender Flare Molds

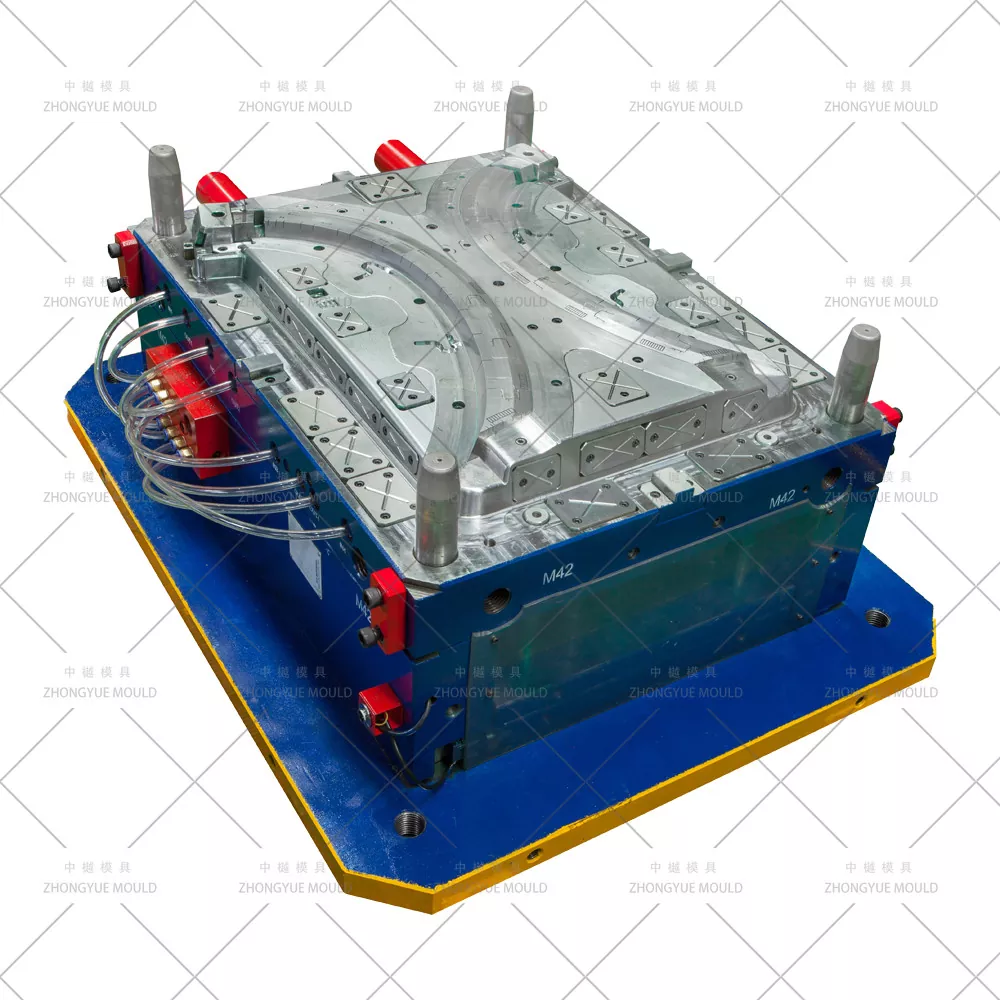

Deep-Draw Curved Panel Ejection & Warp Control — Stripper bar, ejector block arrays, or early-eject with guided return; deep-baffle + BeCu inserts keep ΔT ≤ 3–4℃, minimizing end-warp at the rear wheel opening's open trailing edge.

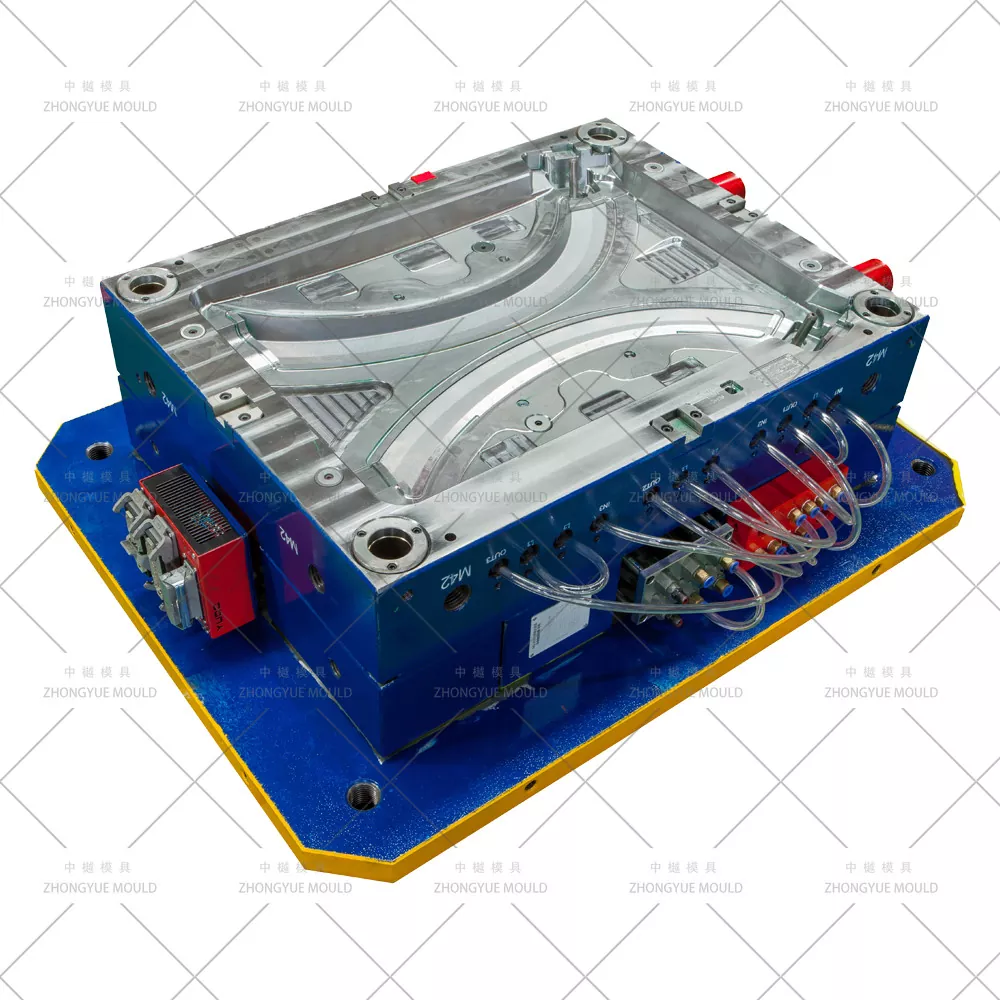

Matte Grained Exterior Surface (TPO/PP) — Cavity VDI 30–42 or MT-110xx leather/pebble grain (Mold-Tech, YS) directly etched; core side satin; logo/part number via changeable insert.

Shrinkage Compensation for Polyolefins — TPO shrinkage ~1.2–1.8%; PP+EPDM-T20 ~1.0–1.5%(MD)/1.2–1.8%(TD); Moldflow-verified cavity sizing.

Hidden Gate on Non-Visible Back Face — Submarine (latent) gate or edge/fan gate on inner flange/back; open or sequential valve gate hot runner optional for high-volume OE lines.

Clip / Snap-fit Boss & (Optional) Fuel Recess Clearance — Angled-pin slides or simple lifters for clip recesses; local relief for fuel filler neck on applicable body styles; ejector pins positioned to avoid marking visible surface.

1+1 Mirror Cavity Option (L+R Rear Flares) — Balanced runner/hot-drop design with equal fill time; doubles output for symmetrical rear flares.

Our Mold Manufacturing & Validation Process

Project Kick-off & DFM Review — Check draft (≥1.5° on TPO/PP), wall thickness (2.0–3.0mm typical), fuel-filler clearance (if any), clip boss design, gap/flush datum to rear bumper & quarter panel; suggest improvements.

Mold Flow Simulation (Moldflow) — Fill pattern, weld line position (pushed to hidden flange/back), clamp force, cooling uniformity & predicted warp for curved rear panel.

3D Mold Design Approval — Full assembly with cooling layout, runner balancing (for 1+1), slide/lifter detail for clip recess, texture zone definition.

Precision Machining — High-speed CNC rough/finish, deep-hole drilling for cooling, EDM for fine details & texture engraving.

T1 Trial & Correction — Run on in-house machine; supply trial video + CMM dimensional report + sample parts for approval.

Final Packaging & Shipment — Fumigation-free case, mold operation manual, spare parts list, heat treatment & steel certs.

Why Choose ZHONGYUE MOULD for Your Rear Fender Flare Mould?

Automotive Exterior Mold Experience — Bumper, fender, grille, door panel & fender flare (Front/Rear) molds built in-house

In-house DFM & Moldflow Report — Identify filling/warp/sink risks & optimize before steel cutting; check rear-bumper gap/flush fit

Flexible Runner Solutions — Cold runner or branded hot runner (YUDO/SYNVENTIVE/Mold-Master); 1+1 mirror cavity design experience

Strict QC & Transparent Progress — Weekly machining photos, CMM inspection, T1 sample approval

Export Experience — Molds shipped to Europe, North America, South America, Southeast Asia

1-Year Mold Warranty + Spare Parts Supply

Frequently Asked Questions

Q: What's the difference between Rear and Front Fender Flare molds?

A: Rear flares typically have no side turn-signal lamp cut-out or parking sensor pocket, but may need fuel filler neck clearance on certain models. Gap/flush matching is done to rear bumper & rear door/quarter panel instead of headlamp. Otherwise mold structure (deep draw, grain, clip bosses, 1+1 option) is similar.

Q: Can you make Left & Right Rear Fender Flare molds — or a 1+1 mirror cavity?

A: Yes. We design single-cavity LH/RH molds and 1+1 mirror cavity molds to double output per shot for symmetrical rear flares.

Q: What surface texture/grain do you support?

A: VDI 27–42 matte pebble/leather grain (commonly VDI 36 for TPO flares), Mold-Tech / YS patterns, or SPI A1/A2 high polish for paintable ABS versions. Logo via changeable insert.

Q: What do you need for a quotation?

A: 3D part model (STP/IGS/X_T), target material (TPO / PP+EPDM-T20 / ABS), annual volume / cavitation preference (1×1 or 1+1), your injection machine platen data, surface texture & mating-part gap spec if any.

Request a Quote for Your Automotive Rear Fender Flare Mould

Send your rear fender flare 3D model (STEP/IGS/X_T) and project requirements. ZHONGYUE MOULD will provide a free DFM report + mold flow summary + formal quotation within 24–48 working hours.

Contact us now to start your Car Rear Wheel Arch Flare / Fender Eyebrow Injection Mold project!
