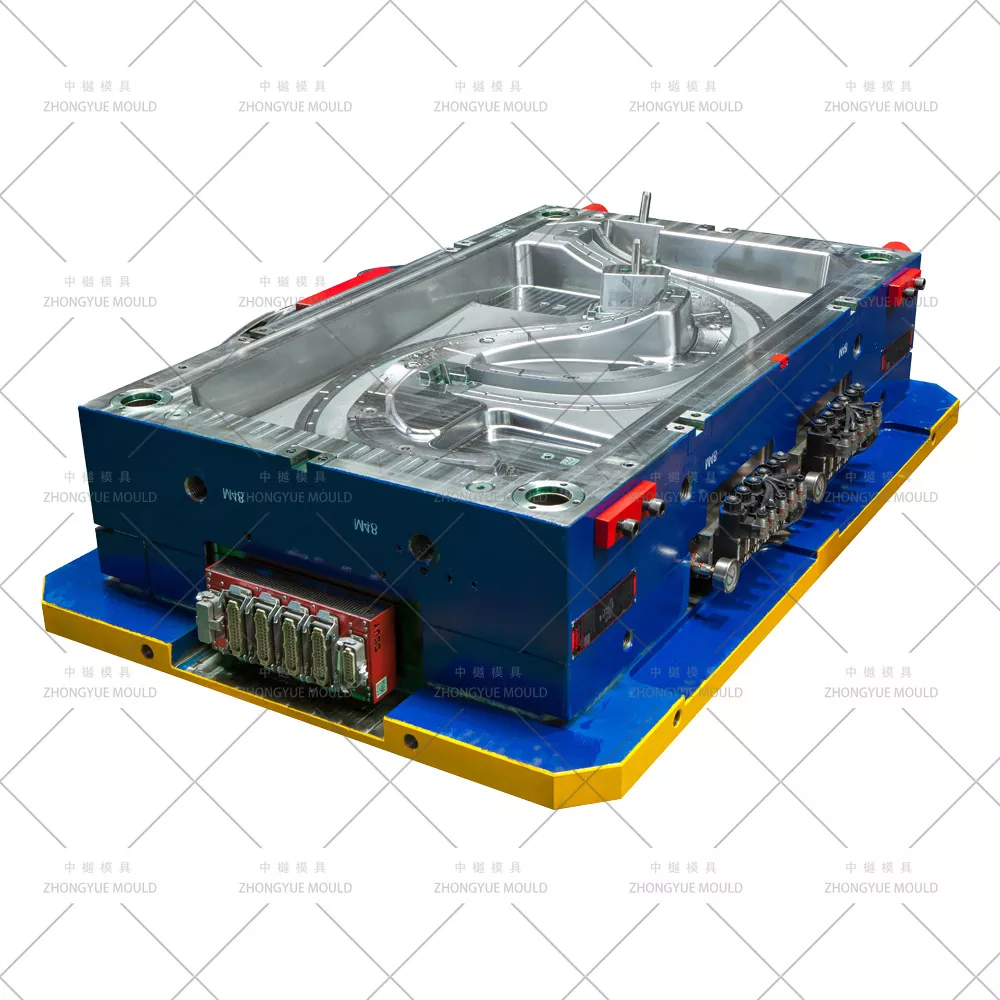

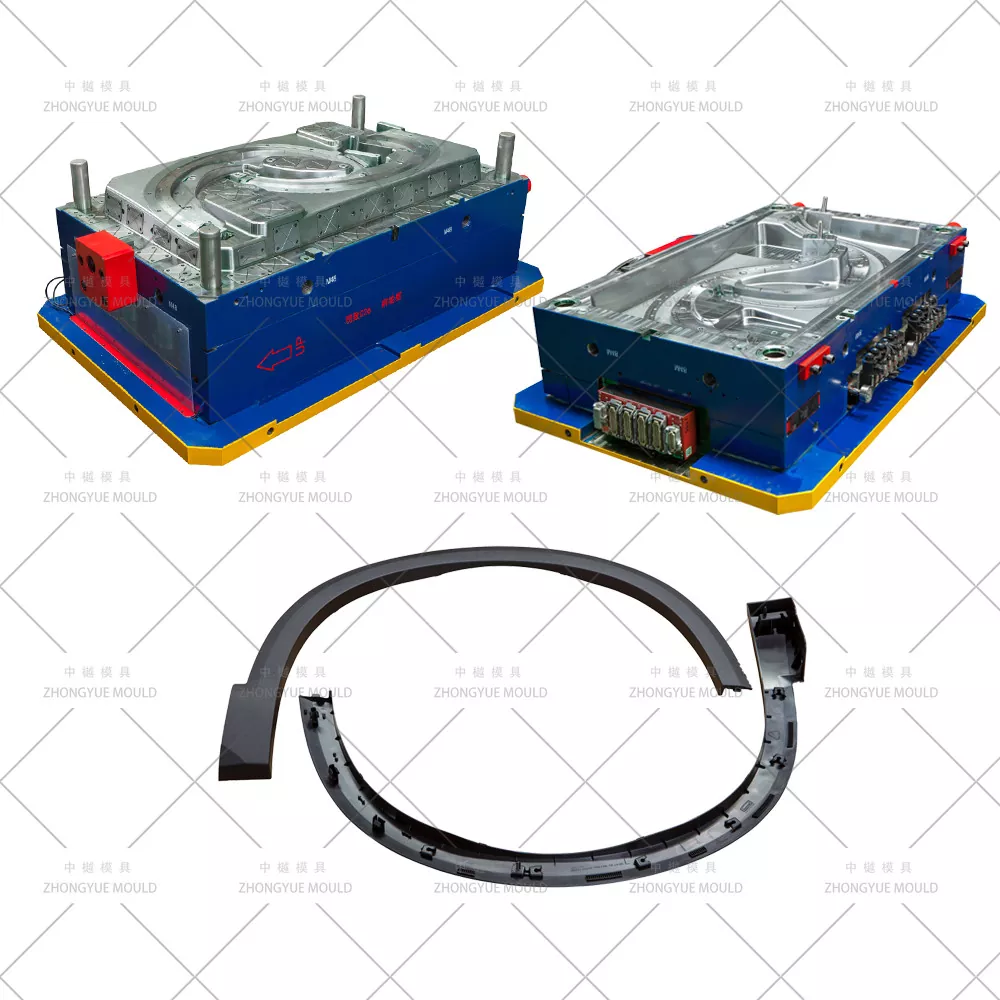

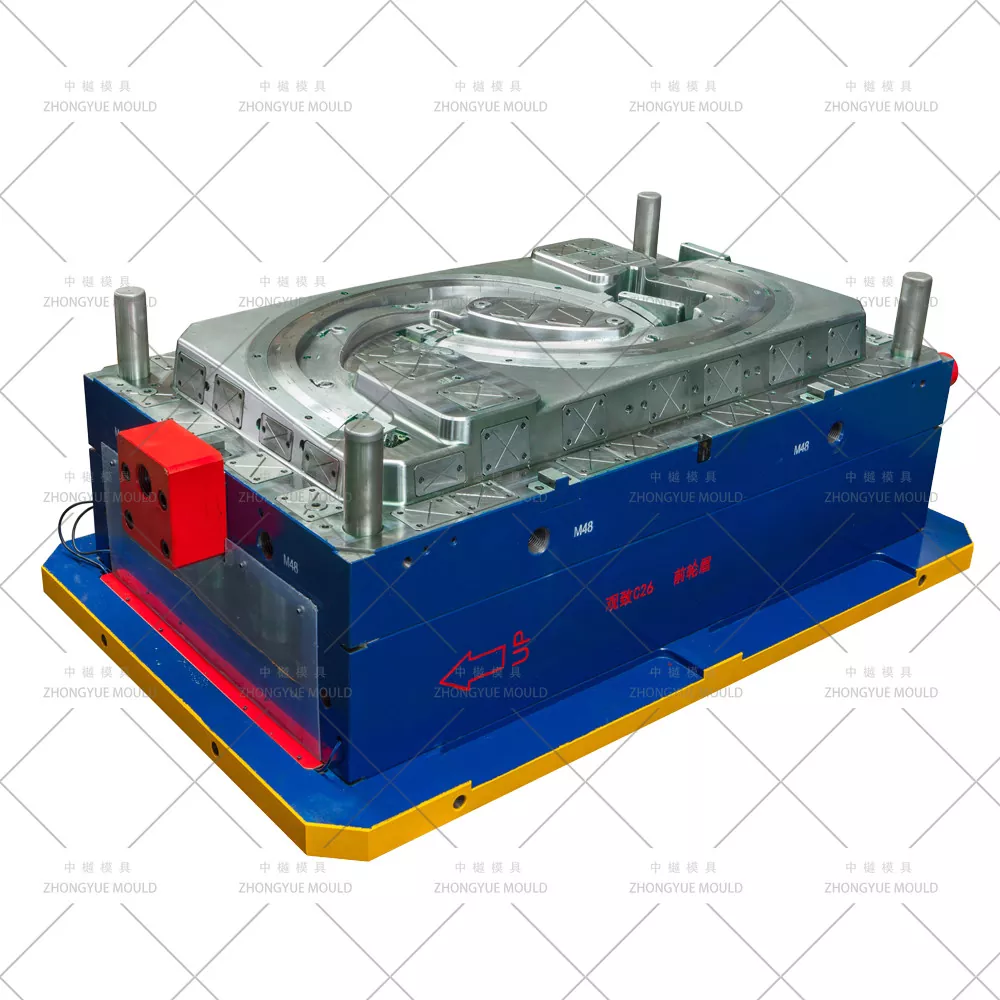

ZHONGYUE MOULD is a professional Chinese injection mold manufacturer supplying Automotive Front Fender Flare Moulds / Front Wheel Arch Flare Moulds (Front Fender Eyebrow Molds) to global Tier-1 auto parts suppliers, OEMs, and the aftermarket off-road segment. Front fender flares differ from rear ones — they often integrate side turn signal lamp cut-outs, front parking sensor pockets, and require precise gap/flush matching with the front bumper and headlamp. Most are molded in black TPO or PP+EPDM-T20 with heavy matte grain (VDI 30–42), or in ABS/PC+ABS primer-ready for body-color painting. Our molds feature optimized cooling for steep-curvature panels, hidden submarine gates on the back face, hydraulic mini-slides for lamp/sensor recesses, and precise snap-fit clip boss formation.
From OE narrow front flares, wide-body front fender flares (SUV/off-road), to front fender eyebrows / arch trims, we provide full DFM review and Moldflow simulation before steel cutting.
|
Item |
Specification / Options |
|
|
Mold Name |
Automotive Front Fender Flare / Front Wheel Arch Flare (Fender Eyebrow) Injection Mould |
|
|
Cavity & Core Steel |
Pre-hardened 718H (HRC 33–38), 2738HH; P20 for prototype; H13 nitrided for high-wear slides / sensor-pocket lifters; S136 optional for chrome/logo zone |
|
|
Mold Base |
LKM / DME / HASCO / Self-designed (suitable for 650T–1800T press) |
|
|
Cavities |
Single cavity (1×1); 1+1 mirror cavity (L+R simultaneous) available |
|
|
Runner System |
Cold runner (sub/edge gate) or Hot runner — 2–6 drops (YUDO / SYNVENTIVE / Mold-Master optional) |
|
|
Gate Type |
Submarine gate on inner flange / back face; fan gate; hot drop direct gating where applicable |
|
|
Ejection |
Ejector pins + ejector block / stripper plate / early eject; robot take-out interface |
|
|
Cooling |
Baffles Ø8–12mm, bubblers, BeCu inserts near radii & clip bosses, multi-circuit |
|
|
Slides / Lifters |
Angled-pin slides or mini hydraulic cylinders for turn-signal cut-out & sensor pocket; lifters for clip seat undercut |
|
|
Surface Finish |
Cavity VDI 27–42 matte grain / MT texture; core satin; SPI A1/A2 polish for paintable version; logo engraving insert |
|
|
Mold Life |
≥500,000 shots (718H); ≥300,000 shots (P20); ≥800,000+ shots (H13/S136 nitrided) |
|
|
Recommended Molding Material |
TPO (shrinkage ~1.2–1.8%), PP+EPDM-T20 (shrinkage ~1.0–1.5%), ABS/PC+ABS for paintable |
|
|
Design Software |
UG NX, CATIA, Pro/E, SolidWorks, Moldflow |
|
|
Tolerance Control |
±0.05 mm general; ±0.1 mm on mounting hole pitch / clip seat; ±0.3 mm on contour matching bumper & door |
|
|
Lead Time |
40–60 days after 3D mold design approval |
|
|
Mould material |
Hardness |
Mould life |
|
P20 |
HRC 28-33 |
>300,000 shots |
|
718 |
HRC 33-36 |
>500,000 shots |
|
H13 |
HRC >43 |
>800,000 shots |
|
2344 |
HRC >48 |
>800,000 shots |
|
S136 |
HRC 48-52 |
>1,000,000 shots |
Make your nextPlastic Fender Flare Mould project brighten!
|
Part Type |
Common Material |
Mold Design Focus |
|

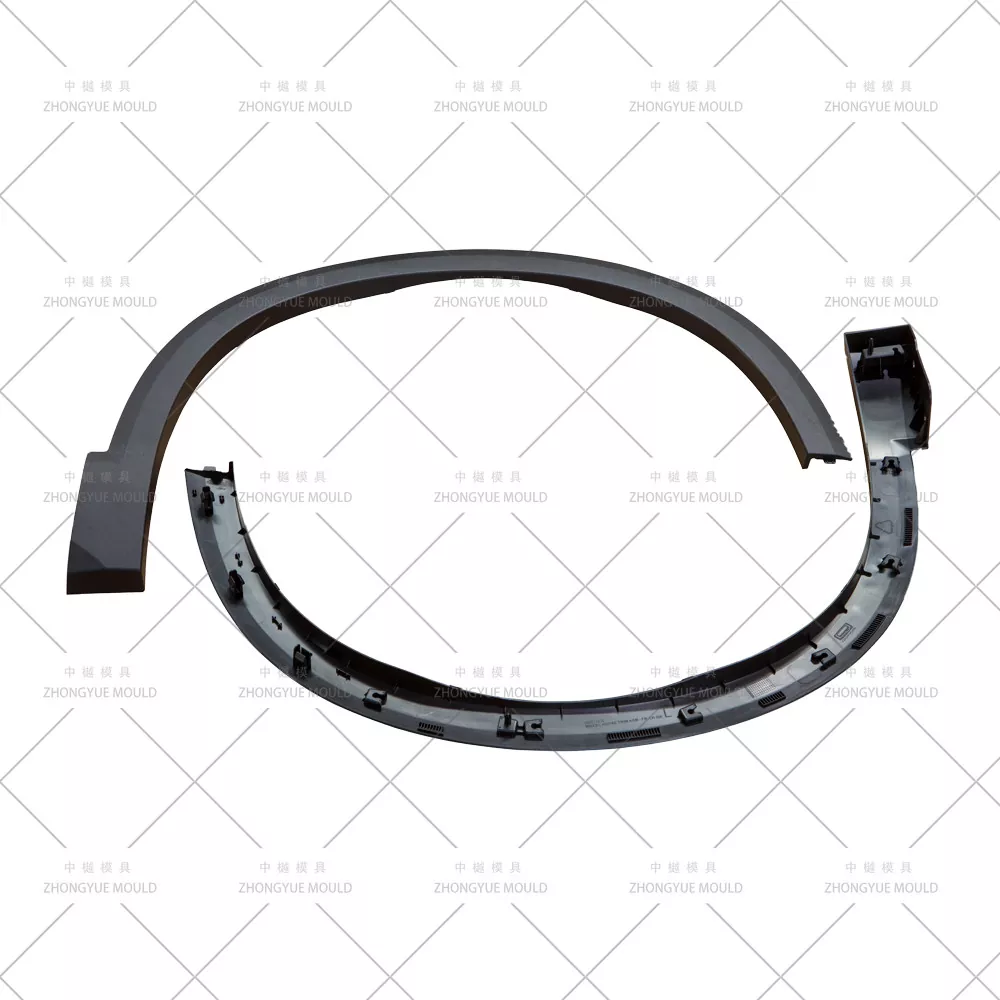

OE Front Wheel Arch Flare (Narrow / Standard) |
TPO, PP+EPDM-T20 (black matte) |
Turn-signal cut-out slide, sensor pocket lifter, VDI 30–36 grain on A-surface, gap/flush to bumper & door |
|
Wide-Body Front Fender Flare (Off-road / Pickup / SUV) |
TPO, PP+EPDM, ABS paintable |
Larger draw depth → stripper plate / ejector block; possible 1+1 mirror cavity; warp control at flare ends |
|
Front Fender Eyebrow / Upper Arch Trim |
Black PP, ABS with chrome insert zone |
Tight radius, logo engraving insert, S136 high-polish zone for chrome strip recess |
|
Body-Color Paintable Front Flare (Sport / Luxury Trim) |
ABS, PC+ABS (primer-ready) |
SPI A1/A2 high-polish cavity, weld line pushed to hidden flange, Class-A surface |
|
Front Flare with Integrated Mudflap Extension / Clip Pockets |
TPO / TPV overlay zone |
Mini hydraulic slides for clip recess & screw-tab undercut; witness line control |
Front-Specific Undercuts — Signal Lamp & Sensor Pockets — Angled-pin slides or mini hydraulic cylinders for side repeater lamp opening & front parking sonar pocket; lifters for internal undercuts on clip seats.
Deep-Draw Curved Panel Ejection & Warp Control — Stripper bar, ejector block arrays, or early-eject with guided return; deep-baffle + BeCu inserts keep ΔT ≤ 3–4℃, minimizing end-warp at the front wheel opening's tighter radius.
Matte Grained Exterior Surface (TPO/PP) — Cavity VDI 30–42 or MT-110xx leather/pebble grain (Mold-Tech, YS) directly etched; core side satin; logo/part number via changeable insert.
Shrinkage Compensation for Polyolefins — TPO shrinkage ~1.2–1.8%; PP+EPDM-T20 ~1.0–1.5%(MD)/1.2–1.8%(TD); Moldflow-verified cavity sizing.
Hidden Gate on Non-Visible Back Face — Submarine (latent) gate or edge/fan gate on inner flange/back; open or sequential valve gate hot runner optional for high-volume OE lines.
1+1 Mirror Cavity Option (L+R Front Flares) — Balanced runner/hot-drop design with equal fill time; doubles output for symmetrical front flares.
Project Kick-off & DFM Review — Analyze draft (≥1.5° on TPO/PP), wall thickness (2.0–3.0mm typical), turn-signal/sensor pocket demolding, gap/flush datum to bumper & headlamp; suggest improvements.
Mold Flow Simulation (Moldflow) — Fill pattern, weld line position (pushed to hidden flange/back), clamp force, cooling uniformity & predicted warp for curved front panel.
3D Mold Design Approval — Full assembly with cooling layout, runner balancing (for 1+1), slide/lifter detail for lamp pocket & clip recess, texture zone definition.
Precision Machining — High-speed CNC rough/finish, deep-hole drilling for cooling, EDM for fine cut-outs & texture engraving.
T1 Trial & Correction — Run on in-house machine; supply trial video + CMM dimensional report + sample parts for approval.
Final Packaging & Shipment — Fumigation-free case, mold operation manual, spare parts list, heat treatment & steel certs.
Automotive Exterior Mold Experience — Bumper, fender, grille, door panel & fender flare molds built in-house
In-house DFM & Moldflow Report — Identify filling/warp/sink risks & optimize before steel cutting; check front-bumper gap/flush fit
Flexible Runner Solutions — Cold runner or branded hot runner (YUDO/SYNVENTIVE/Mold-Master); 1+1 mirror cavity design experience
Strict QC & Transparent Progress — Weekly machining photos, CMM inspection, T1 sample approval
Export Experience — Molds shipped to Europe, North America, South America, Southeast Asia
1-Year Mold Warranty + Spare Parts Supply
Q: What's the difference between Front and Rear Fender Flare molds?
A: Front flares often have side turn-signal lamp cut-outs and parking sensor pockets requiring additional slides/lifters, and must match gap/flush with the front bumper & headlamp — tighter contour tolerance on the leading edge. Rear flares usually have simpler contours relative to rear bumper/quarter panel.
Q: Can you make Left & Right Front Fender Flare molds — or a 1+1 mirror cavity?
A: Yes. We design single-cavity LH/RH molds and 1+1 mirror cavity molds to double output per shot for symmetrical front flares.
Q: What surface texture/grain do you support?
A: VDI 27–42 matte pebble/leather grain (commonly VDI 36 for TPO flares), Mold-Tech / YS patterns, or SPI A1/A2 high polish for paintable ABS versions. Logo via changeable insert.
Q: What do you need for a quotation?
A: 3D part model (STP/IGS/X_T), target material (TPO / PP+EPDM-T20 / ABS), annual volume / cavitation preference (1×1 or 1+1), your injection machine platen data, surface texture & mating-part gap spec if any.
Send your front fender flare 3D model (STEP/IGS/X_T) and project requirements. ZHONGYUE MOULD will provide a free DFM report + mold flow summary + formal quotation within 24–48 working hours.
