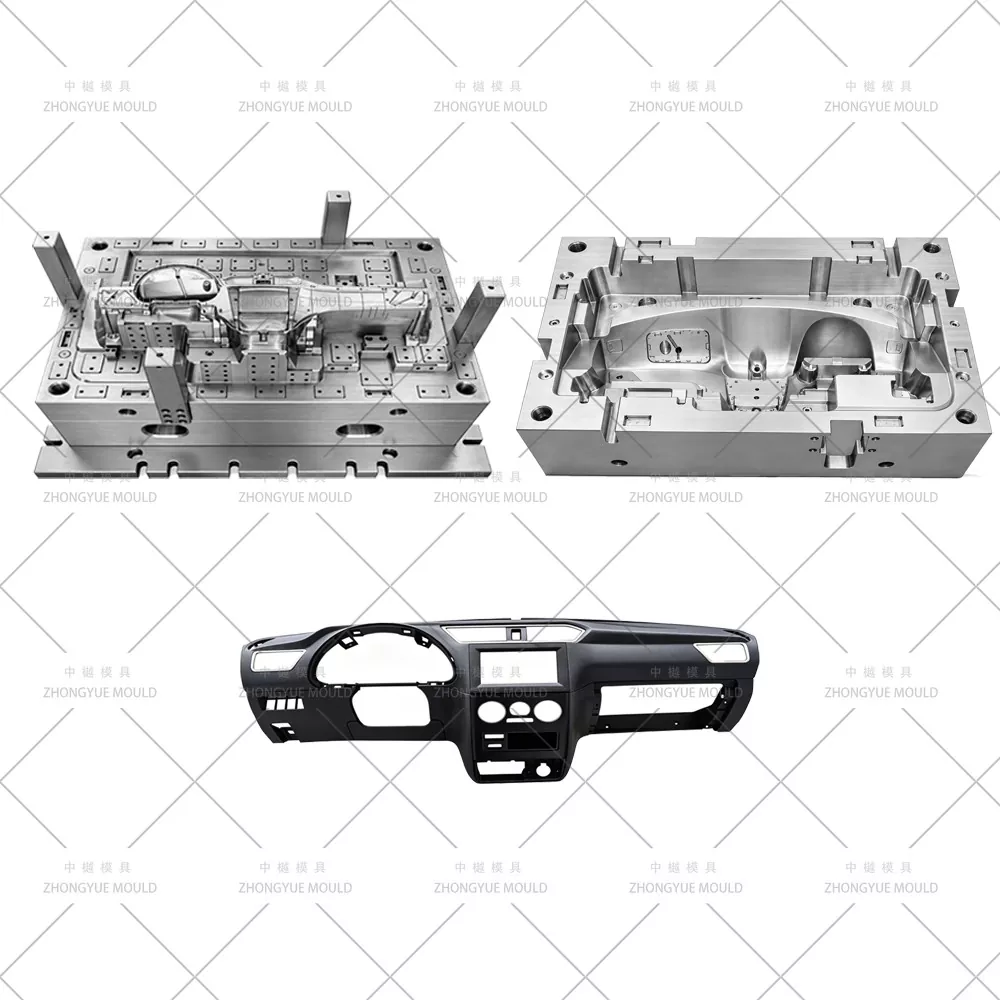

Automotive Dashboard Mould

ZHONGYUE MOULD is a China-based exporter specializing in IP skeleton molds. We build custom automotive dashboard moulds — car instrument panel injection molds — using PP+EPDM-T20. Key features: SVG hot runner, multi-lifter system, DFM analysis. Request your quote now.

Send Inquiry

Product Description

Automotive Dashboard Mould – Custom Car Instrument Panel (IP) & Dashboard Injection Mold Manufacturer

ZHONGYUE MOULD is an experienced Chinese injection mold manufacturer supplying Automotive Dashboard Moulds / Plastic Car Instrument Panel (IP) Injection Molds — also called Dashboard Skeleton Molds to global Tier-1 auto parts suppliers and OEMs. Modern hard-panel dashboards are injection-molded in PP+EPDM-Talc (Mineral-Filled Polypropylene, e.g. PP-T20/T30) or PC+ABS for decorative upper skins, with the large skeleton integrating glove box mounts, air-vent recesses, passenger airbag pre-cut zone, and center console docking features. Our molds feature sequential valve gate (SVG) hot runner systems (6–12 drops) to eliminate weld lines on the A-surface, multiple hydraulic lifters/angled slides for deep undercuts and airbag doors, nitrogen-spring-assisted ejection, and分区 cooling for warp control on 1.5–2.0m span panels.

From passenger car IP skeletons, SUV full-width dashboard substrates, to decorative soft-touch / piano-black upper trims, we provide full DFM review and Moldflow simulation before steel cutting.

Plastic Automotive Dashboard Mould specifications :

Item	Specification / Options
Mold Name	Automotive Instrument Panel (Dashboard) Skeleton / IP Injection Mould

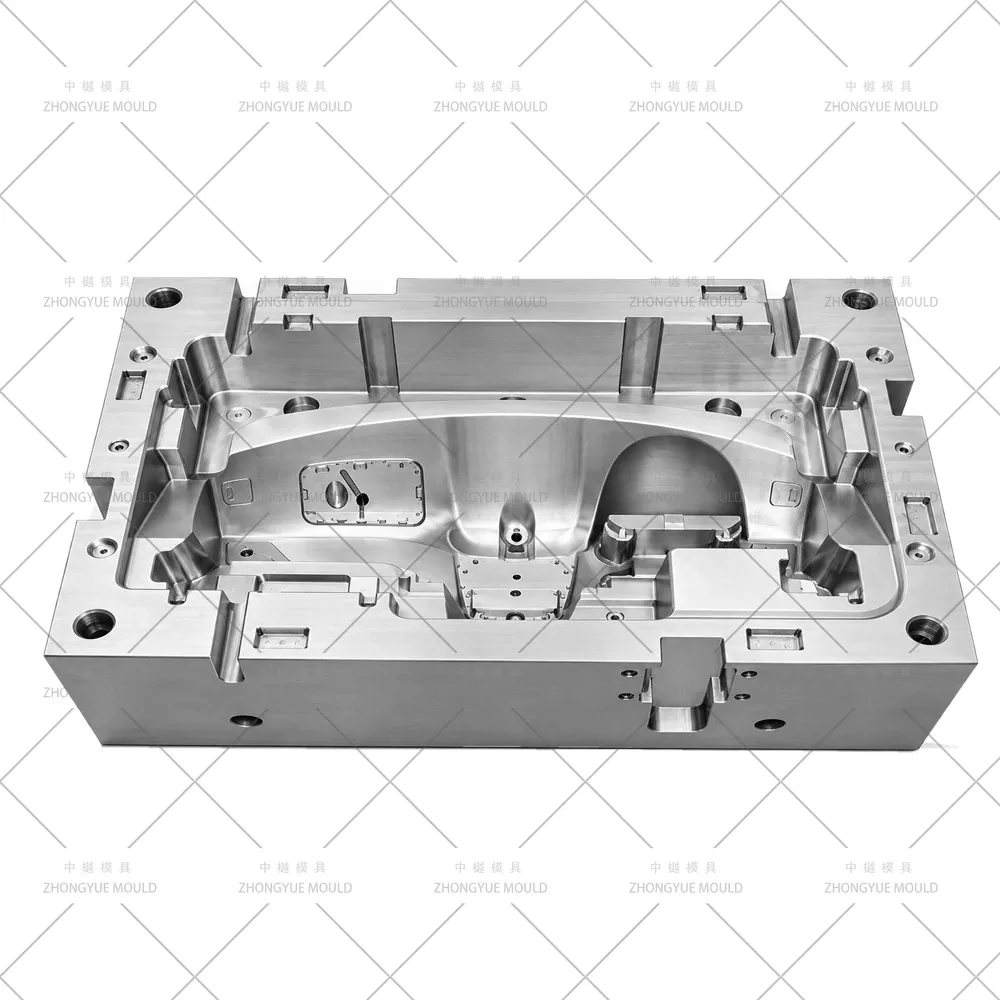

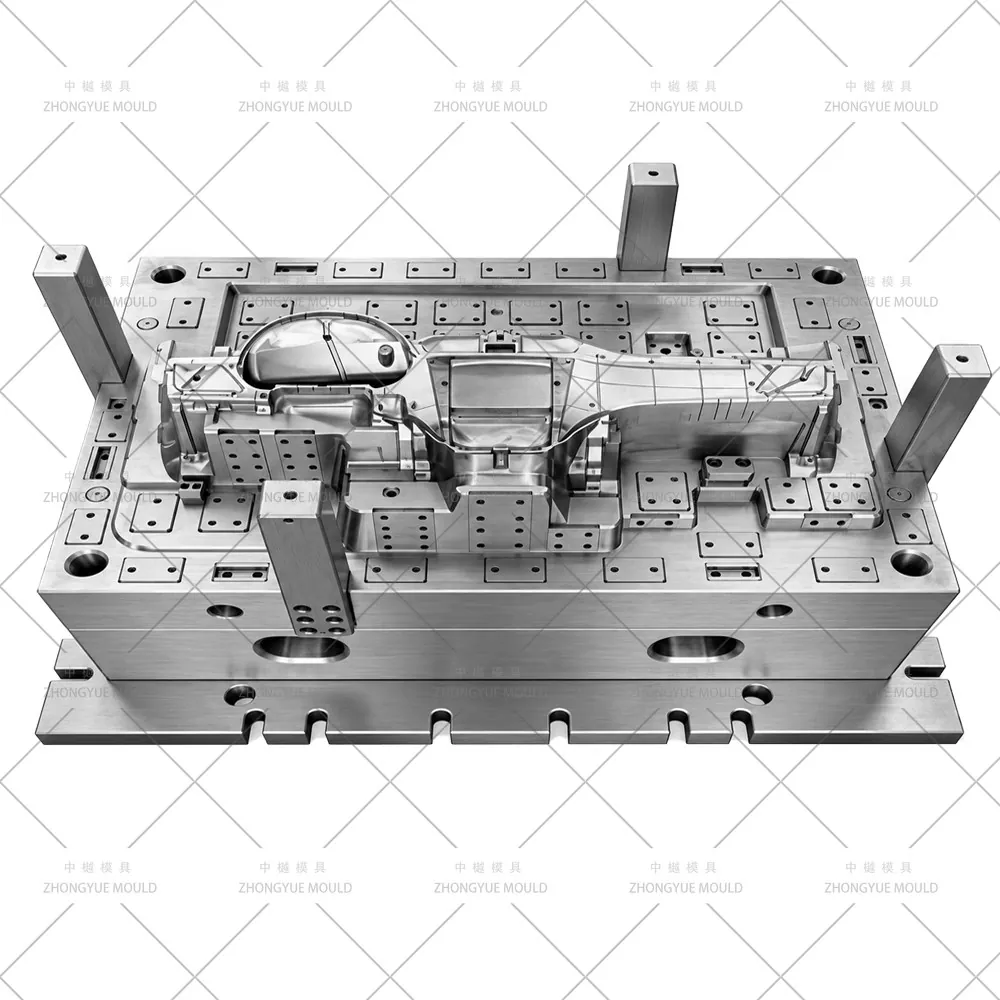

Cavity & Core Steel	Cavity: 718H (HRC 33–38) or 2738HH; S136 (HRC 48–52) mirror insert for piano-black; Core: P20 / 718H; Slides/Lifters: H13(2344 ESR) nitrided or SKD61
Mold Base	S50C / LKM / DME / HASCO oversized base (mold size typically 2200–3000 × 1200–1800 × 1200–1600mm; weight 12–30T)
Cavities	Single cavity (1×1) — standard for large IP
Runner System	Hot runner — 6–12 drops sequential valve gate (YUDO / SYNVENTIVE / Mold-Master recommended)
Gate Type	Submarine gate on inner rib/back flange; hot drop direct gating to hidden zone
Ejection	Ejector pins + multiple lifters (some hydraulic) + ejector block; nitrogen spring assist on heavy lifters; optional secondary ejection for deep-bin parts
Cooling	Baffles Ø10–12mm, bubblers, BeCu inserts, 6–10 isolated circuits w/ quick couplings
Slides / Lifters	4–8+ hydraulic or angled-pin lifters for vent/glove recess; mini hydraulic slides for side features; airbag tear-seam insert
Surface Finish	Cavity VDI 27–36 matte grain / MT texture; S136 zone SPI A1/A2 mirror polish; logo/part number via changeable insert
Mold Life	≥500,000 shots (718H cavity + H13 nitrided lifters); ≥800,000 shots (full H13/S136 nitrided)
Recommended Molding Material	PP-T20/T30 (shrinkage ~0.8–1.5%), PP+EPDM-T20, PC+ABS for décor skin, ABS for glove box
Design Software	UG NX, CATIA, Pro/E, SolidWorks, Moldflow
Tolerance Control	±0.05 mm general; ±0.1 mm on mounting hole pitch; contour ±0.3–0.5 mm to match windshield/A-pillar/IP carrier
Lead Time	70–100 days after 3D mold design approval (complex multi-lifter & SVG hot runner)
Mould material	Hardness	Mould life
P20	HRC 28-33	>300,000 shots
718	HRC 33-36	>500,000 shots
H13	HRC >43	>800,000 shots
2344	HRC >48	>800,000 shots
S136	HRC 48-52	>1,000,000 shots

Make your nextAutomotive Dashboard Mould project brighten!

Typical Dashboard / Instrument Panel Parts We Tool

Part Type	Common Material	Mold Design Focus

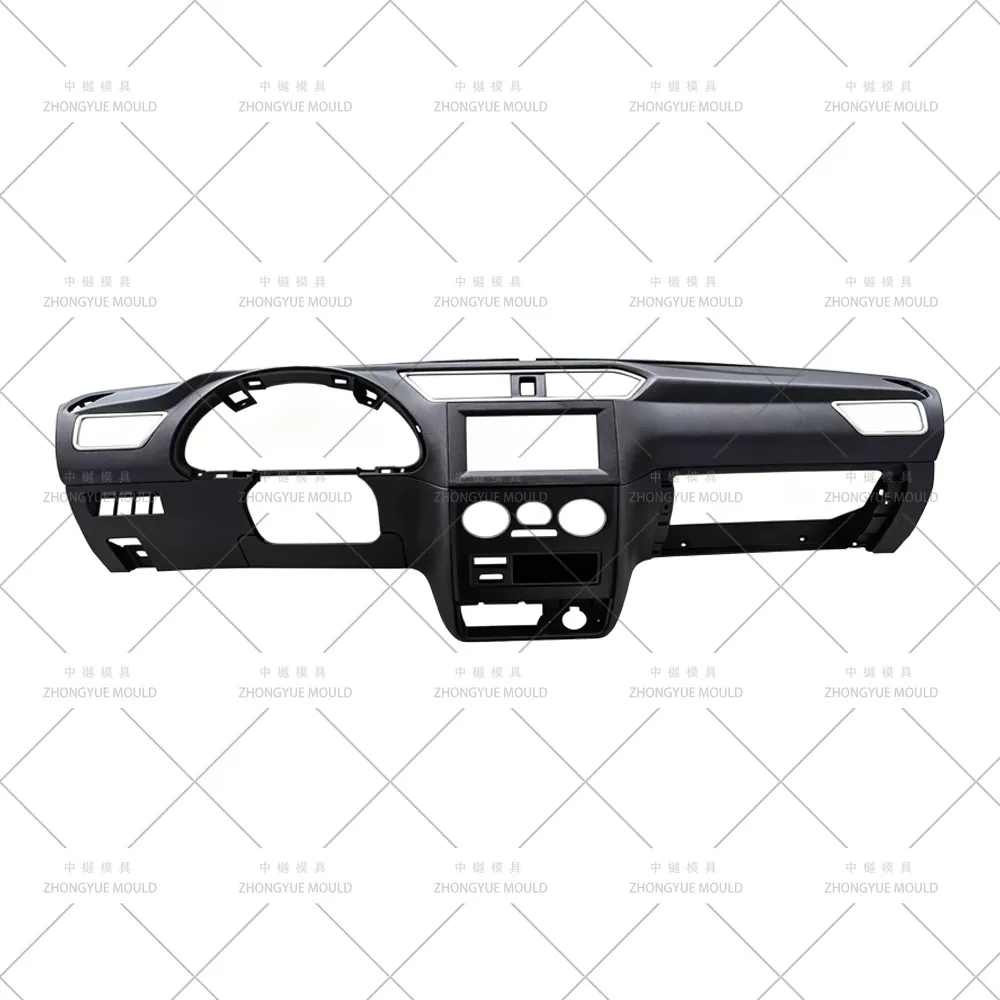

Dashboard / IP Skeleton Substrate (Hard Panel)	PP-T20/T30 (Talc-filled), PP+EPDM-T20	Large thin-wall panel (2.5–3.5mm), SVG hot runner, multi-lifter for glove box & vent recess, airbag pre-score zone treatment, VDI 27–36 grain
Upper Decorative Panel / Top Pad (Hard Skin)	PC+ABS, ABS (matte grain or piano black)	High surface finish — S136 mirror polish zone for piano black; hidden sub-gate; weld line pushed to hidden flange
Passenger Airbag Door / Tether Area (Molded-in)	PP-Talc, sometimes woven fabric insert	Special parting / pre-weakened score line via mold design; slide or insert for clean tear seam — NOT a cut after molding
Glove Box Door / Bin (Sometimes Family or Separate Mold)	PP-T20, ABS	Deep-draw → stripper plate / lifters; snap-fit hinge bosses; VDI grain on visible face
Low-Cost Soft / Slush-Skinned Over Instr. Panel	PVC/ABS slush skin over PP skeleton (2-step process)	Mold only for skeleton — no foaming in this mold; some clients request TPO foil lamination post-molding

Key Mold Engineering Highlights for Dashboard (IP) Molds

Sequential Valve Gate (SVG) Hot Runner — YUDO / SYNVENTIVE / Mold-Master — 6–12 drops staged open/close to push weld lines to non-visible flange/back face; critical for class-B interior grain appearance.

Multiple Hydraulic Lifters & Angled Slides — 4–8+ lifters for glove box recess, air-vent pocket, defrost duct dock; hydraulic mini-slides for side-mounted features; nitrogen springs (vs. coil) used on large lifters to prevent fatigue failure.

Passenger Airbag Door Pre-Score / Tear-Seam Design — Molded-in tear line via precision-machined insert or parting-line step; carefully controlled sharp-radius insert to ensure predictable deployment without loose scrap.

Shrinkage Compensation for PP-Talc & PC+ABS — PP-T20 shrinkage ~0.8–1.3%(MD)/1.0–1.5%(TD); PC+ABS ~0.5–0.7%; Moldflow-verified cavity sizing especially on wide-span panels to control warp & gap to windshield/A-pillar.

Matte Grain + Optional Piano-Black Zone in One Mold — Cavity VDI 27–36 leather/matte grain (Mold-Tech / YS) directly etched on 718H/2738HH; S136 (HRC 48–52) mirror-polish insert for high-gloss decorative strip zone.

Deep & Zoned Cooling for Warp Control — Baffle Ø10–12mm + bubbler + BeCu inserts near thick mounting bosses; isolated water circuits (ΔT ≤ 3–4℃) across left/center/right zones to minimize camber on large panel.

Hidden Submarine Gate on Back Face / Inner Rib — Gate vestige completely hidden from A-surface; cold runner rare except for proto — hot drop preferred.

Typical Technical Specifications (Customizable)

Our Mold Manufacturing & Validation Process

Project Kick-off & DFM Review — Analyze wall thickness (2.5–3.5mm typ.), draft angle per grain (≥1.5° for VDI 30+), lifter stroke interference, airbag tear-seam feasibility, gate & ejection; suggest improvements for sink/weld line avoidance on A-surface.

Mold Flow Simulation (Moldflow) — Fill pattern, weld line position (pushed to back/flange), clamp force, cooling uniformity & predicted warp magnitude for wide PP-Talc panel.

3D Mold Design Approval — Full assembly with cooling layout (zoned circuits), SVG hot runner balancing, 4–8+ lifter/slide detail with interference animation, airbag insert definition, texture zone.

Precision Machining — Large-format high-speed CNC rough/finish, deep-hole drilling for cooling, Sodick/Charmilles EDM for fine lifter slots & tear-seam insert, S136 mirror polish & VDI texture etching.

T1 Trial & Correction — Run on in-house large-tonnage machine; supply trial video + CMM dimensional report + sample part for approval; check airbag seam & glove-box fit.

Final Packaging & Shipment — Fumigation-free heavy-duty case, mold operation manual, spare parts list (lifter springs, ejector pins, seals), heat treatment & steel certs.

Why Choose ZHONGYUE MOULD for Your Automotive Dashboard Mould?

Large Automotive Mold Capability — Bumper, fender, door panel & dashboard (IP) molds built in-house with large-format 5-axis CNC & deep-hole drill

In-house DFM & Moldflow Report — Identify filling/warp/sink risks & optimize before steel cutting; verify airbag tear-seam & gap to windshield

SVG Hot Runner & Multi-Lifter Expertise — YUDO/SYNVENTIVE/Mold-Master integration; nitrogen-spring lifters; hydraulic slide design

Strict QC & Transparent Progress — Weekly machining photos, CMM inspection, T1 sample approval before shipment

Export Experience — Molds shipped to Europe, North America, South America, Southeast Asia

1-Year Mold Warranty + Spare Parts Supply (lifter springs, seals, pins)

Frequently Asked Questions

Q: Do you mold the soft PVC/TPO slush skin or just the PP skeleton?

A: We manufacture the injection mold for the PP/PC+ABS skeleton/substrate. Soft slush-skin (PVC/TPO) is typically formed in a separate slush-molding or vacuum-forming process and laminated or assembled onto the skeleton — not injected in this mold.

Q: How do you handle the passenger airbag tear seam?

A: We design a precision-machined insert or parting-line step in the cavity to mold a pre-weakened tear line (scored groove) — NOT a post-mold cut. This ensures predictable deployment and a clean hidden seam.

Q: What hot runner system do you recommend for dashboard molds?

A: Sequential valve gate (SVG) hot runner with 6–12 drops (YUDO/SYNVENTIVE/Mold-Master) is strongly recommended — it allows staged filling to push weld lines to the back face/flange, preserving the grain-finished A-surface.

Q: What do you need for a quotation?

A: 3D part model (STP/IGS/X_T), target material (PP-T20/T30 / PC+ABS etc.), annual volume, your injection machine platen & tie-bar data, surface texture spec & airbag tear-seam requirement if applicable.

Request a Quote for Your Automotive Dashboard Mould

Send your dashboard / instrument panel 3D model (STEP/IGS/X_T) and project requirements. ZHONGYUE MOULD will provide a free DFM report + mold flow summary + formal quotation within 24–48 working hours.
