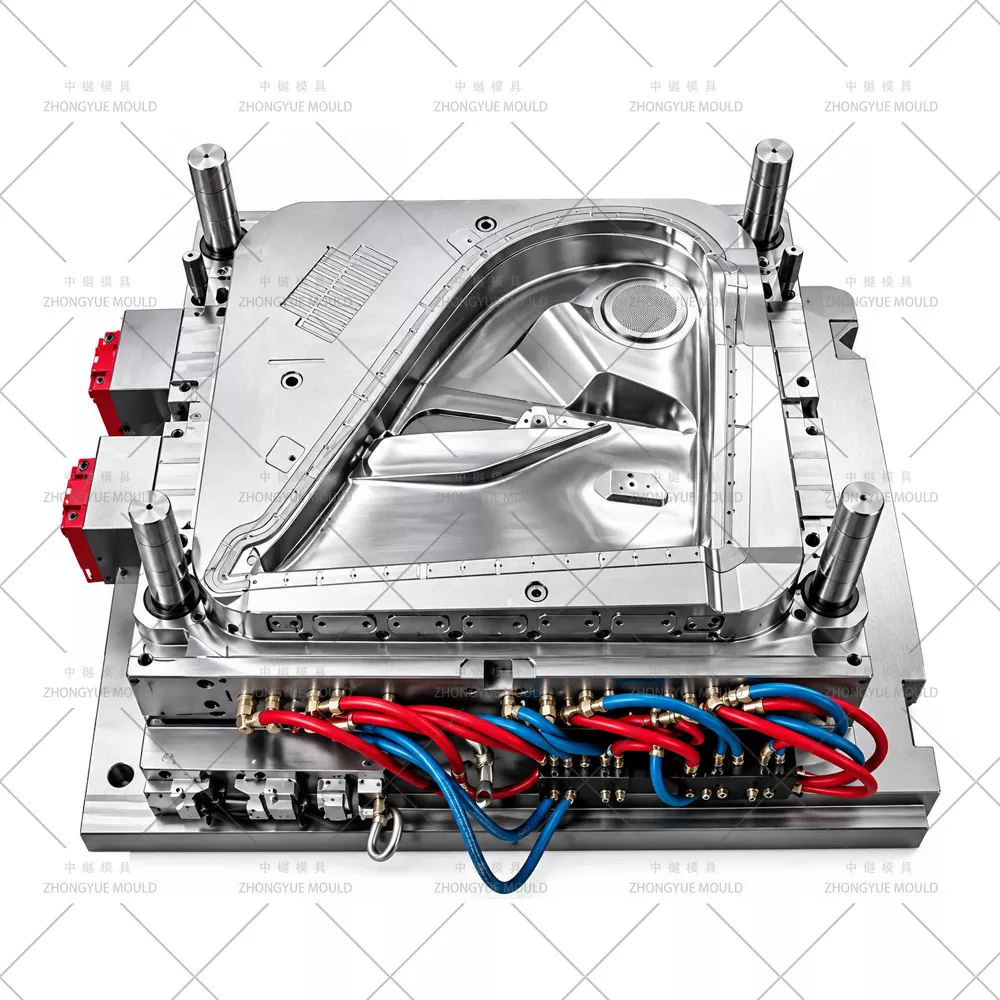

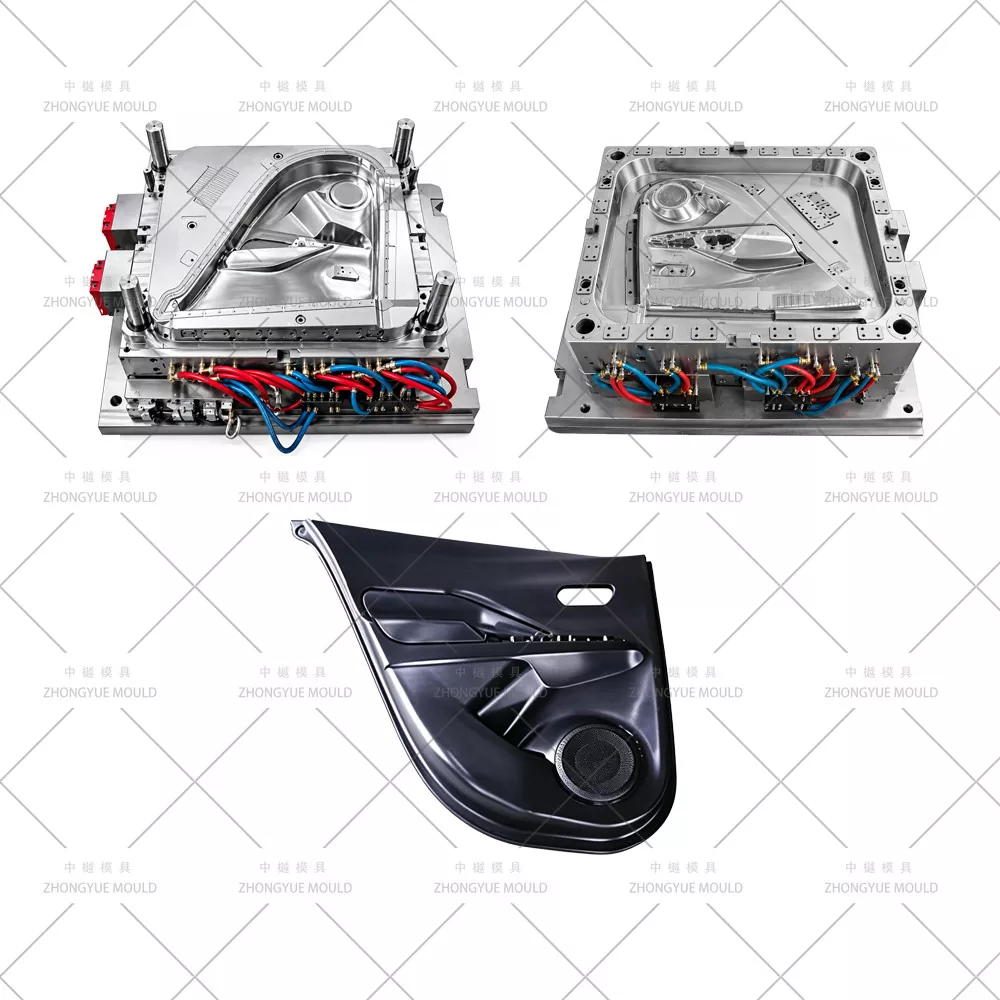

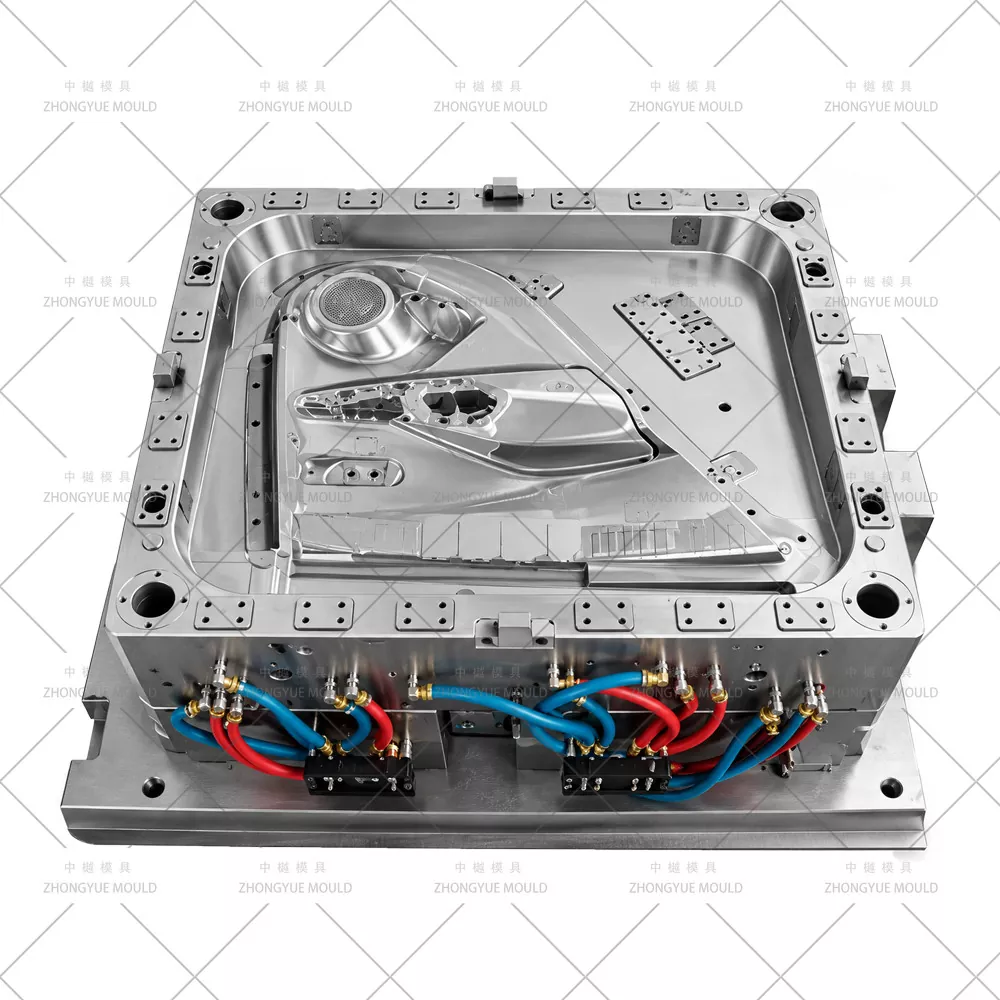

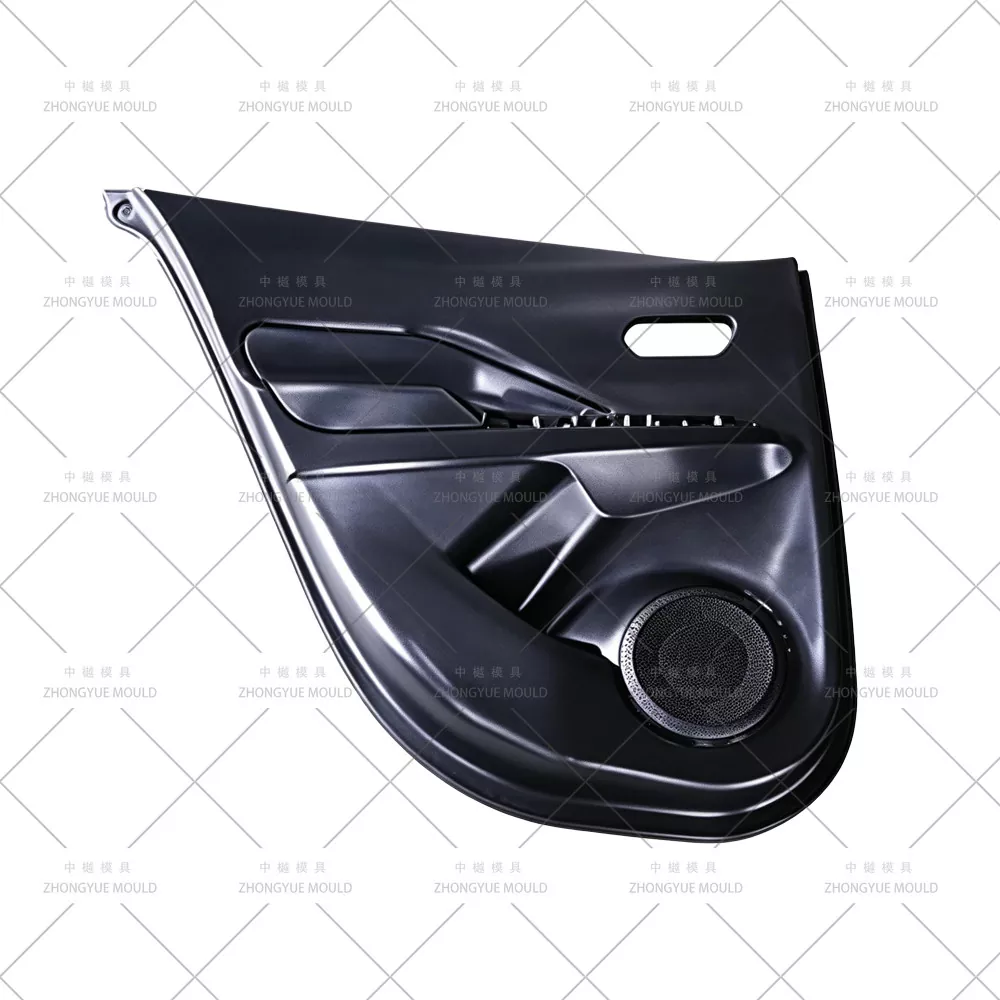

ZHONGYUE MOULD is a professional Chinese injection mold manufacturer supplying Automotive Door Panel Moulds / Plastic Car Door Trim Panel Injection Molds (Inner Door Board Molds) to global Tier-1 auto parts suppliers and OEMs. The door panel integrates armrest, map pocket (storage bin), speaker ring, switch bezel mounting, and multiple snap-fit clip bosses — most are molded in PP+EPDM-Talc (PP-T20/T30) with the visible A-surface VDI-grained (matte leather texture), and optional piano-black or chrome-look decorative inserts (ABS/PC+ABS) molded separately or as a two-shot/overmold. Our door panel molds feature sequential valve gate (SVG) hot runner systems (6–10 drops) to eliminate weld lines on the grained face, multiple hydraulic lifters/angled ejector blocks for map pocket undercuts, nitrogen-spring-assisted ejection, and zoned cooling for warp control on 700–1100mm span panels.
From front door trim panels (L/R), rear door trim panels, to separate armrest/map-pocket insert molds, we provide full DFM review and Moldflow simulation before steel cutting.
|
Item |
Specification / Options |
|
|
Mold Name |
Automotive Door Panel (Front / Rear) / Door Trim Inner Board Injection Mould |
|
|
Cavity & Core Steel |
Cavity: 718H (HRC 33–38) or 2738HH; S136 (HRC 48–52) mirror insert for piano black; Core: 718H / P20; Lifters/Slides: H13(2344 ESR) nitrided or SKD61 |
|
|
Mold Base |
LKM / DME / HASCO oversized base (mold size typically 1500–2200 × 800–1200 × 900–1300mm; weight 8–18T) |
|
|
Cavities |
Single cavity (1×1) standard; 1+1 mirror cavity (L+R) available for symmetric designs |
|
|
Runner System |
Hot runner — 6–10 drops sequential valve gate (YUDO / SYNVENTIVE / Mold-Master recommended); cold runner for prototype |
|
|
Gate Type |
Submarine gate on inner rib/back flange; hot drop direct gating to hidden zone |
|
|
Ejection |
Ejector pins + multiple lifters (some hydraulic) + angled ejector block / stripper bar; nitrogen spring assist on heavy lifters |
|
|
Cooling |
Baffles Ø8–12mm, bubblers, BeCu inserts near bosses & map pocket corners, 4–6 isolated circuits w/ quick couplings |
|
|
Slides / Lifters |
4–8+ hydraulic or angled-pin lifters for map pocket & armrest undercut; mini slides for switch-bezel recess; airbag-less (door panel typically no airbag) |
|
|
Surface Finish |
Cavity VDI 27–36 matte grain / MT texture; S136 zone SPI A1/A2 mirror polish; logo/part number via changeable insert |
|
|
Mold Life |
≥500,000 shots (718H cavity + H13 nitrided lifters); ≥800,000 shots (full H13/S136 nitrided) |
|
|
Recommended Molding Material |
PP-T20/T30 (shrinkage ~0.8–1.5%), PP+EPDM-T20, ABS/PC+ABS for décor inserts, TPE/TPO for overmolding (2K mold) |
|
|
Design Software |
UG NX, CATIA, Pro/E, SolidWorks, Moldflow |
|
|
Tolerance Control |
±0.05 mm general; ±0.1 mm on clip boss pitch; contour ±0.3–0.5 mm to match door outer panel & A/B pillar |
|
|
Lead Time |
55–75 days after 3D mold design approval (multi-lifter complexity) |
|
|
Mould material |
Hardness |
Mould life |
|
P20 |
HRC 28-33 |
>300,000 shots |
|
718 |
HRC 33-36 |
>500,000 shots |
|
H13 |
HRC >43 |
>800,000 shots |
|
2344 |
HRC >48 |
>800,000 shots |
|
S136 |
HRC 48-52 |
>1,000,000 shots |
Make your nextAutomotive Door Panel Mould project brighten!
|
Part Type |
Common Material |
Mold Design Focus |
|
Front Door Trim Panel (Inner Board / Main Substrate) |
PP-T20/T30 (Talc-filled), PP+EPDM-T20 |
Large thin-wall (2.5–3.5mm), SVG hot runner, 4–8+ lifters for map pocket & armrest undercut, VDI 27–36 grain on A-surface |
|
Rear Door Trim Panel (Often Smaller / Simpler) |
PP-T20/T30 |
Same structure as front but smaller; can share same mold base design philosophy; sometimes 1+1 L+R if asymmetrical |
|
Door Map Pocket / Storage Bin (Separate or Integrated) |
PP-T20, ABS |
Deep undercut → stripper plate / angled lifters; sometimes molded as separate insert piece then assembled |
|
Door Armrest / Switch Bezel / Speaker Grille (Sub-assembly) |
ABS, PC+ABS (piano black or matte) |
S136 mirror-polish zone for high gloss; small slides for bezel cutouts; sometimes 2K overmolding with soft TPE |
|
Soft-Touch Overmolded Door Panel Substrate (2K) |
PP substrate + TPE/TPO soft pad |
Mold designed for rotary platen or sequential injection; registered shut-off for soft material zone |
Sequential Valve Gate (SVG) Hot Runner — YUDO / SYNVENTIVE / Mold-Master — 6–10 drops with staged open/close to push weld lines to the hidden back flange/inner rib, preserving the grained A-surface appearance.
Multiple Hydraulic Lifters & Angled Ejector Blocks — 4–8+ lifters for map pocket inner undercut & armrest recess; nitrogen springs on large lifters to prevent fatigue; mini hydraulic cylinders for switch-bezel cutouts if needed.
Shrinkage Compensation for PP-Talc & ABS/PC+ABS — PP-T20 shrinkage ~0.8–1.3%(MD)/1.0–1.5%(TD); ABS ~0.4–0.7%; Moldflow-verified cavity sizing especially on wide panels to control warp & gap to door shell/A-pillar.
Matte Grain + Optional Piano-Black / Chrome Insert Zone — Cavity VDI 27–36 leather/matte grain (Mold-Tech / YS) directly etched on 718H/2738HH; S136 (HRC 48–52) mirror-polish insert for high-gloss decorative strip — clearly partitioned parting line.
Zoned Deep Cooling for Warp Control — Baffle Ø8–12mm + bubbler + BeCu inserts near thick clip bosses & armrest mounting; 4–6 isolated water circuits (ΔT ≤ 3–4℃) across left/center/right zones.
1+1 Mirror Cavity Option (L+R for Symmetrical Door Panels) — Balanced hot runner or Y-branched cold runner; for asymmetrical styled panels usually single cavity (L & R quoted as matched pair).
Hidden Submarine Gate on Back Face / Inner Rib — Gate vestige completely hidden from A-surface; cold runner rare except for proto — hot drop preferred.
Project Kick-off & DFM Review — Analyze wall thickness (2.5–3.5mm typ.), draft angle per grain (≥1.5° for VDI 30+), lifter stroke interference for map pocket & armrest, gate & ejection feasibility; suggest improvements for sink/weld line avoidance on A-surface.
Mold Flow Simulation (Moldflow) — Fill pattern, weld line position (pushed to back/flange), clamp force, cooling uniformity & predicted warp magnitude for wide PP-Talc panel.
3D Mold Design Approval — Full assembly with cooling layout (zoned circuits), SVG hot runner balancing, 4–8+ lifter/slide detail with interference animation, texture & mirror-polish zone definition.
Precision Machining — Large-format high-speed CNC rough/finish, deep-hole drilling for cooling, Sodick/Charmilles EDM for fine lifter slots & texture engraving; S136 mirror polish & VDI grain etching.
T1 Trial & Correction — Run on in-house machine; supply trial video + CMM dimensional report + sample part for approval; check map pocket fit & clip engagement.
Final Packaging & Shipment — Fumigation-free heavy-duty case, mold operation manual, spare parts list (lifter springs, ejector pins, seals), heat treatment & steel certs.
Automotive Interior Mold Experience — Door Panel, fender, Door Panel, center console & door panel molds built in-house with large-format 5-axis CNC & deep-hole drill
In-house DFM & Moldflow Report — Identify filling/warp/sink risks & optimize before steel cutting; verify gap/flush to door shell & pillar
SVG Hot Runner & Multi-Lifter Expertise — YUDO/SYNVENTIVE/Mold-Master integration; nitrogen-spring lifters; angled ejector block design
Strict QC & Transparent Progress — Weekly machining photos, CMM inspection, T1 sample approval before shipment
Export Experience — Molds shipped to Europe, North America, South America, Southeast Asia
1-Year Mold Warranty + Spare Parts Supply (lifter springs, seals, pins)
Q: Do you make both front and rear door panel molds — and can left & right be 1+1 mirror cavity?
A: Yes. We design single-cavity L/R molds (common for asymmetrical styled panels) and 1+1 mirror cavity molds for symmetrical designs to double output per shot. Front & rear are quoted separately as they differ in size & feature set.
Q: What hot runner system do you recommend for door panel molds?
A: Sequential valve gate (SVG) hot runner with 6–10 drops (YUDO/SYNVENTIVE/Mold-Master) is strongly recommended — it lets you stage filling to push weld lines to non-visible areas, critical for grained A-surface quality.
Q: Can you achieve matte grain AND piano-black high gloss in one mold?
A: Yes. We use S136 mirror-polish insert (SPI A1/A2) for high-gloss decorative zone and 718H/2738HH textured cavity (VDI 27–36) for matte main panel, with clearly defined parting between zones.
Q: What do you need for a quotation?
A: 3D part model (STP/IGS/X_T), target material (PP-T20/T30 / ABS etc.), annual volume / cavitation preference (1×1 or 1+1), your injection machine platen data, surface texture & high-gloss zone spec if any.
Send your door panel 3D model (STEP/IGS/X_T) and project requirements. ZHONGYUE MOULD will provide a free DFM report + mold flow summary + formal quotation within 24–48 working hours.
