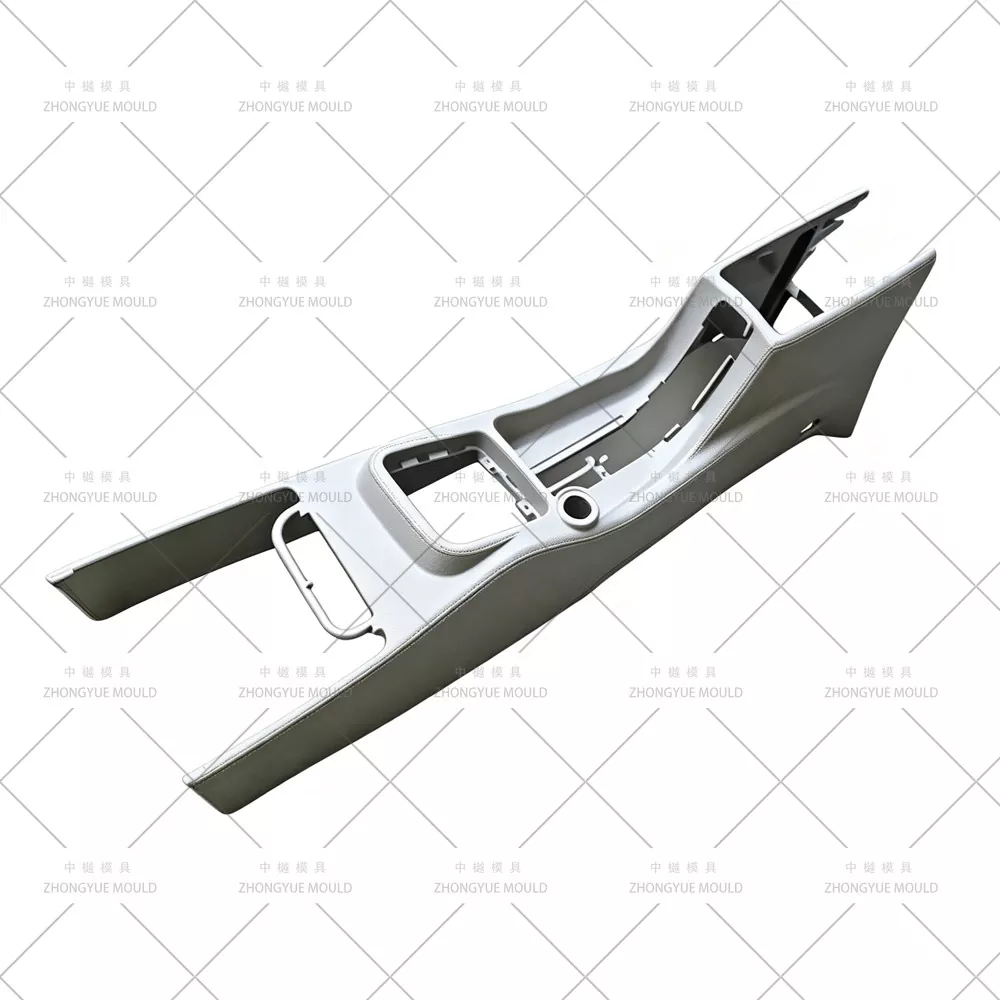

ZHONGYUE MOULD is a professional Chinese injection mold manufacturer supplying Automotive Center Console Moulds / Plastic Car Center Console Injection Molds (Interior Trim Molds) to global Tier-1 auto parts suppliers and OEMs. The center console—comprising the upper decorative panel (with switches, USB ports, gear-shift bezel) and the lower storage/bin & armrest structure—is typically molded in ABS, PC+ABS, or PP-T20, with matte leather grain (VDI 27–36) on visible faces and optional piano-black high-gloss zones (S136 mirror-polish cavity) or soft-touch TPE/TPU overmolding. Our molds feature multi-angle lifters for deep storage-bin undercuts, hydraulic or angled slides for air-vent cut-outs & cup-holder recesses, balanced cooling near thick mounting bosses, and refined parting-line control for a flawless interior appearance.
From passenger car center console upper & lower assemblies, SUV wide-console armrest bases, to gear-shift surround / trim bezels, we provide full DFM review and Moldflow simulation before steel cutting.
|
Item |
Specification / Options |
|
|
Mold Name |

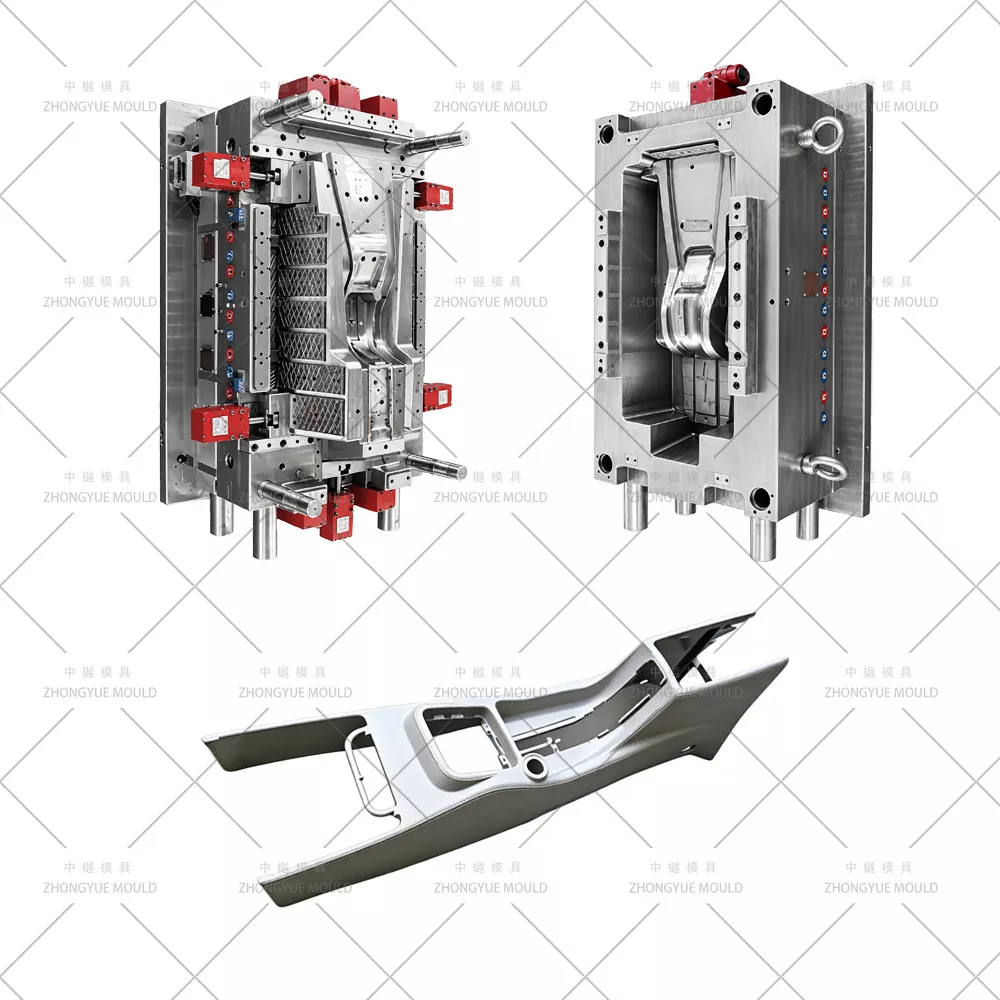

Automotive Center Console (Upper Panel / Lower Bin / Bezel) Plastic Injection Mould |
|
|

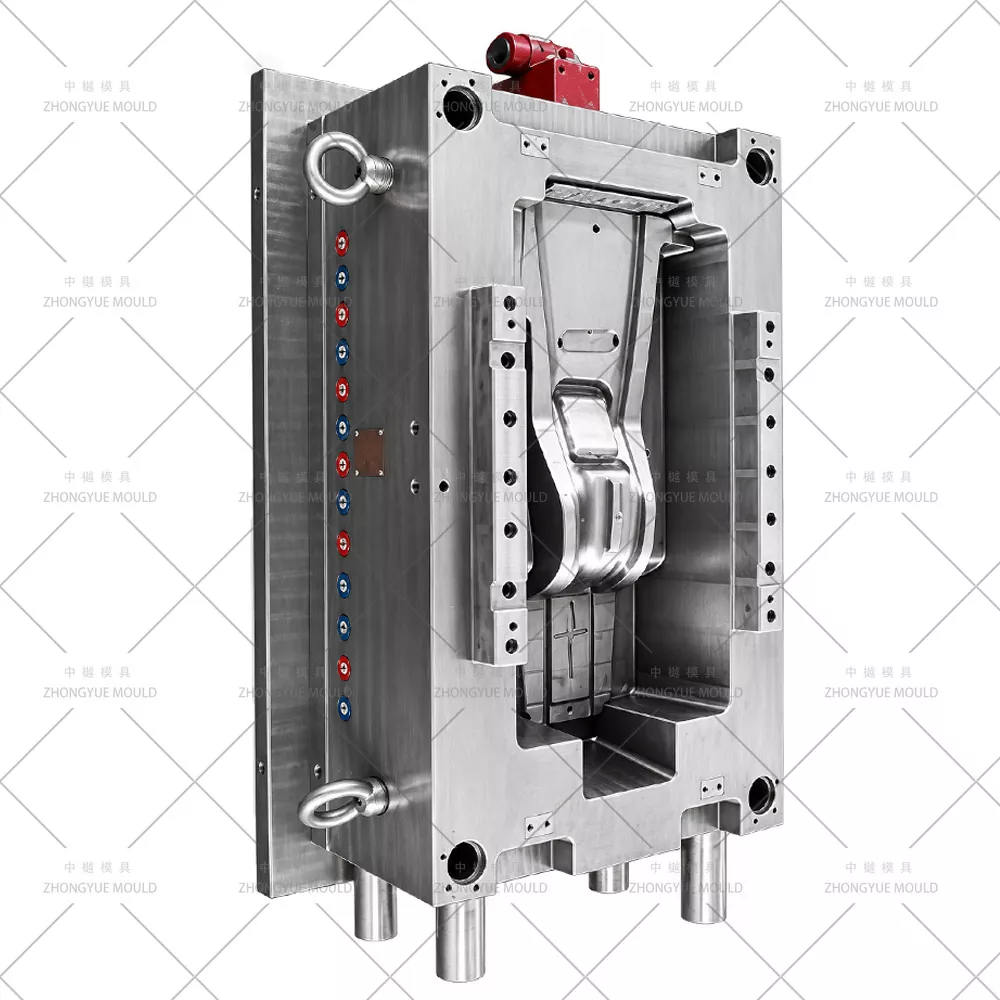

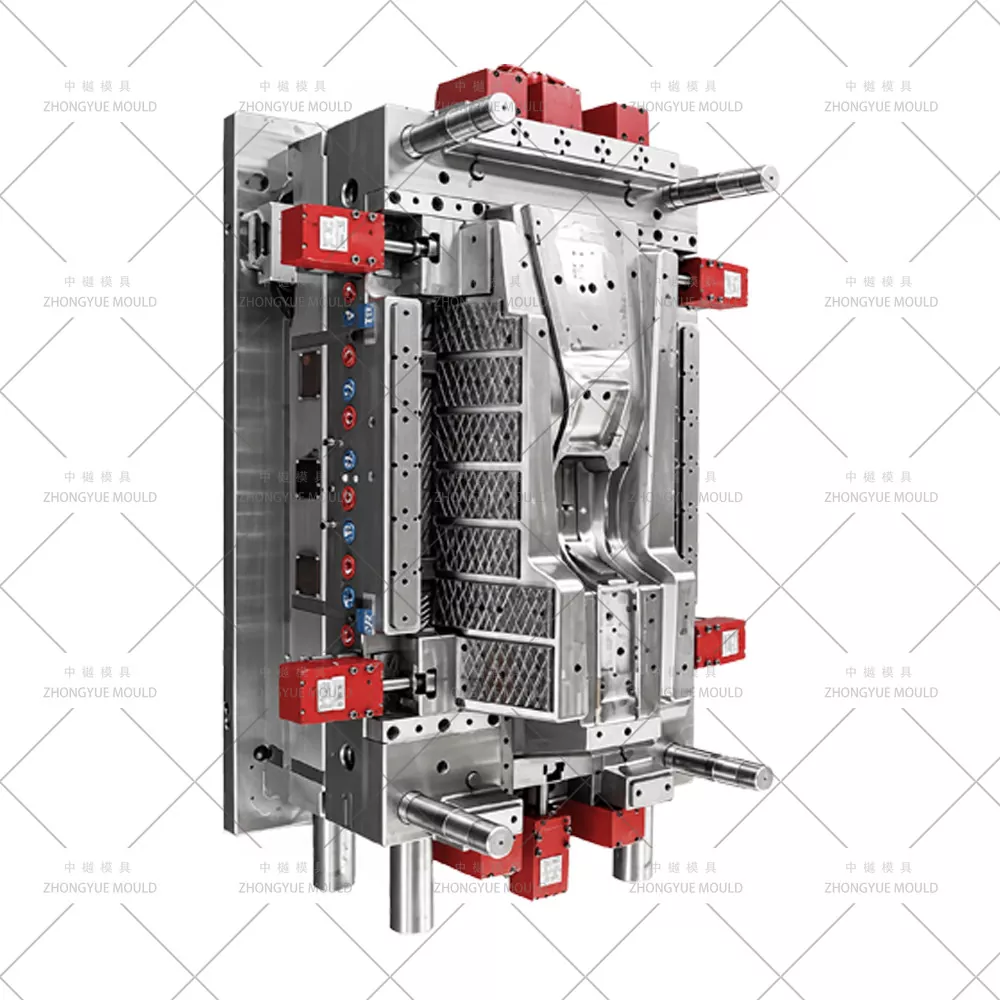

Cavity & Core Steel |
Cavity: 718H (HRC 33–38) for grain zone + S136 (HRC 48–52) insert for piano black; Core: 718H / 2738HH; Slides/lifters: H13 nitrided or SKD61 |
|
|
Mold Base |
LKM / DME / HASCO / Self-designed (suitable for 450T–1200T press depending on console size) |
|
|
Cavities |
Single cavity (1×1) standard; family mold (upper+lower) evaluated per project; 1+1 for symmetric rear pods |
|
|
Runner System |
Cold runner (sub/edge gate) standard; Hot runner (YUDO / SYNVENTIVE / Mold-Master) optional for painted / high-appearance parts |
|
|
Gate Type |
Submarine gate on hidden flange / inner boss; fan gate; hot drop direct gating where applicable |
|
|
Ejection |
Ejector pins + lifters + ejector block / stripper bar; robot take-out interface |
|
|
Cooling |
Baffles Ø8–10mm, bubblers, BeCu inserts near bosses & bin corners, multi-circuit |
|
|
Slides / Lifters |
Angled-pin slides or mini hydraulic cylinders for bezel cutouts, cup-holder recess; lifters for storage bin undercut |
|
|
Surface Finish |
Cavity VDI 27–36 matte grain / MT texture; S136 zone SPI A1/A2 mirror polish; logo engraving insert |
|
|
Mold Life |
≥500,000 shots (718H + H13 slides); ≥800,000–1,000,000 shots (full H13/S136 nitrided) |
|
|
Recommended Molding Material |
ABS (shrinkage ~0.4–0.7%), PC+ABS (~0.5–0.7%), PP-T20 (~1.0–1.5%), optional TPE/TPU for overmolding |
|
|
Design Software |
UG NX, CATIA, Pro/E, SolidWorks, Moldflow |
|
|
Tolerance Control |
±0.05 mm general; ±0.1 mm on mounting clip pitch; contour ±0.3 mm to match instrument panel & tunnel |
|
|
Lead Time |
45–65 days after 3D mold design approval (additional complexity for multi-lifter & S136 insert) |
|
|
Mould material |
Hardness |
Mould life |
|
P20 |
HRC 28-33 |
>300,000 shots |
|
718 |
HRC 33-36 |
>500,000 shots |
|
H13 |
HRC >43 |
>800,000 shots |
|
2344 |
HRC >48 |
>800,000 shots |
|
S136 |
HRC 48-52 |
>1,000,000 shots |
Make your nextAutomotive Center Console Mould project brighten!
|
Part Type |
Common Material |
Mold Design Focus |
|
Upper Console Decorative Panel (with switch/USB cutouts) |
ABS, PC+ABS (matte grain / piano black zone) |
Thin-wall stiffeners, logo insert, high-gloss S136 insert for piano black; hidden sub-gate; multiple small slides for bezel cutouts |
|
Lower Console Storage Bin / Armrest Base |
PP-T20, ABS, PC+ABS |
Deep-draw bin → lifters/ejector block; snap-fit clip bosses; VDI 30–36 grain on visible face |
|
Gear Shift Surround / Bezel / Trim Frame |
ABS chrome-plated or piano black |
Mirror-polish S136 cavity; tight parting line control; sometimes 2-shot or overmolding prep |
|
Soft-Touch Overmolded Console Top (2K / Overmolding) |
ABS substrate + TPE/TPU soft skin |
Mold designed for sequential injection or rotary platen; registered shut-off for soft material |
|
Rear Console / 2nd-Row Center Pod (SUV / MPV) |
PP-T20, ABS matte |
Similar to lower console; sometimes 1+1 L+R for symmetric pod |
Dual Surface Finish in One Mold — Matte grain zone: 718H/2738HH cavity VDI 27–36 (Mold-Tech / YS pattern) directly etched; Piano-black / chrome-plate zone: S136 (HRC 48–52) mirror-polish SPI A1/A2 with changeable insert for logo/part number.
Multi-Lifter & Slide System for Deep Undercuts — Lifters for storage-bin inner undercuts, angled-pin slides or mini hydraulics for cup-holder recess, air-vent pocket & USB cut-out; slide interference checked in 3D assembly.
Shrinkage Compensation for Interior Plastics — ABS shrinkage ~0.4–0.7%; PC+ABS ~0.5–0.7%; PP-T20 ~1.0–1.5%; Moldflow-verified cavity sizing especially on long decorative panels prone to warp.
Hidden Submarine / Edge Gate on Non-Visible Flange — Gate vestige hidden on back/bottom flange; cold runner common for single-cavity interior molds; hot runner (open or valve) available for high-cav or painted parts to reduce weld lines.
Optimized Cooling for Thick Bosses & Long Panels — Baffle + bubbler + BeCu inserts near thick mounting bosses & coin-tray recess; multi-zone temp control to minimize sink on matte surface.
Family Mold Option (Upper + Lower Console / Bezel) — Where cycle times match, we can design family molds (caution: sink risk on thick sections — evaluated case-by-case via Moldflow).
Project Kick-off & DFM Review — Analyze wall thickness (2.0–3.0mm typical), draft angle per grain (≥1.5° for VDI 30+), lifter stroke for bin undercut, gate & ejection feasibility; suggest improvements for sink/weld line avoidance on visible matte face.
Mold Flow Simulation (Moldflow) — Fill pattern, weld line position (pushed to hidden flange/back), clamp force, cooling uniformity & predicted warp for long decorative panel.
3D Mold Design Approval — Full assembly with cooling layout, lifter/slide detail with interference check, texture zone & mirror-polish zone definition, venting strategy.
Precision Machining — High-speed CNC rough/finish, deep-hole drilling for cooling, Sodick/Charmilles EDM for fine cut-outs & texture engraving; S136 insert mirror polish.
T1 Trial & Correction — Run on in-house machine; supply trial video + CMM dimensional report + sample parts for approval.
Final Packaging & Shipment — Fumigation-free case, mold operation manual, spare parts list (extra lifter springs, ejector pins), heat treatment & steel certs.
Automotive Interior & Exterior Mold Experience — Bumper, fender, door panel, dashboard & center console molds built in-house
In-house DFM & Moldflow Report — Identify filling/warp/sink risks & optimize before steel cutting; check gap/flush fit with IP & tunnel
Dual-Finish Capability (Grain + Piano Black) — S136 mirror-polish insert + textured 718H cavity in same mold; 2K/overmolding design support
Strict QC & Transparent Progress — Weekly machining photos, CMM inspection, T1 sample approval before shipment
Export Experience — Molds shipped to Europe, North America, South America, Southeast Asia
1-Year Mold Warranty + Spare Parts Supply (lifters, springs, pins)
Q: Can you mold both the upper decorative panel and lower bin as a family mold?
A: It's possible when cycle times and wall thickness are compatible — we evaluate case-by-case via Moldflow, since thick lower bin sections can cause sink if gated from the same runner. Often they are built as two separate single-cavity molds for better quality control.
Q: Do you support piano-black (high gloss) zones and matte grain in one mold?
A: Yes. We use S136 mirror-polish insert (SPI A1/A2) for high-gloss areas and 718H/2738HH textured cavity (VDI 27–36) for matte zones, with clearly defined parting lines.
Q: What hot runner do you recommend for center console molds?
A: Many interior consoles run cold runner with hidden submarine gate. For painted or very high-appearance parts where weld lines are critical, we can integrate an open or sequential valve gate hot runner (YUDO/SYNVENTIVE/Mold-Master).
Q: What do you need for a quotation?
A: 3D part model (STP/IGS/X_T), target material (ABS / PC+ABS / PP-T20), annual volume / cavitation preference (1×1 or family), your injection machine platen data, surface texture & high-gloss zone spec if any.
Send your center console 3D model (STEP/IGS/X_T) and project requirements. ZHONGYUE MOULD will provide a free DFM report + mold flow summary + formal quotation within 24–48 working hours.
