Plastic 5L Paint Bucket Mould

Zhongyue Mould Specializing in Plastic 5L Paint Bucket Moulds since 2015, we combine design, engineering, and market insight to deliver turnkey injection Moulding solutions. Our collaborative team approach ensures rapid lead times and unparalleled customer satisfaction.

Send Inquiry

Product Description

Zhongyue mould as a leading professional manufacturer and exporter of Plastic 5L Paint Bucket Moulds in China, we are dedicated to delivering high-precision, durable and cost-effective mould solutions for plastic water buckets to customers worldwide.

Backed by years of expertise in mould design, manufacturing and export, we have built long-term stable partnerships with clients across more than 30 countries and regions, including India, Malaysia, Mexico, Brazil, Russia, Egypt and various European markets.

Our reliable product quality and attentive service have earned us widespread recognition and trust globally.

Specifications :

Mould Name	Plastic 5L Paint Bucket Mould
Mould Meterial	P20,2738,718H,NAK80,2316,S136,H13,etc
Mould Base	Self-made,LKM,DME,ASSAB
Cavity	Single/multi
Runner	Cold runner and hot runner
Hot Runner Brand	Master, HUSKY,YUDO,etc.
Degsin Software	UG:Aoto CAD and so on
Mould Life	50-100 million Shots/ 5-6 years, Even in 10 years in good maintenance
T1 Time	25-60 days
Plastic Material	PP
Gate Type	Pinpoint Gate, Edge Gate, Sub Gate, Film Gate, Valve Gate, Open Gate, etc.
Mould Surface Treatment	EDM, texture, high gloss polishing
Quality System	ISO9001
HS Code	8480719090
Origin	Huangyan Zhejiang China
Package	Wooden Case
Mould material	Hardness	Mould life
P20	HRC 28-33	>300,000 shots
718	HRC 33-36	>500,000 shots
H13	HRC >43	>800,000 shots
2344	HRC >48	>800,000 shots
S136	HRC 48-52	>1,000,000 shots

Make your next plastic Stool Mould project brighten!

Our Advantages: Quality, Efficiency and Customization

1. Premium Material Selection for Extended Service Life

We strictly select high-quality Mould steels such as P20, H13, and S136, which are well-known for their exceptional wear resistance, corrosion resistance, and stability under high-temperature and high-pressure conditions. After precise heat treatment, the Mould core and cavity achieve a hardness of HRC 50-55, ensuring the Mould service life exceeds 1,000,000 shots. This significantly reduces our clients’ Mould replacement costs and improves production efficiency.

2. High-Precision Manufacturing for Superior Product Quality

Equipped with advanced 5-axis machining centers, slow wire cutting machines, and precision grinding equipment, we achieve a machining precision of ±0.01mm for the Mould core and cavity, while controlling the parting line precision within ≤0.02mm. This guarantees that the produced plastic buckets feature uniform wall thickness (with a tolerance of ±0.05mm), no flash or burrs, and consistent shape. We also adopt CMM inspection, 3D scanning, and Mouldflow analysis to implement strict quality control throughout the entire manufacturing process, ensuring each Mould meets international standards.

3. Efficient Moulding Design to Lower Production Costs

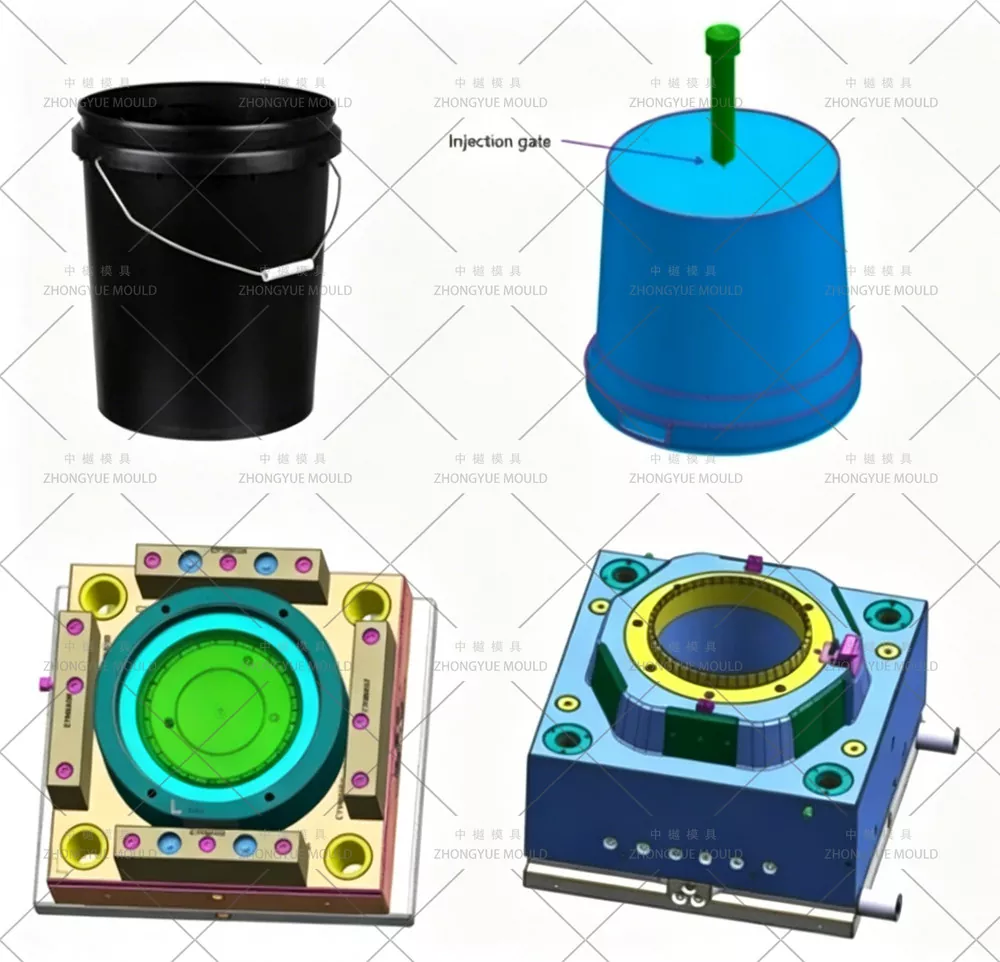

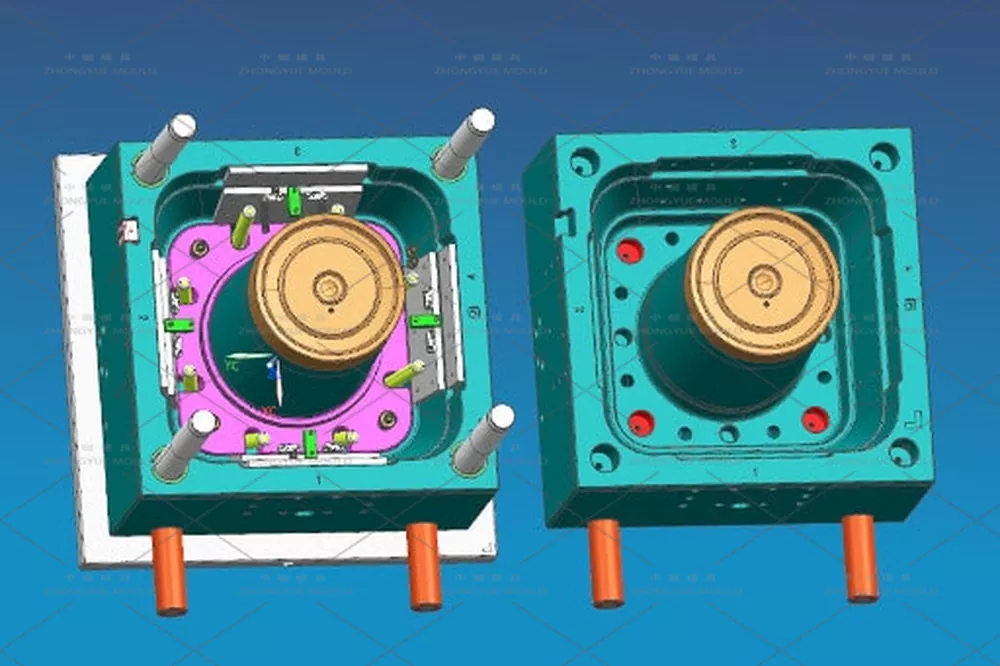

Our professional engineering team optimizes the Mould structure using advanced CAD/CAM/CAE technology and Mouldflow simulation analysis, predicting potential Moulding defects in advance and optimizing the gating and cooling systems. The optimized conformal cooling channels with baffle technology ensure uniform temperature distribution in the Mould cavity, shortening cooling time and reducing the injection cycle to 15-45 seconds (depending on bucket size). Additionally, we offer balanced runner systems and optional hot runner/cold runner designs to minimize material waste and improve production efficiency.

4. Flexible Customization to Fulfill Diverse Needs

We provide full customization services tailored to clients’ specific requirements, covering bucket capacity (1L to 30L or even larger), shape, wall thickness (1.8mm-3.5mm), surface treatment (mirror polishing, texturing, EDM finish), and additional structures (handles, scale lines, sealed lids). Whether you need Moulds for household water buckets, industrial turnover buckets, food-grade water buckets, or other types, our team of over 15 experienced engineers will cooperate closely with you to provide feasible design solutions and turn your product ideas into reality.

How we processing the project?
