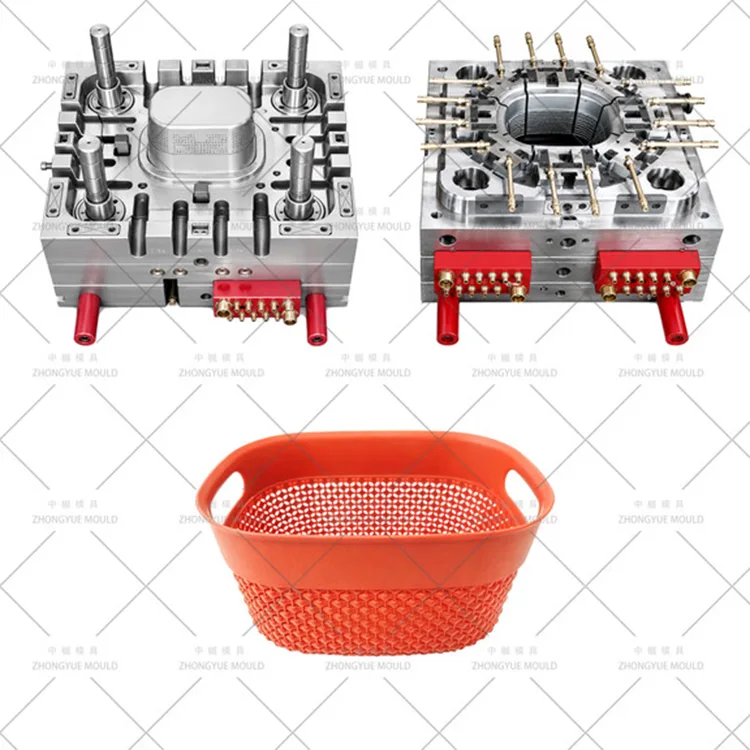

Plastic Patterned Storage Basket Mould

Plastic Patterned Storage Basket Mould – Custom Embossed / Textured Decorative Basket Injection Mold Manufacturer

ZHONGYUE MOULD is a professional Chinese injection mold manufacturer supplying Plastic Patterned Storage Basket Moulds / Embossed Surface Decorative Basket Molds (Rattan-Weave Effect Baskets, 3D Geometric Pattern Bins, Ornamental Storage Containers) to global home decor brands, boutique gift suppliers, and premium houseware retailers. Unlike utilitarian grid baskets, these Patterned Baskets feature intricate raised or recessed patterns across the entire outer surface, mimicking natural materials like rattan, wicker, or linen, or showcasing modern artistic reliefs. Sizes range from desktop organizers (120mm) to laundry hampers (450mm).

Molding patterned surfaces requires overcoming high frictional resistance during demolding and cooling imbalances due to varying wall thickness. Our molds utilize high-polish cores (SPI A2) to ensure easy release, balanced cooling circuits to prevent sink marks over thick pattern ribs, and hidden submarine gates to preserve the decorative surface. We typically mold these in High-Impact PP (MFR 8–12) or ABS to capture fine pattern details while maintaining structural integrity.

From French country-style rattan weave laundry baskets to modern geometric nursery organizers, we provide full DFM review focusing on draft angles for textured surfaces and pattern rib thickness optimization before steel cutting.

plastic Basket Mould specifications :

Make your next plastic Basket Mould project brighten!

What Is a Patterned Storage Basket Mould?

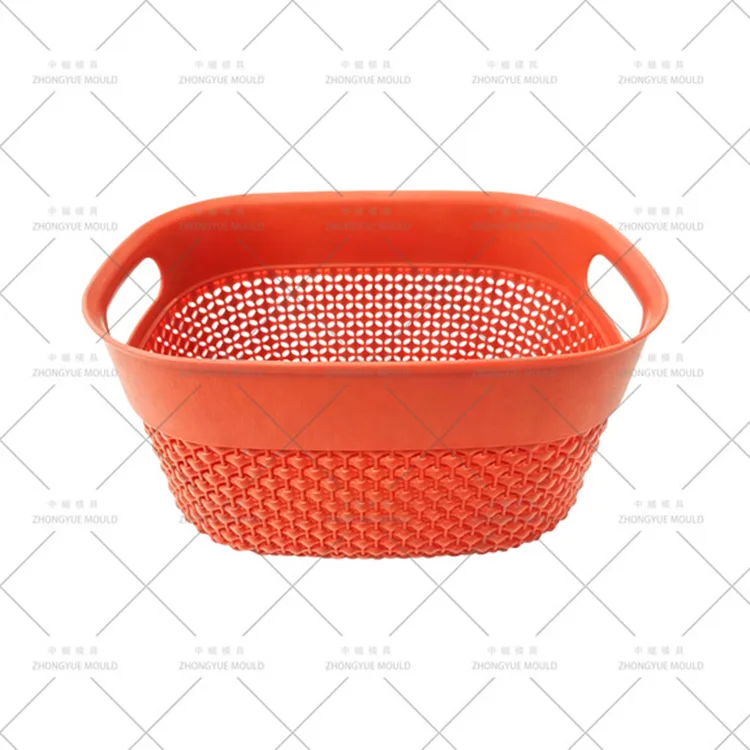

A Patterned Storage Basket Mould is a tool designed to create decorative containers with complex surface textures:

Embossed / Debossed Patterns — The outer surface is not flat; it has 3D features (e.g., rattan canes, diamond knurls, floral motifs). This creates frictional undercuts.

Solid Walls with Hidden Structure — Unlike grid baskets, the walls are mostly solid, with patterns adding local thickness. This risks sink marks behind thick pattern ribs.

Aesthetic Priority — The primary value is visual appeal. Surface defects (gate vestige, weld lines, scratches) are unacceptable.

Functional Handles — Often integrated into the pattern, requiring careful design to avoid stress concentrations in the decorative ribs.

Key Mold Engineering Highlights (Patterned Basket Mold)

Draft Angle Optimization for Textured Surfaces

Every 0.001mm of texture depth requires additional draft. We calculate 3–5° total draft for deep rattan patterns to allow the plastic to release without dragging and destroying the surface detail.

Cooling Balance Behind Pattern Ribs

Thick pattern ribs (e.g., simulating a rope or cane) can cause sink marks on the visible surface. We design localized BeCu cooling inserts directly behind these ribs to extract heat faster than the surrounding thin walls, preventing depression.

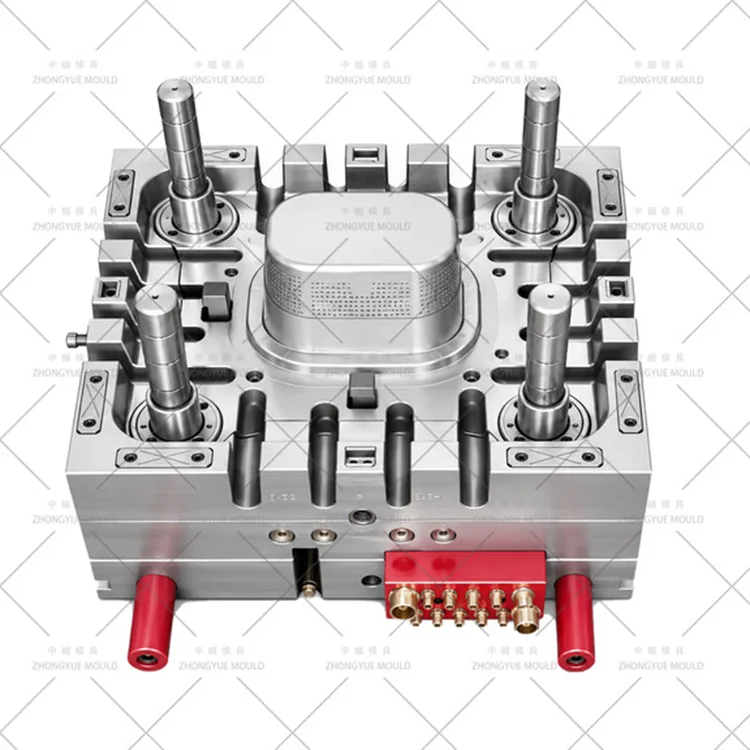

High-Polish Core for Easy Release

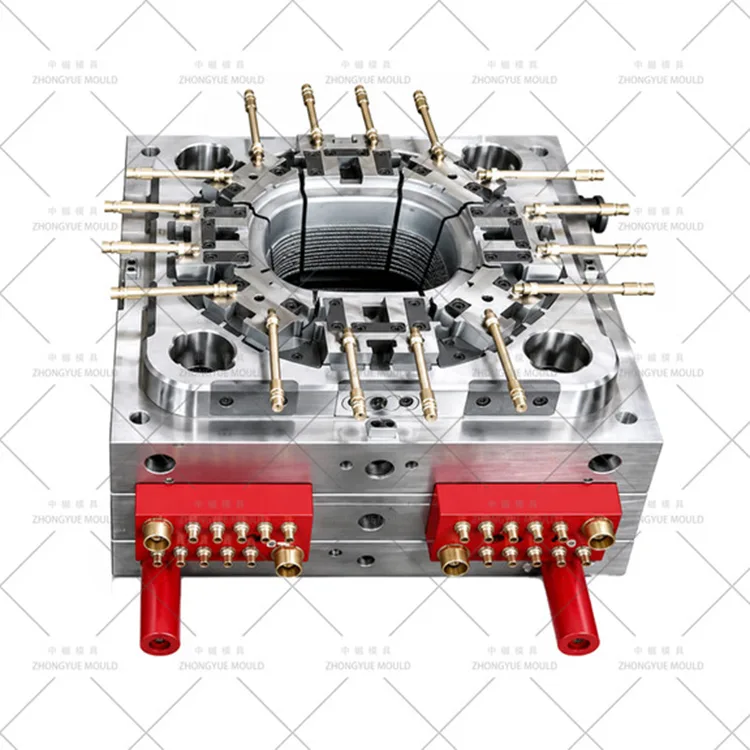

While the cavity is textured, the core (inner surface) is polished to SPI A2/B1. This ensures the basket clings to the core during cooling and releases cleanly from the textured cavity, preventing the pattern from tearing.

Hidden Submarine Gate on Inner Flange

To protect the decorative outer pattern, the gate is placed on the inner rim or base, leaving no visible mark on the artwork. For complex patterns, we use fan gates to spread flow and avoid weld lines crossing prominent pattern features.

Venting for Detailed Flow

Fine patterns can trap air in small recesses. We use 0.01–0.015mm parting-line vents and vent pins at the end of long pattern flow paths (e.g., the tip of a simulated leaf or cane).

Reinforced Handle Design

Handles integrated into the pattern are prone to breaking. We design generous radii (R3–5mm) at the base of handles and ensure the wall thickness transitions smoothly into the patterned wall.

Our Manufacturing & Validation Process (Patterned Basket Mold)

Pattern Draft & Sink Mark DFM — Analyze pattern depth and calculate required draft (3–5°). Run Moldflow to predict sink marks behind thick pattern ribs and design BeCu cooling. Free DFM report.

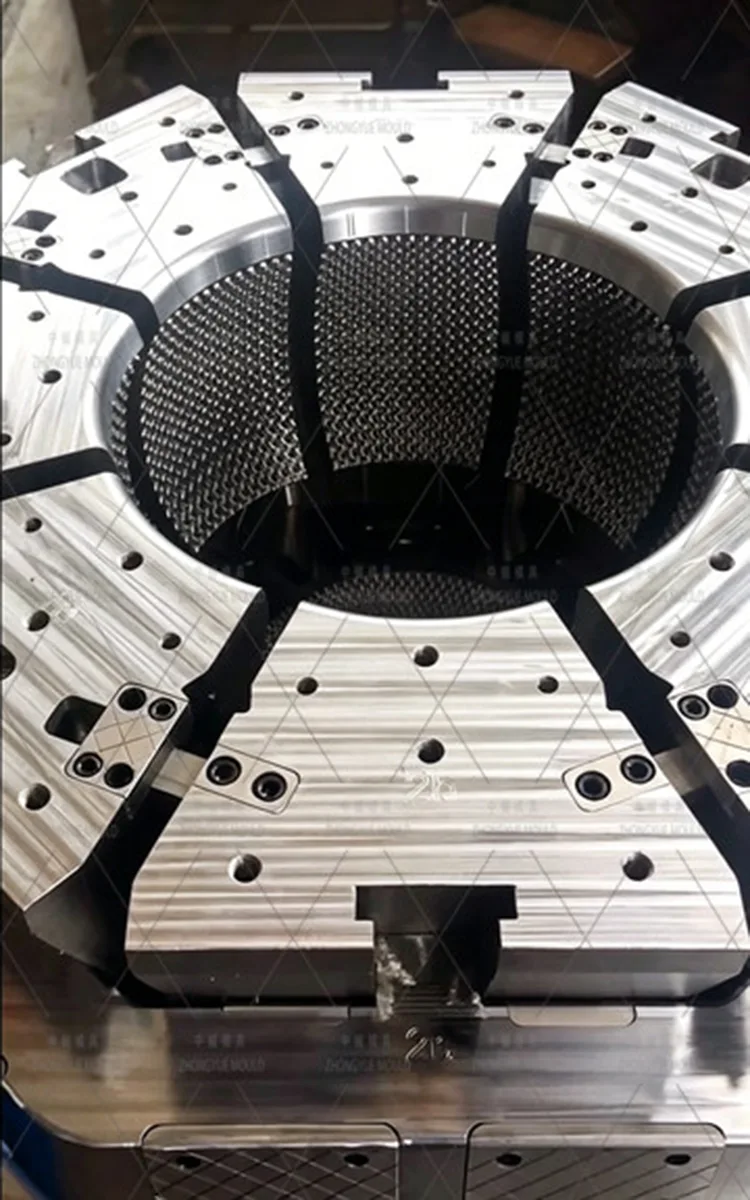

Texture Application — CNC roughing. EDM sinking of pattern details. Chemical etching for consistent texture depth.

Core Polishing — Polish core to SPI A2/B1. Mask cavity texture during polishing to avoid damaging pattern.

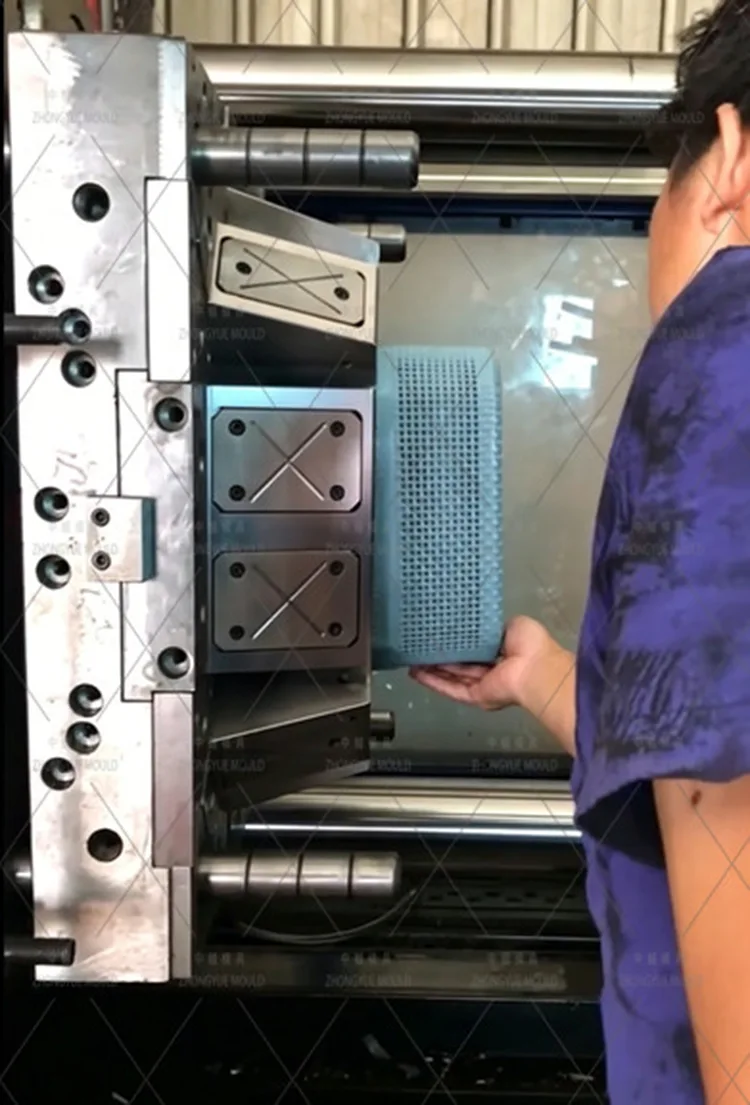

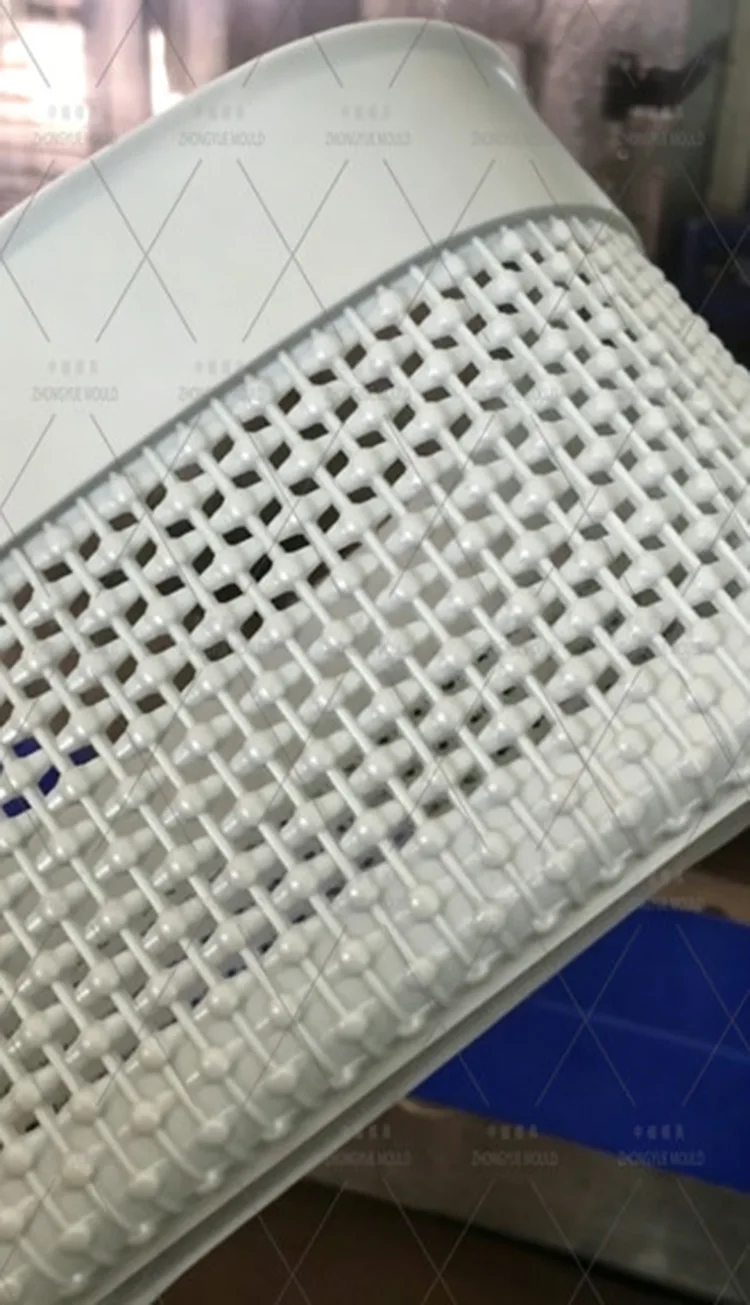

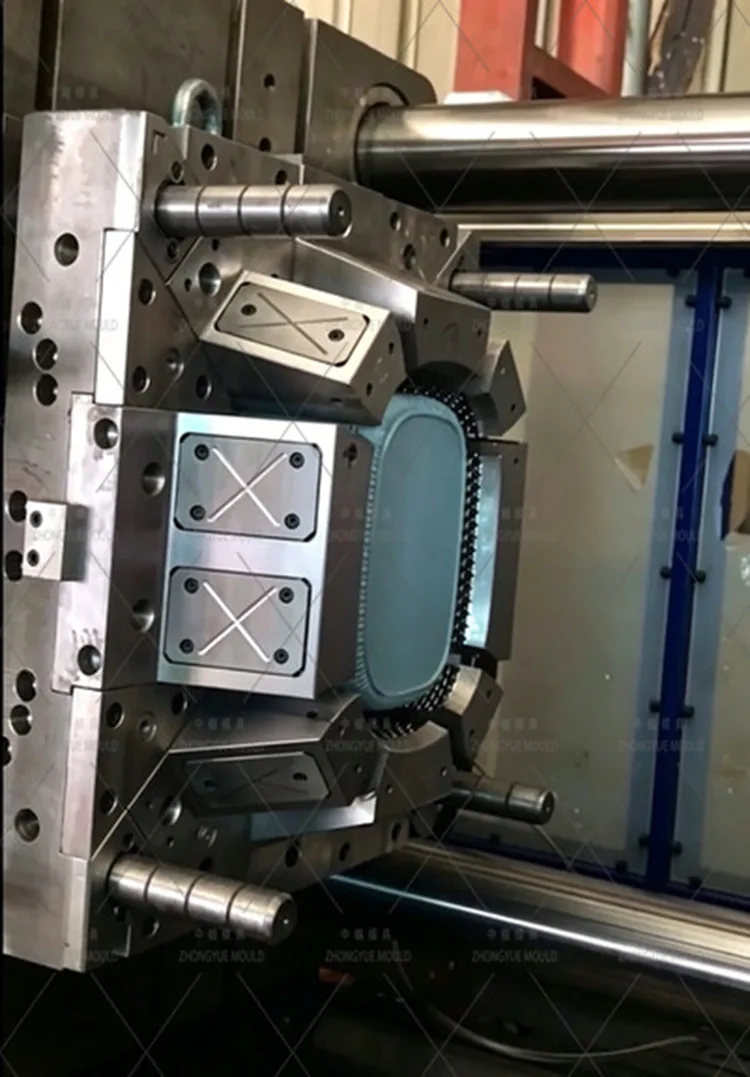

Assembly & T1 Trial — Run with specified material. Check for pattern clarity, surface gloss, and absence of sink marks. Supply trial video + samples + CMM report.

Final Delivery — Package with care to protect textured surfaces. Provide mold maintenance guide for texture cleaning.

Why Choose ZHONGYUE MOULD for Your Patterned Basket Mold?

Texture Specialists — We excel at replicating natural materials (rattan, wicker, linen) in plastic.

Cosmetic Quality Focus — We design molds to eliminate gate vestige, weld lines, and sink marks on decorative surfaces.

Balanced Cooling Design — Our use of BeCu inserts prevents the #1 defect in patterned baskets: sink marks.

High-Polish Cores — Ensuring the basket releases from the texture without tearing or sticking.

Global Experience — Molds delivered to European home decor brands and North American giftware companies.

Frequently Asked Questions — Patterned Storage Basket Mould

Q: How much draft do you need for a rattan pattern?

A: For a standard rattan/cane depth (0.3–0.5mm), we recommend 3–5° total draft. Less than 2° risks sticking and pattern damage.

Q: Will the pattern cause sink marks on the outside?

A: It can. We prevent this by using Moldflow analysis to predict sink and adding BeCu cooling inserts directly behind thick pattern ribs to cool them faster.

Q: Can you do multi-cavity for patterned baskets?

A: Yes, for sizes under 300mm, we often do 2-cavity or 4-cavity molds. We ensure the pattern alignment is perfect across all cavities.

Q: What material shows the best pattern detail?

A: ABS provides the sharpest, most defined pattern detail. PP is more flexible and cost-effective but can slightly soften fine details.

Q: What do you need for a quotation?

A: 2D drawing (PDF/DWG) + 3D model (STP/IGS) showing the pattern style (or send a sample photo). Specify material and desired finish (e.g., "matte rattan look").

Request a Quote for Your Plastic Patterned Storage Basket Mould

Send your patterned basket drawings or texture samples to ZHONGYUE MOULD. We will provide a free DFM report covering draft, cooling, and sink mark prevention + formal quotation within 24–48 working hours.

Contact us now to start your Embossed / Textured Decorative Basket Injection Mold project!
