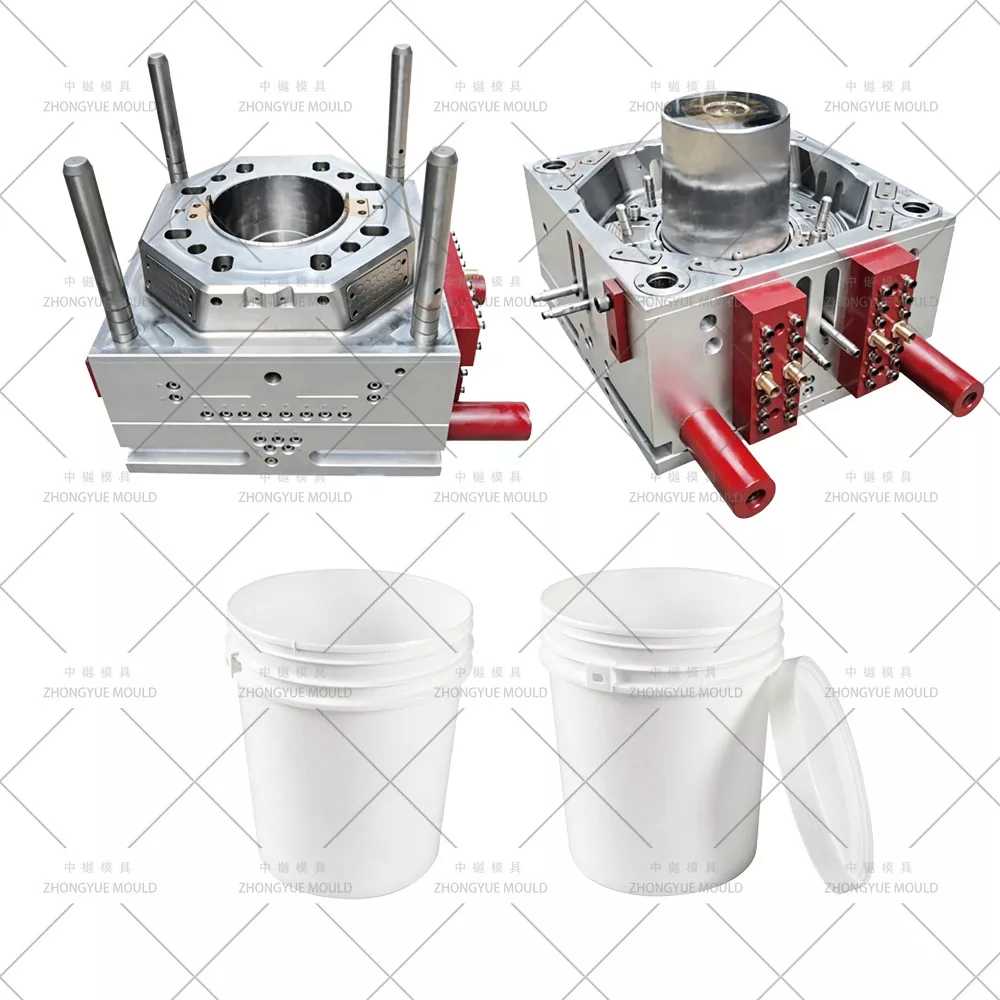

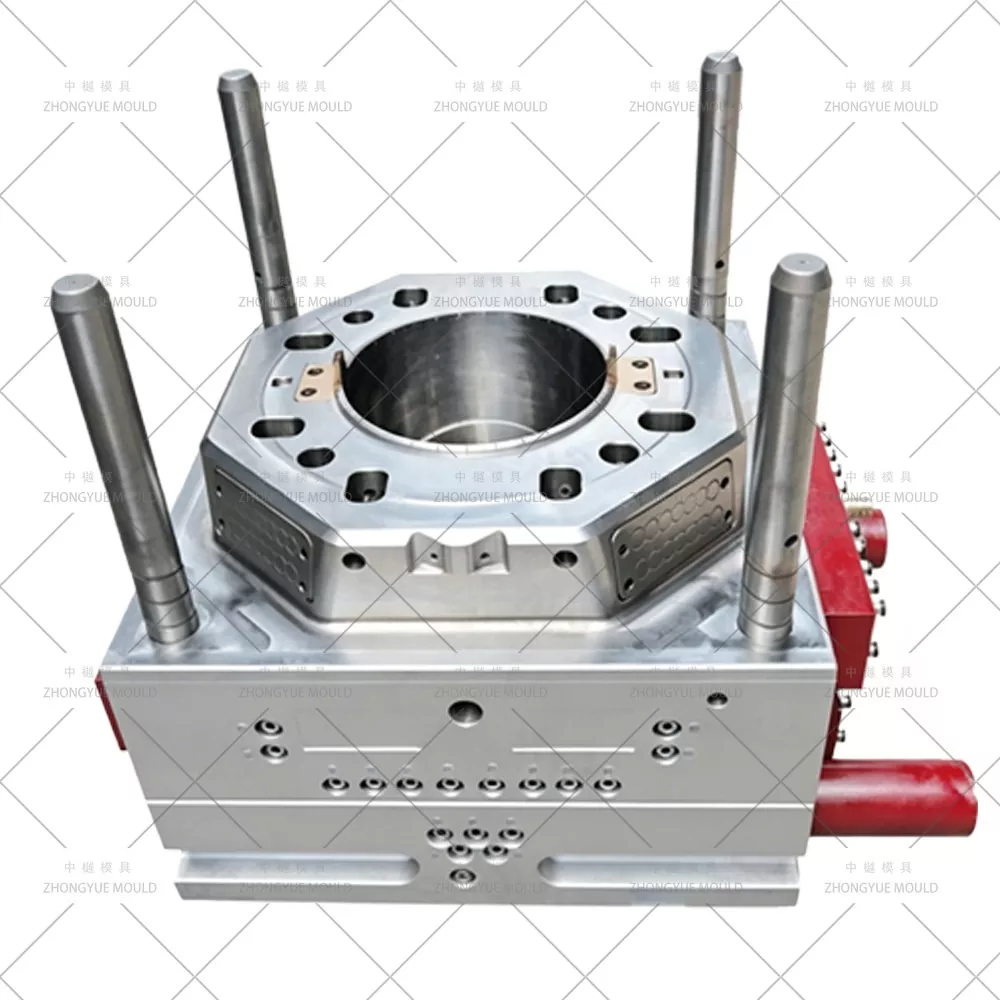

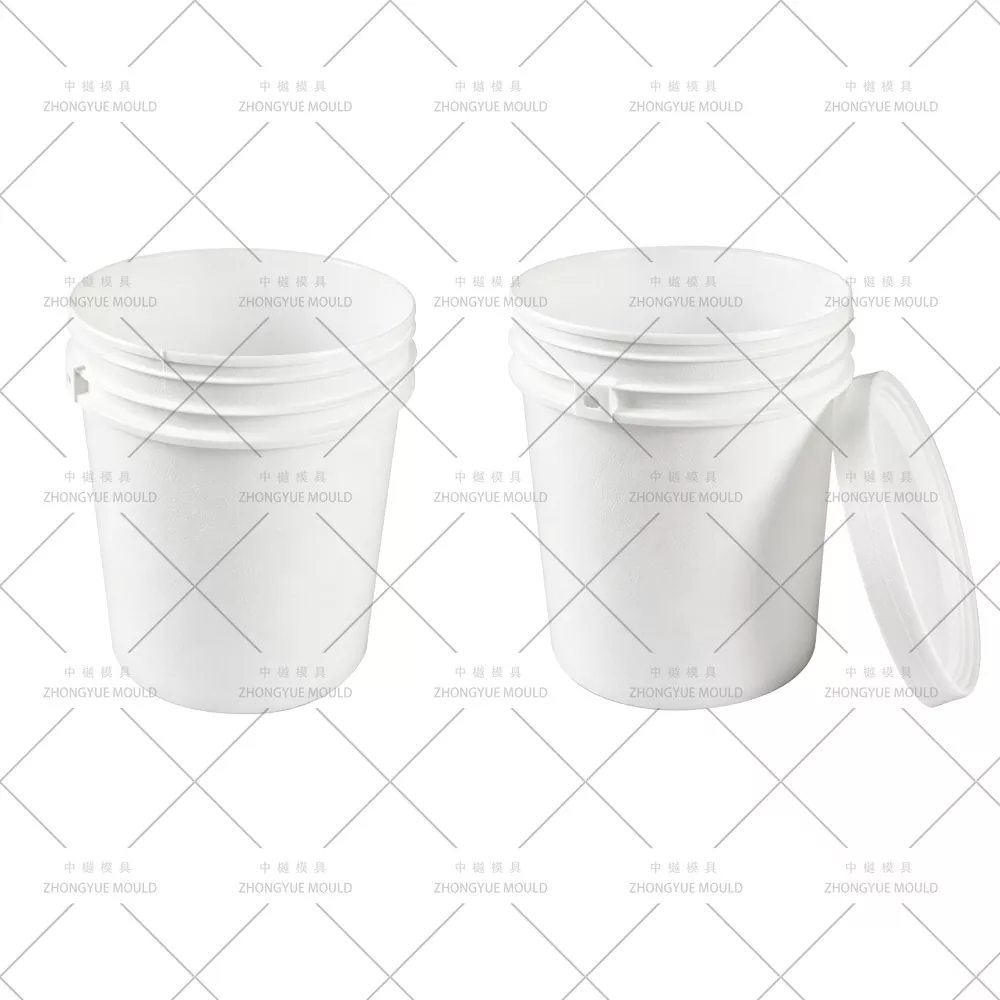

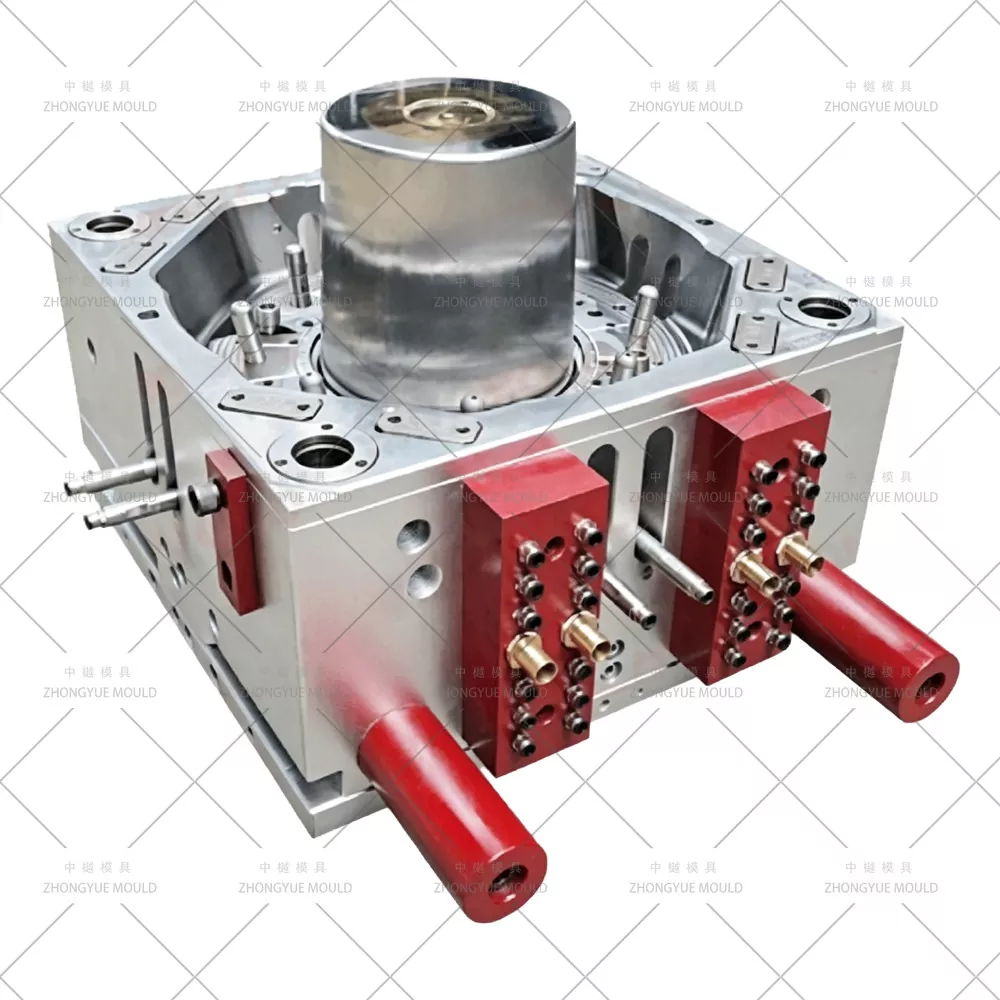

Plastic 20L Paint Bucket Mould

Your Partner for Profitable Paint Bucket Production

Efficiency and consistent quality are demanded by modern markets. As a leading China manufacturer with 15 years of experience, Zhongyue Mould provides sophisticated solutions for Plastic 20L Paint Bucket Moulds, becoming a reliable partner in your development and manufacturing process.hongyue mould as a leading professional manufacturer and exporter of plastic bucket moulds in China, we are dedicated to delivering high-precision, durable and cost-effective mould solutions for plastic water buckets to customers worldwide.

Backed by years of expertise in mould design, manufacturing and export, we have built long-term stable partnerships with clients across more than 30 countries and regions, including India, Malaysia, Mexico, Brazil, Russia, Egypt and various European markets.

Our reliable product quality and attentive service have earned us widespread recognition and trust globally.

Plastic Stool Mould specifications :

Make your next plastic Stool Mould project brighten!

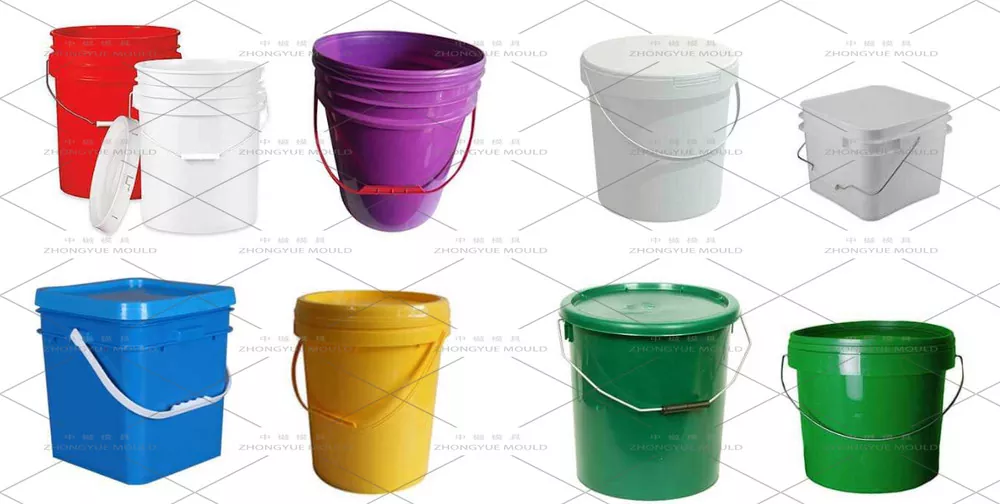

Paint Bucket Design Capabilities

The success of your business depends on the product. We develop competitive buckets with the following specifications:

Critical Performance Properties:

Strength & Stacking: Durable for loading paints; designed for stable stacking to save storage space.

Chemical Resistance: Safe for use with all paints, including high-temperature filling.

Sealing: Guarantees paint quality during transport.

Superior Mould Design for Maximum Efficiency

We simplify your production challenges through three key aspects: Structure, Steel, and Cooling.

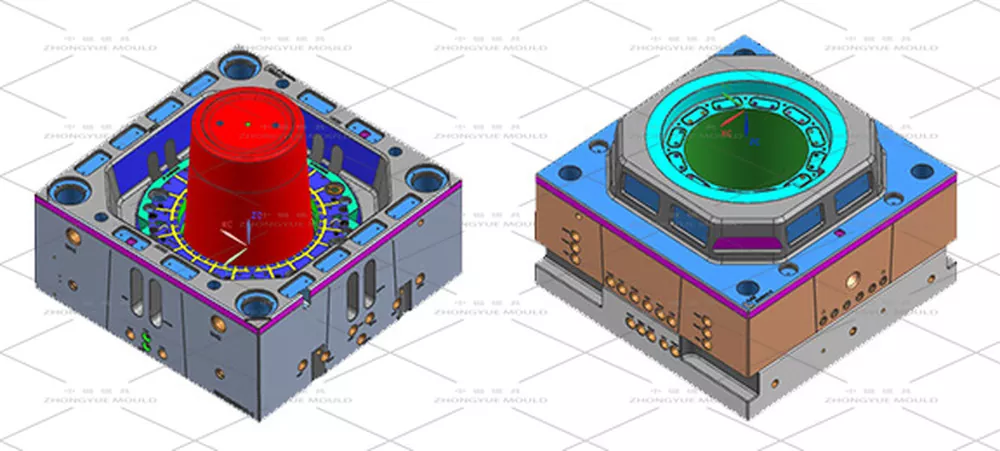

1. Optimized Mould Structure

Automatic Ejection: Designed for robots or automatic falling.

Specialized Actions: Sliders for complex shapes; fixing designs for subsequent printing processes.

Gating: Hot runner systems for material savings and reduced cycle time.

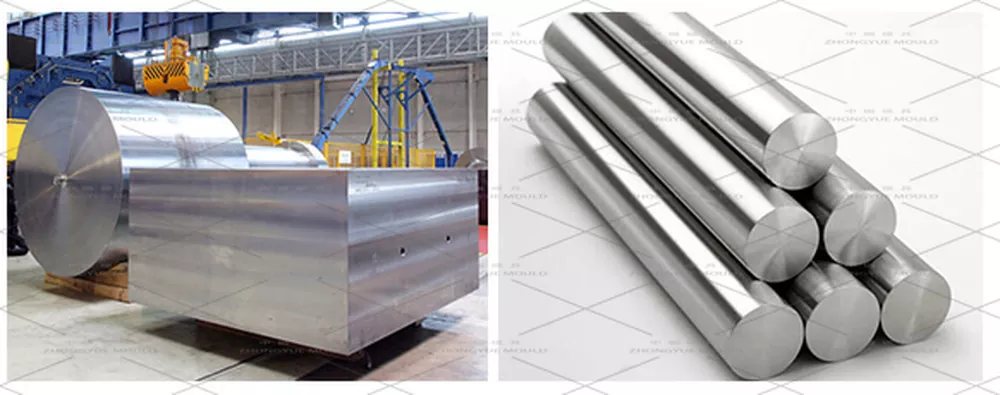

2. Strategic Mould Steel Selection

We select the most cost-effective steel based on your production volume:

P20 / 718H: For standard production.

H13 / DIN 1.2316: For high-wear resistance and corrosive environments.

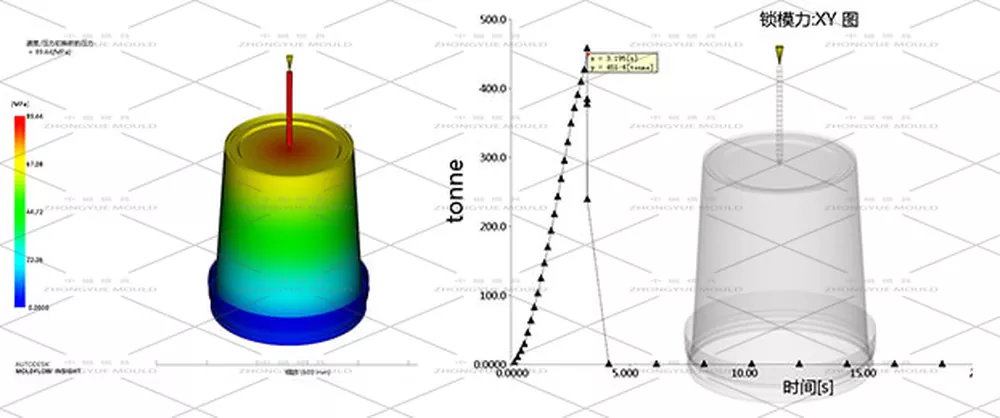

3. Optimal Cooling Design

To achieve shorter cycle times, we utilize:

Advanced Cooling Channels: Strategically placed in the bottom and top rim areas.

Cu-Be (Beryllium Copper) Inserts: Enhancing heat dissipation in critical areas.

Precision Tooling & Quality Assurance

With superior tooling machinery, we ensure micron-level precision, especially for concentricity and sealing surfaces.

Our Comprehensive Service Includes:

Project Audit: Investment return analysis & feasibility study.

Weekly Reports: Keep you updated on the latest progress.

Testing Support: Weight tolerance, concentricity, stacking, drop tests, and sealing tests.

After-Sales: Quick response for broken Mould components, maintenance training, and warranty support.

How we processing the project?

About us

Driven by the philosophy:

“Quality Makes the Future, Focus Creates Professional”

Zhongyue Mould is a leading company in the plastic injection air conditioner Cover mould industry. Our highly experienced team of engineers and designers have many decades of combined experience in plastic air conditioner Cover mould design and manufacturing. We provide a comprehensive service, specializing in the production of high-quality and high-precision air conditioner Cover moulds. We have also assisted numerous customers in customizing various types of plastic air conditioner Cover moulding lines.

We can also offer comprehensive assistance in the management of your production process. The procurement department will purchase high-quality raw materials, while the technical department will select the appropriate plastic formula. In accordance with the parameters of the plastic air conditioner Cover mould life requirements and market positioning, we will select the most suitable plastic air conditioner Cover parameters, structure, etc. Our extensive production capacity allows us to deliver plastic air conditioner Covers promptly, at competitive prices and with guaranteed quality.
