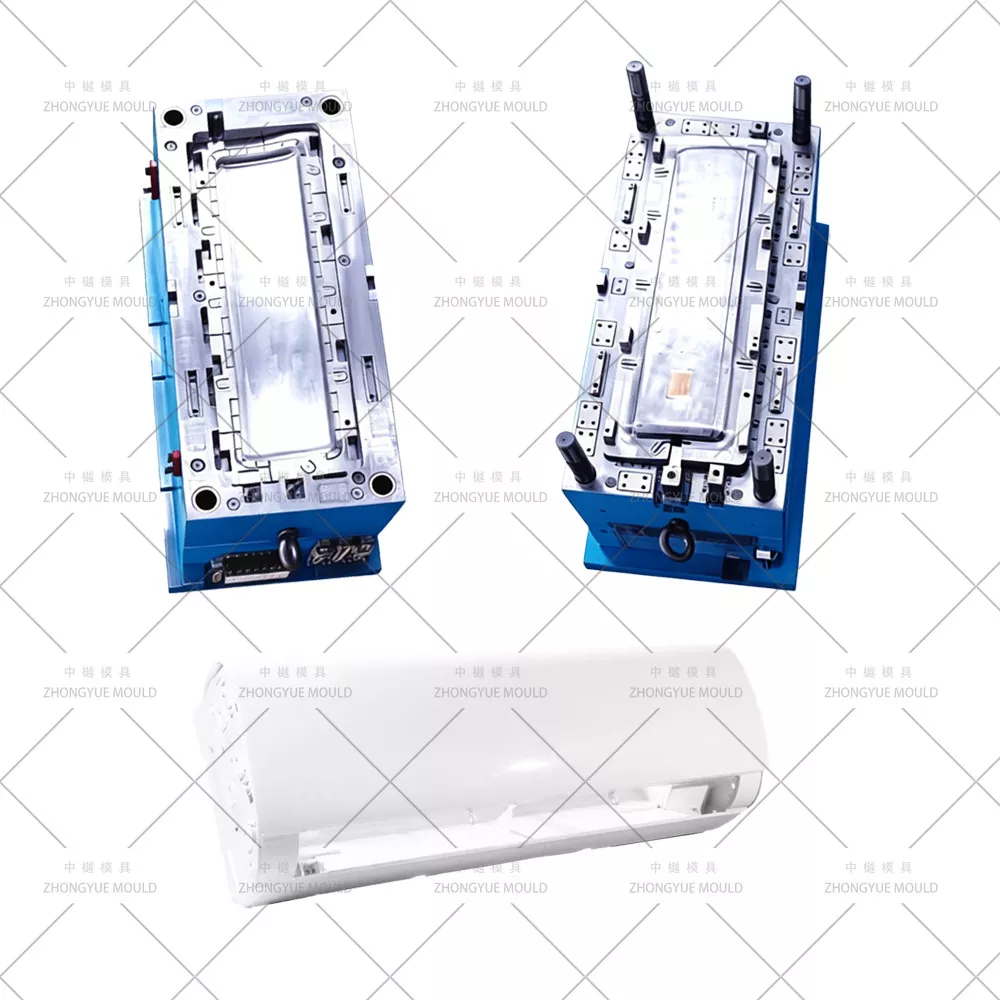

Plastic Air Conditioner Cover Mould

Zhongyue Mould is a leading Plastic Air Conditioner Cover Mould manufacturer in China. We offer competitive pricing, large-scale capacity, and custom designs. Explore our advanced Mould design process & request a quote!

Send Inquiry

Product Description

As one of the premier Plastic Air Conditioner Cover Mould manufacturers in China, Zhongyue Mould combines the cost advantages of Chinese manufacturing with uncompromising quality. We stand out in the global market through our commitment to excellence.

Mould Name	Plastic Air Conditioner Cove rMould
Mould Meterial	P20,2738,718H,NAK80,2316,S136,H13,etc
Mould Base	Self-made,LKM,DME,ASSAB
Cavity	Single/multi
Runner	Cold runner and hot runner
Hot Runner Brand	Master, HUSKY,YUDO,etc.
Degsin Software	UG:Aoto CAD and so on
Mould Life	50-100 million Shots/ 5-6 years, Even in 10 years in good maintenance
T1 Time	45-60 days
Plastic Material	PC ABS
Gate Type	Pinpoint Gate, Edge Gate, Sub Gate, Film Gate, Valve Gate, Open Gate, etc.
Mould Surface Treatment	EDM, texture, high gloss polishing
Quality System	ISO9001
HS Code	8480719090
Origin	Huangyan Zhejiang China
Package	Wooden Case
Mould material	Hardness	Mould life
P20	HRC 28-33	>300,000 shots
718	HRC 33-36	>500,000 shots
H13	HRC >43	>800,000 shots
2344	HRC >48	>800,000 shots
S136	HRC 48-52	>1,000,000 shots

Make your next Plastic Air Conditioner Mould project brighten!

Our Core Competencies:

Advantage	Description
Competitive Pricing	Maximize your ROI with cost-effective Chinese manufacturing without compromising on steel quality or precision.
Large Capacity	Our extensive facilities are equipped to handle orders of any size, from prototypes to mass production.
Skilled Workforce	A team that blends traditional craftsmanship with modern technical expertise to achieve superior results.
Customization Agility	We adapt swiftly to your specific needs, whether it's custom colors, textures, or complexCover geometries.

The Art of Air Conditioner Cover Mould Design

Designing a high-performance Air Conditioner Cover Mould requires precision engineering. Here is an overview of our proven process:

Step 1: Requirements & Specifications Analysis

Before machining, we define the critical parameters based on your application:

Parameter	Design Consideration
Shape & Function	Determined by purpose (shipping/storage). Complex shapes require advanced Mould actions (sliders/lifters) and integration of ribs/handles.
Dimensions	Decides overall Mould size and required injection Moulding machine tonnage.
Wall Thickness	Typically2.5–5 mm. Affects material usage, cooling time, and structural strength.
Material Selection	Chosen based on durability (e.g., PP, ABS) and cost targets.
Strength Enhancement	Adding crisscross ribs on the surface and bottom to boost rigidity and prevent warping.

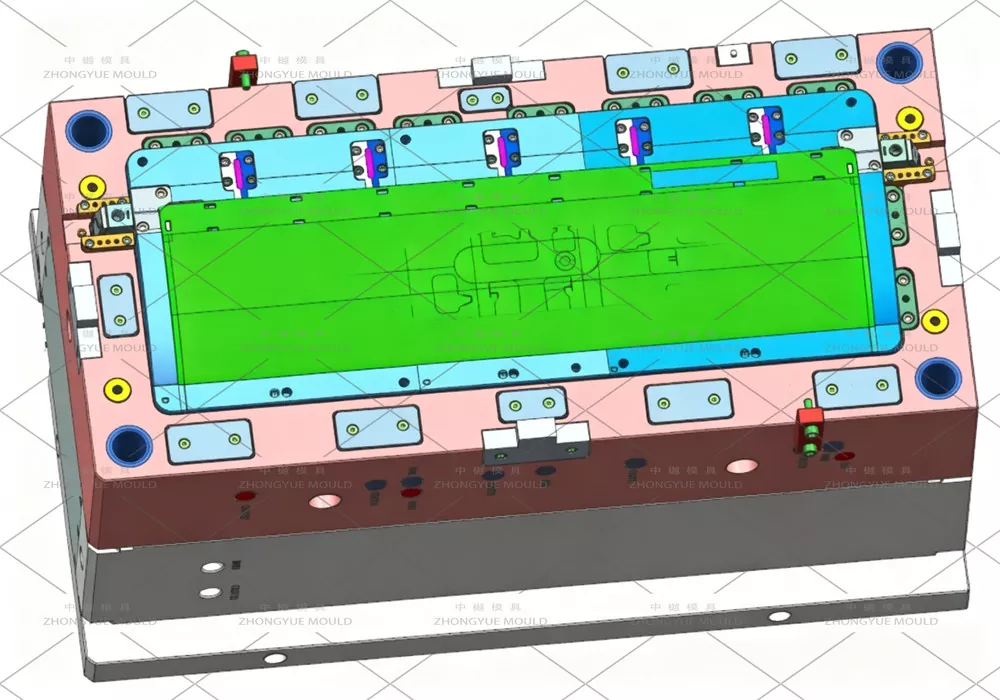

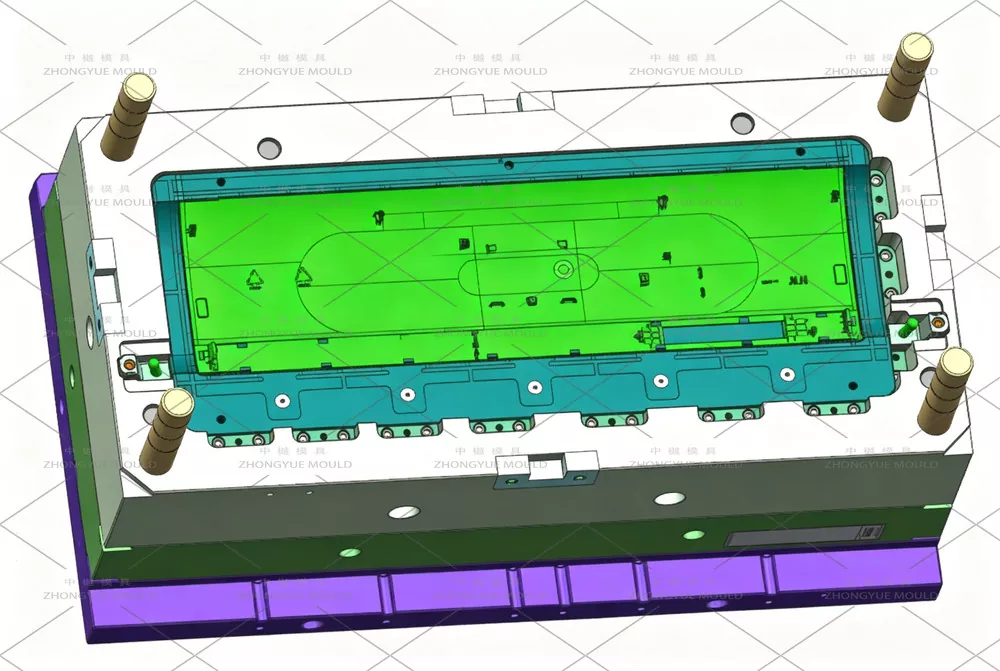

air conditional cover mould cavity air conditional cover mould cor

Step 2: Advanced Mould Engineering

We engineer the core systems that dictate the Mould's performance:

Gating & Runner Systems: We utilize Hot Runner Technology to improve plastic part quality, reduce material waste, and shorten cycle times.

Cooling System: We implement Conformal Cooling (curved channels following part contours) and use Beryllium Copper inserts to enhance thermal conductivity, ensuring rapid and uniform cooling.

Ejector System: Ejector pins are strategically placed to apply even force. Draft angles are calculated to facilitate smooth deMoulding without damage.

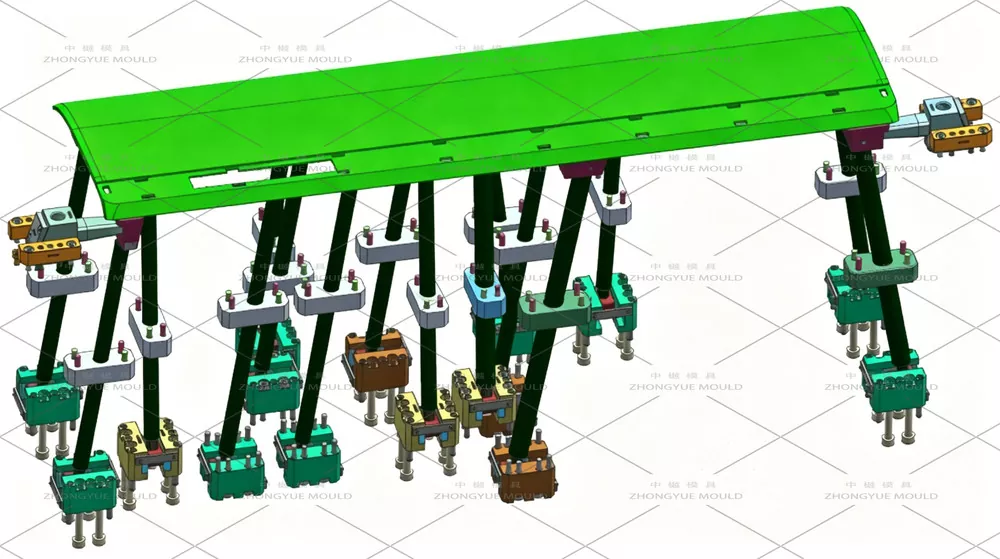

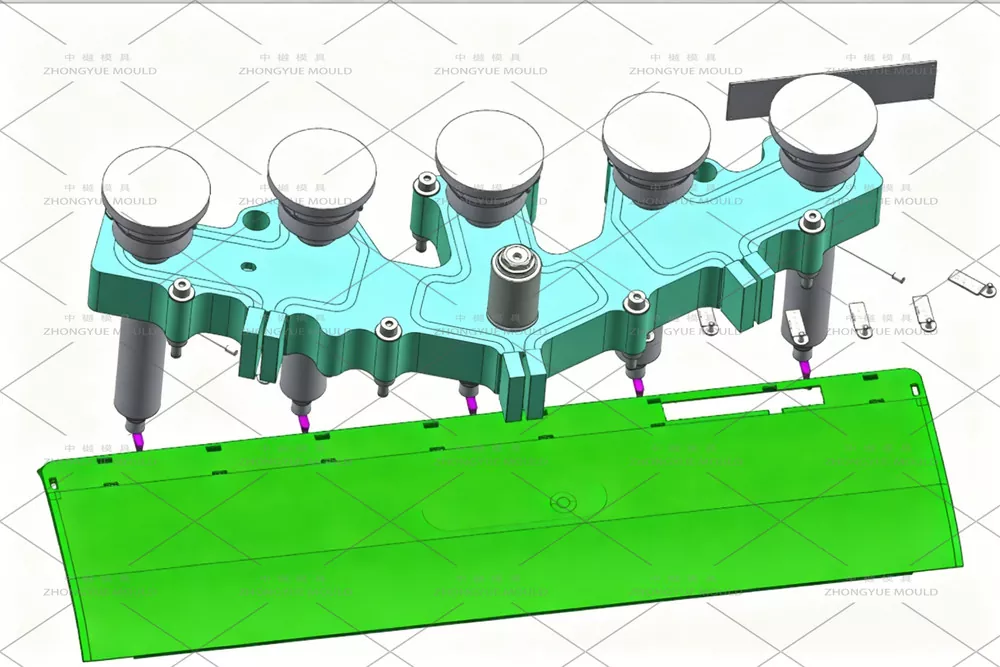

air conditional cover mould ejection air conditional cover mould hot runner

Uncompromising Quality Assurance

Our manufacturing process concludes with rigorous quality control to ensure optimal performance:

Assembly & Trial Runs: We meticulously assemble components and conduct initial test runs to produce sample parts.

Precision Verification: Using Coordinate Measuring Machines (CMM), we verify dimensional accuracy to micron levels.

Final Inspection: Surface finish inspections and functional testing are performed before the Mould leaves our factory.

Process Fine-Tuning: We optimize cycle times, cooling efficiency, and part release based on trial run data.

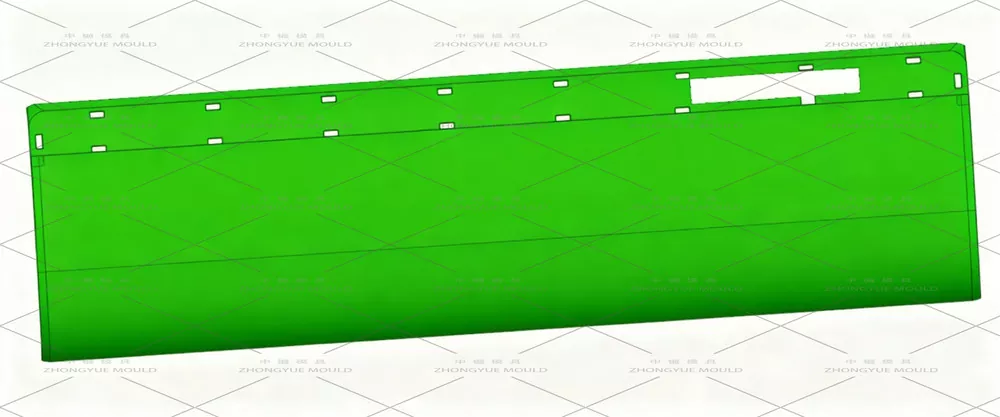

air conditional cover

How we processing the project?

Plastic Air Conditioner Cover Mould

About us

Driven by the philosophy:

“Quality Makes the Future, Focus Creates Professional”

Zhongyue Mould is a leading company in the plastic injection air conditioner Cover mould industry. Our highly experienced team of engineers and designers have many decades of combined experience in plastic ac Cover mould design and manufacturing. We provide a comprehensive service, specializing in the production of high-quality and high-precision air conditioner Cover moulds. We have also assisted numerous customers in customizing various types of plastic air conditioner Cover moulding lines.

We can also offer comprehensive assistance in the management of your production process. The procurement department will purchase high-quality raw materials, while the technical department will select the appropriate plastic formula. In accordance with the parameters of the plastic air conditioner Cover mould life requirements and market positioning, we will select the most suitable plastic air conditioner Cover parameters, structure, etc. Our extensive production capacity allows us to deliver plastic air conditioner Covers promptly, at competitive prices and with guaranteed quality.
