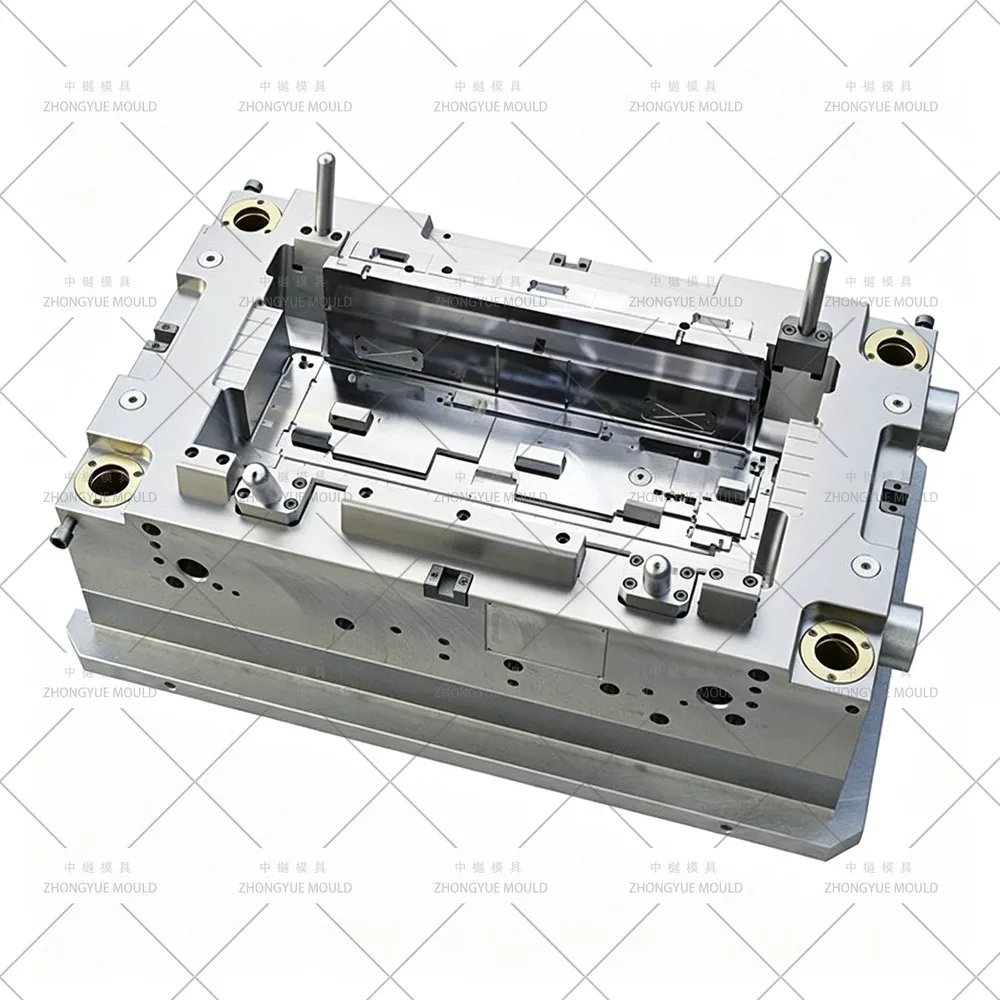

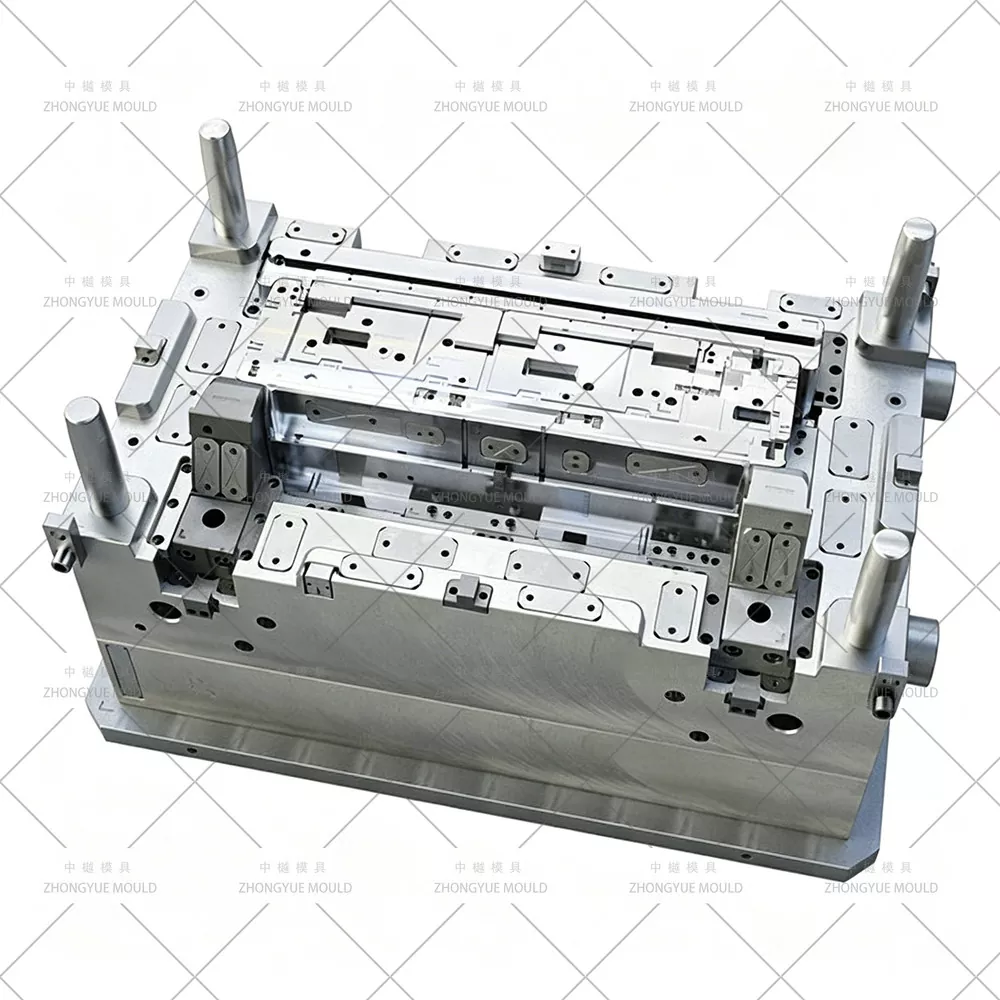

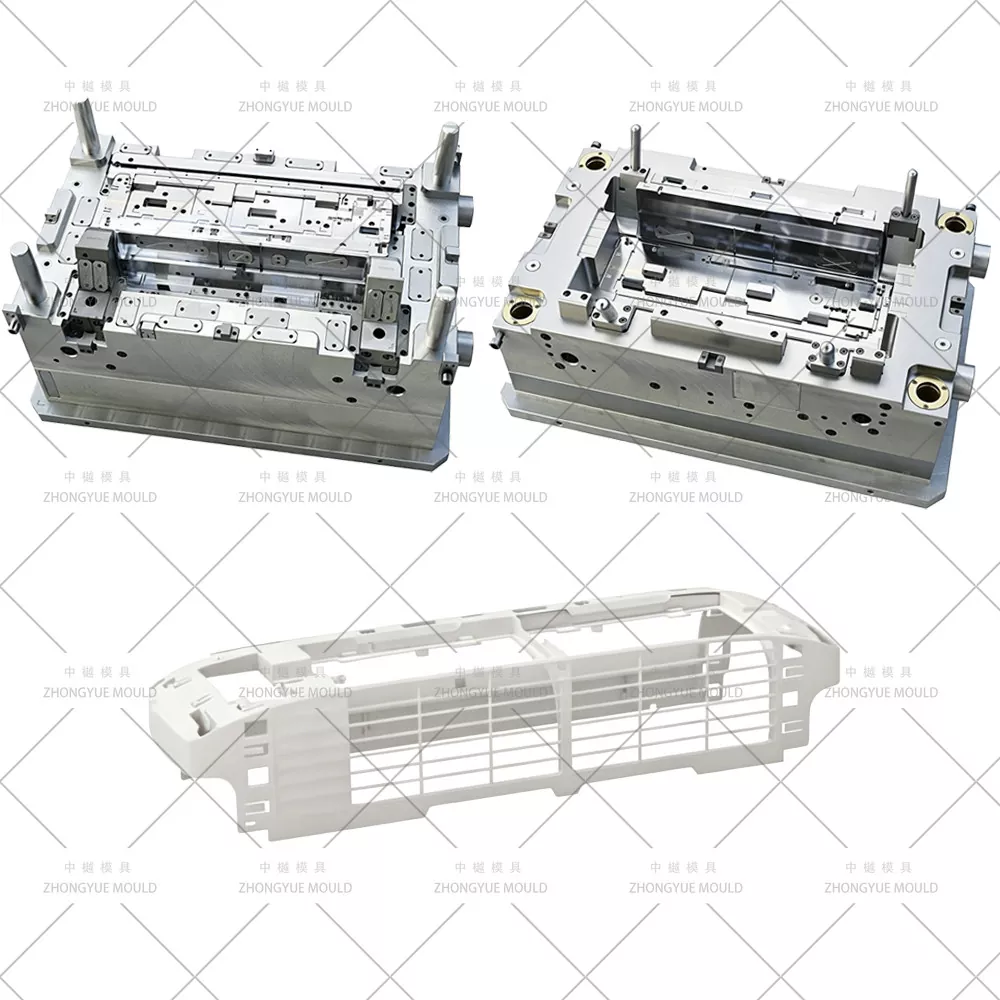

Plastic Air Conditioner Frame Mould

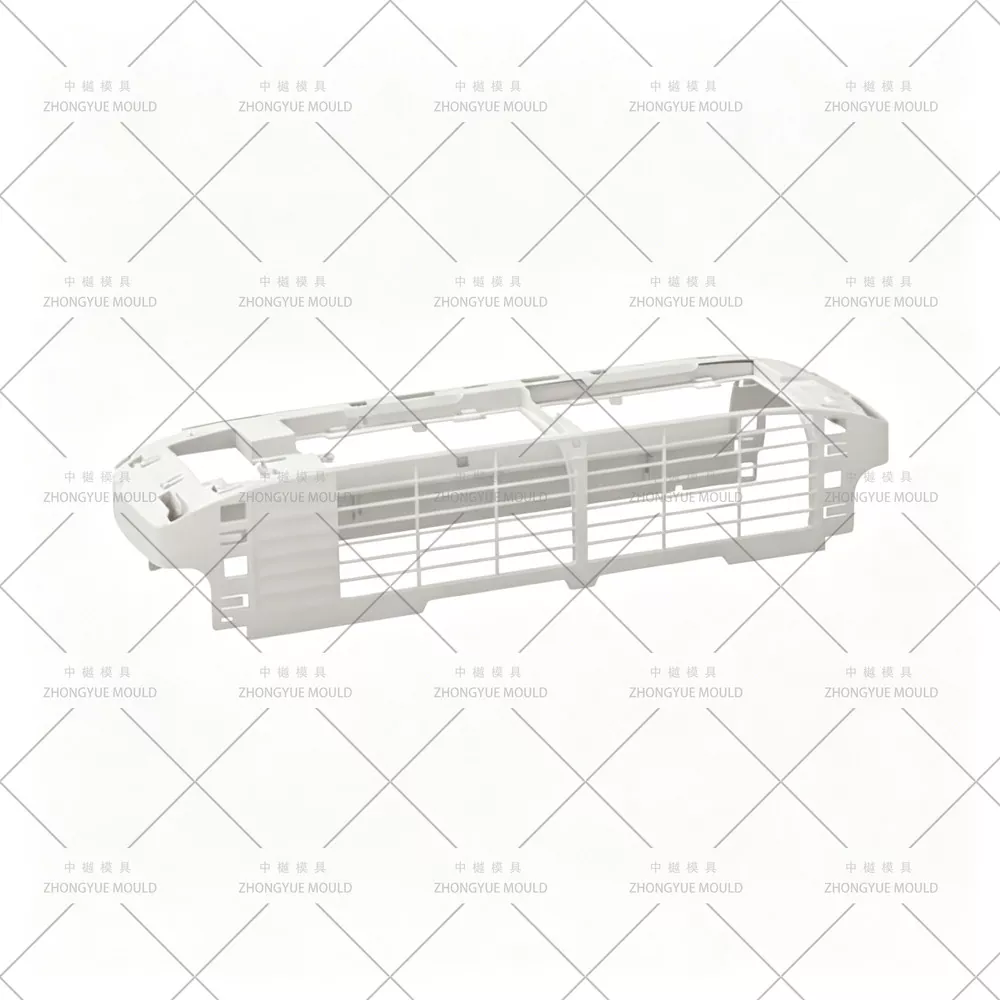

Plastic Air Conditioner Frame Mould is a precision injection mold designed for manufacturing high-quality plastic frames used in residential and commercial air conditioning systems. These molds are widely applied in the production of indoor and outdoor AC unit frames, front panels, side covers, and structural housing components.

Product Specifications

Mould Name	Plastic Air Conditioner Frame Mould
Mould Meterial	P20,2738,718H,NAK80,2316,S136,H13,etc
Mould Base	Self-made,LKM,DME,ASSAB
Cavity	Single/multi
Runner	Cold runner and hot runner
Hot Runner Brand	Master, HUSKY,YUDO,etc.
Degsin Software	UG:Aoto CAD and so on
Mould Life	50-100 million Shots/ 5-6 years, Even in 10 years in good maintenance
T1 Time	45-60 days
Plastic Material	PC  ABS
Gate Type	Pinpoint Gate, Edge Gate, Sub Gate, Film Gate, Valve Gate, Open Gate, etc.
Mould Surface Treatment	EDM, texture, high gloss polishing
Quality System	ISO9001
HS Code	8480719090
Origin	Huangyan Zhejiang China
Package	Wooden Case
Mould material	Hardness	Mould life
P20	HRC 28-33	>300,000 shots
718	HRC 33-36	>500,000 shots
H13	HRC >43	>800,000 shots
2344	HRC >48	>800,000 shots
S136	HRC 48-52	>1,000,000 shots

Make your next Plastic Air Conditioner Mould project brighten!

Key Advantages of Zhongyue’s AC FRAME Moulds

1. High-Efficiency Automated Production

Utilizing advanced injection Moulding technology, our Moulds support automatic and continuous production.

Benefit: Drastically increases production efficiency, allowing you to manufacture more goods in less time, giving you a competitive edge in the market.

2. Precision Control & Zero Defects

Our sophisticated Mould design and control systems guarantee dimensional accuracy and uniformity.

Quality Standard: Panels produced are free from black spots, dents, short shots, or sink marks.

Tolerance: Achieves micron-level precision to ensure perfect assembly with other AC components.

3. Design Flexibility & Aesthetics

Consumer buying decisions are heavily influenced by panel design.

Capability: Easily produces intricate shapes, textures, and various color schemes.

Adaptability: Quickly adjust to market trends based on your exact drawings and requirements.

4. Eco-Friendly & Energy Saving

Compared to traditional processes, our injection Moulding technology is more environmentally friendly.

Impact: Reduces resource waste and aligns with modern green manufacturing concepts, helping build a responsible brand image.

5. Superior Surface Finish

Standard: 100% Burr-free and free of conductive impurities.

Material Synergy: Optimized for Reinforced Polypropylene (PP) or ABS, ensuring product safety, toughness, and a flawless appearance.

The Manufacturing Process: From Concept to Completion

Step 1: Material Selection

We select high-quality raw materials based on operating conditions:

Common Materials: ABS (Acrylonitrile Butadiene Styrene) & PC (Polycarbonate).

Properties: Excellent heat resistance, weather resistance, and impact resistance.

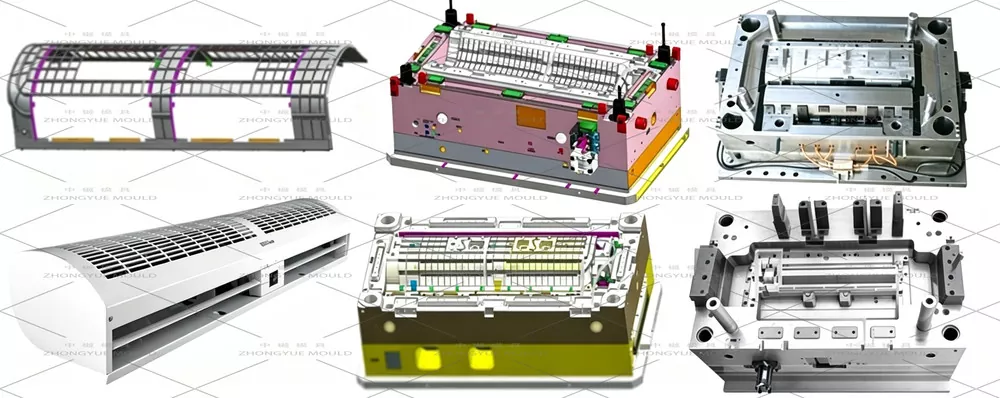

Step 2: Mould Design & Engineering

Our professional R&D team creates every Mould to fit the exact shape, size, and functional needs of your AC housing.

Focus: Optimizing the parting line and gate location for aesthetics.

Step 3: Injection Moulding & Temperature Control

Temperature is crucial. We strictly control Mould temperatures (heating/cooling) to affect:

Plastic fluidity

Curing speed

Surface gloss of the final product

This minimizes defective products and ensures consistent quality.

Step 4: Post-Processing & QC

After Moulding, panels undergo deburring, polishing, and painting.

Inspection: Rigorous IQC, IPQC, FQC, and OQC checks ensure compliance with international standards.

Why Partner with Zhongyue Mould?

Capability	Specification
R&D Team	15 Years of Experience in AC Mould Design
Equipment	Japanese Makino CNC (±0.01mm), Mitsubishi WEDM (±0.003mm)
Quality System	Full ERP, OA, PDM, MES Information Management
Delivery	Ultra-Short Cycle Management to Speed Up Time-to-Market
Service	Customized Solutions & Optimized DFM Analysis



How we processing the project?

About us

Driven by the philosophy:

“Quality Makes the Future, Focus Creates Professional”

Zhongyue Mould is a leading company in the plastic injection air conditioner Cover mould industry. Our highly experienced team of engineers and designers have many decades of combined experience in Plastic Air Conditioner Frame Mould design and manufacturing. We provide a comprehensive service, specializing in the production of high-quality and high-precision air conditioner Cover moulds. We have also assisted numerous customers in customizing various types of plastic air conditioner Cover moulding lines.

We can also offer comprehensive assistance in the management of your production process. The procurement department will purchase high-quality raw materials, while the technical department will select the appropriate plastic formula. In accordance with the parameters of the plastic air conditioner Cover mould life requirements and market positioning, we will select the most suitable plastic air conditioner Cover parameters, structure, etc. Our extensive production capacity allows us to deliver plastic air conditioner Covers promptly, at competitive prices and with guaranteed quality.
