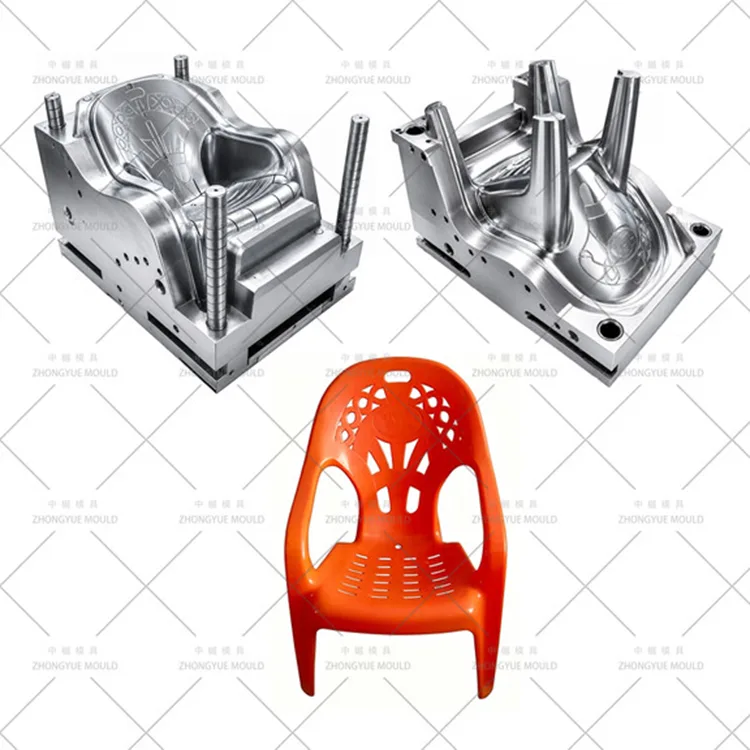

What Is a Plastic Garden Arm Chair Mould?

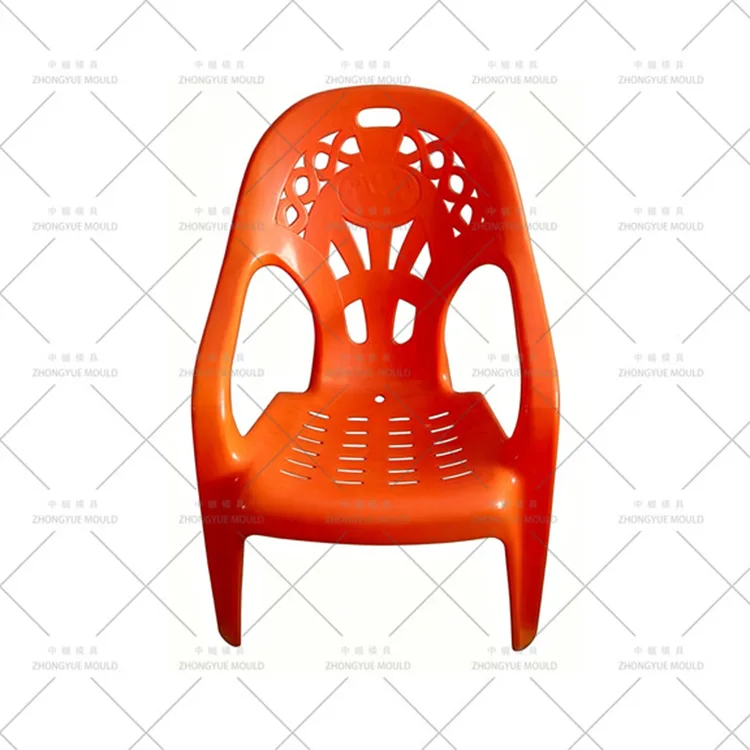

A Garden Arm Chair Mould is a specialized tool for producing decorative outdoor seating:

Wood-Grain or Rattan Texture — The outer surface mimics natural materials. This requires 3–5° extra draft and creates significant frictional resistance during demolding.

Outdoor Material Performance — Must resist fading, brittleness, and cracking in extreme weather. Material flow properties differ from standard PP.

Decorative Cutouts — Often features slatted backs, starburst patterns, or woven-look cutouts that create complex undercuts.

Comfort Ergonomics — Seat pan and backrest are contoured for comfort, unlike flat commercial chairs.

Key Mold Engineering Highlights (Garden Arm Chair Mold)

EDM Texture & Draft Optimization

Applying wood-grain or rattan texture to a chair requires 3–5° total draft angle (Base 1.5° + 1.5–3.5° for texture depth). We calculate this precisely to prevent the textured plastic from dragging and tearing during ejection.

Anti-Sink Rib Design for Textured Surfaces

Thick internal ribs cause sink marks on the visible textured surface. We design ribs to be 60–70% of the wall thickness and use Moldflow analysis to place BeCu (Beryllium Copper) cooling inserts directly behind critical rib intersections, ensuring the decorative surface remains flawless.

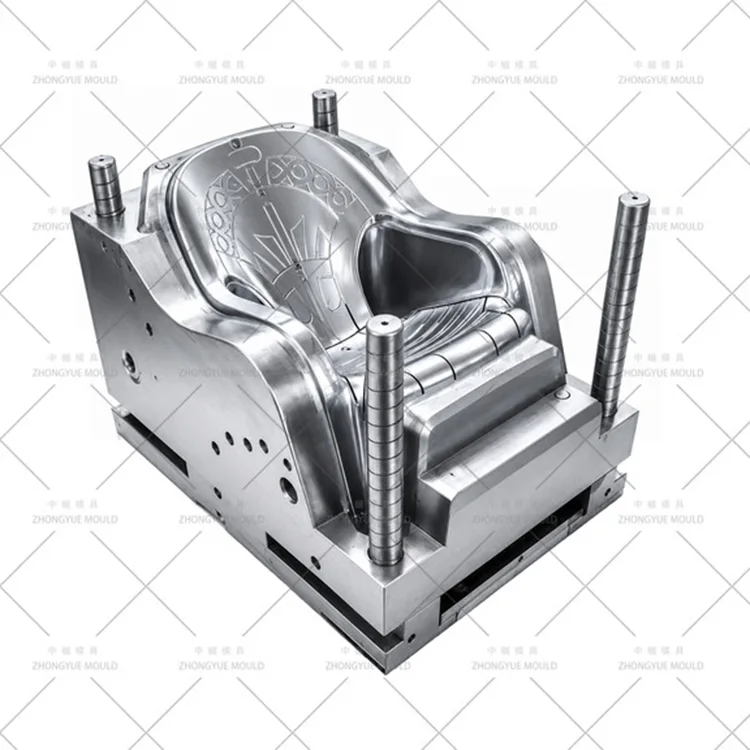

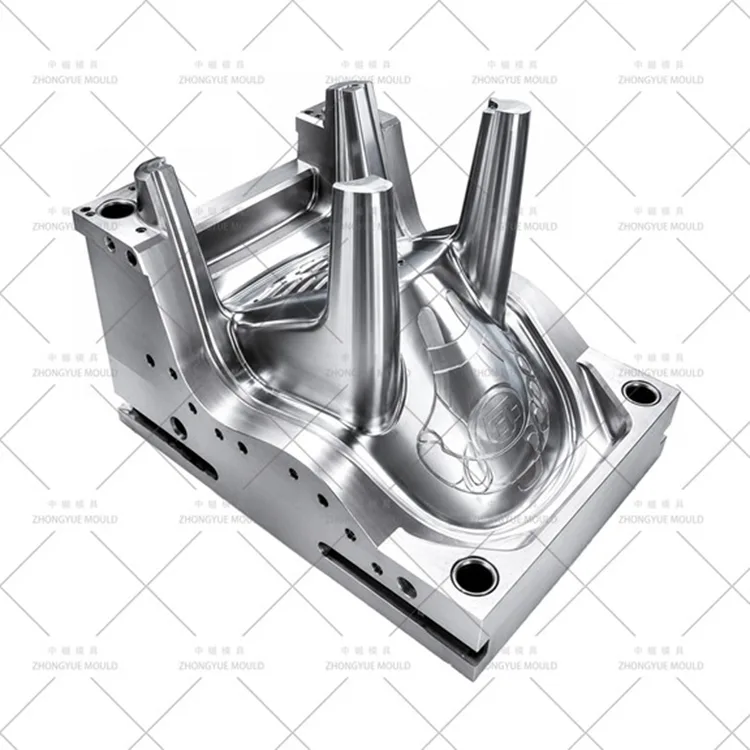

High-Polish Core for Easy Release

While the cavity is textured, the core (inner surface) is polished to SPI A2/B1. This ensures the chair clings to the core during cooling and releases cleanly from the textured cavity, preventing the wood-grain pattern from tearing.

Venting for UV-Stabilized Materials

UV-stabilized and FRPP materials are more viscous and prone to burning. We incorporate 0.02–0.025mm parting-line vents and sintered porous steel vent inserts at the end of long flow paths (top of backrest, arm tips).

Gate Location for Aesthetics

Gate vestige must be invisible. We use hidden submarine gates on the inner rim or base. For complex shapes, fan gates are placed in non-visible areas to ensure balanced filling without weld lines crossing prominent texture features.

Robust Ejection System

Textured surfaces grip the mold tightly. We use ejector sleeves (for leg cores) and long ejector pins on internal ribs. Sometimes a stripper plate is used for delicate textured areas to distribute ejection force evenly.

Our Manufacturing & Validation Process (Garden Arm Chair Mold)

Texture Draft & Sink Mark DFM — Analyze wood-grain depth and calculate required draft (3–5°). Run Moldflow to predict sink marks behind textured ribs and design BeCu cooling. Free DFM report.

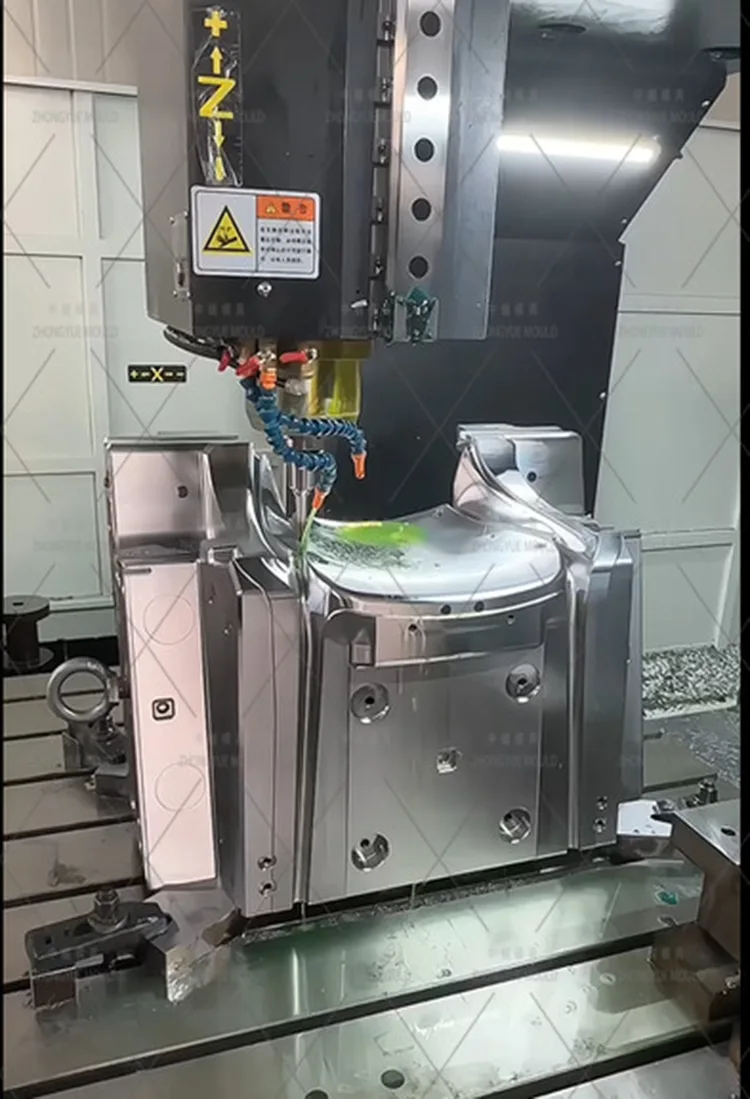

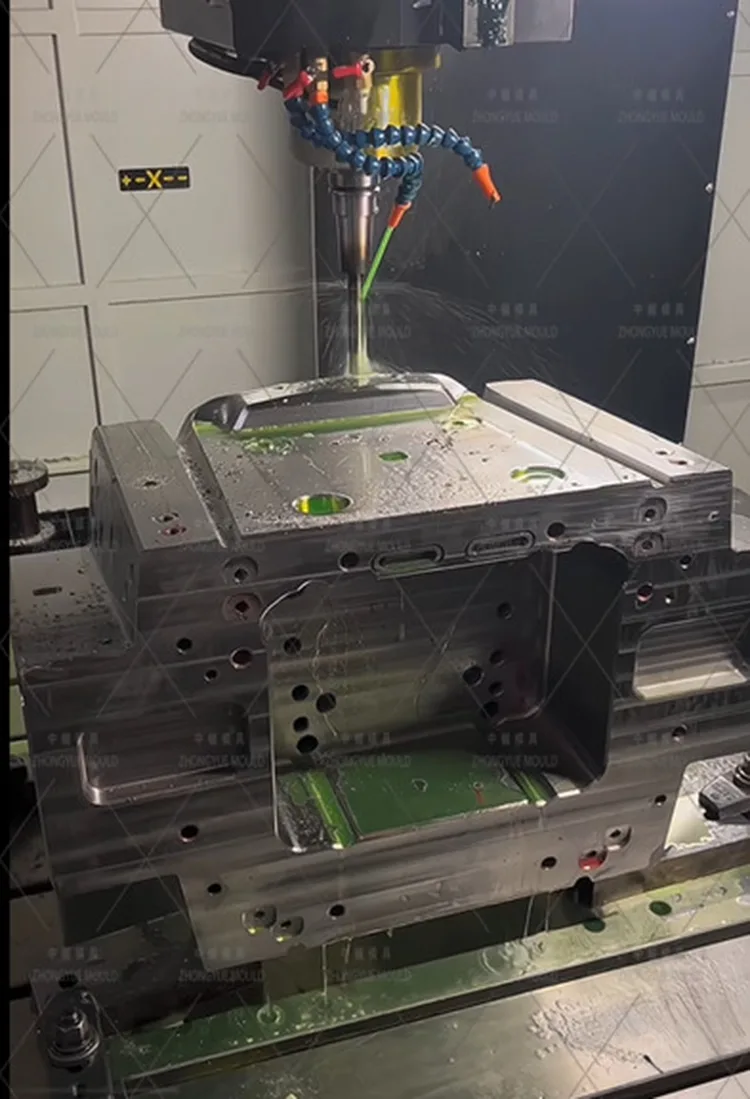

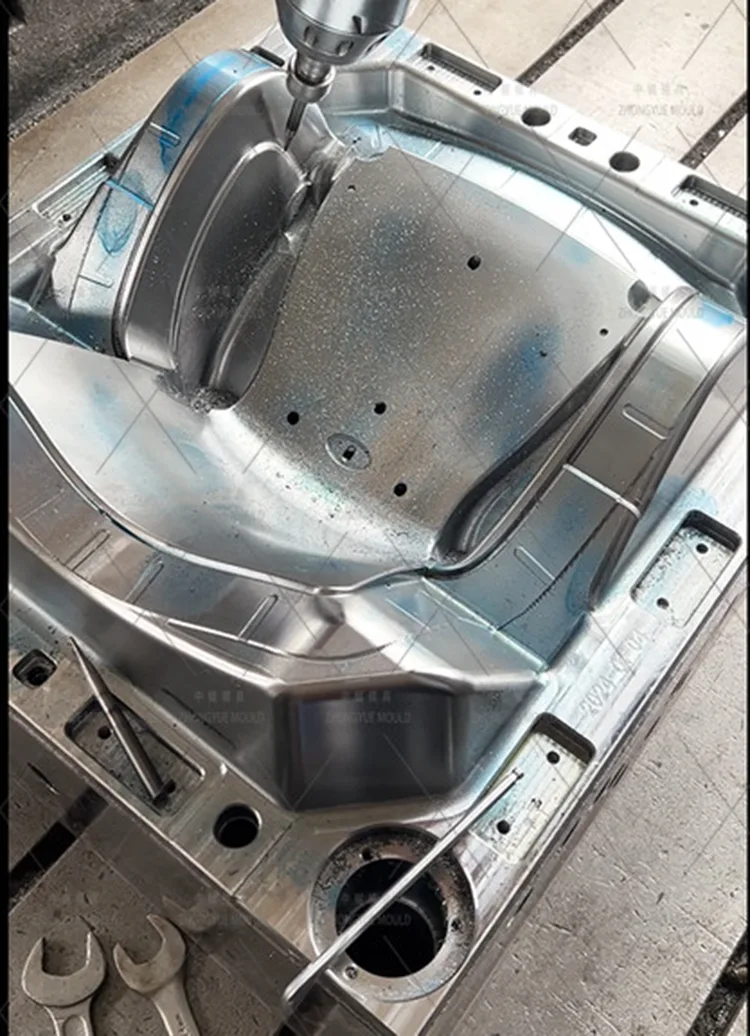

Texture Application — CNC roughing. EDM sinking of wood-grain/rattan pattern. Chemical etching for consistent texture depth.

Core Polishing — Polish core to SPI A2/B1. Mask cavity texture during polishing to avoid damage.

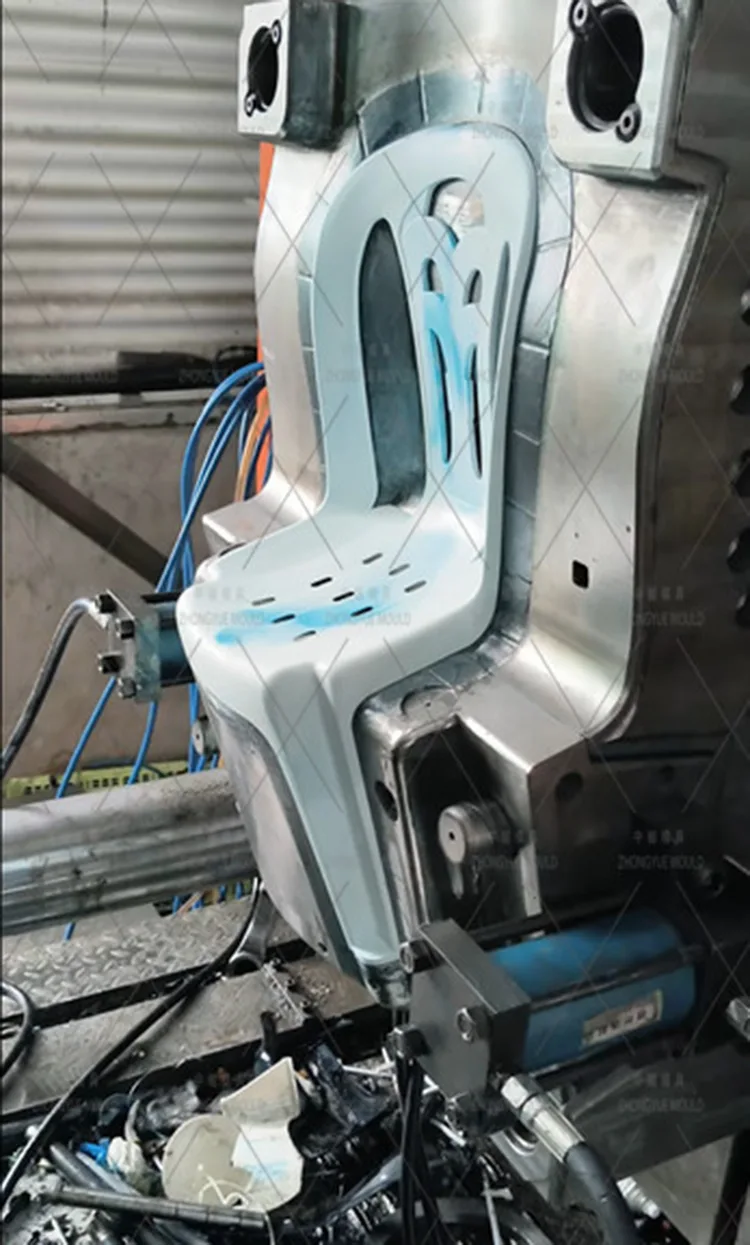

Assembly & T1 Trial — Run with specified UV-stabilized PP or FRPP. Perform static load test (150kg) and weathering simulation check. Inspect texture clarity and sink marks. Supply trial video + samples.

Final Delivery — Package with care to protect textured surfaces. Provide mold maintenance guide for texture cleaning.

Why Choose ZHONGYUE MOULD for Your Garden Arm Chair Mold?

Wood-Grain Texture Experts — We replicate the look and feel of natural wood or rattan in plastic.

Outdoor Material Specialists — We optimize molds for UV-stabilized PP and FRPP, preventing burn marks and ensuring flow.

Anti-Sink Cooling Design — BeCu inserts prevent the #1 defect in textured chairs: sink marks on the seat.

Cosmetic Quality Focus — Hidden gates and high-polish cores ensure a premium finished product.

Global Experience — Molds delivered to outdoor furniture brands in Europe, North America, and Australia.

Frequently Asked Questions — Garden Arm Chair Mould

Q: How much draft do you need for a wood-grain texture?

A: For a standard wood-grain depth (0.2–0.4mm), we recommend 3–5° total draft. Less than 3° risks sticking and pattern damage.

Q: Will the texture cause sink marks?

A: It can. We prevent this by using Moldflow analysis to predict sink and adding BeCu cooling inserts directly behind thick pattern ribs.

Q: What material is best for garden chairs?

A: UV-Stabilized PP Copolymer is standard. For higher rigidity and load-bearing (e.g., deep loungers), Fiberglass Reinforced PP (FRPP) is better.

Q: How do you ensure the chair releases from the texture?

A: We use a high-polish core (SPI A2) so the plastic sticks to the core and pulls away from the textured cavity. We also calculate sufficient draft.

Q: What do you need for a quotation?

A: 2D drawing (PDF/DWG) + 3D model (STP/IGS) showing the chair design and texture style (e.g., "teak wood-grain", "wicker"). Specify material and UV requirements.

Request a Quote for Your Plastic Garden Arm Chair Mould

Send your garden chair drawings or texture samples to ZHONGYUE MOULD. We will provide a free DFM report covering draft, cooling, and material flow + formal quotation within 24–48 working hours.

Contact us now to start your Outdoor Wood-Look / Rattan Texture Patio Chair Injection Mold project!
