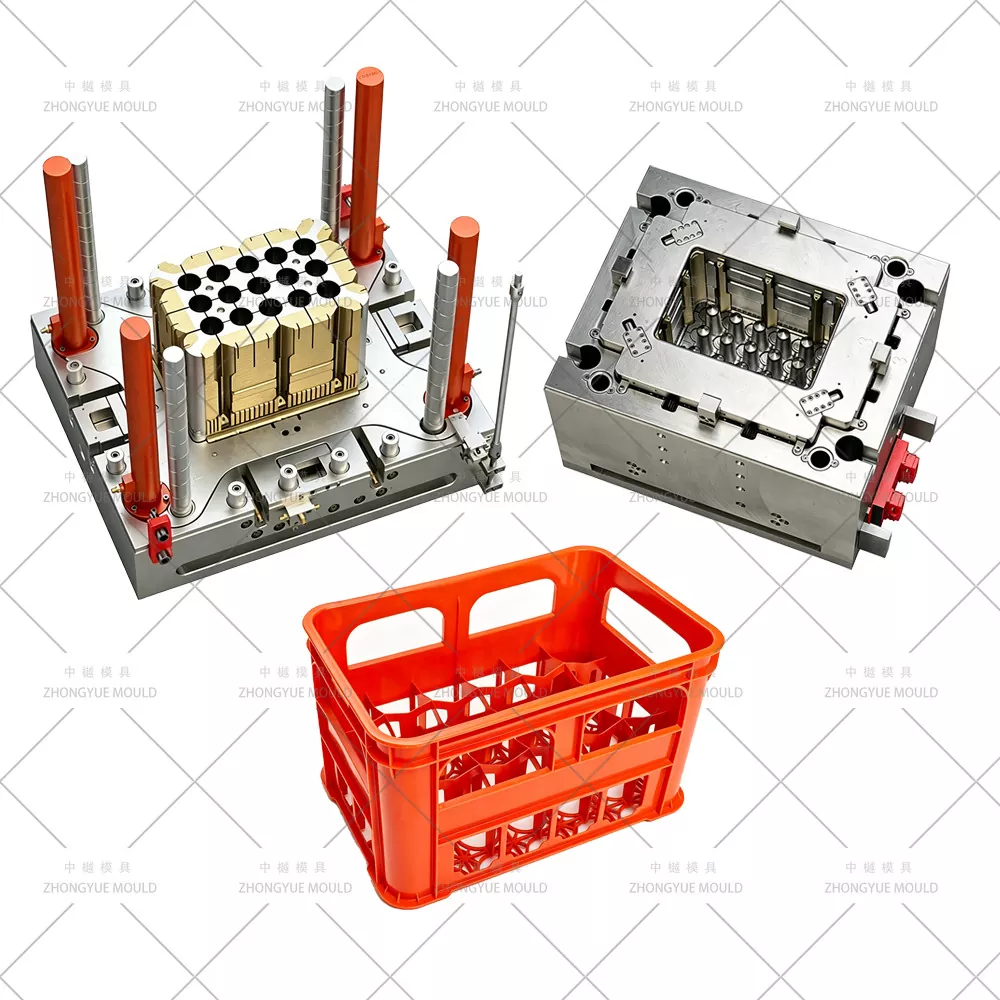

Zhongyue MOULD boasts highly mature technology in the production of Plastic Beer Glass Bottle Crate Mould. For high-quality plastic crate moulds, the primary core steel materials typically consist of beryllium bronze combined with DIN 1.2311 steel.
The runner system of the crate mould generally adopts a hot runner design, which effectively enhances the injection efficiency and surface quality of plastic crates, shortens their injection moulding cycle, and eliminates material waste commonly associated with cold runner systems.

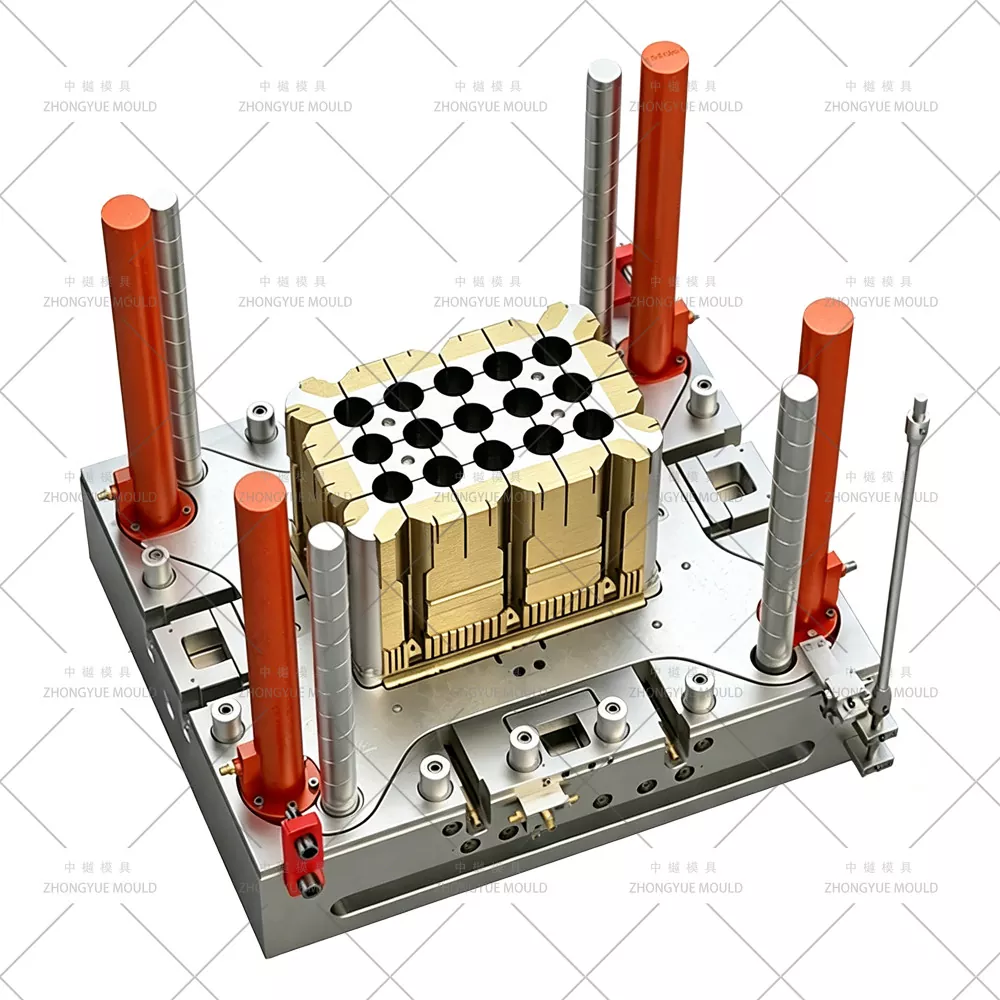

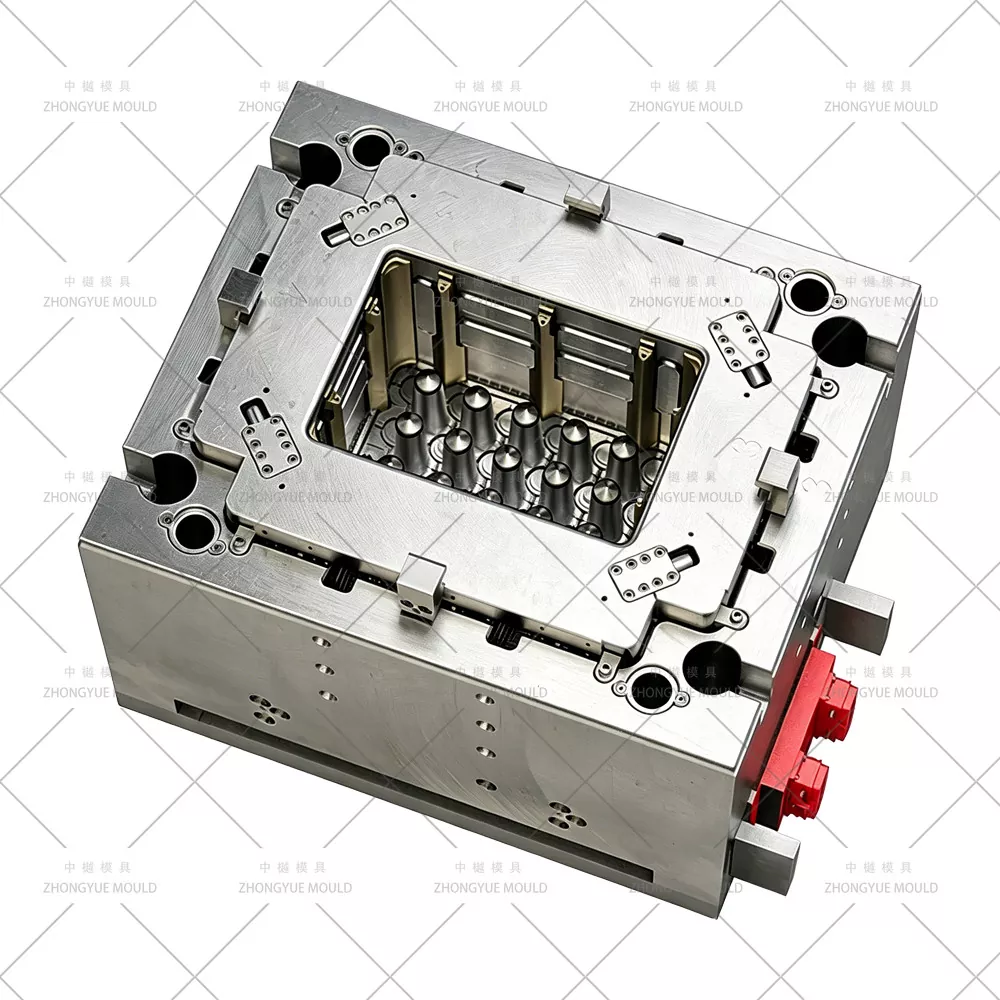

We employ four-side angle pins and sliders for side core pulling, followed by demoulding via a stripper plate.
A variety of mould steels are commonly used for plastic crate moulds, including 45#, 40Cr, P20, 2738, 2316, 718, NAK80, S136, among others. Among these, 718 and P20 are the generally recommended material choices.
|
Crate sizes |
Crate materials |
Crate types |
||
|
539X289X356 mm 532X354X290 mm 540X360X290 mm 400X300X155 mm 500X300X167 mm 400X300X255 mm 490X300X167 mm 500X360X190 mm |
High density polyethylene (HDPE |

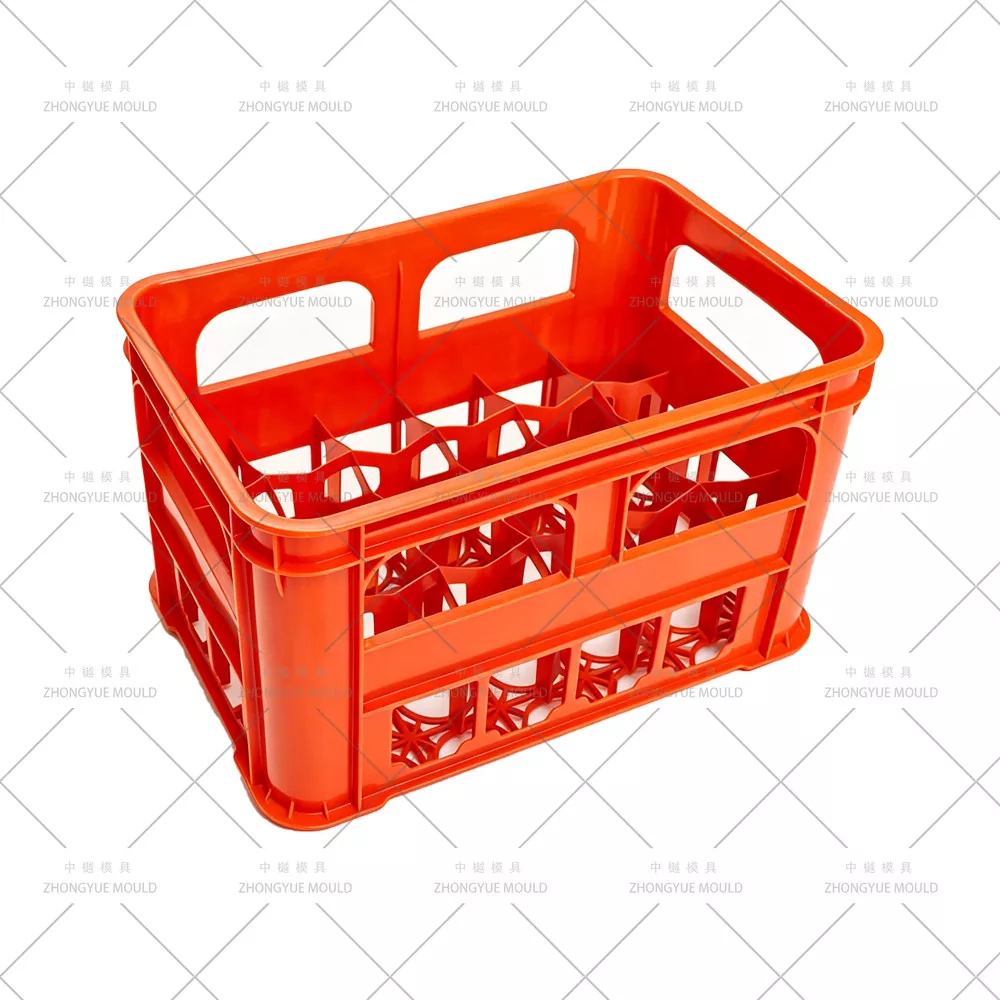

Turnover Box Plastic food crate Plastic vegetable crate Plastic bottle crate Plastic milk crate Folding crate Plastic Beer Glass Bottle Crate Mould
|
||
|
Mould Name |
Plastic Beer Glass Bottle Crate Mould |
|||
|
Mold Meterial |
P20,2738,718H,NAK80,2316,S136,H13,etc |
|||
|
Mold Base |
Self-made,LKM,DME,ASSAB |
|||
|
Cavity |
Single/multi |
|||
|
Runner |
Cold runner and hot runner |
|||
|
Hot Runner Brand |
Master, HUSKY,YUDO,etc. |
|||
|

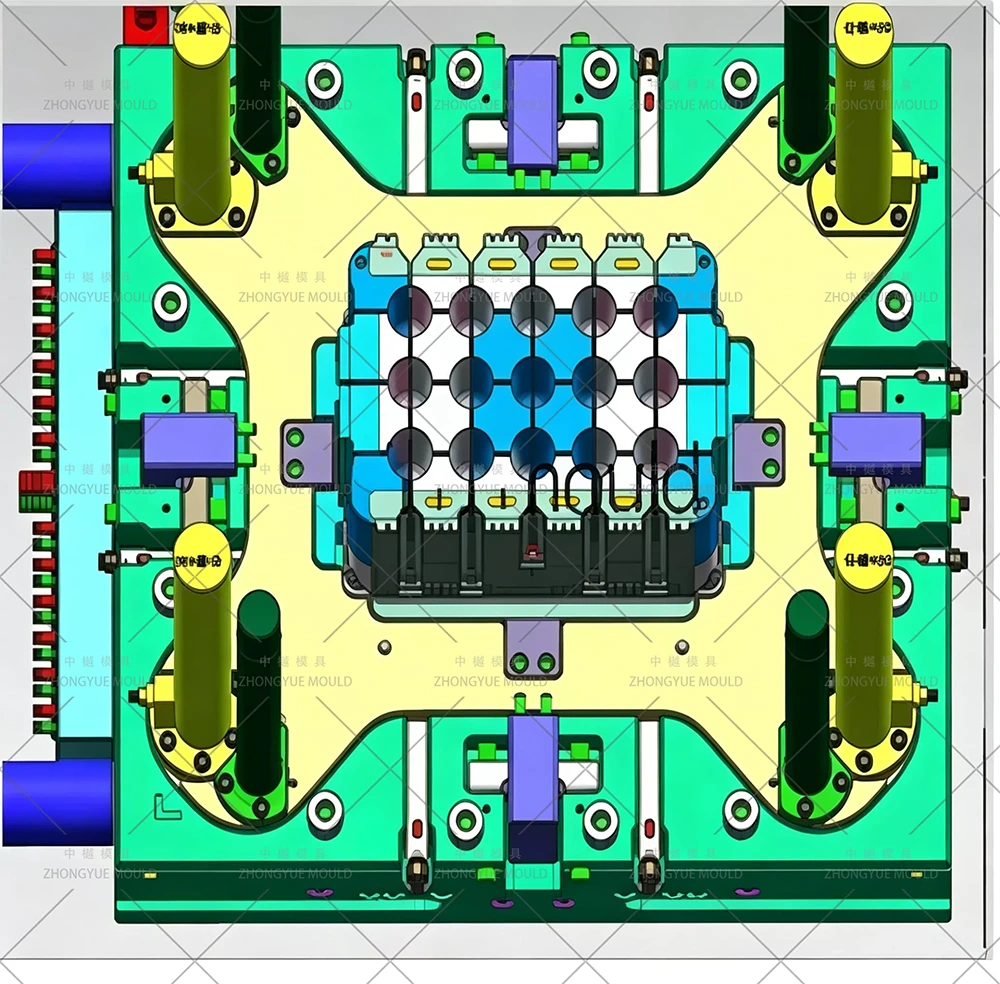

Degsin Software |
UG:Aoto CAD and so on |
|||
|
Mold Life |
50-100 million Shots/ 5-6 years, Even in 10 years in good maintenance |
|||
|
T1 Time |
45-60 days |
|||
|
Plastic Material |
PP ABS |
|||
|
Gate Type |
Pinpoint Gate, Edge Gate, Sub Gate, Film Gate, Valve Gate, Open Gate, etc. |
|||
|
Mould Surface Treatment |
EDM, texture, high gloss polishing |
|||
|
Quality System |
ISO9001 |
|||
|
HS Code |
8480719090 |
|||
|
Origin |
Huangyan Zhejiang China |
|||
|
Package |
Wooden Case |
|
||
|
Mould material |
Hardness |
Mould life |
||
|
P20 |
HRC 28-33 |
>300,000 shots |
||
|
718 |
HRC 33-36 |
>500,000 shots |
||
|
H13 |
HRC >43 |
>800,000 shots |
||
|
2344 |
HRC >48 |
>800,000 shots |
||
|
S136 |
HRC 48-52 |
>1,000,000 shots |
||
Make your next Plastic Crate project brighten!
In the fast-paced beverage industry, efficiency, durability, and cost-effectiveness are paramount. The Plastic Beer Glass Bottle Crate Mould is the cornerstone of a reliable beverage distribution system. At Zhongyue Mould, we specialize in engineering high-performance injection molds designed to produce robust, stackable, and long-lasting plastic crates. Our tooling solutions help manufacturers meet the rigorous demands of modern logistics, ensuring every bottle is transported safely from the brewery to the consumer.
A beer crate must withstand immense pressure from stacking, rough handling, and constant circulation. Our molds are designed with heavy-duty structural integrity in mind.
● Robust Steel & Design: We utilize premium mold steels (such as P20, 718H, or H13) combined with optimized ribbing designs. This ensures the final crate has exceptional impact resistance and can bear heavy loads without cracking or deforming.
● Precision Stackability: Our molds are engineered with exact tolerances to ensure every crate nests and stacks perfectly. This maximizes storage space in warehouses and transport vehicles, significantly reducing logistical costs for your clients.
● Smooth Ejection Systems: Designed for high-volume production, our advanced ejection mechanisms ensure crates are released quickly and without stress marks, maintaining a fast and efficient injection molding cycle.
We understand that beer crates have unique requirements, from drainage to branding. Our Plastic Beer Glass Bottle Crate Moulds are fully customizable to fit specific market needs.
● Customizable Branding: We can integrate your client's logo, brand name, or unique patterns directly into the mold cavity. This adds significant brand visibility and value to the final product.
● Efficient Drainage & Ventilation: Our designs incorporate optimized drainage holes and ventilation slots. This keeps bottles clean, prevents water accumulation, and allows for efficient cooling during the bottling process.
● Material Versatility: Our molds are perfectly suited for processing high-impact Polypropylene (PP) and High-Density Polyethylene (HDPE), the industry-standard materials known for their excellent chemical resistance and toughness.
In the competitive world of injection molding, cycle time and mold life directly impact your bottom line.

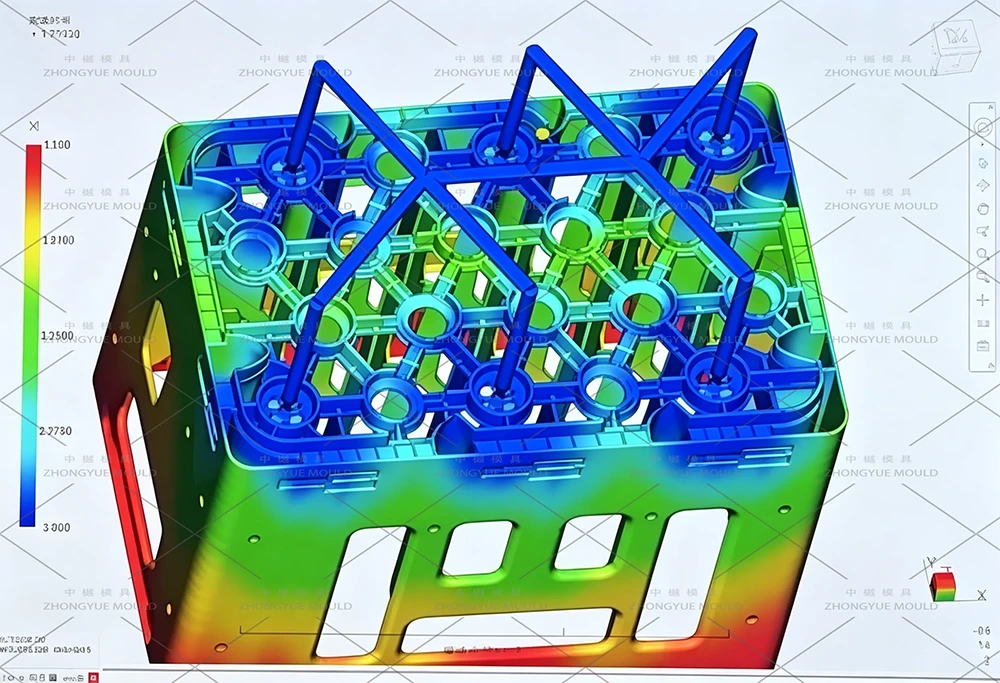

● Advanced Cooling Systems: We utilize Moldflow analysis to design highly efficient cooling channels. This ensures uniform and rapid cooling, drastically reducing cycle times and boosting your daily production output.

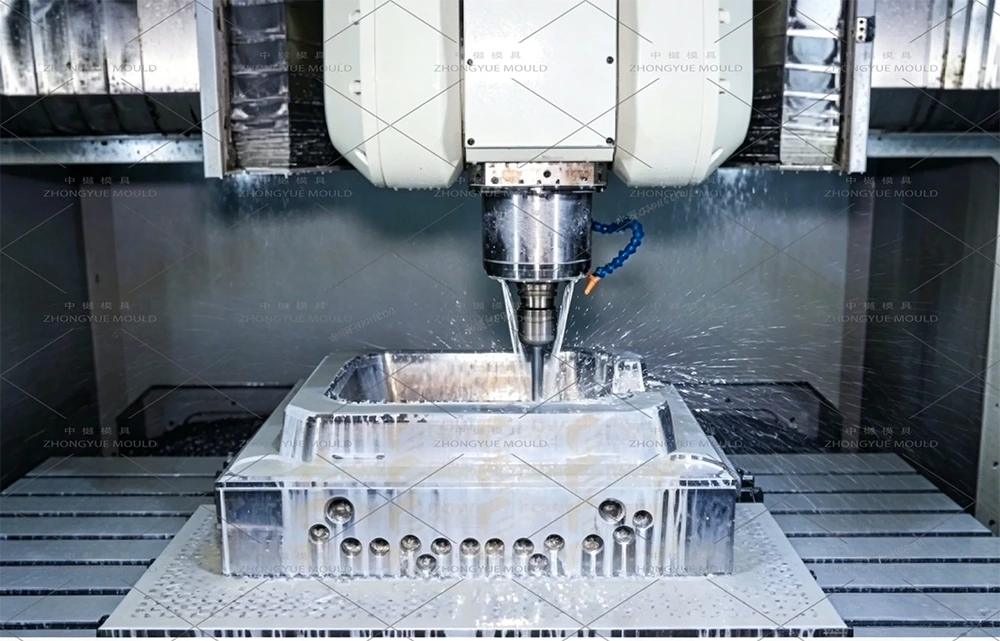

● Extended Mold Life: Built with high-quality hardened steel and precision machining, our molds are designed to last for millions of cycles (typically 500,000 to 3,000,000 shots), providing an excellent long-term return on investment.
● Hot & Cold Runner Options: We offer both hot runner and cold runner systems based on your production volume and budget, ensuring optimal material usage and minimal waste.
We don't just build molds; we build partnerships that drive your business forward.
Industry Expertise: With years of experience in crate and turnover box molds, we understand the specific challenges of the beverage packaging industry.

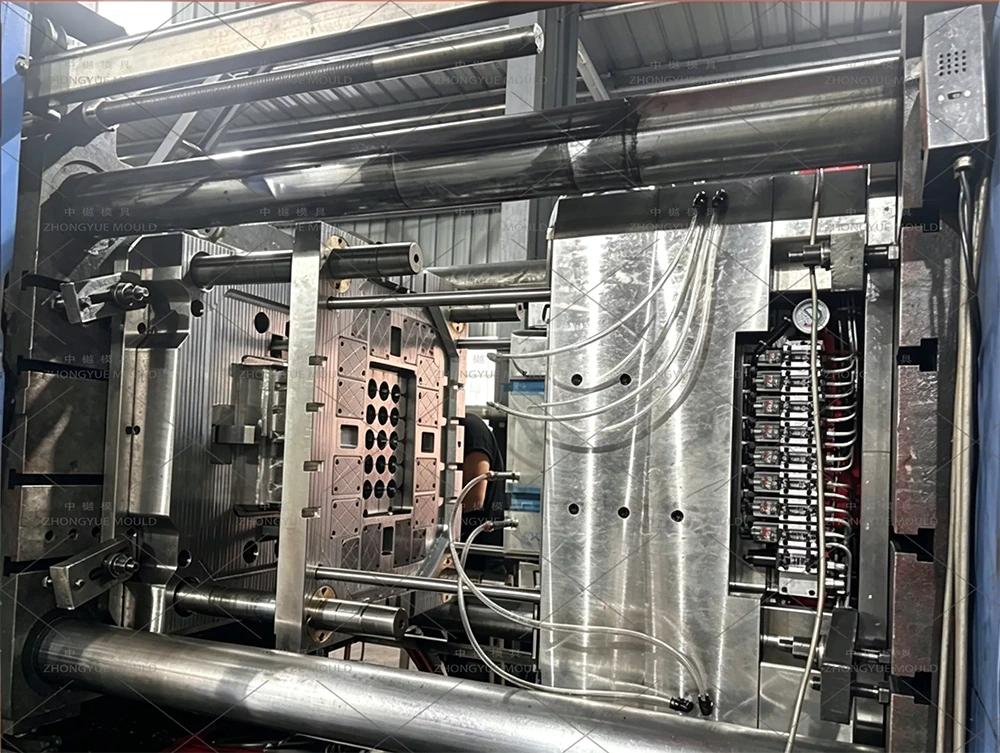

Transparent Process: From initial Design for Manufacturability (DFM) reports to real-time production updates and final trial samples, we keep you informed every step of the way.
After-Sales Support: We provide comprehensive technical support and spare parts to ensure your production line runs smoothly long after the mold is delivered.
Don't let inferior tooling compromise your production efficiency. Invest in a Plastic Beer Glass Bottle Crate Mould from Zhongyue Mould and deliver superior quality to the beverage industry. Contact us today for a professional consultation and a competitive quote!
