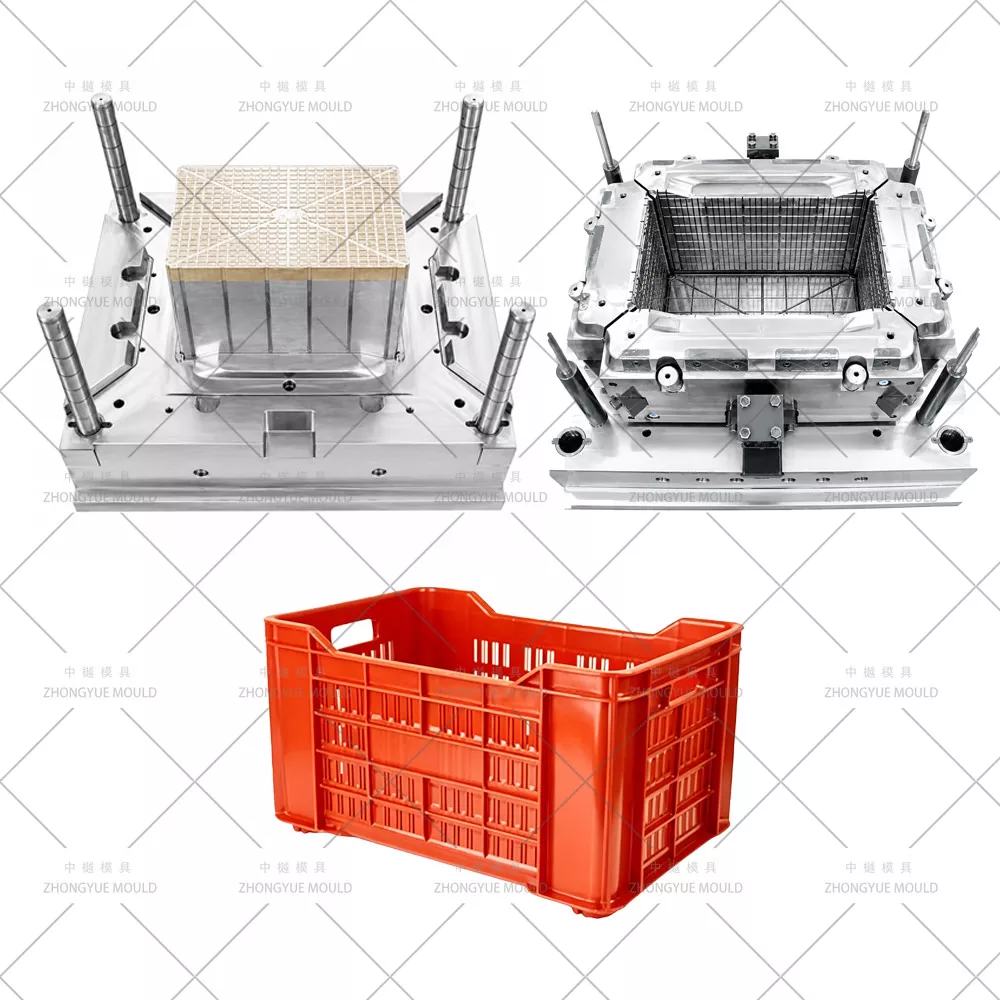

Plastic Fish Crate Mould

As a Topworks-level manufacturer with over 15 years of expertise, ZHONGYUE MOULD specializes in custom Plastic Fish Crate Moulds. We integrate advanced hot runner technology, Moldflow analysis, and precision steel machining to deliver tooling that guarantees high-speed performance and million-shot durability.

Send Inquiry

Product Description

Plastic Fish Crate Mould – Engineered for Food, Beverage & Logistics

In the packaging industry, the Plastic Turnover Box (Crate Mould) is the backbone of efficient supply chains. From dairy farms and breweries to supermarkets and industrial warehouses, these containers must withstand extreme mechanical stress, temperature fluctuations, and constant circulation. The quality of your injection mold dictates the quality of every crate produced.

Specifications :

Crate sizes	Crate materials		Crate types
539X289X356 mm 532X354X290 mm 540X360X290 mm 400X300X155 mm 500X300X167 mm 400X300X255 mm 490X300X167 mm 500X360X190 mm	High density polyethylene (HDPE Polypropylene (PP) Recycled plastic		Turnover Box Plastic food crate Plastic vegetable crate Plastic bottle crate Plastic milk crate Folding crate Stackable Storage Crate
Mould Name		Plastic Fish Crate Mould
Mold Meterial		P20,2738,718H,NAK80,2316,S136,H13,etc
Mold Base		Self-made,LKM,DME,ASSAB
Cavity		Single/multi
Runner		Cold runner and hot runner
Hot Runner Brand		Master, HUSKY,YUDO,etc.
Degsin Software		UG:Aoto CAD and so on
Mold Life		50-100 million Shots/ 5-6 years, Even in 10 years in good maintenance
T1 Time		45-60 days
Plastic Material		PP ABS
Gate Type		Pinpoint Gate, Edge Gate, Sub Gate, Film Gate, Valve Gate, Open Gate, etc.
Mould Surface Treatment		EDM, texture, high gloss polishing
Quality System		ISO9001
HS Code		8480719090
Origin		Huangyan Zhejiang China
Package		Wooden Case
Mould material		Hardness		Mould life
P20		HRC 28-33		>300,000 shots
718		HRC 33-36		>500,000 shots
H13		HRC >43		>800,000 shots
2344		HRC >48		>800,000 shots
S136		HRC 48-52		>1,000,000 shots

Make your nextPlasticCrate Mould project brighten!

Our commitment to high-quality steel, advanced processing methods, and strict ethical practices has earned us the trust of clients across the globe.

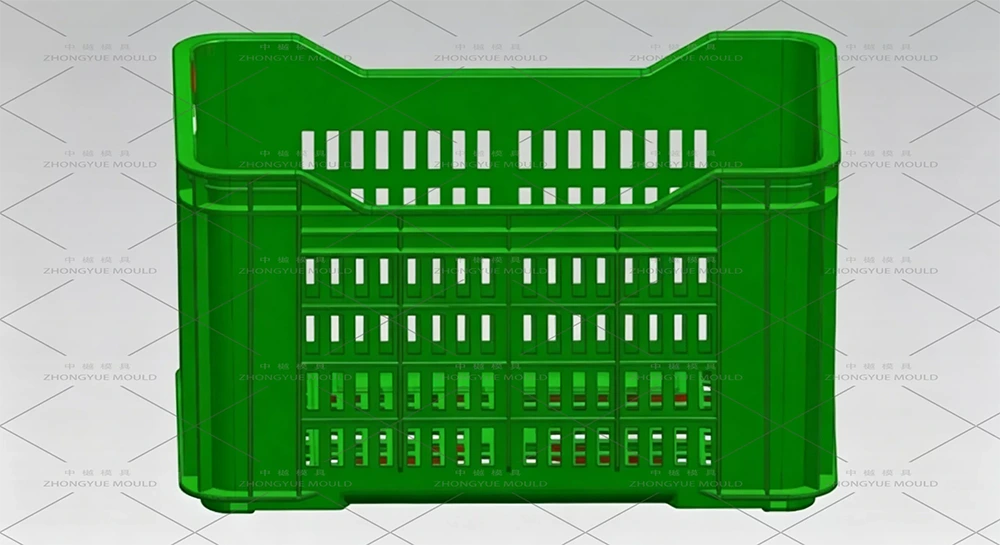

Plastic Fish Crate Mould

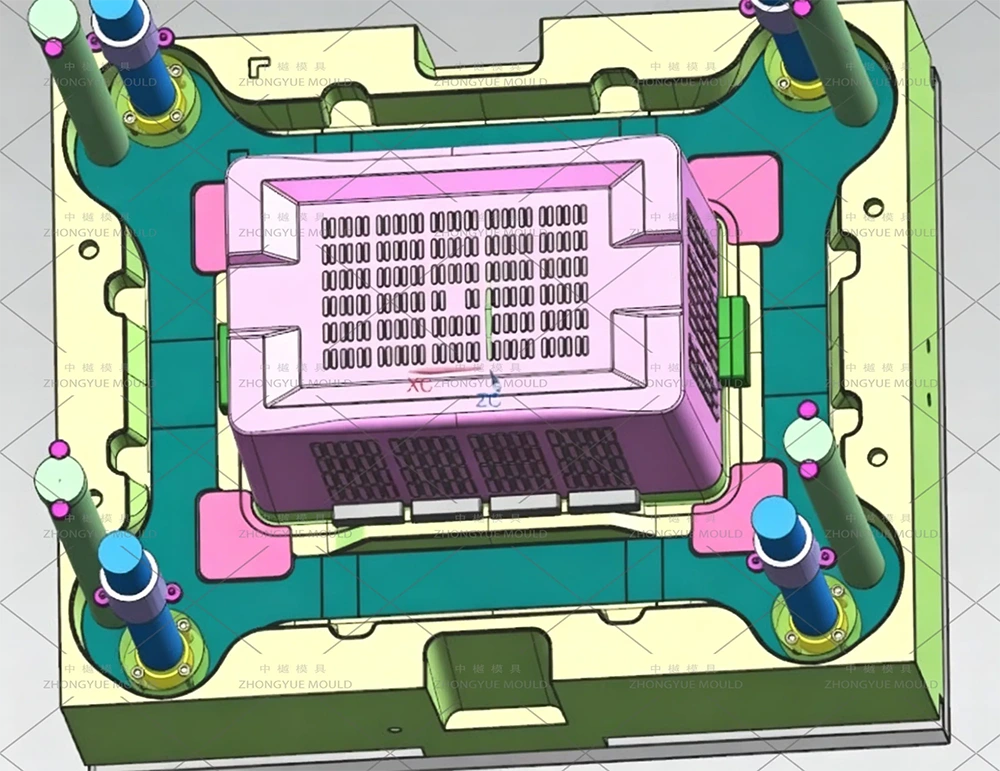

Technical Excellence: How We Build a Superior Crate Mould

1. Optimized Runner System: Hot Runner vs. Cold Runner

Most large turnover boxes require a 4 to 6-drop valve-gated hot runner system (e.g., HOTSET heating coils). We strategically select the system based on your production volume:

Feature	Hot Runner System (Recommended)	Cold Runner / 3-Plate Mold
Cycle Time	Shorter (No sprue cooling)	Longer
Automation	Fully automatic, no manual removal	Requires robot or manual gate removal
Material Waste	Zero (No runner scrap)	High (Regrind needed)
Part Quality	Better consistency, lower stress	Potential gate blemishes
Best For	High-volume (500k+ shots)	Prototyping or low volume

While hot runner molds have a higher initial investment, they eliminate regrind costs, reduce injection pressure, and allow for smaller injection machines—delivering a lower total cost per crate.

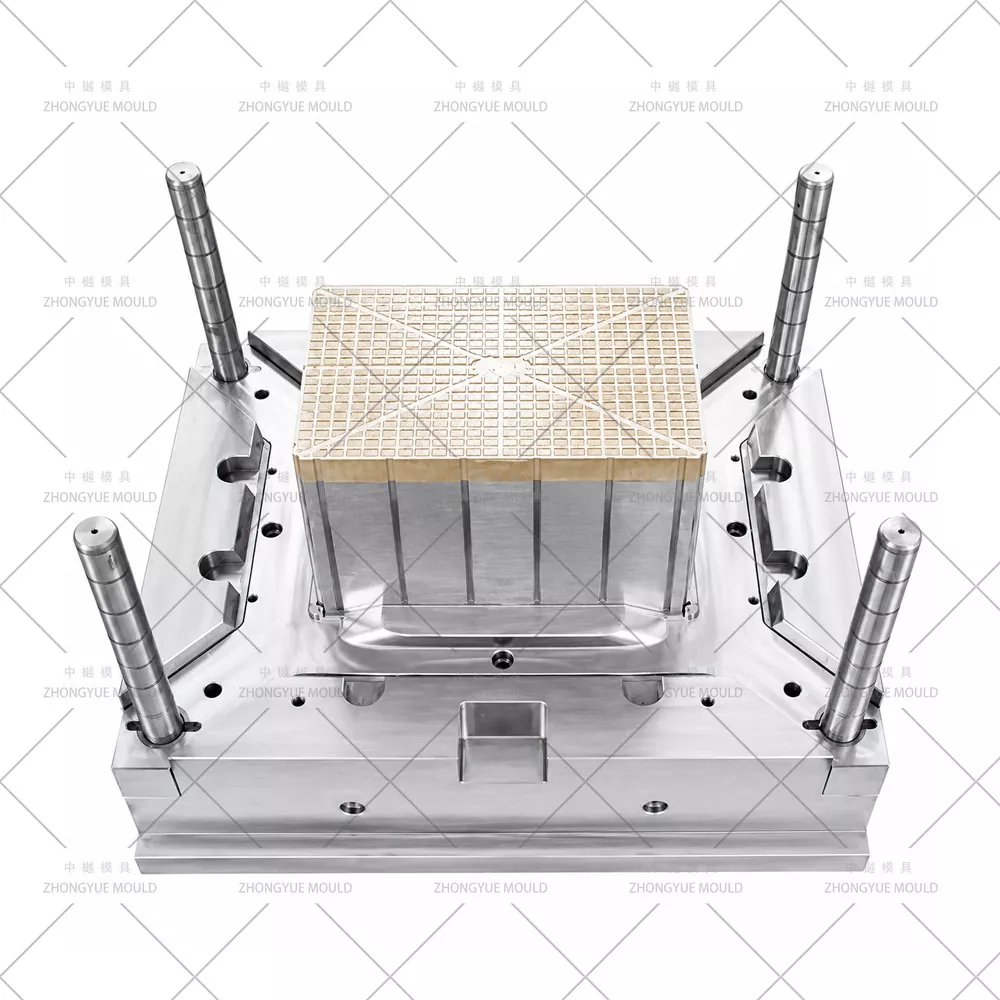

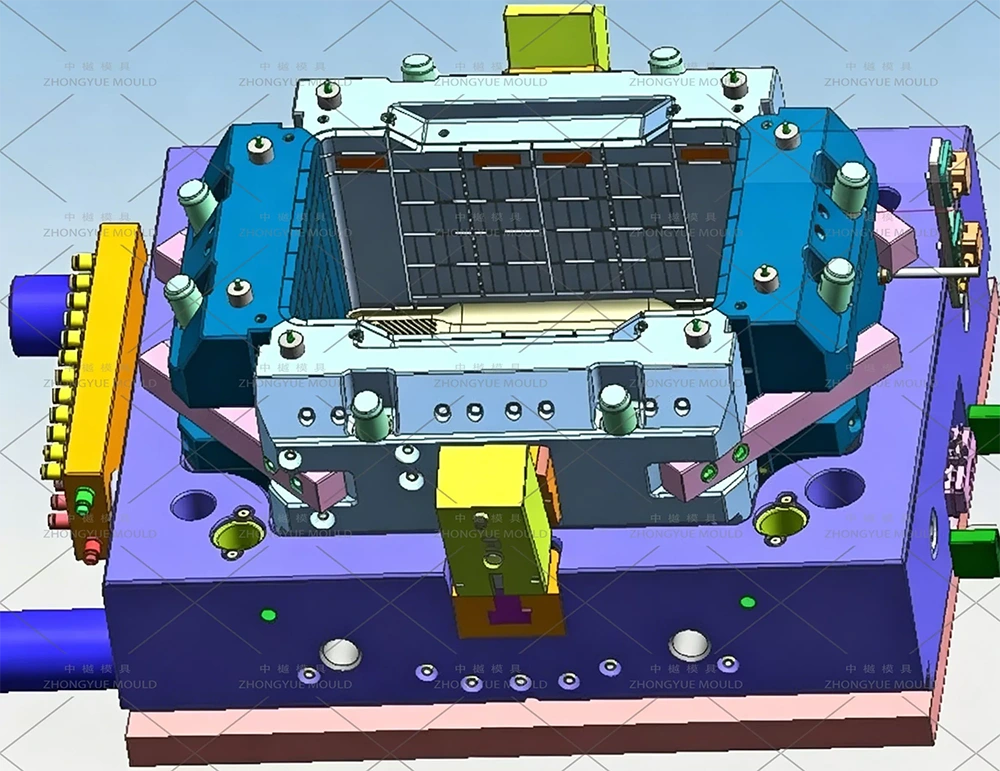

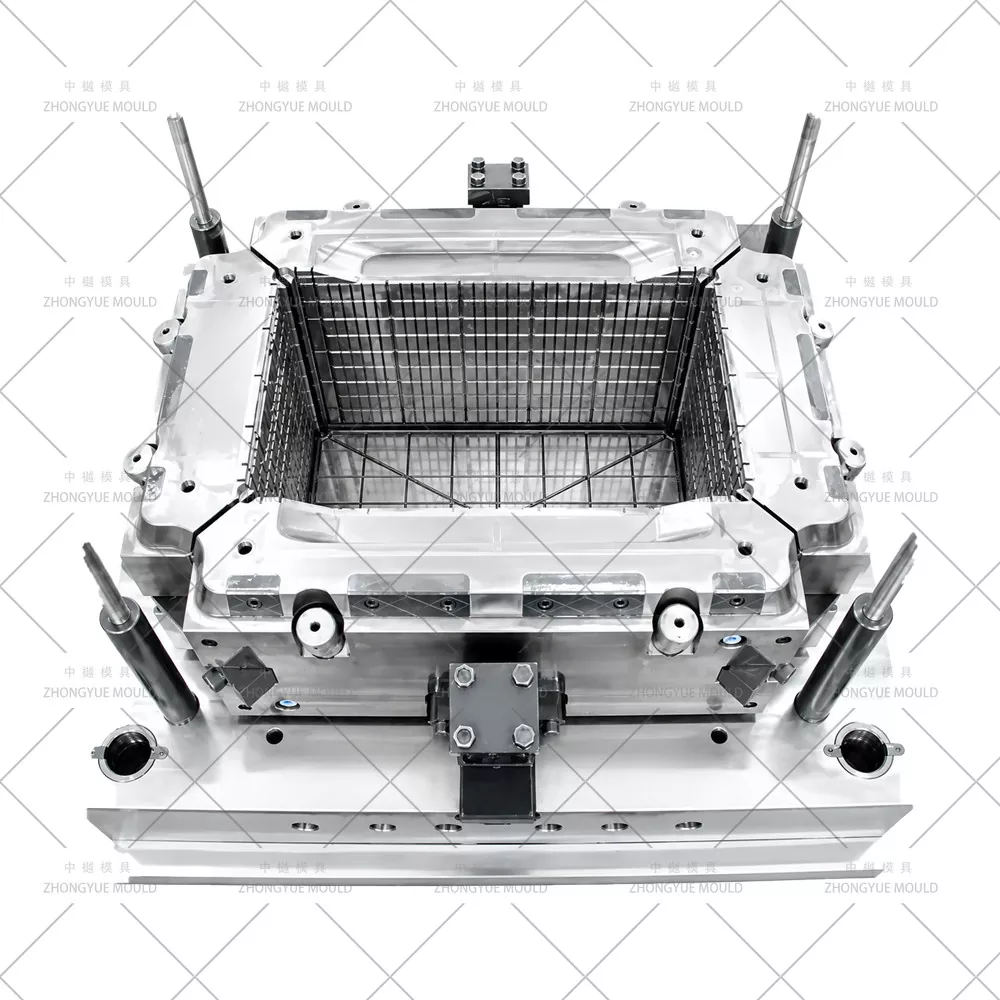

2. Precision Structure for Complex Ribs

Due to the large size and complex sidewall ribs of turnover boxes, our molds feature:

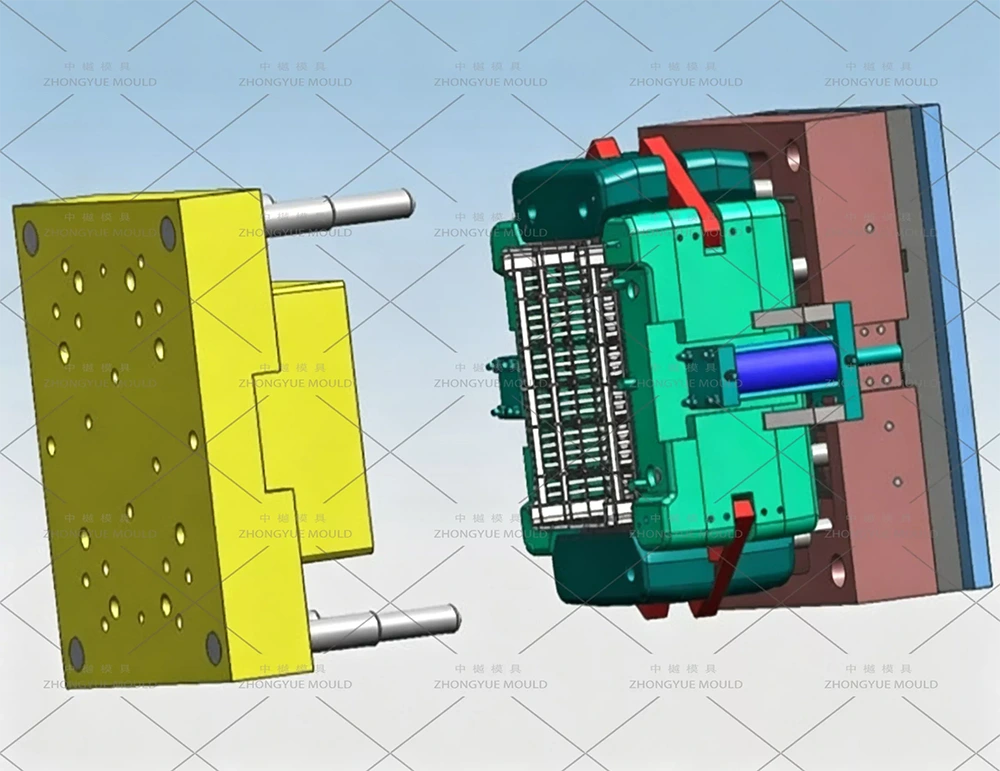

4-Side Hydraulic Sliders: Essential for forming perpendicular ribs and releasing the crate smoothly without scratching.

Stripper Plate Ejection: Provides uniform support during ejection, preventing deformation of large, thin-walled crates.

Balanced Gating: Larger runner diameters reduce shear heat and ensure the melt reaches all cavities evenly.

3. Material Selection & Durability

We match the steel to your production goals. For high-frequency production, we use DIN 1.2738 (718H) for cavities and DIN 1.2312 (P20) for cores, pre-hardened to ensure structural integrity.

Anti-Bending & Anti-Ageing: The mold design supports the use of HDPE with cross-hatched rib structures to maximize crate stiffness and impact resistance.

Temperature Control: Separate heated manifolds (insulated by standoff buttons) prevent heat transfer to the cooling circuits, ensuring the mold base remains cool while the melt stays hot.

Product Range: Versatile Turnover Box Solutions

We manufacture a full range of injection molds for the packaging industry:

Category	Application Examples
Food & Beverage	Beer Crate Mould,Milk Crate Mould, Bread Crates, Meat Trays
Agriculture	Vegetable Crate Mould,Fruit Crate Mould, Seafood/Fish Crates
Industrial / Logistics	Heavy-Duty Turnover Box, Tool Crates, Workshop Storage Bins
Retail / Supermarket	Stackable Display Crates, Foldable (Collapsible) Crates

Technical Specifications (Sample Case)

Parameter	Specification
Product	Plastic Turnover Box / Crate
Cavity	1 Cavity (Standard for large crates)
Steel (Cavity)	DIN 1.2738 (Pre-hardened HRC 30-33)
Steel (Core)	DIN 1.2312
Runner System	4-Drop Hot Runner (Valve Gate)
Heating Elements	HOTSET / Europe Standard
Plastic Material	HDPE (High Density Polyethylene)
Cycle Time	Approx. 40 Seconds
Ejection	Hydraulic Cylinders + Stripper Plate
Delivery Time	45 Working Days

Plastic Fish Crate Mould

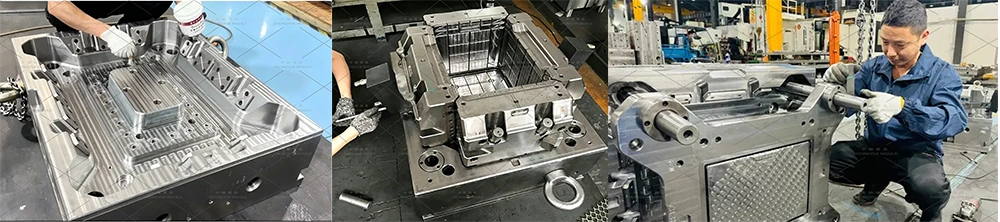

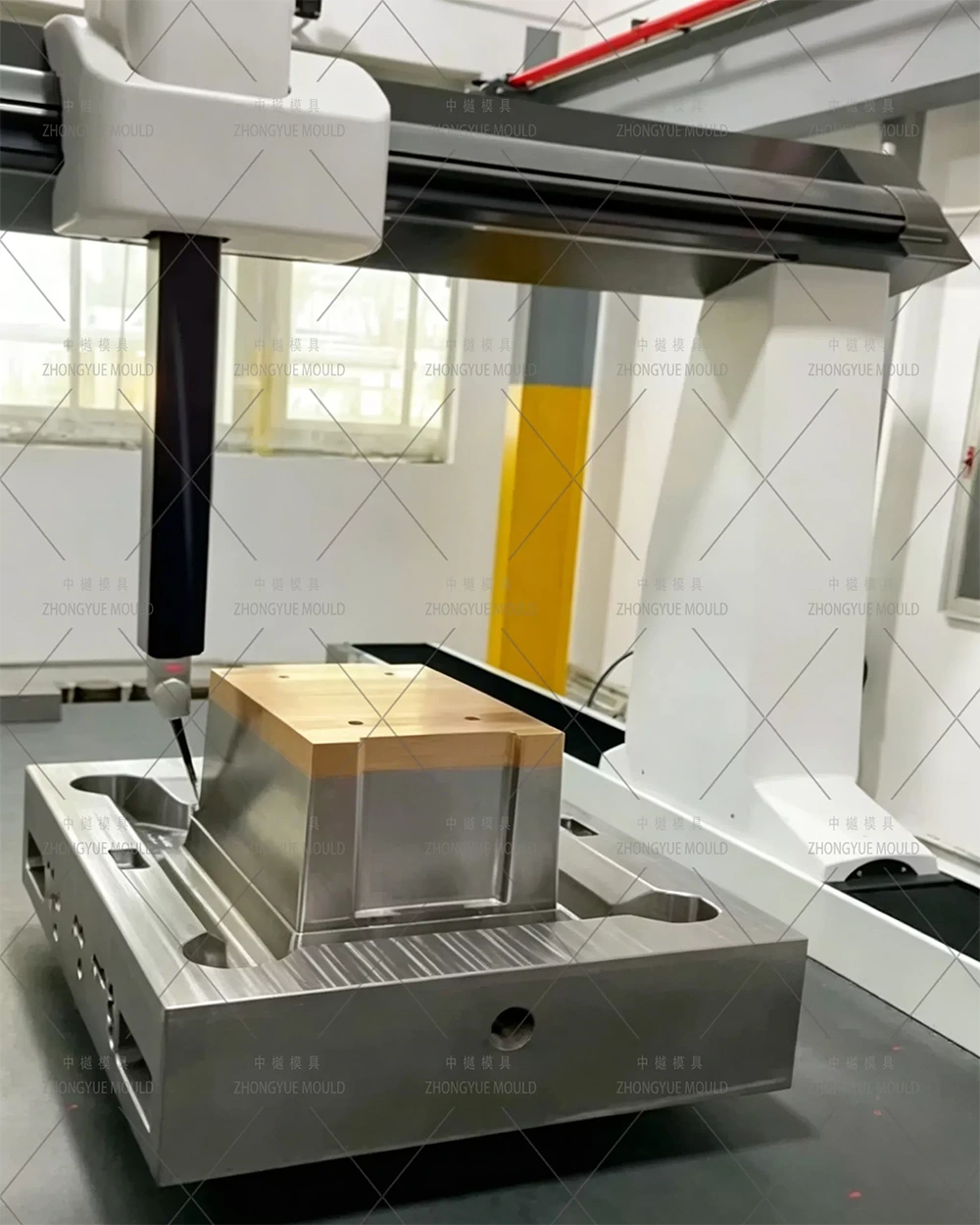

Pre-Production Maintenance Checklist

To ensure longevity and stable production, we advise the following maintenance routine (which we also demonstrate during mold trial):

Surface Cleaning: Remove all anti-rust oil and check for residual debris.

Cooling Check: Verify water channels are clear of obstructions.

Mechanical Check: Confirm all guide pins, ejection pins, and sliders are lubricated and show no signs of wear.

Clamping: Ensure the mold plates are tightly secured to the injection machine platen.

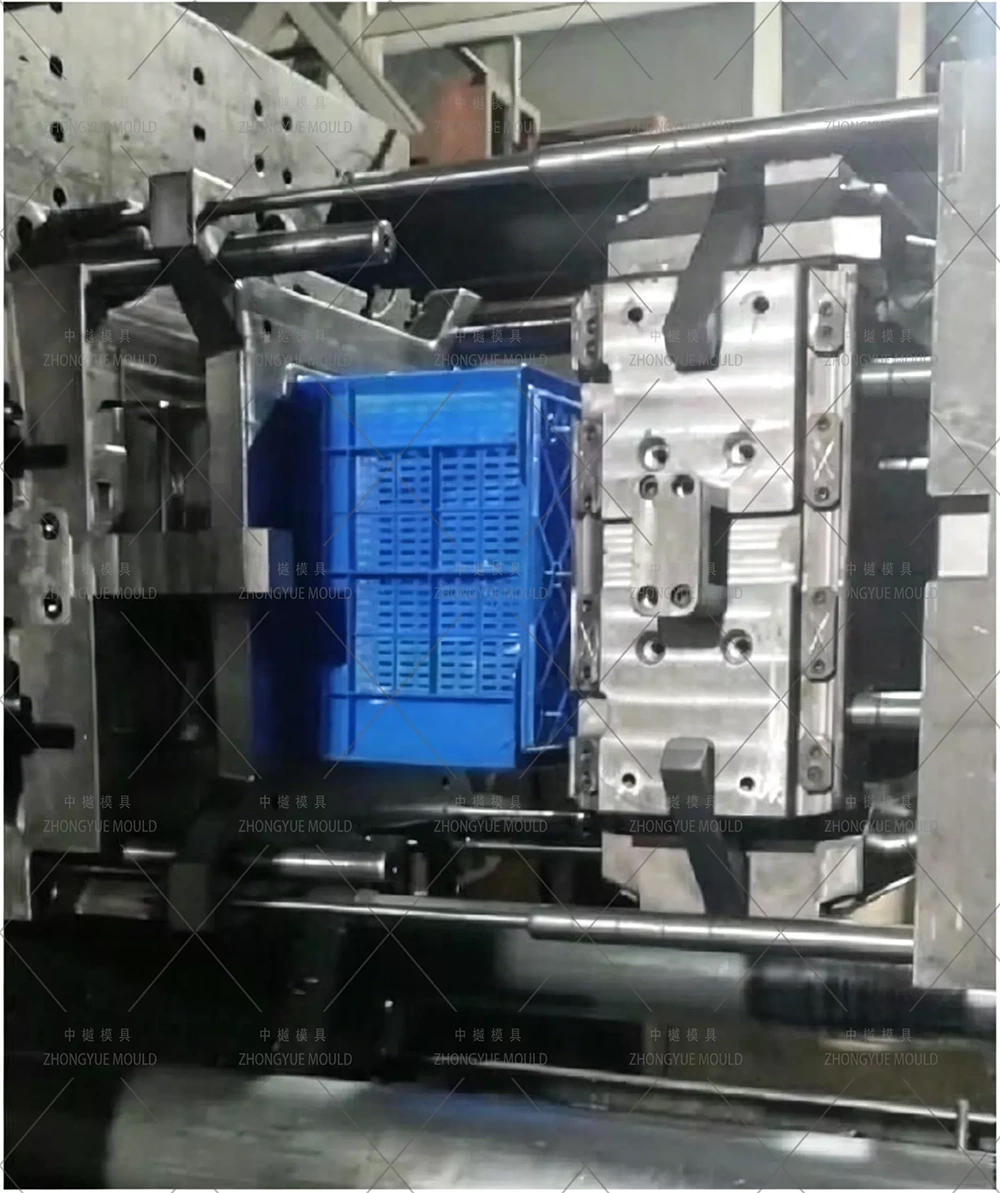

Trial Run: Observe the opening/closing strokes and ejection sequence for any abnormalities before full-scale production.

Plastic Fish Crate Mould

Partner with ZHONGYUE for Your Next Project

From prototyping to full-scale production, ZHONGYUE MOULD offers a full-service solution. Whether you need a standard beer crate mold or a custom heavy-duty Plastic Fish Crate Mould , our team is ready to deliver tooling that meets the highest ethical and technical standards.

How we processing the project?

Plastic Fish Crate Mould

About us

Driven by the philosophy:

“Quality Makes the Future, Focus Creates Professional”

Zhongyue Mould is a leading company in the plastic injection air conditioner Cover mould industry. Our highly experienced team of engineers and designers have many decades of combined experience in plastic air conditioner Cover mould design and manufacturing. We provide a comprehensive service, specializing in the production of high-quality and high-precision air conditioner Cover moulds. We have also assisted numerous customers in customizing various types of plastic air conditioner Cover moulding lines.

We can also offer comprehensive assistance in the management of your production process. The procurement department will purchase high-quality raw materials, while the technical department will select the appropriate plastic formula. In accordance with the parameters of the plastic air conditioner Cover mould life requirements and market positioning, we will select the most suitable plastic air conditioner Cover parameters, structure, etc. Our extensive production capacity allows us to deliver plastic air conditioner Covers promptly, at competitive prices and with guaranteed quality.

Plastic Fish Crate Mould
