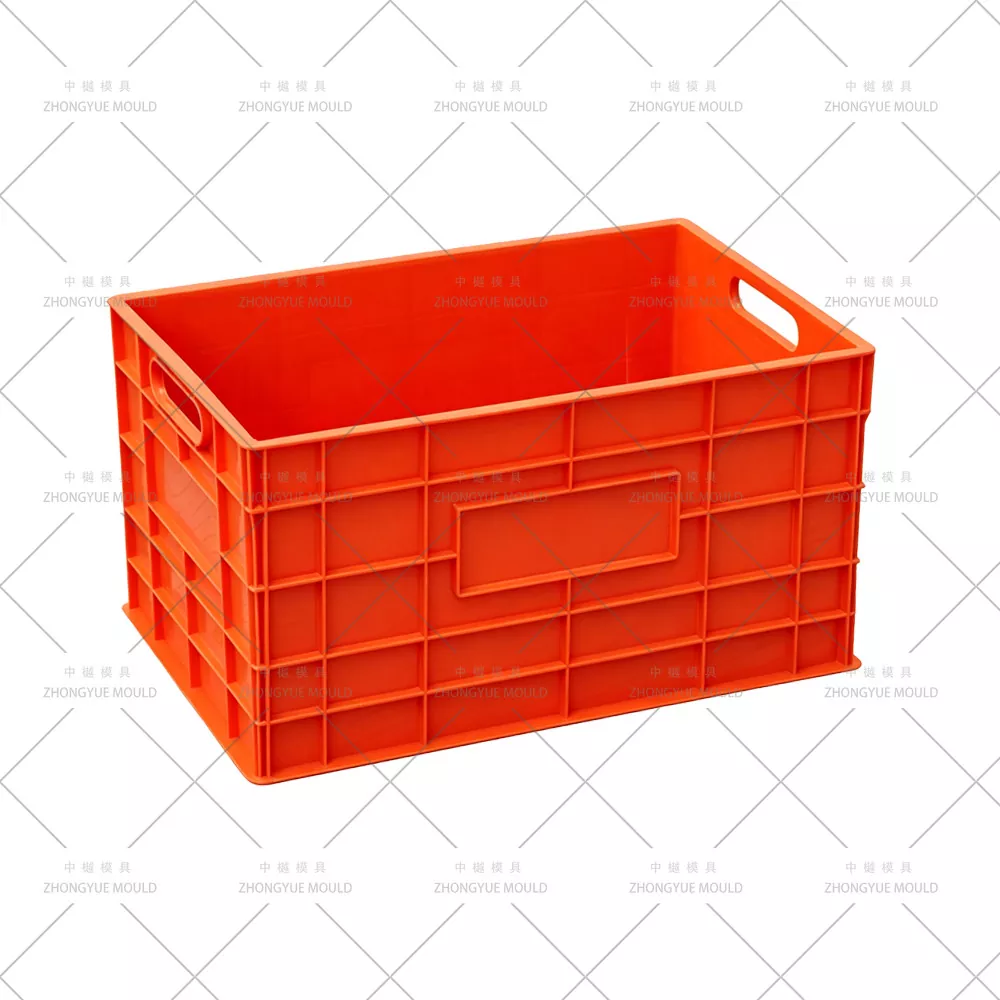

Plastic Crate Mould

In logistics, agriculture, food & beverage, and industrial storage, durable plastic crates are indispensable. The Plastic Crate Mould (also called a Turnover Box Injection Mold) is the core tool for producing stackable, nestable, vented or solid-wall crates that stand up to repeated circulation, heavy loads, and harsh handling conditions.
At Zhongyue Mould, we engineer and manufacture precision injection molds for all types of plastic crates—including beverage bottle crates, beer crates, vegetable & fruit vented crates, milk crates, foldable turnover boxes, and heavy-duty industrial totes. Every mold is tailor-made to optimize structural strength, cooling efficiency, demolding smoothness, and total cost-per-shot.

Send Inquiry

Product Description

The Future-Proof Solution for Modern Logistics | Zhongyue Mould - China's Leading Plastic Crate Mould Maker

In today's fast-paced global logistics and supply chain industry, Plastic Crate Moulds are the cornerstone of efficient material handling, storage, and transportation. Zhongyue Mould Co., Ltd, a trusted China plastic foldable crate moulds manufacturer and plastic crate moulds supplier, specializes in designing, manufacturing, and producing a wide range of wholesale crate moulds and plastic products for international customers. With over a decade of expertise in the field, we empower businesses across industries to optimize their operations with durable, high-performance plastic crates tailored to their specific needs.

Specifications :

Crate sizes	Crate materials		Crate types
539X289X356 mm 532X354X290 mm 540X360X290 mm 400X300X155 mm 500X300X167 mm 400X300X255 mm 490X300X167 mm 500X360X190 mm	High density polyethylene (HDPE Polypropylene (PP) Recycled plastic		Turnover Box Plastic food crate Plastic vegetable crate Plastic bottle crate Plastic milk crate Folding crate Stackable Storage Crate
Mould Name		Plastic Crate Mould
Mold Meterial		P20,2738,718H,NAK80,2316,S136,H13,etc
Mold Base		Self-made,LKM,DME,ASSAB
Cavity		Single/multi
Runner		Cold runner and hot runner
Hot Runner Brand		Master, HUSKY,YUDO,etc.
Degsin Software		UG:Aoto CAD and so on
Mold Life		50-100 million Shots/ 5-6 years, Even in 10 years in good maintenance
T1 Time		45-60 days
Plastic Material		PP ABS
Gate Type		Pinpoint Gate, Edge Gate, Sub Gate, Film Gate, Valve Gate, Open Gate, etc.
Mould Surface Treatment		EDM, texture, high gloss polishing
Quality System		ISO9001
HS Code		8480719090
Origin		Huangyan Zhejiang China
Package		Wooden Case
Mould material		Hardness		Mould life
P20		HRC 28-33		>300,000 shots
718		HRC 33-36		>500,000 shots
H13		HRC >43		>800,000 shots
2344		HRC >48		>800,000 shots
S136		HRC 48-52		>1,000,000 shots

Make your next Plastic Crate Mould project brighten!

Engineered for High-Speed, High-Volume Crate Production

Premium Mold Steel & Extended Service Life

We select mold steel based on your production volume and budget:

Standard: P20 (pre-hardened, HRC 28–33) for cost-effective runs

Mid-High: 718H / 2738 (HRC 33–38) for 500,000–1,5M shots

Premium: H13 (quenched & tempered, HRC 44–48) or S136 for 2M+ shots with abrasive regrind PP/HDPE

All wearing parts (slides, inserts) are nitrided or fitted with Beryllium Copper (BeCu) inserts in high-heat zones for superior thermal conductivity and reduced cycle time.

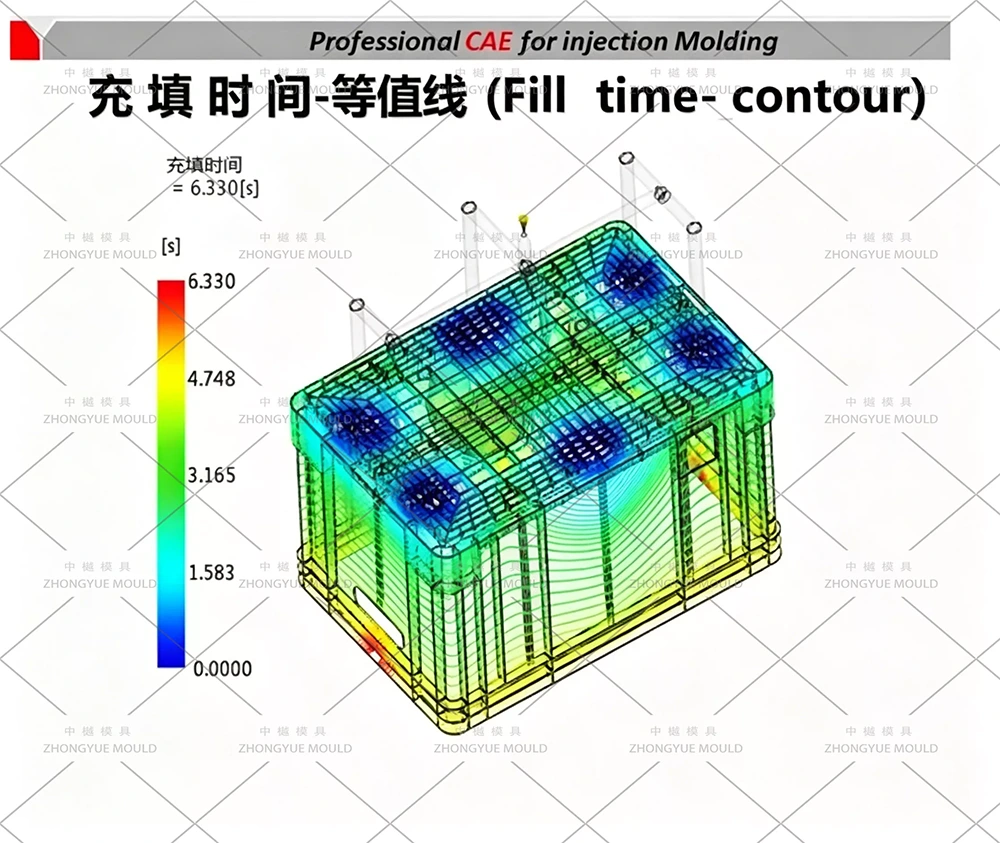

Plastic Crate Mould Flow Analyzing

Optimized Cooling & Short Cycle Time

Using Moldflow analysis, we design balanced cooling circuits with baffles, bubblers, and BeCu inserts—especially critical for large crate sidewalls and thick corner ribs. Most ZHONGYUE crate moulds achieve cycle times of 35–55 seconds, significantly improving daily output.

Hot Runner / Cold Runner Options

Hot Runner (Recommended): Multi-drop valve-gated system (YUDO / Synventive / Husky-compatible brands) eliminates sprue waste, reduces clamp force requirement, and ensures even filling across vented mesh or thick rib sections.

Cold Runner / 3-Plate: Cost-effective option for lower-volume production or proto-typing.

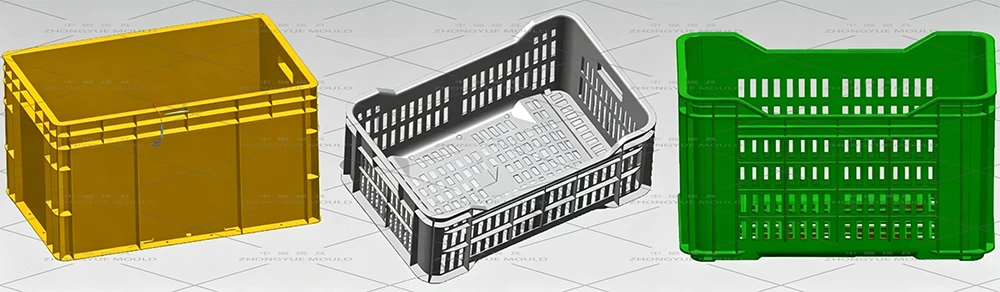

Plastic Crate Mould Flow Analyzing

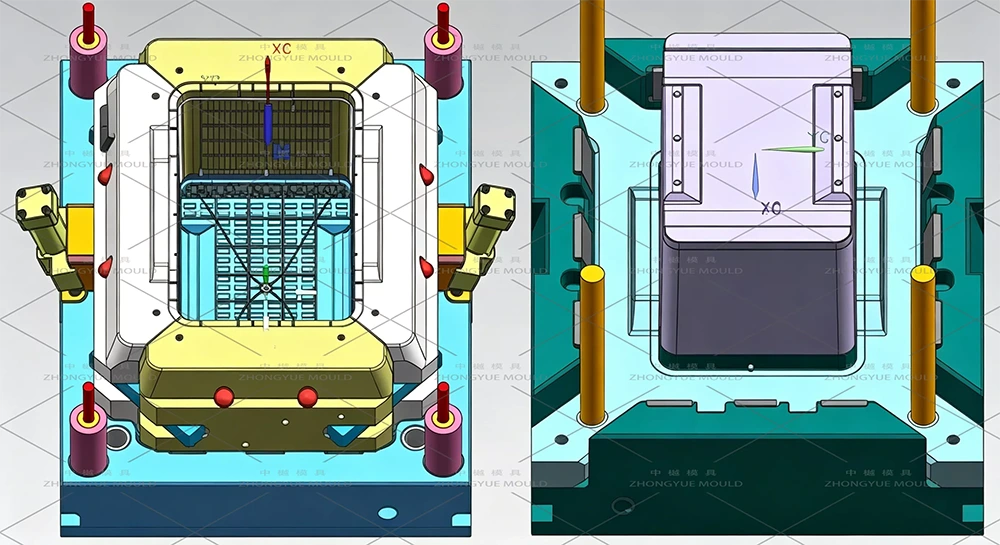

Reliable Demolding for Complex Crate Geometry

Beverage & logistics crates commonly feature:

Side handle undercuts → hydraulic cylinders + angle lifters

Deep nesting tapers → stripper plate ejection

Four-side rib structures → four-slider system with interlock positioning

Our ejection design guarantees flash-free, stress-free crate demolding with minimal maintenance.

Stackable & Nestable Design Accuracy

Precision-machined stacking lugs and bottom sockets ensure tight interlocking when full and smooth nesting when empty (reducing return freight by 50–70%). Dimensional tolerance is controlled within ±0.1–0.15 mm per drawing.

Why Choose ZHONGYUE MOULD as Your Crate Mold Partner?

15+ Years Crate Mold Expertise: Hundreds of turnover crate molds delivered globally—beer crates (6/12/24 bottles), cola crates, foldable logistics boxes, vented produce crates.

Transparent Engineering Process: DFM report → Moldflow analysis → In-process photos → T0/T1 trial video & sample dimension report before shipment.

Full Customization: Crate outer dims, rib pattern, vented/solid bottom, logo embossing, barcode area, RFID pocket—engineered to your local pallet/logistics standard (Euro crate compatible on request).

After-Sales Support: Spare parts kit included; remote troubleshooting & maintenance guide provided; rework/repair service available.

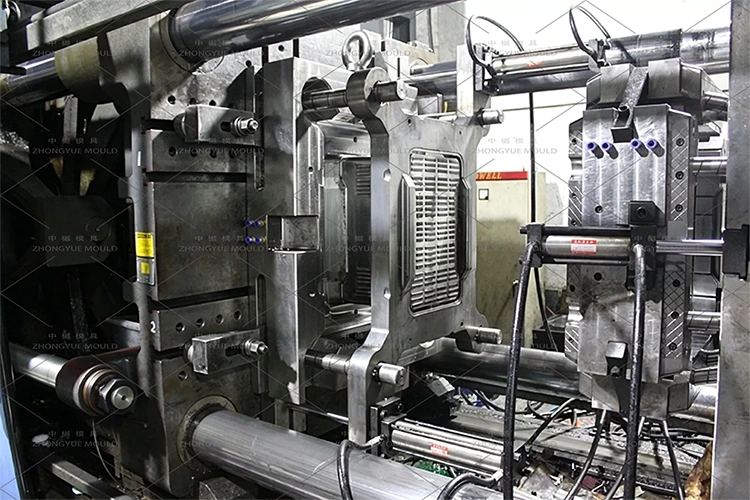

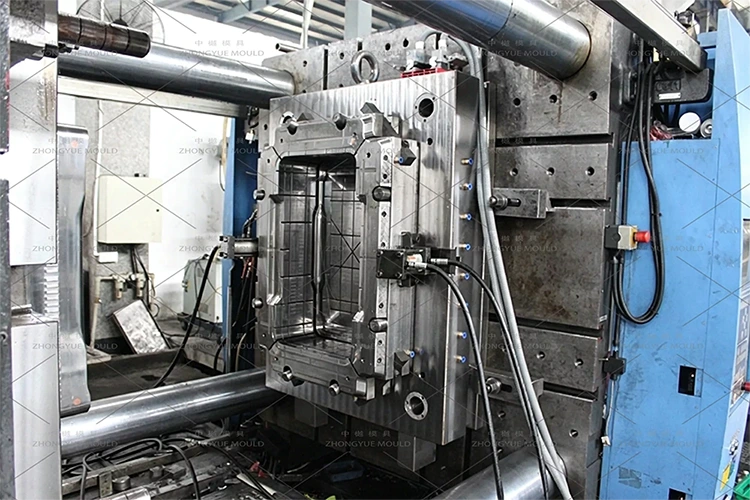

Plastic Crate Mould Trial

Request Your Custom Plastic Crate Mould Quotation

Send us your crate drawing, sample photo, or required specs (crate size / bottle qty / material / estimated annual shots)—and our engineering team will respond with a DFM analysis and competitive offer within 24–48 hours.
