Plastic Disposable Knife Mould

Need high-output Plastic Disposable Knife Mould? Zhongyue Mould delivers 200 pcs/min, 12s cycle time, precision 0.01mm, BeCu cooling & hot runner system. OEM/ODM. Request DFM, MOQ, lead time & price list. Send RFQ for a quote today!

Send Inquiry

Product Description

Engineer Your Profit with High-Efficiency Plastic Disposable Knife Moulds

Food delivery and takeout are growing fast, especially in developed regions. This drives big demand for disposable knives, forks, and spoons.

To compete in this high-volume, low-margin business, you need to cut weight and cycle time without losing quality. Zhongyue Mould builds the Plastic Disposable Knife Mould with high cavitation – designed to help you produce 200 quality knives per minute.

Specifications :

Mould Name	Plastic Disposable Knife Mould
Mould Meterial	P20,2738,718H,NAK80,2316,S136,H13,etc
Mould Base	Self-made,LKM,DME,ASSAB
Cavity	Single/multi
Runner	Cold runner and hot runner
Hot Runner Brand	Master, HUSKY,YUDO,etc.
Degsin Software	UG:Aoto CAD and so on
Mould Life	50-100 million Shots/ 5-6 years, Even in 10 years in good maintenance
T1 Time	25-60 days
Plastic Material	PP
Gate Type	Pinpoint Gate, Edge Gate, Sub Gate, Film Gate, Valve Gate, Open Gate, etc.

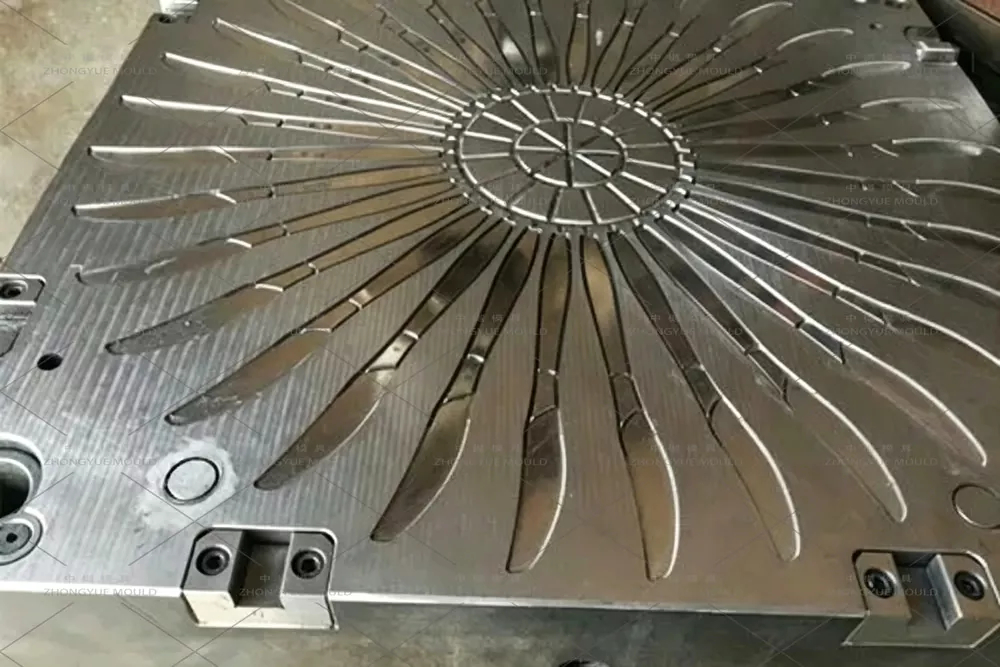

Mould Surface Treatment	EDM, texture, high gloss polishing
Quality System	ISO9001
HS Code	8480719090
Origin	Huangyan Zhejiang China
Package	Wooden Case
Mould material	Hardness	Mould life
P20	HRC 28-33	>300,000 shots
718	HRC 33-36	>500,000 shots
H13	HRC >43	>800,000 shots
2344	HRC >48	>800,000 shots
S136	HRC 48-52	>1,000,000 shots

Make your nextplastic Disposable Cutlery Mould project brighten!

Zhongyue’s 7 Core Advantages in Cutlery Moulding

Plastic Disposable Knife Mould

We don't just build moulds; we build high-performance engines for your production line. Here is why global manufacturers trust Zhongyue for their disposable tableware needs:

Feature	Zhongyue Technical Advantage
1. Optimized Hot Runner System	We utilize a single-point hot runner gate distributing to multiple small circular gates. The nozzle and runner are designed as replaceable inserts, allowing for easy maintenance and enabling products to auto-break from the runner.
2. Advanced BeCu (Beryllium Copper) Application	Critical areas are fitted with BeCu inserts. With superior thermal conductivity, hardness, and wear resistance, BeCu ensures smoother material flow and drastically faster cooling cycles.
3. Maximized Cooling & Ejection Efficiency	We push efficiency to the limit. By integrating up to 10 water channels and nearly 100 ejector pins, we guarantee stable deMoulding and achieve an incredible12-second cycle time.
4. Micron-Level Precision Machining	Disposable cutlery is thin-walled with complex features (like serrated edges). We control our mould precision within0.01mm to ensure perfect part formation every shot.
5. Reinforced Structural Details	High-stress areas prone to fracture are reinforced with specialized weld plates (HRC 48-52), ensuring a prolonged mould lifespan even under high-cycle operations.
6. Smart Maintenance Design	Every mould plate is clearly marked. If a component fails in the future, you can quickly identify and replace the exact part, minimizing costly downtime.
7. Premium Guiding Components	Instead of standard parts, we use high-grade bearings with internal steel balls for guide bushes. This ensures smoother mould movement, reduces vibration, and extends the service life of the ejection system.

Plastic Disposable Knife Mould

Technical Specifications: 40-Cavity Disposable Knife Mould Example

To give you a clear idea of our engineering standards, here are the specs for one of our standard high-output knife moulds:

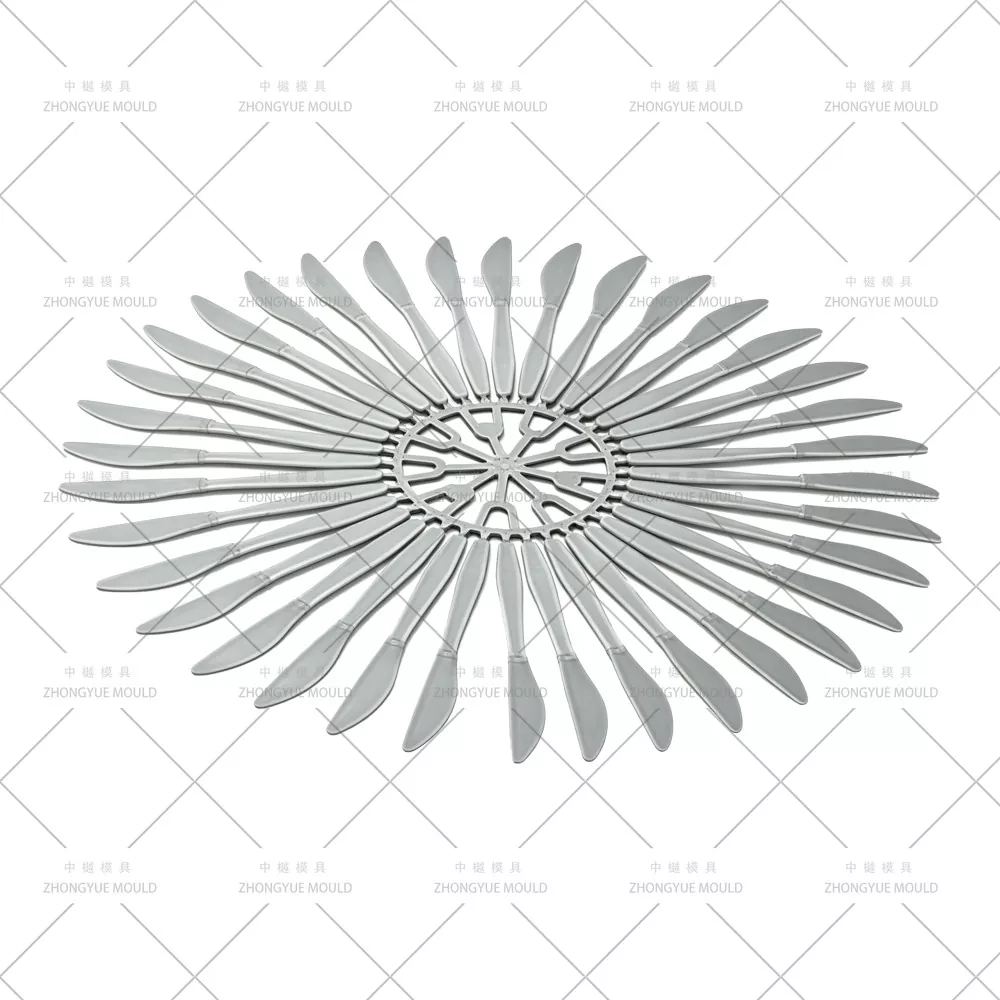

Product Material: PP (Lightweight & Strong)

Product Weight: 1.6g - 2.6g (Customizable)

Number of Cavities: 40 Cavities

Mould Dimensions: 620 x 620 x 370 mm

Mould Weight: 976 kg

Steel Material: Imported 2316 Steel (HRC 45-48)

Cycle Time: 12 Seconds

Hourly Output: 12,000 Pieces

Plastic Disposable Knife Mould

The Zhongyue Workflow for Disposable Tableware

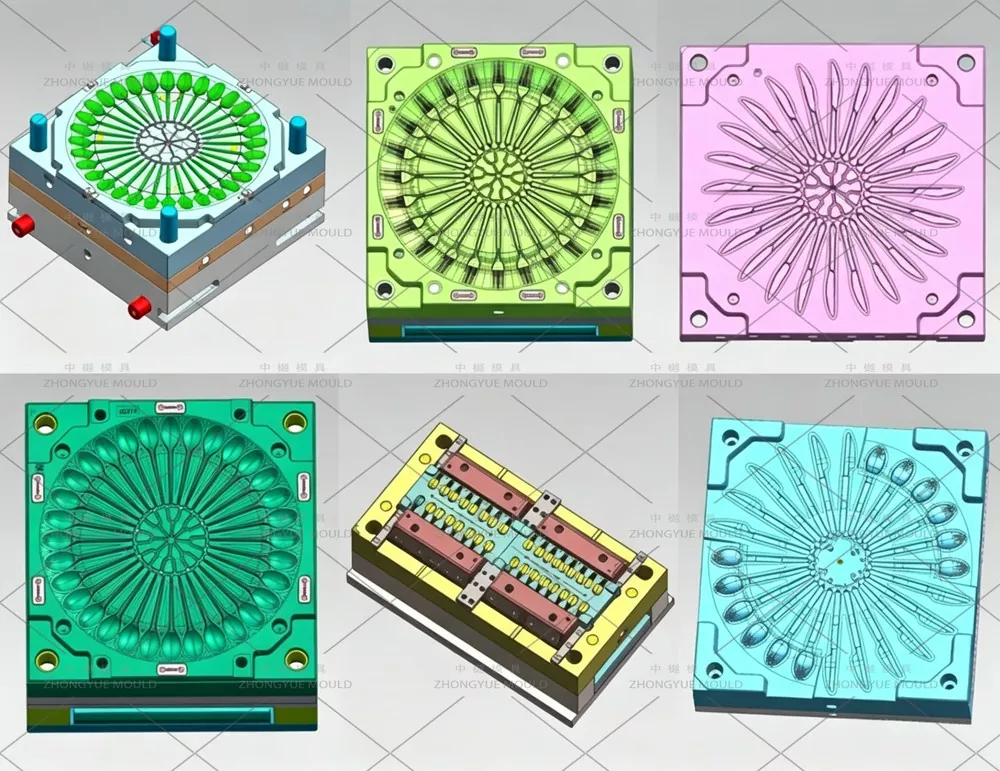

Consultation & Design: We analyze your production goals and material specs to engineer the optimal multi-cavity layout.

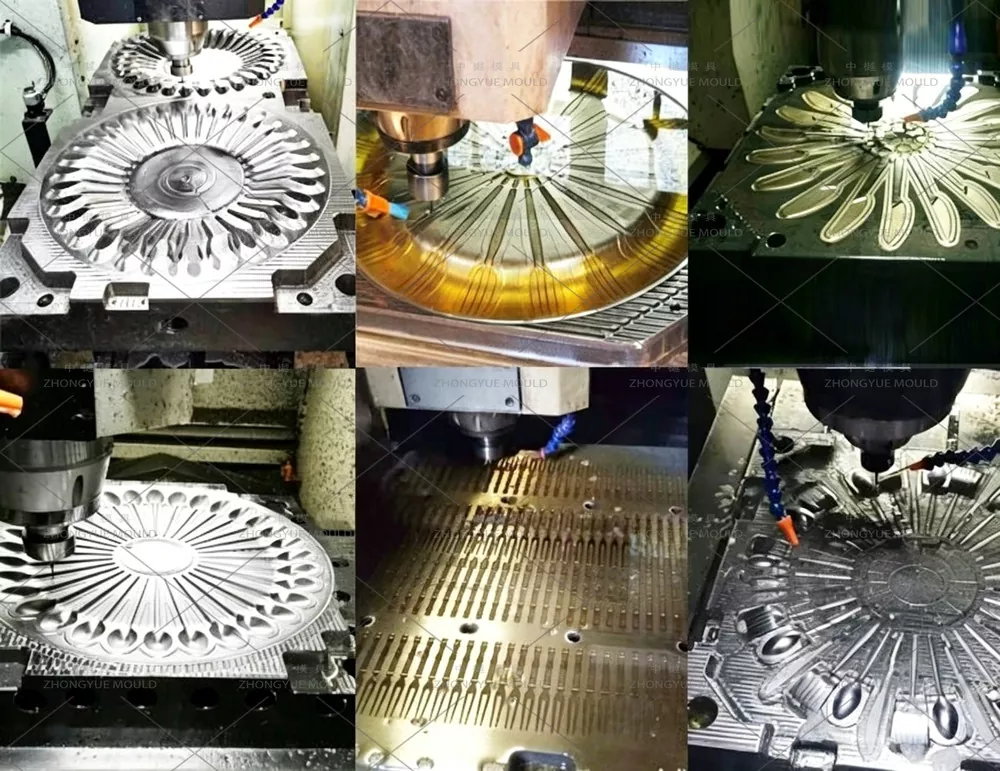

Precision Manufacturing: Using high-grade 2316 steel and advanced CNC/EDM machining, we craft the mould with 0.01mm accuracy.

Optimized Injection: Our hot runner systems ensure uniform filling across all 40 cavities, while BeCu inserts pull heat away rapidly.

High-Speed Ejection: The synchronized 100-pin ejection system ensures the thin-walled knives are ejected perfectly every 12 seconds, ready for automated packing.

Plastic Disposable Knife Mould
