Plastic PP DN1000 Manhole 4-Way Base Mould

Plastic PP DN1000 Manhole 4-Way Base Mould – Inspection Chamber Base Mold by ZHONGYUE MOULD

Underground drainage and sewer networks rely on Plastic Inspection Chambers  for access, cleaning, and maintenance. The most critical component is the Manhole Base— typically a large-diameter PP or PE molded base with benching (flow channel) and socketed inlet/outlet openings for connecting DN150–DN600 sewage pipes.

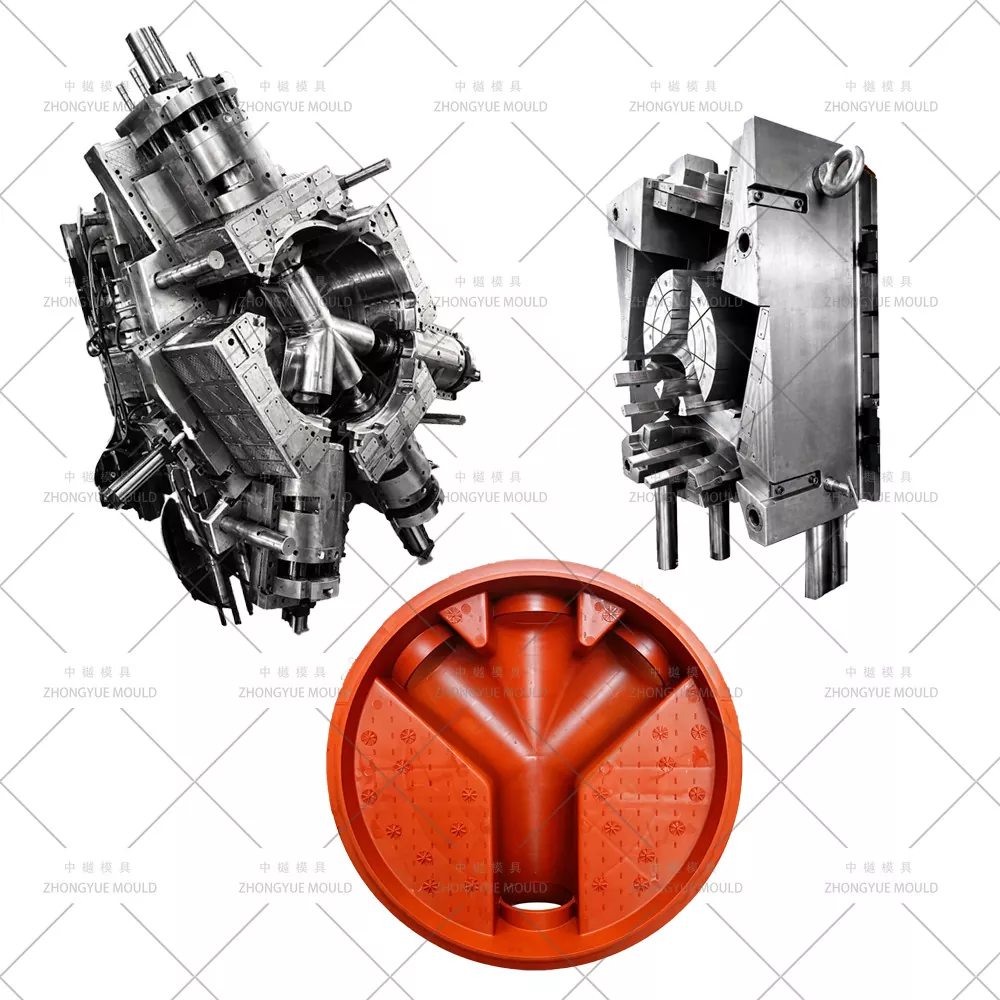

A Plastic PP DN1000 Manhole 4-Way Base Mould is the large, precision injection tool that forms a Ø1000mm internal-diameter base with four directional pipe sockets, integrally molded benching, and deep-draw rib structures. At ZHONGYUE MOULD (Huangyan, Taizhou, China), we have extensive experience designing and building manhole chamber base molds for PP (shrinkage ~1.6–1.8%), featuring 4-side hydraulic core-pulling, deep-cavity cooling, and reinforced insert-block construction to ensure dimensional accuracy and long mold life.

Plastic Manhole Mould specifications :

Typical Technical Specifications – PP DN1000 4-Way Manhole Base Mould

Make your next Plastic Manhole Mould project brighten!

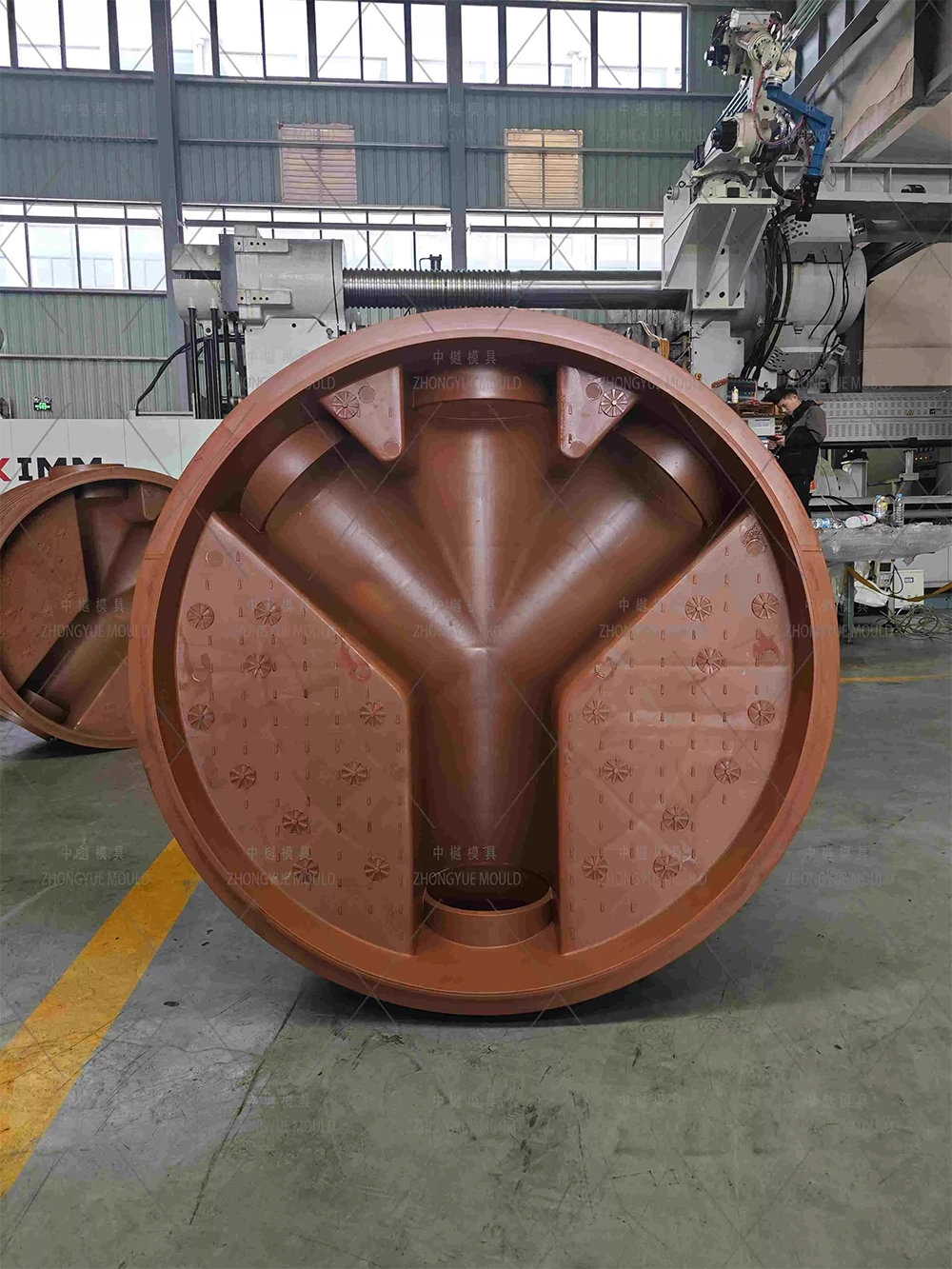

What is a PP DN1000 4-Way Manhole Base?

Base Diameter: Internal Ø1000mm (Outer Ø typically ~1140–1200mm depending on wall thickness)

Configuration: 4-Way = 1 Inlet + 1 Outlet (opposite) + 2 Side Branches (can be blank plugs on site); sockets comply with EN 13598-2 / DIN 19535 standards

Pipe Socket Sizes: Usually DN150 / DN200 / DN225 / DN300 / DN400 / DN500 / DN600 configurable via exchangeable insert rings

Material: Virgin or recycled Polypropylene (PP) — chemical-resistant, lightweight, long service life (>50 years underground)

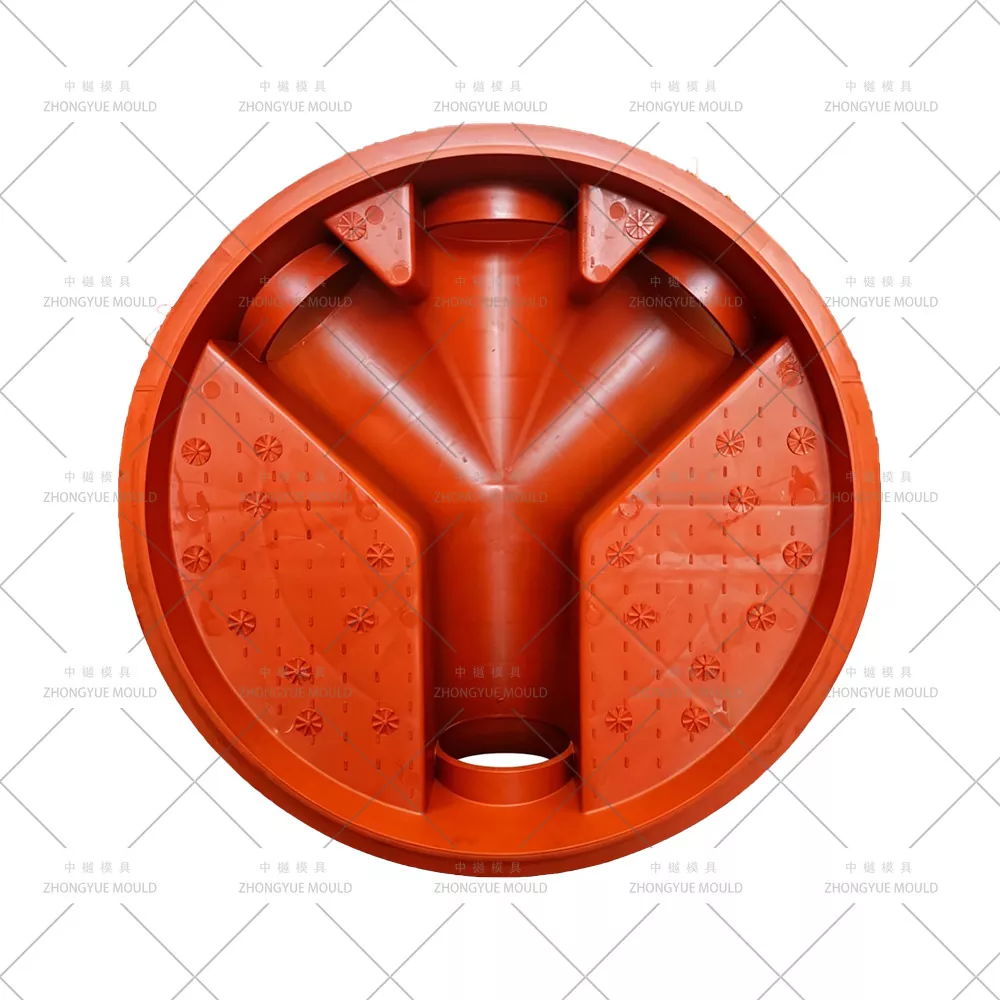

Benching: Molded-in flow channel (sump/bench) to direct effluent toward outlet — can be smooth-radius or flat bench per design

How ZHONGYUE Engineers a High-Quality Manhole Base Mould

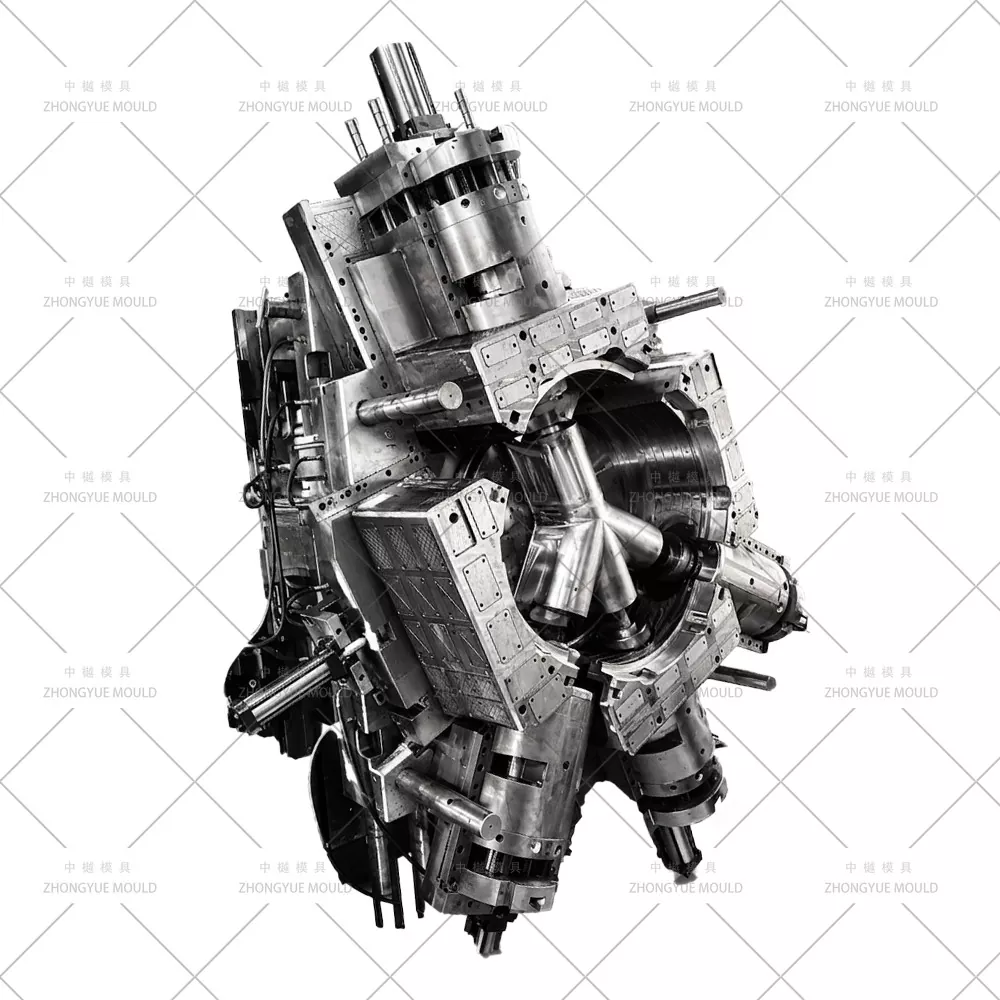

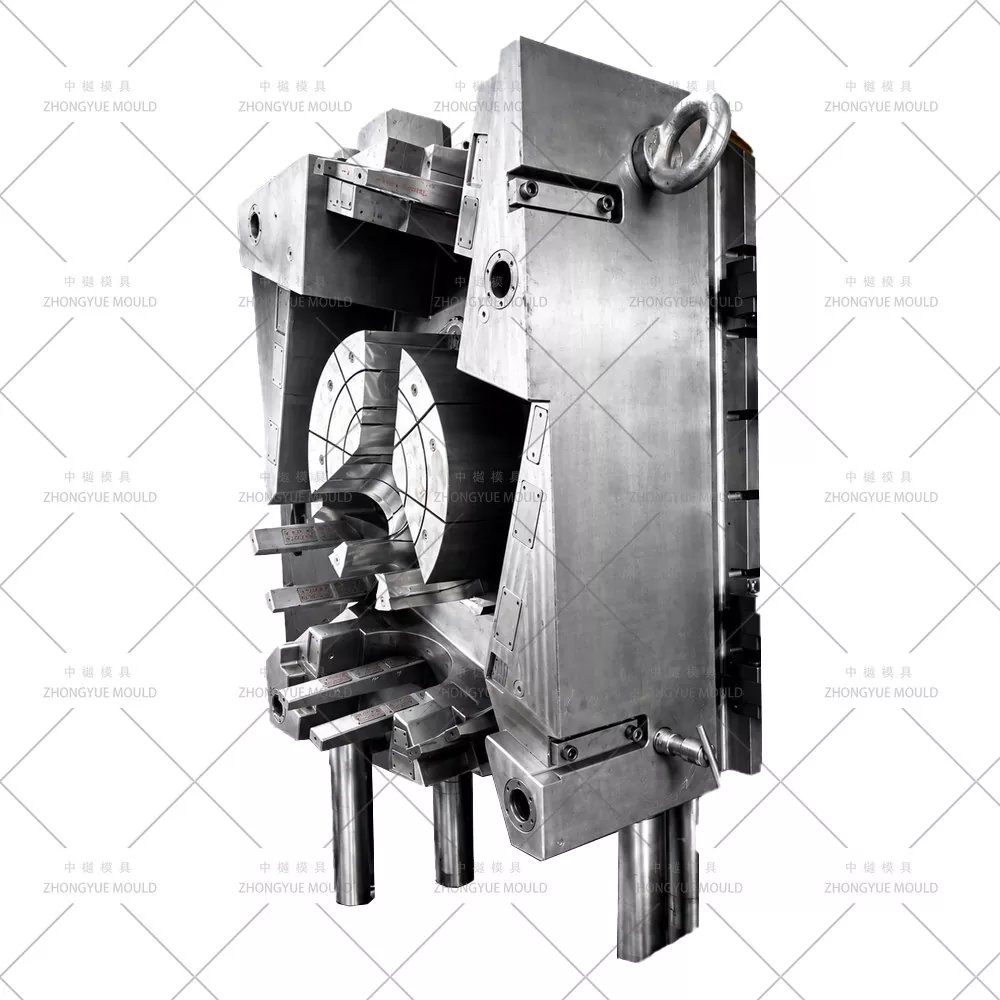

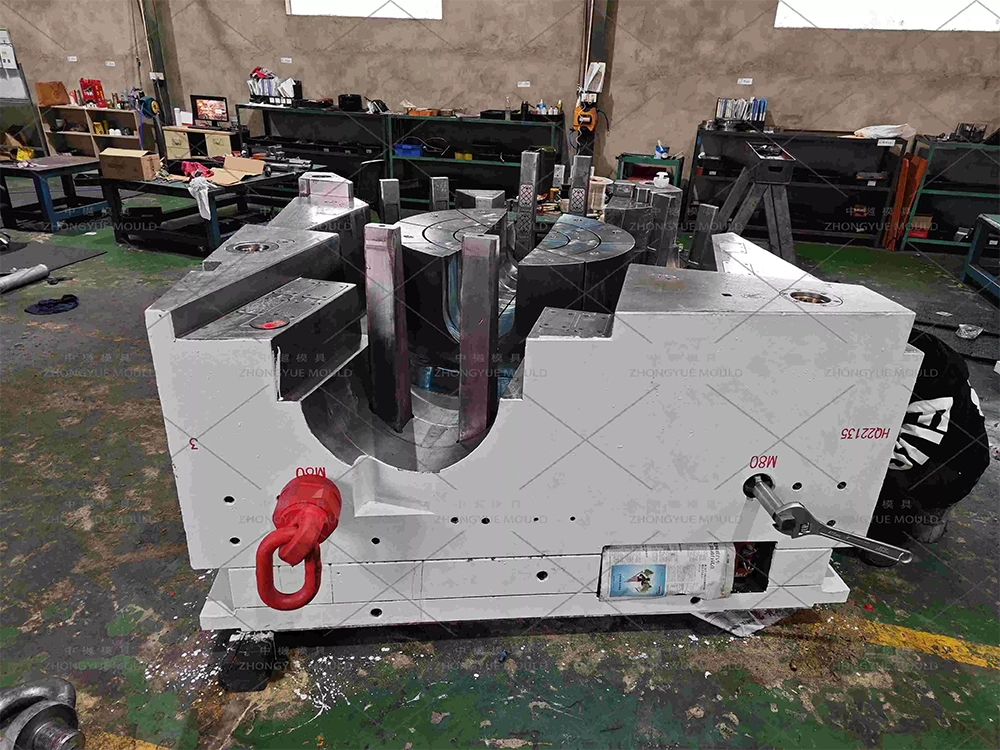

① 4-Side Hydraulic Core-Pulling for Pipe Sockets

The defining feature of a Plastic PP DN1000 Manhole 4-Way Base Mould is four large side cores forming the pipe sockets/bells.

Each socket core is actuated by independent hydraulic cylinders (or large-angle lifters for shallow sockets), with interlock safety limit switches preventing mold closure if any core is not fully retracted/advanced.

Socket draft angles are precisely calculated (typically 1°–2°) with chrome-plated core pins / sleeves for smooth withdrawal and long wear life.

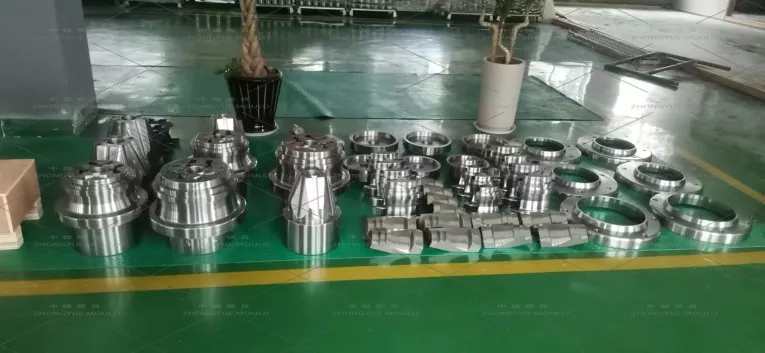

Exchangeable insert rings allow different pipe diameters (DN150–DN600) without re-machining the entire core — a cost-saver for chamber system suppliers.

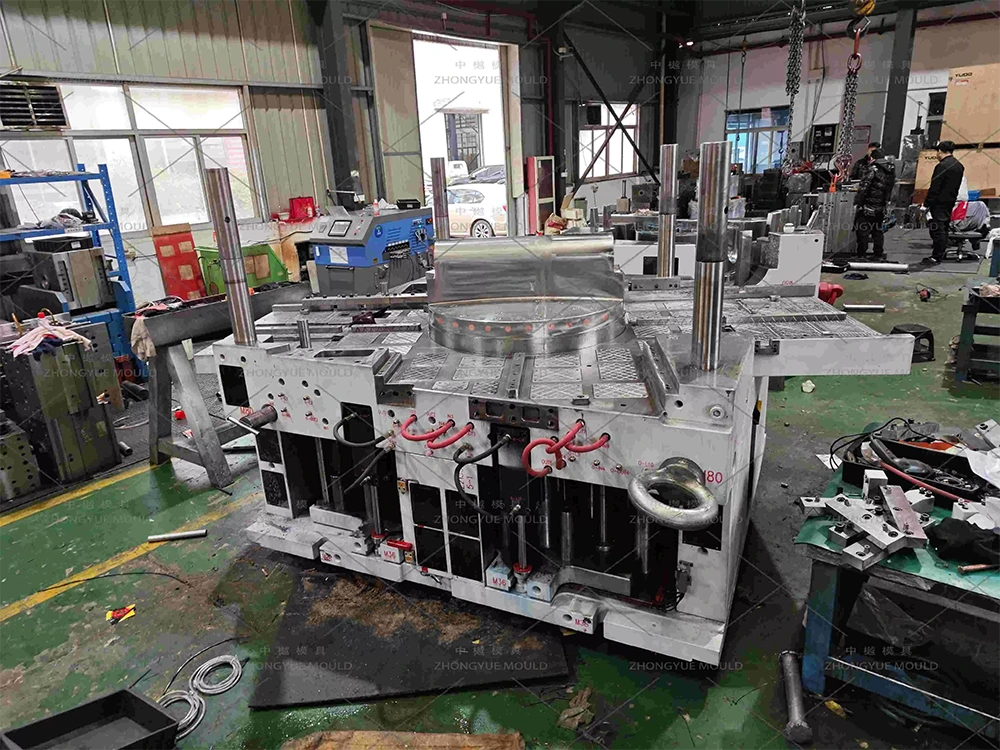

② Deep Cavity Cooling & Insert-Block Construction

Manhole bases have thick walls (8–15mm) and deep draw — cooling is critical for cycle time (typically 120–200 sec).

Core: Deep-drilled baffles + bubbler tubes reaching to bottom of deep core for uniform cooling.

Cavity (outer shell): Series-connected water lines with adequate spacing; BeCu (Beryllium Copper) inserts at thick rib/bench areas to reduce hot spots.

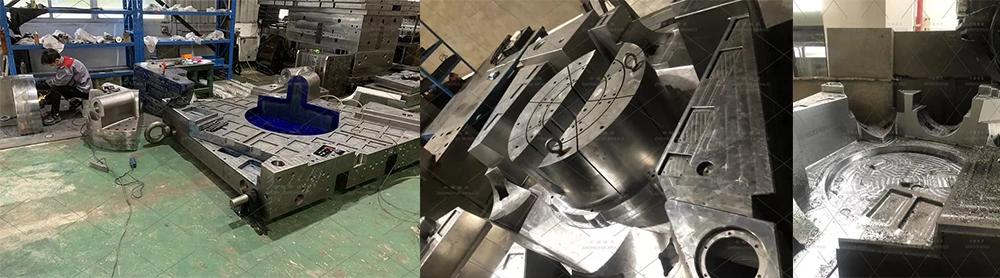

Mold body split into precision-machined insert blocks for parallel CNC/EDM processing → ~40% shorter lead time, easier future maintenance/replacement.

③ Steel Selection – Durability for Large-Format Tooling

④ Ejection & Bench Detailing

Large ejector plate with 30–60+ ejector pins/sleeves placed under bench ribs and peripheral flange.

Optional stripper ring for large-diameter top flange ejection.

Molded-in benching surface is polished/texture-controlled to EN standards for flow performance.

⑤ Runner & Gating

Typically single or dual side sprue + fan gate / overlap gate due to large part; some designs use hot nozzle (sequential valve gate) for multi-gate fill balance on very large bases.

Cold slug well & degassing vents designed along parting line and bench extremities to avoid burn marks in deep recesses.

Typical Applications

Municipal Sewer & Storm Drainage: DN1000 inspection chambers for residential/commercial developments

Roadside & Industrial Drainage: With heavy-duty cover adapters, compatible with D400/F900 manhole covers

Wastewater Treatment Plants: Access chambers for pump stations and sedimentation tanks

Rainwater Harvesting Systems: As catch pit / sedimentation base before filtration

Compatible with EN 13598-2, DIN 19535, and major municipal specifications when produced with certified PP material.

Why ZHONGYUE MOULD for Your Manhole Base Mold?

Proven Large-Cavity Experience – Manhole bases (Ø315–Ø1200), shafts, cones & cover frames supplied to Europe, SEA, Middle East.

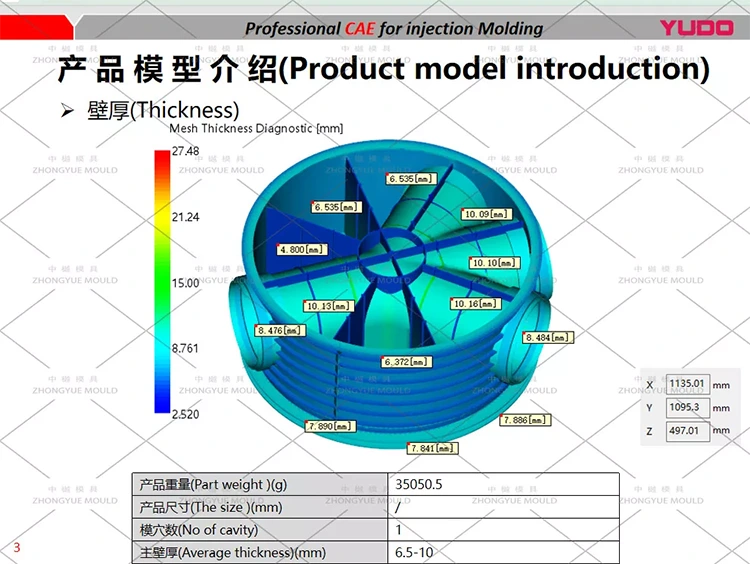

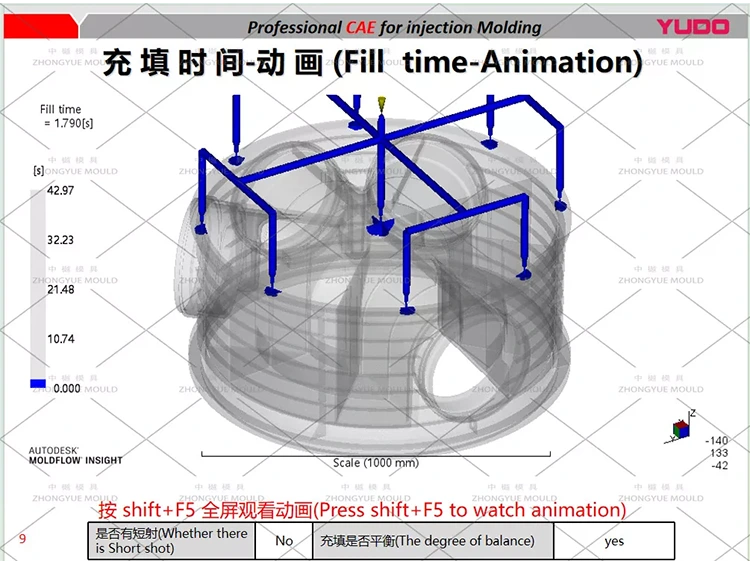

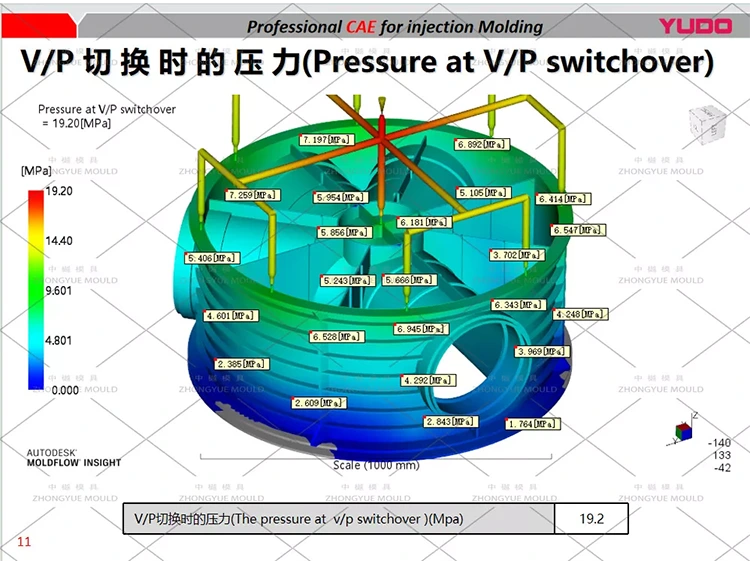

Moldflow & DFM Before Steel Cutting – Validate fill pattern, bench sink-mark risk, and cooling uniformity before machining.

Insert-Block Parallel Machining – Cuts delivery time ~40%; simplifies future refurbishment of worn core/cavity sections.

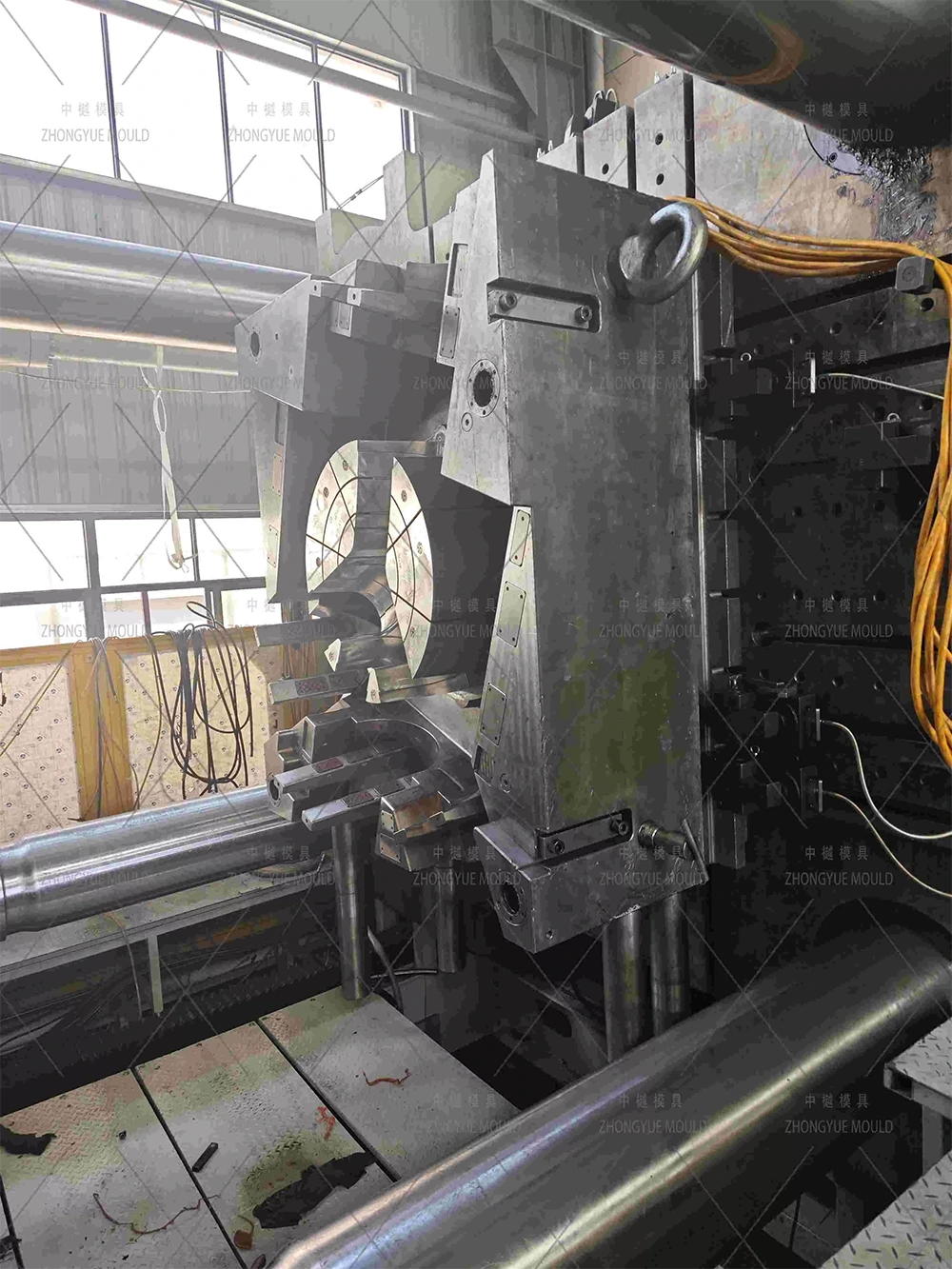

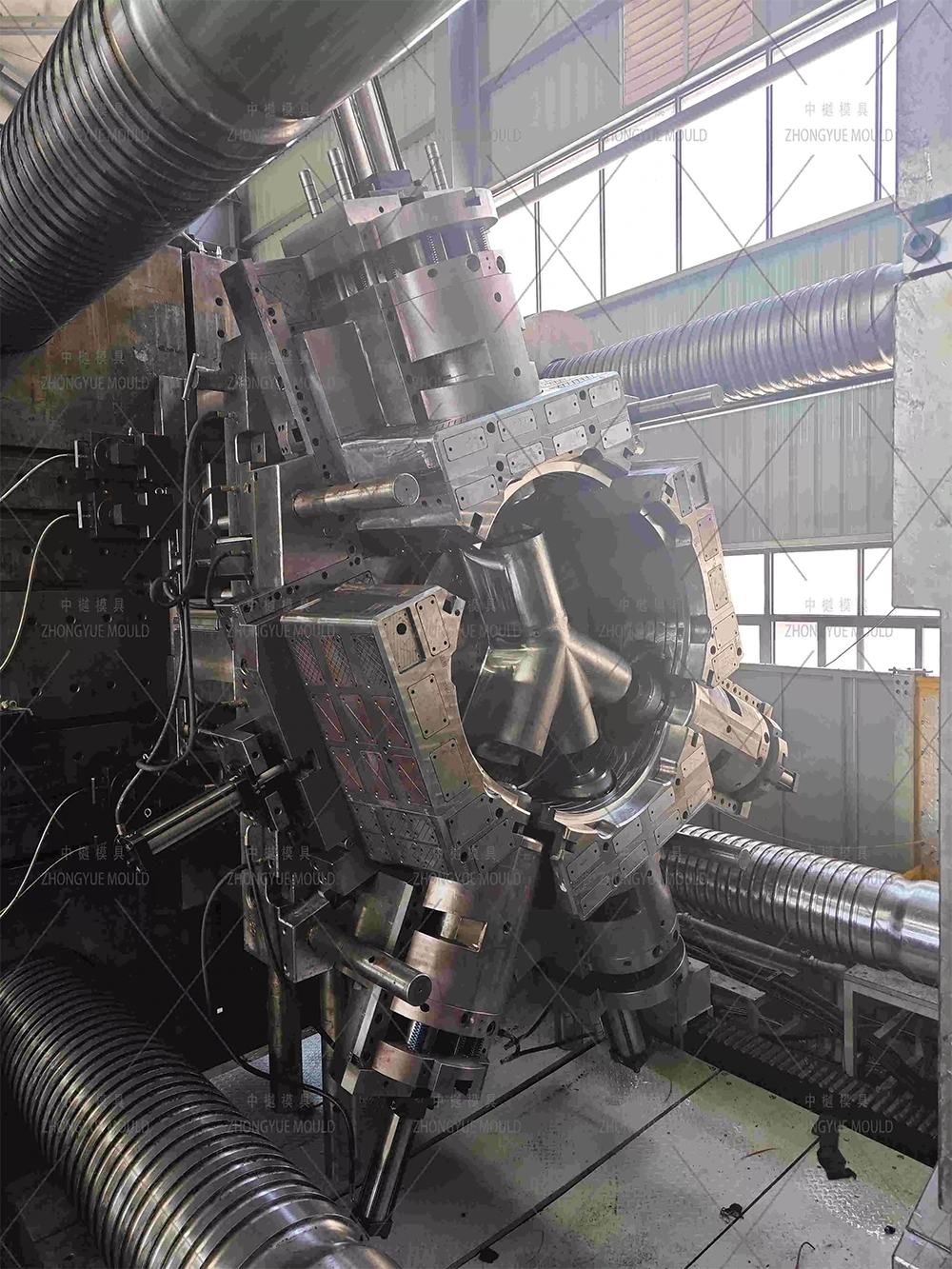

Full QC Package – CMM inspection, steel certs, T0 trial video + sample dimensional report prior to shipment.

Spare Parts & Support – Extra seals, heater bands (if hot nozzle used), hydraulic hoses, socket insert rings; remote troubleshooting.
