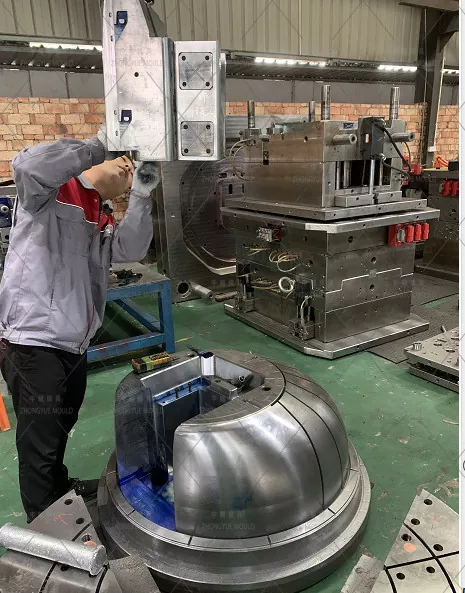

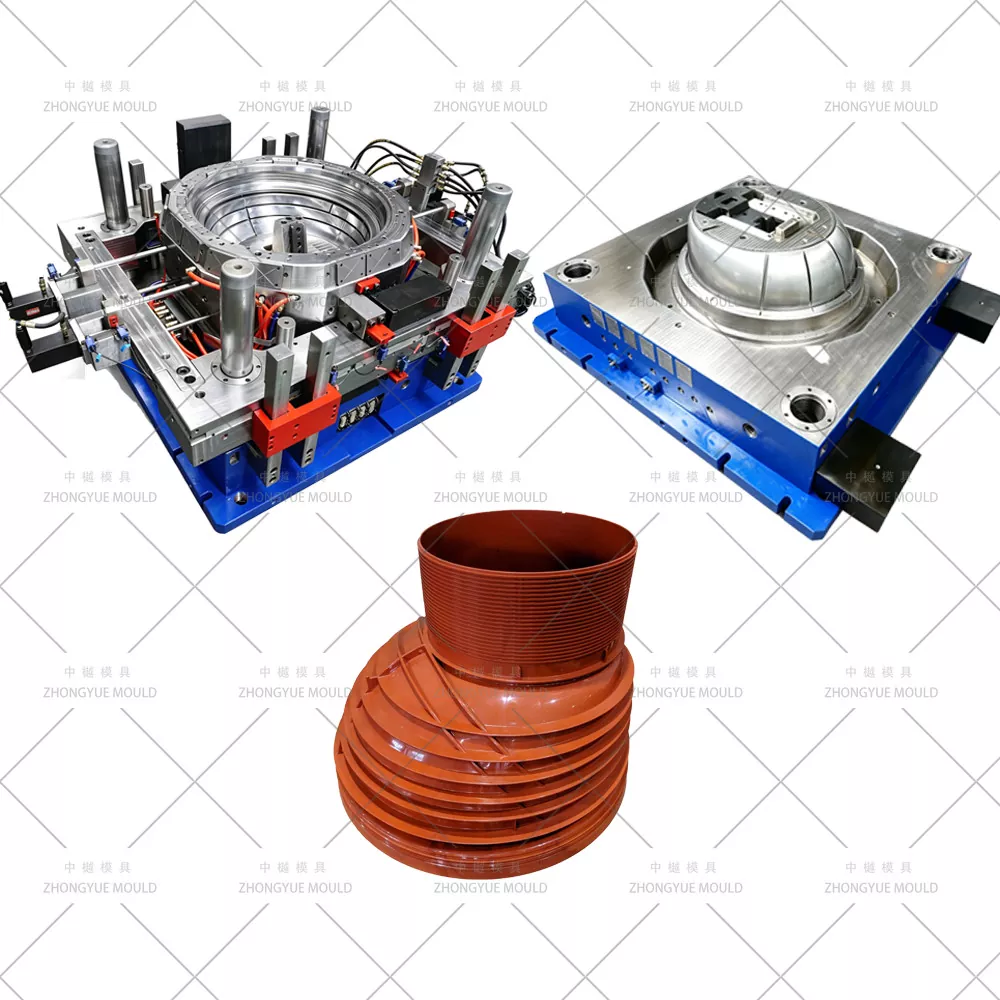

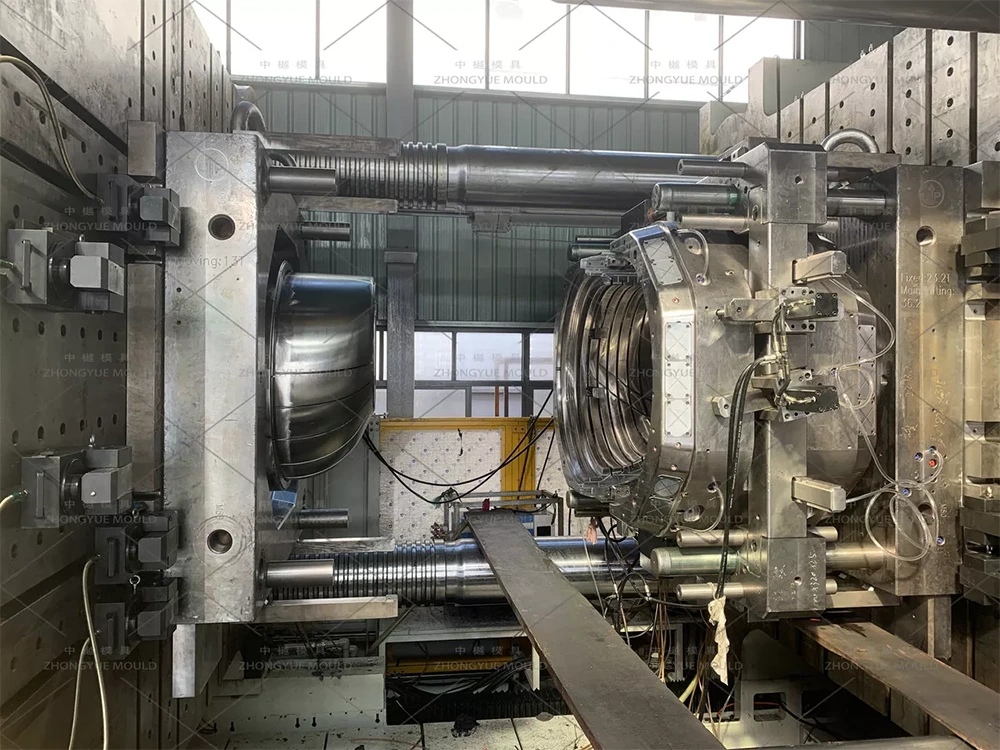

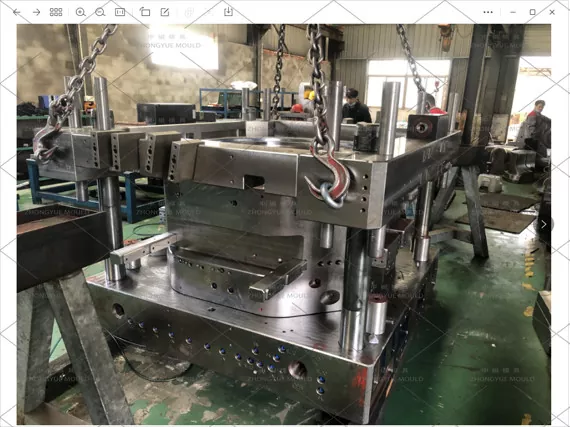

Plastic PP DN1000 Manhole Cone Mould

In a complete Plastic Inspection Chamber system, the Reduction Cone / Tapered Adapter connects the large-diameter shaft (Ø1000mm) to the smaller access cover opening (typically Ø600mm, Ø450mm or Ø315mm). It brings the chamber neck down to a standard manhole cover size while maintaining structural integrity and watertight performance.

The Plastic PP DN1000 Manhole Cone Mould is the precision injection tool that forms this tapered component from Polypropylene (PP), complete with upper/lower socket grooves for EPDM gaskets, internal/external vertical stiffening ribs, and anti-slip ladder rung sockets (optional). At ZHONGYUE MOULD (Huangyan, Taizhou, China), we engineer cone molds with split-cavity (haunched) construction, deep-baffle core cooling with BeCu inserts, and PP shrinkage compensation (1.6–1.8%)—producing cones that meet EN 13598-2 / DIN standards

Plastic Manhole Mould specifications :

Typical Technical Specifications – PP DN1000 Manhole Cone Mould

Make your next Plastic Manhole Mould project brighten!

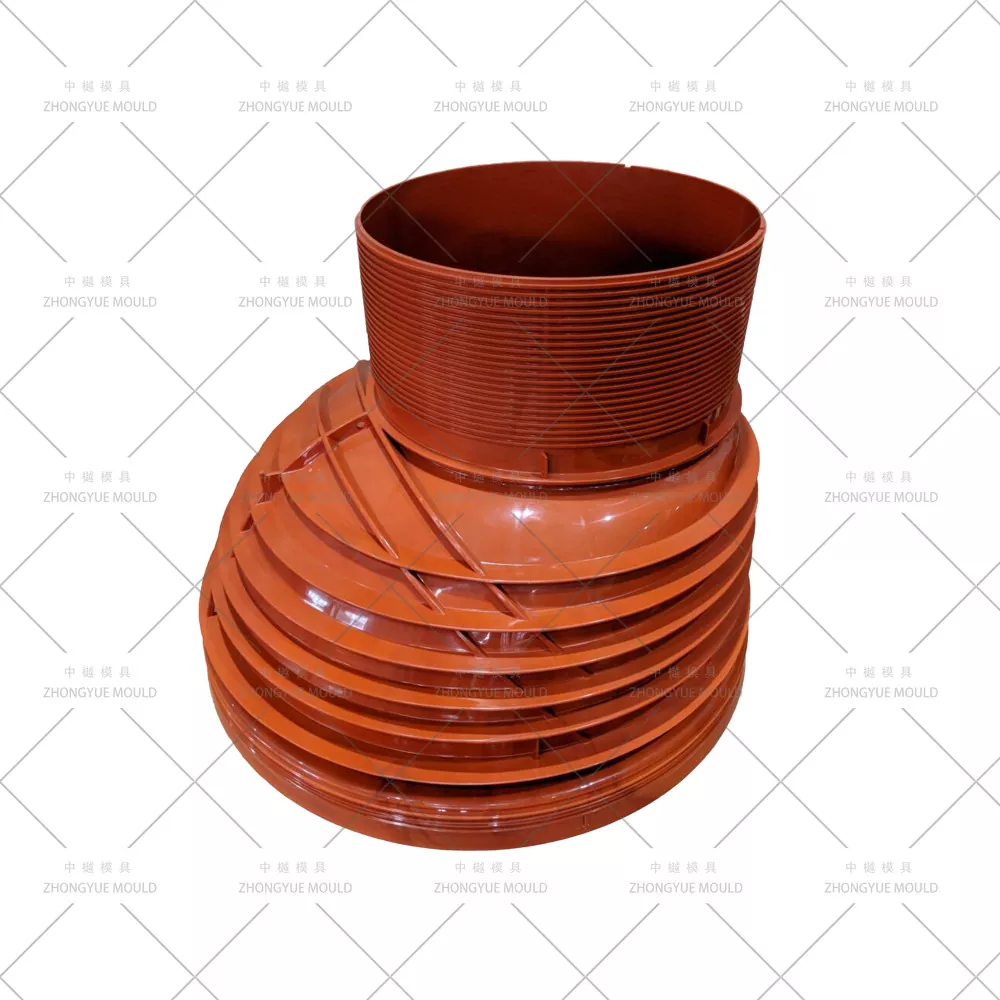

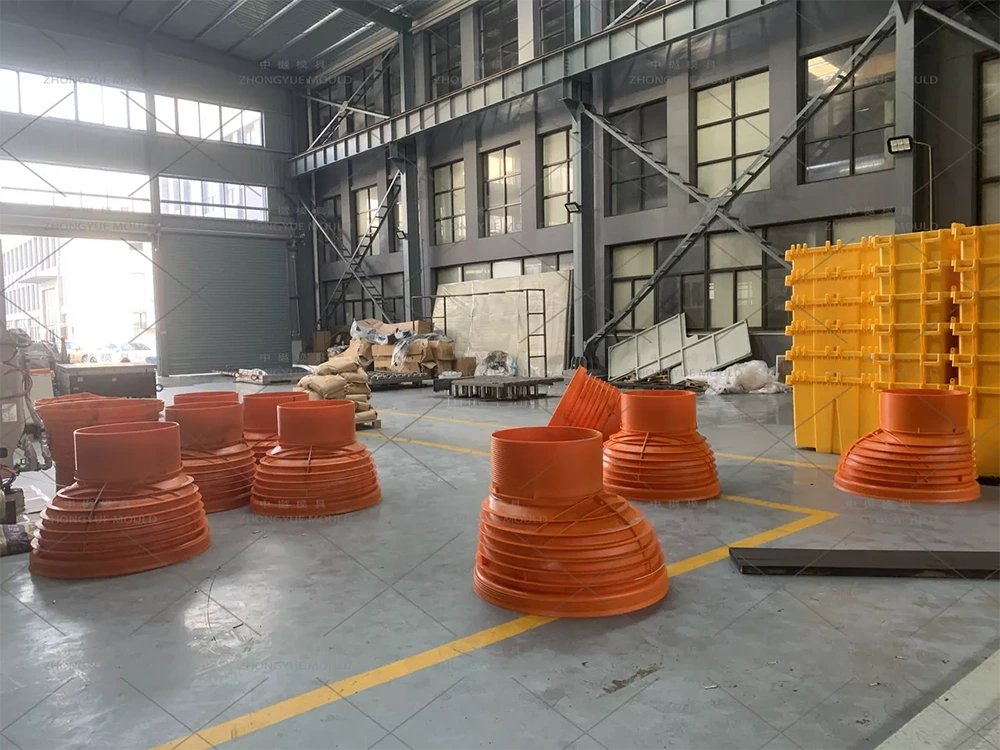

What is a PP DN1000 Manhole Reduction Cone?

Parameter	Typical Specification
Top Opening (Upper Socket)	Ø1000 mm internal (matches shaft/extension outside)
Bottom Opening (Lower Spigot/Socket)	Ø600 mm / Ø450 mm / Ø315 mm (customizable)
Height	250 mm / 500 mm / 750 mm (most common: 500mm)
Wall Thickness	6–10 mm (rib-reinforced option available)
Material	Virgin or recycled Polypropylene (PP), MFI 2–6
Joint Type	Spigot & Socket with EPDM double-lipped seals
Features	Vertical stiffening ribs, optional molded-in ladder rung holders, anti-slip texture on outer surface

Cones are typically smooth-wall with external ribs for buckling resistance when buried.

How ZHONGYUE Engineers a High-Quality Plastic PP DN1000 Manhole Cone Mould

① Split Cavity (Haunched / Two-Half Mold) for Tapered Geometry

The conical taper prevents axial stripping from a solid core/cavity. Our cone molds use:

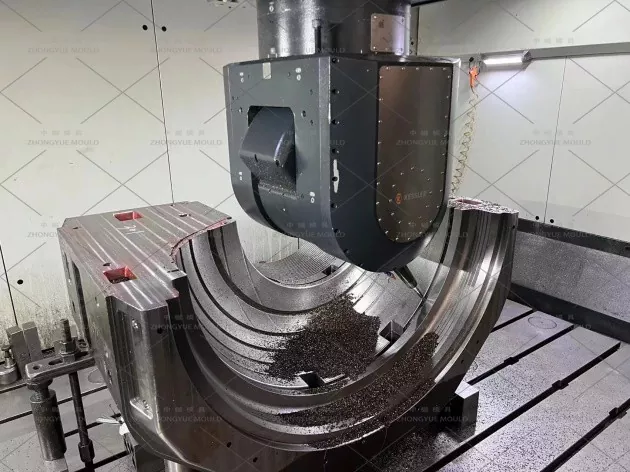

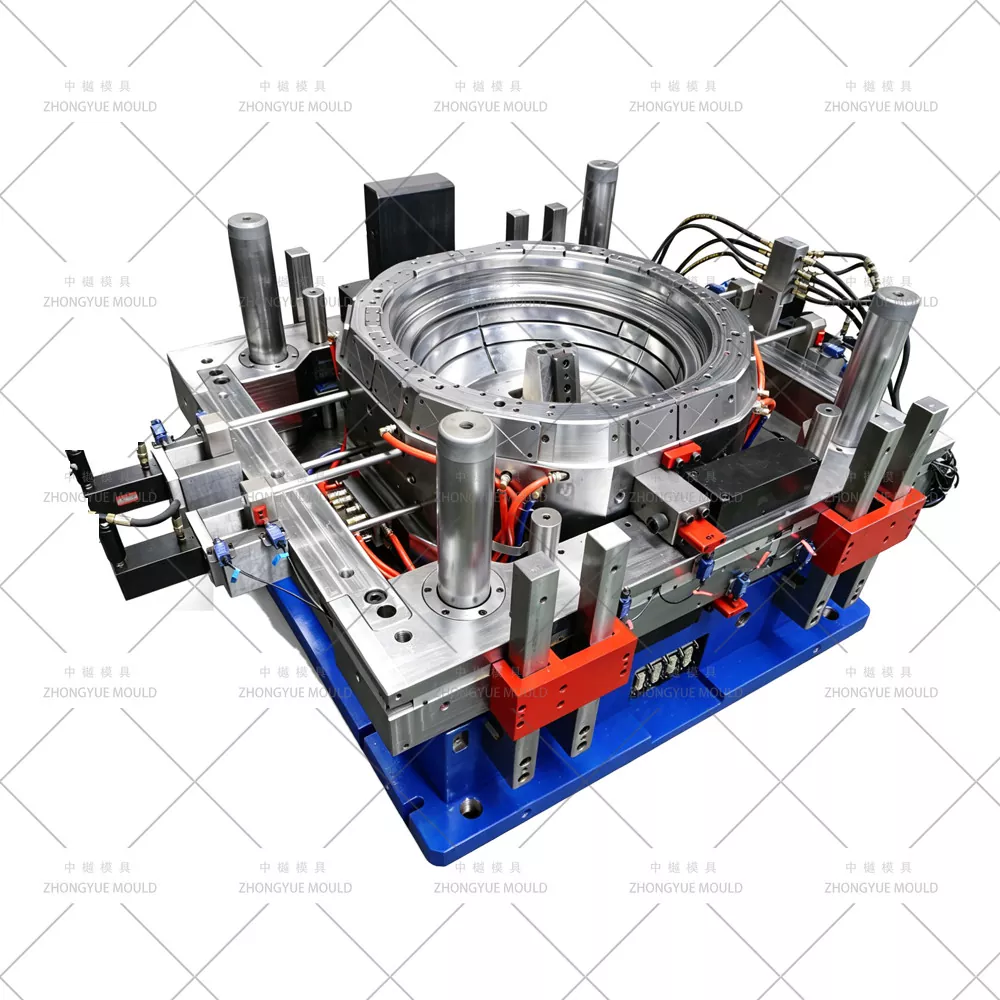

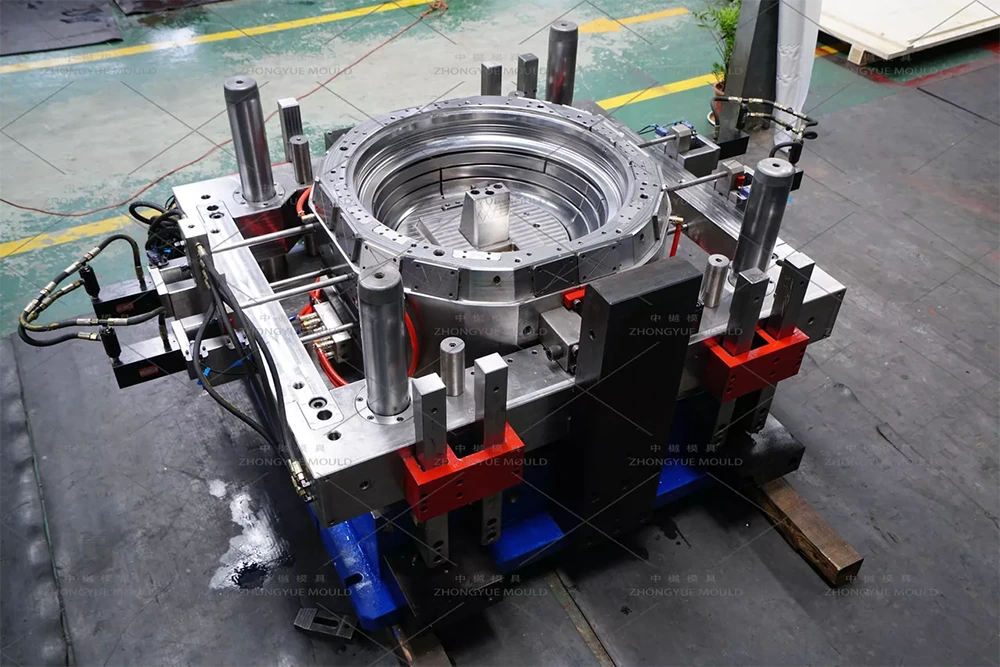

Split Cavity Design (2-half or 3-segment petal mold) operated by hydraulic cylinders or angled guide pins for lateral opening.

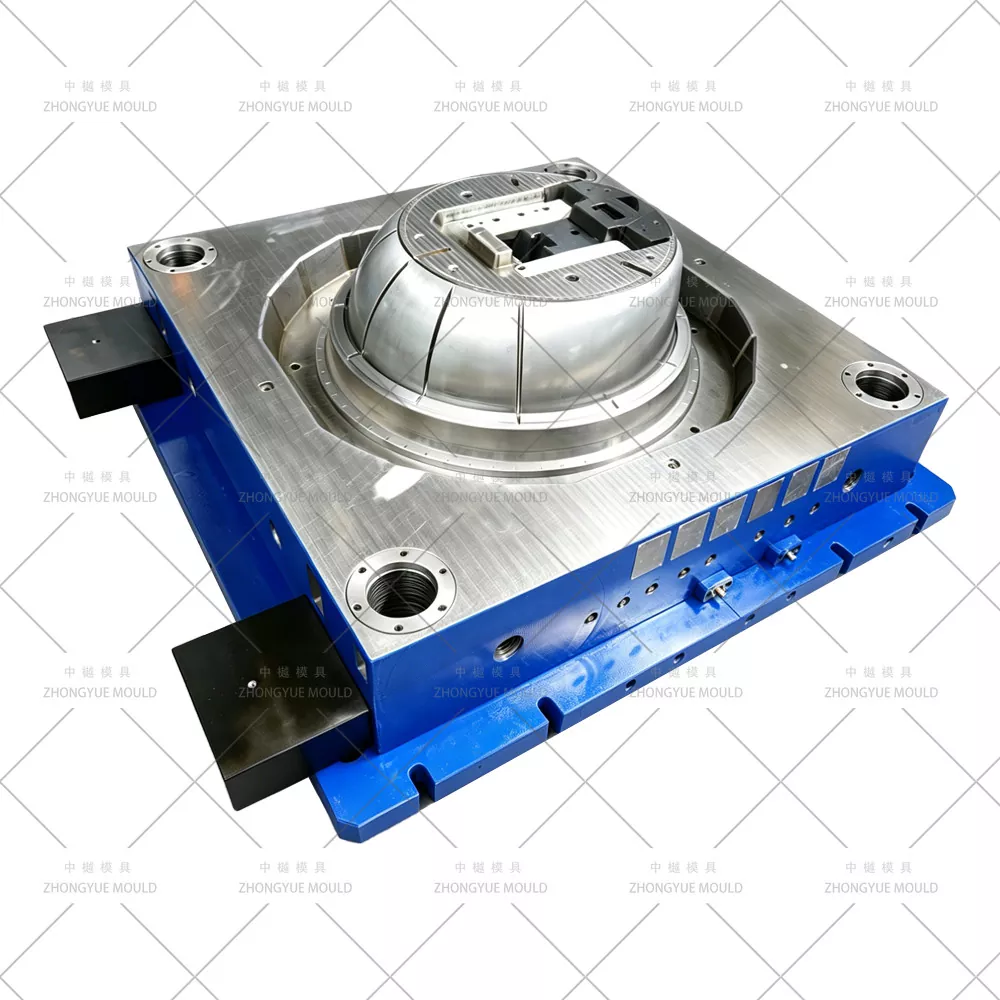

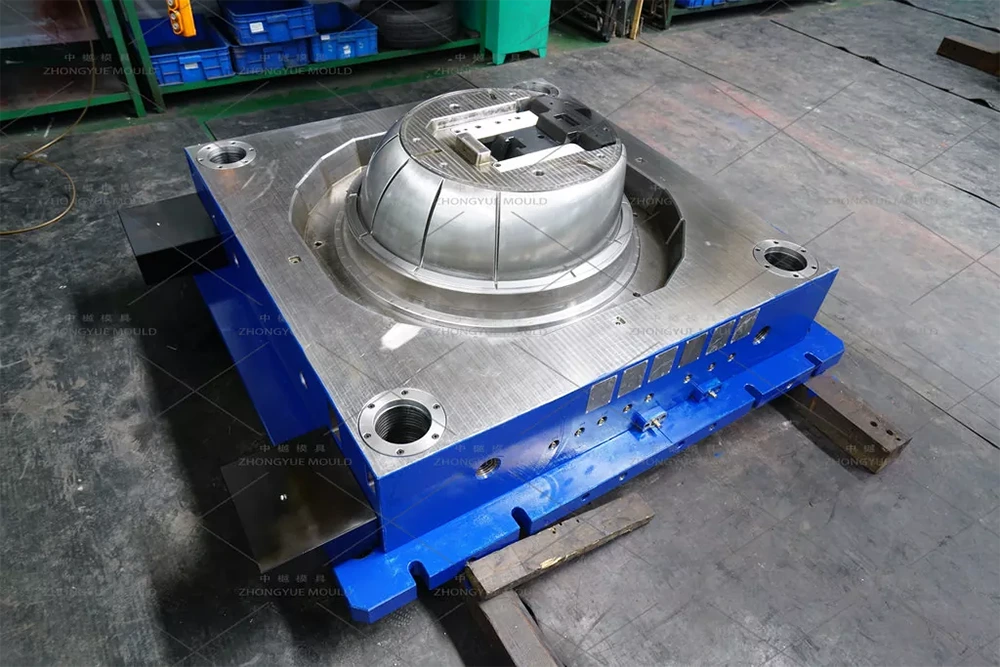

Inner core (mandrel) is typically fixed or slightly retractable; product releases when split cavity opens.

Parting faces are ground to ±0.01mm to minimize flash at the cone surface.

Draft angle on inner core: 1°–2° (zone-dependent); outer split cavity matched accordingly.

② Deep-Cavity Cooling – Core Baffle

Cooling controls cycle time (typically 70–120 sec for H=500mm cones):

Inner Core: Deep-drilled baffle with bubbler tube reaching full cone depth → uniform cooling from inside out and minimizes ovality.

Split Cavity Shell: Zoned water lines 18–22mm from molding surface.

Independent temperature zones for core vs cavity to manage differential PP shrink.

③ PP Shrinkage Compensation & Seal Groove Precision

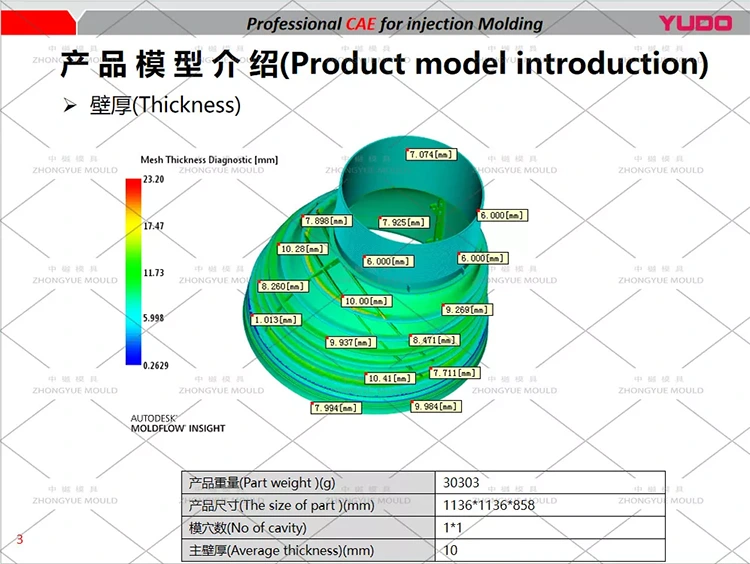

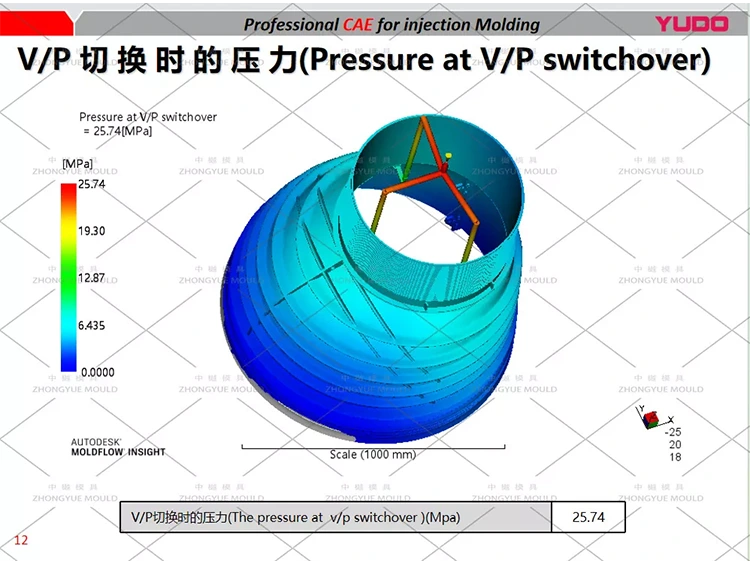

Mold CAD compensated for PP isotropic shrinkage 1.6–1.8%, verified by Moldflow if requested.

Upper & lower seal grooves (for EPDM O-ring / lip seal) machined to ±0.05mm tolerance → ensures watertight joint with adjacent shaft/base/cover.

Internal surface Ra ≤ 0.8μm (smooth option); external ribs with light stone texture.

④ Steel Selection – Wear Resistance & Longevity

Component	Recommended Steel	Hardness	Note
Mold Base	S50C /	—	Reinforced tie bars
Split Cavity Inserts	P20 Pre-hardened	HRC 28–33	Standard, 500K–1M shots
Inner Core / Mandrel	P20 Pre-hardened	HRC 28–33	P20 preferred for better thermal shock resistance on deep core
Wear Plates / Slide Ways	Nitrided 718H	—	Reduce friction on split action

⑤ Gating & Venting

Usually side fan gate or overlap gate at the larger-diameter end (top Ø1000mm end) to fill downward, minimizing air entrapment in taper.

Parting-line vents along cone length + breather plugs at last-fill zone.

Cold runner standard; hot nozzle optional on high-volume dedicated lines.

⑥ Ejection & Safety Interlocks

Ejection via ejector plate pushing on the flange/shoulder when split cavity opens; sometimes assisted by stripper ring.

Hydraulic interlock sensors prevent mold closure if split cavity not fully closed or cores not retracted.

Typical Applications

Municipal Sewer & Storm Drain Inspection Chambers: Connects Ø1000mm shaft to standard cover frame (DN600/DN450/DN315→DN315 or DN190 cover adapter)

Roadside Chambers: With heavy-duty traffic-rated cover adapters (D400/F900)

Modular Chamber Systems: Compatible with PP shafts (250/500/750/1000mm) & benched bases — full EN 13598-2 compliance when produced with certified PP

Rainwater Attenuation / Soakaway Chambers: As transition to access cover

Why ZHONGYUE MOULD for Your Manhole Cone Mold?

Complete Inspection Chamber Mold System – We make Base (2/3/4-way) + Shaft (250–1000mm) + Cone (various reductions) + Cover Frame — one-stop for chamber system suppliers.

Split-Cavity Expertise – Ground parting faces, minimal flash, hydraulic interlock safety, precise taper release.

Deep-Draw Cooling – Baffled core bubbler + BeCu inserts → minimized warp & shorter cycle on tapered geometry.

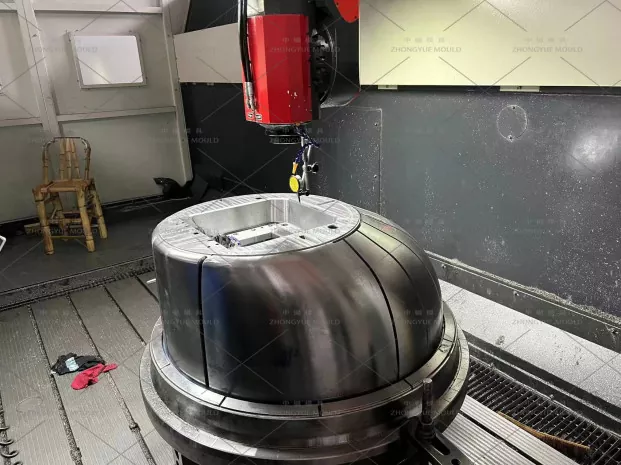

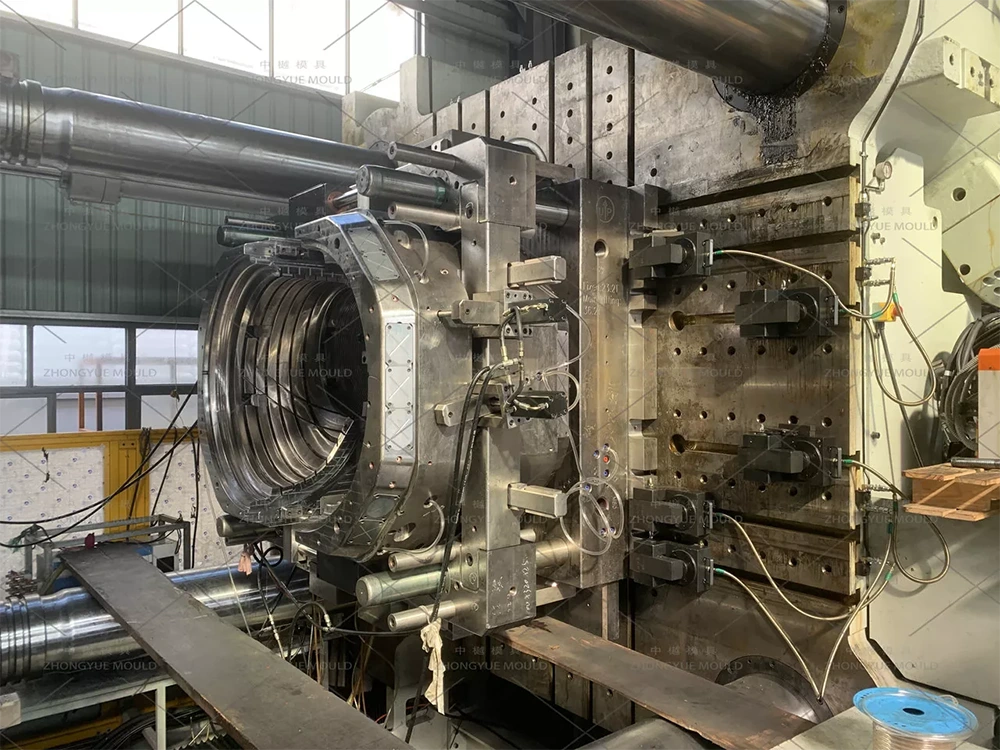

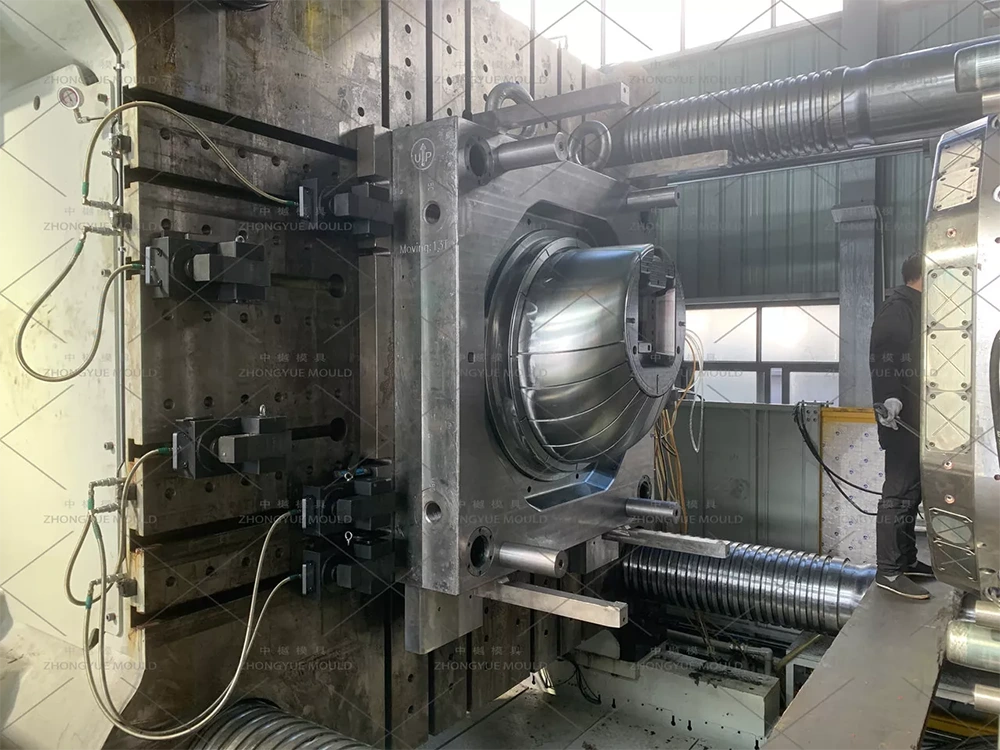

Full QC Package – CMM inspection, steel certs, T0 trial video & sample dimensional report before shipment.

Spare Parts & Support – Extra seals, wear plates, heater bands (if hot nozzle), remote troubleshooting.
