Plastic Round Plant Pot Mould

Plastic Round Plant Pot Mould by ZHONGYUE is engineered for fast-cycle manufacturing in nursery and agricultural production. Designed for recycled PP materials, optimized thin-wall structures, and comprehensive DFM analysis to maximize efficiency and reduce production costs. Get a quote now.

Send Inquiry

Product Description

Plastic Round Plant Pot Mould – High Efficiency Agricultural & Nursery Planter Injection Mold Manufacturer

ZHONGYUE MOULD is a professional Chinese injection mold manufacturer supplying Plastic Round Plant Pot Moulds / High-Speed Cycling Nursery Planter Molds (Standard Growing Pots, Seedling Trays, Agricultural Containers) to global horticultural suppliers, nursery farms, and mass-market garden centers. Unlike decorative designer pots, these Round Plant Pots prioritize functional growing performance, material cost efficiency, and ultra-fast production cycles.

Typically molded in Cost-Effective PP (Virgin or Recycled Blend, MFR 12–25) or Calcium Carbonate Filled PP (10–30% CaCO₃), these pots range from 80mm to 300mm in diameter. Our molds are engineered for minimum wall thickness (1.0–1.8mm), optimized cooling circuits, and robust ejection systems to achieve cycle times as low as 10–15 seconds. We specialize in multi-cavity (2×2, 4×4) and stack molds (2-level stack) for maximum hourly output, ensuring your production line keeps pace with peak planting seasons.

From standard nursery pots with drainage ribs to air-pruning root trainers, we provide full DFM review focusing on thin-wall warpage control and material flow optimization before steel cutting.

plastic Flower Pot Mould specifications :

Item	Specification / Options
Mold Name	Plastic Round Plant Pot Mould (Agricultural / Nursery / Seedling Grade)

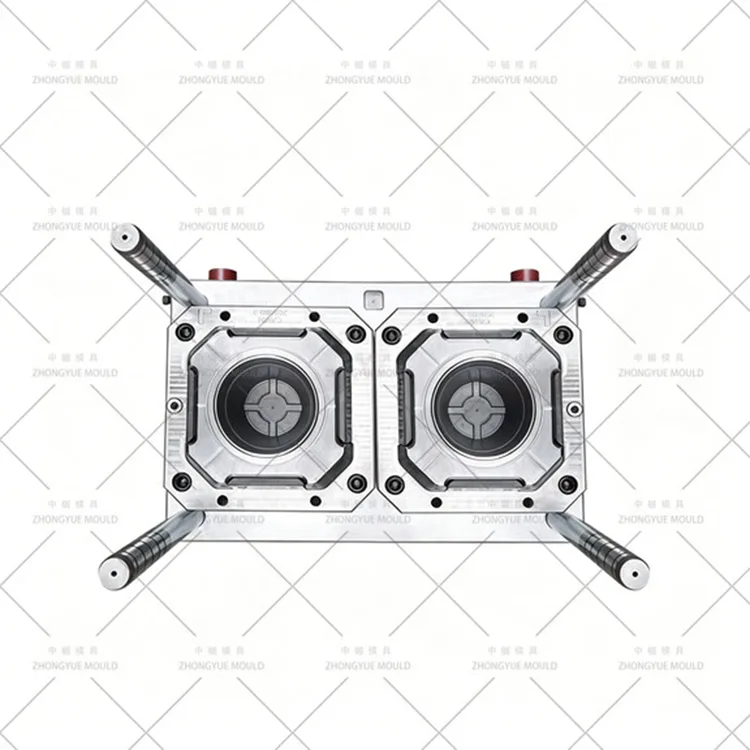

Cavity & Core Steel	Cavity: P20 (HRC 28–33) std.; 718H (HRC 33–38) for long life. Core: P20 / 718H. Rib pins: SKD61 (HRC 48–52).
Mold Type	Two-plate mold;Multi-Cavity (2×2, 4×4) orStack Mold (2-Level)
Mold Base	LKM / DME Standard (Optimized for high-speed operation)
Cavities	4, 8, 16 cavities (Depending on pot size and machine platen)
Runner System	Cold runner (balanced Y-branch) std.; Hot runner (valve gate) optional for stack molds
Gate Type	Submarine (latent) gate on inner rim or base; Pin-point gate for thin walls
Ejection	Ejector sleeves (preferred) or Stripper plate; High-speed ejector return system
Cooling	Straight-through baffles +Copper bubbler tubes in deep core; Isolated circuits
Venting	0.02–0.025mm parting-line vents; Enhanced venting for recycled material
Surface Finish	SPI B1/B2 satin finish (Functional, no cosmetic texture)
Mold Life Expectancy	≥300,000 shots (P20); ≥500,000 shots (718H)
Recommended Material	Recycled PP (MFR 12–25), CaCO₃ Filled PP (10–30%), Virgin PP Copolymer
Design Software	UG NX, SolidWorks, AutoCAD, Moldflow (Fill + Cool + Warpage)
Tolerance Control	±0.15 mm general; Wall thickness ±0.1mm; Flange flatness ±0.2mm
Mould material	Hardness	Mould life
P20	HRC 28-33	>300,000 shots
718	HRC 33-36	>500,000 shots
H13	HRC >43	>800,000 shots
2344	HRC >48	>800,000 shots
S136	HRC 48-52	>1,000,000 shots

Make your next plastic Flower Pot Mould project brighten!

What Is a Round Plant Pot Mould (Production Focus)?

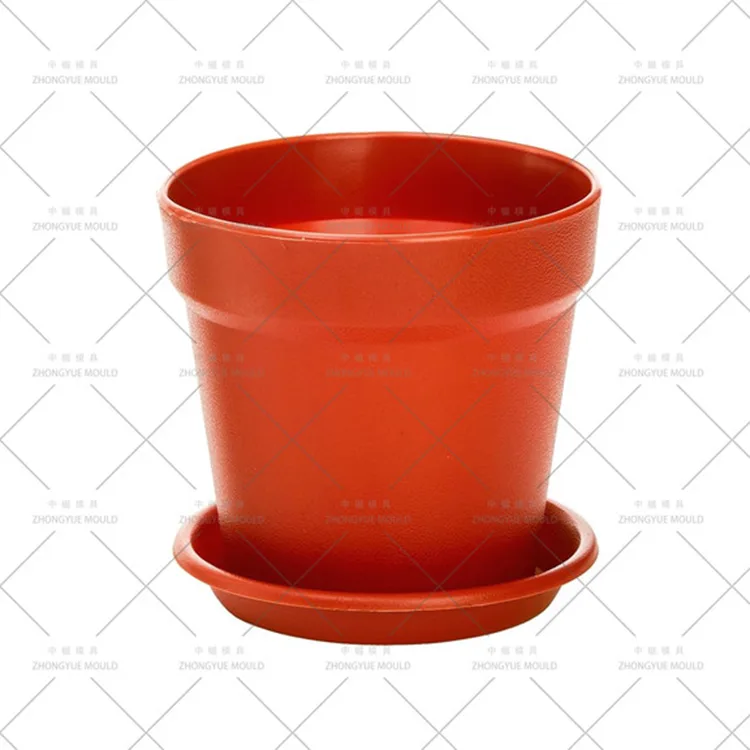

A Round Plant Pot Mould for agricultural and nursery use is a high-throughput tool designed for reliability and economy:

Functional Geometry — Focus on drainage, root aeration (ribs), and stackability. Minimal aesthetic detailing.

Cost-Driven Material Use — Designed to run with Recycled PP or Mineral Filled PP without compromising structural integrity.

High Cavitation — Often produced in 4, 8, or 16 cavities to maximize machine utilization.

Fast Cycle Design — Aggressive cooling and minimal moving parts to support 24/7 operation.

Key Mold Engineering Highlights (High-Efficiency Round Plant Pot)

Ultra-Fast Cooling System

To achieve 10–15s cycles, cooling is critical. We use straight-through baffles (Ø10–12mm) combined with copper alloy bubbler tubes extending deep into the core. Water flow rates are calculated to maintain ΔT ≤ 3℃ between inlet and outlet, preventing heat buildup during continuous runs.

Thin-Wall Warpage Control

Thin walls (1.0–1.5mm) are prone to twisting. We design internal reinforcing ribs with optimized thickness (60–70% of wall) and strategic gate placement to balance packing pressure. Moldflow analysis predicts warpage and adjusts core/cavity dimensions accordingly.

Recycled Material Compatibility

Recycled PP contains impurities and varies in MFR. We design oversized sprue bushings, robust runner systems, and enhanced venting (0.02–0.025mm parting-line vents) to prevent burn marks and ensure consistent filling with inconsistent material.

Multi-Cavity & Stack Mold Design

For high volume, we offer:

Multi-Cavity (2×2, 4×4): Efficient layout on a single parting plane.

Stack Mold (2-Level): Doubles output without increasing machine tonnage. Requires precise center-of-pressure alignment to prevent flash.

Robust Ejection for High-Speed Demolding

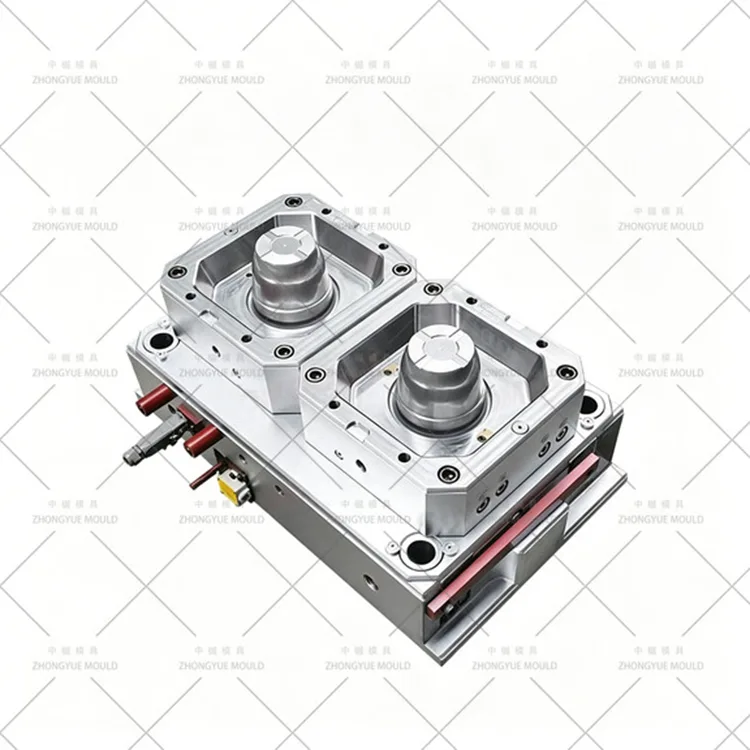

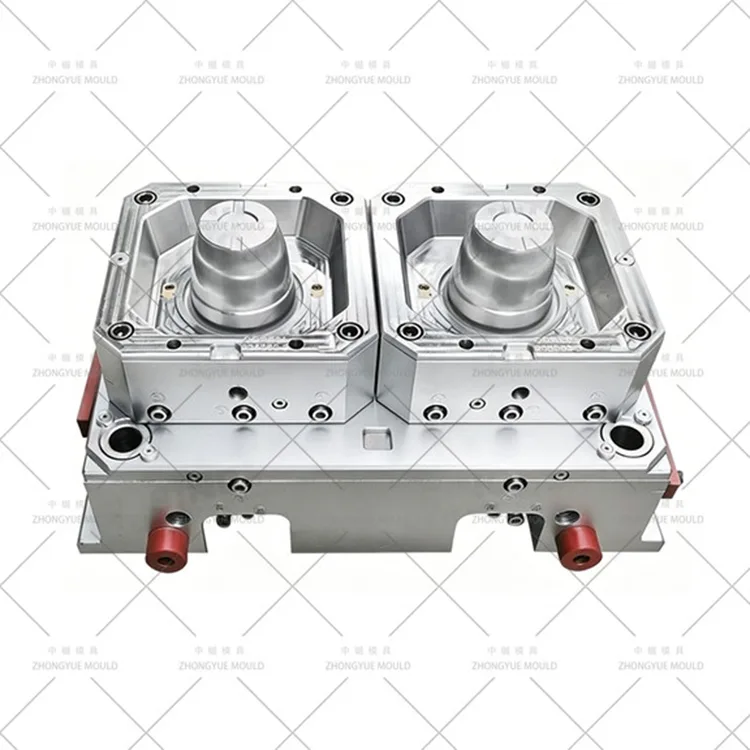

Thin-walled pots can stick to deep cores. We use ejector sleeves (preferred over pins to prevent marking) or stripper plates synchronized with robotic pick-and-place arms. Ejection forces are calculated to prevent deformation.

Bottom Drainage & Rib Detailing

Molded-in drainage holes and vertical root ribs are formed by hardened steel pins and integrated core features. We ensure these details do not create thick sections that cause sink marks on the outer surface.

Applications of High-Efficiency Round Plant Pots

Industry / Use Case	Mold Feature Adaptation
Commercial Nurseries	80mm–200mm pots; thin wall (1.0–1.5mm); high cavitation (4–8 cavities); fast cycle
Agricultural Farming	150mm–300mm pots; CaCO₃ filled PP for rigidity; drainage ribs for aeration
Seed Starting & Propagation	Small 50mm–100mm pots; multi-cavity (16+) molds; recycled PP material
Mass Retail / DIY Chains	Standard sizes; color-coded material; robust design for consumer handling

Our Manufacturing & Validation Process (Plant Pot Mold)

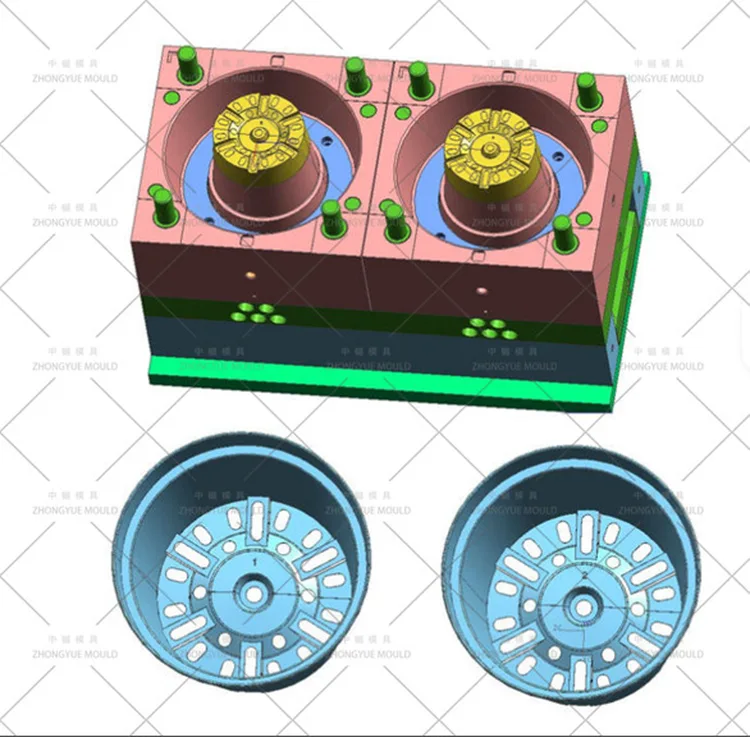

Material Flow & Warpage DFM — Analyze wall thickness (1.0–1.8mm) and rib design. Run Moldflow to predict warpage and optimize gate location for balanced filling. Advise on recycled material suitability. Free DFM report.

Precision Cooling Machining — Gun-drill deep core holes for bubbler tubes. Ensure water channels are deburred and flow-tested.

Assembly & High-Speed T1 Trial — Run on in-house machine with specified material (Virgin or Recycled PP). Verify cycle time, wall uniformity, and automatic ejection compatibility. Supply trial video + samples + CMM report.

Optimization & Approval — Fine-tune cooling flow or ejection timing if needed. Prepare mold for shipment with spare ejector sleeves and pins.

After-Sales Support — 1-Year warranty, remote technical guidance, and readily available spare parts.

Why Choose ZHONGYUE MOULD for Your Round Plant Pot Mold?

Speed Engineering — We design molds specifically to hit 10–15 second cycles with optimized cooling and ejection.

Recycled Material Experts — Our molds handle the inconsistencies of recycled PP and mineral fillers without sacrificing quality.

High Cavitation Masters — Proven experience in 4, 8, and 16-cavity layouts and stack molds for maximum output.

Robust & Reliable — Built for 24/7 operation with minimal maintenance, perfect for peak season demands.

Global Export Experience — Trusted by nurseries and garden centers worldwide.

Frequently Asked Questions — Round Plant Pot Mould

Q: What is the typical cycle time for a 4-cavity 120mm pot mold?

A: With proper cooling (bubbler tubes) and thin walls (1.2mm), expect 12–16 seconds (including injection, cooling, and ejection).

Q: Can you run recycled PP in these molds?

A: Yes. We design enhanced venting and robust runners specifically for recycled materials to prevent burn marks and filling issues.

Q: Should I choose a multi-cavity or stack mold?

A: For pots under 150mm, a 4-cavity or 8-cavity mold on a standard machine is cost-effective. For larger volumes, a stack mold doubles output without needing a bigger press.

Q: How do you prevent thin-walled pots from warping?

A: We use Moldflow analysis to optimize gate location and packing pressure, and design internal ribs to stiffen the part without causing sink marks.

Q: What information do you need for a quotation?

A: Please provide 2D drawings (PDF/DWG) + 3D models (STP/IGS) of the pot, specifying top diameter, height, wall thickness, material type (Virgin/Recycled/CaCO₃), and desired cavities.

Request a Quote for Your Round Plant Pot Mould

Send your pot drawings or specifications to ZHONGYUE MOULD. We will provide a comprehensive DFM analysis (covering thin-wall warpage and cooling strategy) + formal quotation within 24–48 working hours.
