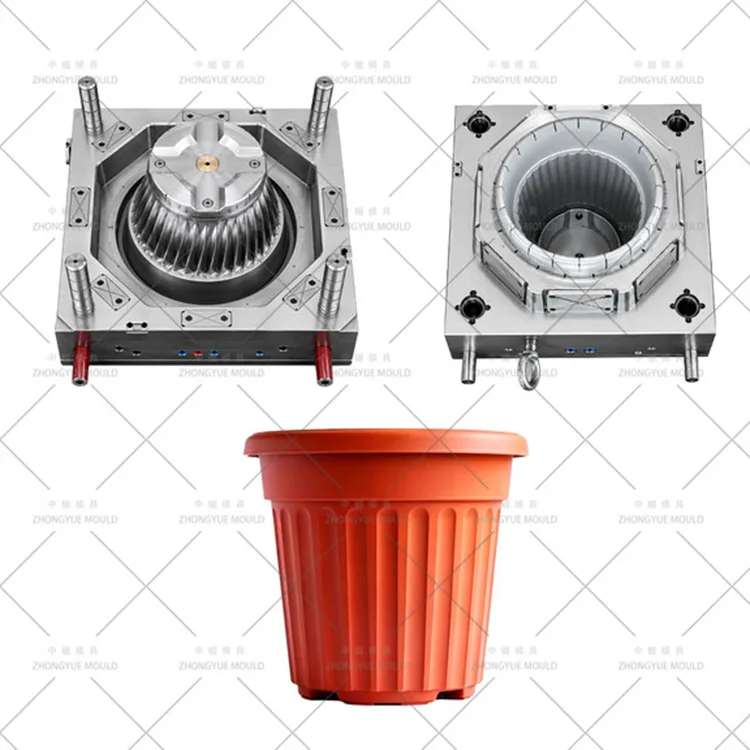

Plastic Garden Flow Pot Mould

Plastic Garden Flow Pot Mould – Custom Irregular Shape / Free-Form Designer Planter Injection Mold Manufacturer

ZHONGYUE MOULD is a professional Chinese injection mold manufacturer supplying Plastic Garden Flow Pot Moulds / Irregular Shape Free-Form Planter Molds (Organic Flowing Lines, Rocky Mountain Styles, Modern Artistic Sculptures) to global high-end garden decor brands, landscape architects, and designer furniture manufacturers. Unlike standard cylindrical or ball-shaped pots, these Garden Flow Pots feature asymmetrical curves, concave valleys, and non-uniform wall thicknesses, requiring advanced mold engineering beyond simple open-close tools.

Typically molded in High-Impact PP or ABS (MFR 8–15), these designer planters utilize multi-slide mechanisms (3–5 sliding cores), hydraulic cylinders for deep undercuts, and conformal cooling channels (3D-printed or gun-drilled) to manage heat in thick, irregular sections. Our molds ensure that complex artistic shapes are reproduced with sharp edge definition and zero sink marks, making them ideal for luxury patios, hotel landscaping, and art galleries.

From rocky mountain-style giant planters (400mm–800mm) to fluid organic-shaped balcony vases, we provide full DFM review focusing on slide interference, conformal cooling layout, and weld-line hiding before steel cutting.

plastic Flower Pot Mould specifications :

Make your next plastic Flower Pot Mould project brighten!

What Is a Garden Flow Pot Mould?

A Garden Flow Pot Mould is a complex injection mold designed to produce non-geometric, free-form plastic planters. The defining characteristics are:

Irregular / Asymmetrical Shape — The pot does not have a constant cross-section. It may have bulging curves, inward dents, or flowing lines that mimic nature.

Complex Undercuts — Deep concave areas prevent straight ejection. Requires 3 or more sliding cores (sometimes hydraulic) to withdraw the mold steel from negative drafts.

Variable Wall Thickness — Walls may vary from 2mm to 6mm in different sections. This demands expert cooling design to prevent sink marks on the visible "flowing" surfaces.

Artistic Surface Finish — Often combines polished highlights (SPI A2) with stone-like textures (VDI 30–42) on different areas of the same part.

Key Mold Engineering Highlights (Irregular Flow Pot)

Multi-Slide & Hydraulic Core Mechanism

Unlike simple pots, flow pots often have 3 to 5 sliding cores moving in different directions. We use hydraulic cylinders for large strokes (>100mm) and H13 (2344 ESR) nitrided slides for wear resistance against complex geometries. 3D interference checks ensure no collision during high-speed cycling.

Conformal Cooling (3D Printed / Bended Tubes)

Standard straight-line cooling fails on irregular shapes. We design conformal cooling channels that follow the contour of the part, either via 3D-printed metal inserts (MS1 steel) or bent copper tubing inserted into the cavity. This maintains ΔT ≤ 4–5℃ across wildly varying wall thicknesses, eliminating sink marks on thick lobes.

Weld-Line Management for Aesthetic Surfaces

Flowing shapes cause multiple flow fronts to meet. We use Moldflow analysis to predict weld-line locations and shift gates or add overflow wells to hide them in non-visible areas or inside the texture zone.

Hybrid Surface Finishing (Polish + Texture)

A single cavity may feature SPI A2 high-gloss polished peaks (representing water or shine) and VDI 36 acid-etched valleys (representing rock or bark). We mask and process these zones separately to achieve a multi-tone artistic effect.

Deep Core Venting & Ejection

Deep concave areas trap air. We incorporate sintered porous steel vent inserts and ejector sleeves at the base of deep cores to prevent burn marks and assist stripping of complex shapes.

Robust Mold Base for Side-Action Forces

With multiple slides pushing against each other, we use heavy-duty self-lubricating guide rails and thicker-than-standard support pillars to prevent mold deflection under high injection pressure.

Our Manufacturing & Validation Process (Flow Pot Mold)

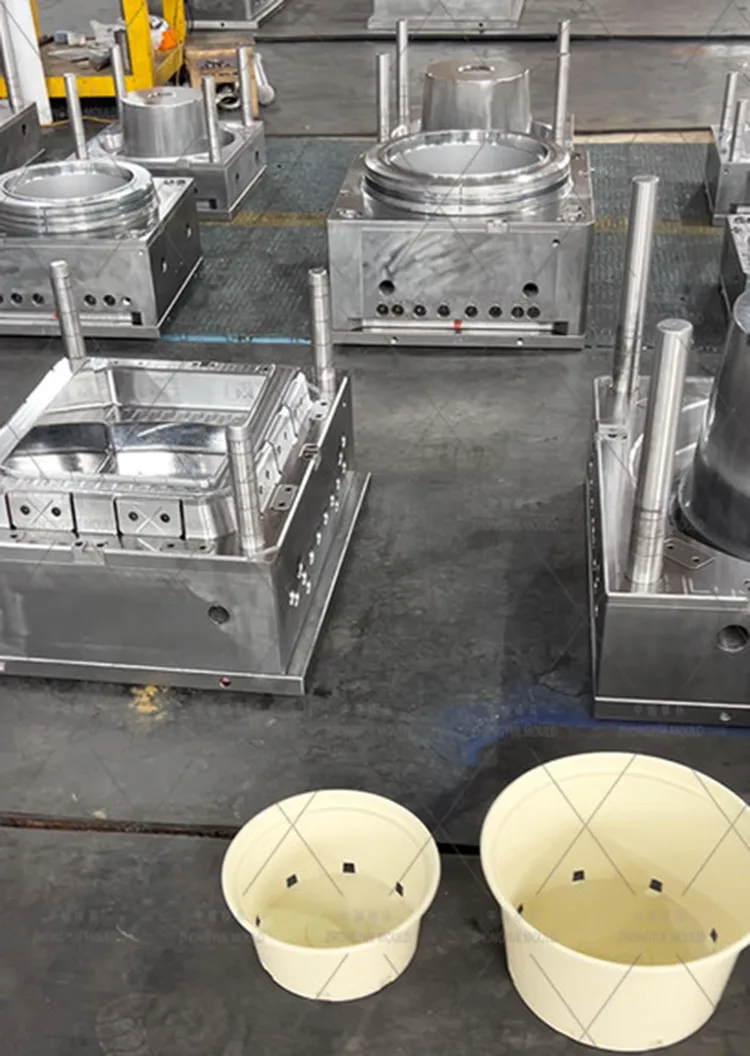

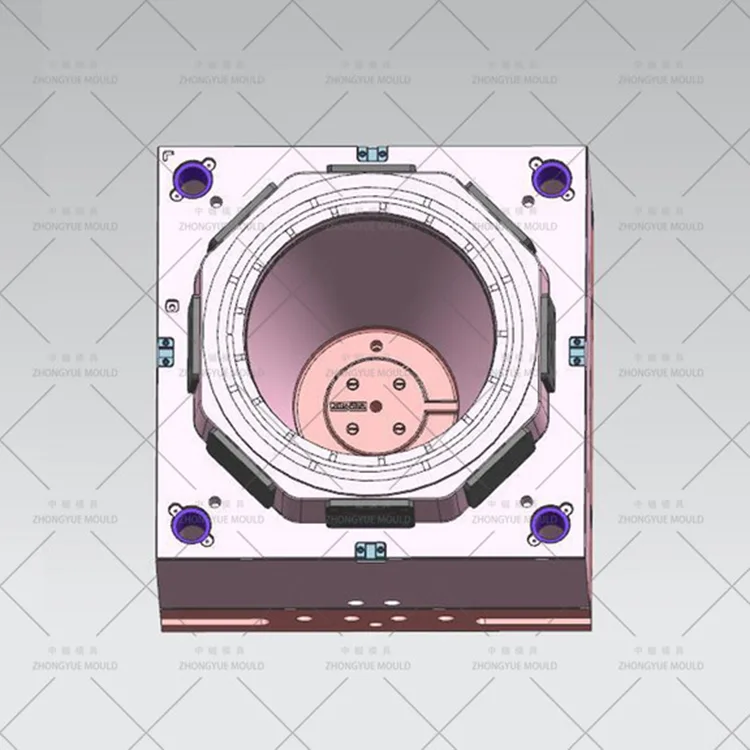

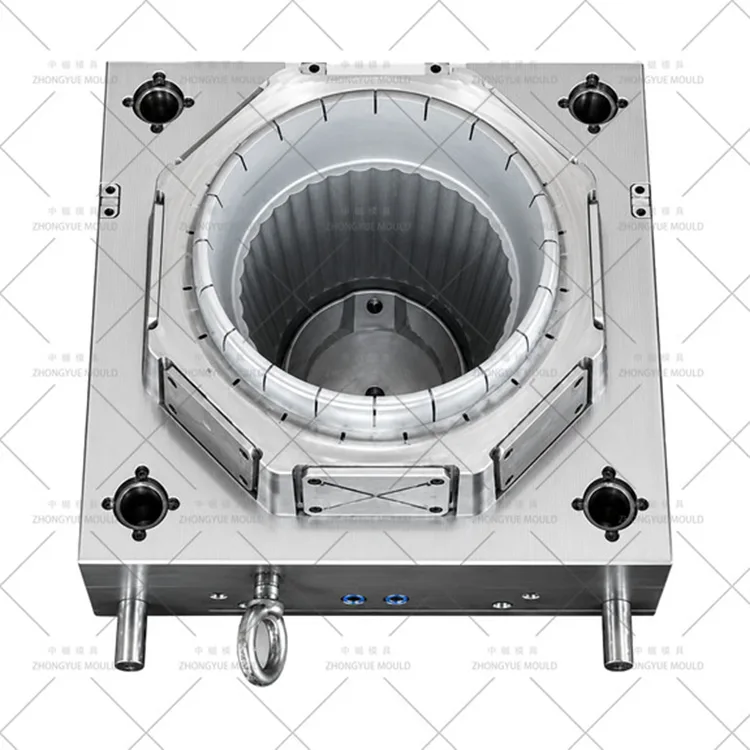

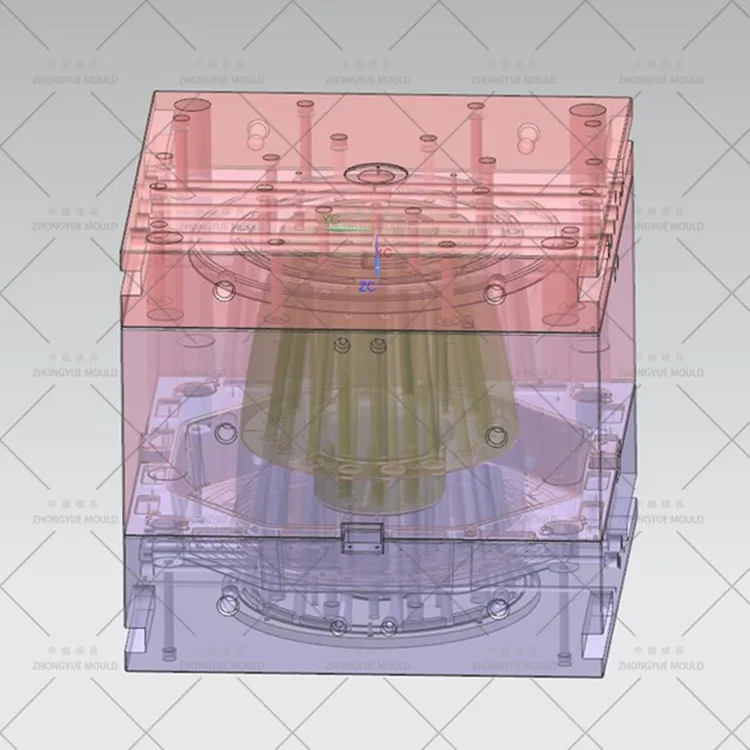

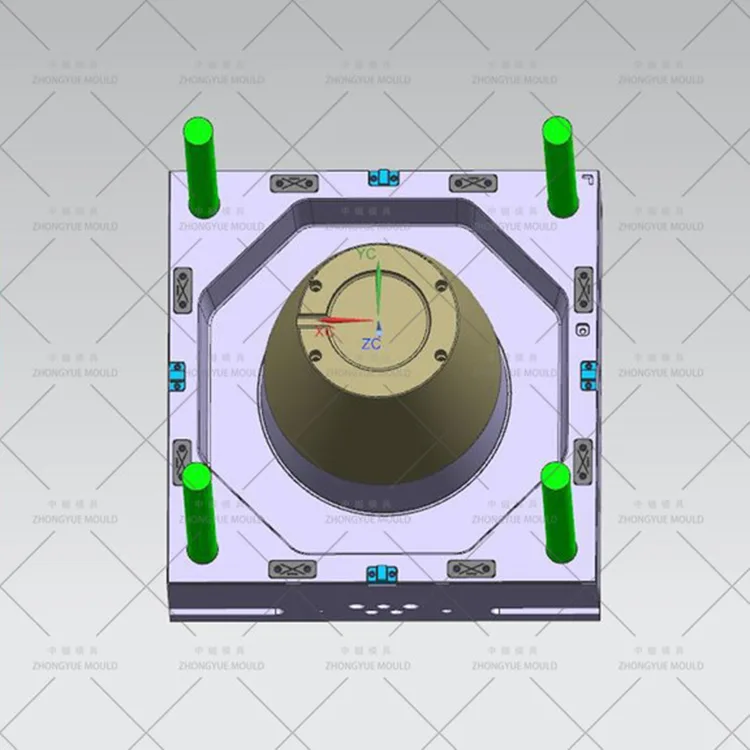

Complex DFM & Flow Simulation — Analyze 3D model for slide direction (3–5 axes). Run Moldflow to identify weld lines and air traps in deep concave zones. Design conformal cooling layout. Free DFM report.

Hardened Steel Machining — CNC roughing of complex curves. Gun-drilling for baffles. 3D printing of conformal cooling inserts (if selected).

Slide & Core Fitting — Grind H13 slides to micron tolerance. Nitride surface. Hand-fit slides to cavity to ensure seamless texture transition.

Hybrid Surface Finishing — Mask cavity. Polish high-gloss zones (SPI A2). Acid-etch textured zones (VDI 30–42). Remove masking.

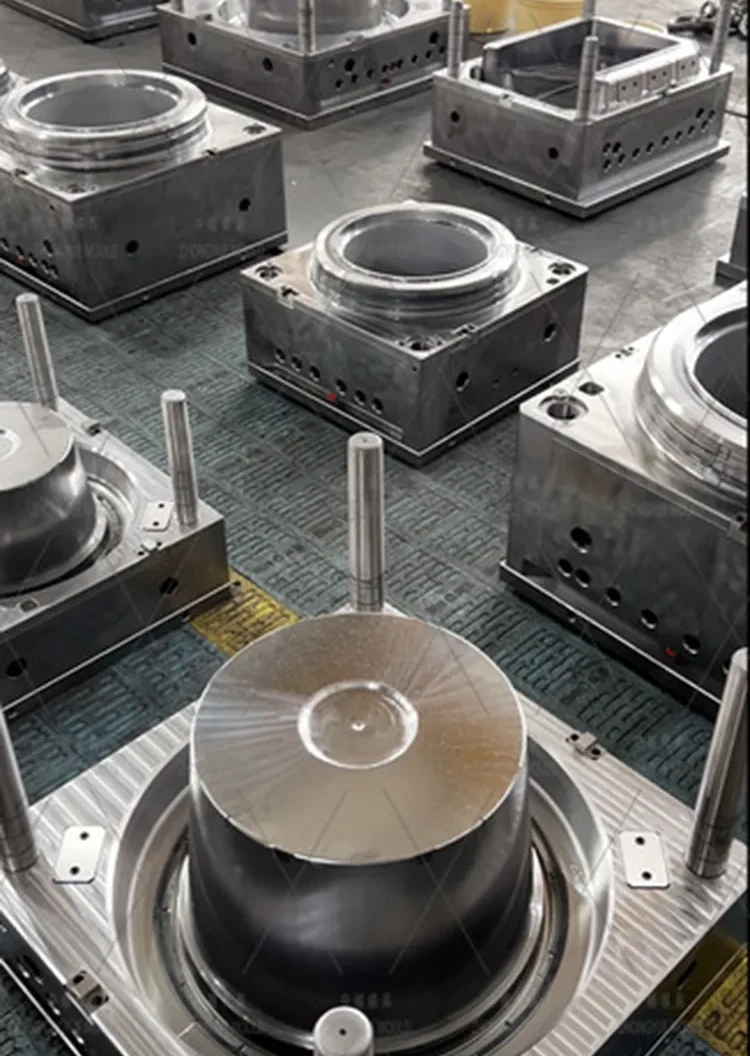

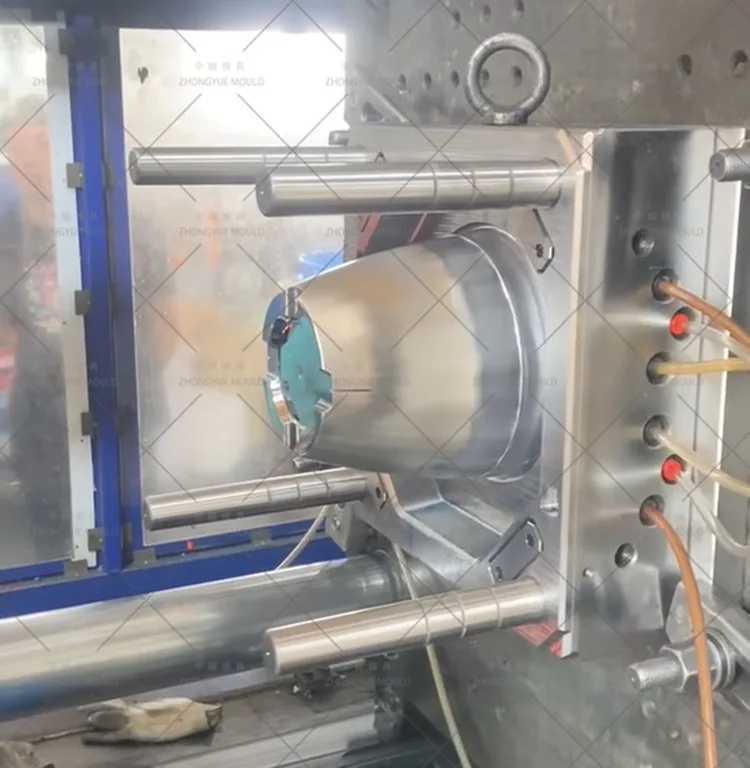

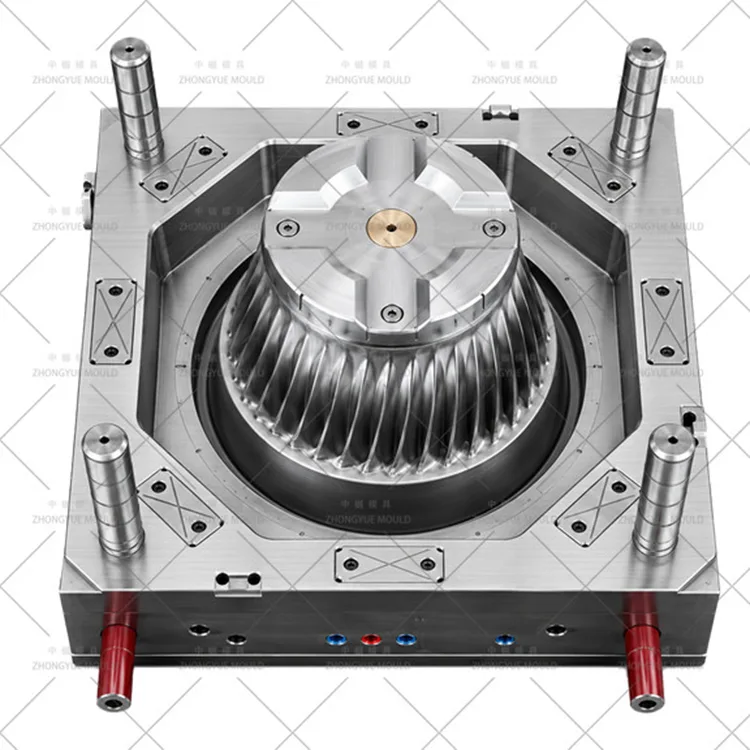

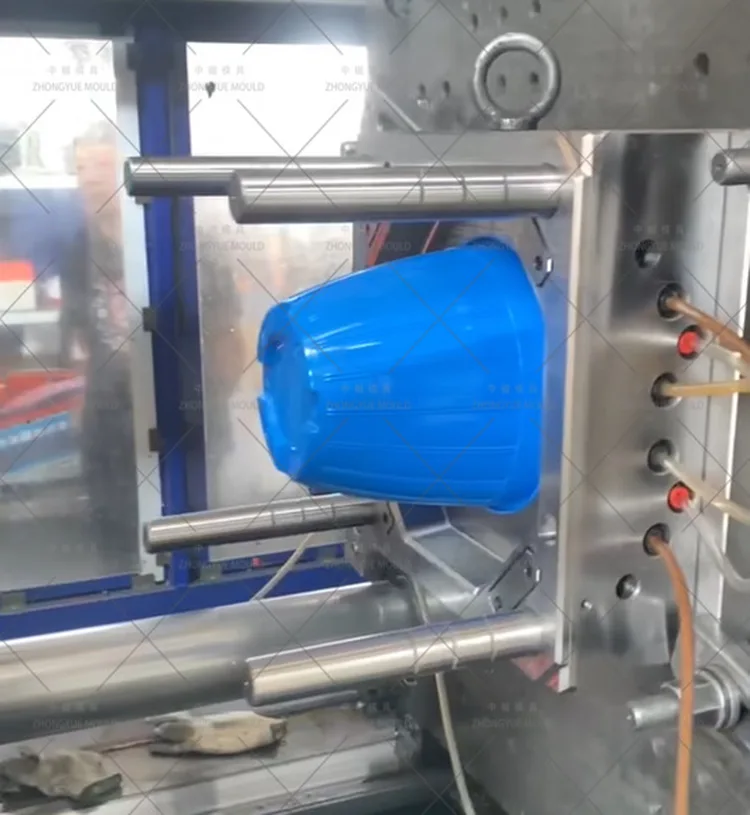

Assembly & T1 Trial — Assemble hydraulic cylinders and slides. Run T1 trial. Check for sink marks on thick lobes and complete cavity fill. Supply trial video + samples + CMM report.

Final Delivery — Heavy-duty packaging. Provide hydraulic schematics and cooling circuit diagrams. Spare parts for slides (springs, seals).

Why Choose ZHONGYUE MOULD for Your Flow Pot Mold?

Irregular Shape Specialists — We excel where others struggle: complex curves, multiple slides, and hybrid finishes.

Conformal Cooling Experts — We solve sink marks on thick, uneven walls using 3D-printed or bent-tube cooling.

Hybrid Surface Finishing — Combining high-gloss polish and deep VDI texture on the same part is our specialty.

Heavy-Duty Slide Design — We use hydraulic cylinders and H13 nitrided steel for reliability in deep undercuts.

Global Experience — Molds delivered to European garden decor brands and North American landscape architects.

Frequently Asked Questions — Garden Flow Pot Mould

Q: Why is this mold so much more expensive than a normal round pot mold?

A: Flow pot molds require 3–5 complex sliding cores (vs. 0 for round pots), conformal cooling (vs. simple baffles), and hybrid surface finishing (vs. one finish). The steel cost and machining hours are significantly higher.

Q: Can you do multi-cavity for small flow pots?

A: For very small flow pots (<200mm), we can attempt a 2-cavity layout, but it is difficult due to slide interference. We usually recommend 1×1 to ensure quality and mold longevity.

Q: What is "Conformal Cooling" and do I need it?

A: Conformal cooling means the water channel follows the shape of the pot. It is highly recommended for flow pots because wall thickness varies greatly; standard straight lines will cause sink marks on thick lobes.

Q: How do you handle the texture transition between polished and etched areas?

A: We use precision masking techniques during the EDM and etching process to ensure a sharp, clean transition line between the high-gloss (SPI A2) and textured (VDI) zones.

Q: What do you need for a quotation?

A: A 3D model (STP/IGS) is mandatory due to the complexity. Please specify material (PP/ABS), desired finish (gloss vs. texture locations), and annual volume.

Request a Quote for Your Garden Flow Pot Mould

Send your Garden Flow Pot 3D model (STP/IGS) and project requirements to ZHONGYUE MOULD. We will provide a free DFM report covering slide strategy, conformal cooling design, and weld-line management + formal quotation within 48 working hours.

Contact us now to start your Irregular Shape Designer Planter Injection Mold project!
