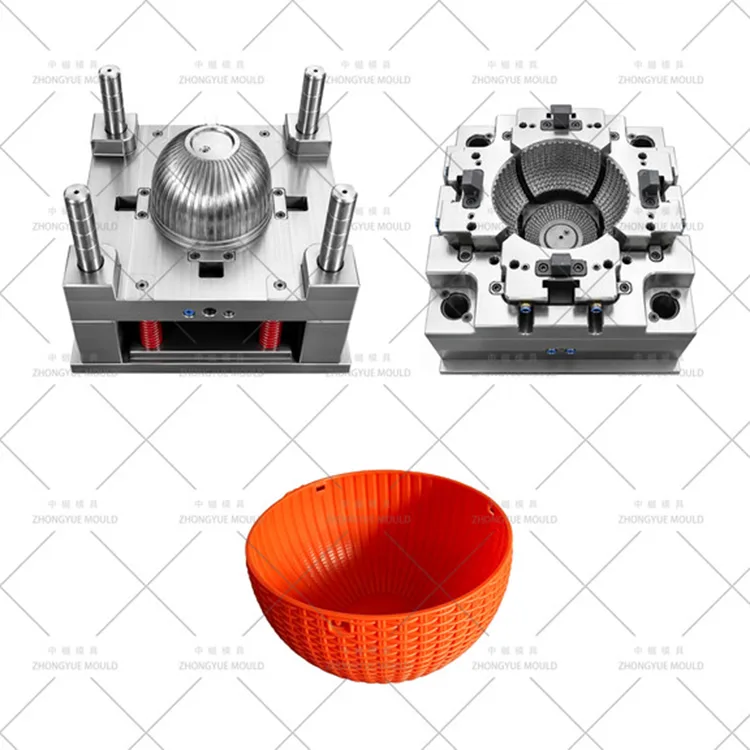

Plastic Round Ball Shape Rattan Flower Pot Mould

Plastic Round Ball Shape Rattan Flower Pot Mould – Custom Wicker Texture Sphere Planter Injection Mold Manufacturer

ZHONGYUE MOULD is a professional Chinese injection mold manufacturer supplying Plastic Round Ball Shape Rattan Flower Pot Moulds / Wicker-Texture Sphere Planters (Hanging Baskets, Half-Ball Planters, Decorative Orb Pots) to global garden decor brands, home furnishing retailers, and horticultural wholesalers. Unlike standard smooth-wall pots, these spherical planters feature a simulated cane/weave (rattan) texture across the entire outer surface, requiring specialized EDM sinking + acid etching (VDI 30–42 / Mold-Tech MT-11000 series) and a two-half split cavity design to allow the textured part to release without tearing.

Typically molded in PP (Polypropylene, MFR 8–15) for flexibility and impact resistance, these ball-shaped pots range from 120mm to 350mm in diameter. Our molds feature H13 nitrided slides for the split cavity, BeCu (Beryllium Copper) spiral cooling cores to handle deep-draw spherical geometry, and hidden submarine gates that leave no visible mark on the decorative texture. From full sphere hanging pots with drainage to half-ball wall-mounted planters, we provide full DFM review focusing on texture draft angles and demolding force before steel cutting.

plastic Flower Pot Mould specifications :

Make your next plastic Flower Pot Mould project brighten!

What Is a Round Ball Rattan Flower Pot Mould?

A Round Ball Rattan Flower Pot Mould is a specialized tool designed to create decorative spherical planters that mimic natural materials like rattan, wicker, or bamboo. The mold structure is fundamentally different from a standard pot mold:

Split Cavity (Two-Half / Multi-Slide) — Because the ball is round and covered in texture, it cannot be stripped straight off a core. The cavity splits into 2, 3, or 4 segments (slides) that retract radially to clear the undercut texture.

Rattan / Wicker Texture — The outer cavity surface is not smooth. It is EDM-machined with a cane pattern and then acid-etched to create a realistic woven look (VDI 30–42 standard).

Deep Spherical Core — The inner core is a full hemisphere or sphere, requiring deep-hole drilling for cooling and precise draft control.

Hidden Drainage & Hanging Features — Often includes molded-in drainage holes and integrated hanging loops/chains, which require additional lifters or inserts.

Key Mold Engineering Highlights (Ball Shape Rattan Pot)

EDM Rattan Texture & Draft Angle Calculation

Applying texture to a spherical surface increases friction during demolding. We calculate extra draft angle (2.5°–4° total) specifically for the textured zone (Base 1.5° + 1.0–2.5° for texture depth). The cavity undergoes EDM sinking to create the relief pattern, followed by chemical etching for consistency.

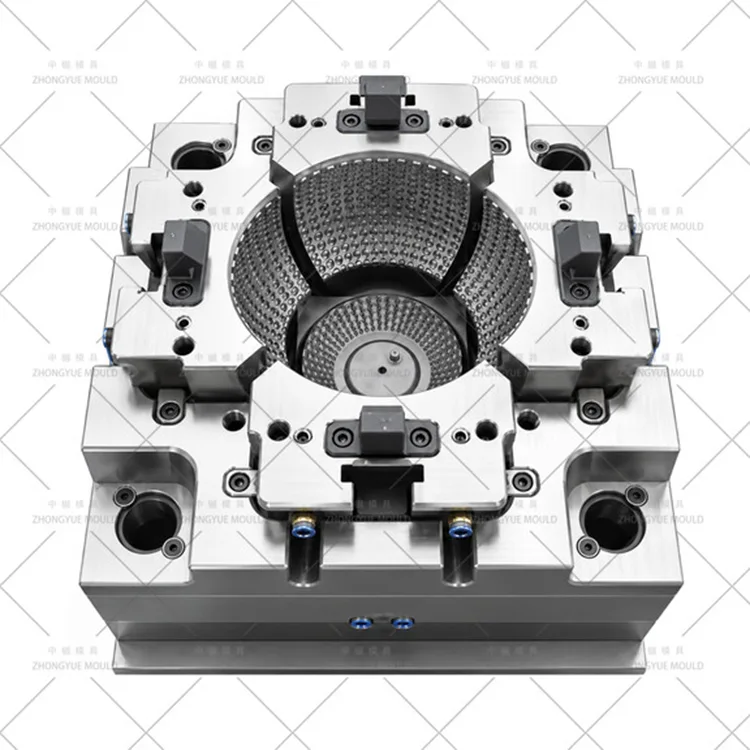

Split Cavity Design (2-Half or 3-Slide Configuration)

For a round ball, we typically design a two-half horizontal split cavity (left/right) or a three-slide vertical split. Each segment is supported by H13 (2344 ESR) hardened slides with nitrided surfaces (HV ≥ 850) to withstand the high clamping force and abrasive texture contact.

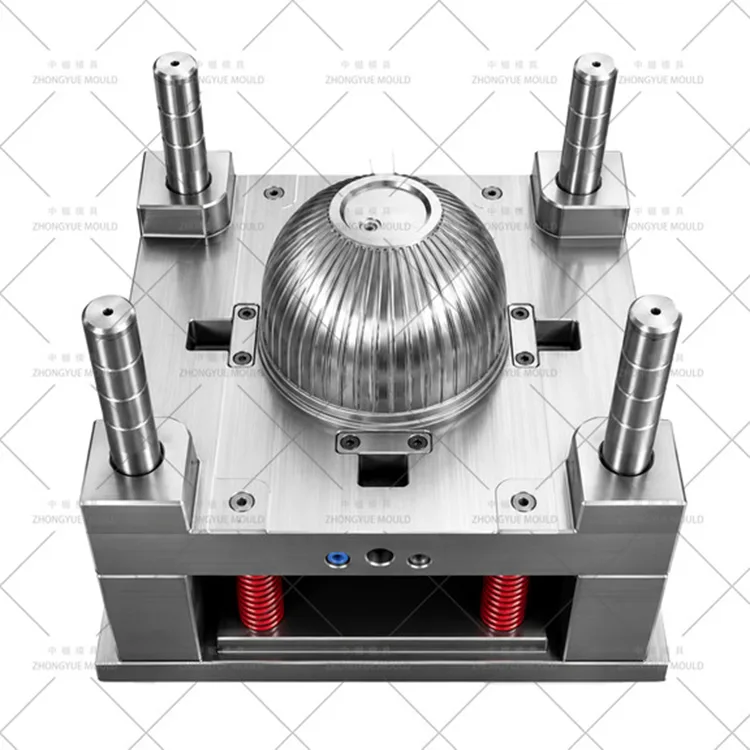

BeCu Spiral Cooling for Deep Spherical Core

The spherical core is a massive heat sink. We integrate a BeCu (MOLDMAX™/Ampcoloy) spiral insert or bubbler tube inside the core to extract heat from the center of the ball. This reduces cycle time and prevents sink marks on the thick spherical walls.

Hidden Submarine Gate on Inner Flange or Base

To preserve the rattan texture on the outer surface, the gate must be invisible. We use a submarine gate (latent gate) located on the inner rim of the pot opening or at the bottom center (three-plate mold). The gate shears cleanly and leaves no scar on the texture.

Drainage Hole & Hanging Loop Details

Drainage holes are formed by tapered pins (sometimes water-cooled). Hanging loops are formed by small lifters or sliding inserts that retract after molding. We ensure these features do not interfere with the split-cavity motion.

Anti-Stick & Polish

While the cavity is textured, the core (inner surface of the pot) is polished to SPI B1/B2 to ensure easy release and a clean interior for soil contact.

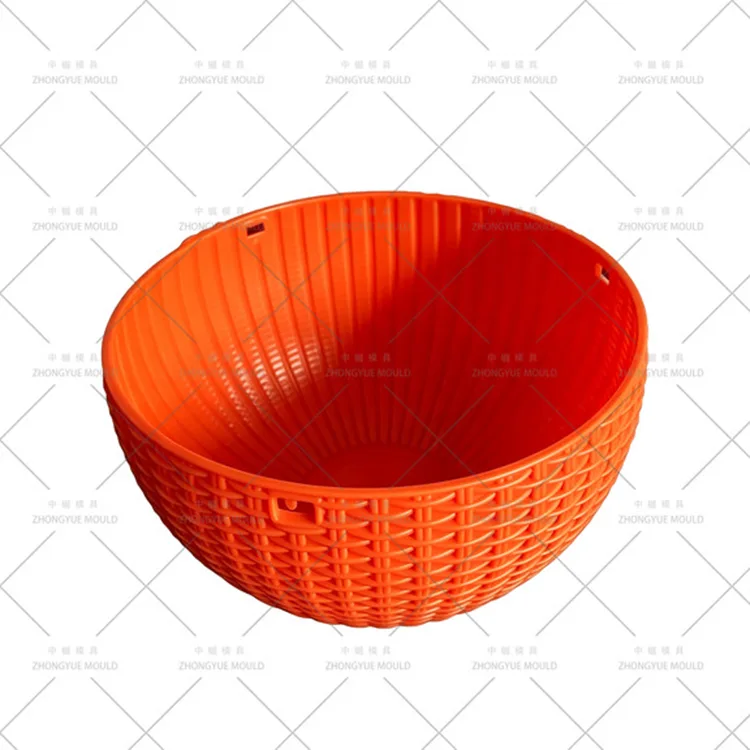

Applications of Round Ball Rattan Flower Pots

Our Manufacturing & Validation Process

Texture Draft & Split-Line DFM — Analyze required draft for rattan texture (2.5–4°). Design split-cavity motion to ensure no interference with texture. Free DFM report.

EDM Texturing & Etching — CNC roughing, followed by Sodick/Charmilles EDM to sink the cane pattern. Then acid etching to final VDI depth.

Slide & Core Assembly — Fit H13 nitrided slides with precision. Install BeCu spiral cooling core. Verify slide travel and interlock.

T1 Trial & Texture Release Test — Run on in-house machine with specified PP. Check for texture sticking, surface defects, and roundness. Supply trial video + samples.

Final Delivery — Ship with mold manual, spare H13 slide springs, ejector pins, and BeCu insert (if applicable).

Why Choose ZHONGYUE MOULD for Your Ball Rattan Pot Mold?

Texture Specialists — We handle EDM sinking and acid etching in-house for realistic rattan/wicker finishes.

Split Cavity Experts — We design robust H13 slide systems for complex spherical geometries.

Deep-Core Cooling — BeCu spiral inserts ensure fast cycles even on thick-walled spheres.

Quality Assurance — We test texture release specifically to prevent field failures.

Global Experience — Molds exported to Europe, North America, and Australia for garden decor brands.

Frequently Asked Questions — Round Ball Rattan Flower Pot Mould

Q: Can you do multi-cavity (2+2 or 4+4) for small ball pots?

A: For diameters under 150mm, we can sometimes arrange 2-cavity layouts. However, for larger balls (>200mm), the complexity of the split cavity and cooling usually limits us to 1×1 to ensure quality.

Q: How do you prevent the texture from sticking to the mold?

A: We calculate extra draft angle (2.5–4°) specifically for the textured zone. We also polish the texture peaks slightly and ensure the core (inner surface) is highly polished (SPI B1/B2) to pull the plastic away from the cavity.

Q: What is the difference between this and a normal smooth pot mold?

A: A normal pot mold is usually a simple open/close mold. A ball rattan pot mold requires split cavities (slides) to form the round shape and textured surfaces that need special draft and cooling considerations.

Q: What material do you recommend?

A: PP (MFR 8–15) is best because it has enough flexibility to release from the textured mold without cracking. We recommend adding UV stabilizers if the pots will be outdoors.

Q: What do you need for a quotation?

A: 2D drawing (PDF/DWG) + 3D model (STP/IGS/X_T) showing the ball diameter, wall thickness, and texture style (or send a sample photo of the texture).

Request a Quote for Your Round Ball Rattan Flower Pot Mould

Send your ball pot drawings or texture samples to ZHONGYUE MOULD. We will provide a free DFM report covering split-cavity design, texture draft, and cooling strategy + formal quotation within 24–48 working hours.

Contact us now to start your Wicker Texture Sphere Planter Injection Mold project!
