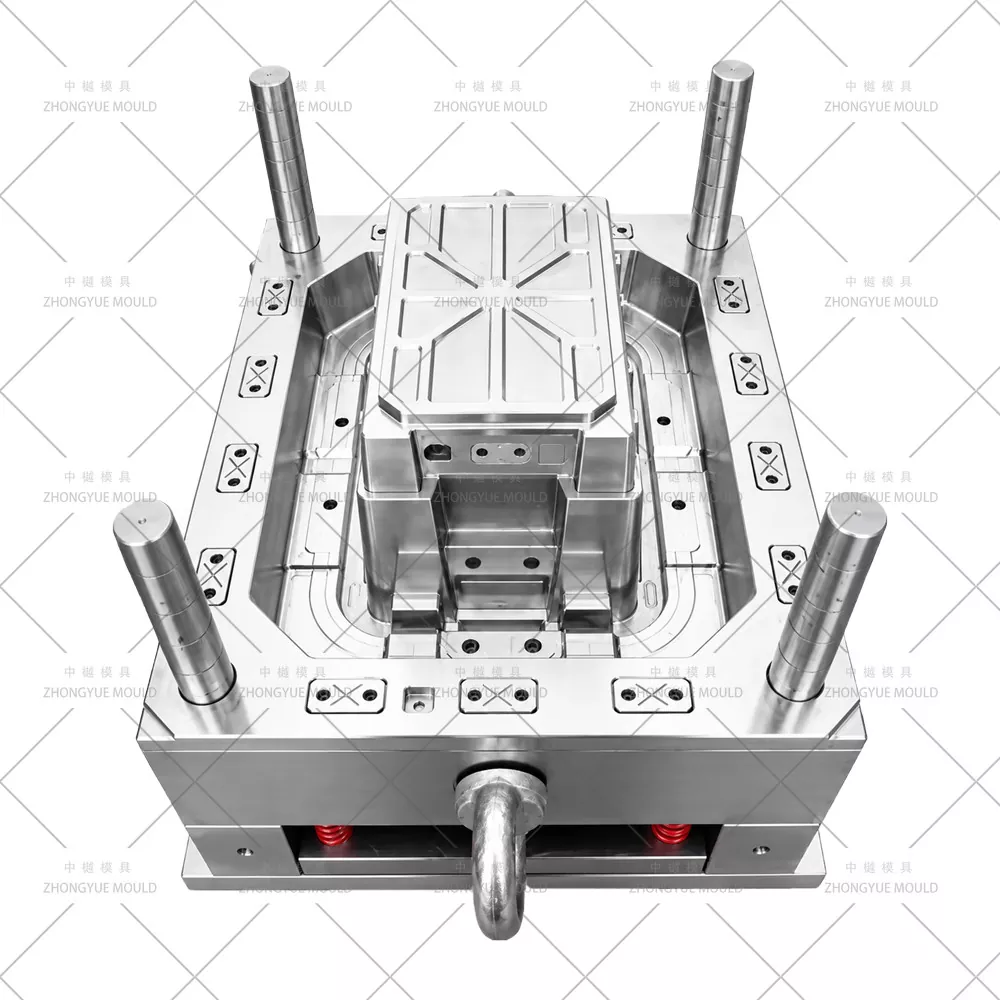

ZHONGYUE MOULD is a professional China injection mold manufacturer supplying Heavy Duty Storage Box Moulds / Industrial Grade Plastic Storage Bin Injection Molds (Turnover Boxes, Attached Lid Containers, Stackable Industrial Bins) to global logistics companies, automotive parts suppliers, chemical plants, and warehouse automation providers. Unlike thin-walled household boxes, heavy-duty bins are molded in PP+Glass Fiber (PP+GF10–30%) or High-Impact Copolymer PP, featuring wall thicknesses of 2.5–4.5mm, massive reinforcement ribs, and load-bearing stacking capabilities (up to 500kg static load). Our heavy-duty molds are built for continuous 24/7 production, utilizing H13/2344 ESR hardened steel for cores/slides, dual-circuit BeCu cooling inserts at thick rib intersections, and submarine gates on reinforced flanges to prevent gate failure under high injection pressure.

From 60L/80L/100L/120L attached-lid industrial bins, forklift-entry heavy-duty pallet boxes, to anti-static turnover boxes (ESD-safe), we provide full DFM review and Moldflow structural analysis before steel cutting.

Plastic Injection Storage Box Mould specifications :

Make your next Plastic Storage Box Mould project brighten!

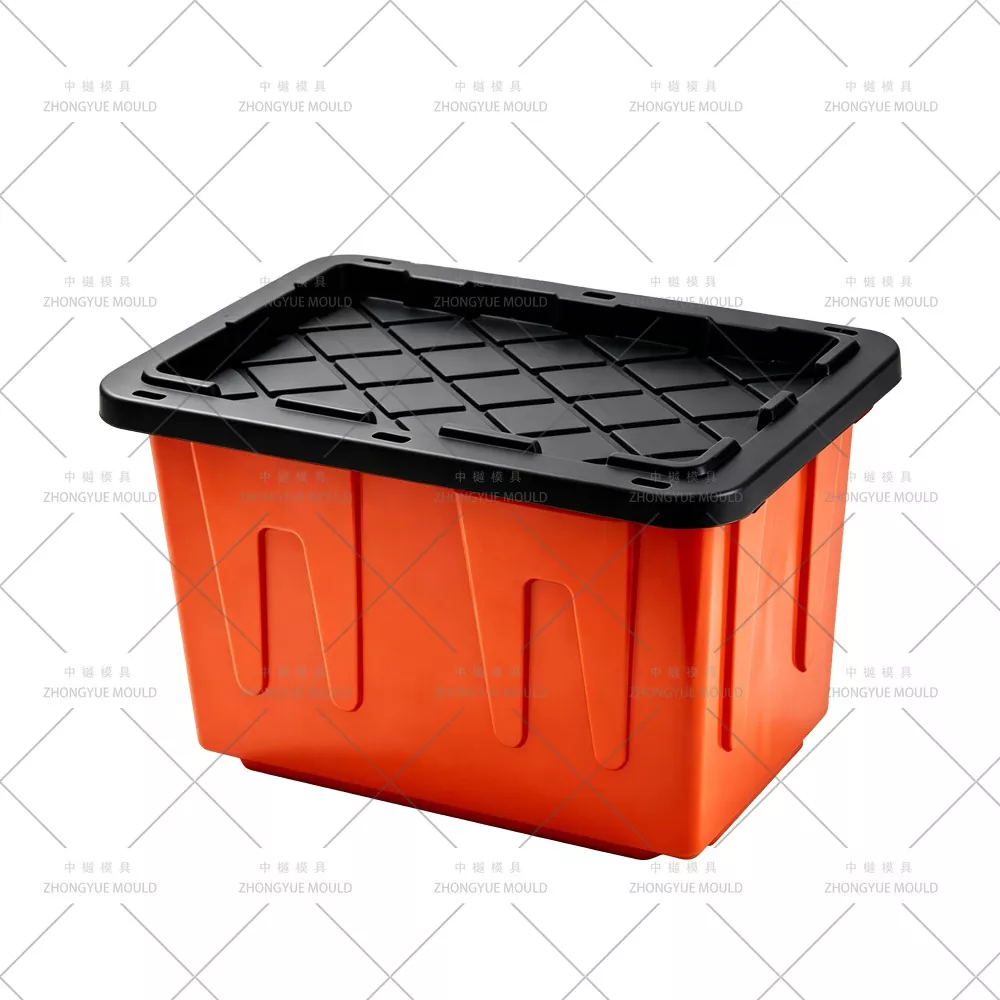

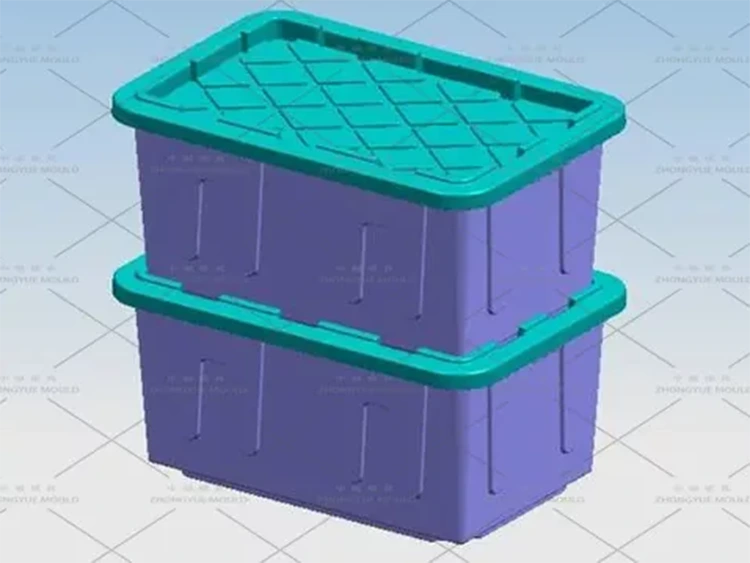

What Defines a Heavy Duty Storage Box Mold?

Key Mold Engineering Highlights for Heavy Duty Boxes

Reinforced Rib & Fork Pocket Design — Massive internal/external ribs and fork pockets require complex core pulling. We use H13 (2344 ESR) hardened steel for fork-pocket slides to withstand high clamp forces and abrasive glass-fiber wear.

Thick-Wall Cooling Strategy — Thick sections (3–4.5mm) require aggressive cooling to control cycle time. We implement dual isolated circuits + BeCu (MOLDMAX™) inserts at rib intersections and bottom radii to extract heat from the thickest sections first.

Wear-Resistant Steel Selection — Glass-fiber reinforced PP is highly abrasive. H13 (HRC 48–52 nitrided surface) is mandatory for cores, slides, and wear plates. Cavity in 718H (HRC 33–38) or 2738HH for polishability and strength.

High-Pressure Gating & Filling — Thick-wall, high-viscosity material requires high injection pressure. We use large submarine gates on reinforced flanges or hot tip gates (YUDO/SYNVENTIVE) to ensure pack-out without gate vestige failure.

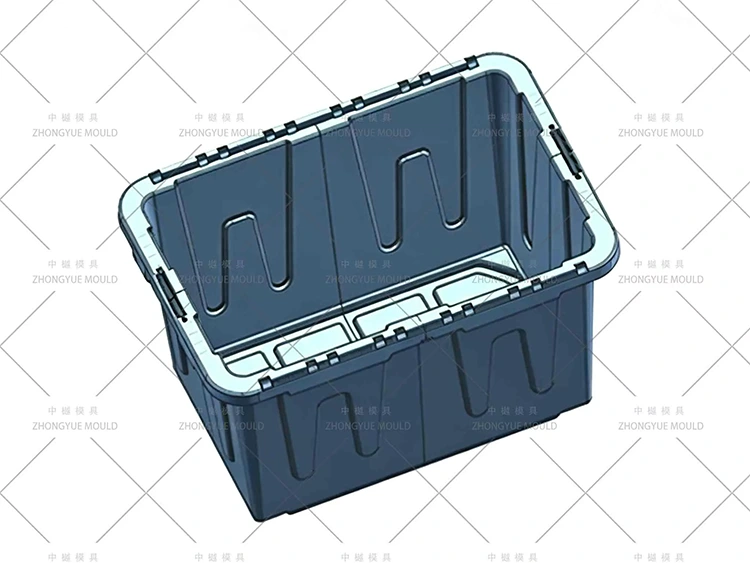

Structural DFM & Moldflow Analysis — We simulate fill, pack, cool, and warp to ensure the thick-walled box remains square under load and stacks perfectly. Rib thickness is optimized to 60–70% of wall thickness to prevent sink marks on the visible face.

Anti-Static (ESD) Options — For electronics/automotive use, we design molds to run carbon-loaded PP (ESD-safe), ensuring material flow doesn't cause burn marks (requires excellent venting).

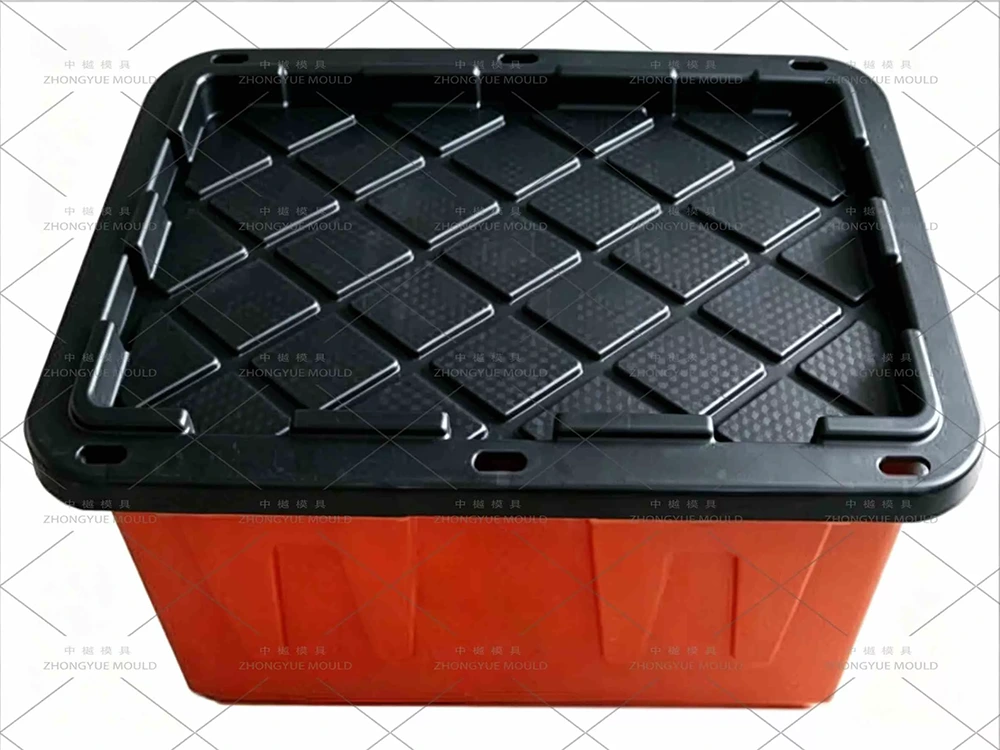

Applications of Heavy Duty Storage Box Molds

Industry	Application & Mold Requirement
Automotive Logistics	Turnover boxes for metal/plastic parts; ESD-safe material; reinforced corners; precise dimensions for AGV compatibility
Chemical & Raw Material	Acid/alkali resistant PP; thick walls; sealed lids; often integrated with dolly/base
Warehousing & Distribution	Attached lid containers (ALCs); high stacking load; fork pockets; label areas

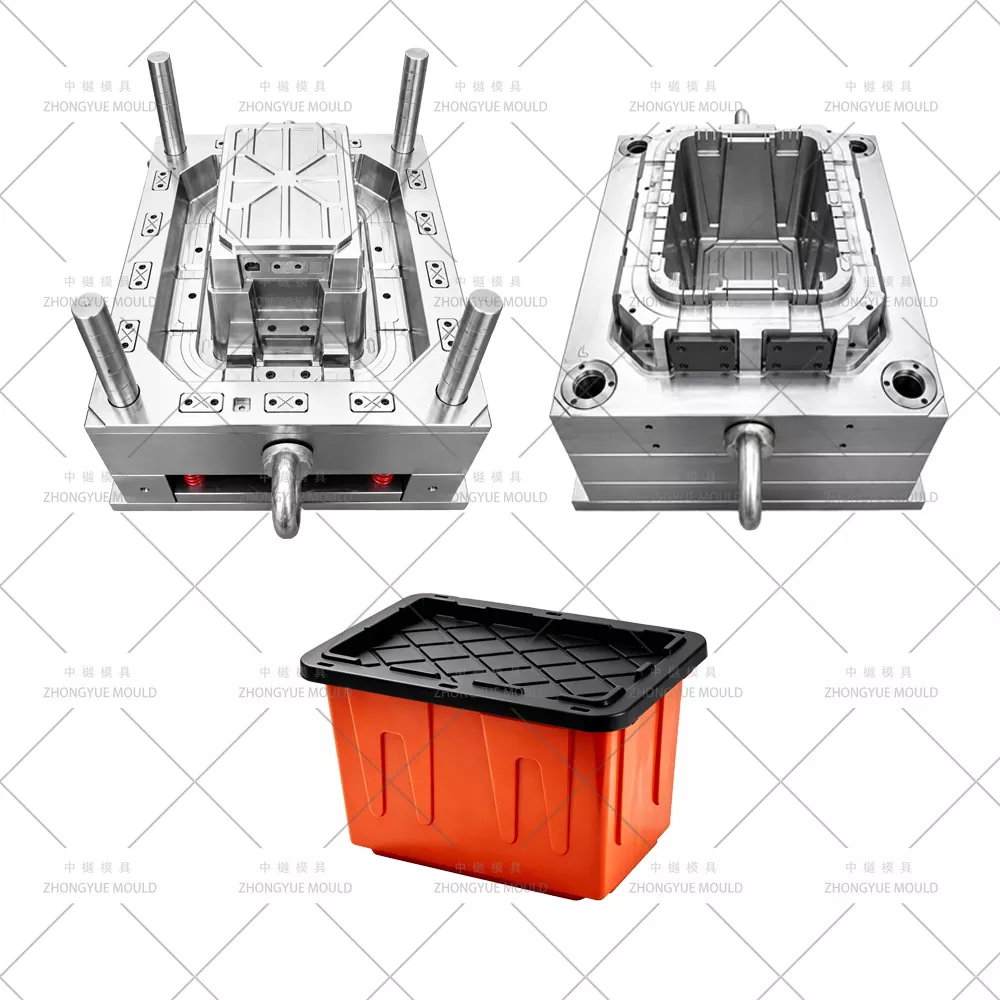

Our Manufacturing & Validation Process

Structural DFM & Moldflow Analysis — Review wall thickness (2.5–4.5mm), rib layout, fork-pocket slide movement, and gating. Run Moldflow to predict cooling time (critical for thick walls) and warp.

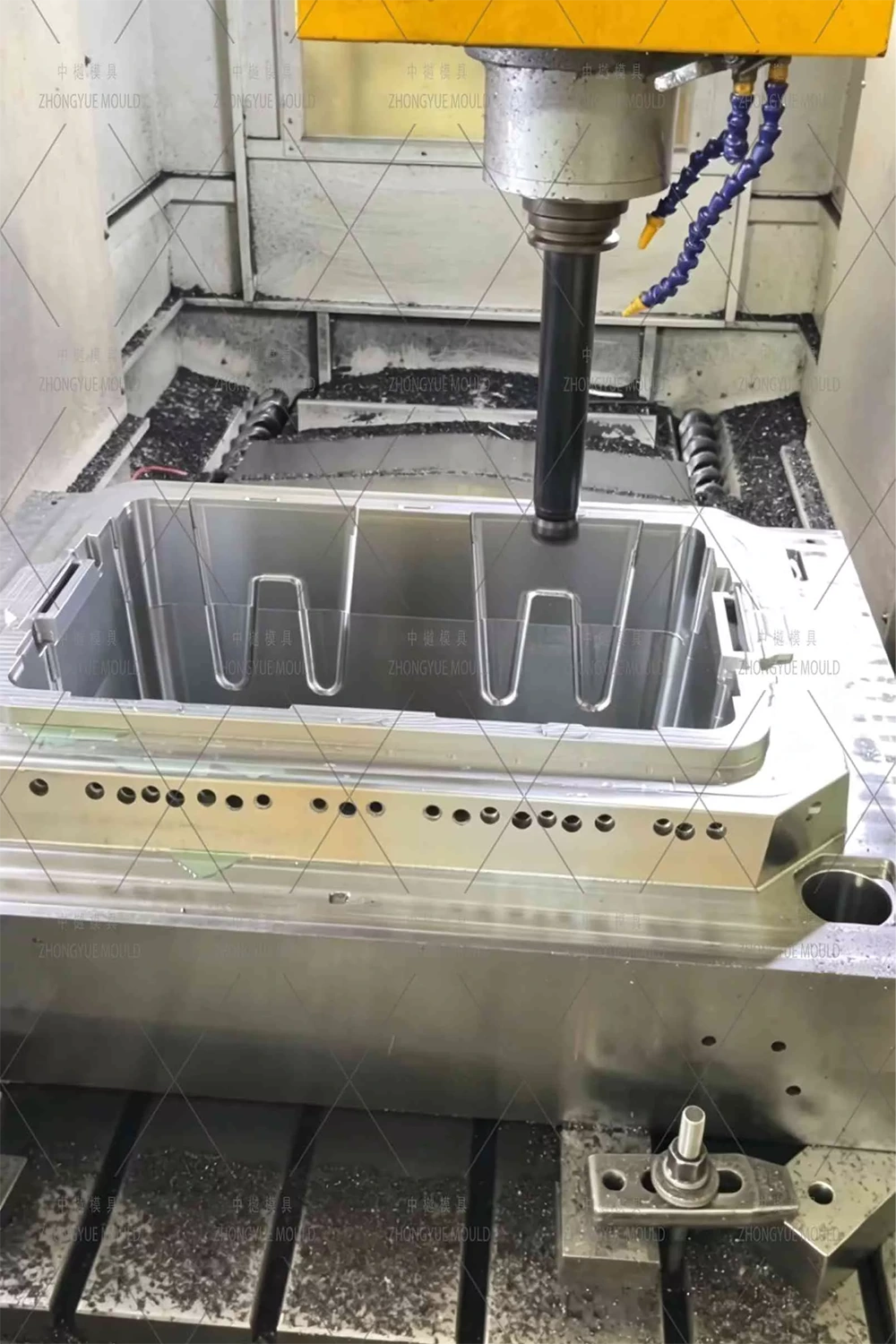

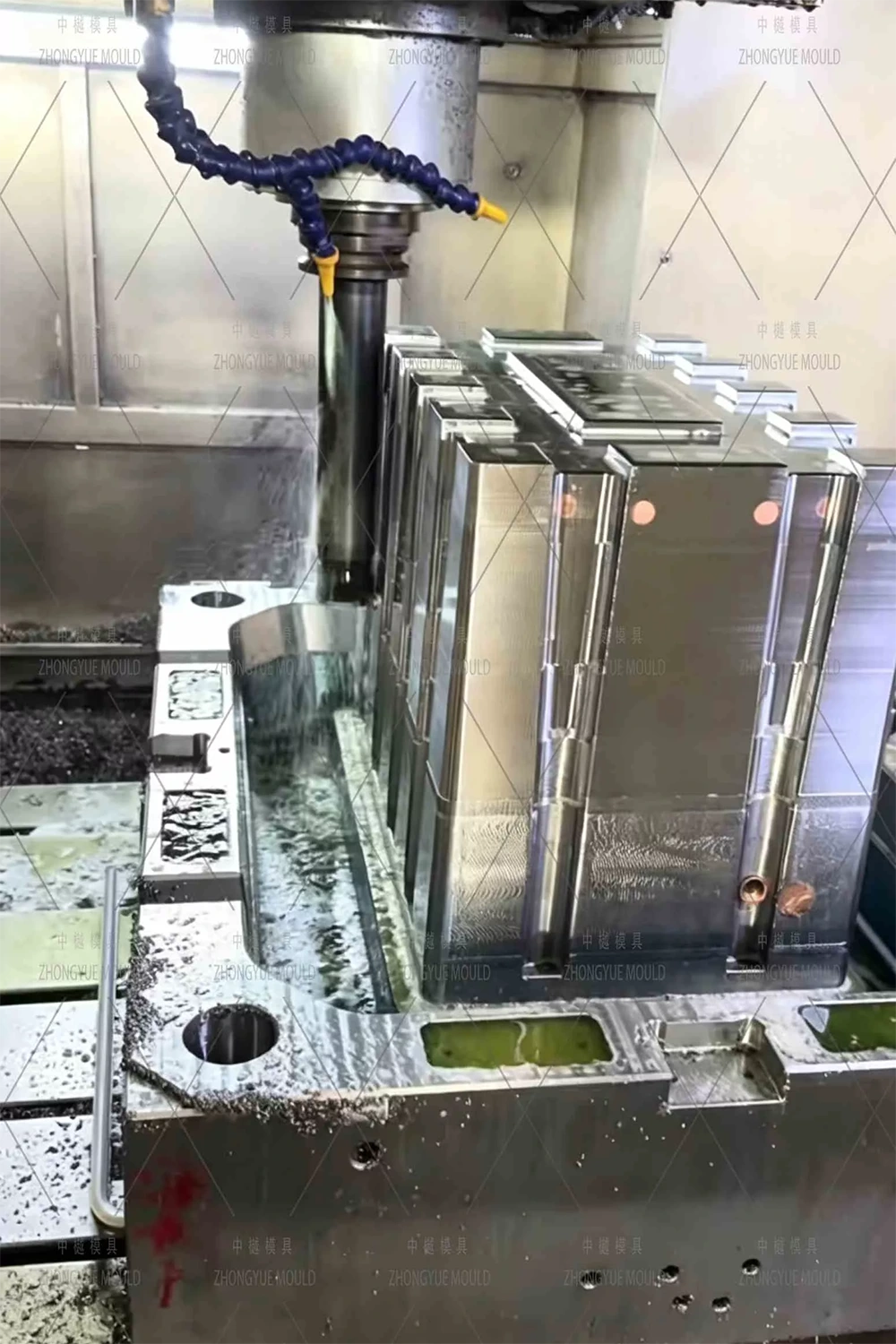

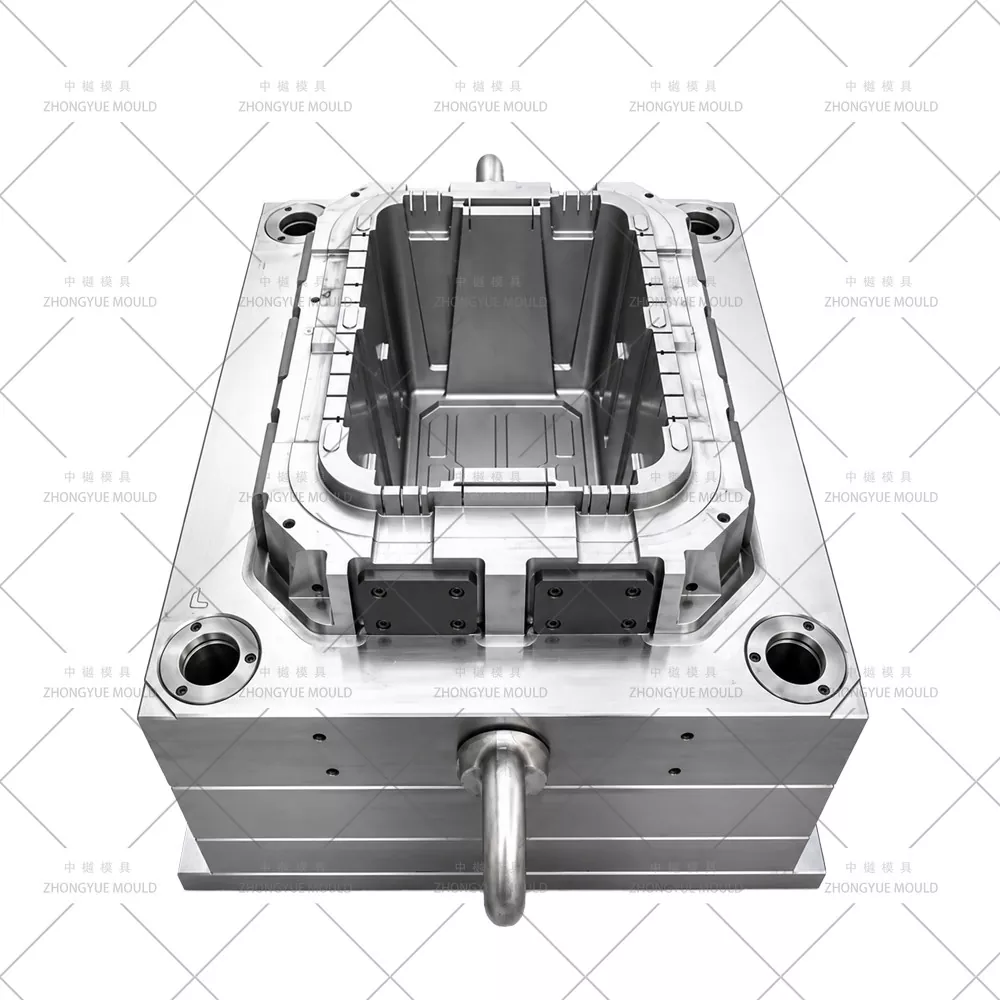

Hardened Steel Machining — Rough CNC, deep-hole drilling for cooling, H13 slide hardening (nitriding), precision grinding of parting surfaces.

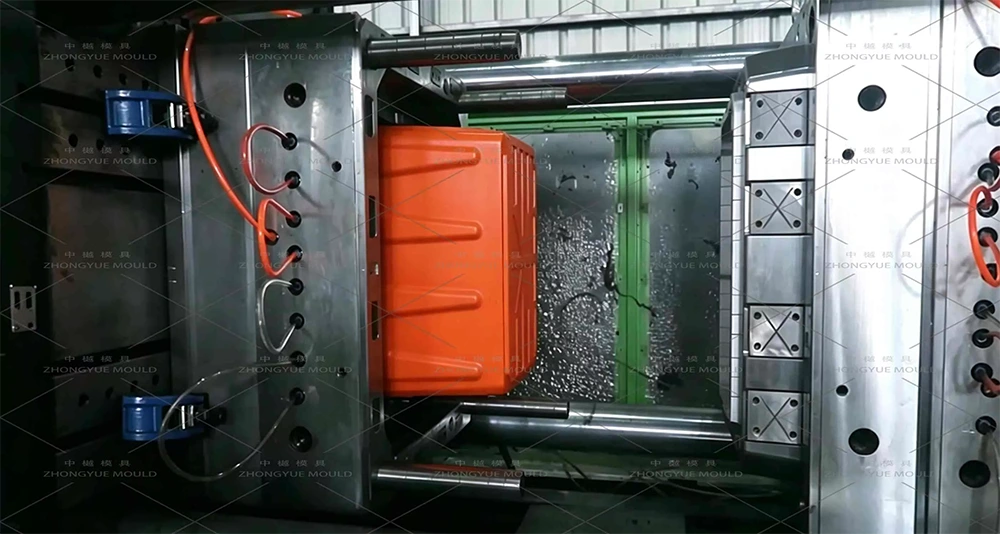

Assembly & High-Pressure Testing — Fit H13 slides, install BeCu inserts, assemble. Run T1 trial with actual PP+GF material (not substitute). Check box for sink, warp, and stacking test (load simulation).

Quality Assurance — CMM inspection of critical dimensions (fork pocket width, stacking lip flatness). Provide trial video and sample parts.

Delivery & Support — Heavy-duty packaging, operation manual, spare parts kit (H13 slide springs, ejector pins, BeCu insert available as replacement).

Why Choose ZHONGYUE MOULD for Heavy Duty Molds?

Industrial Mold Expertise — We build molds for automotive parts, outdoor bins (240L), and heavy crates — not just household items.

Hardened Steel & Wear Resistance — We specify H13 nitrided steel for high-wear areas as standard, not an upgrade.

Advanced Cooling Design — BeCu inserts in thick ribs to minimize cycle time on heavy-walled parts.

Strict QC & Real-Material Trials — We test with your specified PP+GF material to ensure the mold performs under real production conditions.

Global Export Experience — Molds supplied to European logistics leaders and North American automotive tier-1 suppliers.

Frequently Asked Questions — Heavy Duty Storage Box Mould

Q: Can you use P20 steel for a heavy-duty box mold?

A: We strongly advise against P20 for heavy-duty industrial bins, especially with glass-fiber material. P20 (HRC 28–33) will wear out quickly on cores and slides. H13 (HRC 48–52 nitrided) is mandatory for longevity.

Q: How long is the cycle time for a 100L heavy-duty box?

A: Due to thick walls (3–4mm), cooling time dominates. Expect 45–70 seconds depending on wall thickness and cooling efficiency (BeCu usage). We optimize this in Moldflow.

Q: Do you make the dolly/base and lid as well?

A: Yes. We typically quote the Bin Body (1×1), Attached Lid (2×2 or 4×1 cavity), and Dolly/Base (1×1) as separate molds to optimize cooling and cycle times independently.

Q: What about anti-static (ESD) requirements?

A: We design molds for carbon-filled PP (ESD material). This requires excellent venting (porous steel inserts, deep vents) to prevent burn marks caused by the carbon content.

Q: What information do you need for a quote?

A: 2D/3D files (STP/IGS) of the bin, material specification (PP+GF% or Copo PP), required mold life (shots), and your injection machine specifications (tie-bar spacing, platen size).

Request a Quote for Your Heavy Duty Storage Box Mould

Send your heavy duty storage box 2D/3D drawings and material specs. ZHONGYUE MOULD will provide a free Structural DFM review + Moldflow cooling analysis + formal quotation within 24–48 working hours.

Contact us now to start your Industrial Grade Storage Bin / Turnover Box Injection Mold project!
