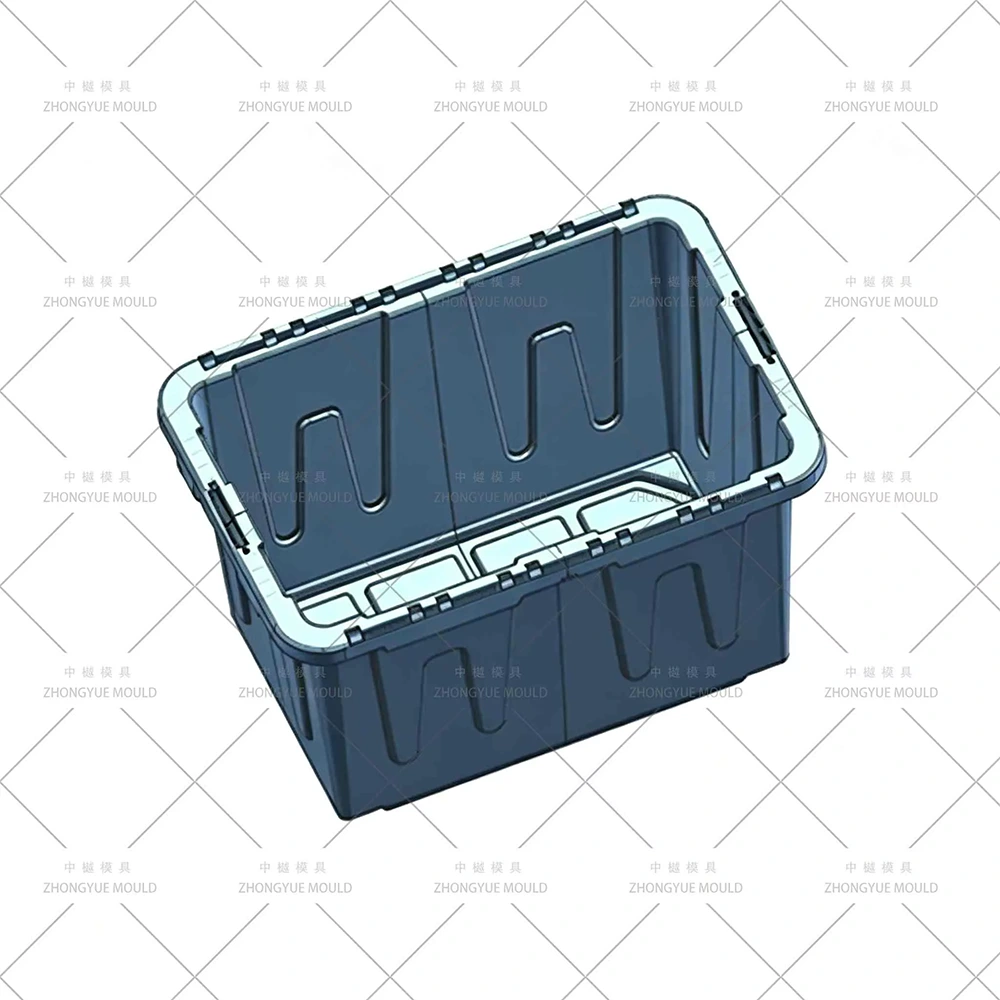

Unlike a separate-body storage box + loose lid, this product is molded in ONE shot as a single plastic part: the box body, the lid (single-flap or dual-flap "crocodile" lid), and a thin PP integral living hinge (0.25–0.4mm web) connecting them. The sidewalls have nesting taper (1.5–3° per side) so empty totes nest deeply — nested height 75–90mm vs. full height 220–365mm, saving 60–75% empty return volume. Many versions include tamper-evident seal eyelets, 4-side label holders, and ergonomic handgrips.

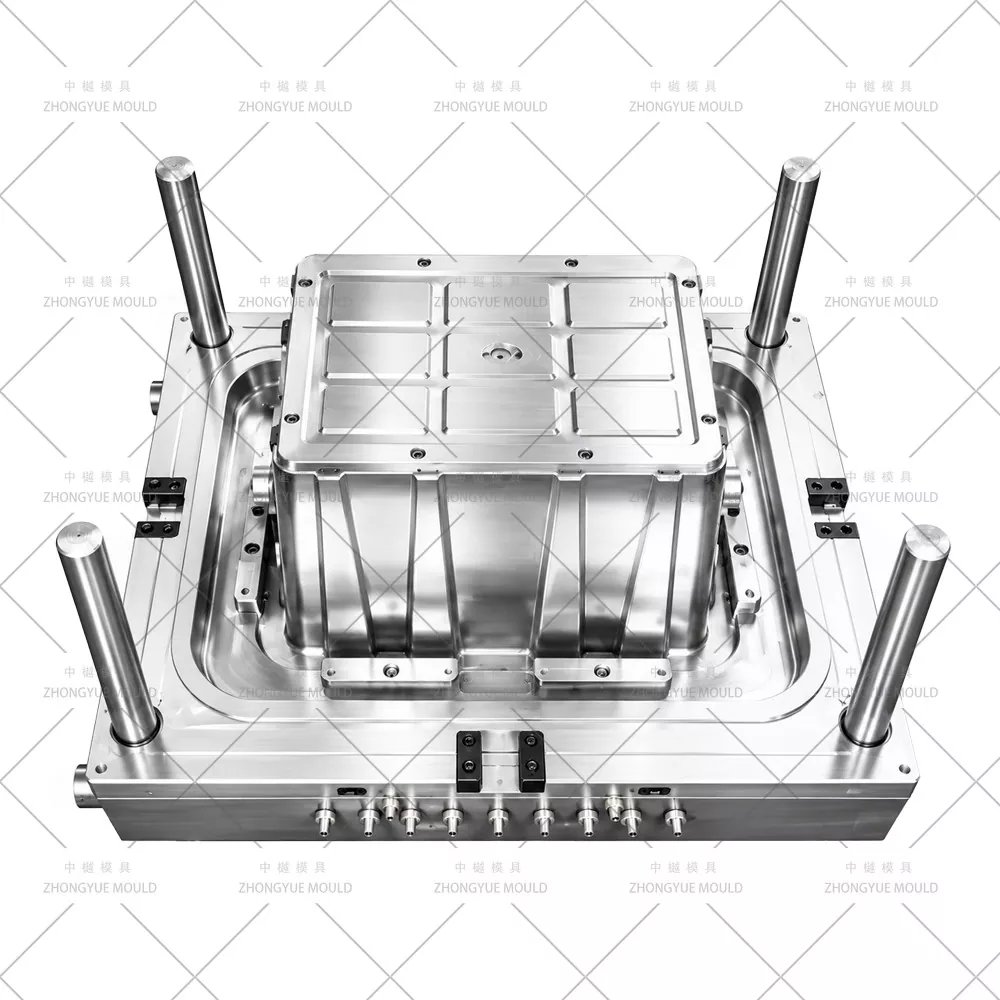

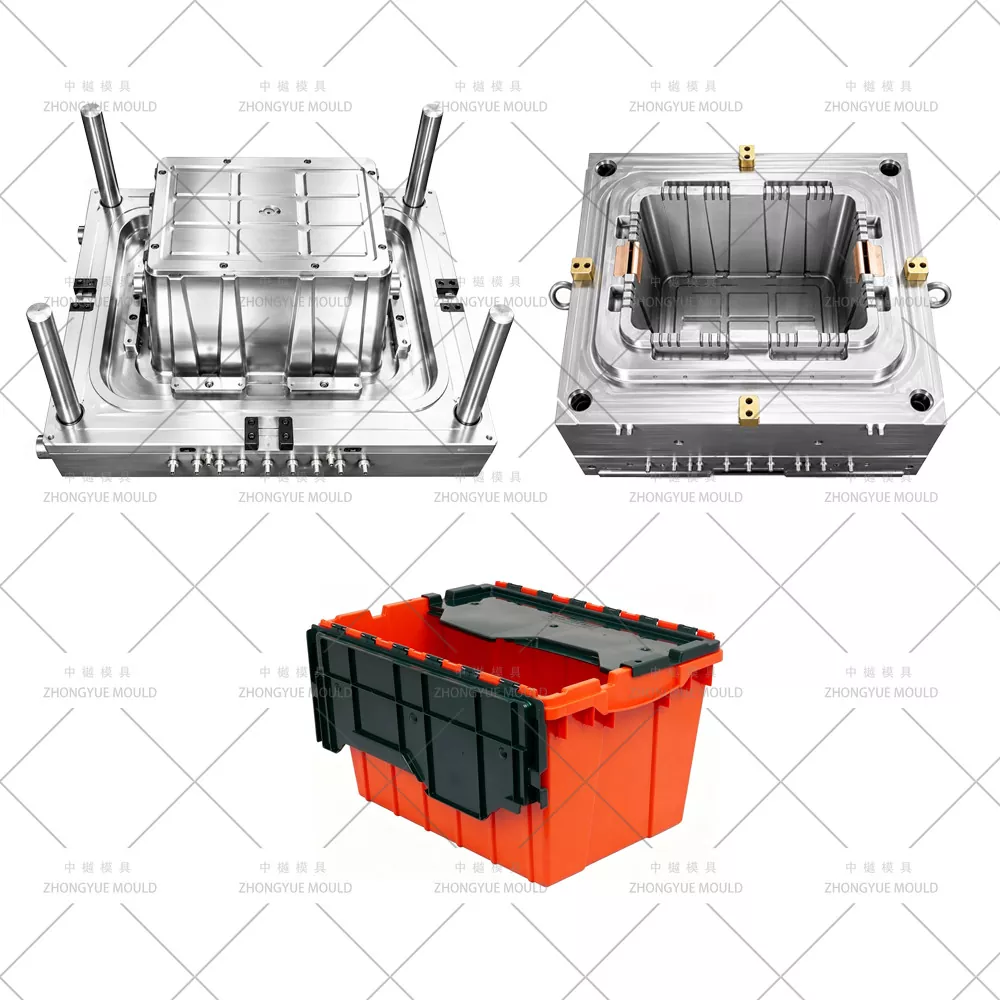

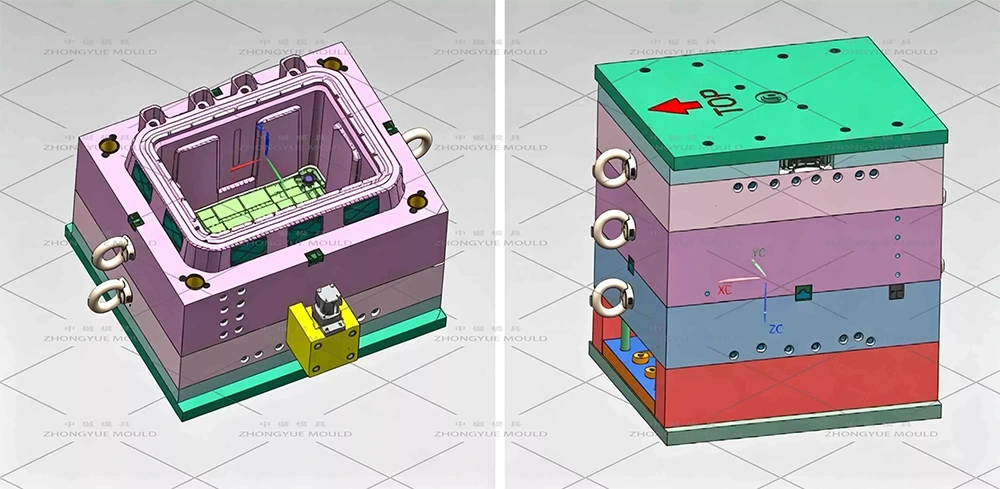

Our molds are single-cavity (1×1) producing Body+Lid+Hinge together (optional separate 2-cavity spare lid mold quoted), with BeCu insert cooling at hinge zone (moderated flow to preserve PP ductility & hinge life), central core baffle, hidden submarine gate on lid inner flange, and full DFM validating nesting interference clearance (≥1.5mm per side when nested 10-high) & stacking lip engagement with lid of box below.

From 21L 400×300mm nested totes with attached lid, 46L/56L/67L 600×400mm Euro attached-lid containers (flat-bottom conveyor-ready), to crocodile dual-flap lids with strap/strap-slots, we provide DFM review & Moldflow cooling/warp analysis before steel cutting.

Plastic Injection Storage Box Mould specifications :

Make your next Plastic Storage Box Mould project brighten!

What Is a Nesting Stackable Box with Attached Lid?

A Nesting Stackable Box with Attached Lid (also called Attached Lid Container – ALC / Nest & Stack Tote) is injection-molded from virgin PP (MFR 8–12 g/10min for best hinge fatigue life; MFR 12–18 acceptable for non-hinge areas) in a single-cavity mold that forms box + lid + integral living hinge simultaneously.

Key identifiers vs. previous articles:

Nesting Taper — sidewalls tapered inside & out (1.5–3°/side); empty boxes slide inside one another; nested height typically 75–90mm (21L–67L range).

Attached / Integral Hinge — thinned PP web (0.25–0.4mm) polished & radiused; survives 50,000+ open/close cycles without white stress-cracking when correct MFR PP & mold-temperature profile used.

Euro Footprint Compatibility — 600×400mm (46L–67L) or 400×300mm (21L) to stack on EU pallets (1200×800mm fits 2×3 nests); flat base for conveyor/belt travel.

Tamper-Evident Eyelets + Label Holders — molded-in holes for disposable seals & 4-side recessed label plaques.

Single Mold Shot = Body + Lid + Hinge — no loose lid to lose; optional separate spare-lid mold quoted.

Key Mold Engineering Highlights (Nesting ALC Version)

Integral Living Hinge Zone — Web Thinning & BeCu Moderated Cooling

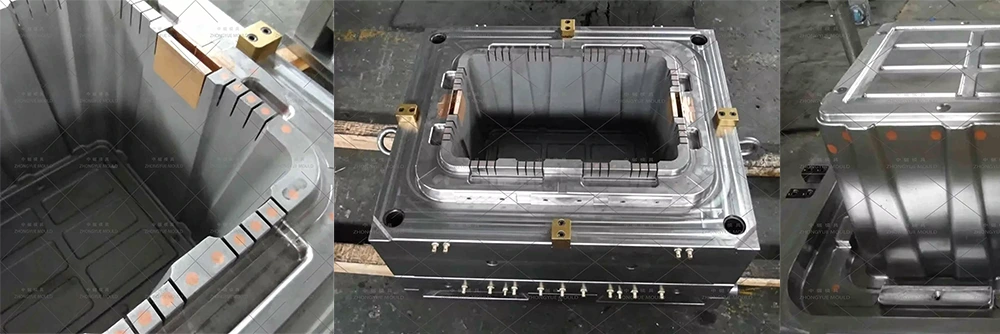

Cavity hinge web locally thinned to 0.25–0.4mm (typical 0.3mm for PP MFR 8–12) with R0.15–0.25mm blend radii both sides, mirror-/high-satin polished (SPI A2/B1). BeCu insert at hinge zone runs ΔT 5–6℃ (not over-cooled!) to retain PP molecular orientation & folding endurance (50k+ cycles). Over-cooling → hinge brittle; under-cooling → sink on lid/box near hinge.

Nesting Taper & Interference DFM — 3D Nesting Stack Simulation

Sidewall draft 1.5–3°/side (ID & OD same taper to keep wall thickness constant when nested). We simulate 10–12 nested empties in 3D to verify minimum clearance ≥1.5mm (rec. 2mm) between nested wall & base protrusions (ribs, stacking lip). Target: nested height ≤80mm (600×400 series) or ≤75mm (400×300 series).

Crocodile Lid (Dual-Flap) or Single-Flap Design

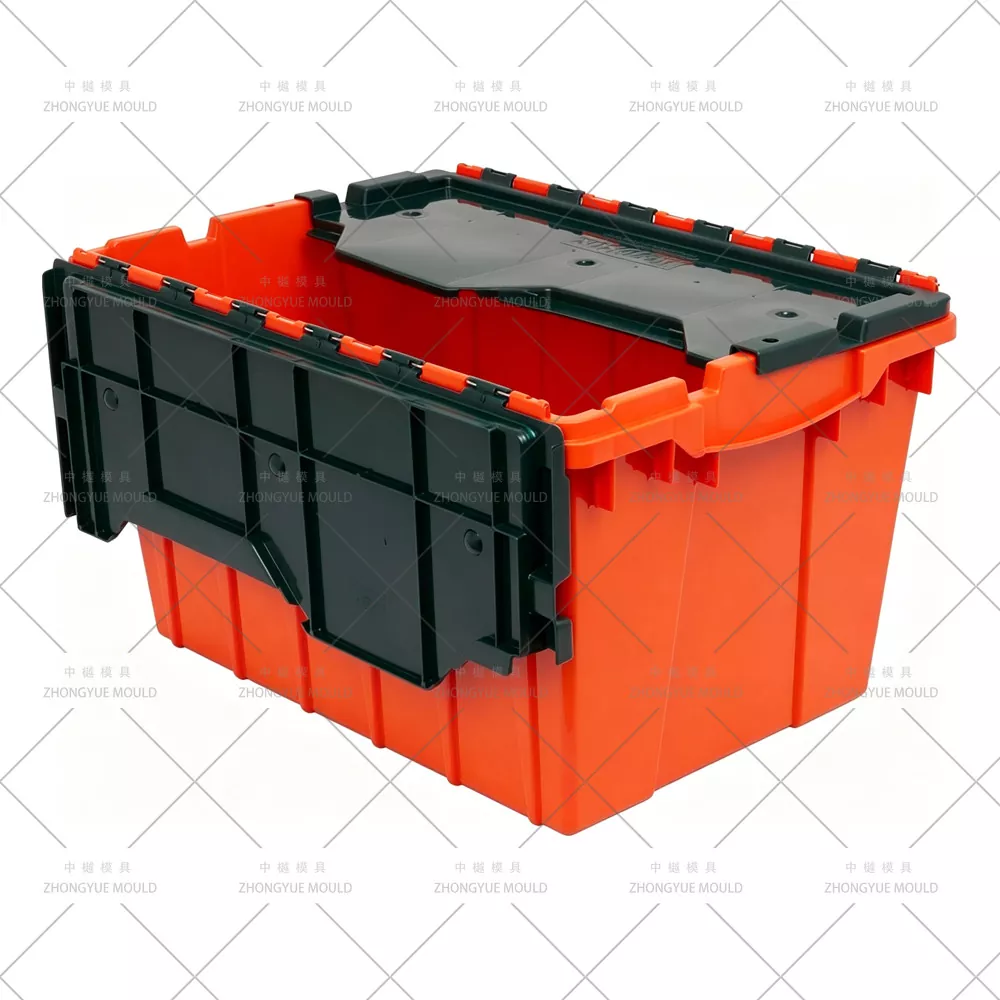

Dual-flap ("crocodile") lids interlock at center & engage box top lip; require center-parting rib detail & sometimes mini loose insert for undercut latch-profile — checked in 3D assembly. Single-flap version simpler, same mold style.

Stacking Lip Engagement DFM

Top flange has recessed stacking ledge that engages the lid-top of box below when full-stacked. We verify stacking lip flatness ±0.3mm & lid-top recess dimension vs. box-below-rim in DFM.

Hidden Sub-Gate on Lid Inner Flange / Box Top Inner Flange

Ø1.2–1.8mm submarine gate shears on inner non-visible face; NEVER gate through hinge web (causes weak orientation & burn). Vestige dressed flush; no visible gate mark on outer faces.

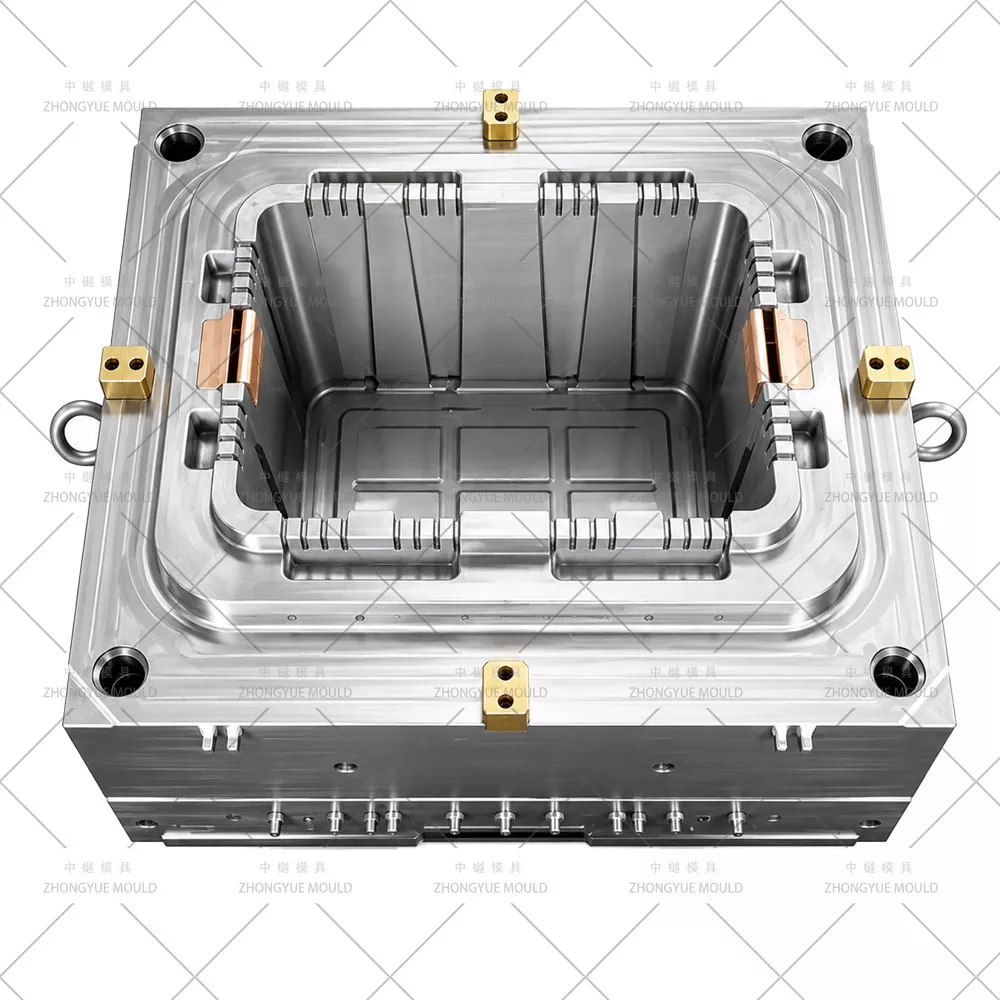

Cooling — Central Baffle + BeCu Hinge + BeCu Bottom Radius

Core: Ø10–12mm baffle; Cavity bottom radius: BeCu insert; Hinge zone: BeCu insert with moderatedwater flow. 2–3 isolated circuits; ΔT inlet–outlet ≤4℃ (core), 5–6℃ (hinge zone acceptable).

Tamper Eyelet & Label Holder Detailing

Molded-in Ø4–5mm thru-holes (eyelets) for security seals; recessed 80×40mm label plaques (4 sides) with draft ≥2°. No sharp edges — radius ≥0.5mm to prevent label peel & finger cuts.

Ergonomic Handgrips / Closed Handles

Through-holes with generous radii (R3–5mm) & filleted edges — DFM-checked for stress concentration. Optional closed handle loop (adds minor undercut — loose insert or shallow slide if present).

Applications of Nesting Stackable Boxes with Attached Lid (ALCs)

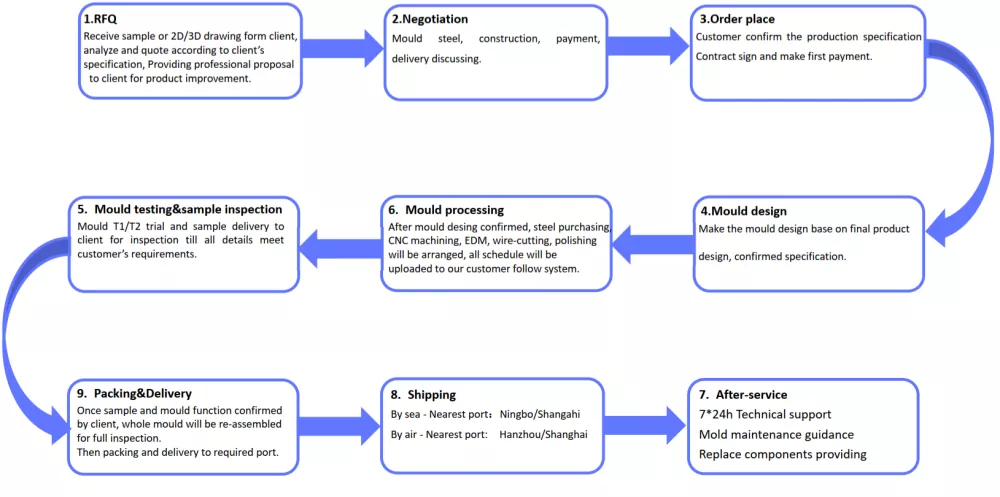

Our Manufacturing & Validation Process (Nesting ALC Mold)

Nesting DFM & Hinge Fatigue Review — Analyze wall thickness (1.8–2.8mm typ.), hinge web 0.25–0.4mm with radii, nesting taper 1.5–3°/side, tamper-eyelet Ø, label-holder recess. Run 3D nesting interference check (10-high nest) & Moldflow cooling/warp. Recommend PP MFR 8–12 for hinge life. Free DFM report.

Steel & Hinge-Zone Prep — Select P20/718H; order BeCu insert (MOLDMAX™) pre-machined to net shape; if crocodile latch undercut present, prep H13 nitrided mini-insert.

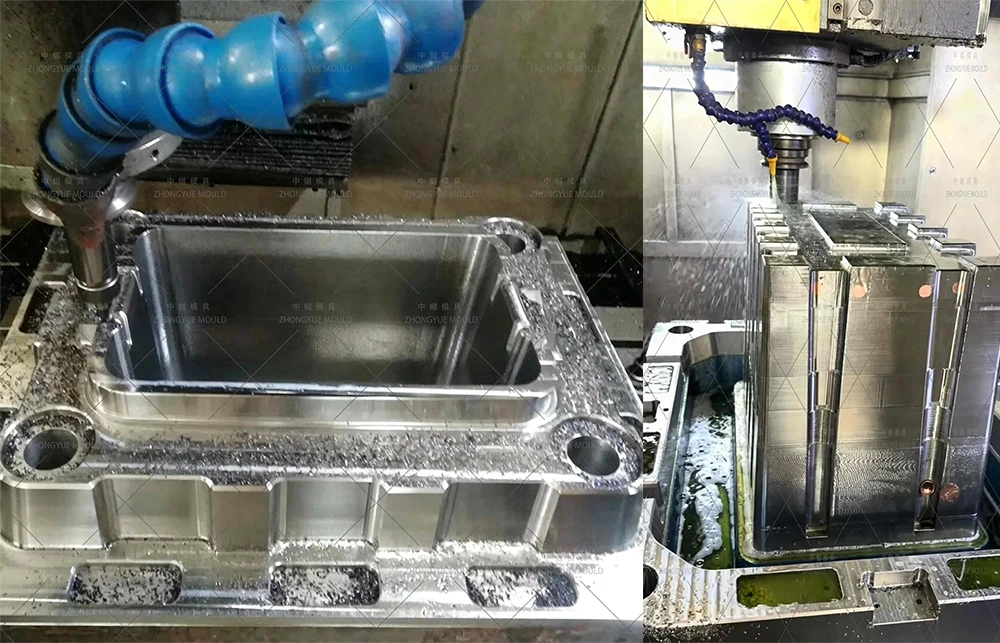

Precision Machining — High-speed CNC rough/finish cavity & core; deep-hole baffle drilling; hand-fit BeCu hinge insert with thermal-contact verification; polish hinge web SPI A2/B1; machine label-plaque recess & tamper-eyelet thro' holes.

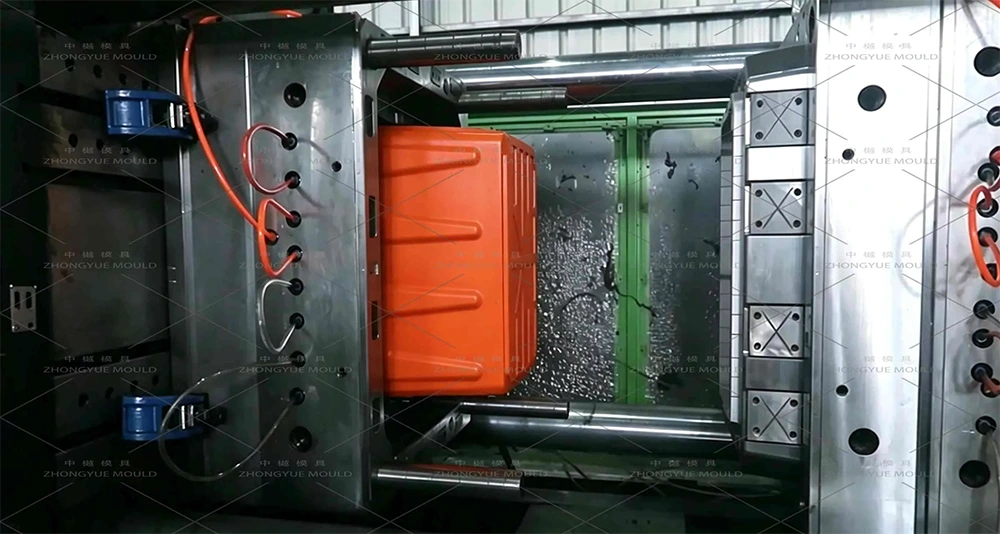

Assembly & T1 Trial — Run on in-house machine with specified PP (MFR per your spec); produce full-assembly sample; perform hinge fold test (manual/mechanical 50k+ goal), check nested height (target ≤80mm for 600×400), stacking lip fit on sample below, gate-vestige quality. Supply trial video + samples + CMM report.

Correction & Final Approval — Adjust cooling flow / vent if needed; ship in fumigation-free heavy-duty case w/ mold manual, spare parts (ejector pins, BeCu insert avail. as consumable), steel certs.

After-Sales Support — 1-Year warranty (non-man-made), free spare parts, remote guidance for re-venting / BeCu insert replacement.

Why Choose ZHONGYUE MOULD for Your Nesting ALC Mold?

Euro-Container Mold Experience — 21L/46L/56L/67L 600×400 & 400×300 nesting ALC molds built in-house; familiar with crocodile-lid & single-flap geometries

Nesting Interference DFM + Hinge Fatigue Consultancy — We simulate 10-high nests in 3D, verify stacking lip engagement, and advise PP MFR (8–12) & hinge-web thickness for 50k+ fold life

BeCu Hinge-Zone Expertise — Moderated cooling (not over-cold) to preserve PP ductility; thermal-contact verified during fit

Strict QC & Transparent Progress — Weekly machining photos, T1 sample approval (nested height check + hinge fold test) before shipment

Export Experience — Molds shipped to Europe (EN 840 footprint-compat discussion), North & South America, SEA, Middle East

1-Year Warranty + Replaceable BeCu Hinge Insert Supply
