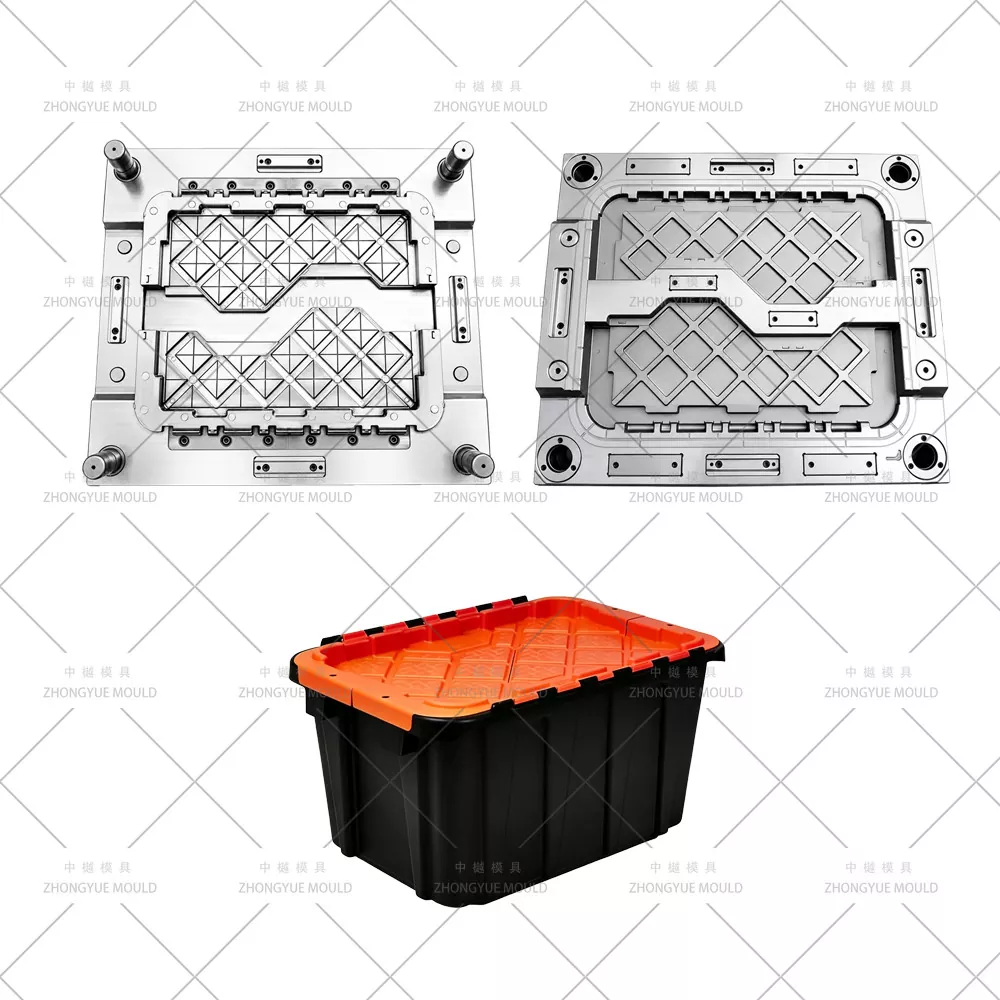

Nesting Stackable Storage Box with Attached Lid Mould

Nesting Stackable Storage Box with Attached Lid Mould – Insert Exchange Euro Attached-Lid Container / Nestable Tote Injection Mold Manufacturer

ZHONGYUE MOULD is a professional China injection mold manufacturer supplying Nesting Stackable Storage Boxes with Attached Lid Moulds / Insert Exchange Nestable Totes with Integral PP Hinge Lids (Euro Footprint 400×300mm & 600×400mm – 21L / 46L / 56L / 67L) to global retail-chain private labels, 3PL logistics providers, pharmaceutical distributors, and supermarket back-room operations.

Unlike standard single-spec molds, our Insert Exchange Mold System uses one common mold base (S50C / LKM / DME heavy-duty) with interchangeable cavity & core inserts for 21L (400×300×260mm, ~1.6kg PP) and 46L/56L (600×400×265–315mm, ~2.6–3.0kg PP). This saves ~30–40% on multi-size programs — you buy one base + two sets of inserts instead of two complete molds. All variants feature integral PP living hinge (0.25–0.4mm web, BeCu-zoned moderate cooling to preserve flex-fatigue life 50k+ cycles), nesting taper 1.5–3°/side (nested height 75–90mm = 60–75% volume saved), tamper-evident eyelets, and 4-side recessed label holders.

From private-label 21L nesting totes with attached lid for retail, 46L/56L Euro attached-lid containers for warehouse picking, to anti-microbial (Ag⁺/ZnO) PP grade totes for pharma/food, we provide full DFM covering nesting interference check (10-high, ≥2mm clearance), color-masterbatch flow analysis to prevent streaklines on flat lid surfaces, and porous steel venting for anti-microbial / carbon-additive PP.

Plastic Injection Storage Box Mould specifications :

Make your next Plastic Storage Box Mould project brighten!

What Is a Nesting Stackable Box with Attached Lid (Insert Exchange Version)?

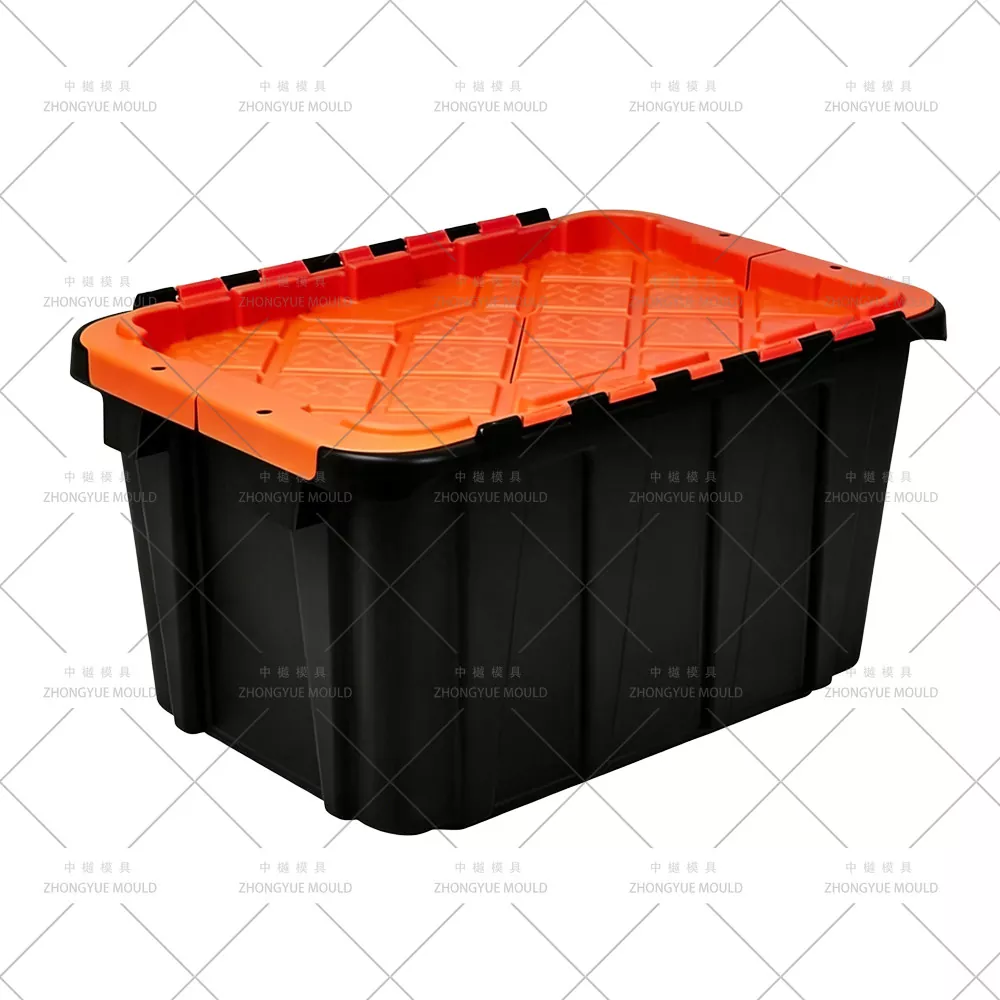

A Nesting Stackable Box with Attached Lid is a one-piece injection-molded container: box body + dual-flap "crocodile" or single-flap lid + integral PP living hinge web — all in a single shot (1×1 cavity). Our version adds interchangeable cavity/core insert blocks within a shared master mold base so you can produce both 400×300-series (21L) and 600×400-series (46L–67L) by swapping inserts only (30–45min changeover).

Key identifiers vs. previous articles:

Insert Exchange Mold System — common bolster, guided insert cassettes located by dowel pins & locked with hex bolts; repeatability ±0.05mm.

Anti-Microbial / ESD PP Compatible — porous vent inserts (sintered steel) in last-fill zones to prevent burn when running Ag⁺/ZnO or carbon-loaded PP.

Quick Color Change DFM — balanced runner (or hot-tip per insert), flow-leader analysis ensures even pigment dispersion; gate location optimized to hide weld/meld lines on broad lid top.

Dynamic Stack Test DFM Check — top flange flatness ±0.2mm guaranteed; simulated 5-high stacked @ rated load (25kg dynamic / 100kg static per Euro ALC standard — web 3/14) in DFM report.

RFID Pocket / Ultrasonic Logo Plate Recess — cavity includes milled pocket for future RFID tag under lid & changeable logo emboss/deboss insert.

Field-Maintainable Hinge Insert — BeCu hinge-zone block bolted from parting face → replace worn hinge polish insert without stripping whole cavity.

Key Mold Engineering Highlights (Insert Exchange / AM-Ready Nesting ALC)

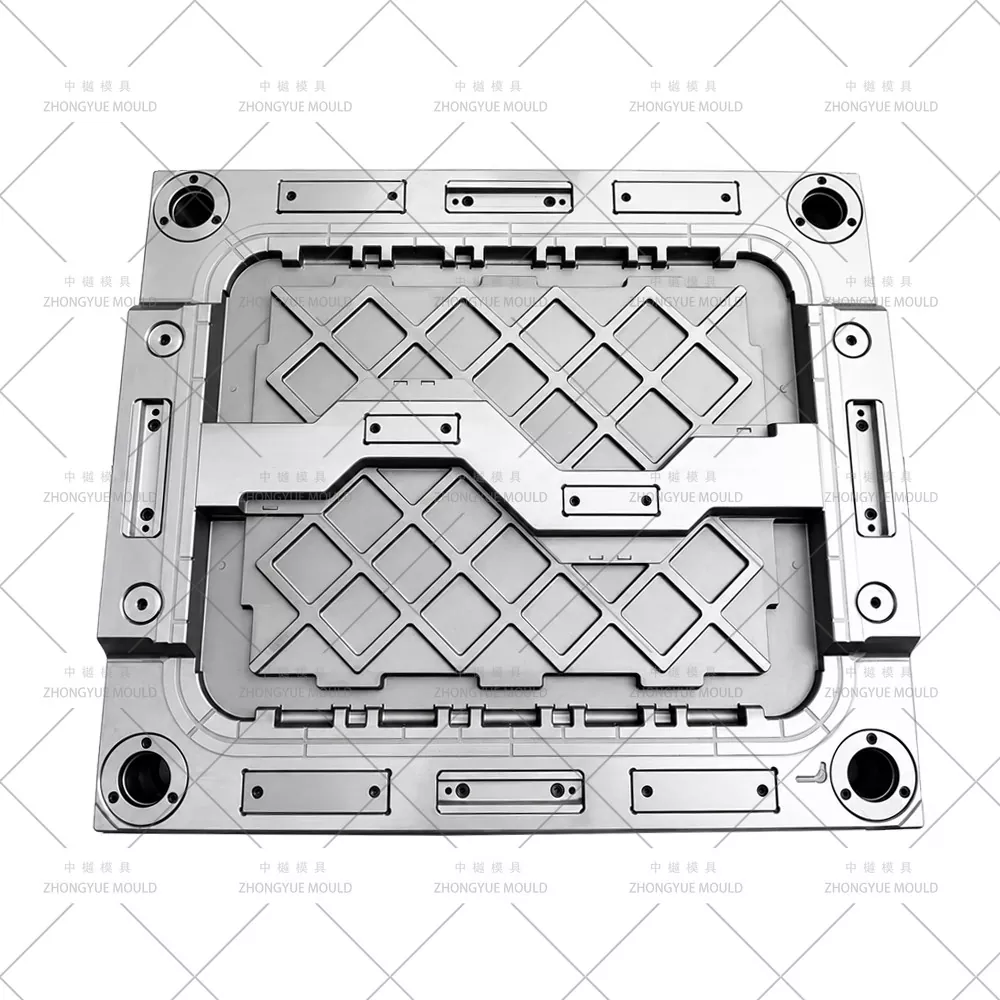

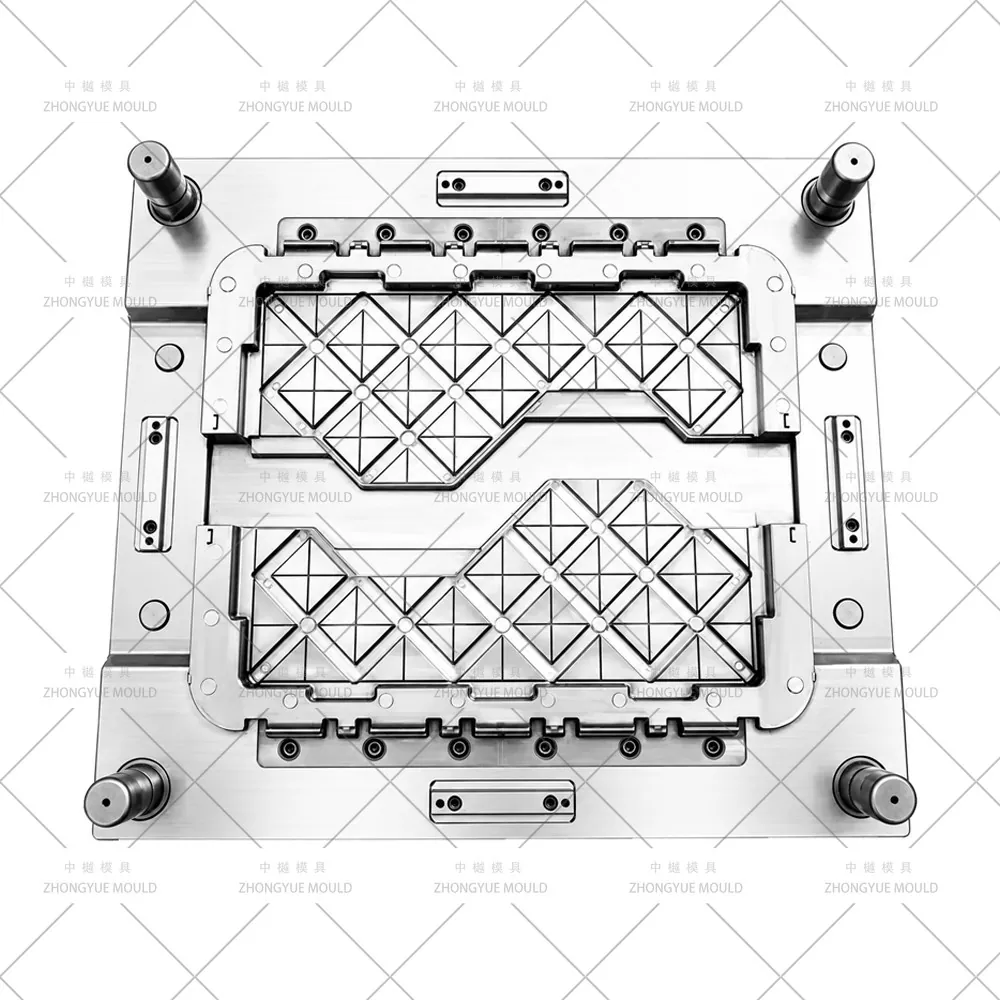

Insert Exchange Mold Base Design

Master base LKM/DME C-plate + support plate machined for guided insert cassettes (cavity & core inserts) located by Ø20–25mm dowel pins, clamped via socket-head capscrews. Indexed repeatability ≤0.03mm. Interchange sets available: 21L (400×300 footprint) & 46L (600×400 footprint). Optional 56L/67L deep-draw core insert quotes.

Integral PP Living Hinge — Web Thinning & Moderate BeCu Cooling

Cavity hinge web locally thinned to 0.25–0.4mm (typ. 0.3mm for PP MFR 8–12) with R0.15–0.25mm blend radii, polished SPI A2/B1. BeCu insert at hinge zone runs ΔT 5–6℃ (moderated flow — NOT over-cooled!) to retain PP molecular orientation & folding endurance (50,000+ open/close cycles). Hinge insert is replaceable bolt-on block from parting face.

Nesting Taper & 10-High Interference DFM

Sidewall draft 1.5–3°/side (ID & OD same taper to keep wall constant when nested). We simulate 10 nested empties in 3D → verify minimum clearance ≥2mm (rec. ≥1.5mm) between nested wall & base bosses/ribs. Target nested height: 75–90mm (21L–67L range) = 60–75% volume reduction.

Anti-Microbial / ESD PP Venting (Porous Steel Inserts)

For Ag⁺/ZnO anti-microbial or carbon-loaded ESD PP: sintered porous steel vent inserts (10–20μm pore) at last-fill zone (lid crown & deep-core shoulder) + 0.01–0.015mm parting-line vents → prevent burn marks from additive particles. Vent inserts accessible from mold exterior for cleaning/replacement.

Color-Masterbatch Flow & Streak Prevention DFM

Gate positioned on lid inner flange or box top inner flange — vestige hidden from outer face; flow-length balanced per cavity. We run Moldflow filler + dye-trace simulation to confirm no weld/meld line on visible lid-top surface; advise MB let-down rate (1–2%) & screw recovery rpm to avoid splay/streaks on large satin-finished flats.

Top-Flange Flatness ±0.2mm & Stack-Lip Engagement Check

Top flange machined to flatness ±0.2mm; stacking lip recess engages lid of box below (when full-stacked). DFM verifies stack-lip depth vs. lid-datum to prevent rocking on 5-high loaded stack per Euro ALC reference (static load 100kg, dynamic 25kg — web 3/14).

Tamper-Eyelet & 4-Side Label Recess

Molded-in Ø4–5mm thru-holes (eyelets) for disposable security seals; recessed 80×40mm label plaques (4 sides, draft ≥2°, fillet R0.5mm) for adhesive/screen-print labels — no extra tooling charge unless custom size.

Hidden Sub-Gate on Lid/Bx Top Inner Flange

Ø1.2–1.8mm submarine gate shears clean on inner non-visible flange; NEVER gate through hinge web (weak orientation & burn risk). Cold runner Y-branch per insert or hot-tip (YUDO/SYNVENTIVE 1-tip) optional.

BeCu Bottom-Radius + Central Baffle Cooling

Core: Ø10–12mm baffle; Cavity bottom-radius: BeCu insert; Hinge zone: separate BeCu insert with moderated ΔT. 2–3 isolated circuits; ΔT inlet–outlet ≤4℃ (core), 5–6℃ (hinge zone OK).

Applications of Insert-Exchange Nesting ALCs (21L & 46L/56L/67L)

Our Manufacturing & Validation Process (Insert Exchange Nesting ALC Mold)

Nesting + MB Flow + AM-Vent DFM Review — Analyze wall (1.8–2.8mm), hinge web 0.25–0.4mm w/ radii, nesting taper 1.5–3°/side, color-MB let-down & gate location to avoid lid-top weld lines. Simulate 10-high nest interference (≥2mm clearance) & fill-flow with dye trace. For AM/ESD PP: specify porous vent locations. Free DFM report.

Master Base & Insert Cassette Machining — CNC rough/finish cavity & core inserts to ±0.02mm; hand-fit BeCu hinge insert with thermal-contact check; machine label-plaque recesses & tamper-eyelets; porous vent inserts installed & flow-tested with air.

Assembly & T1 Trial (Both Insert Sets) — Run on in-house machine with specified PP (MFR per your spec). Produce samples from both 21L & 46L inserts (swap time recorded). Check: hinge fold test (manual/mech 50k+ goal), nested height (target ≤80mm for 46L), top-flange flatness ±0.2mm, gate-vestige quality. Supply trial video + samples + CMM report.

Correction & Final Approval — Adjust cooling flow / vent if needed; ship master base + insert cassettes in separate labeled fumigation-free cases with mold manual, spare parts (ejector pins, BeCu hinge insert avail. as consumable, porous vent spares).

After-Sales Support — 1-Year warranty (non-man-made), free spare parts, remote guidance for insert change-over procedure & BeCu/vent replacement.

Why Choose ZHONGYUE MOULD for Your Insert Exchange Nesting ALC Mold?

Insert Exchange & Multi-Size Euro ALC Experience — We've built common-base molds for 21L(400×300)+46L(600×400) nesting totes with swappable cavity/core cassettes — saves you 30–40% vs. two full molds.

Advanced DFM: Nesting Interference + MB Flow + AM/ESD Vent Planning — We simulate 10-high nests, color-masterbatch flow streak prevention, and specify porous steel vents for anti-microbial/carbon-filled PP beforesteel cuts.

Replaceable BeCu Hinge Insert (Bolt-On from Parting Face) — Worn hinge polish zone swapped in minutes without stripping cavity; extends mold service life economically.

Strict QC & Transparent Progress — Weekly machining photos, T1 samples from bothinsert sets, hinge fold-test & nested-height verification before shipment.

Export Experience — Molds shipped to Europe (EN 840 footprint-discussion), North & South America, SEA, Middle East.

1-Year Warranty + Spare BeCu Hinge Inserts / Porous Vent Inserts Available

Frequently Asked Questions — Nesting Stackable Box with Attached Lid (Insert Exchange) Mold

Q: What is an Insert Exchange Mold System and why should I use it?

A: One heavy-duty mold base + interchangeable cavity/core insert cassettes for different sizes (e.g., 21L 400×300mm & 46L 600×400mm). You pay for one base + two insert sets instead of two complete molds — saves ~30–40% CAPEX. Changeover ~30–45min by loosening clamp screws & swapping dowel-located inserts.

Q: Can you run Anti-Microbial PP (silver/zinc ion masterbatch) or ESD PP?

A: Yes. These additives can cause burn marks if not vented properly. We design sintered porous steel vent inserts at last-fill zones + deeper parting-line vents → prevent splay/burn. We'll note vent cleaning interval in the mold manual.

Q: How do you prevent color streaklines on large flat lid surfaces?

A: We run Moldflow filler + dye-trace simulation per your color masterbatch let-down rate (1–2% typ.). Gate is positioned on inner flange (hidden) with balanced flow length; we verify no weld/meld line appears on visible lid-top surface. Advice on screw rpm & back-pressure also provided.

Q: What PP MFR do you recommend for best hinge life in this mold?

A: MFR 8–12 g/10min (Copolymer PP) for integral hinge — retains fold-endurance (50,000+ cycles) without white stress-cracking. MFR 12–18 is usable but hinge life decreases; MFR >20 not recommended for hinge zone.

Q: What do you need for a quotation?

A: 2D drawing (PDF/DWG) + 3D model (STP/IGS/X_T) of EACH size you want (e.g., 21L + 46L) OR clear photos with dims (outer/inner L×W×H, wall thickness, nested height if known, hinge-web spec if any). Tell us PP grade (MFR), annual volume, color-MB %, and whether anti-microbial/ESD version needed.

Request a Quote for Your Nesting Stackable Storage Box with Attached Lid Mould (Insert Exchange System)

Send your nesting ALC 2D/3D drawings (for each size — e.g. 21L 400×300 & 46L 600×400) and project requirements (PP MFR, color-MB %, anti-microbial/ESD yes/no). ZHONGYUE MOULD will provide a free Nesting-Interference + MB-Flow + AM/ESD Vent DFM report + formal quotation within 24–48 working hours.

Contact us now to start your Insert Exchange Euro-Size Nestable Attached-Lid Container / Nesting Stackable Tote Injection Mold project!
