50L Storage Box Lid Mould

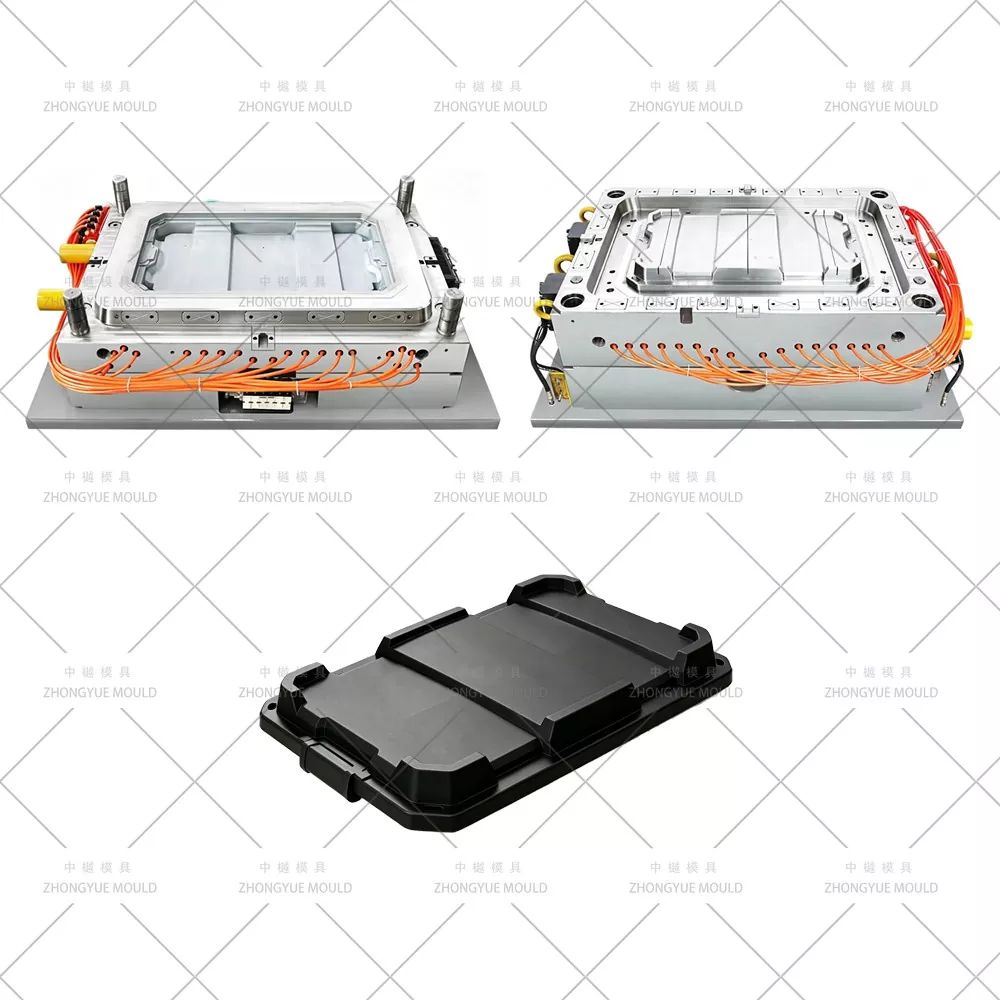

50L Storage Box Lid Mould – Custom Plastic 50L Storage Container Lid / Cover Injection Mold Manufacturer

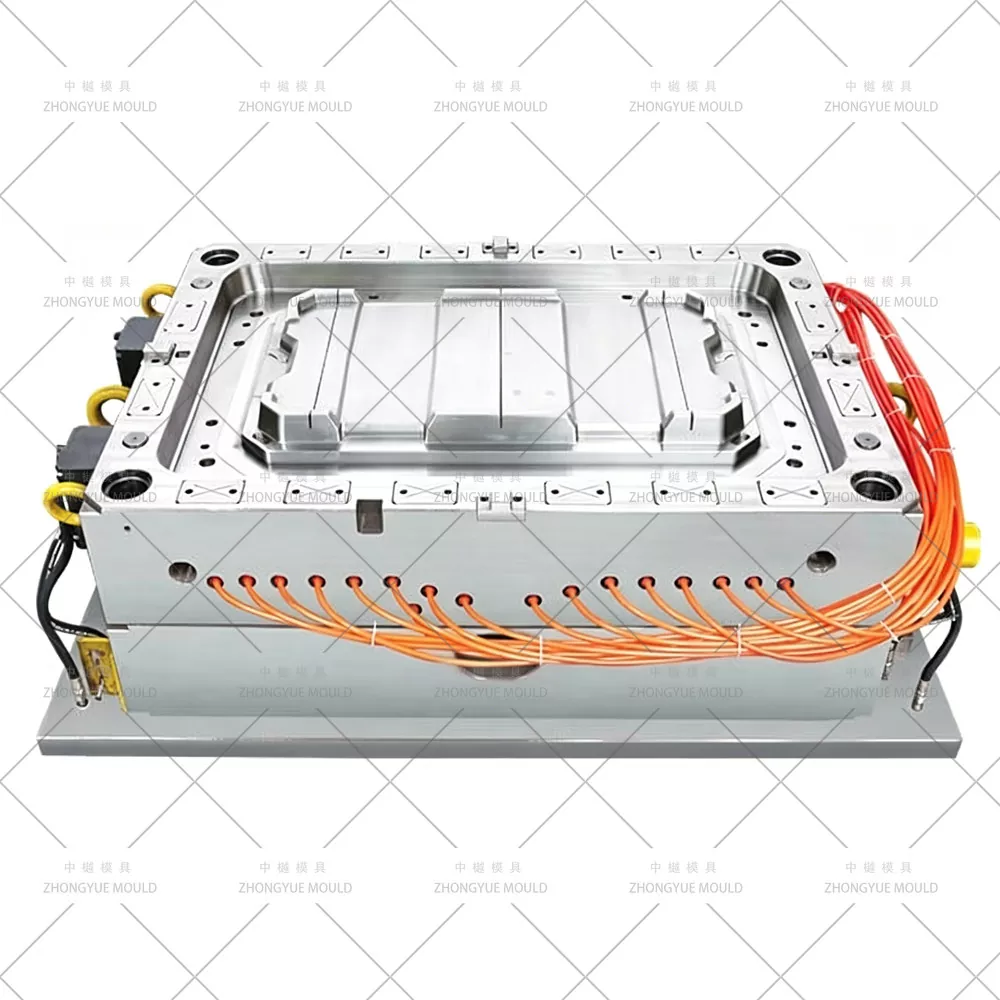

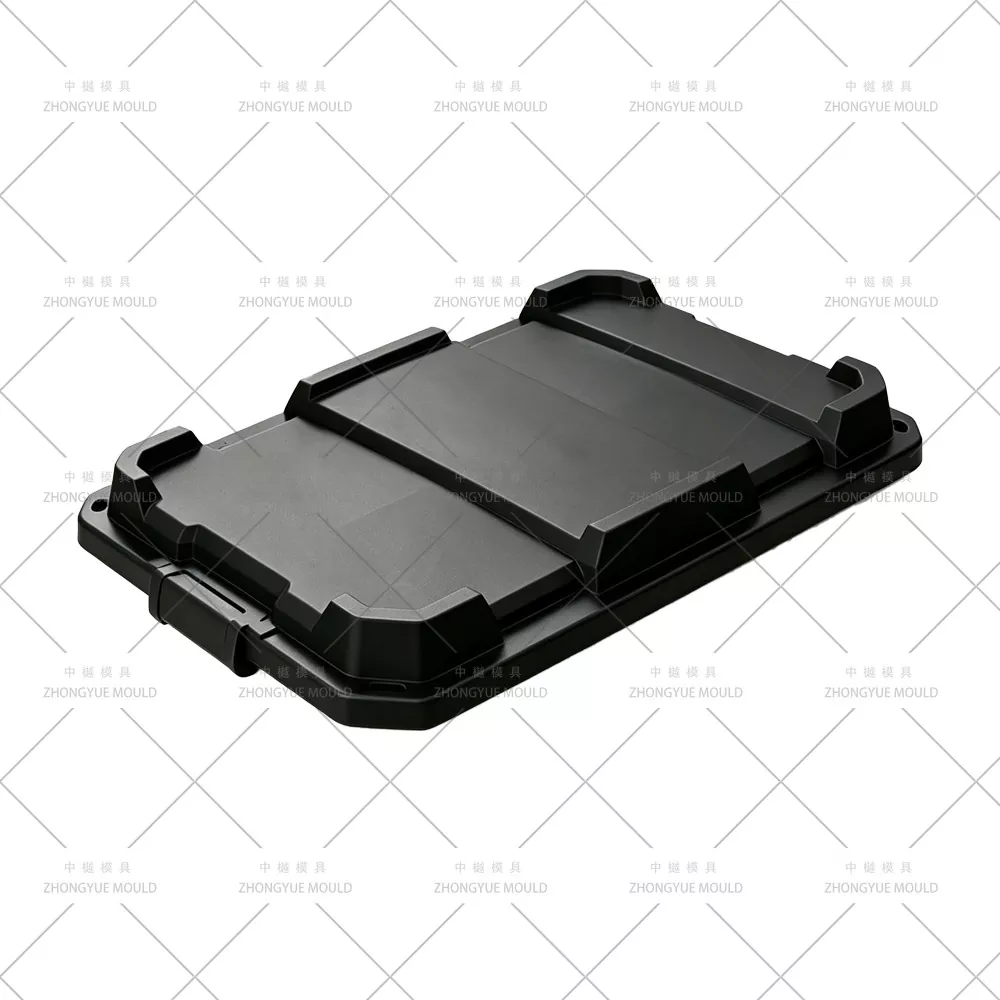

ZHONGYUE MOULD is a professional Chinese injection mold manufacturer supplying 50L Storage Box Lid Moulds / Plastic 50L Storage Container Lid Injection Molds (Snap-fit or Hinged Box Covers) to global household products wholesalers, supermarkets, and private-label brands. The 50L storage box lid is a shallow-draw component (depth typically 30–70mm) molded in PP (MFR 8–15 g/10min, color-matched to body or clear PS/ABS for premium lines) with a smooth satin-polish outer face (SPI B1/B2) and inner snap-fit ribs engaging the box top flange. Our lid molds are commonly designed as 2-cavity or 4-cavity (2×1, 2×2, or 1+1 L+R for contoured lids) to balance the slower cycle of the 50L box body (1×1). Features include hidden submarine gate on inner rim, micro angled-lifters or shallow slides for snap-clip undercuts, optional silicone-seal groove, and DFM verification of lid-to-body seating clearance (0.2–0.4mm).

From snap-on storage box lids (opaque PP color-match), clear viewing window lids (PS/ABS insert or separate clear lid mold), to gasket-groove lids for dust-proof storage, we provide full DFM review before steel cutting.

Plastic Injection Storage Box Mould specifications :

Make your next Plastic Storage Box Mould project brighten!

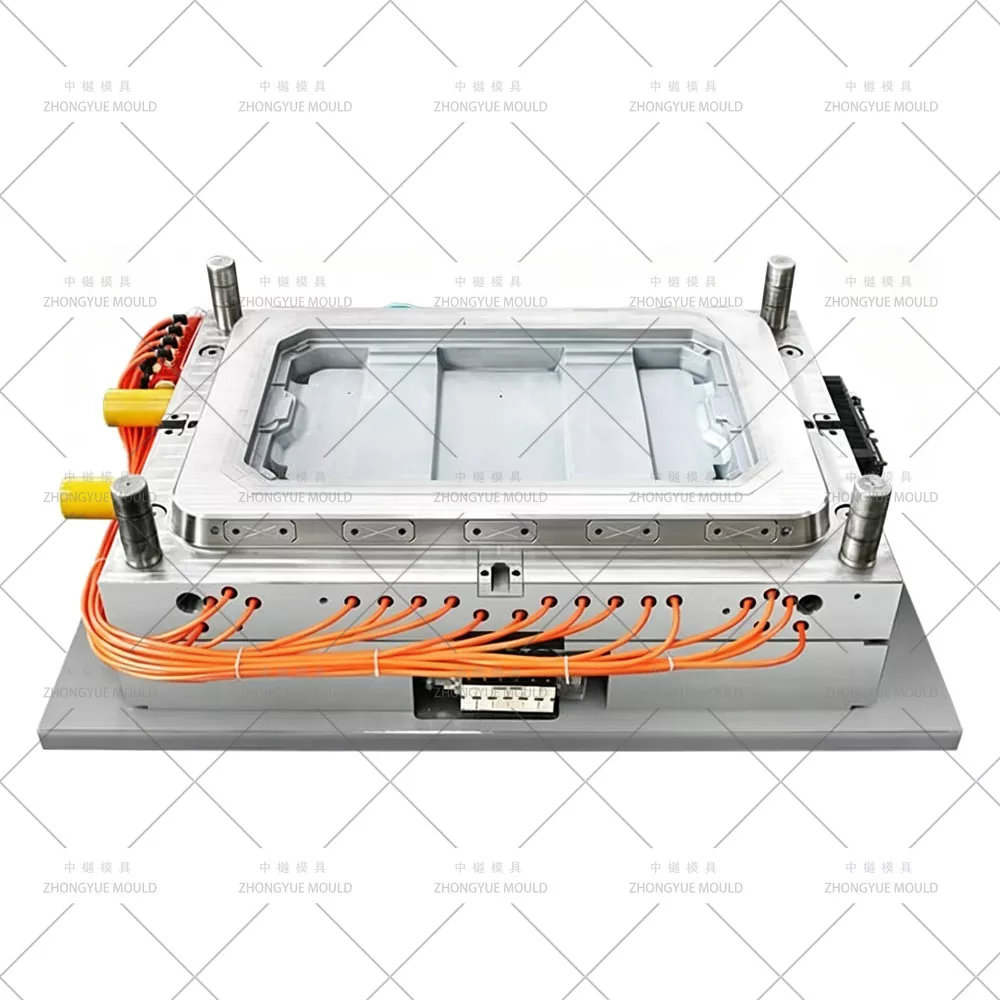

Key Mold Engineering Highlights for 50L Storage Box Lid Molds

Multi-Cavity for Output Balance (2×1, 2×2, 4×1) — 50L box body is 1×1 (cycle ~25–40s); lid cycles faster (~10–18s) → 2-cavity or 4-cavity lid mold matches daily throughput without over-producing lids. Runner Y-branched & balanced per cavity fill time in DFM.

Snap-Fit Clip Undercut — Micro Angled Lifter or Shallow Slide — 1–2 small lifters (travel 3–10mm) or shallow angled slide withdraw snap-clip that engages 50L box top flange; H13 nitrided inserts for wear; interference checked in 3D assembly.

Shrinkage Compensation for PP Lid (Shallow-Draw Rectangle/Round) — PP shrinkage ~1.2–1.8%; lid perimeter / flange seat slightly enlarged per Moldflow-verified shrink; lid-to-body clearance controlled at 0.2–0.4mm (checked with your box-body drawing/dims).

Hidden Submarine (Latent) Gate on Inner Flange / Back Face — Gate vestige invisible from outer visible face; cold runner Y-branch standard for multi-cavity; hot-tip (open) optional for single-cavity clear PS premium lid.

Thin-Wall Cooling & Short Cycle — Baffle Ø6–8mm + peripheral bubbler in core; isolated circuit; typical cycle 10–18s; 0.01–0.015mm parting-line vents to prevent burn on thin sections.

Surface Finish — Satin Polish Standard / High Gloss Optional — Cavity SPI B1/B2 satin (standard PP lid); SPI A2 high-gloss (S136 insert) optional for clear/premium ABS lid; NO rattan/VDI weave etching unless specifically requested as special decor-version. Core polished SPI B1 for easy release.

Optional Silicone-Seal Groove & Logo Insert — Machined O-ring groove in core; changeable logo emboss/deboss insert on non-visible inner side or back face.

Recommended Mold Steel for 50L Storage Box Lid Molds

Our Mold Manufacturing & Validation Process

Project Kick-off & DFM Review — Analyze lid wall thickness (1.2–2.0mm typ.), snap-clip undercut & lifter stroke, gate location & runner Y-branch balance for multi-cavity, lid-to-body seating clearance (NEED box-body top flange dims / drawing). Suggest cavity number to match your 50L body mold output ratio.

Mold Design Approval (3D) — Full assembly with cooling baffle layout, micro-lifter/slide detail with interference check, runner balancing simulation, venting strategy (0.01–0.015mm parting-line).

Precision Machining — High-speed CNC rough/finish cavity, core/cavity SPI B1/B2 (or S136 A2 for gloss zone), H13 micro-lifter nitriding & hand-fitting, logo insert pocket machined.

Assembly & T1 Trial — Run on in-house injection machine; check snap-fit on 50L box body sample (sent or purchased separately), gate vestige, cooling cycle (~10–18s); supply trial video + sample lids + dimensional check.

Correction & Final Approval — Fine-tune lifter timing if needed; ship in fumigation-free case with mold manual & spare parts list (micro-lifter spring, ejector pins, sprue puller).

After-sales Support — 1-Year mold warranty, free spare parts for non-man-made damage (esp. micro-lifter spring/pins), remote technical guidance.

Why Choose ZHONGYUE MOULD for Your Household Mould?

Rich Household Mold Experience — 5L–120L storage boxes (body + lid sets), rattan bins, chairs, crates, baskets built in-house

In-house DFM with Body-Lid Fit Check — Verify lid-to-box flange clearance (0.2–0.4mm) using your body drawing/dim before steel cutting; advise optimal cavity count (2×1 / 2×2) to match body output

Multi-Cavity & Micro-Lifter Expertise — Balanced Y-branch runner, small snap-clip lifters/slides correctly calculated; S136 high-gloss zone optional for clear/premium lid

Strict QC & Transparent Progress — Weekly machining photos, T1 sample approval (fit-check on body sample) before shipment

Export Experience — Molds shipped to Europe, North America, South America, Southeast Asia, Middle East

1-Year Mold Warranty + Spare Parts Supply (micro-lifter springs, ejector pins)

Frequently Asked Questions — 50L Storage Box Lid Mold

Q: What cavity count should I choose — 1×1, 2×1 or 2×2?

A: 50L box body is usually 1×1 (cycle ~25–40s). Lid cycles faster (~10–18s), so we recommend 2-cavity (2×1) or 4-cavity (2×2 or 4×1) to roughly balance daily output. Tell us your body cavity count & daily volume — we'll calculate the optimal lid cavity number.

Q: Does the lid mold need the box body drawing?

A: Strongly recommended — we need the box top-rim Ø or L×W, flange thickness, and snap-groove location (or send the body 3D) to verify lid seating clearance (0.2–0.4mm) and snap-clip engagement before cutting steel.

Q: What surface finish — any rattan/woven texture?

A: Standard is SPI B1/B2 satin polish (no texture) for PP lids. SPI A2 high-gloss (S136 insert) optional for clear PS or premium ABS lid. VDI/rattan cane etching NOT applied unless you order a special decor-version lid to match rattan box body.

Q: Can you add a groove for silicone seal gasket?

A: Yes — machined O-ring/gasket groove in core; we can also advise groove cross-section (typically 2.0–3.0mm wide × 1.5–2.0mm deep) per standard silicone cord size.

Q: What do you need for a quotation?

A: 2D drawing (PDF/DWG) + 3D model (STP/IGS/X_T) of the lid AND preferably box-body top flange dims or 3D; tell us your body mold cavity number (1×1 etc.), annual volume, preferred lid cavity (2×1 / 2×2), and material (PP MFR / GPPS / ABS).

Request a Quote for Your 50L Storage Box Lid Mould

Send your 50L storage box lid 2D drawing + 3D model (and ideally box-body top flange dims/file) and project requirements. Tell us your 50L body mold cavity count — ZHONGYUE MOULD will provide a free DFM review with lid-body fit check + cavity-number recommendation + formal quotation within 24–48 working hours.

Contact us now to start your 50L Plastic Storage Container Lid / Cover Injection Mold project!
