Heavy Duty Storage Box Lid Mould

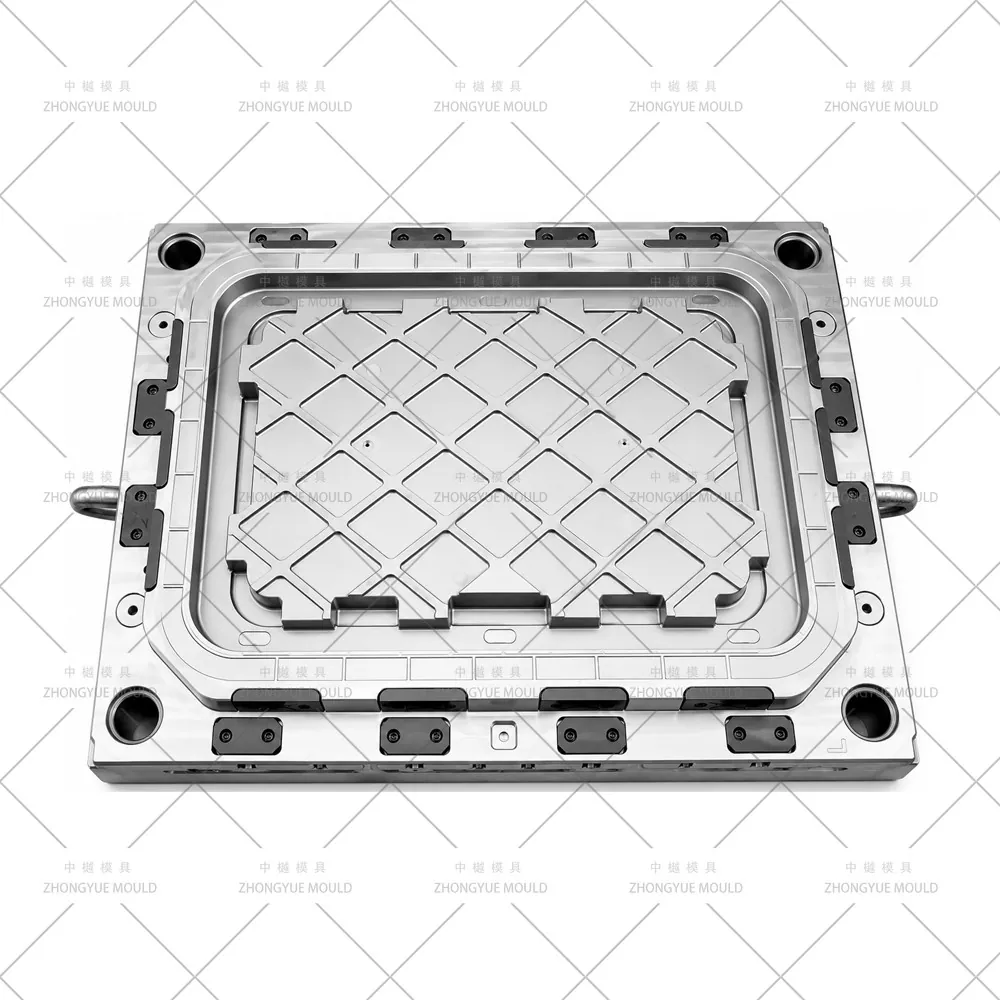

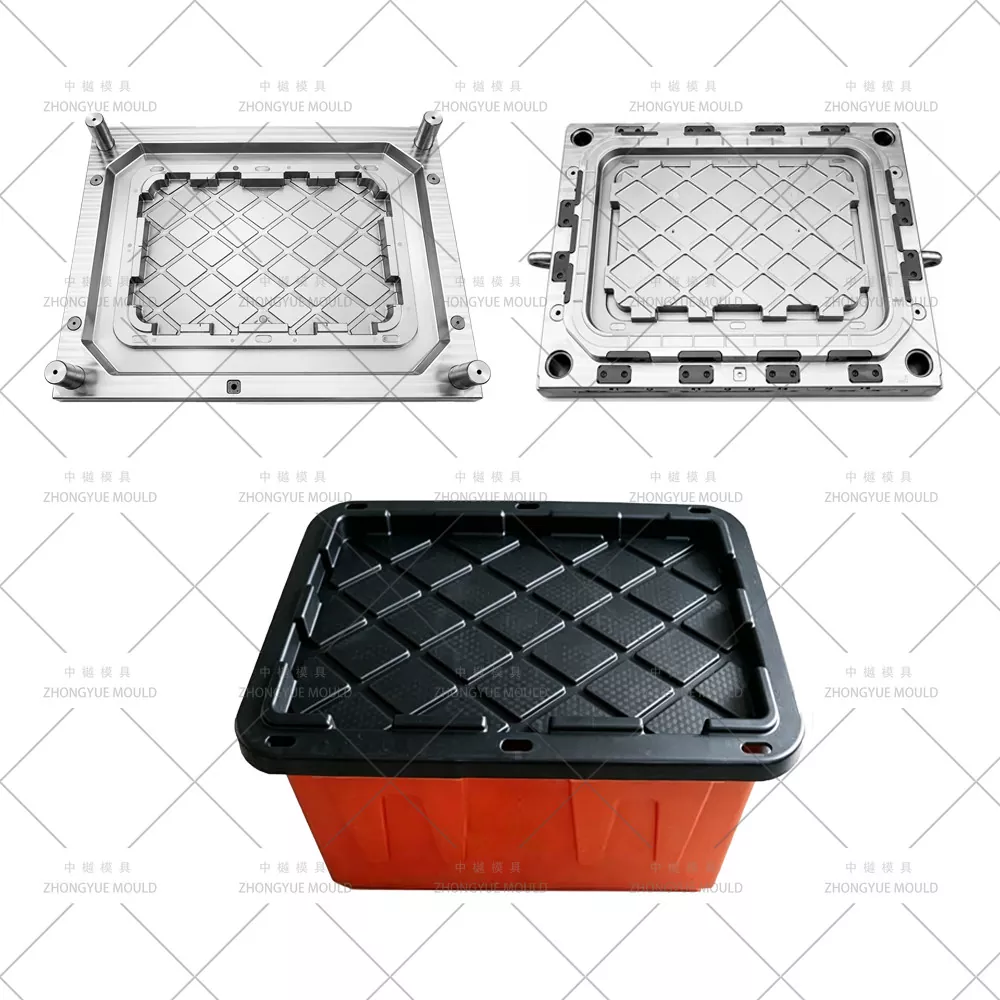

Heavy Duty Storage Box Lid Mould – Custom Industrial Grade Plastic Bin Lid Injection Mold Manufacturer

ZHONGYUE MOULD is a professional Chinese injection mold manufacturer supplying Heavy Duty Storage Box Lid Moulds / Industrial Grade Plastic Bin Lid Injection Molds (Attached Lids, Detached Covers, Hinged Lids for Turnover Boxes) to global logistics automation firms, automotive parts suppliers, and heavy industry warehouses. Unlike household lids, heavy-duty industrial lids must withstand 24/7 mechanical flipping by robotic arms, high-impact drops, exposure to harsh chemicals (oils/acids), and extreme temperature fluctuations (-20℃ to 60℃). Typically molded in High-Impact Copolymer PP or ABS, these lids feature thickened hinge knuckles (3.0–5.0mm), precision-machined stainless-steel pin inserts (for million-cycle hinges), and deep O-ring grooves for IP54 dust/water protection. Our molds are engineered for high-speed cycling (10–15s) with polished cooling channels and hardened slide cores to ensure zero maintenance over 1,000,000+ shots.

From attached hinged lids for ALCs (Attached Lid Containers), detachable waterproof covers with gaskets, to RFID-embedded smart lids, we provide full DFM review focusing on hinge fatigue life and sealing performance before steel cutting.

Plastic Injection Storage Box Mould specifications :

Make your next Plastic Storage Box Mould project brighten!

Key Differences: Household Lid vs. Heavy Duty Industrial Lid

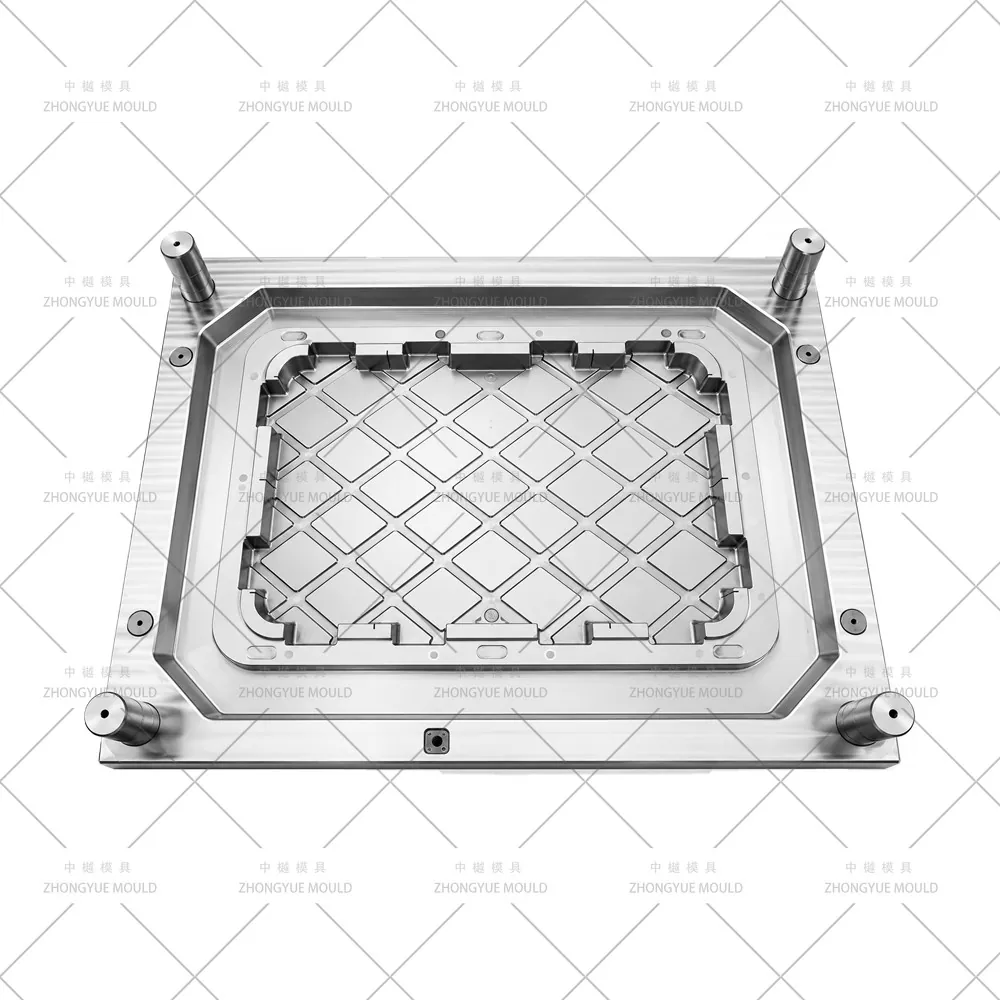

Key Mold Engineering Highlights for Heavy Duty Lids

Hinge Knuckle Core Design (Wear Resistance) — Industrial lids often flip 50,000+ times. We use H13 (2344 ESR) nitrided cores for the hinge knuckles or design for stainless steel pin inserts to be pressed in post-molding. This prevents hinge wear and breakage common in all-plastic hinge designs.

Precision O-Ring / Gasket Groove Machining — For waterproof/dustproof applications, the mold core includes CNC-machined O-ring grooves (tolerance ±0.05mm) to ensure perfect compression of silicone or EPDM gaskets. We verify groove depth vs. gasket cross-section in DFM.

Anti-Slip & Robotic Gripping Features — Lids often include anti-slip textured grids on top and robotic gripping recesses/flats on the sides for automated picking by vacuum or mechanical grippers. We design these features with draft angles that prevent sticking.

Multi-Cavity Efficiency (2+2, 4+4, or Family Mold) — Since lids are smaller and cycle faster than bodies, we often design 2+2 or 4+4 multi-cavity molds or even Family Molds (Lid + Base in one mold) if the part geometries and cooling requirements align. This maximizes press utilization.

Cooling & Venting for Thin-Wall High-Speed Molding — Despite being a lid, industrial lids often have thick hinge areas adjacent to thin webs. We use balanced baffle cooling + BeCu inserts at hinge knuckles to prevent sink marks, coupled with porous vent inserts to prevent burn marks at high injection speeds.

UV Stabilizer & Color Masterbatch Compatibility — Outdoor industrial lids require high UV stabilization. We design gates and flow paths to ensure even distribution of color masterbatch and additives, preventing flow lines on large flat surfaces.

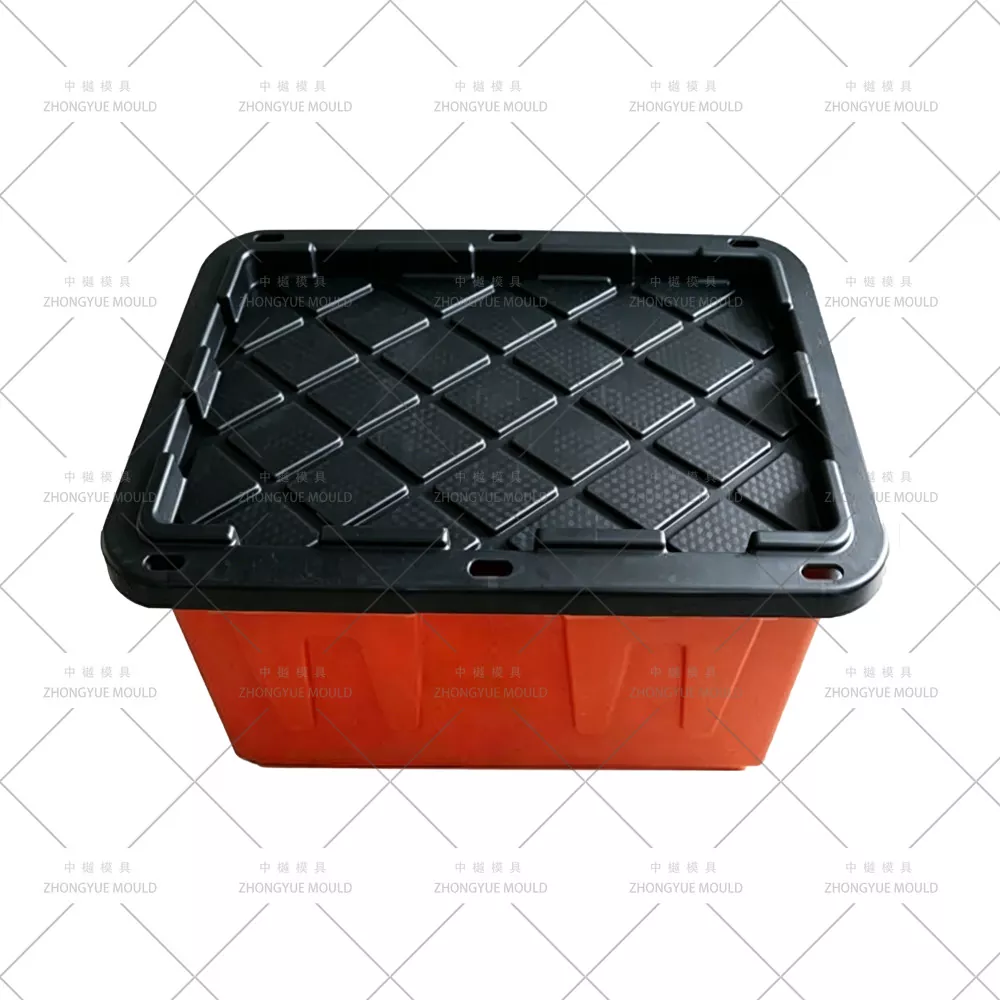

Applications of Heavy Duty Storage Box Lids

Our Manufacturing & Validation Process

Hinge Fatigue & Sealing DFM — Analyze hinge knuckle thickness (3.0–5.0mm), gasket compression ratio (25–30%), and draft angles for anti-slip texture. Run Moldflow to ensure no sink marks on hinge areas.

Hardened Steel Machining — CNC rough/finish cavity; grind H13 hinge cores to tight tolerance; machine O-ring grooves; polish cavity.

Assembly & Functional Testing — Assemble mold; run T1 trial with customer-specified material. Perform hinge flip test (manual or automated) and gasket compression test (water submersion check for leaks).

Quality Assurance — CMM inspection of hinge pin holes and gasket groove dimensions. Provide trial video and sample lids.

Delivery & Support — Packaging with spare H13 hinge cores and ejector pins. Remote technical support for start-up.

Why Choose ZHONGYUE MOULD for Heavy Duty Lid Molds?

Industrial Lid Specialist — We understand the difference between a $5 household lid and a $50 industrial lid. We focus on hinge life and sealing, not just shape.

H13 Hardened Hinge Cores — We don't use soft P20 for hinge knuckles. H13 nitrided steel is standard for million-cycle durability.

Family Mold Experts — We can design Lid + Base + Divider family molds to maximize your press efficiency and reduce floor space.

Functional Testing — We don't just ship a mold; we ship a validated solution with hinge and seal test reports.

Global Industrial Clients — Trusted by logistics and automotive suppliers worldwide.

Frequently Asked Questions — Heavy Duty Storage Box Lid Mold

Q: Should I mold the lid and body in one family mold?

A: It depends on cooling and cycle time. If the body is thick-walled (cycle 60s) and the lid is thin (cycle 15s), a family mold wastes machine time. We usually recommend separate molds (1×1 body + 4×4 lid) unless the parts are similarly sized and cooled.

Q: Do you provide the stainless steel hinge pins?

A: We design the mold for stainless steel pins (304/316 grade). We can source the pins for you or provide the specifications for you to purchase locally. Inserting the pins post-molding is a simple manual operation.

Q: Can you make the lid waterproof (IP65)?

A: Yes. We machine a precise O-ring groove into the lid and/or box top. You will need to purchase standard silicone O-rings. We can verify the compression ratio (typically 25–30%) in our DFM.

Q: What about anti-static (ESD) lids for electronics?

A: We design molds for carbon-filled PP (ESD material). This requires excellent venting (porous steel inserts) to prevent burn marks. We ensure the lid surface resistivity meets your requirements (<10^9 ohms).

Q: What do you need for a quotation?

A: 2D/3D files of the lid, material specification (Copo PP / ABS / UV %), annual volume, and whether you need a matching body mold or gasket groove.

Request a Quote for Your Heavy Duty Storage Box Lid Mould

Send your heavy duty storage box lid 2D/3D drawings and material specs. ZHONGYUE MOULD will provide a free Hinge Fatigue & Sealing DFM review + formal quotation within 24–48 working hours.

Contact us now to start your Industrial Grade Bin Lid Injection Mold project!
