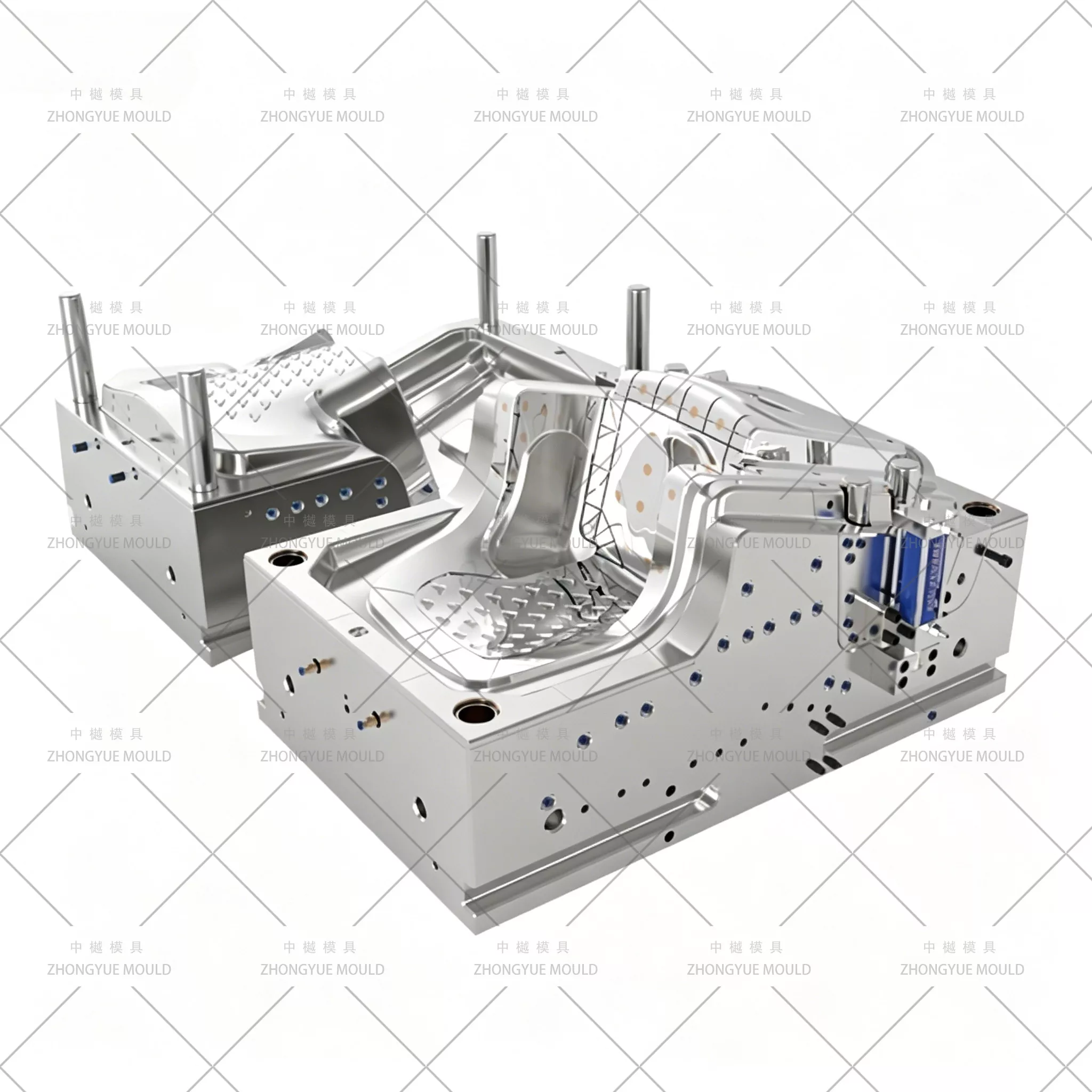

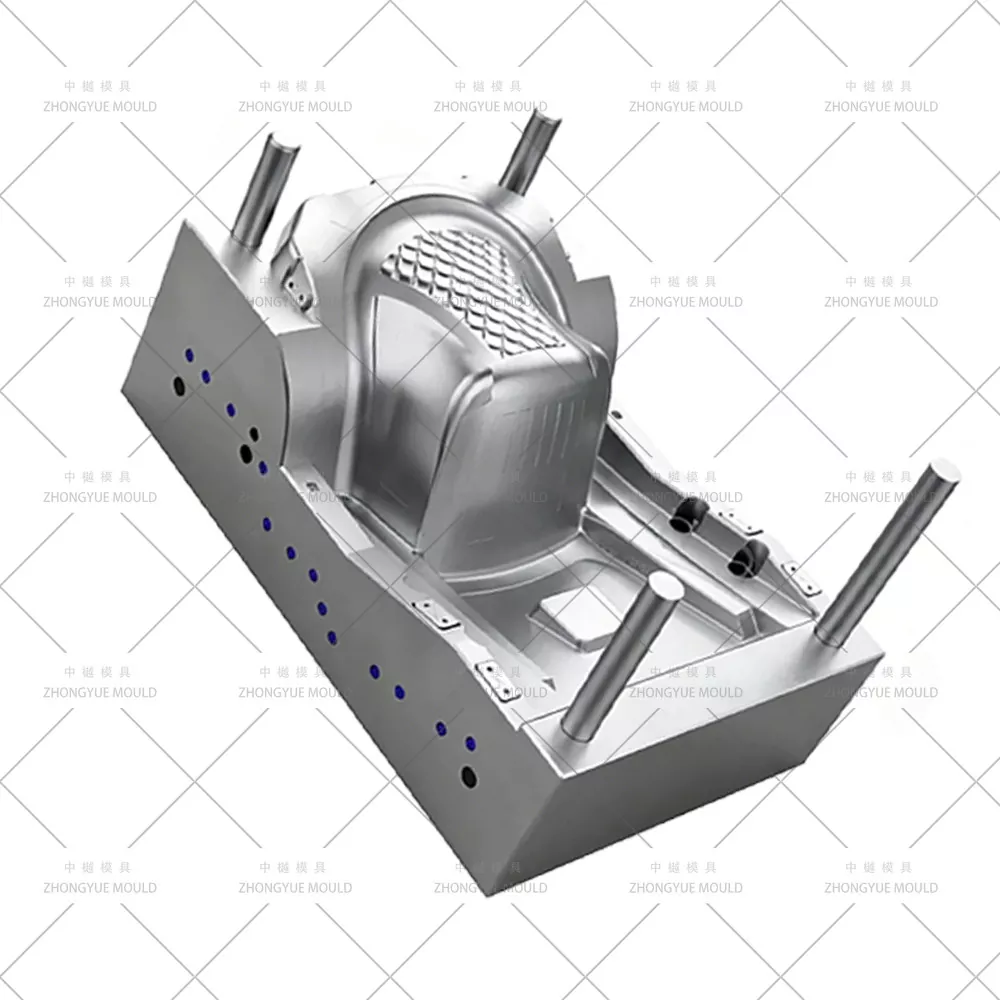

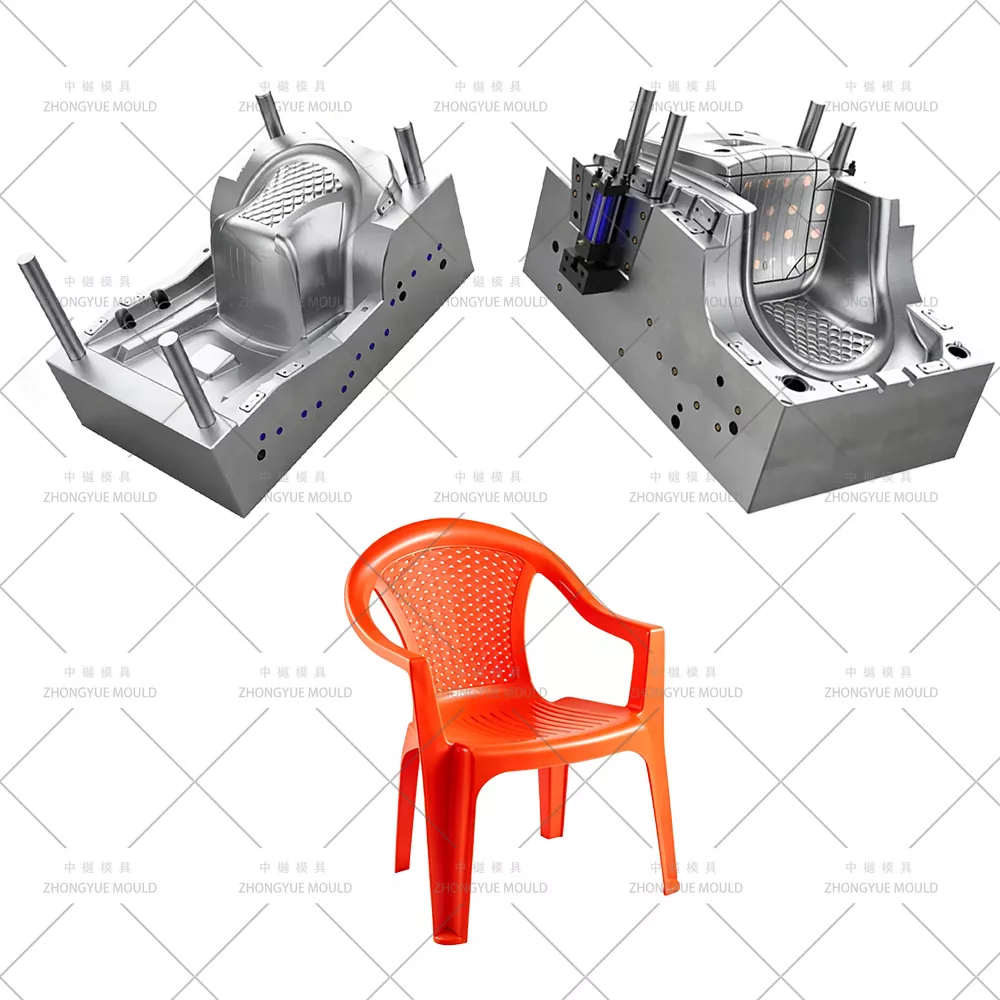

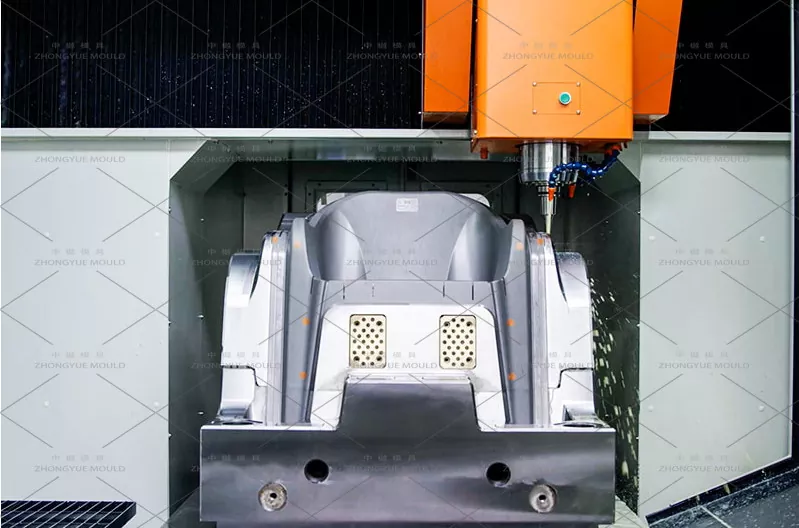

Plastic Arm Chair Mould

High-Precision Plastic Arm Chair Mould

At Zhongyue Mould, we specialize in high-precision Plastic Arm Chair Moulds designed for materials ranging from durable Polypropylene (PP) for outdoor use to premium Polycarbonate (PC) for event furniture. This guide walks you through the 6-step manufacturing process and highlights the technical expertise required to produce a flawless chair.

Plastic Chair Mould specifications :

Make your next Plastic Chair Mould project brighten!

6 Steps to Produce a High-Quality Plastic Arm Chair

Step 1: Raw Material Preparation

The choice of polymer defines the chair's application. Different materials require different mold temperatures and injection pressures.

Material	Common Chair Types	Properties
PP (Polypropylene)	Outdoor Garden Chairs, Stackable Armchairs	Excellent weather resistance, flexible, cost-effective.
PC (Polycarbonate)	Chiavari Chairs, Acrylic Chairs, Tiffany Chairs	High transparency, high impact strength, rigid.
Nylon (PA)	Industrial Seating, Ergonomic Chairs	High strength, heat resistance, wear-resistant.
PVC	Pipe-frame Chairs, Vinyl Seating	Good chemical resistance, often used for legs/tubes.

Step 2: Chair Mould Design (The Critical Phase)

Before cutting steel, our engineering team performs a rigorous DFM (Design for Manufacturability) analysis. The design process includes:

Structure Analysis: Analyzing the armrest geometry and overall chair ergonomics.

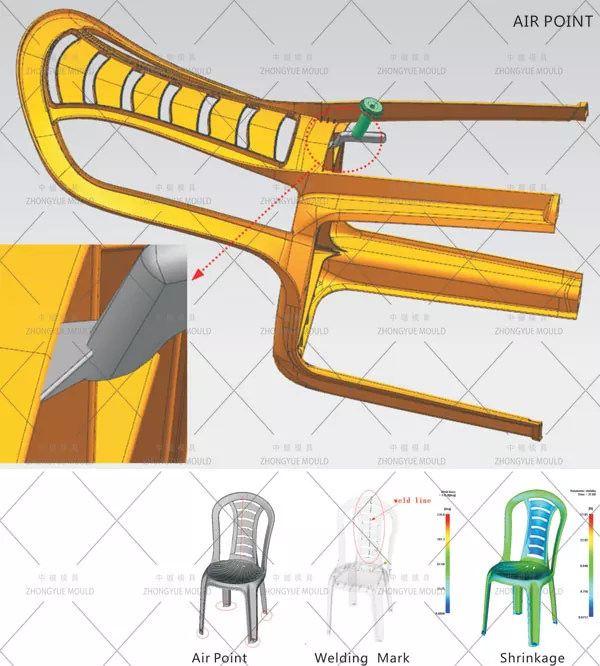

Runner System Design: Optimizing the gate location to ensure balanced filling and minimal weld lines.

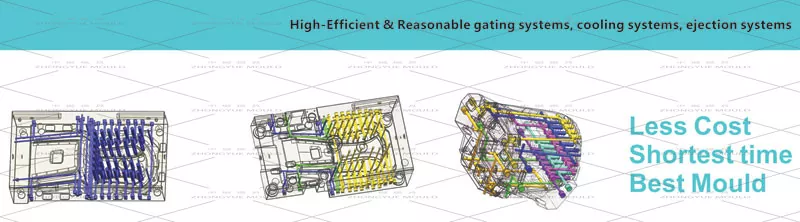

Cooling System Design: Designing efficient cooling channels to manage cycle times.

Ejection System Design: Planning for smooth demolding, especially for the armrests.

Step 3: Injection Molding

The raw material is melted and injected into the mould cavity under high pressure.

Machine Tonnage: A standard PP outdoor armchair typically requires a 700-800 ton injection molding machine.

High-Pressure Needs: For transparent PC Chiavari Chairs or Acrylic Chairs, a higher tonnage (1000 ton+) is required to ensure the material fills the thin, intricate sections of the mould completely.

Step 4: Pressure Holding and Cooling

Once injected, the material is held under pressure to compensate for shrinkage.

Cooling Time: This is a critical factor for productivity. Depending on the chair's thickness and material (PP vs. PC), cooling times range from 30 to 120 seconds.

Risk Management: Insufficient cooling leads to warping, sink marks, and internal stress, ruining the chair's structural integrity.

Step 5: Mold Opening and Ejection

This is the most delicate part of the cycle. The mould opens, and the ejection system activates.

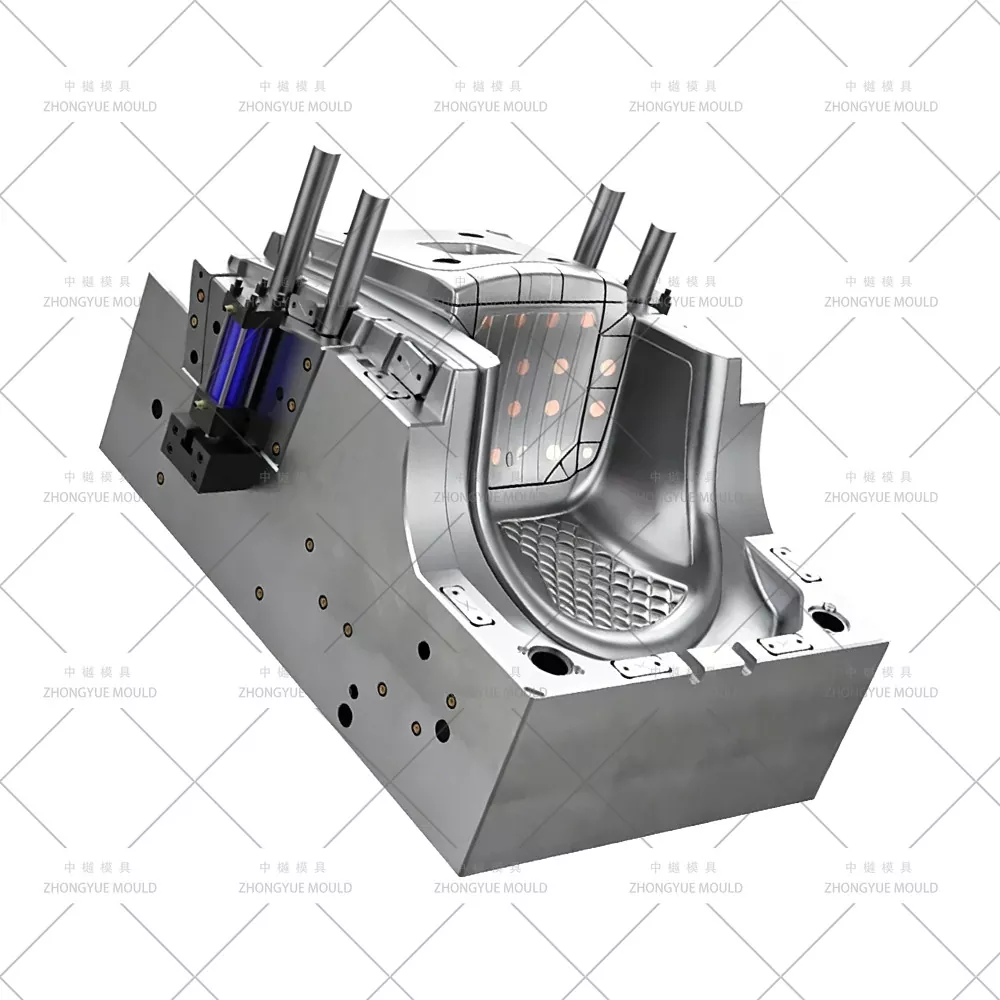

Complex Mechanisms: Due to the armrests, the chair cannot simply be pushed straight out. We utilize sliders (angled slides) to retract the side cores that form the armrests before the main ejector pins push the chair out.

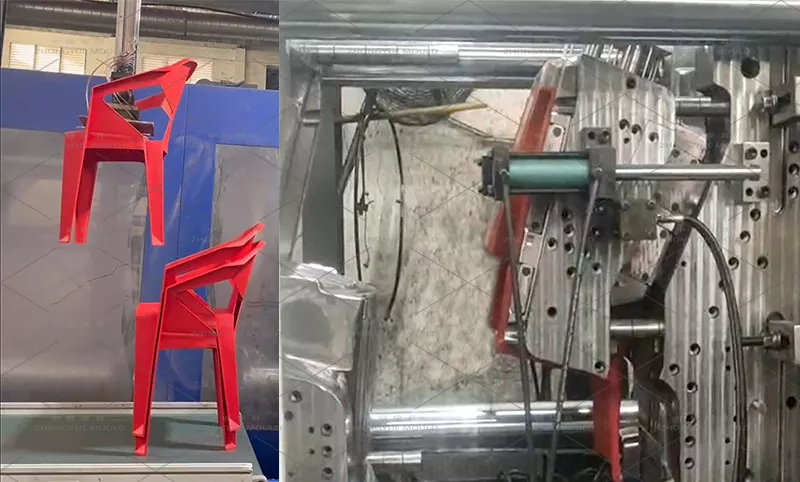

Gravity Assist: Many production lines invert the mould. Once ejected, the chair falls away from the machine, allowing for fully automated production.

Step 6: Assembly and Packing

Most monoblock armchairs require no assembly. However, for models like Ergonomic Office Chairs or Executive Mesh Chairs, this stage involves assembling legs, arms, and gas lifts. Finally, the chairs are inspected and packed for shipment.

Types of Plastic Arm Chairs We Manufacture

Chair Type	Primary Material	Typical Application

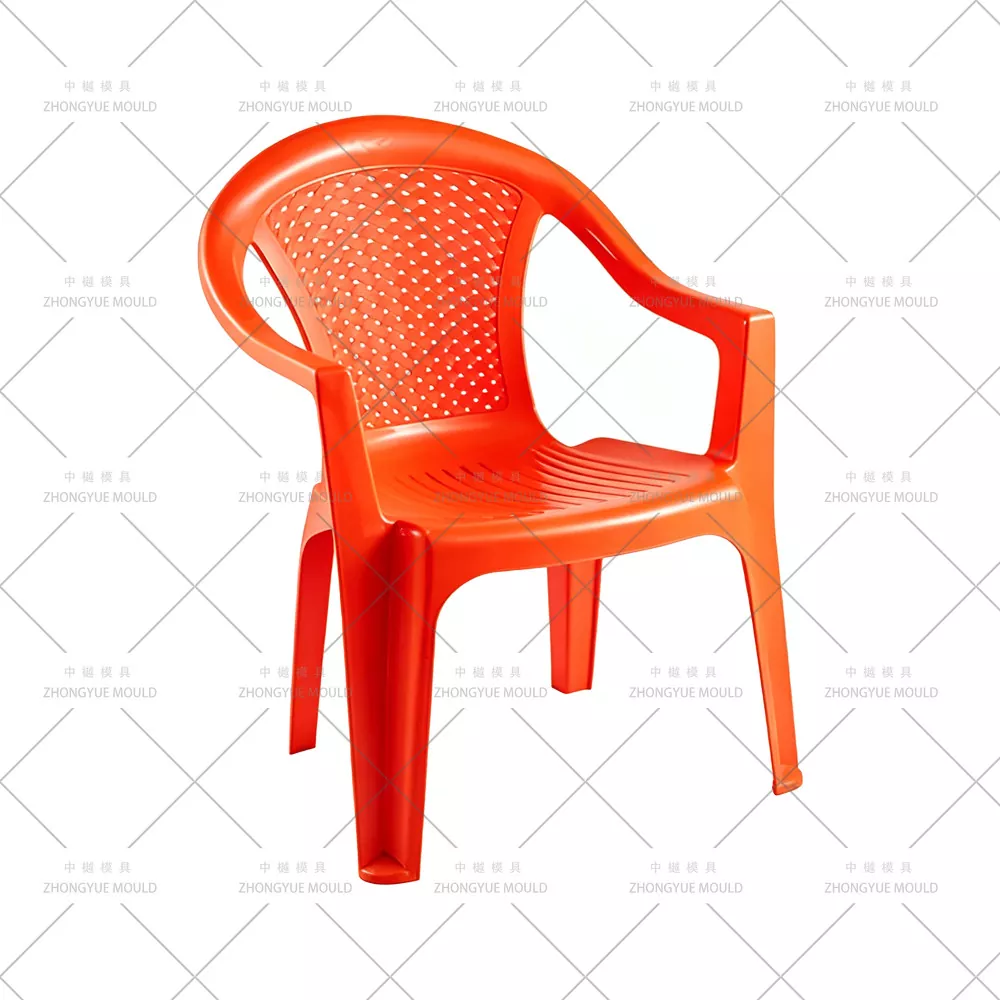

Outdoor Armchair	PP (Polypropylene)	Patios, gardens, cafes, poolside.
Chiavari / Tiffany Chair	PC (Polycarbonate)	Weddings, banquets, fine dining.
Napoleon Chair	PC / PP	Event seating, elegant parties.
Acrylic Arm Chair	PC (Transparent)	Modern interiors, luxury events.

Why Choose Zhongyue Mould for Your Arm Chair Project?

Producing a plastic arm chair requires more than just a block of steel; it requires precision engineering.

Expertise in Undercuts: We specialize in designing complex slider and lifter mechanisms for armrests and backrests.

Optimal Cooling: Our cooling channel designs minimize cycle times, maximizing your ROI.

Material Versatility: Whether you need a mold for flexible PP or rigid PC, we select the correct steel (P20, 718H, or S136) for the job.

Global Standards: Our moulds are compatible with DME, HASCO, and LKM standards.
