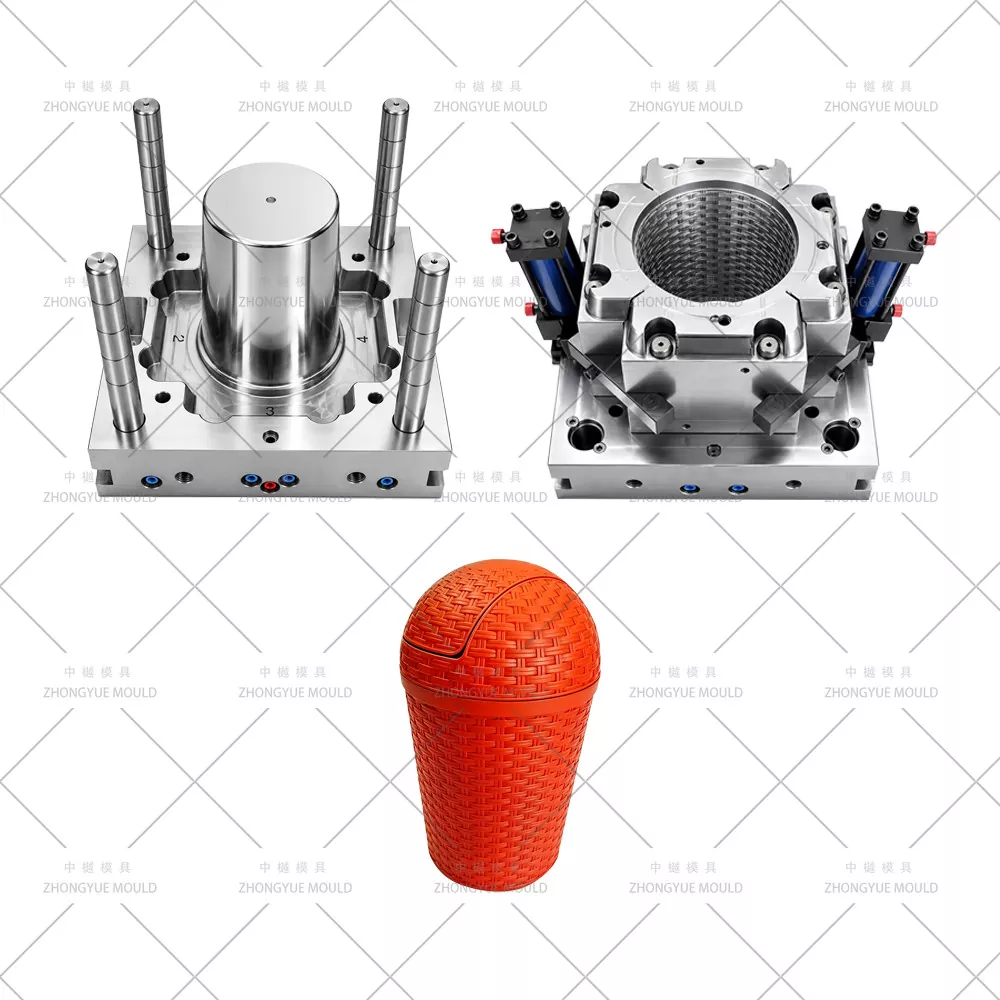

10L Round Rattan Dust Bin Mould

10L Round Rattan Dust Bin Mould – Custom Circular Woven / Rattan Pattern Round Trash Can Injection Mold Manufacturer

ZHONGYUE MOULD is a professional Chinese injection mold manufacturer supplying 10L Round Rattan Dust Bin Moulds / Circular Woven-Pattern Round Trash Can Injection Molds to global household products wholesalers, supermarkets, and private-label brands. Unlike square bins, a round rattan-look bin typically requires a two-half (split cavity) design with 4–8 small angled slides or a split-ring mechanism to form the continuous woven/cane relief around the cylindrical body and allow clean demolding without tearing the textured surface. The bin is molded in PP (MFR 8–15 g/10min, optionally UV-stabilized) with EDM-relief + acid-etched VDI 30–42 rattan weave on the outer cavity and a polished smooth core. Our round-bin molds feature bottom-center pin-point gate (three-plate mold) or submarine gate on inner top rim, concentric annular cooling channels + central BeCu insert for uniform temperature, and adequate mold-opening stroke (≥2.5× product height) to safely strip the deep-draw round body from the core.

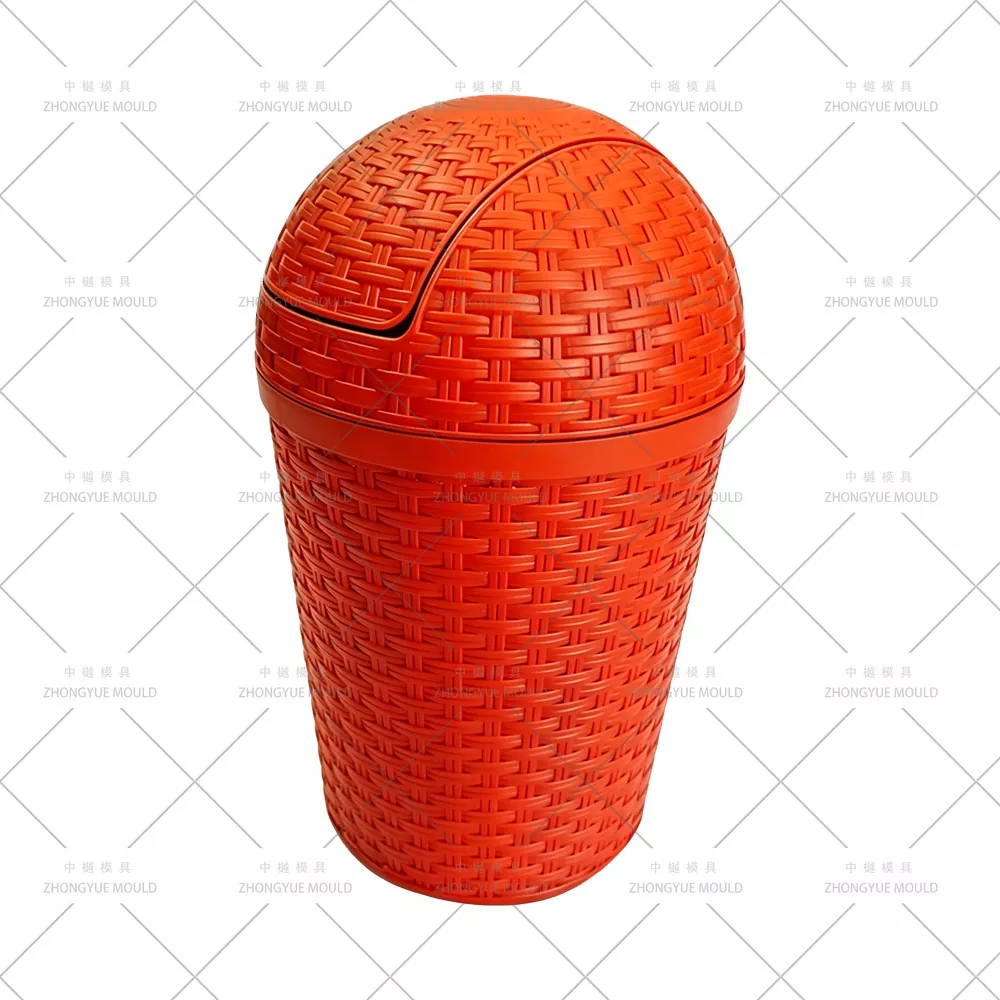

From 10L round rattan dust bin bodies (with/without pedal cut-out), matching snap or hinge lids, to inner removable smooth buckets, we provide full DFM review before steel cutting.

Plastic Dust Bin Mould specifications :

Make your nextPlastic Dust Bin Mould project brighten!

Key Mold Engineering Highlights for Round Rattan Dust Bin Molds

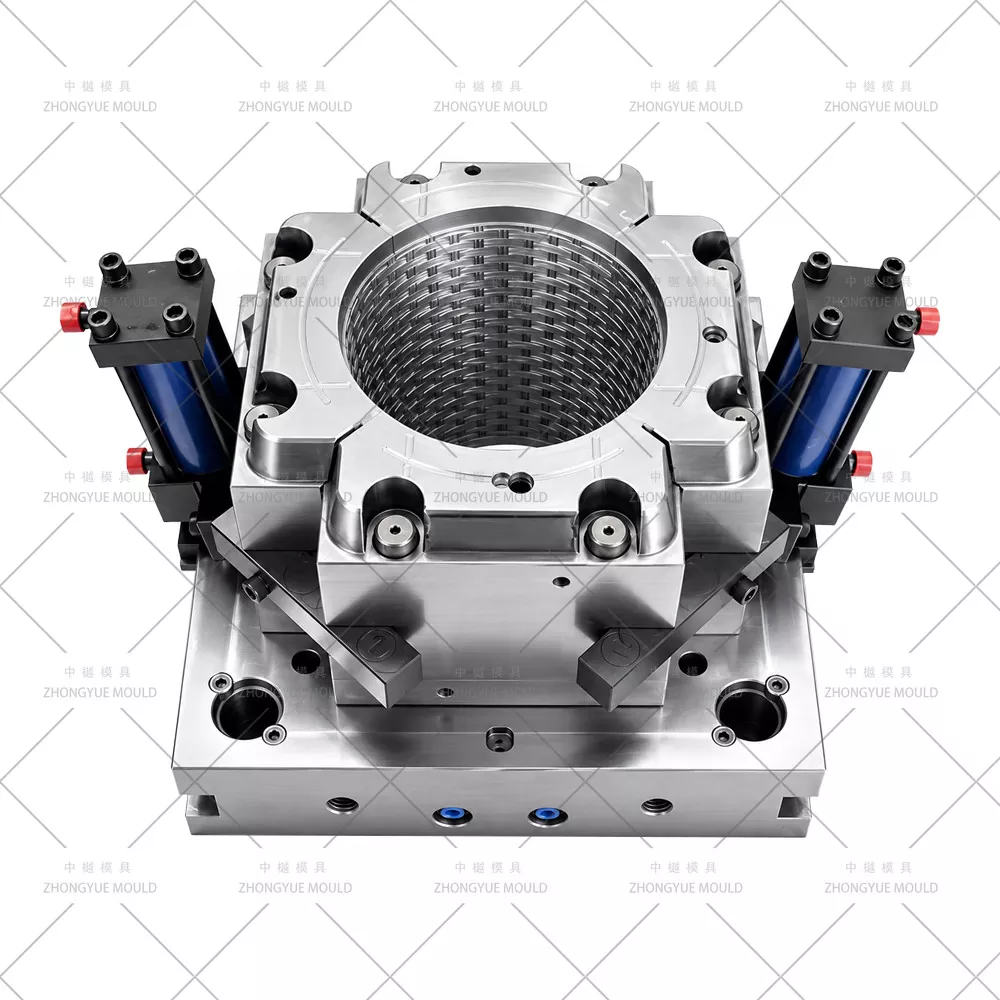

Split Cavity (Two-Half H=Horizontal Parting) + Peripheral Slides / Split-Ring for Rattan Relief — Round woven pattern wraps 360°; cavity splits left/right (or 3-plate with floating split), with 4–8 micro-angled slides or a collapsing split-ring to form undercut cane overlaps. Slides are nitrided (H13/SKD61) for wear resistance against textured engagement.

Bottom-Center Pin-Point Gate (Three-Plate Mold) or Hidden Sub-Gate on Inner Top Flange — Center pin-point gives radially balanced fill & minimal weld lines on round body; vestige sheared clean on deburring. Alternative: submarine gate on inner top rim hides gate mark from rattan outer face.

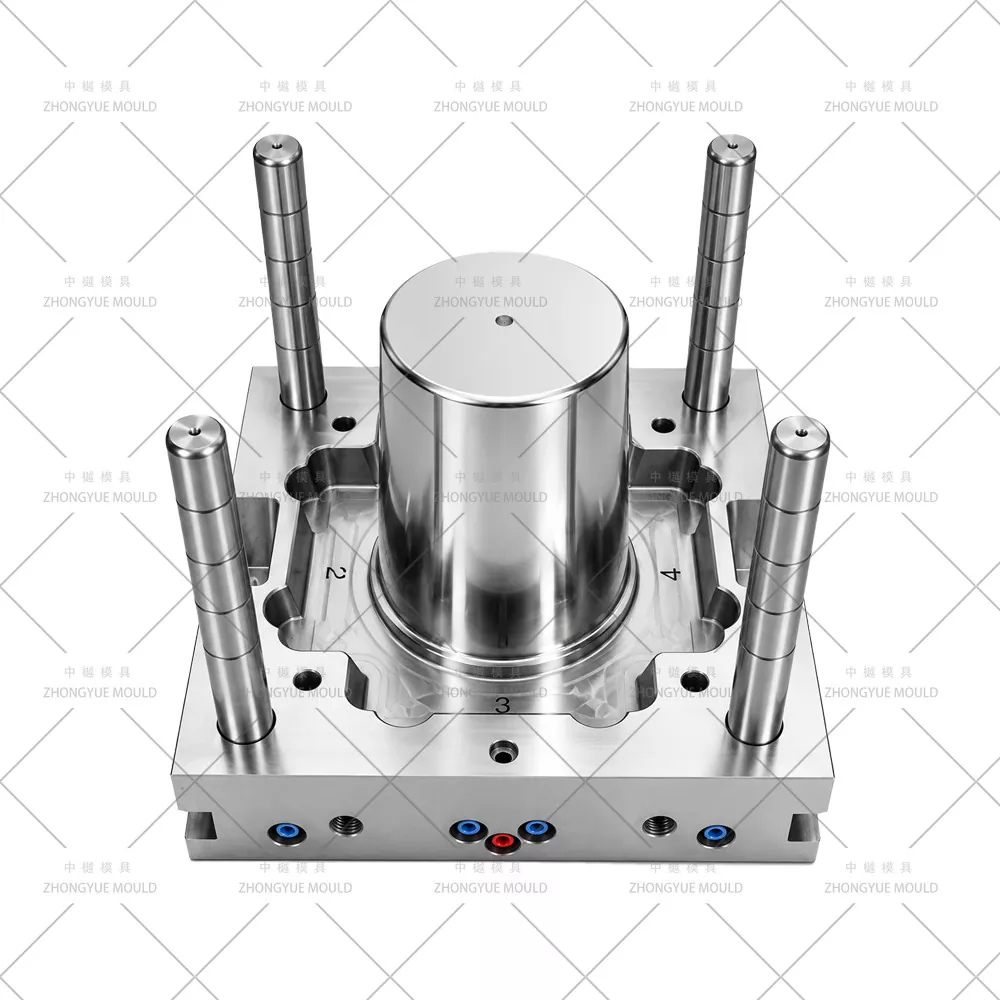

Concentric Annular Cooling + Central BeCu Insert — Ø10–12mm annular water line(s) in cavity halves + deep-hole baffle through core + BeCu (beryllium copper) core insert at bottom radius for fastest heat extraction; ΔT ≤ 3–4℃ inlet–outlet; cycle typically 15–22s.

Adequate Opening Stroke & Anti-Vacuum Design — Ejection stroke ≥ product height + 30–50mm; core vented with 0.01–0.02mm vent grooves to prevent vacuum lock when stripping deep round body from core; optional early-eject with air-assist.

Shrinkage Compensation for Round PP Geometry — PP isotropic shrink ~1.2–1.8%; cavity diameter enlarged proportionally; Moldflow-verified to control ovality (≤0.3–0.5mm on Ø220–260mm).

Rattan / Woven Texture Cavity Processing — Outer cavity EDM sunk-relief + VDI 30–42 / Mold-Tech MT cane pattern acid etch; draft angle increased to ≥2–2.5° (base 1.5° + 0.5–1° for texture depth) to prevent sticking on textured split cavity.

Standard Cavity Count — Main 10L round body: single cavity (1×1) — split cavity + slides make multi-cavity impractical; Lid / Inner bucket: 2-cavity or 4-cavity for balanced production ratio.

Our Mold Manufacturing & Validation Process

Project Kick-off & DFM Review — Analyze wall thickness (2.0–2.8mm typ.), rattan texture draft (≥2–2.5° total on textured split cavity), slider angle/interference check, gate location (bottom-center pin-point vs. rim sub-gate) & required opening stroke (≥2.5×H); suggest improvements for ovality/warp avoidance.

Mold Design Approval (3D) — Full assembly with split-cavity definition, 4–8 small slider/split-ring motion, concentric cooling layout, bottom pin-point runner & degating design, vent grooves on core.

Precision Machining — High-speed CNC rough/finish cavity halves, deep-hole drilling for annular cooling & central baffle, Sodick/Charmilles EDM for rattan weave relief, acid etching / texture application, H13 slide nitriding & hand-fitting.

Assembly & T1 Trial — Run on in-house injection machine; check ovality, rattan relief release, gate vestige, cooling cycle; supply trial video + sample parts + dimensional check.

Correction & Final Approval — Fine-tune slider timing / vent if needed; ship in fumigation-free case with mold manual & spare parts list (slider springs, ejector pins, sprue puller).

After-sales Support — 1-Year mold warranty, free spare parts for non-man-made damage, remote technical guidance.

Why Choose ZHONGYUE MOULD for Your Household Mould?

Rich Household Mold Experience — Round/square rattan baskets, crates, chairs, storage boxes & dust bin molds built in-house

In-house DFM Review — Optimize split-cavity slider angles, gate & concentric cooling before steel cutting; advise multi-cavity layout for lid/liner

Rattan / Woven Texture + Split-Cavity Expertise — EDM relief + VDI / MT cane pattern; correctly calculated draft on textured split faces to prevent sticking

Strict QC & Transparent Progress — Weekly machining photos, T1 sample approval before shipment

Export Experience — Molds shipped to Europe, North America, South America, Southeast Asia, Middle East

1-Year Mold Warranty + Spare Parts Supply (slider springs, pins, seals)

Frequently Asked Questions — Round Rattan Bin Mold Specific

Q: Why does a round rattan bin mold need split cavity and slides, unlike a plain round bucket?

A: The simulated cane/weave creates circumferential undercut reliefs. A simple two-plate open-close mold would lock the part on the core. We design a two-half split cavity with 4–8 small angled slides or a collapsing split-ring to withdraw the woven relief before the main halves open — allowing clean demolding without tearing the textured surface.

Q: What gate do you recommend — bottom center pin-point or rim submarine gate?

A: For best fill symmetry on a round body and minimal weld lines, we prefer a three-plate mold with bottom-center pin-point gate (auto-degating). If the customer's press lacks three-plate capability, we design a submarine gate on the inner top flange, hidden from the rattan outer face.

Q: How do you control ovality (out-of-round) on a PP round bin?

A: By properly compensating PP shrinkage (~1.2–1.8%) on diameter, designing balanced cooling (concentric annular channels + BeCu), ensuring even clamp force, and verifying with Moldflow. Target ovality ≤0.3–0.5mm on a Ø220–260mm bin.

Q: What do you need for a quotation?

A: 2D drawing (PDF/DWG) + 3D model (STP/IGS/X_T) OR clear product photos with dimension annotations (Ø top/bottom, height, wall thickness, weight), annual volume, preferred cavity number for lid/liner (2×1 etc.), and texture sample/photo if available. Also tell us your injection machine tie-bar space & max opening stroke.

Request a Quote for Your 10L Round Rattan Dust Bin Mould

Send your 10L round rattan dust bin 2D drawing + 3D model (or sample photos with dimensions) and project requirements. ZHONGYUE MOULD will provide a free DFM review + formal quotation within 24–48 working hours.

Contact us now to start your Circular Woven Rattan / Round Trash Can Injection Mold project!
