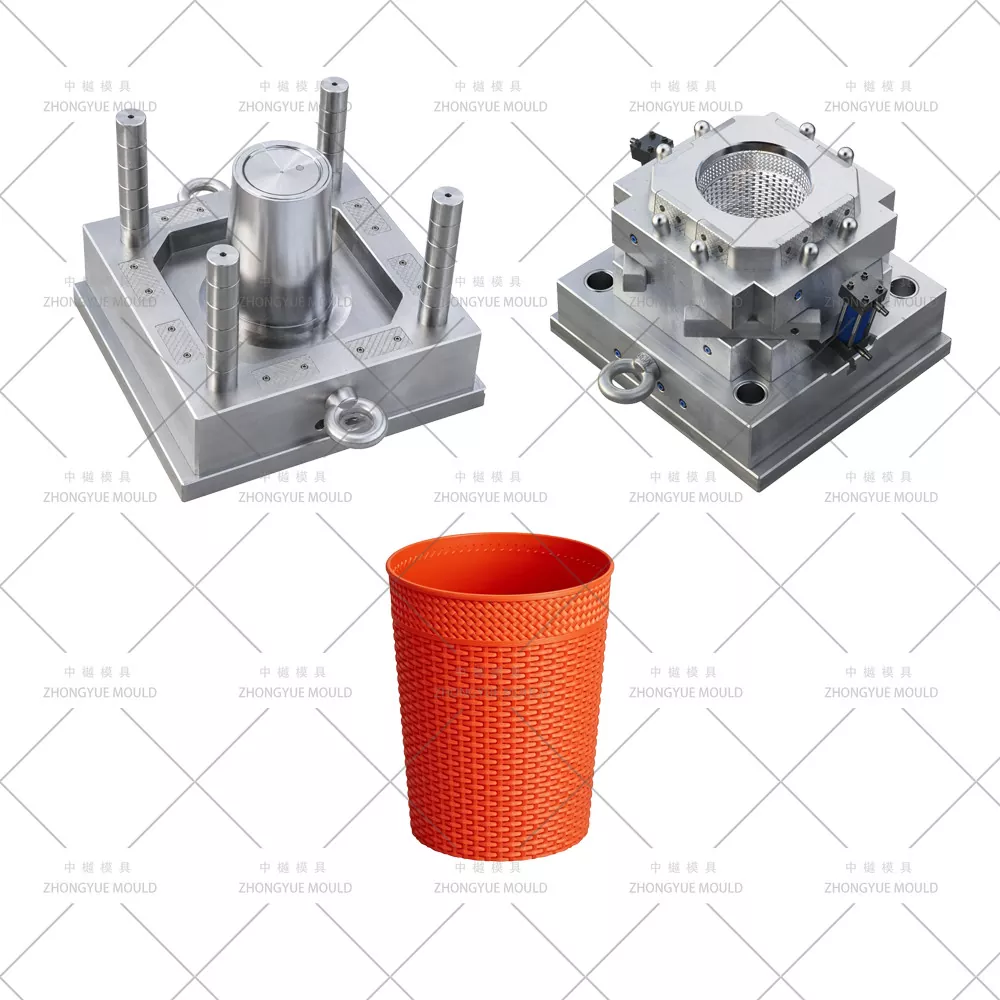

5L Round Rattan Dust Bin Mould – Custom Plastic Woven / Rattan Pattern Round Trash Can Injection Mold Manufacturer

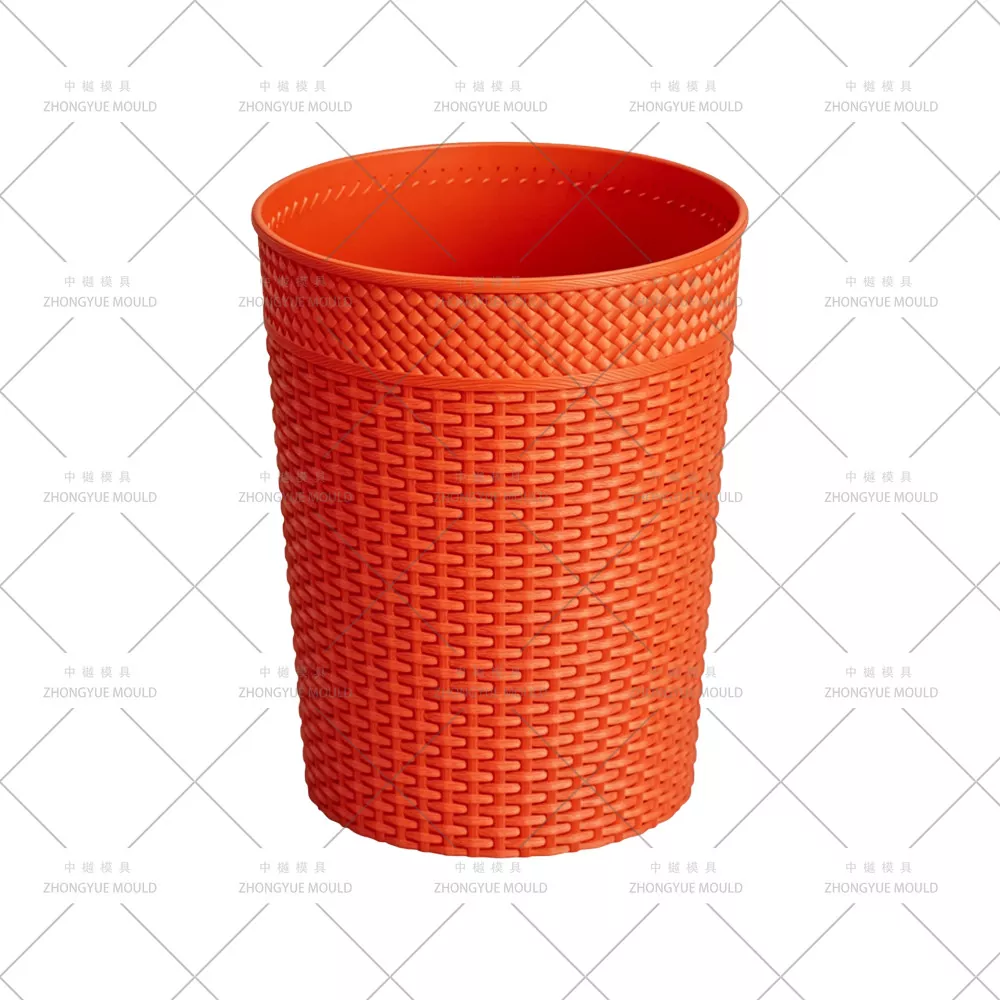

ZHONGYUE MOULD is a professional Chinese injection mold manufacturer supplying 5L Round Rattan Dust Bin Moulds / Plastic Woven-Pattern Round Trash Can Injection Molds (Rattan Style Waste Bin Molds) to global household products wholesalers, supermarkets, and brand owners. The 5L round rattan-look is a popular home/office/bedroom/bathroom waste receptacle, typically molded in PP (Polypropylene, virgin or with UV stabilizer) with a simulated cane/weave (rattan) texture on the outer surface (VDI 30–42 leather grain or custom woven pattern EDM-texture) and a smooth inner surface for easy cleaning. Our molds feature precision EDM/texturing for rattan weave pattern, optimized baffle cooling with BeCu inserts near the base, hidden submarine gate on the inner rim (no gate vestige on visible rattan face), and DFM analysis to ensure uniform wall thickness (1.8–2.5mm) and easy demolding.

From 5L round rattan s (with/without lid), pedal-operated rattan bin outer shell, to matching lid / inner bucket molds, we provide full DFM review and Moldflow simulation before steel cutting.

Plastic Dust Bin Mould specifications :

Item	Specification / Options
Mold Name	5L Round Rattan / Woven Pattern (Trash Can) Plastic Injection Mould
Cavity & Core Steel	Cavity: P20 (pre-hard HRC 28–33) standard; 718H (HRC 33–38) optional for longer life; Core: P20 / 718H
Mold Base	LKM / DME / HASCO / Self-designed (typical 350×400mm – 450×500mm; weight 0.5–1.2T)
Cavities	Bin body: 1×1 standard; Lid / Inner bucket: 1×1, 2×1, 2×2 optional
Runner System	Cold runner (sub/edge, Y-branch for multi-cavity) standard; Hot tip / hot runner (YUDO local brand) optional for high-volume
Gate Type	Submarine (latent) gate on inner top rim / flange; fan gate on lid
Ejection	Ejector pins at base rim + stripper ring optional for deep draw; air eject preparation possible
Cooling	Central baffle Ø10–12mm + peripheral bubblers + BeCu insert at bottom radius, isolated circuit
Surface Finish	Outer cavity: VDI 30–42 rattan/weave texture (EDM + acid etch); Core/Inner: SPI B1/B2 satin polish; Lid: VDI 27–36 or SPI A2 optional
Mold Life Expectancy	≥300,000 shots (P20); ≥500,000 shots (718H)
Recommended Molding Material	PP (MFR 8–15 g/10min), PP+UV (for sun-exposed areas), optional masterbatch / color match
Design Software	UG NX, Pro/E, SolidWorks, AutoCAD, Moldflow (optional for multi-cavity)
Tolerance Control	±0.1 mm general; ±0.2 mm on overall diameter/height
Lead Time	30–45 days after 2D/3D mold design approval
Injection Machine	160T – 350T (depending on cavity count & clamp force requirement)
Mould material	Hardness	Mould life
P20	HRC 28-33	>300,000 shots
718	HRC 33-36	>500,000 shots
H13	HRC >43	>800,000 shots
2344	HRC >48	>800,000 shots
S136	HRC 48-52	>1,000,000 shots

Make your nextPlastic Dust Bin Mould project brighten!

Typical Rattan / Woven Pattern Dust Bin Parts We Tool

Part Type	Common Material	Mold Design Focus
5L Round Rattan Dust Bin Body (Main Bucket)	PP (MFR 8–12 g/10min), sometimes PP+UV	VDI 30–42 rattan/weave texture on outer cavity (EDM + acid etch); hidden sub-gate on inner top rim; BeCu cooling near base; 1-cavity standard
Snap-on / Hinged Lid for Rattan Bin	PP (same color or contrasting)	Simple draw; sometimes 2+2 cavity for higher output; light VDI grain or high gloss optional
Inner Removable Bucket / Liner (Smooth Wall)	PP (smooth cavity, high polish SPI B1/A2)	Smooth cavity, often 2 cavities; sometimes family mold with lid
Pedal / Rocking Lid Mechanism Outer Shell (Rattan Style, if applicable)	PP rattan texture	Usually separate mold due to different shape; same texture cavity process

Key Mold Engineering Highlights for Rattan Dust Bin Molds

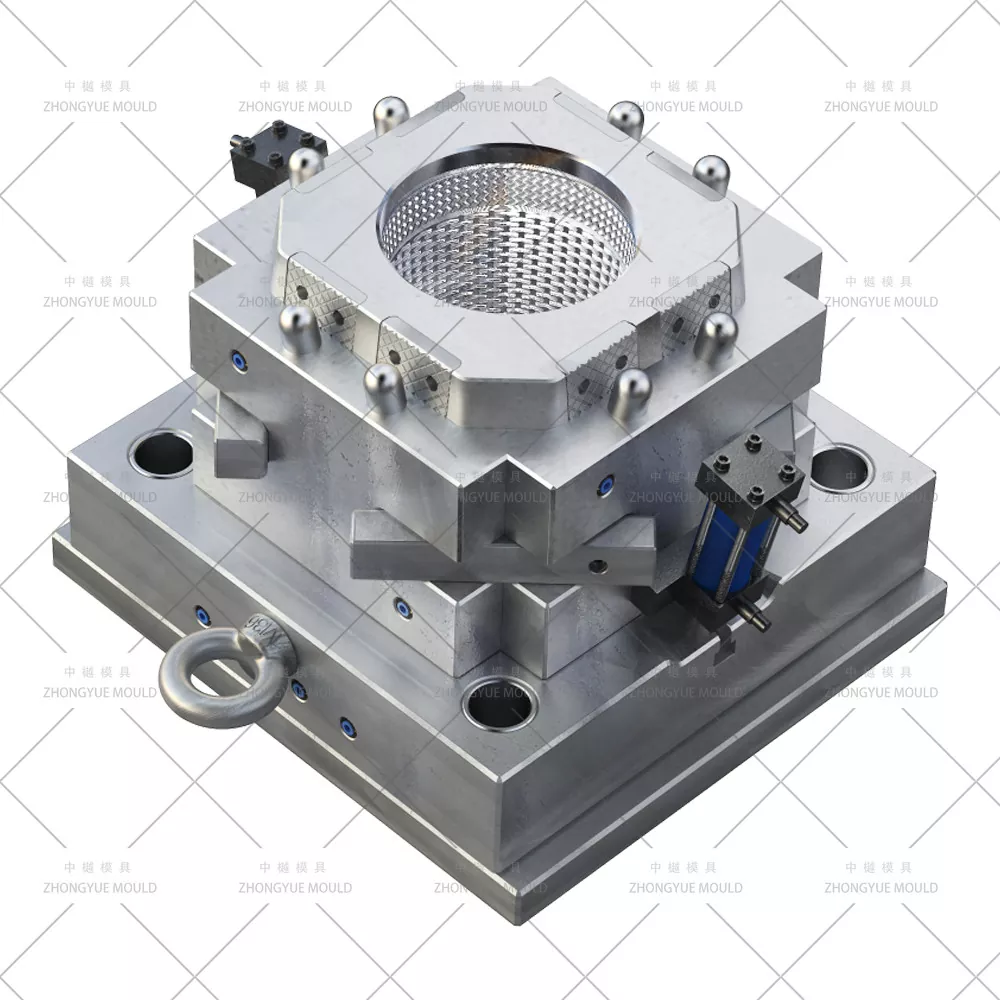

Rattan / Woven Pattern Texture Cavity Processing — Outer cavity EDM sunk-relief or acid-etched VDI 30–42 / Mold-Tech MT-110xx woven-cane pattern; core side SPI B1/B2 satin smooth; texture depth controlled for clean demold without drag marks.

Optimized Cooling for Round Thin-Wall Bucket — Central baffle Ø10–12mm + peripheral bubblers + BeCu (beryllium copper) insert at thick bottom radius; isolated water circuit keeps ΔT ≤ 3–4℃, reducing cycle time (typical 12–20s) and preventing barrel-shaped warp.

Shrinkage Compensation for PP — PP shrinkage ~1.2–1.8% (MD/TD may differ slightly; isotropy assumed for round part; Moldflow-verified cavity sizing, especially on diameter & height.

Hidden Submarine (Latent) Gate on Inner Top Rim / Flange — Gate vestige completely hidden from rattan-textured outer face; cold runner Y-branch if multi-cavity; hot tip (open) optional for high-volume.

Standard Cavity Count — Main 5L bin body: usually single cavity (1×1) for best cooling & quality control; Lid / Inner bucket: often 2-cavity or 4-cavity to match production ratio; family mold (body + lid) NOT recommended due to different cooling needs.

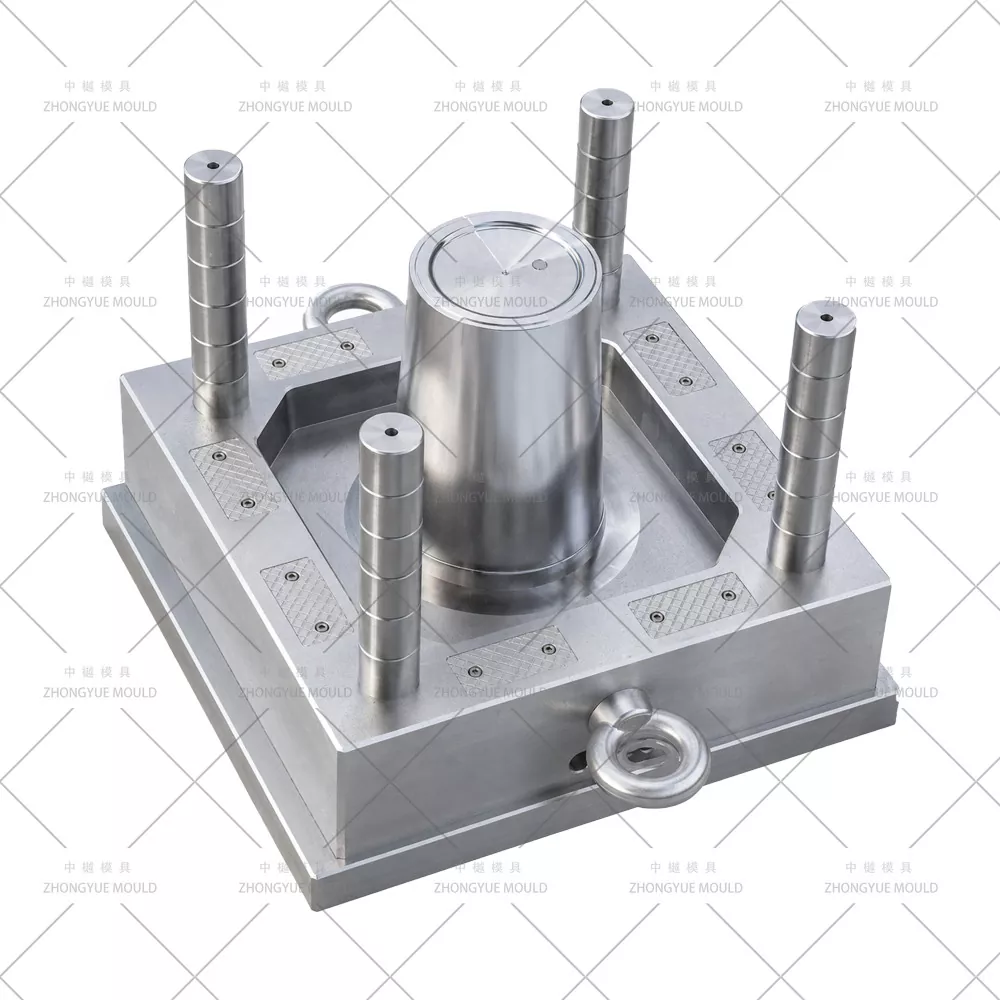

Easy Ejection & Anti-Stick Design — Polished core, adequate draft angle (≥1.5° on textured face — extra 0.5–1° added per VDI grain depth), ejector pins evenly spaced at base rim; optional air-assist eject for deep draw >250mm.

Our Mold Manufacturing & Validation Process

Project Kick-off & DFM Review — Analyze wall thickness (1.8–2.5mm typ.), rattan texture draft angle (add 0.5–1° extra per VDI depth), gate location & ejection feasibility; suggest improvements for sink/warp avoidance.

Mold Design Approval (3D) — Full assembly with cooling layout (baffle + bubbler), texture zone definition, runner Y-branch balancing (multi-cavity lid), venting strategy.

Precision Machining — High-speed CNC rough/finish cavity, deep-hole drilling for cooling baffle, Sodick/Charmilles EDM for rattan weave relief, acid etching / texture application, core mirror/satin polish.

Assembly & T1 Trial — Run on in-house injection machine; supply trial video + sample parts + dimensional check.

Correction & Final Approval — Fine-tune if needed; ship in fumigation-free case with mold manual & spare parts list (ejector pins, water nozzle, sprue bushing).

After-sales Support — 1-Year mold warranty, free spare parts for non-man-made damage, remote technical guidance.

Why Choose ZHONGYUE MOULD for Your Household Mould?

Rich Household Mold Experience — Tables, chairs, stools, crates, storage boxes, flower pots & dust bin/rattan basket molds built in-house

In-house DFM Review — Optimize wall thickness, gate & cooling before steel cutting; advise multi-cavity layout for lid/liner

Rattan / Woven Texture Expertise — EDM relief + acid etch VDI / Mold-Tech cane pattern; clean demold without sticking

Strict QC & Transparent Progress — Weekly machining photos, T1 sample approval before shipment

Export Experience — Molds shipped to Europe, North America, South America, Southeast Asia, Middle East

1-Year Mold Warranty + Spare Parts Supply

Frequently Asked Questions

Q: Can you make molds for the bin body, lid, and inner bucket as a set?

A: Yes. We typically quote the 5L rattan body as single-cavity mold, and the lid / inner bucket as 2-cavity or 4-cavity molds to balance production ratio. Family mold (body+lid) is not recommended due to different cooling & cycle times.

Q: What rattan/woven texture can you do?

A: We can replicate your sample's cane/weave pattern via EDM sunk-relief and apply VDI 30–42 or Mold-Tech MT-series acid etch. Please send a physical sample or clear close-up photo + texture standard for matching.

Q: What material do you recommend?

A: Virgin PP (MFR 8–12) is standard — good flow into thin walls with low cost. Add 1–2% UV stabilizer if bins will be exposed to sunlight (balcony/patio).

Q: What do you need for a quotation?

A: 2D drawing (PDF/DWG) + 3D model (STP/IGS/X_T) OR clear product photos with dimension annotations (diameter, height, wall thickness, weight), annual volume, preferred cavity number (1×1 / 2×1 etc.), and texture sample/photo if available.

Request a Quote for Your 5L Round Rattan Dust Bin Mould

Send your 5L rattan dust bin 2D drawing + 3D model (or sample photos with dimensions) and project requirements. ZHONGYUE MOULD will provide a free DFM review + formal quotation within 24–48 working hours.
