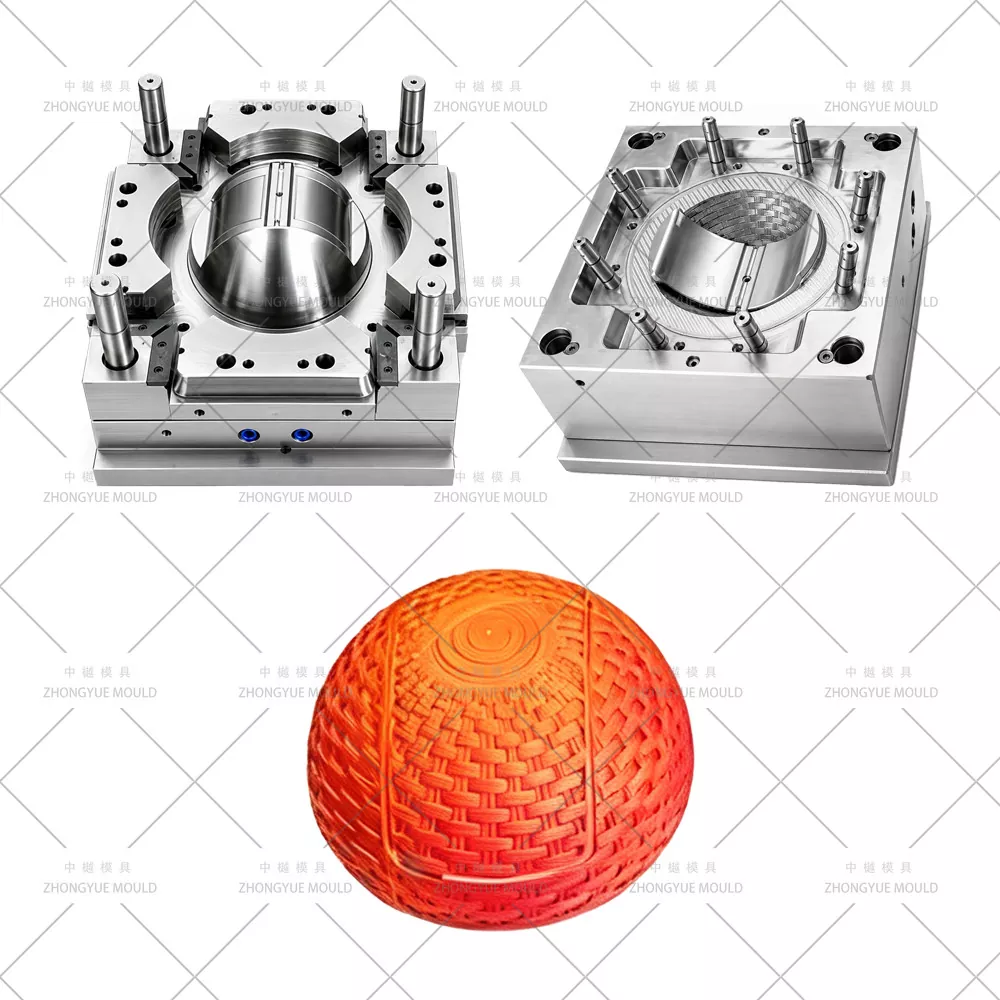

ZHONGYUE MOULD is a professional Chinese injection mold manufacturer supplying 5L Round Rattan Dust Bin Lid Moulds / Plastic Woven-Pattern Round Trash Can Lid Injection Molds (Cane-Style Bin Cover Molds) to global household products wholesalers, supermarkets, and private-label brands. The 5L round rattan-look lid is the matching cover for our 5L round rattan dust bin body — typically molded in PP (MFR 8–15, good flexural strength for snap-fit) with a simulated cane/weave (rattan) texture on the outer A-surface (VDI 30–42 leather grain or custom woven EDM-texture) and a smooth inner surface to engage the bin rim. Our lid molds feature EDM-relief + acid-etched rattan pattern on outer cavity, a small angled lifter or shallow slide for the snap-fit undercut clip, hidden submarine gate on the inner flange (no vestige on rattan face), and DFM verification of lid-to-bin seating clearance (0.2–0.4mm) and push/open comfort ergonomics.

From snap-fit rattan lids (push-on/pull-off), swing-lid top caps with pivot recess (for deluxe 5L units), to matching plain inner liners, we provide full DFM review before steel cutting.

Plastic Dust Bin Mould specifications :

Make your next Plastic Dust Bin Mould project brighten!

Key Mold Engineering Highlights for Round Rattan Lid Molds

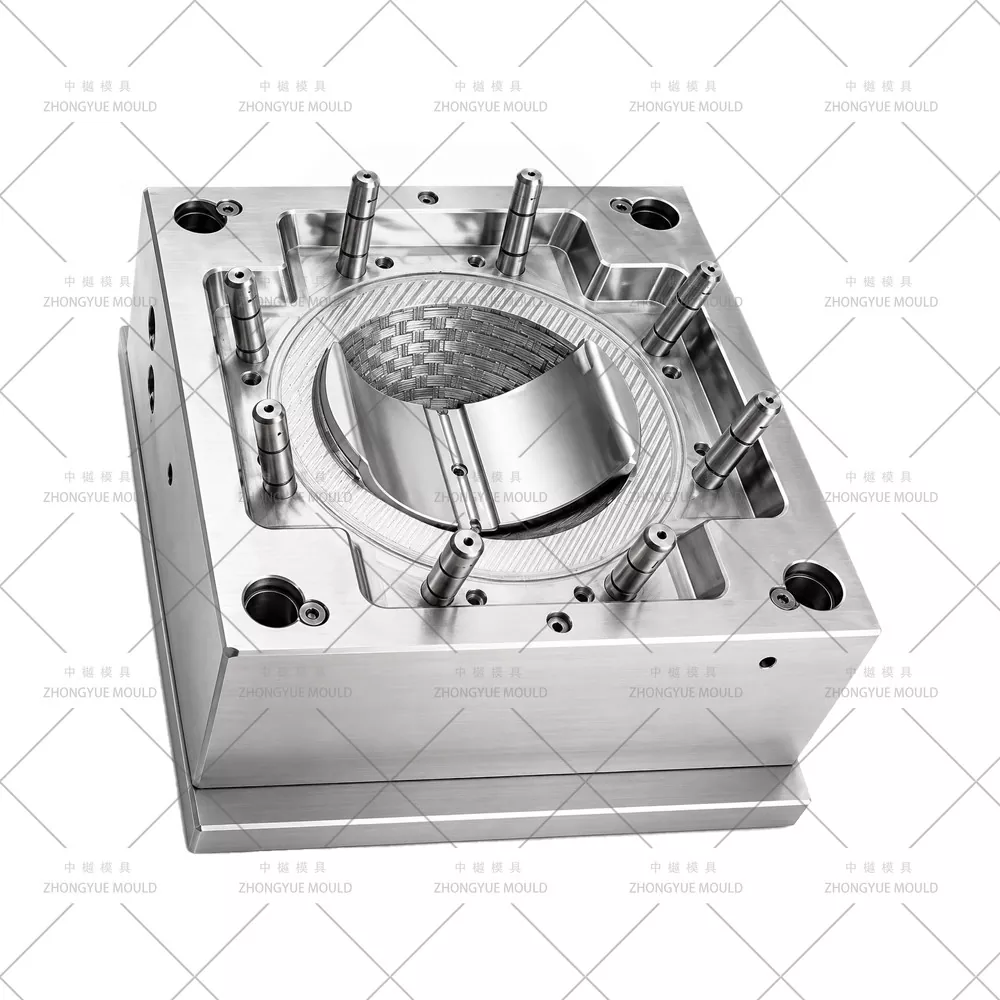

Rattan / Woven Pattern Texture Cavity Processing (Outer Face Only) — Outer cavity EDM sunk-relief + VDI 30–42 / Mold-Tech MT-110xx cane pattern acid etch; draft angle increased to ≥2–2.5° (base 1.5° + 0.5–1° for texture depth) to prevent sticking on textured demold. Core side SPI B1/B2 satin smooth for snap-fit engagement.

Snap-Fit Undercut — Mini Angled Lifter or Shallow Slide — 1 small lifter (or shallow angled slide) withdraws the undercut clip that locks onto bin-body top rim; interference checked in 3D assembly; nitrogen spring optional for repeatability.

Shrinkage Compensation for PP Lid (Round Geometry) — PP shrinkage ~1.2–1.8%; cavity diameter / rim seat slightly enlarged per Moldflow-verified shrink; lid-to-bin interference fit clearance controlled at 0.2–0.4mm per stack-up check.

Hidden Submarine (Latent) Gate on Inner Flange / Back Face — Gate vestige completely hidden from rattan-textured outer face; cold runner standard (1×1 cavity); hot-tip rarely justified on small lid.

Standard Cavity Count — 5L round rattan lid: single cavity (1×1) standard to match 1×1 bin-body mold and ensure best cooling/fit; if customer runs high-volume and bin body is also 1×1, we can discuss 2-cavity lid — but 1×1 is default recommendation.

Easy Ejection & Anti-Stick on Textured Outer Cavity — Polished core, adequate draft (≥2–2.5° on textured face), ejector pins at center boss or rim; no air-assist normally required for shallow draw (~30–60mm).

Our Mold Manufacturing & Validation Process

Project Kick-off & DFM Review — Analyze wall thickness (1.8–2.5mm typ.), rattan texture draft (≥2–2.5° total on textured face), mini-lifter stroke for snap undercut, gate location & lid-to-bin seating clearance check (need bin-body rim Ø/dimension). Suggest improvements for snap-fit reliability.

Mold Design Approval (3D) — Full assembly with cooling baffle layout, mini-lifter/slide detail with interference check, texture zone definition, venting strategy (0.01–0.015mm parting-line vent).

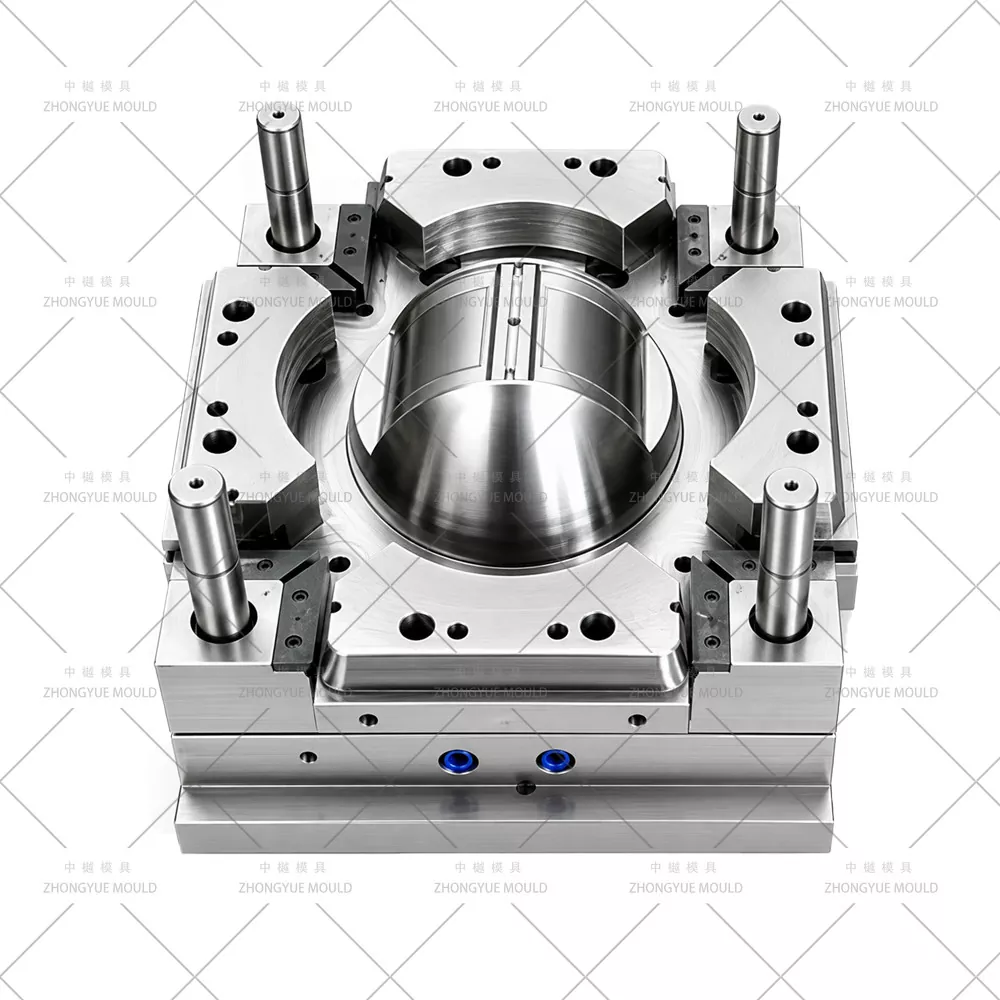

Precision Machining — High-speed CNC rough/finish cavity, deep-hole drilling for cooling baffle, Sodick/Charmilles EDM for rattan weave relief, acid etching / VDI texture application, core satin polish, lifter hand-fitting.

Assembly & T1 Trial — Run on in-house injection machine; check snap-fit on 5L bin body sample, gate vestige, texture release; supply trial video + sample lid(s).

Correction & Final Approval — Fine-tune lifter timing if needed; ship in fumigation-free case with mold manual & spare parts list (lifter spring, ejector pins, sprue bushing).

After-sales Support — 1-Year mold warranty, free spare parts for non-man-made damage, remote technical guidance.

Why Choose ZHONGYUE MOULD for Your Household Mould?

Rich Household Mold Experience — Rattan dust bins (body + lid sets), chairs, stools, crates, baskets built in-house

In-house DFM with Bin-Body Fit Check — Verify lid-to-bin rim clearance (0.2–0.4mm) using your bin-body drawing/dimension before steel cutting; check snap-fit disengage force

Rattan / Woven Texture + Mini-Lifter Expertise — EDM relief + VDI / MT cane pattern; correctly calculated draft on textured face; precision mini-lifter for snap undercut

Strict QC & Transparent Progress — Weekly machining photos, T1 sample approval (fit-check on bin body) before shipment

Export Experience — Molds shipped to Europe, North America, South America, Southeast Asia, Middle East

1-Year Mold Warranty + Spare Parts Supply (mini-lifter spring, ejector pins)

Frequently Asked Questions — 5L Round Rattan Lid Mold

Q: Is this lid mold different from the desk bin lid mold you also make?

A: Yes — completely different. The 5L rattan lid has outer-face VDI rattan/woven texture (EDMed + acid etch), is molded in PP with a mini-lifter for snap-undercut, and is designed to match a textured 5L round rattan bin body. Desk bin lids are smooth (SPI polish), often PS/ABS, multi-cavity, no texture, possibly with integral hinge — different mold structure entirely.

Q: Do you need the bin body drawing to quote the lid mold?

A: Strongly recommended — we need the bin-body top-rim Ø, wall thickness, and snap-groove location (or send the bin-body 3D) to verify lid seating clearance (0.2–0.4mm) and snap-fit engagement before cutting steel.

Q: Single cavity or 2-cavity?

A: Default is 1×1 single cavity, matching the usual 1×1 bin-body mold. If you run very high volume and accept separate batch schedules, we can discuss 2×1 — but 1×1 gives best cooling & fit control for textured part.

Q: What surface finish — any high gloss?

A: Outer face = VDI 30–42 rattan/cane EDM texture. Inner/core face = SPI B1/B2 satin (smooth snap-fit surface). High-gloss (SPI A2) is NOT applied to rattan lids — reserved for decor inserts or plain ABS lids.

Q: What do you need for a quotation?

A: 2D drawing (PDF/DWG) + 3D model (STP/IGS/X_T) of the lid AND preferably bin-body rim dimensions or 3D; tell us material (PP MFR preference), annual volume, and texture sample/photo if you have a specific cane pattern to match.

Request a Quote for Your 5L Round Rattan Dust Bin Lid Mould

Send your 5L round rattan lid 2D drawing + 3D model (and ideally bin-body rim dims/file) and project requirements. ZHONGYUE MOULD will provide a free DFM review with lid-to-bin fit check + formal quotation within 24–48 working hours.

Contact us now to start your 5L Round Woven Rattan / Cane Pattern Trash Can Lid Injection Mold project!
