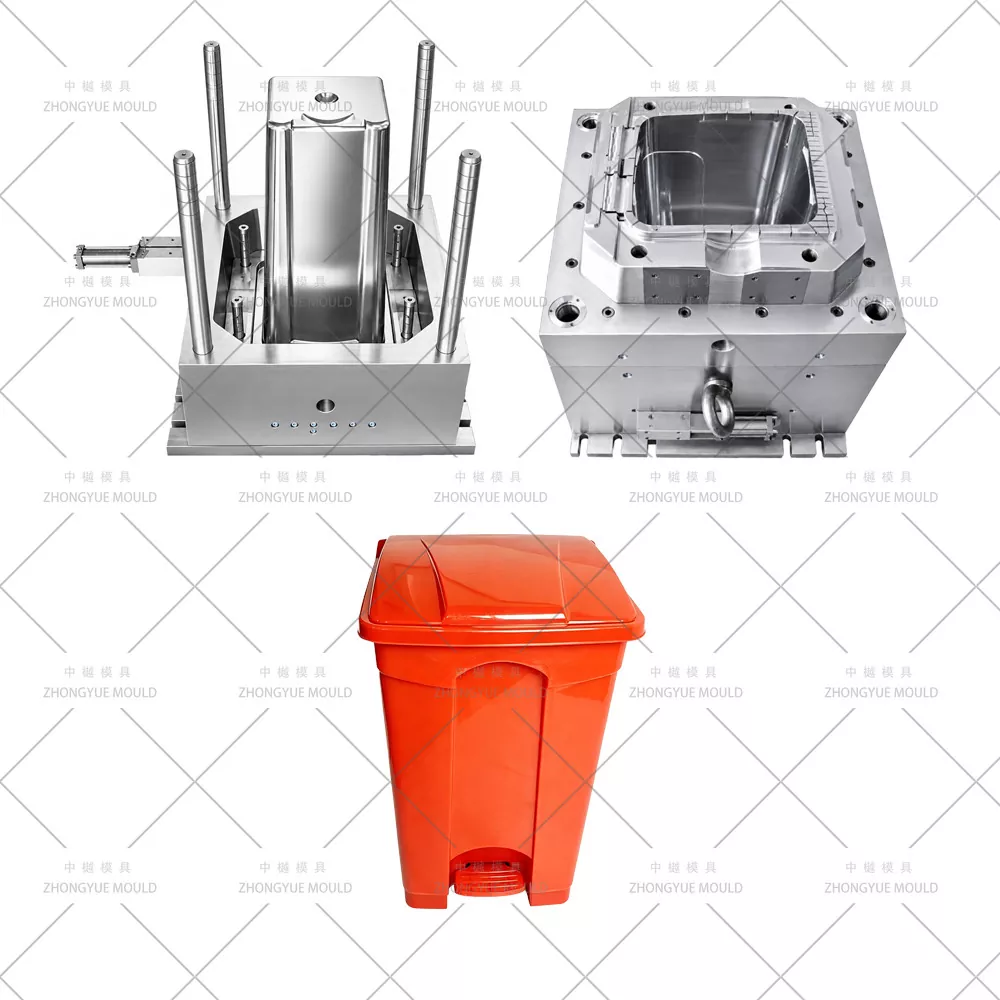

20L Regular Trash Can Mould

20L Regular Trash Can Mould – Custom 20 Liter Plastic Waste Bin / Household Dustbin Injection Mold Manufacturer

ZHONGYUE MOULD is a professional Chinese injection mold manufacturer supplying 20L Regular Trash Can Moulds / Plastic 20 Liter Household Waste Bin Injection Molds (Non-Rattan, Smooth Finish) to global household products wholesalers, supermarkets, and private-label brands. The 20L regular trash can is a standard home/office waste receptacle — most commonly molded in PP (Polypropylene, MFR 8–15 g/10min, optionally with UV stabilizer & masterbatch) with a smooth polished outer surface (SPI B1/B2 satin, or optional VDI 27–30 light leather grain on customer request) and a smooth inner surface for easy cleaning. Our 20L bin molds feature central baffle cooling + BeCu (Beryllium Copper) insert at bottom radius, hidden submarine gate on the inner top rim (no visible gate vestige), DFM-verified wall thickness (1.8–2.5mm) and draft angle (≥1.5° smooth / ≥2° if light grain added), and a well-vented deep core to prevent burn marks. The body mold is single cavity (1×1) standard; we also quote the matching lid mold (often 2-cavity) separately to balance daily output.

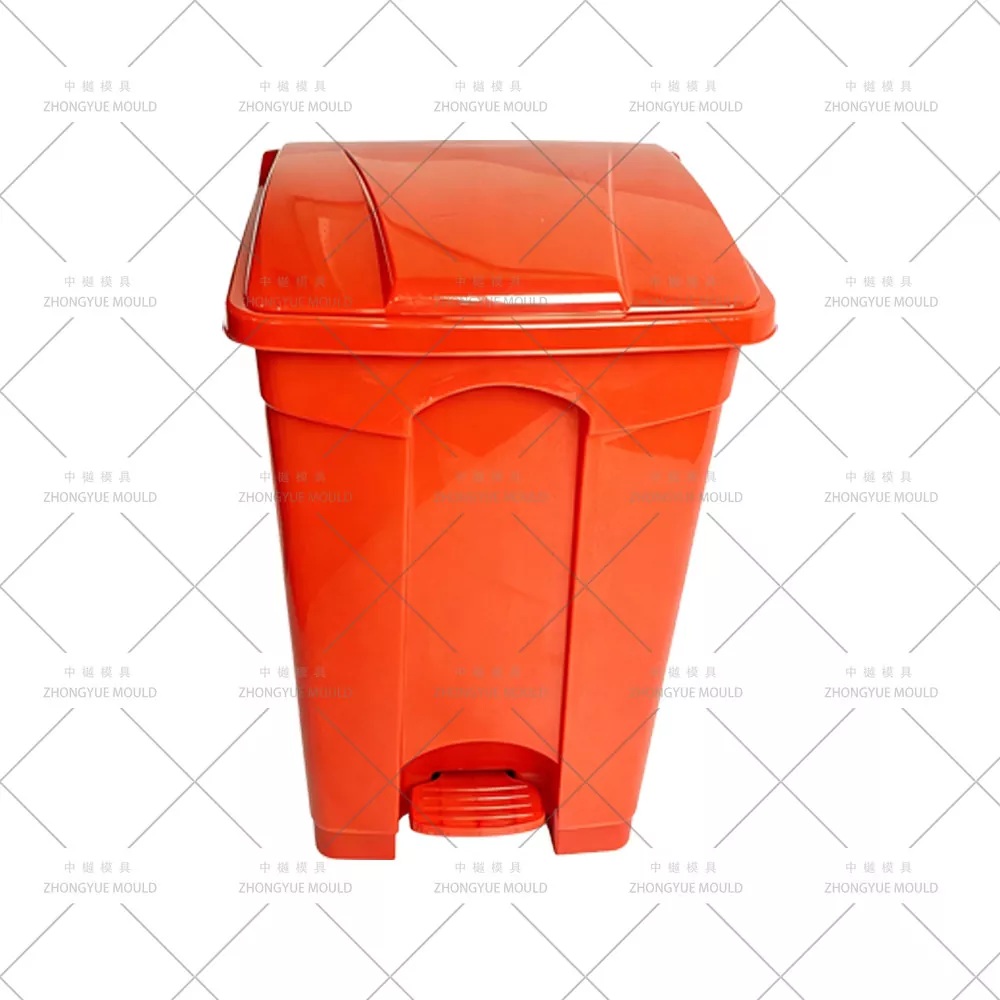

From 20L round or square regular trash cans (with/without pedal cut-out), matching snap / hinge lids, to inner buckets / liners, we provide full DFM review and Moldflow simulation before steel cutting.

Plastic Dust Bin Mould specifications :

Make your nextPlastic Dust Bin Mould project brighten!

Key Mold Engineering Highlights for 20L Regular Trash Can Mould

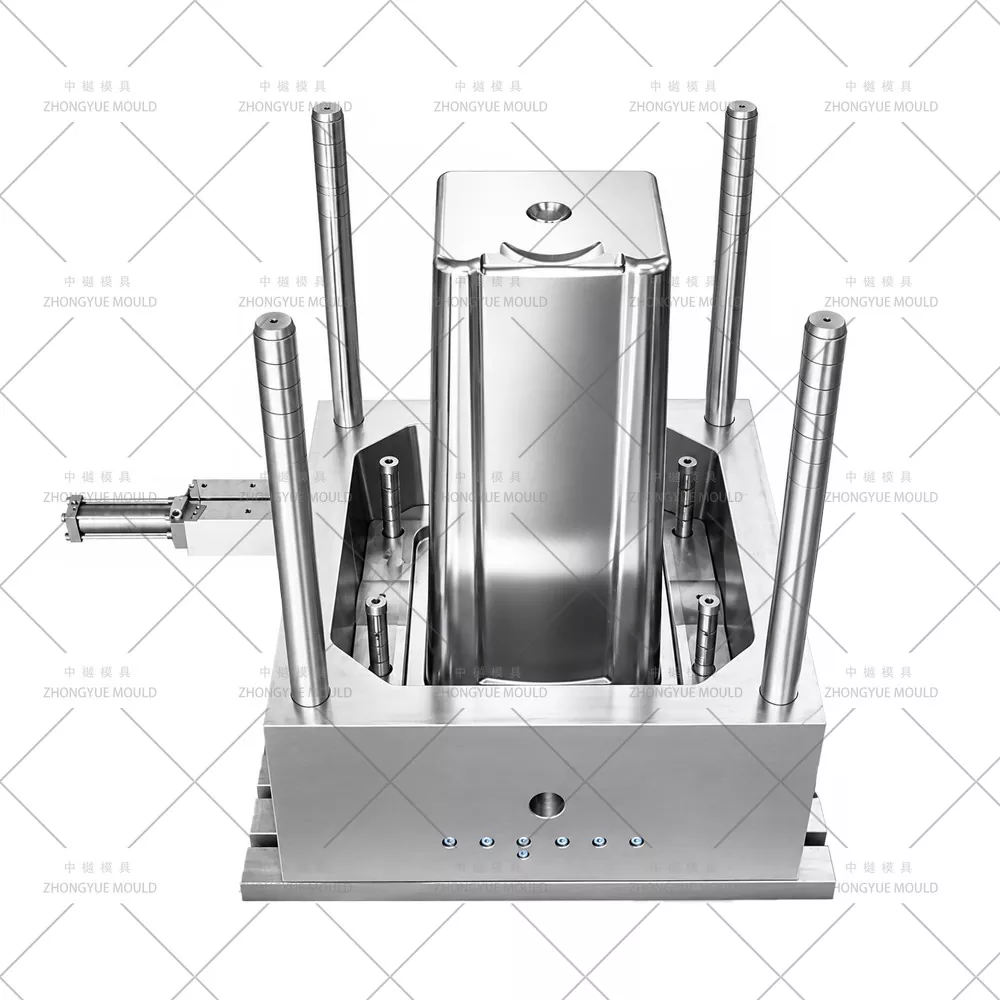

Optimized Deep-Bucket Cooling — Central Baffle + BeCu Insert — Ø10–12mm baffle drilled through core, with BeCu (MOLDMAX / Ampcoloy) insert at bottom transition radius where wall thickens — this is the hottest spot and benefits most from high-thermal-conductivity alloy; ΔT ≤ 3–4℃ inlet–outlet; typical cycle 18–28s.

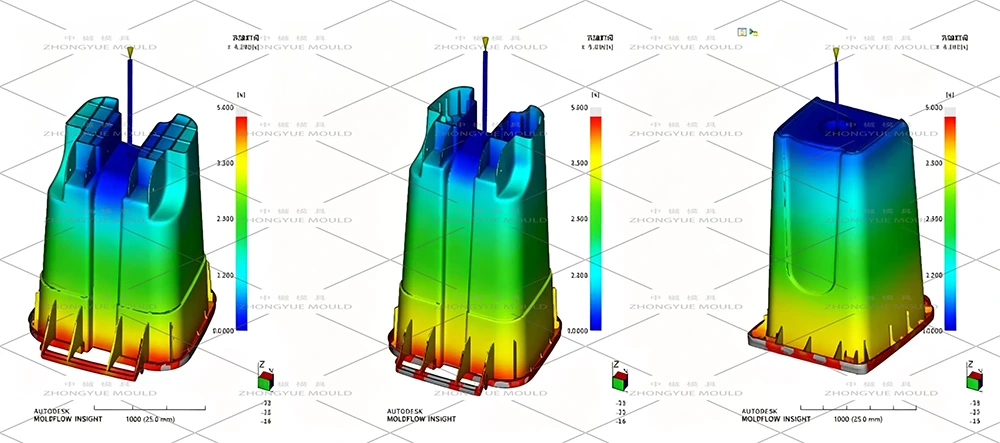

Shrinkage Compensation for PP (Round / Square Geometry) — PP shrinkage ~1.2–1.8%; cavity dimensions proportionally enlarged; Moldflow-verified to control ovality (round ≤0.3–0.5mm) and top-flange flatness (±0.3mm) for proper lid seating.

Hidden Submarine (Latent) Gate on Inner Top Rim / Flange — or Bottom-Center Pin-Point (Three-Plate) — Submarine gate shears clean on inner rim, invisible from outer face; alternatively bottom-center pin-point gate (three-plate mold) gives radially balanced fill for round bins — we advise per your press capability.

Deep Core Venting to Prevent Burn / Short Shot — 0.01–0.015mm vent grooves on parting line + vent pins or porous steel vent insert at core top (last-fill zone) — critical for deep 300–380mm draw PP bins.

Ejection for Deep Draw (H≈300–380mm) — Ejector pins at base rim + optional stripper ring / air-assist eject to prevent vacuum lock & core drag marks on polished surface.

Standard Cavity Count — Bin body: single cavity (1×1) for best cooling & quality; Lid / Inner bucket: 2-cavity or 4-cavity to balance production ratio. Family mold (body+lid) NOT recommended due to different cooling & cycle needs.

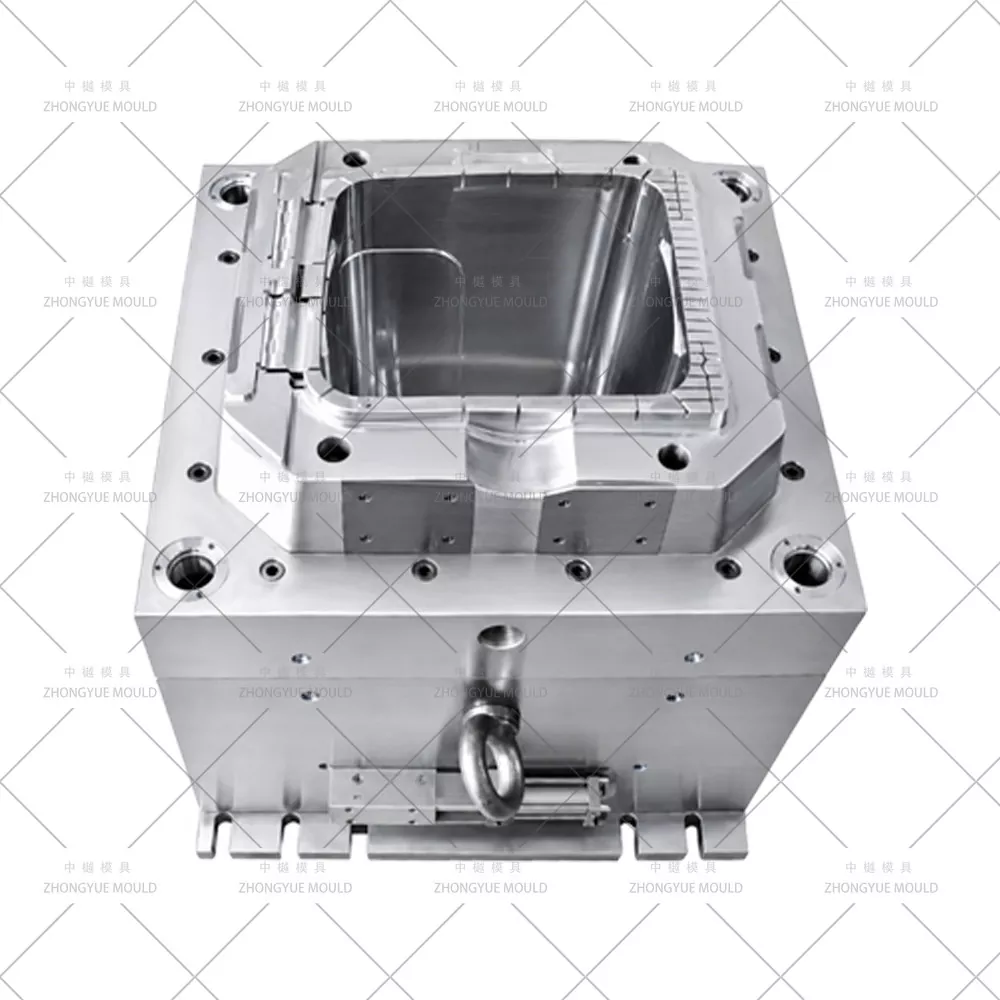

Surface Finish — Smooth Polish Standard — Cavity SPI B1 (satin) or B2 standard; SPI A2 optional for premium gloss version; NO VDI/rattan etching unless specifically requested as "light grain version".

Our Mold Manufacturing & Validation Process

Project Kick-off & DFM Review — Analyze wall thickness (1.8–2.5mm typ.), draft angle (≥1.5° smooth / +0.5° if grain), gate location (submarine on rim vs. bottom pin-point), core venting strategy & required machine opening stroke (≥1.5×H+50mm); suggest improvements for ovality/warp/sink avoidance.

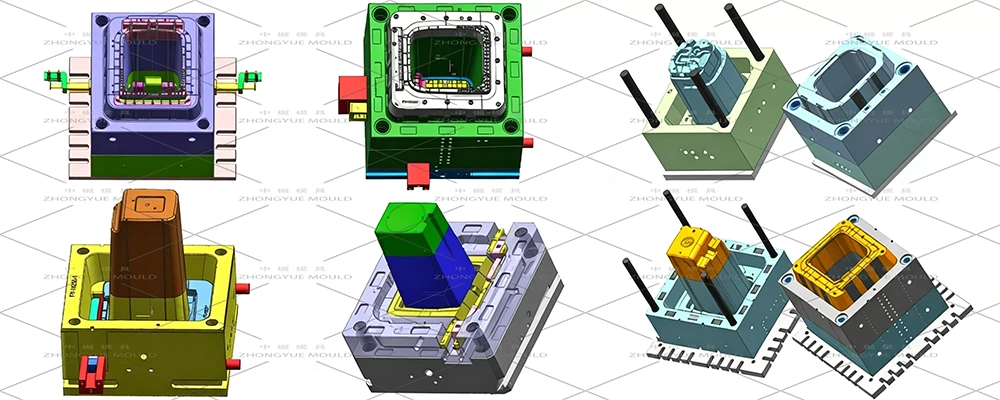

Mold Design Approval (3D) — Full assembly with cooling layout (central baffle + BeCu insert spec.), runner design, vent grooves (0.01–0.015mm parting-line + vent pins at core top), stripper ring / air-eject prep if deep draw >350mm.

Precision Machining — High-speed CNC rough/finish cavity, deep-hole drilling for cooling baffle, core/cavity SPI B1/B2 polish per spec., BeCu insert fitting & thermal contact verification.

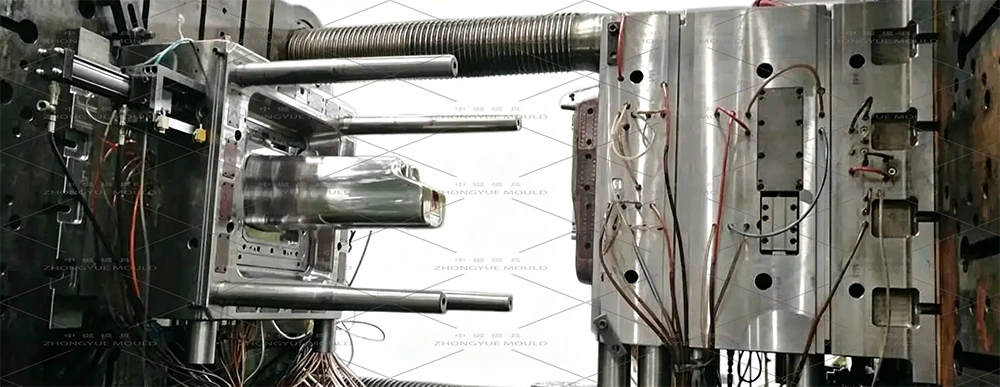

Assembly & T1 Trial — Run on in-house injection machine; check ovality (round bin), top-flange flatness, gate vestige, cooling cycle; supply trial video + sample parts + dimensional check.

Correction & Final Approval — Fine-tune if needed; ship in fumigation-free case with mold manual & spare parts list (ejector pins, water nozzles, sprue bushing).

After-sales Support — 1-Year mold warranty, free spare parts for non-man-made damage, remote technical guidance.

Why Choose ZHONGYUE MOULD for Your Household Mould?

Rich Household Mold Experience — Rattan & smooth dust bins (5L–120L), chairs, stools, crates, baskets, flower pots built in-house

In-house DFM Review — Optimize wall thickness, gate, deep-core venting & BeCu cooling before steel cutting; advise multi-cavity lid layout to match body output

Deep-Bin Polished Cavity Expertise (SPI A/B) — No rattan texture unless requested; correct draft angle on polished surface to prevent sticking/drag marks

Strict QC & Transparent Progress — Weekly machining photos, T1 sample approval (fit-check lid on body sample) before shipment

Export Experience — Molds shipped to Europe, North America, South America, Southeast Asia, Middle East

1-Year Mold Warranty + Spare Parts Supply (ejector pins, BeCu insert available as replaceable part)

Frequently Asked Questions — 20L Regular Trash Can Mould

Q: Is this the same as your 5L/10L Rattan Dust Bin Mould?

A: No. The 20L Regular Trash Can Mould is smooth polished cavity (SPI B1/B2), no rattan/woven VDI texture, deeper draw (~330–380mm H), uses BeCu cooling insert + central baffle, and is typically quoted with a separate 2-cavity lid mold to balance output. Rattan bins have EDM-textured outer cavity & different gate/draft considerations.

Q: Submarine gate on the rim or bottom-center pin-point gate?

A: Both are feasible. Submarine gate on inner top rim is simplest (two-plate mold, auto-degating, invisible vestige) and most common. Bottom-center pin-point gate (three-plate mold) gives radially-balanced fill for round bins and can reduce weld-line visibility — we recommend this if your press supports three-plate molds and you want optimum fill symmetry.

Q: Do you make the matching lid mold too?

A: Yes — we quote the 20L bin body as 1×1 cavity and the lid as 2-cavity or 4-cavity mold (shorter cycle) to roughly balance daily output. Inner liner mold also available.

Q: What material and wall thickness do you recommend?

A: Virgin PP (MFR 8–15) — good stiffness/impact balance, low cost. Wall 1.8–2.5mm typical; add 1–2% UV stabilizer if bins will sit on sunny balcony/patio.

Q: What do you need for a quotation?

A: 2D drawing (PDF/DWG) + 3D model (STP/IGS/X_T) OR clear product photos with dimension annotations (top Ø/bottom Ø or L×W, height, wall thickness, capacity, weight), annual volume, preferred cavity number for lid (2×1 etc.), and whether you want smooth polish (standard) or light VDI grain version.

Request a Quote for Your 20L Regular Trash Can Mould

Send your 20L regular trash can 2D drawing + 3D model (or sample photos with dimensions) and project requirements. Tell us if you also need the matching lid mold. ZHONGYUE MOULD will provide a free DFM review + lid-cavity recommendation + formal quotation within 24–48 working hours.

Contact us now to start your 20L Plastic Waste Bin / Household Dustbin Injection Mold project!
