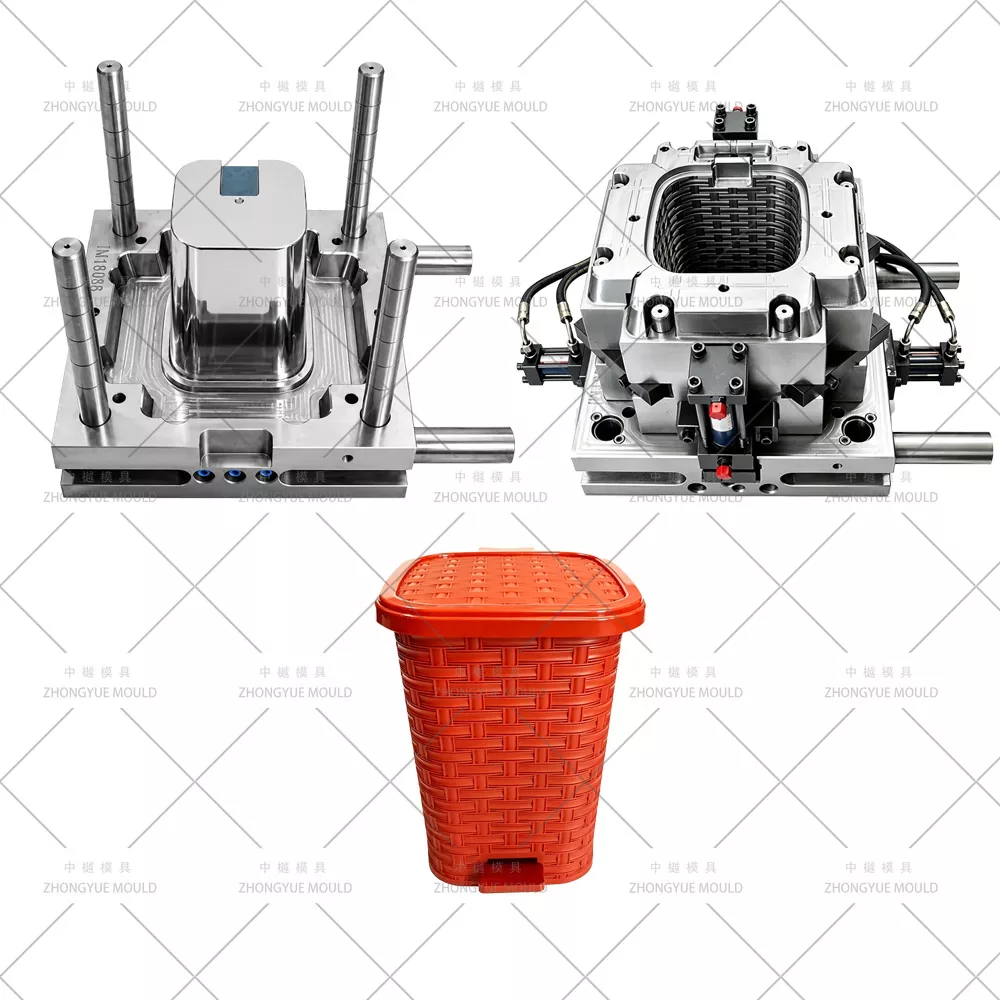

10L Square Rattan Dust Bin Mould

10L Square Rattan Dust Bin Mould – Custom Plastic Square Woven / Rattan Pattern Trash Can Injection Mold Manufacturer

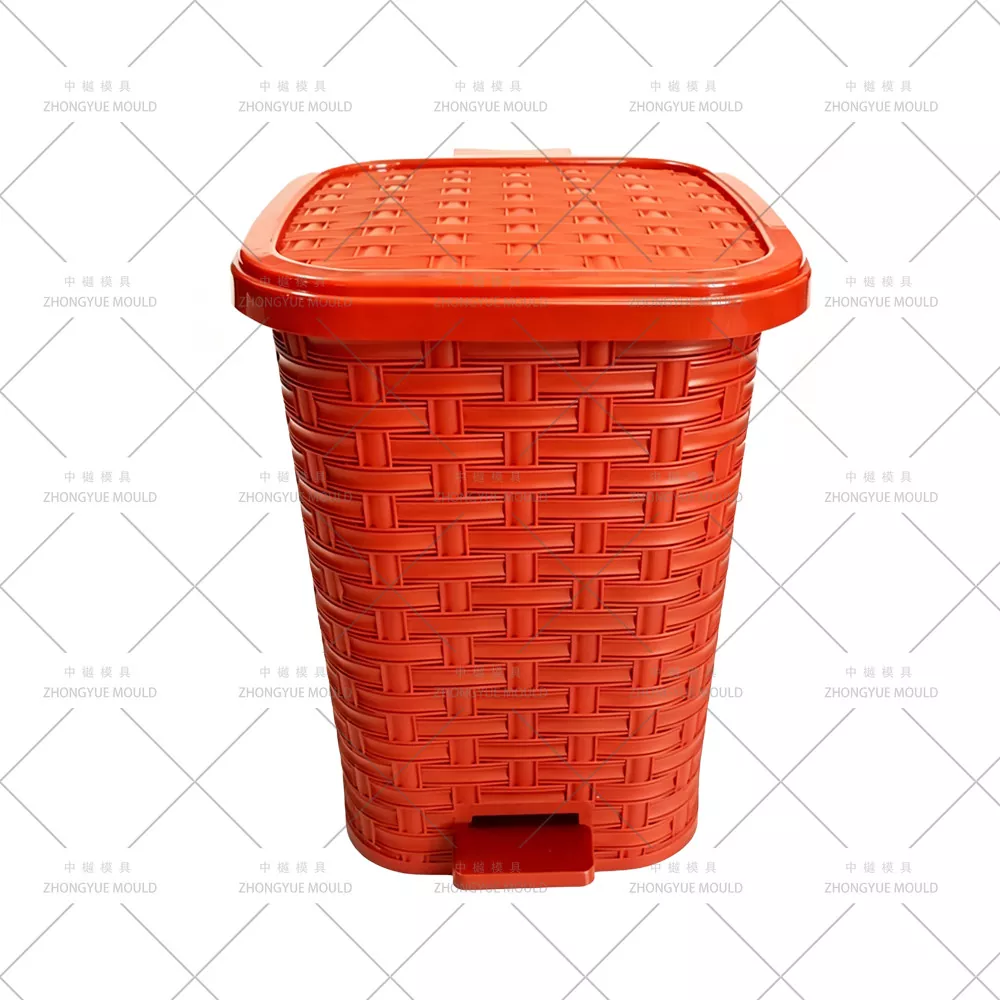

ZHONGYUE MOULD is a professional Chinese injection mold manufacturer supplying 10L Square Rattan Dust Bin Moulds / Plastic Square Woven-Pattern Trash Can Injection Molds (Square Rattan Style Waste Bin Molds) to global household products wholesalers, supermarkets, and private-label brands. The 10L square rattan-look dust bin is a popular choice for offices, bedrooms, and bathrooms — molded in PP (Polypropylene, virgin or with UV stabilizer) with simulated cane/weave (rattan) texture on the outer surface (VDI 30–42 leather grain or custom woven EDM-texture) and a smooth inner surface for easy cleaning. Our molds feature precision EDM/texturing for rattan weave pattern, optimized baffle + corner bubbler cooling (BeCu inserts at heavy-corner radii), hidden submarine gate on the inner top flange (no gate vestige on visible rattan face), and DFM analysis to ensure uniform wall thickness (2.0–2.8mm) and controlled warp on the four straight walls.

From 10L square rattan dust bin bodies (with/without pedal cut-out), matching snap-on / hinged lids, to inner removable buckets, we provide full DFM review before steel cutting.

Plastic Dust Bin Mould specifications :

Make your nextPlastic Dust Bin Mould project brighten!

Key Mold Engineering Highlights for Square Rattan Dust Bin Molds

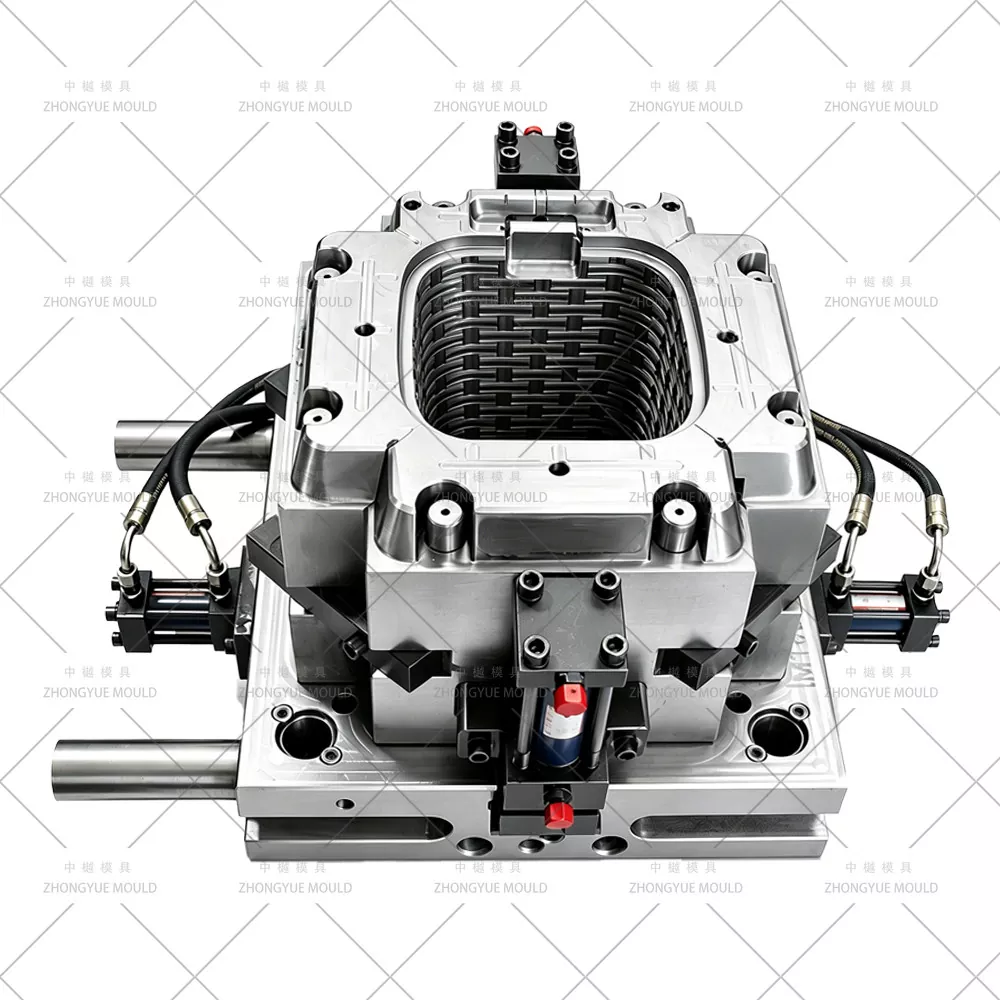

Rattan / Woven Pattern Texture Cavity Processing — Outer cavity EDM sunk-relief or acid-etched VDI 30–42 / Mold-Tech MT-110xx woven-cane pattern; core side SPI B1/B2 satin smooth; texture depth controlled for clean demold without drag marks on straight walls.

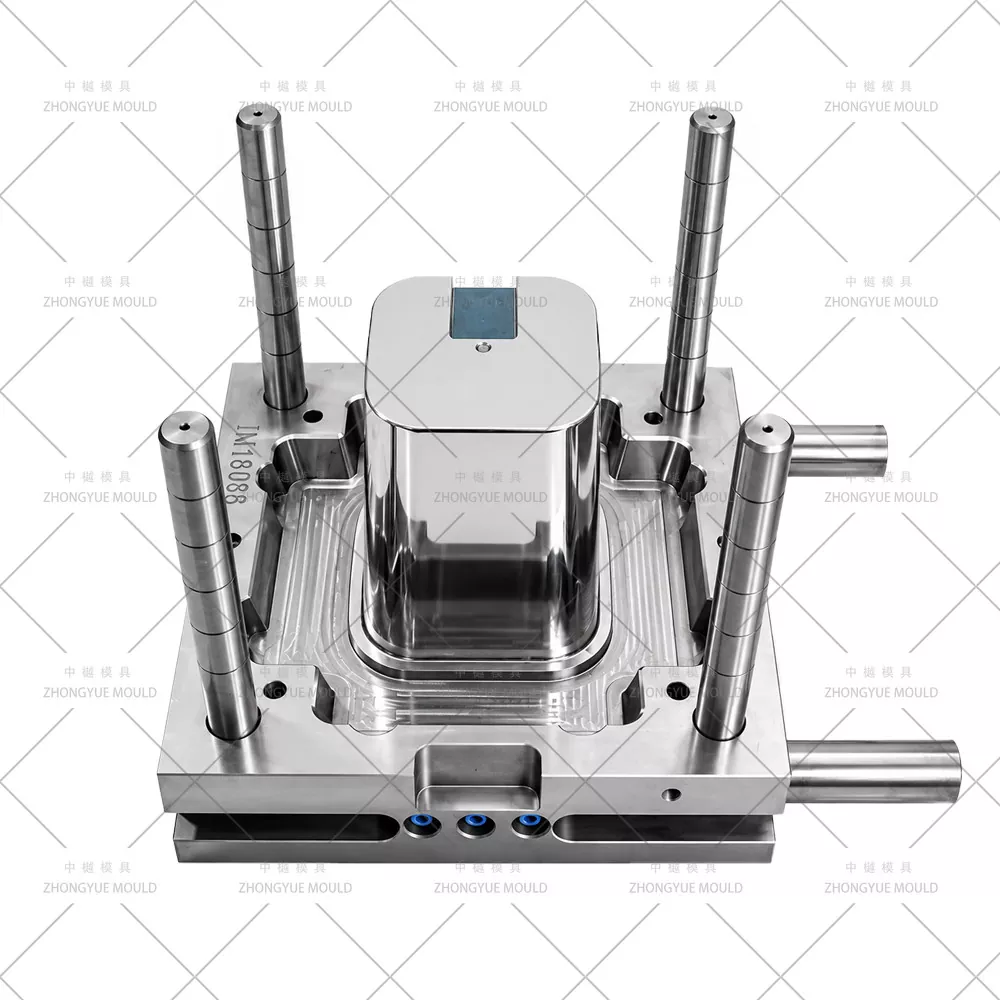

Optimized Cooling for Square Thin-Wall Bucket — Central baffle + 4-corner bubblers / BeCu (beryllium copper) inserts at bottom radii where wall thickens; isolated water circuit keeps ΔT ≤ 3–4℃, reducing cycle time (typical 15–22s) and preventing convex/concave bowing of straight walls.

Shrinkage Compensation for PP (Square Geometry) — PP shrinkage ~1.2–1.8%; slight anisotropy considered; Moldflow/calculation-verified cavity sizing on length/width/height, especially critical on top flange flatness & lid-seat datum.

Hidden Submarine (Latent) Gate on Inner Top Flange / Rim — Gate vestige completely hidden from rattan-textured outer face; cold runner Y-branch if multi-cavity lid/liner; hot tip (open) optional for high-volume.

Standard Cavity Count — Main 10L square bin body: single cavity (1×1) for best cooling & quality control; Lid / Inner bucket: often 2-cavity or 4-cavity to match production ratio; family mold (body + lid) NOT recommended due to different cooling needs.

Easy Ejection & Anti-Stick Design for Textured Straight Walls — Polished core, adequate draft angle (≥2° on textured face — extra 0.5–1° added per VDI grain depth), ejector pins evenly spaced at base rim; optional air-assist eject for deep draw >280mm.

Our Mold Manufacturing & Validation Process

Project Kick-off & DFM Review — Analyze wall thickness (2.0–2.8mm typ.), rattan texture draft angle (add 0.5–1° extra per VDI depth — min. 2° total on textured wall), gate location & ejection feasibility; suggest improvements for sink/warp avoidance on straight walls.

Mold Design Approval (3D) — Full assembly with cooling layout (baffle + 4-corner bubbler), texture zone definition, runner Y-branch balancing (multi-cavity lid/liner), venting strategy.

Precision Machining — High-speed CNC rough/finish cavity, deep-hole drilling for cooling baffle, Sodick/Charmilles EDM for rattan weave relief, acid etching / texture application, core satin polish.

Assembly & T1 Trial — Run on in-house injection machine; supply trial video + sample parts + dimensional check (top opening diagonal & flatness).

Correction & Final Approval — Fine-tune if needed; ship in fumigation-free case with mold manual & spare parts list (ejector pins, water nozzle, sprue bushing).

After-sales Support — 1-Year mold warranty, free spare parts for non-man-made damage, remote technical guidance.

Why Choose ZHONGYUE MOULD for Your Household Mould?

Rich Household Mold Experience — Tables, chairs, stools, crates, storage boxes, flower pots & rattan dust bin molds built in-house

In-house DFM Review — Optimize wall thickness, gate & cooling before steel cutting; advise multi-cavity layout for lid/liner

Rattan / Woven Texture Expertise — EDM relief + acid etch VDI / Mold-Tech cane pattern; clean demold without sticking on square straight walls

Strict QC & Transparent Progress — Weekly machining photos, T1 sample approval before shipment

Export Experience — Molds shipped to Europe, North America, South America, Southeast Asia, Middle East

1-Year Mold Warranty + Spare Parts Supply

Frequently Asked Questions

Q: Can you make molds for the bin body, lid, and inner bucket as a set?

A: Yes. We typically quote the 10L square rattan body as single-cavity mold, and the lid / inner bucket as 2-cavity or 4-cavity molds to balance production ratio. Family mold (body+lid) is not recommended due to different cooling & cycle times.

Q: What rattan/woven texture can you do?

A: We can replicate your sample's cane/weave pattern via EDM sunk-relief and apply VDI 30–42 or Mold-Tech MT-series acid etch. Please send a physical sample or clear close-up photo + texture standard for matching.

Q: What material do you recommend?

A: Virgin PP (MFR 8–12) is standard — good flow into thin walls with low cost. Add 1–2% UV stabilizer if bins will be exposed to sunlight (balcony/patio).

Q: What do you need for a quotation?

A: 2D drawing (PDF/DWG) + 3D model (STP/IGS/X_T) OR clear product photos with dimension annotations (L×W×H, wall thickness, capacity, weight), annual volume, preferred cavity number (1×1 / 2×1 etc.), and texture sample/photo if available.

Request a Quote for Your 10L Square Rattan Dust Bin Mould

Send your 10L square rattan dust bin 2D drawing + 3D model (or sample photos with dimensions) and project requirements. ZHONGYUE MOULD will provide a free DFM review + formal quotation within 24–48 working hours.

Contact us now to start your Plastic Square Rattan / Woven Trash Can Injection Mold project!
