10L Storage Box Mould

10L Storage Box Mould – Custom Plastic 10L Storage Container / Organization Crate Injection Mold Manufacturer

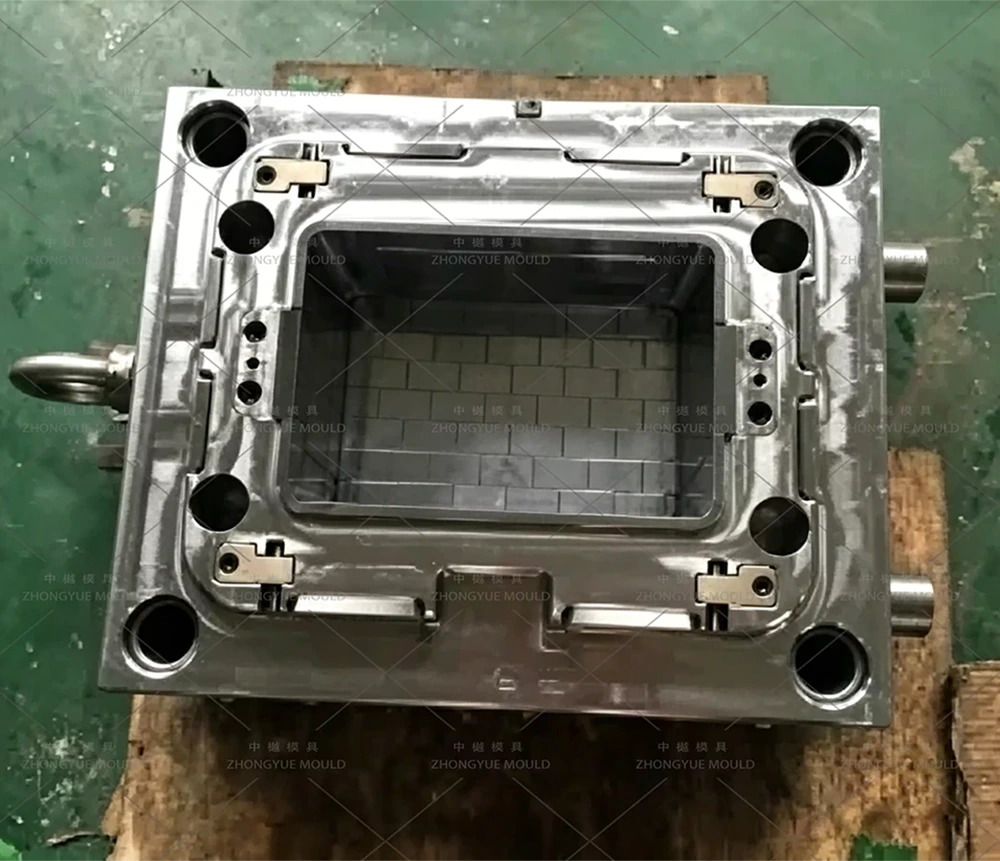

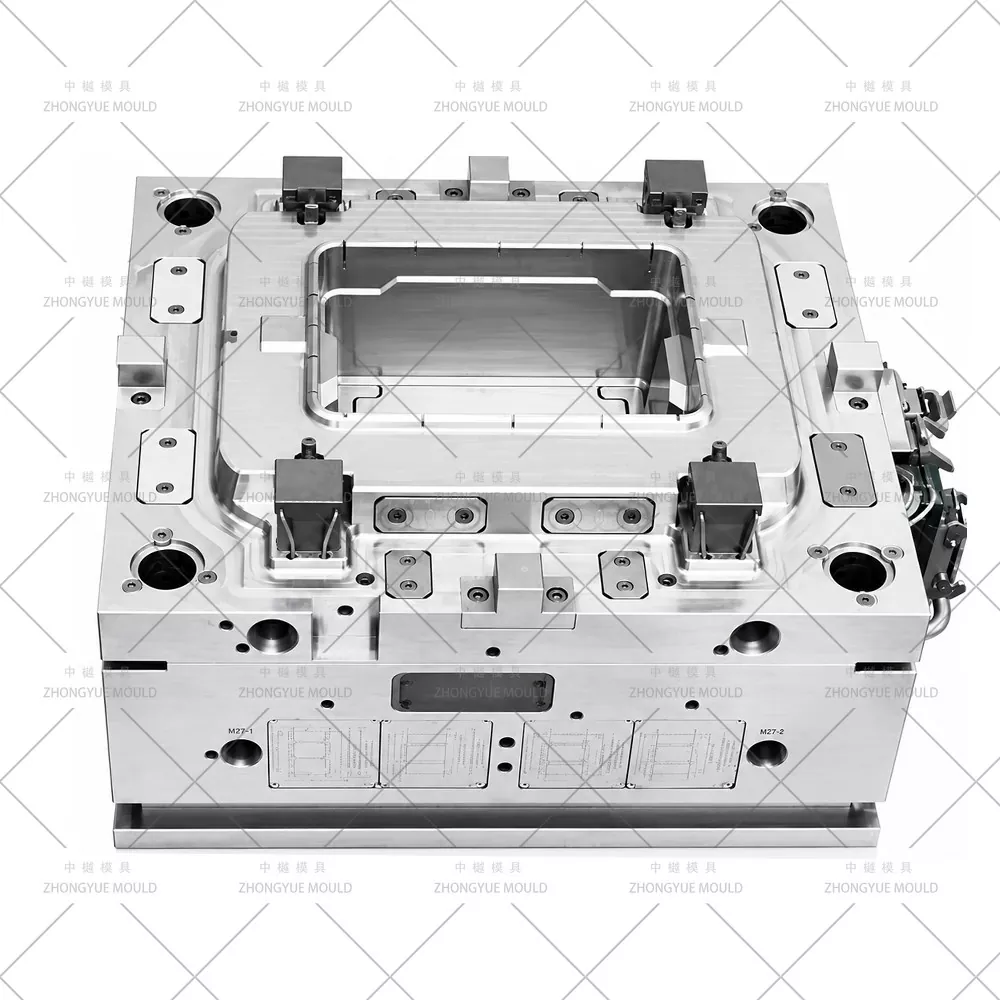

ZHONGYUE MOULD is a professional Chinese injection mold manufacturer supplying 10L Storage Box Moulds / 10 Liter Household Storage Container Injection Molds (Rectangular Organization Crates, Closet/Toy/Document Boxes) to global household-products wholesalers, supermarkets, and private-label brands. The 10L storage box is a compact home/office organizer — most commonly molded in PP (Polypropylene, MFR 8–15 g/10min, optionally with UV stabilizer & color masterbatch) with a smooth or light VDI 27–30 leather grain outer surface (SPI B1/B2 satin inner face) for easy cleaning and attractive appearance. Our 10L box molds feature central baffle + BeCu (Beryllium Copper) insert cooling at bottom corner radii, hidden submarine gate on the top flange or inner rim (no visible gate vestige), DFM-verified wall thickness (1.8–2.5mm), and a single-cavity (1×1) layout with optional 2-cavity or 4-cavity matching lid mold for balanced daily output. Carry-handle undercut (if present) is handled via a small loose insert or mini angled slide.

From 10L rectangular stackable storage boxes (with/without carry handle recess), matching snap-fit or hinge lids (clear/colored), to inner divider trays (optional separate mold), we provide full DFM review and Moldflow cooling/fill analysis before steel cutting.

Plastic Injection Storage Box Mould specifications :

Make your next Plastic Storage Box Mould project brighten!

What Is a Plastic Storage Box Mold and How Does It Work?

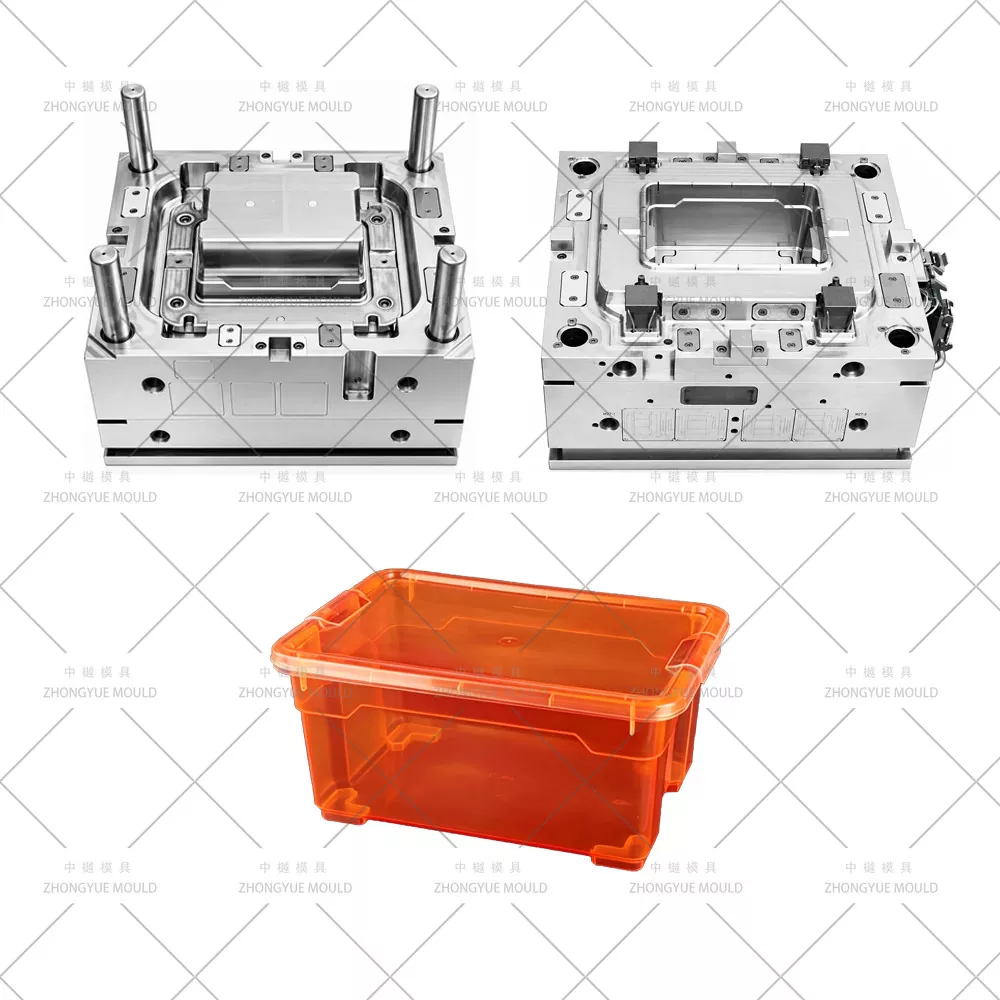

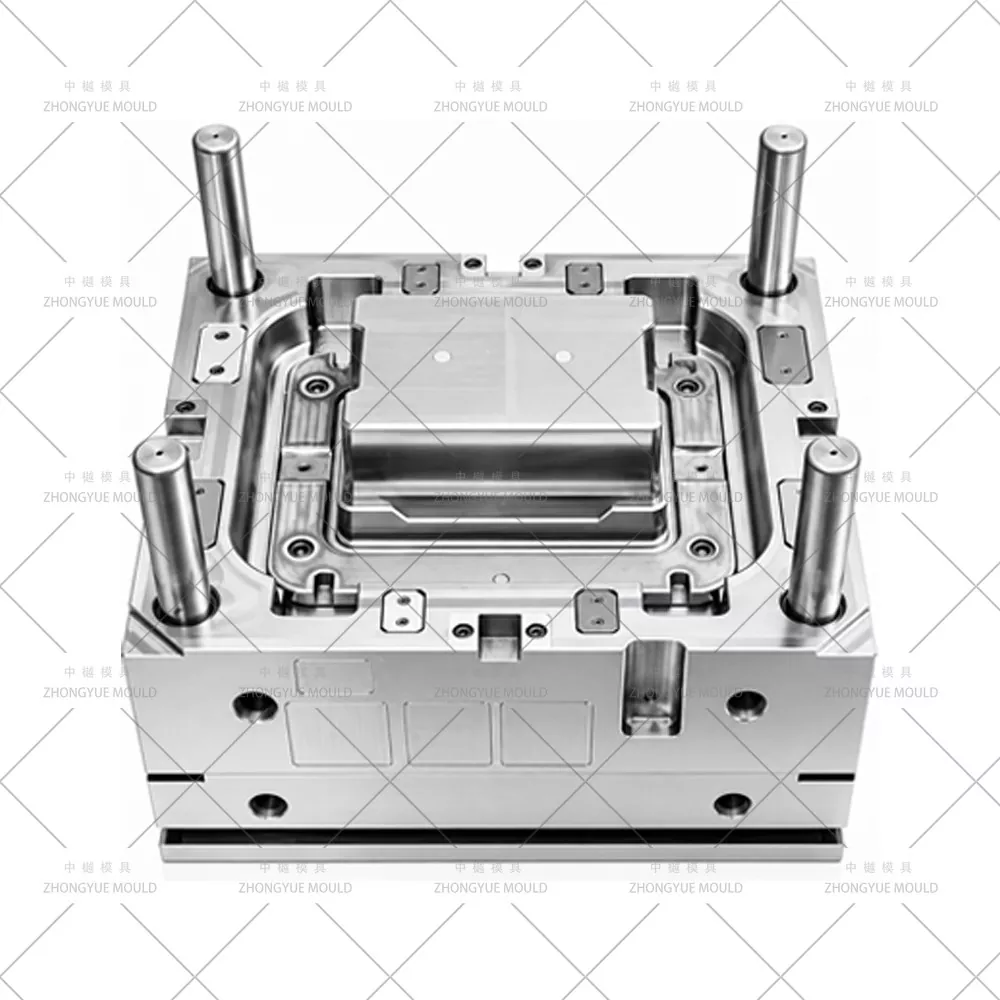

A Plastic Storage Box Mold is a custom-built cavity-and-core tool used in an injection molding machine. The mold consists of a hollow cavity (shaping the outer box contours, stacking lips, handle recess) and a core (forming the inner volume). When PP resin is heated to melt (~180–230℃) and injected under high pressure into the closed mold, the molten plastic fills every corner — including handle recesses and stacking ledges. After a short cooling phase (typical 18–30s cycle for 10L PP box), the plastic solidifies, the mold opens, and the finished storage box is ejected.

This process — injection molding — is the industry standard for high-efficiency, repeatable production of dimensionally stable household containers. A well-built 10L storage box mold from ZHONGYUE MOULD can produce 300,000 to 500,000+ shots (P20) or 800,000–1,000,000+ shots (718H) with consistent wall thickness, sharp corner definition, and clean parting-line finish.

Key Features of a Durable & Precise 10L Storage Box Mold

A durable 10L storage box mold must withstand typical clamp force (350T–650T machines) and repeated thermal cycling. Our molds are built with:

High-Grade Mold Steel — Cavity & Core in P20 (pre-hard HRC 28–33) standard, upgradeable to 718H (HRC 33–38) or 2738HH for longer life & better polish/texture retention.

Precision-Machined Cavity Dimensions — PP shrinkage ~1.2–1.8% accurately compensated; box length/width ±0.15mm, stacking lip flatness ±0.25mm, ensuring perfect lid-seat & stackability across batches.

Efficient Baffle + BeCu Cooling System — Ø8–10mm central baffle through core + BeCu (MOLDMAX™/Ampcoloy) insert at bottom corner radii where wall thickens — isolates ΔT ≤ 3–4℃ inlet–outlet, shortens cycle & reduces warpage.

Smooth Inner Surface & Controlled Outer Texture — Core polished to SPI B1/B2 (easy-release, smooth box interior); Cavity SPI B1 satin standard or light VDI 27–30 leather grain on customer request — NO rattan/woven EDM etching unless specially ordered.

Wear-Resistant Mini Slide / Loose Insert (if carry handle undercut present) — H13 (2344 ESR) nitrided mini insert or shallow slide for handle recess; checked for interference in 3D assembly.

Deep-Venting Design — 0.01–0.015mm parting-line vents + vent pins at last-fill zone to prevent burn/short-shot on ~200–250mm draw.

Types of Plastic Storage Box Molds We Build

Benefits of Using a High-Quality 10L Storage Box Mold from ZHONGYUE MOULD

Product Consistency = Customer Satisfaction — Every 10L box stacks flush, lid seats square, dimensions repeatable batch-to-batch.

Strength & Structural Integrity — Correct wall-thickness distribution (1.8–2.5mm) & corner reinforcement designed in DFM → boxes hold heavy loads without bulging or cracking.

⚡horter Cycle & Less Scrap — BeCu-localized cooling + balanced baffle → reduced cooling time (18–30s typical), fewer sink/splay rejects, lower unit cost.

Design Flexibility — Mold accommodates embossed logo, optional VDI light grain or high-gloss zone (S136 insert), integrated handle recess, labeling area, color-MB change via same mold.

Lid-Box Compatibility Ensured — We verify lid-seat clearance (0.2–0.4mm) using both body & lid drawings before steel cutting.

Applications Across Industries & Home Use

Choosing the Right Mold Manufacturer — Why ZHONGYUE MOULD?

Selecting your injection mold partner is critical. ZHONGYUE MOULD has 15+ years' experience in household commodity molds — storage boxes (5L–120L), crates, chairs, dust bins, rattan baskets — with in-house CAD/CAM/CAE (UG NX, Pro/E, SolidWorks, Moldflow), full-size CNC & EDM, and export track record to Europe, North & South America, Southeast Asia, Middle East.

We don't just "make a mold" — we review your part drawing, run DFM & Moldflow cooling/warp analysis, suggest wall-thickness / gate / ejection / handle-undercut improvements, and only proceed to steel cutting after your sign-off. Each mold ships with T1 trial video, sample parts + CMM report, operation manual & spare-parts list.

Our 10L Storage Box Molding Procedure at ZHONGYUE MOULD

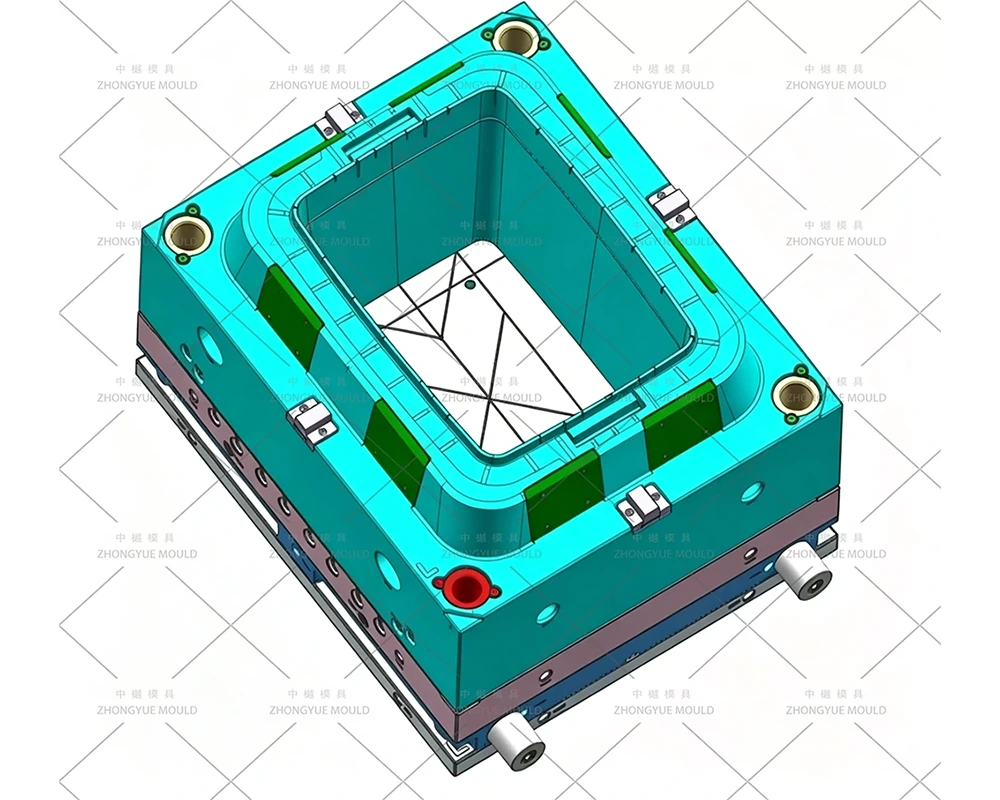

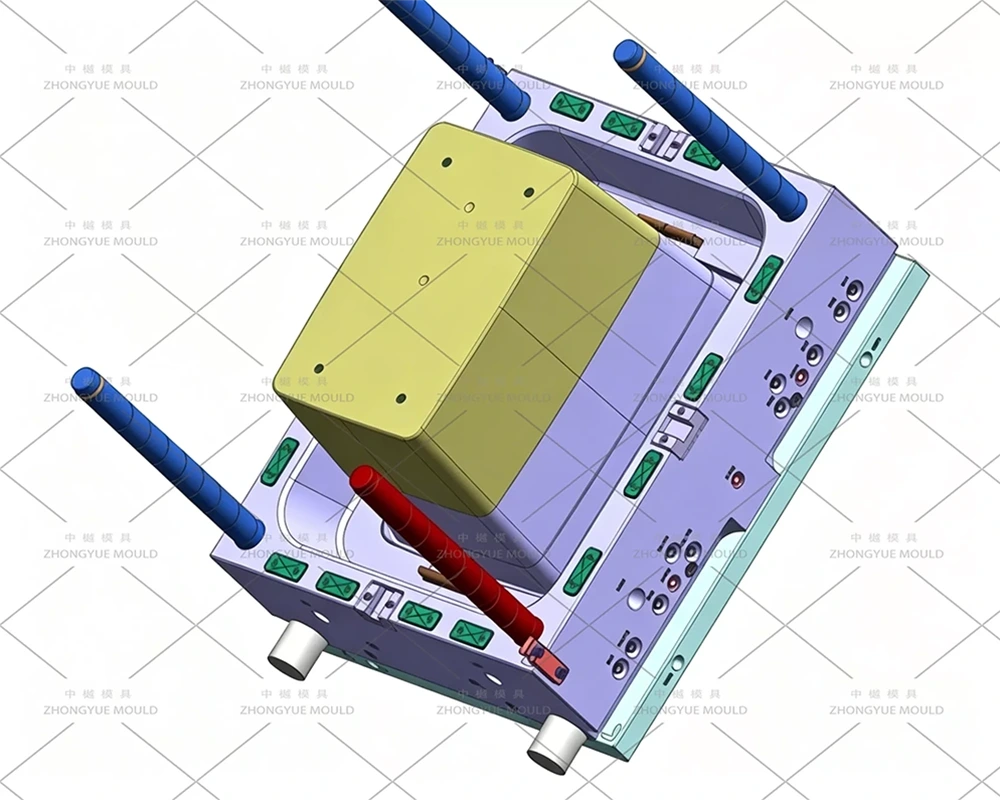

3D Product & Mold Design (DFM Stage) — Receive your 2D/3D (STP/IGS/X_T); analyze wall thickness (1.8–2.5mm), draft angle (≥1.5° smooth / +0.5° if light grain), gate location (submarine on top inner flange), cooling layout (central baffle + BeCu spec.), carry-handle undercut (mini-insert or slide), and lid-match clearance. Provide DFM report & improvement suggestions — free of charge.

Material & Steel Confirmation — P20 (std.) or 718H/2738HH per volume; mold base LKM/DME/HASCO; hot runner (YUDO/SYNVENTIVE) or cold sub-gate per preference.

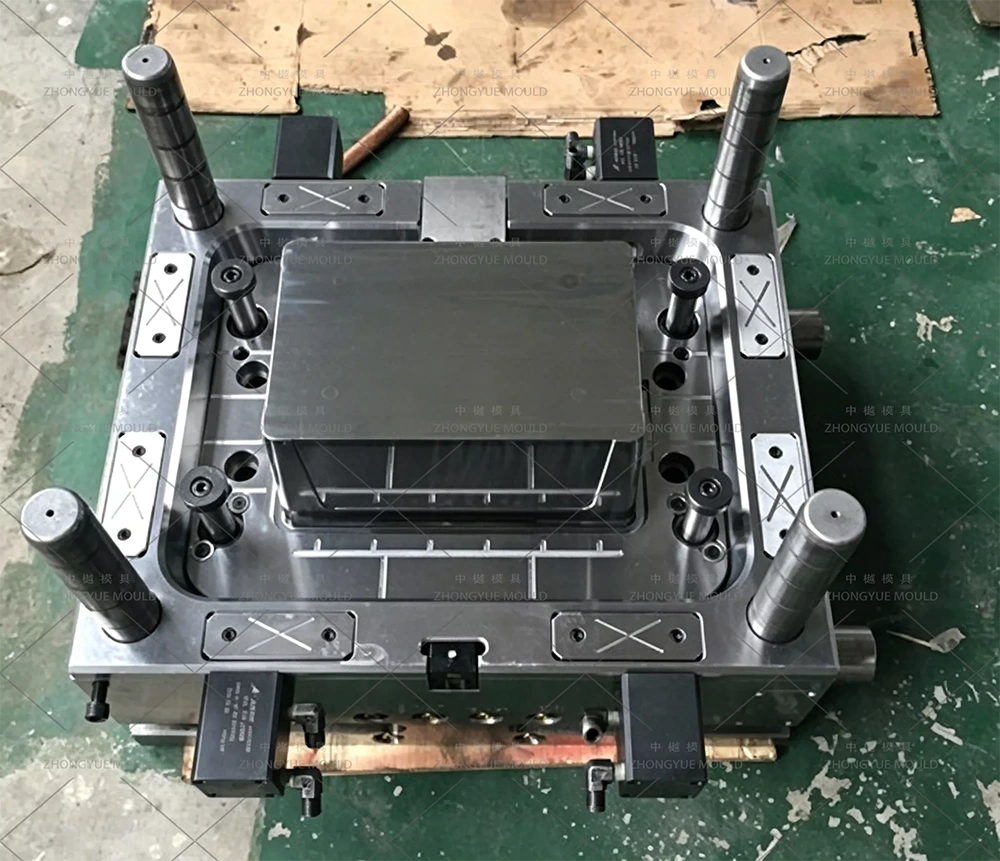

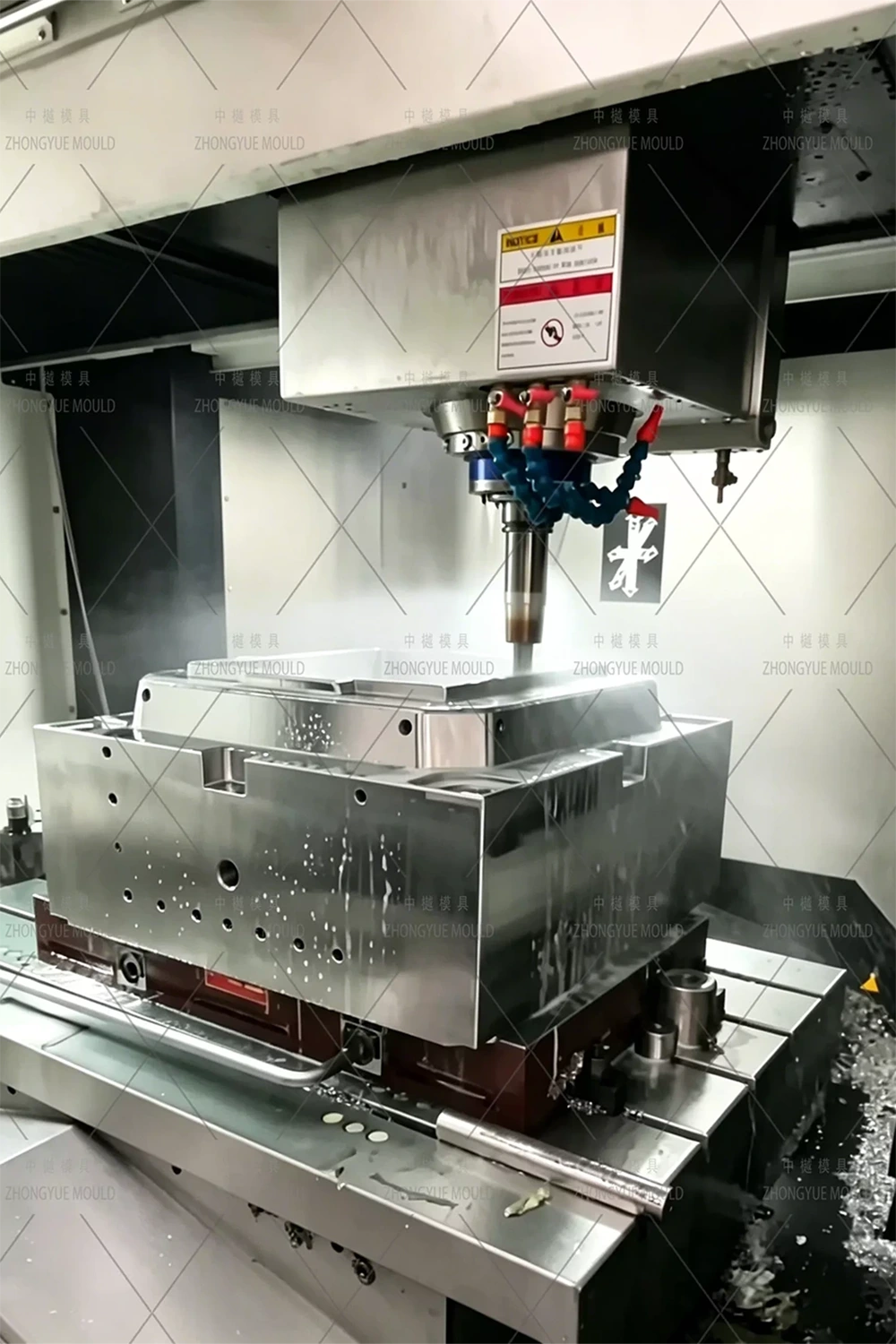

Precision Machining — High-speed CNC rough/finish cavity & core, deep-hole drilling for cooling baffle, H13 mini-insert nitriding & hand-fit, BeCu insert installation & thermal-contact check, SPI B1/B2 polish or VDI light etch.

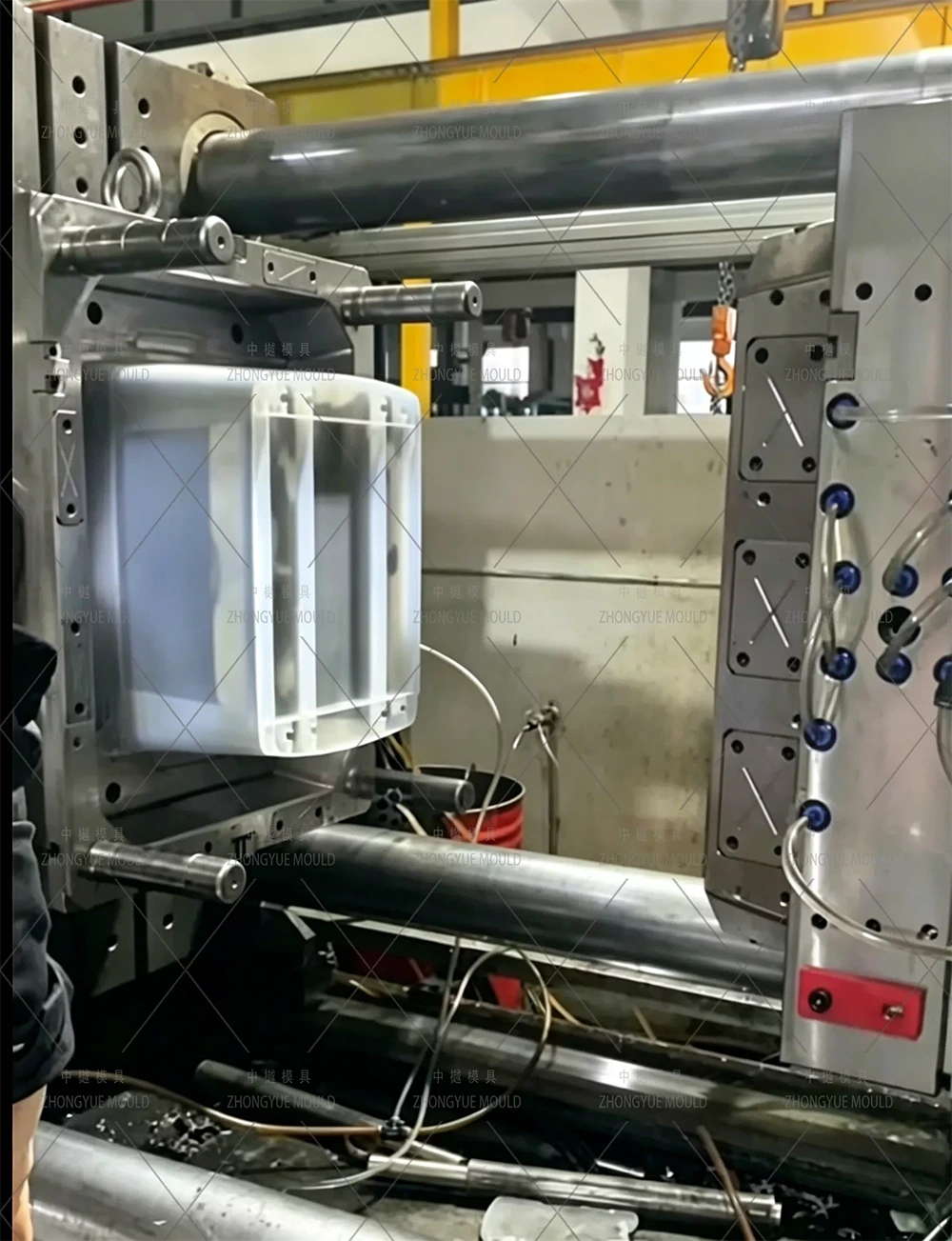

Assembly, T1 Trial & Correction — Run on in-house machine, check ovality/flatness, wall thickness scan, lid-seat fit (if lid sample available), supply trial video + samples + dimensional report. Fine-tune if needed.

Final Packaging & Shipment — Fumigation-free heavy-duty wooden case; mold manual; spare parts (ejector pins, water nozzles, sprue bushing, mini-insert if applicable); steel certs & heat-treatment docs.

After-Sales Support — 1-Year warranty (non-man-made damage), free spare parts, remote technical guidance for re-cutting vents / adjusting ejection.

Why Choose ZHONGYUE MOULD for Your 10L Storage Box Mould?

Rich Household Mold Experience — 5L–120L storage boxes, crates, chairs, dust bins, rattan baskets built in-house

In-house DFM & Moldflow Cooling/Warp Analysis — Wall thickness, BeCu location, handle-undercut solution, lid-body clearance verified beforesteel cutting

BeCu Cooling + Central Baffle Expertise — Faster cycle, less warp, longer mold life for compact 10L PP boxes

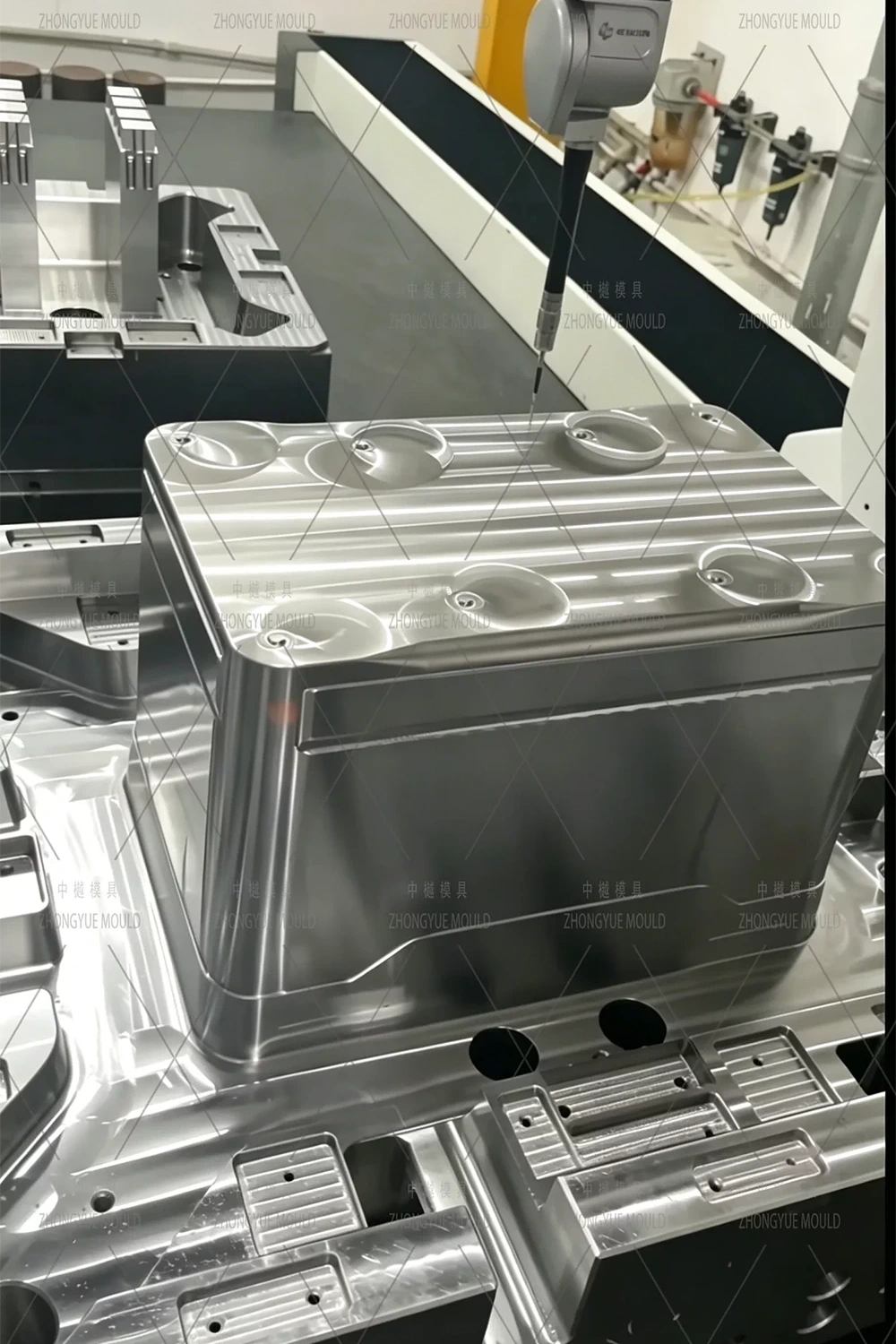

Strict QC & Transparent Progress — Weekly machining photos, CMM inspection, T1 sample approval (fit-check with lid) before shipment

Export Experience — Molds shipped to Europe, North America, South America, Southeast Asia, Middle East

1-Year Mold Warranty + Spare Parts Supply (BeCu insert, mini-insert, ejector pins, springs)

Frequently Asked Questions

Q: Do you also make the matching lid mold?

A: Yes. We quote the 10L box body as 1×1 cavity and the lid as 2-cavity or 4-cavity mold (shorter cycle ~8–15s) to balance daily output. Lid can be PP (opaque/colored), clear PS, or ABS (premium) — separate quote.

Q: What steel do you recommend for a 300k–500k shot program?

A: P20 (HRC 28–33) is cost-effective for 300k+ shots. For 500k–1M shots or better surface retention with light VDI grain, we recommend 718H (HRC 33–38) or 2738HH.

Q: Submarine gate or hot runner?

A: Default is cold sub-gate on inner top flange (hidden vestige, auto-degating) — simple & reliable. Hot tip (YUDO/SYNVENTIVE 1-tip open) is optional for high-volume runs to eliminate runner scrap.

Q: Can you add a carry handle recess / undercut?

A: Yes — designed via a loose changeable insert or mini shallow slide (H13 nitrided). DFM checks interference & draft. Handle itself is NOT molded — it's a bought-in plastic/metal part assembled post-molding (or integral PP hinge lid variant quoted separately).

Q: What do you need for a quotation?

A: 2D drawing (PDF/DWG) + 3D model (STP/IGS/X_T) OR clear photos with dimensions (L×W×H, wall thickness, weight, capacity), annual volume, preferred cavity count for lid (2×1 etc.), material (PP MFR / UV yes/no). If you also want lid mold, please share lid sketch/dimensions or confirm "same perimeter as body top".

Request a Quote for Your 10L Storage Box Mould

Send your 10L storage box 2D drawing + 3D model (or sample photos with detailed dimensions) and project requirements. Tell us if you also need the matching lid mold. ZHONGYUE MOULD will provide a free DFM report + Moldflow cooling/warp summary + formal quotation within 24–48 working hours.
