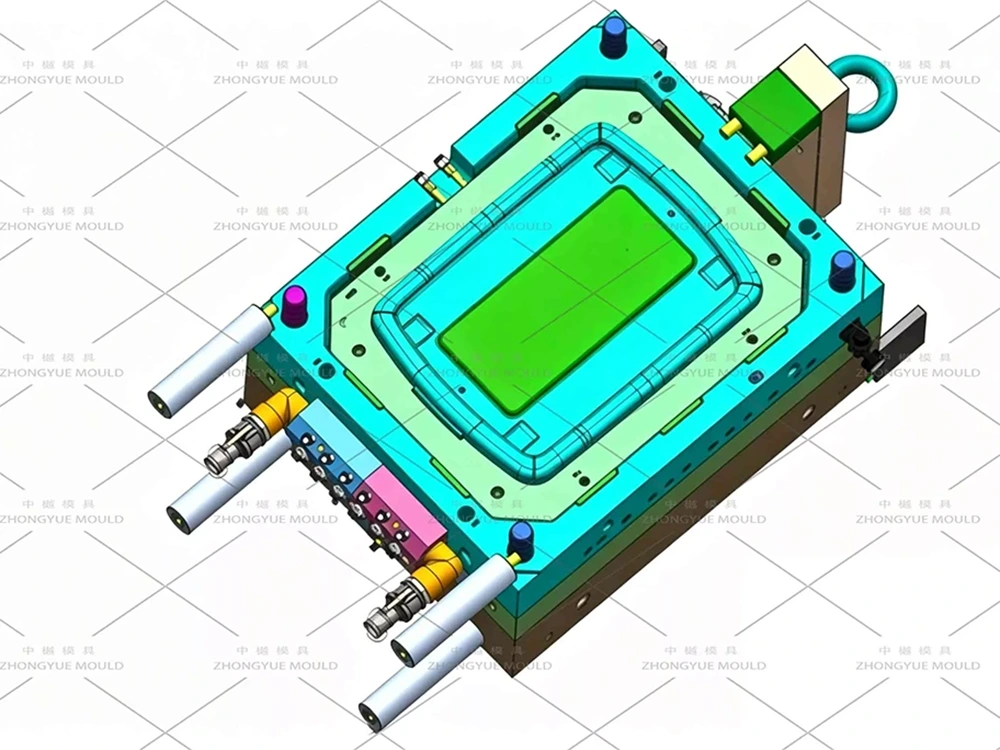

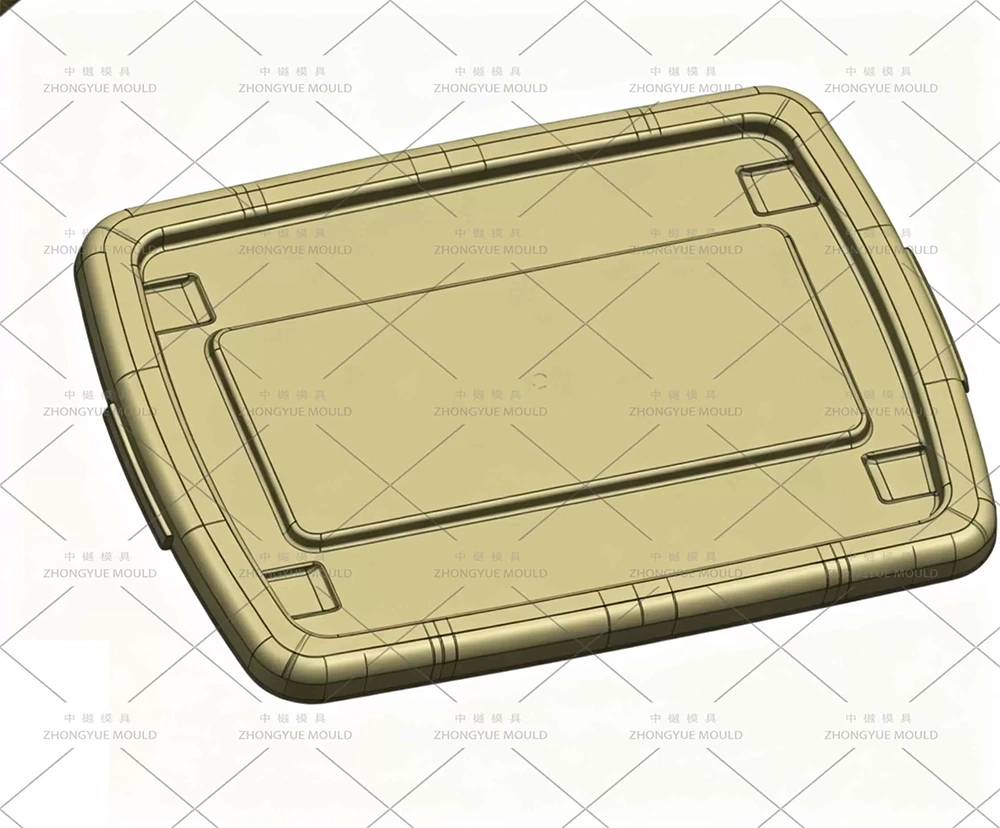

ZHONGYUE MOULD is a professional Chinese injection mold manufacturer supplying 40L Storage Box Lid Moulds / Plastic 40L Storage Container Lid Injection Molds (Snap-fit or Hinged Box Covers) to global household products wholesalers, supermarkets, and private-label brands. The 40L storage box lid is a medium-sized shallow-draw component (depth typically 40–70mm) molded in PP (MFR 8–15 g/10min, color-matched to body or clear PS/ABS for premium viewing windows) with a smooth satin-polish outer face (SPI B1/B2) and inner snap-fit ribs engaging the 40L box top flange. Our lid molds are commonly designed as 2-cavity or 4-cavity (2×1, 2×2, or 1+1 L+R for contoured lids) to balance the slower cycle of the 40L box body (1×1, cycle ~22–35s). Features include hidden submarine gate on the inner rim, micro angled-lifters or shallow slides for snap-clip undercuts, optional silicone-seal groove, and DFM verification of lid-to-body seating clearance (0.2–0.4mm). For premium versions, we integrate changeable transparent window inserts (PS/ABS) within the same lid mold.

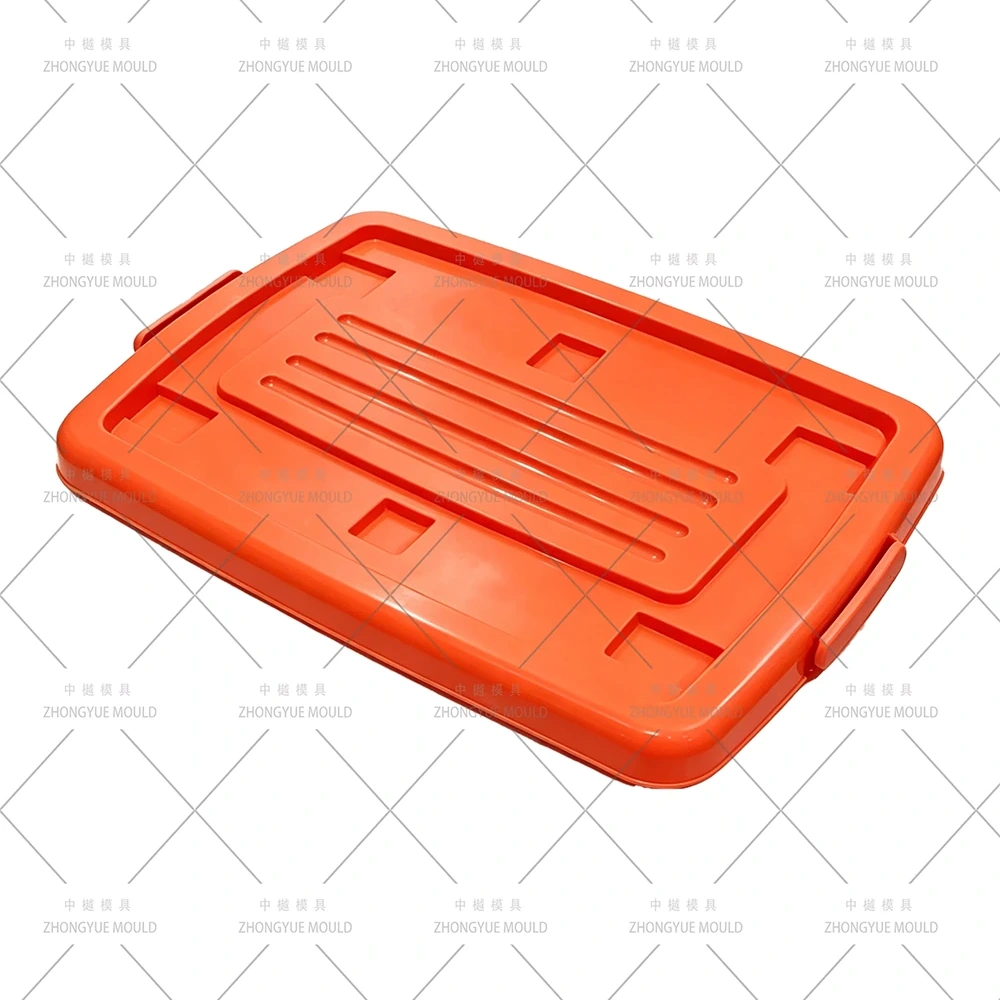

From snap-on storage box lids (opaque PP color-match), clear viewing window lids (PS/ABS insert), to gasket-groove lids for dust-proof storage, we provide full DFM review before steel cutting.
|
Item |
Specification / Options |
|
|
Mold Name |

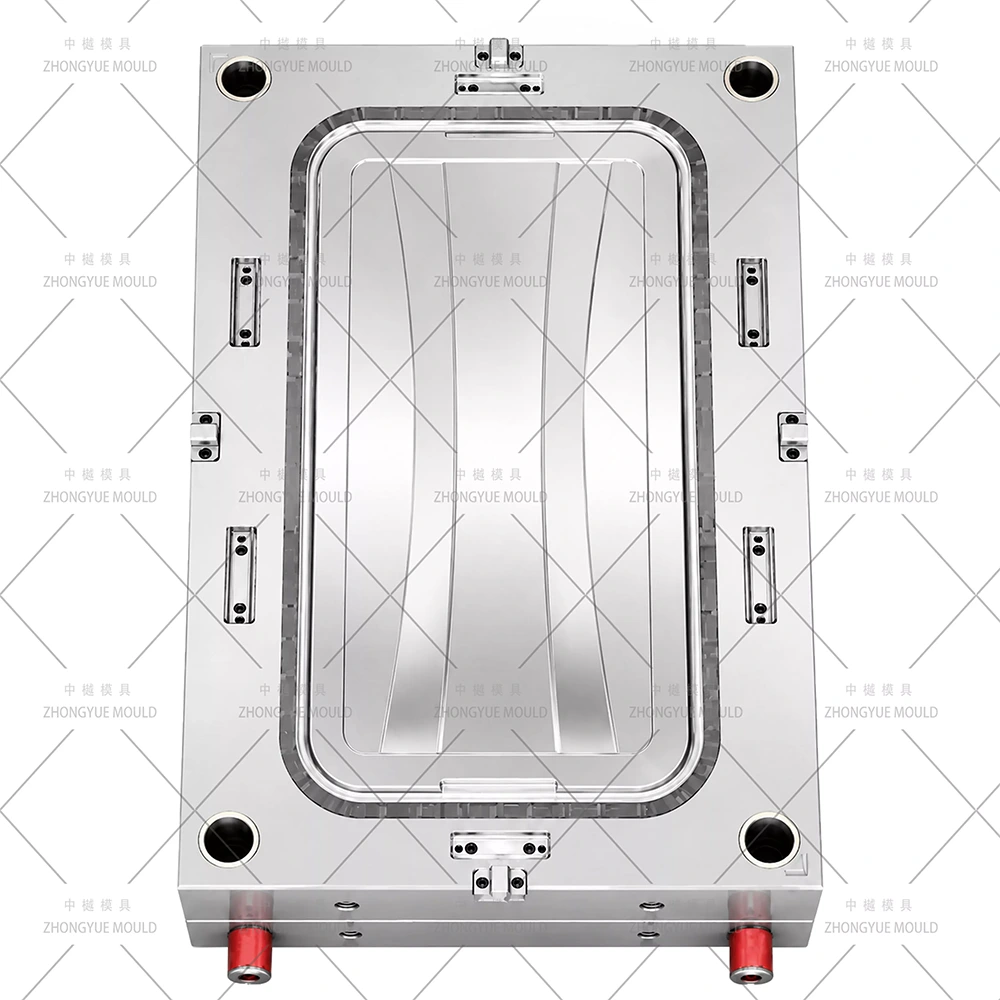

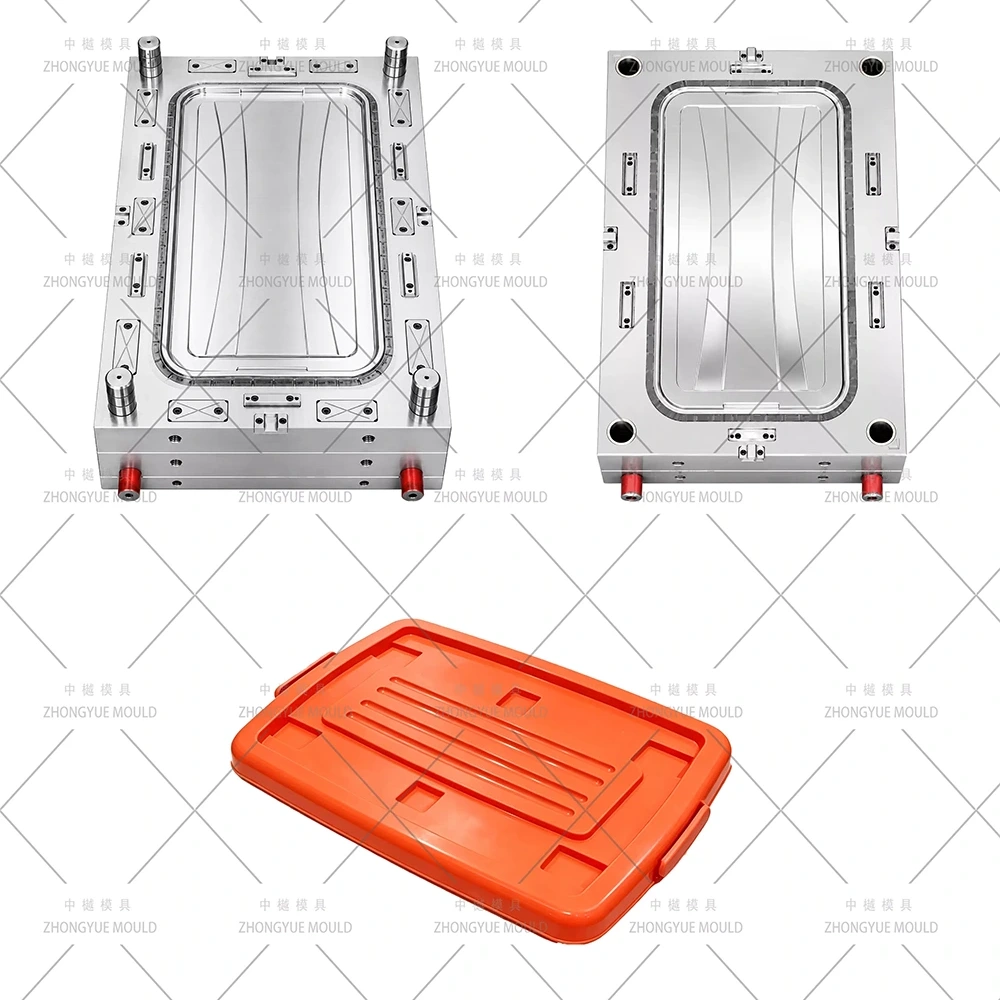

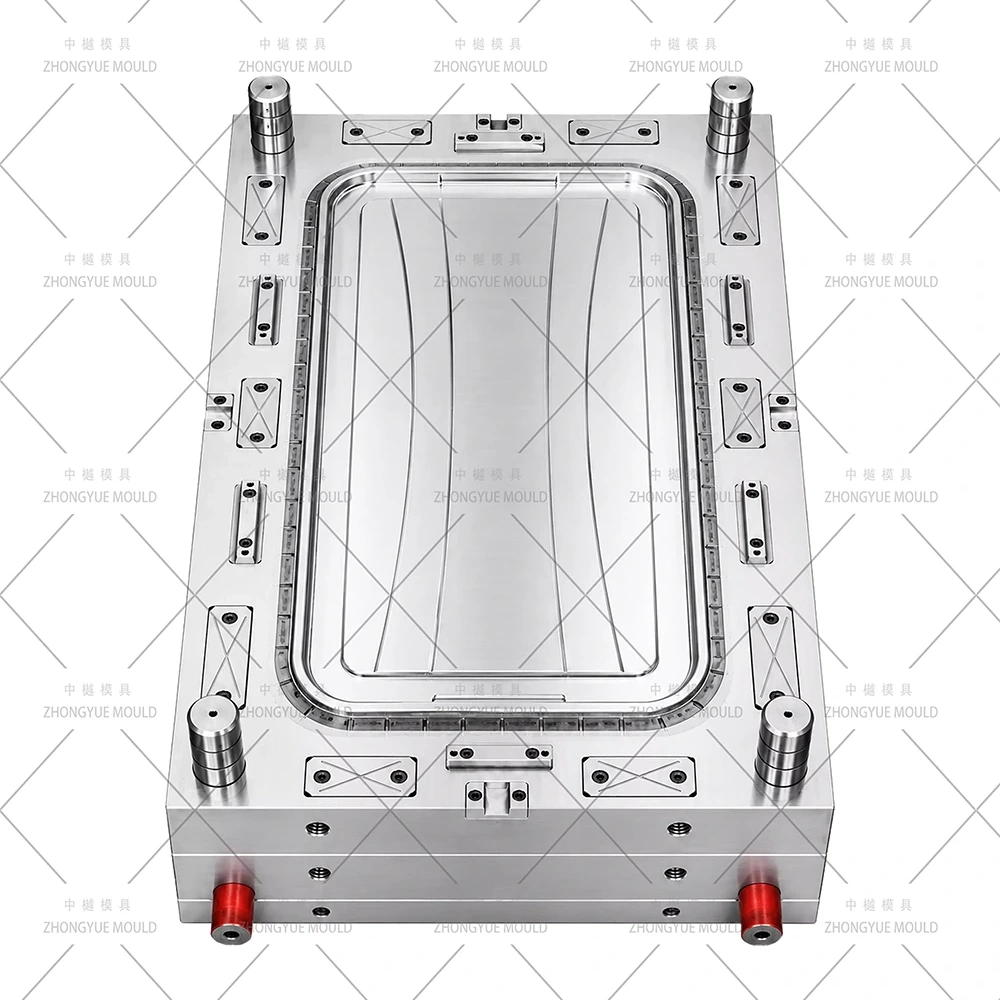

40L Plastic Storage Box Lid (Cover / Top Cap) Injection Mould |
|
|
Cavity & Core Steel |
Cavity: P20 (pre-hard HRC 28–33) std.; 718H (HRC 33–38) or S136 (HRC 48–52) optional for high-gloss window zone; Core: P20 / 718H; Micro Lifters/Slides: H13(2344 ESR) nitrided or SKD61 |
|
|
Mold Type |
Two-plate open-close + 1–2 micro angled lifters or shallow slides for snap-clip undercut |
|
|
Mold Base |
LKM / DME / HASCO / Self-designed (typical 400×450mm – 500×600mm; weight 0.6–1.2T) |
|
|
Cavities |
2×1, 2×2, 4×1 standard to match 1×1 body output; 1×1 available for custom shaped lids |
|
|
Runner System |
Cold runner (Y-branch balanced) standard; Hot tip optional for single-cavity clear lid |
|
|
Gate Type |
Submarine (latent) gate on inner flange / non-visible back face; fan gate alternative for clear lid |
|
|
Ejection |
Ejector pins symmetrically placed; shallow draw → simple pins suffice; optional early-eject unused |
|
|
Cooling |
Baffle Ø6–8mm + peripheral bubbler; isolated circuit; ΔT ≤ 3℃ |
|
|
Slides / Lifters |
1–2 micro angled lifters or shallow slide (stroke 5–10mm) for snap-fit clip undercut; nitrided H13/SKD61 |
|
|
Surface Finish |
Cavity: SPI B1/B2 satin (std. PP lid), SPI A2 high-gloss optional (S136 insert for clear window zone); Core: SPI B1; Logo: changeable insert |
|
|
Mold Life Expectancy |
≥300,000 shots (P20 cavity + H13 lifters); ≥500,000 shots (718H) |
|
|
Recommended Molding Material |
PP (MFR 8–15, color-match to body, UV-stabilized optional), GPPS (clear window), ABS (gloss window); masterbatch per request |
|
|
Design Software |
UG NX, Pro/E, SolidWorks, AutoCAD |
|
|
Tolerance Control |
±0.05 mm general; lid-to-body flange seating clearance 0.2–0.4mm (verified w/ box-body dims) |
|
|
Mould material |
Hardness |
Mould life |
|
P20 |
HRC 28-33 |
>300,000 shots |
|
718 |
HRC 33-36 |
>500,000 shots |
|
H13 |
HRC >43 |
>800,000 shots |
|
2344 |
HRC >48 |
>800,000 shots |
|
S136 |
HRC 48-52 |
>1,000,000 shots |
Make your next Plastic Storage Box Mould project brighten!
Multi-Cavity for Output Balance (2×1, 2×2, 4×1) — 40L box body is 1×1 (cycle ~22–35s); lid cycles faster (~10–18s) → 2-cavity or 4-cavity lid mold matches daily throughput without over-producing lids. Runner Y-branched & balanced per cavity fill time in DFM.
Snap-Fit Clip Undercut — Micro Angled Lifter or Shallow Slide — 1–2 small lifters (travel 5–10mm) or shallow angled slide withdraw snap-clip that engages 40L box top flange; H13 nitrided inserts for wear; interference checked in 3D assembly.
Shrinkage Compensation for PP Lid (Medium Shallow-Draw) — PP shrinkage ~1.2–1.8%; lid perimeter / flange seat slightly enlarged per Moldflow-verified shrink; lid-to-body clearance controlled at 0.2–0.4mm (checked with your 40L box-body drawing/dims).
Hidden Submarine (Latent) Gate on Inner Flange / Back Face — Gate vestige invisible from outer visible face; cold runner Y-branch standard for multi-cavity; hot-tip (open) optional for single-cavity clear PS premium lid.
Thin-Wall Cooling & Short Cycle — Baffle Ø6–8mm + peripheral bubbler in core; isolated circuit; typical cycle 10–18s; 0.01–0.015mm parting-line vents to prevent burn on thin sections.
Surface Finish — Satin Polish Standard / High Gloss for Window Zone — Cavity SPI B1/B2 satin (standard PP lid); SPI A2 high-gloss (S136 insert) for clear window zone; NO rattan/VDI weave etching unless specially ordered as decor-version. Core polished SPI B1 for easy release.
Optional Silicone-Seal Groove & Logo Insert — Machined O-ring groove in core; changeable logo emboss/deboss insert on non-visible inner side or back face.
Transparent Window Insert Design (Premium Lid) — Cavity designed with removable S136 high-gloss insert for clear window zone; window material (PS/ABS) injected separately or via 2K overmolding (optional).
Project Kick-off & DFM Review — Analyze lid wall thickness (1.5–2.5mm typ.), snap-clip undercut & lifter stroke, gate location & runner Y-branch balance for multi-cavity, lid-to-body seating clearance (NEED 40L box-body top flange dims / drawing). Suggest cavity number to match your 40L body mold output ratio.

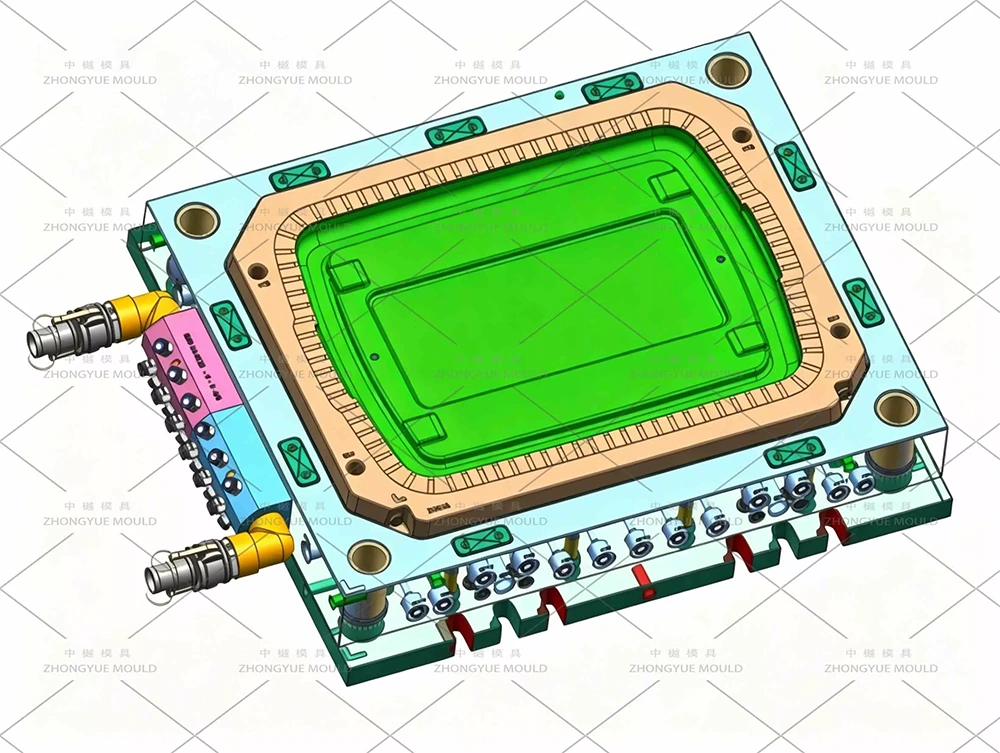

Mold Design Approval (3D) — Full assembly with cooling baffle layout, micro-lifter/slide detail with interference check, runner balancing simulation, venting strategy (0.01–0.015mm parting-line).
Precision Machining — High-speed CNC rough/finish cavity, core/cavity SPI B1/B2 (or S136 A2 for gloss zone), H13 micro-lifter nitriding & hand-fitting, logo insert pocket machined.

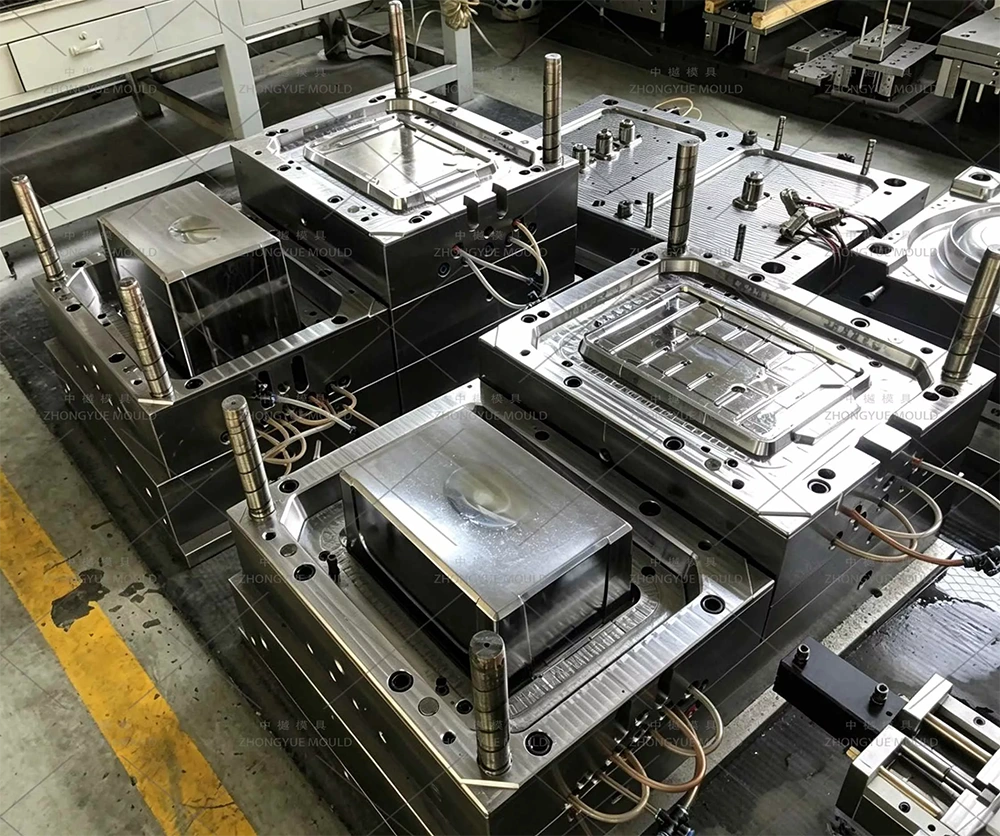

Assembly & T1 Trial — Run on in-house injection machine; check snap-fit on 40L box body sample (sent or purchased separately), gate vestige, cooling cycle (~10–18s); supply trial video + sample lids + dimensional check.
Correction & Final Approval — Fine-tune lifter timing if needed; ship in fumigation-free case with mold manual & spare parts list (micro-lifter spring, ejector pins, sprue puller).
After-sales Support — 1-Year mold warranty, free spare parts for non-man-made damage (esp. micro-lifter spring/pins), remote technical guidance.
Rich Household Mold Experience — 5L–120L storage boxes (body + lid sets), rattan bins, chairs, crates, baskets built in-house
In-house DFM with Body-Lid Fit Check — Verify lid-to-box flange clearance (0.2–0.4mm) using your 40L body drawing/dims before steel cutting; advise optimal cavity count (2×1 / 2×2) to match body output
Multi-Cavity & Micro-Lifter Expertise — Balanced Y-branch runner, small snap-clip lifters/slides correctly calculated; S136 high-gloss zone optional for clear window
Strict QC & Transparent Progress — Weekly machining photos, T1 sample approval (fit-check on body sample) before shipment
Export Experience — Molds shipped to Europe, North America, South America, Southeast Asia, Middle East
1-Year Mold Warranty + Spare Parts Supply (micro-lifter springs, ejector pins)
Q: What cavity count should I choose — 1×1, 2×1 or 2×2?
A: 40L box body is usually 1×1 (cycle ~22–35s). Lid cycles faster (~10–18s), so we recommend 2-cavity (2×1) or 4-cavity (2×2 or 4×1) to roughly balance daily output. Tell us your body cavity count & daily volume — we'll calculate the optimal lid cavity number.
Q: Does the lid mold need the box body drawing?
A: Strongly recommended — we need the box top-rim Ø or L×W, flange thickness, and snap-groove location (or send the body 3D) to verify lid seating clearance (0.2–0.4mm) and snap-clip engagement before cutting steel.
Q: What surface finish — any rattan/woven texture?
A: Standard is SPI B1/B2 satin polish (no texture) for PP lids. SPI A2 high-gloss (S136 insert) optional for clear PS or premium ABS window zone. VDI/rattan cane etching NOT applied unless you order a special decor-version lid to match rattan box body.
Q: Can you add a groove for silicone seal gasket?
A: Yes — machined O-ring/gasket groove in core; we can also advise groove cross-section (typically 2.0–3.0mm wide × 1.5–2.0mm deep) per standard silicone cord size.
Q: What do you need for a quotation?
A: 2D drawing (PDF/DWG) + 3D model (STP/IGS/X_T) of the lid AND preferably 40L box-body top flange dims or 3D; tell us your body mold cavity number (1×1 etc.), annual volume, preferred lid cavity (2×1 / 2×2), and material (PP MFR / GPPS / ABS).
Send your 40L storage box lid 2D drawing + 3D model (and ideally 40L box-body top flange dims/file) and your 40L body mold cavity info. ZHONGYUE MOULD will provide a free DFM review with lid-body fit check + cavity-number recommendation + formal quotation within 24–48 working hours.
Contact us now to start your 40L Plastic Storage Container Lid / Cover Injection Mold project!
