Plastic Nestable Pallet Mould

Plastic Nestable Pallet Mould – Injection Mold for Space-Saving Nestable Plastic Pallets

Plastic pallets are the modern alternative to wood—hygienic, splinter-free, ISPM-15 exempt, and built for long-term circulation in warehousing, food processing, and export logistics. Among them, the Nestable Plastic Pallet (9-foot / open-deck nestable pallet) is especially popular because empty pallets can be inter-nested, reducing return freight volume by 30–50%.

The Plastic Nestable Pallet Mould is the precision injection tool that shapes molten HDPE or PP into these lightweight, reinforced pallets. At ZHONGYUE MOULD (Taizhou Huangyan, China), we design and build custom nestable pallet injection molds for global customers—combining Moldflow analysis, hardened steel inserts, and high-efficiency cooling to deliver million-shot durability and short cycle times.

Plastic Pallet Mould specifications :

Make your next Plastic Pallet Mould project brighten!

Nestable vs Stackable Pallet Mould – What's the Difference?

ZHONGYUE supplies molds for all above types, with nestable (9-leg / 3-runner nestable grid) being one of our most exported categories.

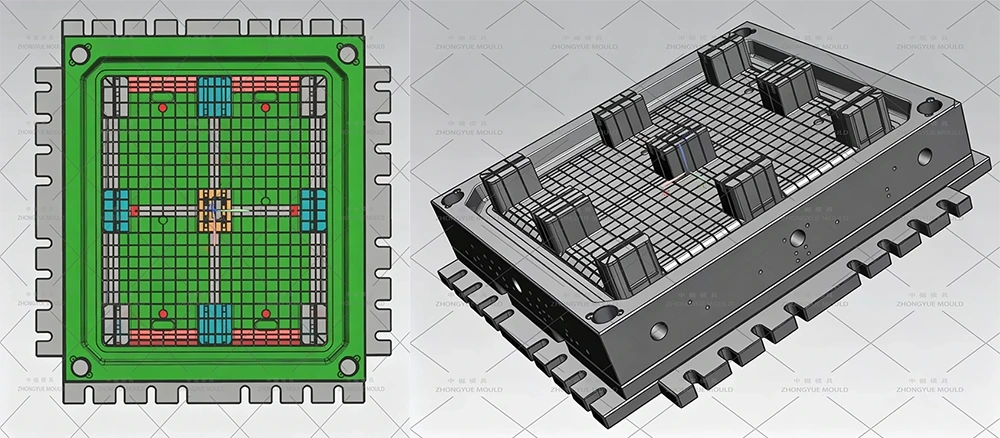

How ZHONGYUE Builds a High-Performance Nestable Pallet Mould

① Correct Steel Selection for Long Life

Nestable pallet molds are large (often 1100×1100mm or 1200×800mm) with complex rib cavities. We recommend:

Mold Base: Pre-hardened P20 (HRC 28–33) or enhanced 50/60# steel with reinforcement ribs to resist deflection.

Cavity / Core Inserts: 718H (1.2738, HRC 33–38) for standard runs; H13 (1.2344, quenched & tempered HRC 44–48) for high-volume or recycled-material production.

Wear Parts: Nitrided sliding blocks, angled lifters, and ejector sleeves for extended service life (500,000–1,000,000+ shots).

② Optimized Cooling System

Pallet molds have thick rib intersections that retain heat. We design:

Baffles, bubblers, and deep-drilled channels in both cavity and core.

BeCu (Beryllium Copper) inserts in hot-spot areas (center hub, leg base) to accelerate cooling and reduce cycle time to 90–150 seconds depending on pallet weight (typically 6–15 kg).

③ Filling & Runner Options

Hot Runner (Recommended for multi-drop): Balanced manifold with valve gates or open gates distributed across deck/rim to fill large thin-wall areas evenly and avoid sink marks.

Cold Runner / 3-Plate: Cost-effective for lower-volume starts; requires sprue/runner handling.

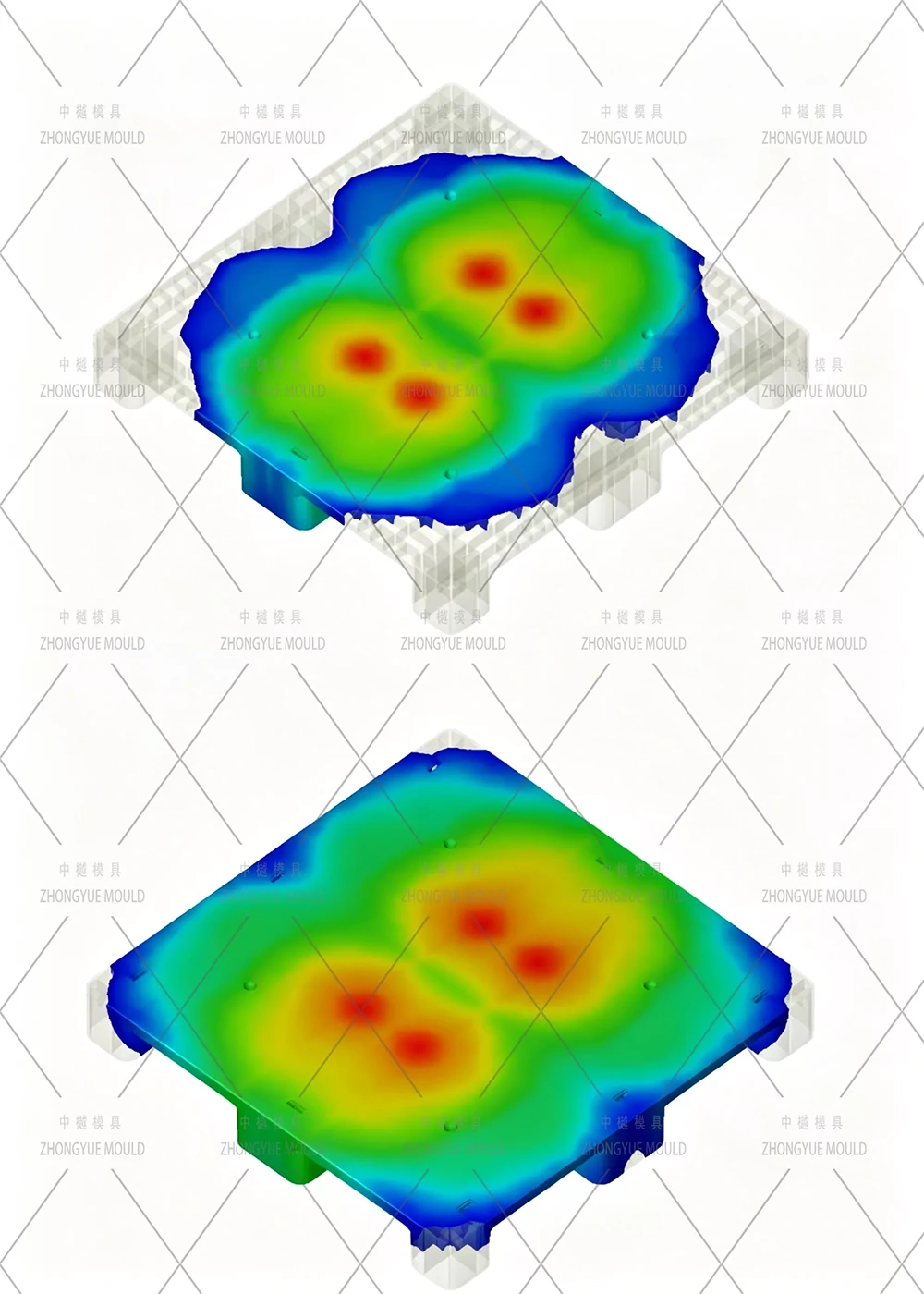

Moldflow analysis ensures balanced fill and minimized warpage for asymmetric nestable leg geometry.

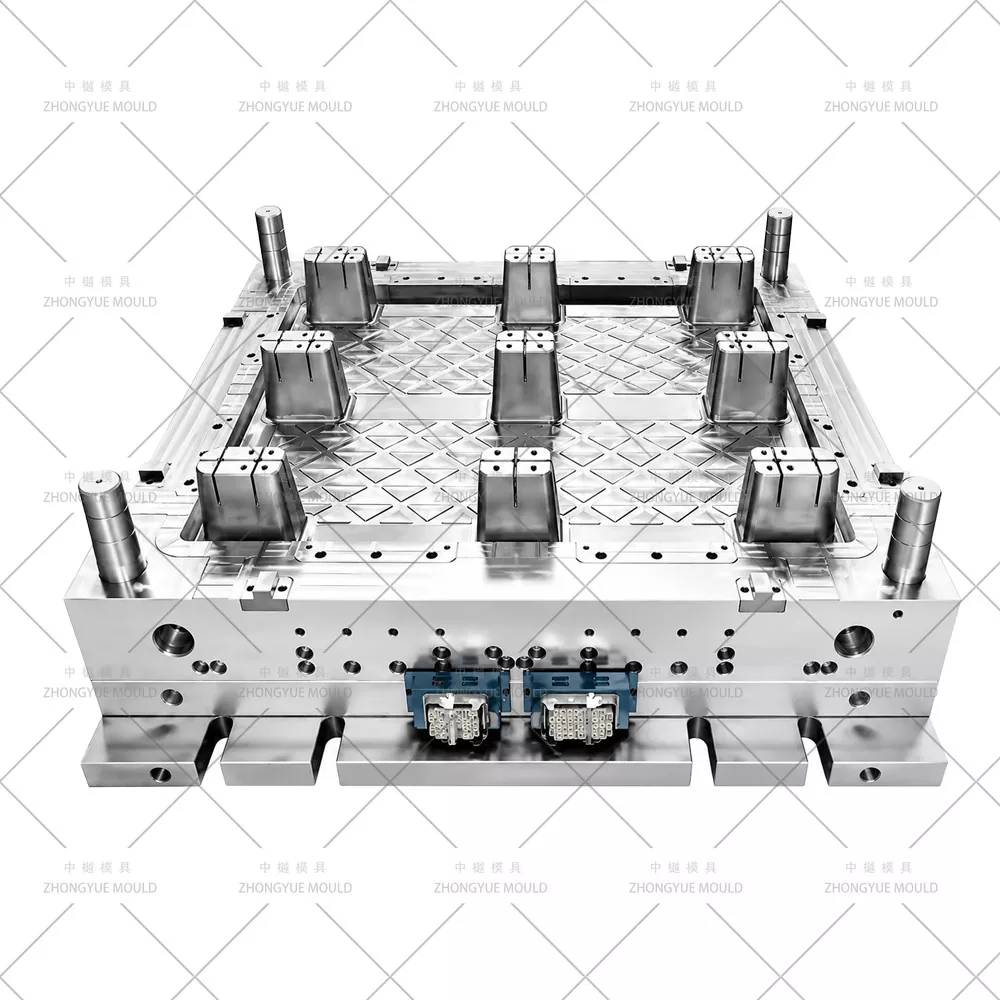

④ Precision Demolding for Tapered Legs

Nestable pallets have tapered 9-feet legs with undercuts. Our molds use:

Hydraulic cylinders + angle lifters or cam-driven slides for leg sidewalls.

Stripper plate / ejector plate with guided pillars long enough to support full ejection stroke—critical for large-format pallets.

⑤ Surface & Brand Customization

Cavity can be stone-textured, anti-slip patterned, or mirror-polished per request.

Embossed/debossed company logo, RFID tag pocket, date/lot codes integrated into mold design.

Brief Mold Care Before Production (from your original content)

Clean mold surfaces of anti-rust oil & check for residue/debris.

Verify cooling channels are clear; confirm no blockage.

Inspect guide pins, slides, ejector pins for lubrication & wear.

Tighten clamping screws; perform dry cycle & low-pressure trial before full production.

Why ZHONGYUE MOULD?

With 15+ years in packaging & logistics mold manufacturing, ZHONGYUE has supplied nestable pallet molds, beverage crates, vegetable crates, and turnover boxes to Europe, North America, Southeast Asia, and the Middle East.

Full DFM + Moldflow analysis before steel cutting

Transparent production updates & T0 trial video/sample report

Complete spare parts kit & after-sales technical support

Competitive pricing with international-quality steel & machining

Start Your Nestable Pallet Mould Project

Whether you need a standard 1200×800mm 9-leg nestable pallet mold or a fully customized design with special rib pattern & branding—our engineering team is ready to assist.
