Plastic Double Face Pallet Mould

Plastic Double Face Pallet Mould – Heavy-Duty Reversible Pallet Injection Mold by ZHONGYUE MOULD

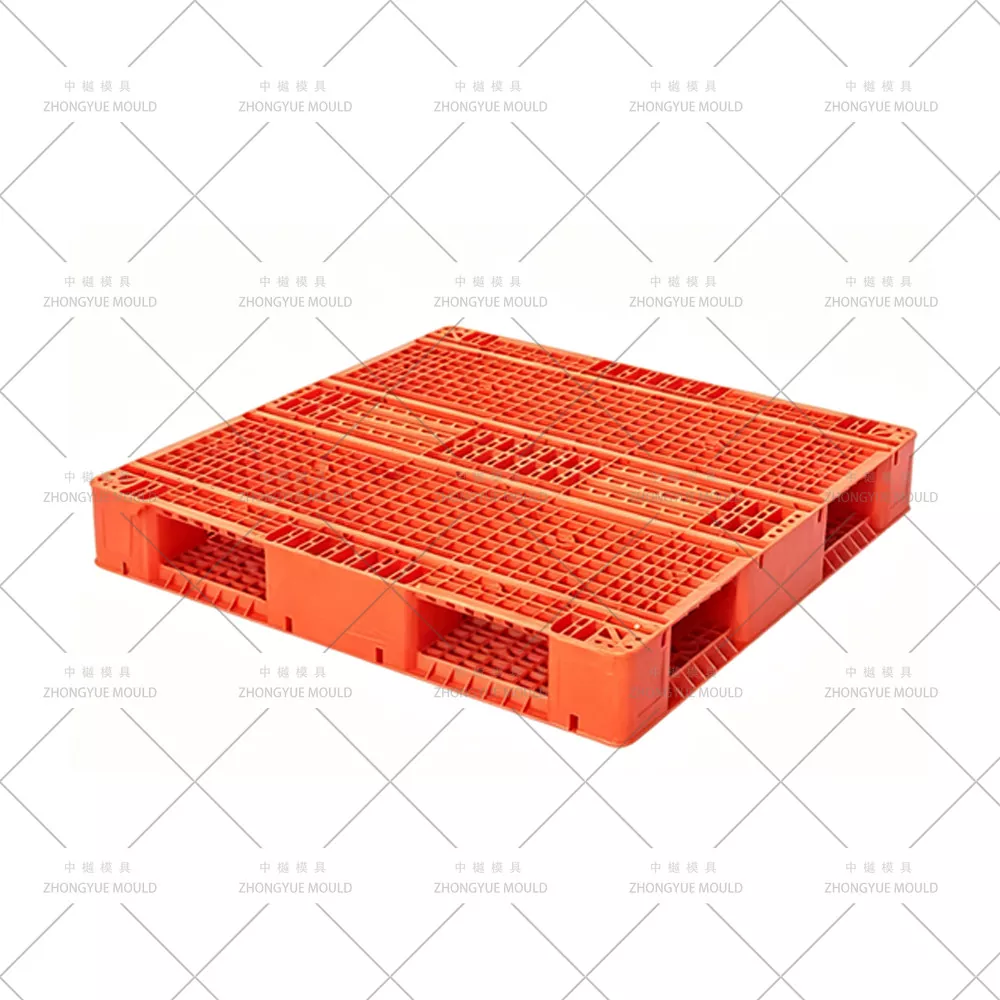

In high-volume logistics, automated warehousing, and export shipping, Double Face Plastic Pallets  are the gold standard. Unlike single-face pallets, a double-face pallet has both a top deck and a bottom deck, allowing reversible use—flip it and use either side. When engineered with reinforced ribs and adequate thickness, double-face pallets can be rackable ( up to 1,500–1,800 kg on selective racks), making them ideal for food & beverage, pharmaceutical, chemical, and automotive supply chains.

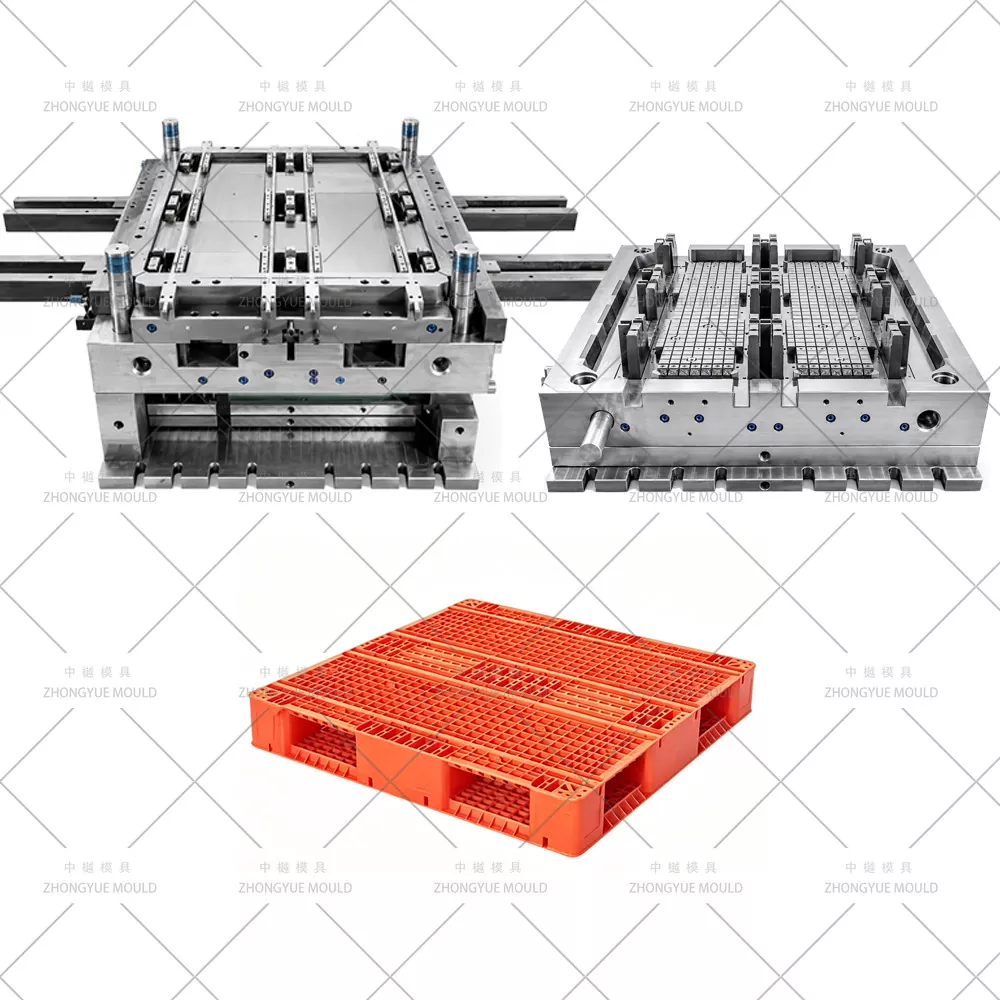

The Plastic Double Face Pallet Mould is the large-format, precision injection tool that shapes molten HDPE/PP into these high-load reversible pallets. At ZHONGYUE MOULD (Huangyan, Taizhou, China), we have 15+ years of experience designing and building custom double-face pallet molds for standard ISO (1200×1000mm), Euro (1200×800mm), and fully customized dimensions—featuring Moldflow-validated filling, beryllium copper (BeCu) cooling, and valve-gated hot runner systems.

Plastic Pallet Mould specifications :

Make your next Plastic Pallet Mould project brighten!

Double Face vs Single Face Pallet Mould – Key Differences

Feature	Double Face Pallet Mould	Single Face Pallet Mould
Structure	Top deck + Bottom deck (grid or solid); 9-block / perimeter-base	Top deck + 9 feet / 3 runners; no bottom deck
Reversible	✅ Yes – usable on both sides	❌ No
Rackable	✅ Often rackable with reinforced ribs / steel-insert option	❌ Generally not rackable
Load Capacity	Static: up to 6,000 kg / Dynamic: up to 2,500 kg / Racking: up to 1,800 kg	Lower – typically for transport/storage only
Mold Complexity	Higher – dual deck rib networks, deeper core, more cooling zones	Moderate – single deck + legs
Typical Cycle Time	90–150 sec (pallet weight 15–28 kg)	70–120 sec

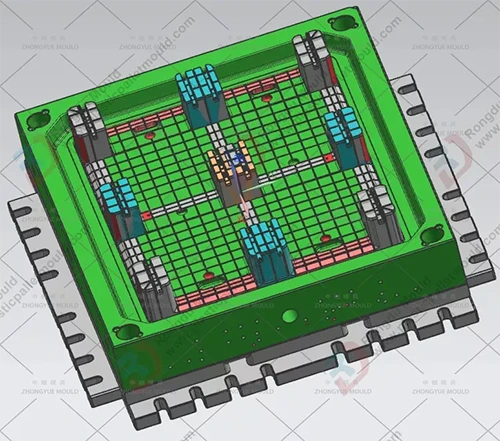

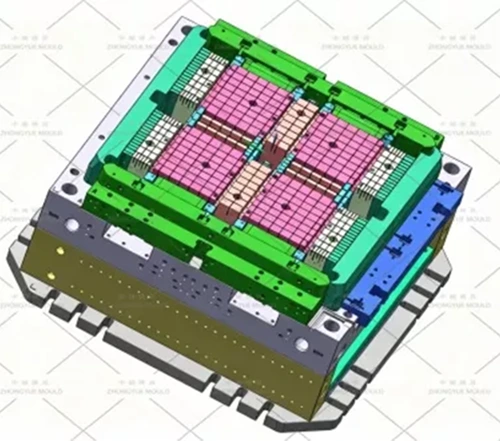

How ZHONGYUE Engineers a Premium Double Face Pallet Mould

① Correct Steel Selection for Million-Shot Life

Double face pallet molds are among the largest injection tools (mold weight 12–20+ tons). We specify:

Mold Base: Reinforced S50C / P20 pre-hardened base with extra support pillars to prevent core/cavity bowing under pack pressure.

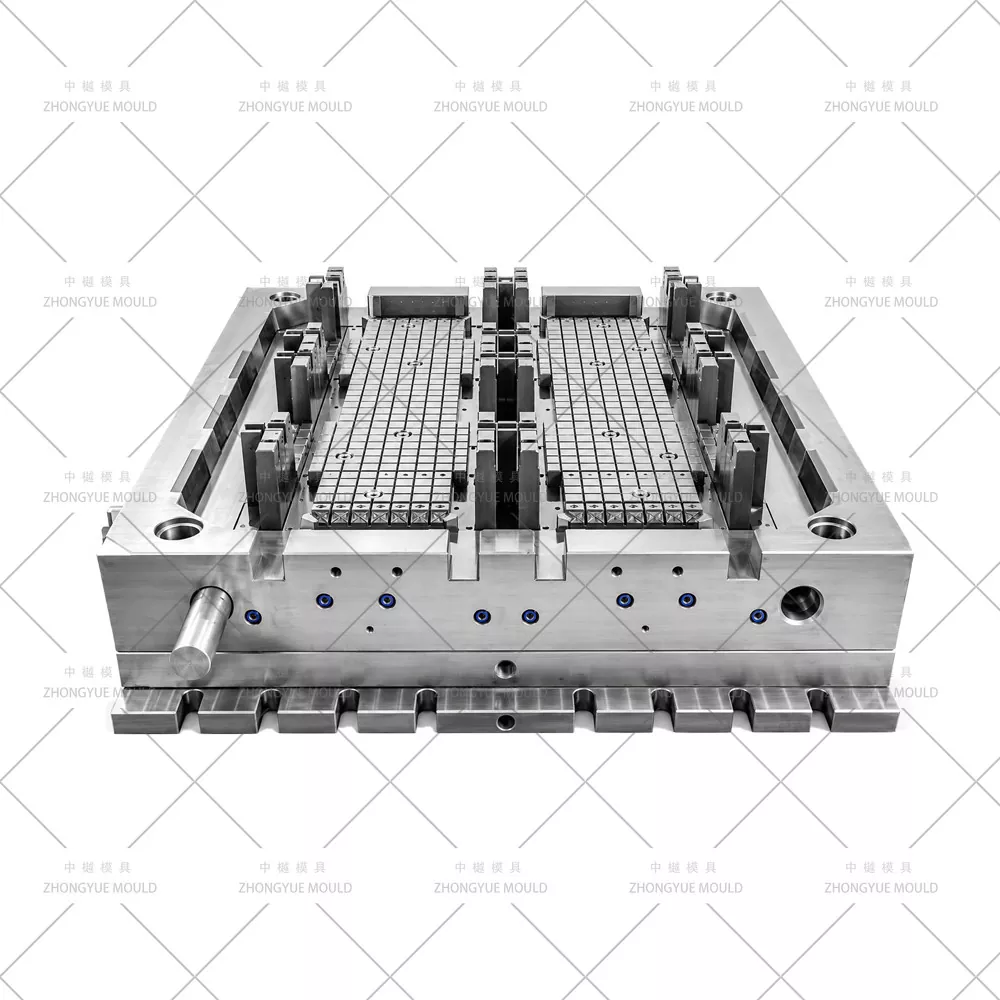

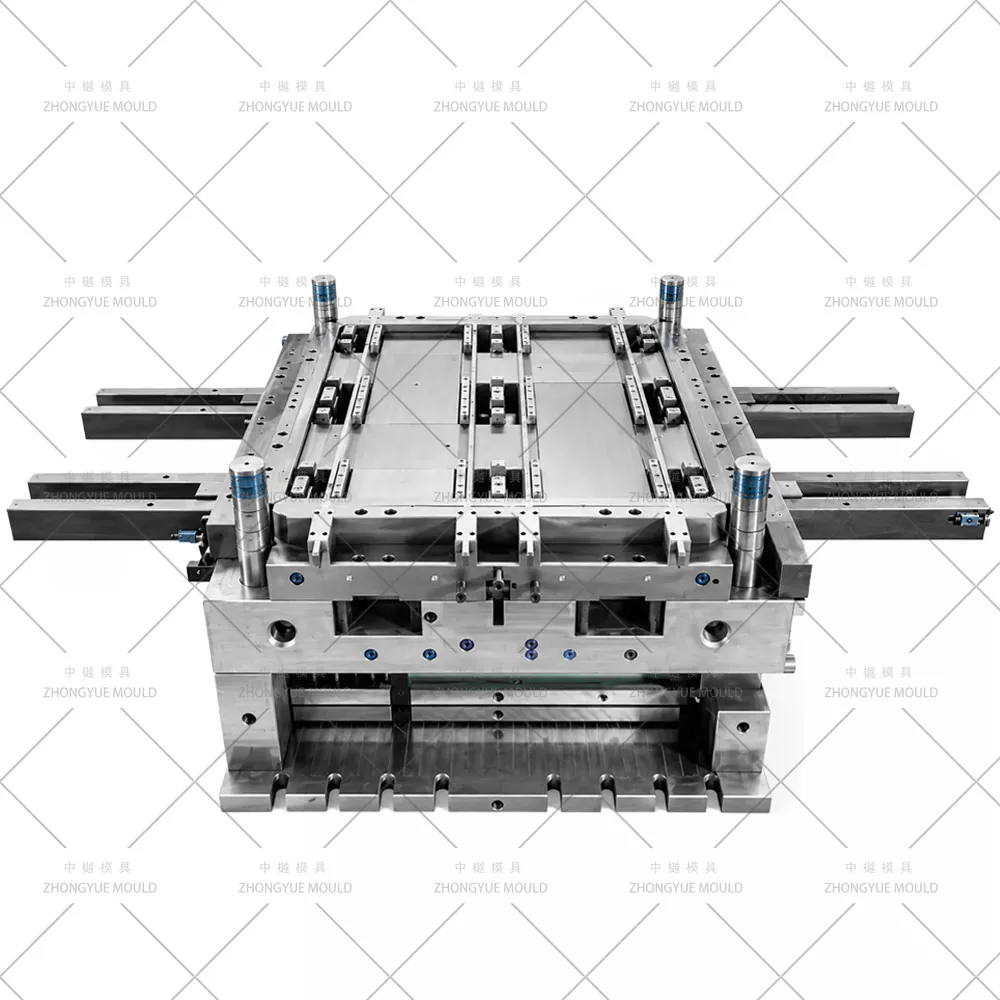

Cavity / Core Inserts: 718H (1.2738, HRC 33–38) standard; H13 (1.2344, quenched & tempered HRC 44–48) for high-volume or recycled-HDPE runs; optional S136 for mirror-polish zones.

Heat Treatment & Hardness: Main cores/cavities treated to HRC 28–32 (P20) or HRC 33–38 (718H); wear parts like slides & ejector sleeves nitrided for extended service life of 500,000–1,000,000+ shots.

② Balanced Multi-Point Hot Runner System

Large double-deck pallets require 12 to 20+ drops (valve gate or open hot runner) distributed across top & bottom decks:

Ensures simultaneous fill of thick block areas and thin deck ribs

Minimizes weld lines at load-bearing zones

Eliminates cold sprue → shorter cycle & no regrind loss

Compatible with YUDO / Synventive / Anole manifolds

(For pilot runs we also offer 3-plate cold runner designs.)

③ Advanced Cooling – BeCu Inserts & Zoned Circuits

Thick rib intersections at deck-block junctions are heat traps. Our cooling strategy:

Deep-drilled baffles & bubblers in each of the 9 support blocks

Beryllium Copper (BeCu / Mold-Max) inserts at deck-rib crossings and center hub for 20–30% faster heat extraction

Independent zoned water circuits with flow regulators → uniform temperature → minimal warpage

Typical cycle time: 80–130 seconds (depends on pallet weight & thickness)

④ Dual-Deck Demolding System

Both top and bottom decks have undercuts/rib networks:

Hydraulic cylinders + angle lifters / cam slides for block sidewalls

Stripper plate / large ejector block with extra-long guide pillars supporting full ejection stroke

Optional early-eject linkage (mold opens partially → ejection begins) to shave seconds per cycle

⑤ Anti-Slip Texture & Customization

Top & bottom decks textured with diamond / stippled anti-slip pattern (Ra customizable)

Embossed company logo, RFID tag pocket, date/lot code cavity

Optional steel reinforcement slot design for rackable pallets (metal bar insert molding)

Typical Applications of Double Face Pallets

Food & Beverage: FDA-compliant HDPE, easy-wash smooth surfaces, no splinters → hygienic for bottling lines & dairies

Pharmaceutical & Cleanroom: Non-shedding, smooth decks; optional anti-static formulation

Automotive & Heavy Industry: High static/dynamic load for engine blocks, castings, components

Cold Chain & Export: ISPM-15 exempt; performs from –40°C to +80°C; reversible decks extend service life

Automated Warehouse (AS/RS): 4-way forklift/pallet jack entry; dimensionally stable for conveyor systems

Why ZHONGYUE MOULD for Your Double Face Pallet Mold?

Proven Large-Format Experience – Hundreds of pallet molds (single/double face, nestable, rackable) exported to Europe, Americas, SEA & ME.

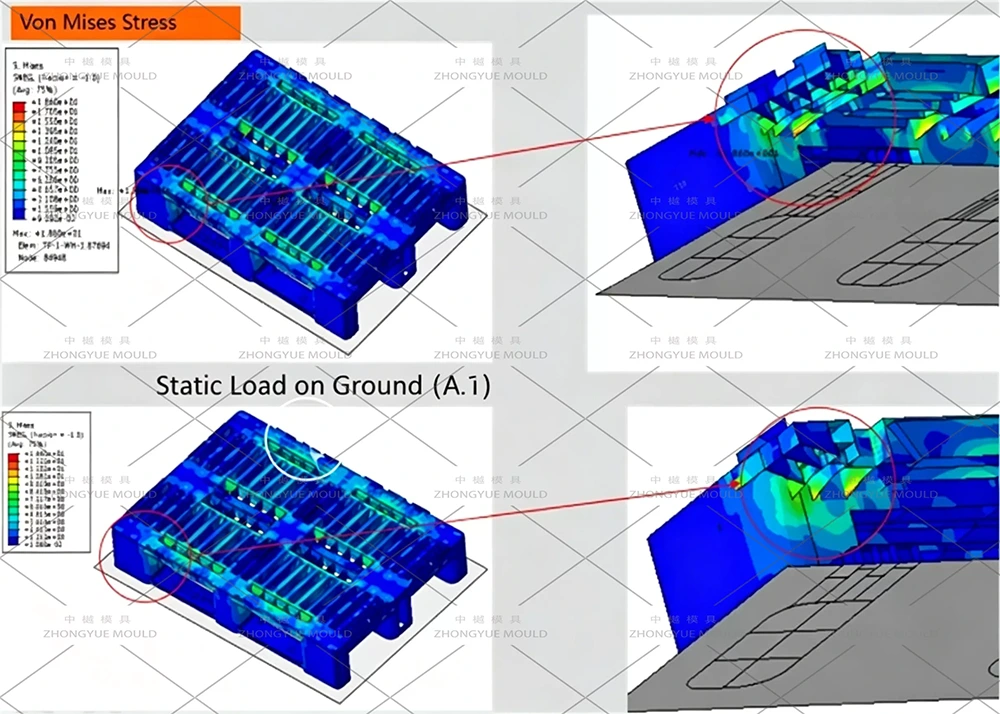

Moldflow & DFM Before Cutting Steel – We simulate fill pattern, cooling uniformity & warpage to eliminate sink marks at rib intersections.

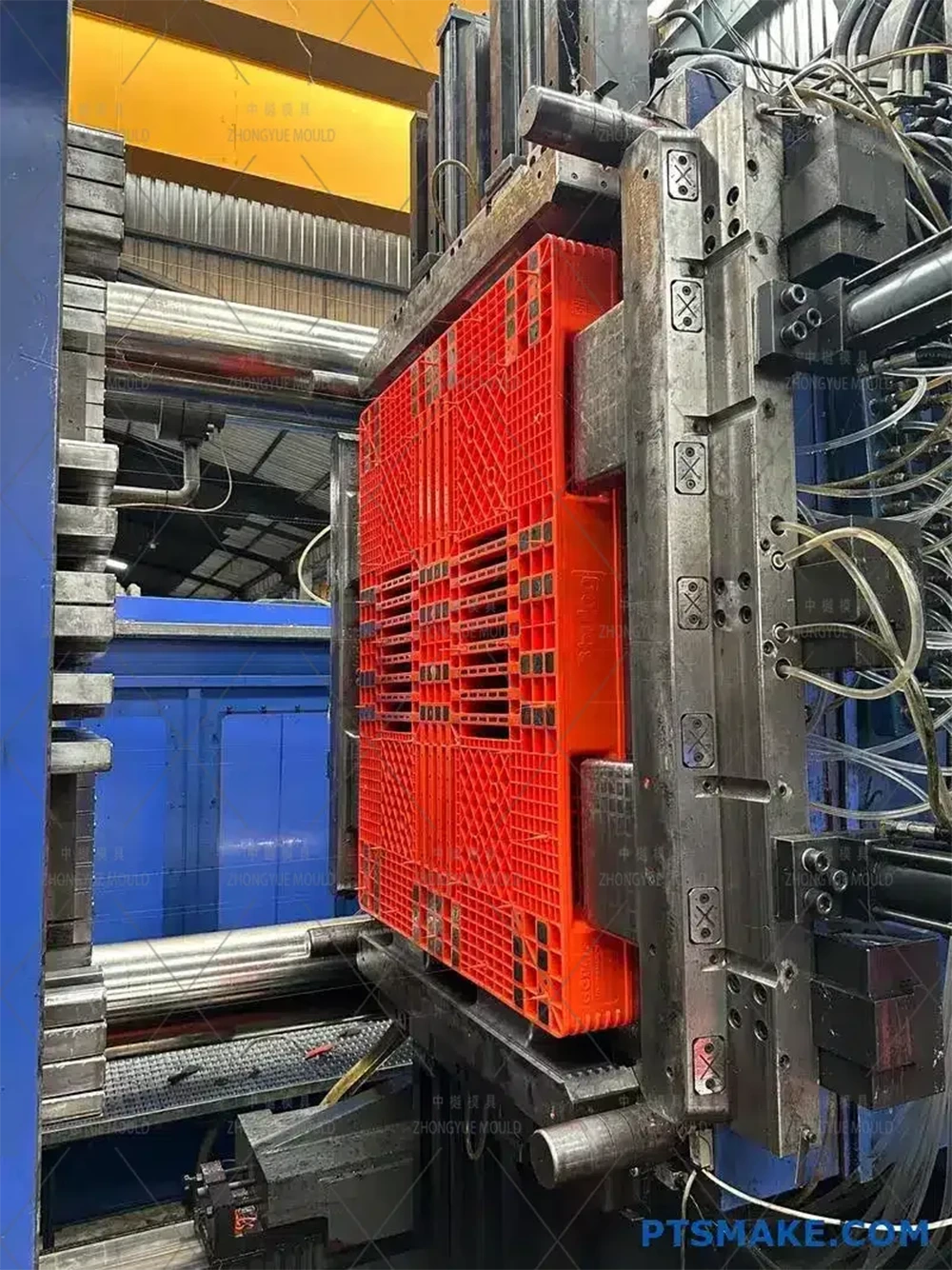

Transparent Process – Weekly machining photos → T0 trial video + sample dimensional report → final inspection before shipment.

Complete Spares & Support – Full kit of wear parts, maintenance manual, and remote troubleshooting.
