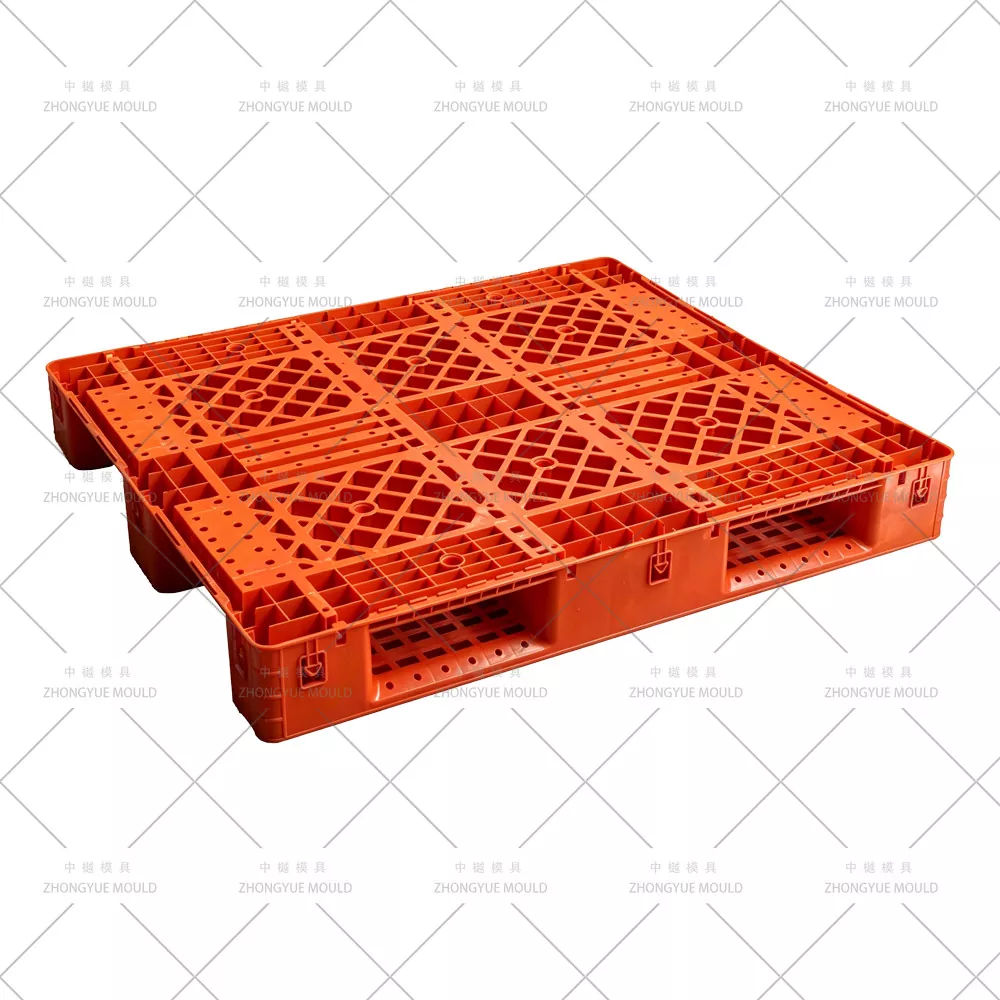

In modern logistics and warehousing, plastic pallets have largely replaced wooden ones—they are ISPM-15 exempt, splinter-free, easy to sanitize, and offer consistent dimensions. Among them, the Single Face Plastic Pallet is the most widely used type: it has a reinforced upper deck (grid or solid) with anti-slip texture, and a lower side consisting of 9 feet or 3 longitudinal runners for forklift/fork entry from two or four directions. There is no bottom deck board.

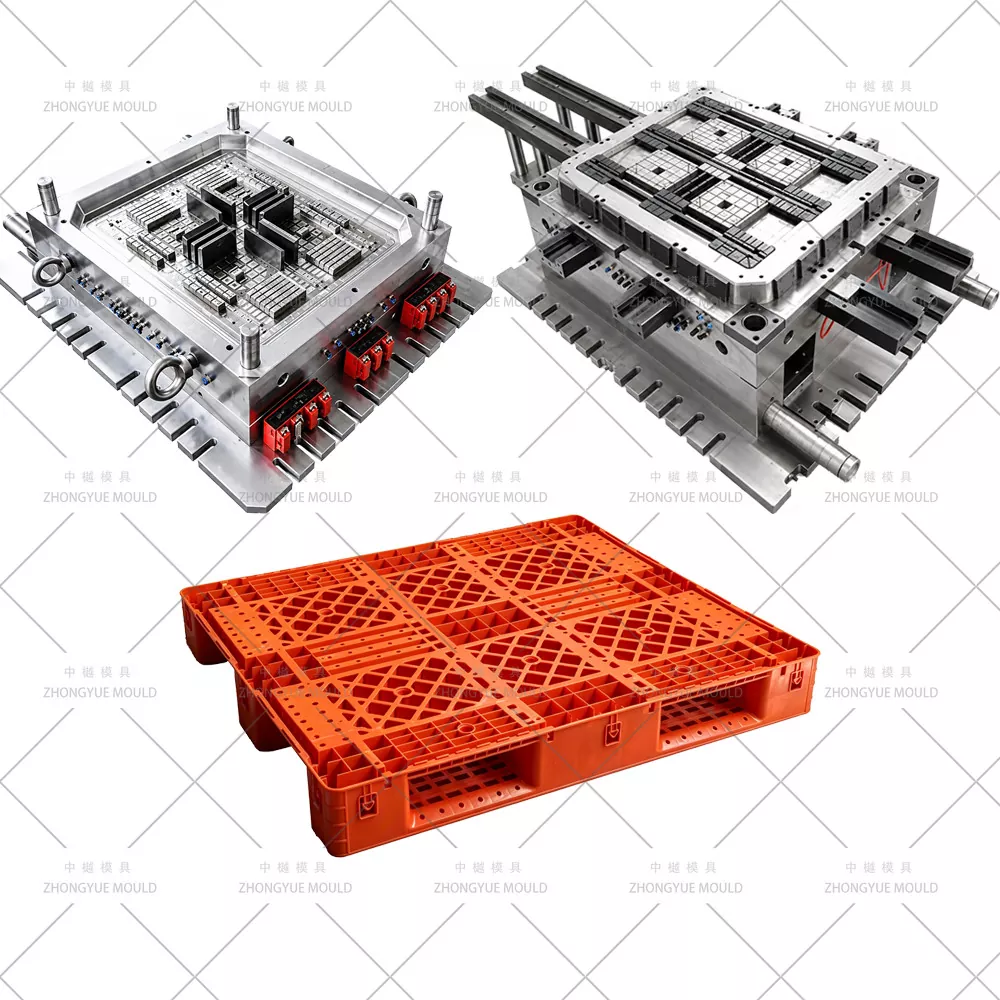

The Plastic Single Face Pallet Mould is the large-format injection mold that shapes molten HDPE or PP into these cost-effective, lightweight load platforms. At ZHONGYUE MOULD (Huangyan, Taizhou, China), we design and build custom single-face pallet molds for standard Euro (1200×800mm), ISO (1200×1000mm), and bespoke sizes—featuring Moldflow-validated gating, Beryllium Copper (BeCu) cooling, and precision-machined 9-leg demolding systems.
|
Pallet sizes |
Pallet materials |
Pallet types |
Load capacities |
||
|
400 x 300 mm |
High density polyethylene (HDPE |
Nestable pallet |
Light duty: up to 500 kg |
||
|
Mould Name |
Plastic Single Face Pallet Mould |
||||
|
Mold Meterial |
P20,2738,718H,NAK80,2316,S136,H13,etc |
||||
|
Mold Base |
Self-made,LKM,DME,ASSAB |
||||
|
Cavity |
Single/multi |
||||
|
Runner |
Cold runner and hot runner |
||||
|
Hot Runner Brand |
Master, HUSKY,YUDO,etc. |
||||
|
Degsin Software |
UG:Aoto CAD and so on |
||||
|
Mold Life |
50-100 million Shots/ 5-6 years, Even in 10 years in good maintenance |
||||
|
T1 Time |
45-60 days |
||||
|
Plastic Material |
PP ABS |
||||
|
Gate Type |
Pinpoint Gate, Edge Gate, Sub Gate, Film Gate, Valve Gate, Open Gate, etc. |
||||
|
Mould Surface Treatment |
EDM, texture, high gloss polishing |
||||
|
Quality System |
ISO9001 |
||||
|
HS Code |
8480719090 |
||||
|
Origin |
Huangyan Zhejiang China |
||||
|
Package |
Wooden Case |
|
|||
|
Mould material |
Hardness |
Mould life |
|||
|
P20 |
HRC 28-33 |
>300,000 shots |
|||
|
718 |
HRC 33-36 |
>500,000 shots |
|||
|
H13 |
HRC >43 |
>800,000 shots |
|||
|
2344 |
HRC >48 |
>800,000 shots |
|||
|
S136 |
HRC 48-52 |
>1,000,000 shots |
|||
Make your next Plastic Pallet Mould project brighten!
|
Type |
Structure |
Fork Entry |
Best For |
Limitation |
|
Single Face Pallet Mould |
Top deck + 9 feet / 3 runners; no bottom deck |
4-way (9-leg) or 2-way (runner) |
One-way export, light-medium loads, cost-sensitive apps |
Not rackable unless specially reinforced |
|
Double Face Pallet Mould |
Top + bottom deck; flat or grid |
4-way |
Heavy-duty racking, reusable loops |
Higher mold & material cost |
|
Rackable Single Face (Reinforced) |
Extra-thick ribs + steel reinforcement slots |
4-way |
Selective racking (with metal bars) |
Requires insert-molding or thicker walls |
ZHONGYUE supplies molds for all types—Single Face remains our highest-volume pallet mold export category.

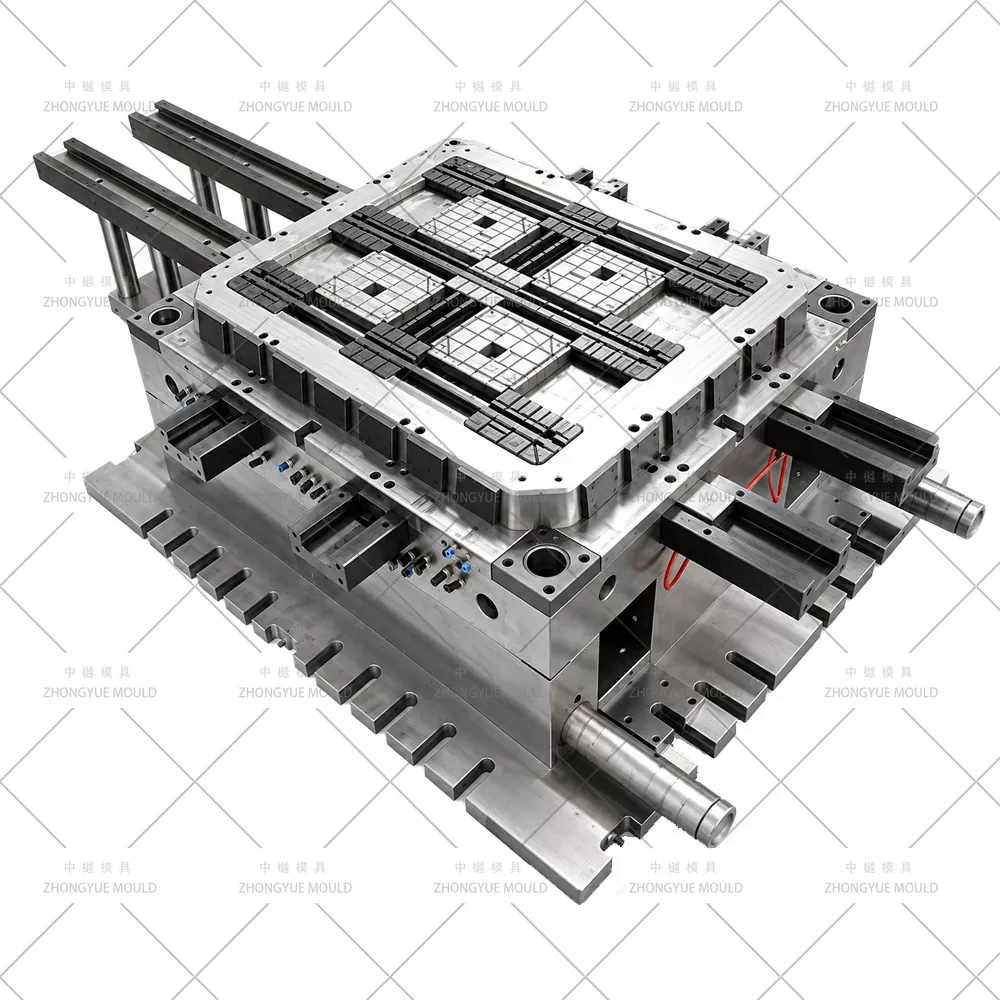

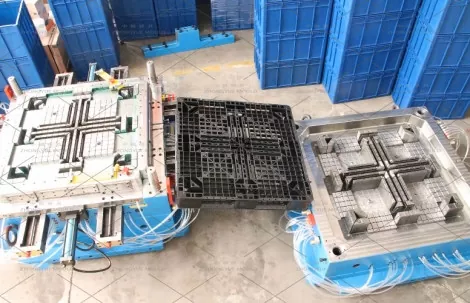

Single face pallet molds are massive (mold weight 8–15 tons) and subject to high clamping forces (1600T–2800T machines).

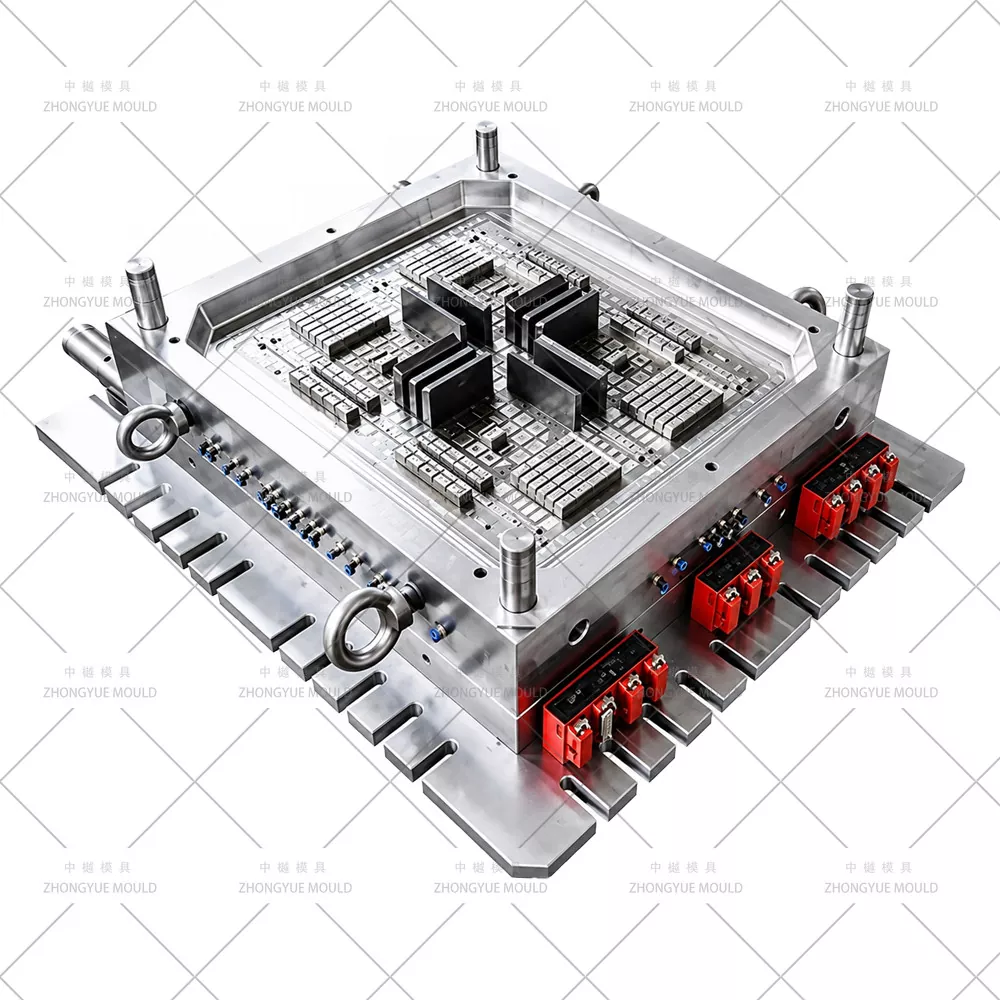

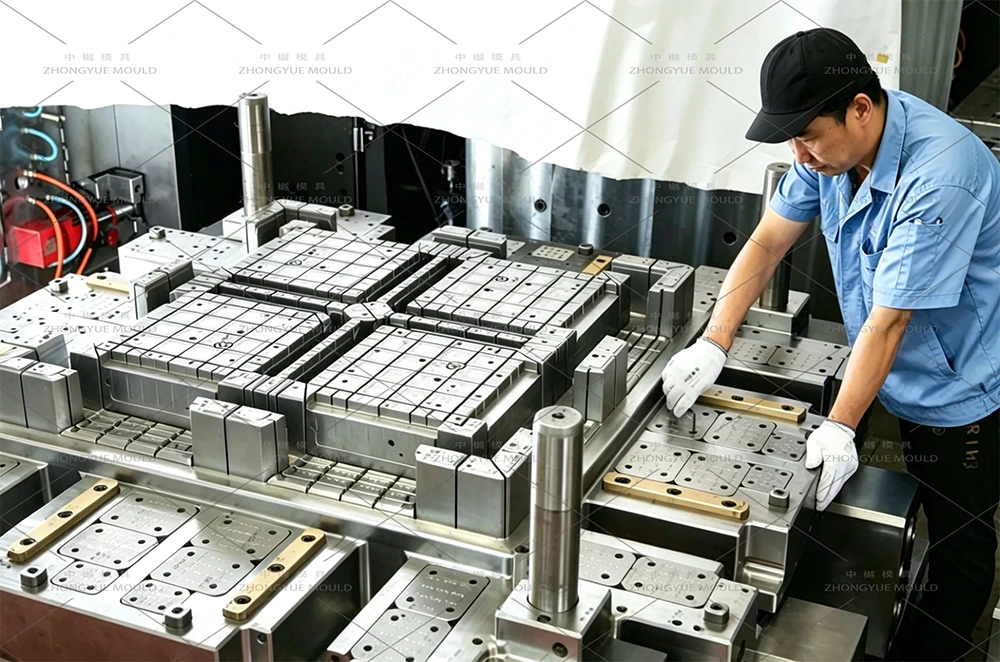

Mold Base: Reinforced S50C / P20 pre-hardened base (thickened support pillars to prevent cavity deflection under pack pressure).
Cavity / Core Inserts: 718H (1.2738, HRC 33–38) standard; H13 (1.2344, HRC 44–48) for high-volume / recycled-HDPE runs.
Wear Parts: Slide blocks, angle pins, and ejector sleeves are nitrided or fitted with wear plates.
Large single-face pallets (deck Ø 1100–1200mm) require 8 to 16-drop valve-gated or open hot runner systems (YUDO / Anole / Synventive compatible) to:
Fill the thin deck ribs and thick foot areas simultaneously
Avoid weld lines on the top deck where loads bear down
Eliminate cold sprue → shorter cycle
For budget-sensitive startups we also offer 3-plate cold runner designs with sequential pin-point gates.

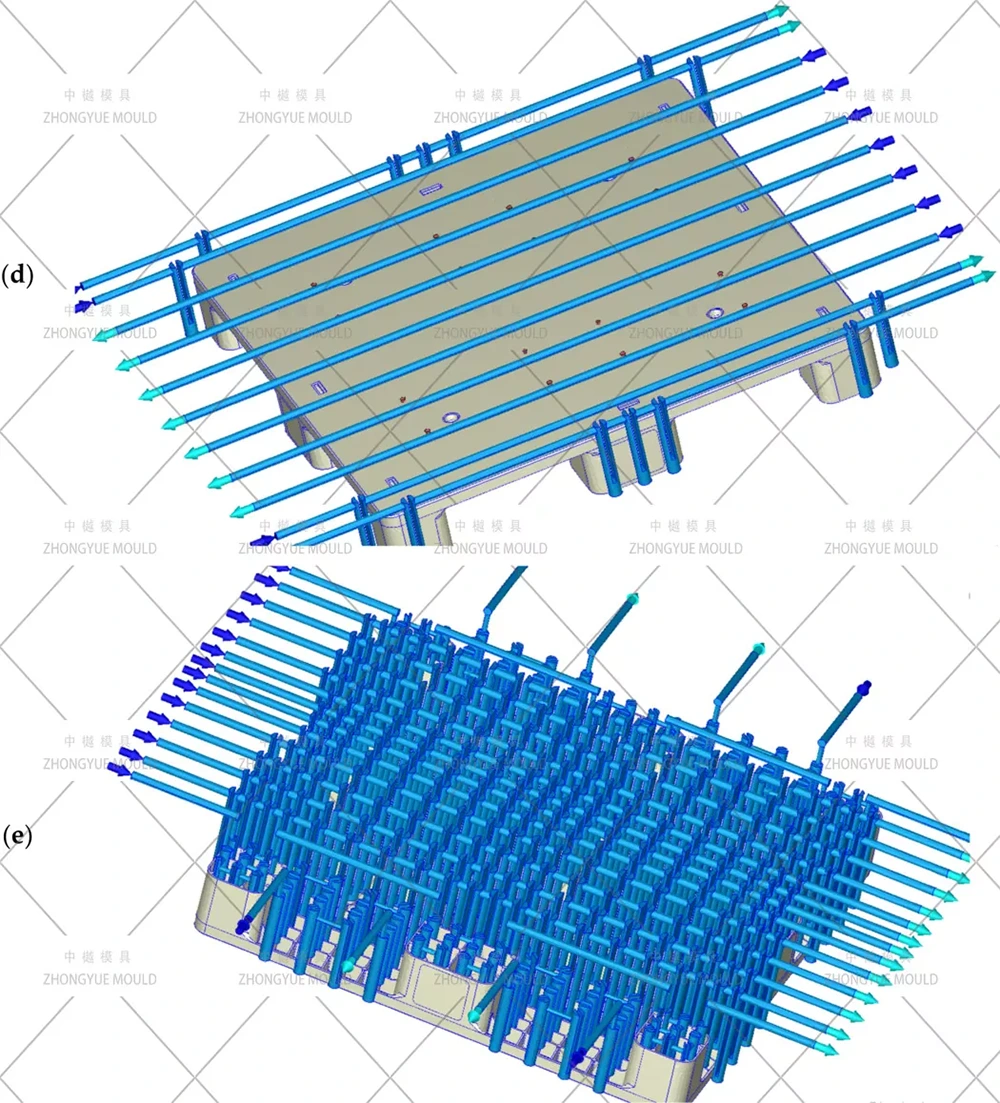

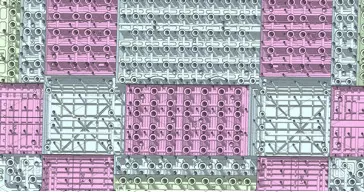

Pallet molds have thick intersection zones at leg-to-deck junctions—major heat traps. Our cooling strategy:
Deep-drilled baffles & bubblers in each of the 9 legs
Mold-Max / BeCu inserts at deck-rib crossings and central hub
Parallel water circuits with individual flow regulators → typical cycle time 70–120 seconds (pallet weight 6–15 kg)
The tapered feet/runners are undercuts requiring positive action:
Hydraulic cylinders + angle lifters or cam-driven slides for leg sidewalls
Ejector block / stripper plate with long guide pillars supporting full stroke
Optional early-eject mechanism (mold opens 5–10mm → ejection begins) to shorten machine cycle
Top deck textured with diamond / stippled anti-slip pattern; bottom feet can be smooth or lightly textured.
Embossed company logo, RFID pocket, date code cavity, barcode area — all integrated per your artwork.
Proven Track Record – Hundreds of 9-foot & runner-type single-face pallet molds shipped to Europe, SEA, Middle East & South America.

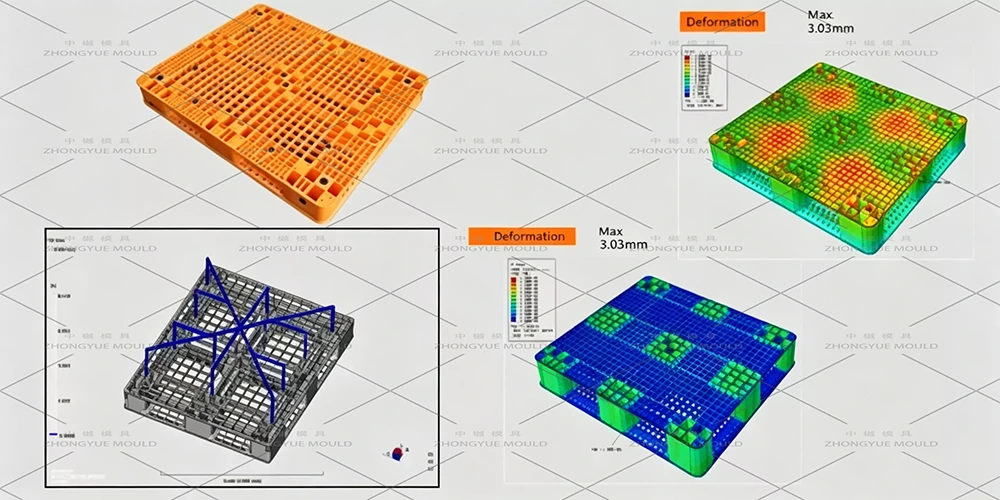

Moldflow Analysis Upfront – We validate gate location & cooling before steel cutting to eliminate sink marks & excessive warp.

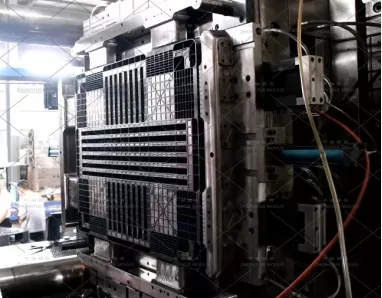

Transparent QC – Weekly progress photos → T0 trial video + sample dimensional report → pre-shipment final check.
Full Spare Parts Kit & Support – Includes extra slides, seals, heater bands; remote troubleshooting available.
