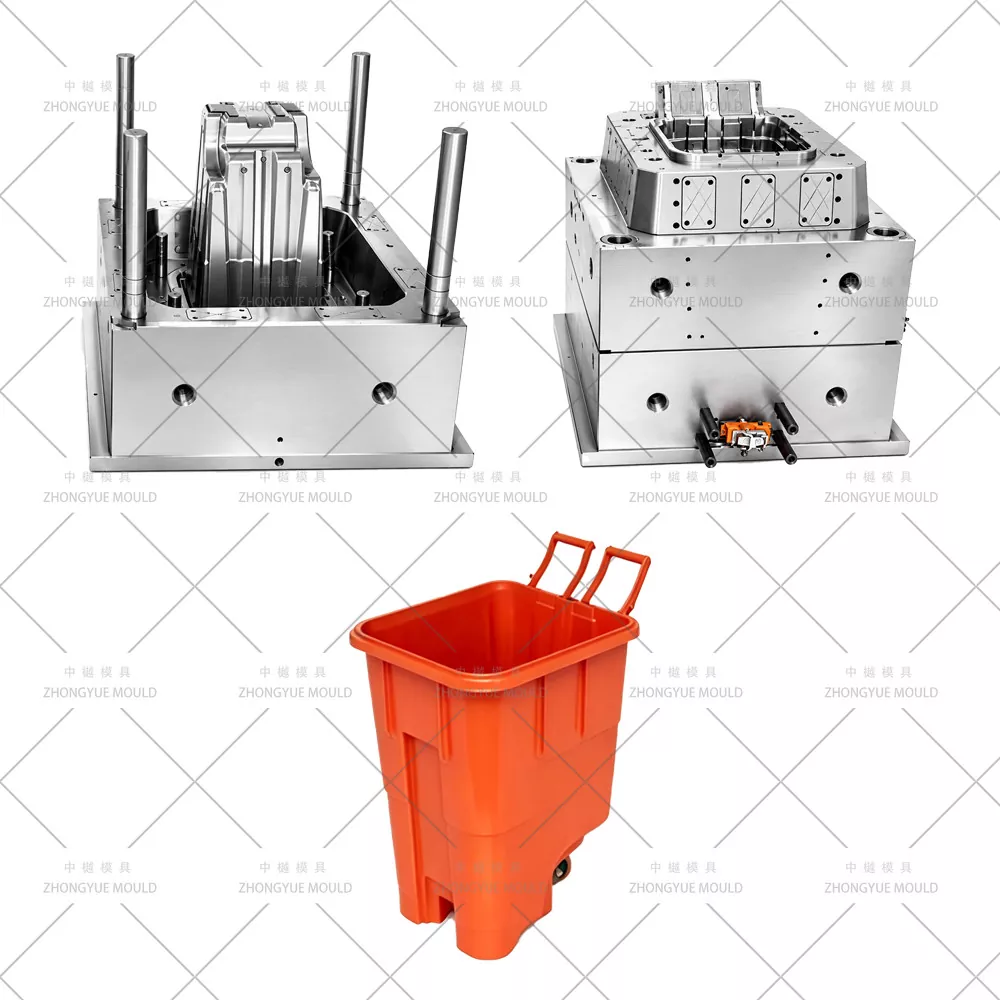

ZHONGYUE MOULD is a professional China injection mold manufacturer, supplying Plastic Outdoor Dust Bin Moulds / Large Outdoor Trash Can Injection Molds (including wheelie bin bodies, municipal waste containers, and recycling bins in 30L, 60L, 120L, and 240L capacities) to global municipal-supply wholesalers, supermarket chains, and private-label brands. Outdoor dust bins are typically molded in HDPE (High-Density Polyethylene, MFR 0.03–0.08 dg/min for high ESCR) or PP+UV stabilizer, with a smooth or lightly textured outer surface (VDI 27–30) for easy cleaning and graffiti resistance. Our molds feature hot runner systems (YUDO / SYNVENTIVE / Mold-Master, 1–4 drops direct gate or short cold sprue), deep-baffle + BeCu (Beryllium Copper) insert cooling at the bottom radius and thick rib intersections, deep-core venting with porous vent inserts or 0.01–0.015mm parting-line vents to prevent burning or short shots on tall draws (400–950mm), plus DFM analysis to verify wall thickness (2.5–4.0mm), shrinkage compensation (HDPE ~1.5–2.0%, PP ~1.2–1.8%), and lid-seat flatness.

From 30L/60L curbside collection bins and 120L/240L wheelie bins (body only — wheels and axle assembled post-molding) to color-coded recycling lids, we provide a full DFM review and Moldflow simulation before steel cutting.

Plastic Dust Bin Mould specifications :

Make your nextPlastic Dust Bin Mould project brighten!

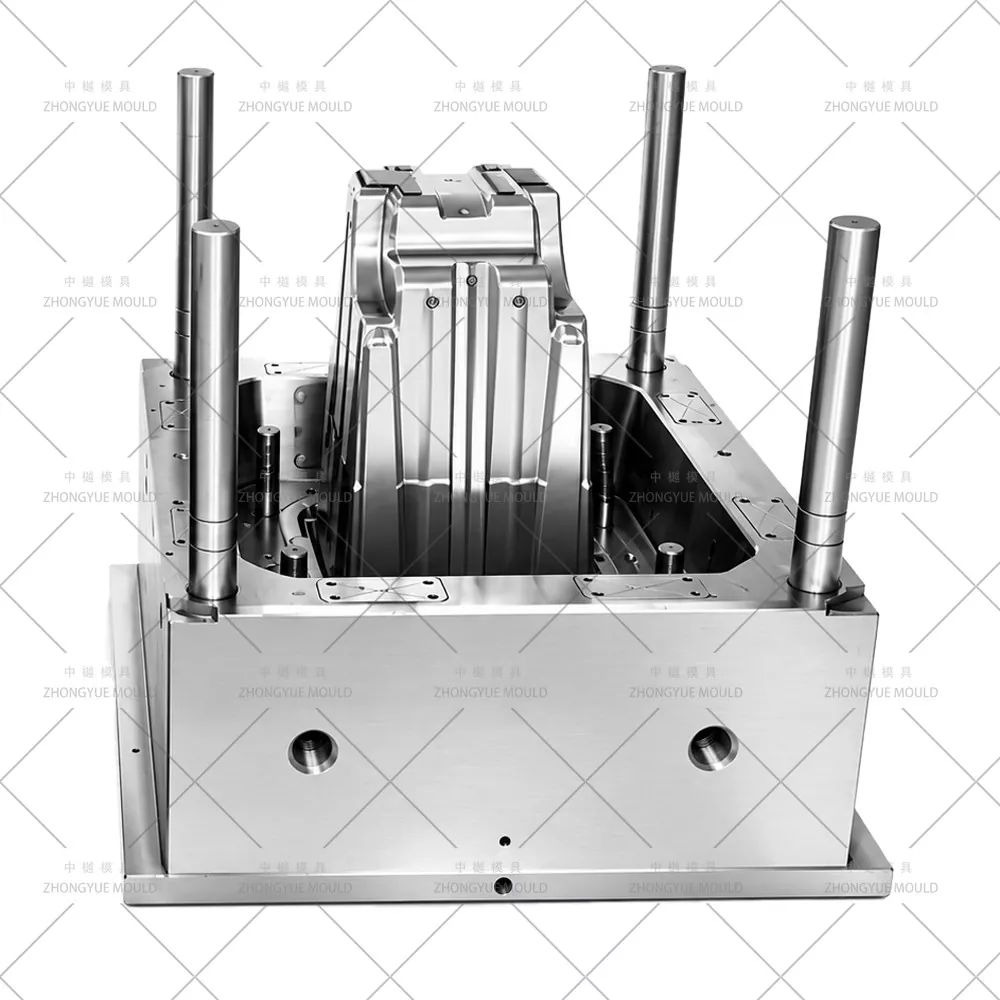

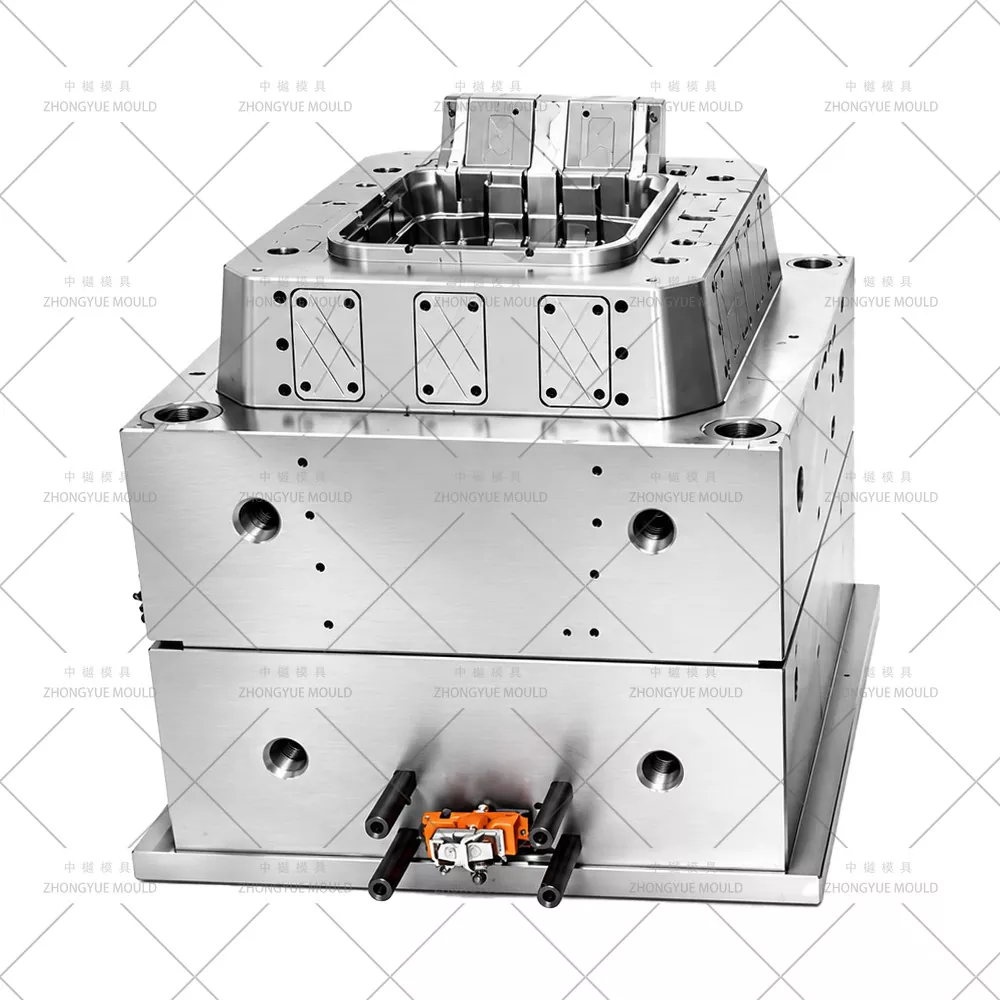

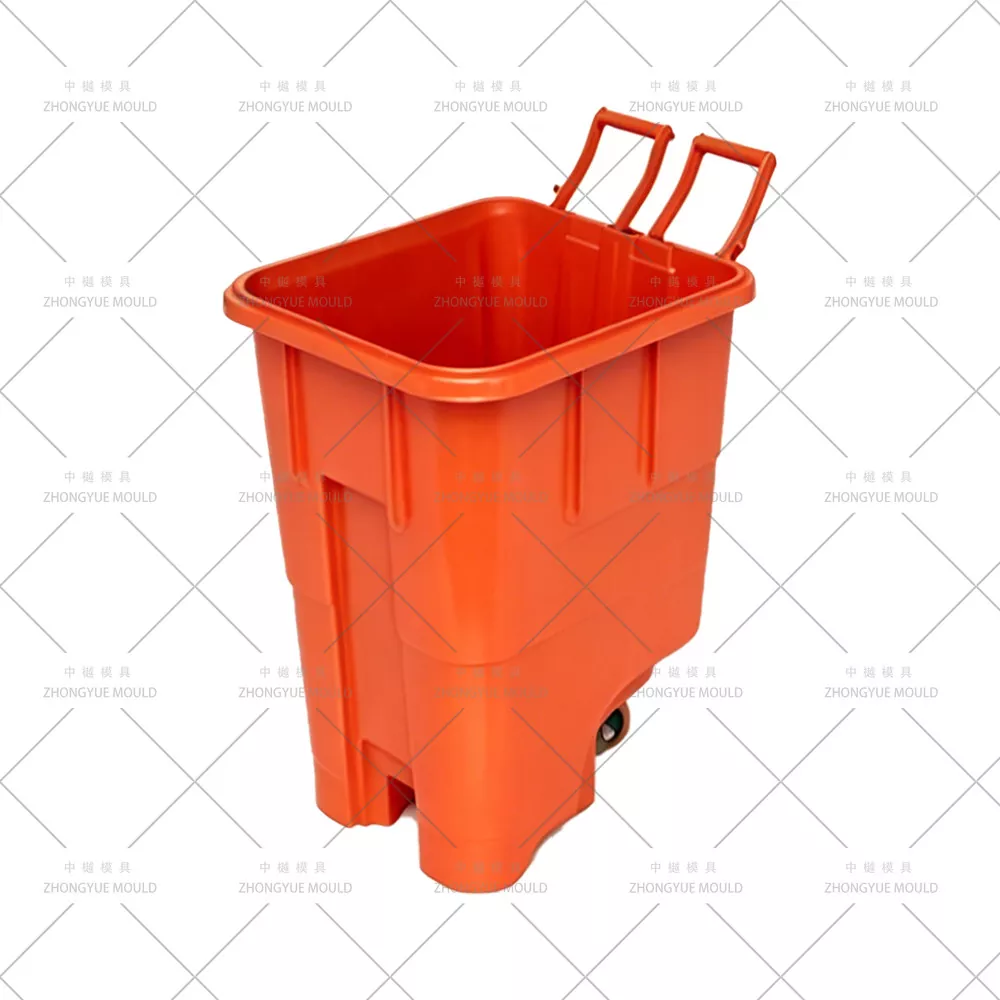

Typical Outdoor Dust Bin / Wheelie Bin Parts We Tool

Key Mold Engineering Highlights for Outdoor Dust Bin Mould

Hot Runner / Direct Sprue Gating for Large Capacity — 120L/240L bins typically use 1–2 tip open hot runner (YUDO / SYNVENTIVE) or oversize sprue direct-gated into thick top flange (machine nozzle directly contacts sprue bush) to reduce pressure loss in tall-shot HDPE. 30L/60L may use cold sub-gate or short-runner hot-tip. Sequential valve not required — fill is gravity-aided by top gate.

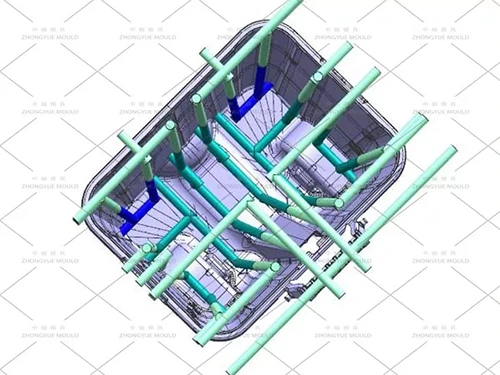

Deep Cavity Cooling — Central Baffle + BeCu Insert @ Bottom Radius & Thick Rib Nodes — Ø12–16mm baffle through core; BeCu insert at hottest zones (bottom transition & hub recess fillet); 2–3 isolated water circuits; ΔT ≤ 4–5℃ inlet–outlet; HDPE cycle typically 35–70s depending on shot size.

Deep-Core Venting to Prevent Burn / Short Shot — 0.01–0.015mm parting-line vent grooves all around top-edge + sintered porous steel vent inserts or vent pins at last-fill zone (core top/shoulder) — critical on 800mm+ draw HDPE bins.

Shrinkage Compensation for HDPE & PP — HDPE isotropic shrink ~1.5–2.0% (check resin data sheet); PP ~1.2–1.8%; Moldflow-verified cavity enlargement; top flange flatness ±0.3–0.5mm checked for lid-seat; barrel straightness/ovality controlled.

Reinforcement Rib Design & Warpage Control — External vertical/horizontal rib pattern (not too thick — 60–70% of wall) analyzed in DFM to prevent sink & barrel distortion after de-molding; ejection via stripper ring + peripheral ejector pins; optional air-assist eject for deep draws >600mm.

Wheel Recess / Axle Slot Formed In-Body Mold — Local shallow slide or loose changeable insert to form wheel hub recess & axle slot; actual wheels & metal axle are NOT molded in this tool — they are pressed-on after molding. Clarified for quotation accuracy.

Surface Finish — Smooth or Light Grain — Cavity SPI B1/B2 satin polish standard; optional VDI 27–30 very light leather grain for graffiti-resistance; NO rattan/woven EDM texture (differentiates from indoor rattan series).

Standard Cavity Count — Outdoor bin body: Single cavity (1×1) only — large mold, optimized cooling & quality demand individual build. Lid: 1×1 or 2-cavity optional.

Our Mold Manufacturing & Validation Process

Project Kick-off & DFM Review — Analyze wall thickness (2.5–4.0mm typ.), HDPE/PP shrink, gate location (direct sprue vs. hot tip), deep-core venting strategy, wheel-hub recess slide/insert, required machine opening stroke (≥1.5×H+100mm) & tie-bar clearance; suggest rib thickness adjustments to prevent barrel distortion.

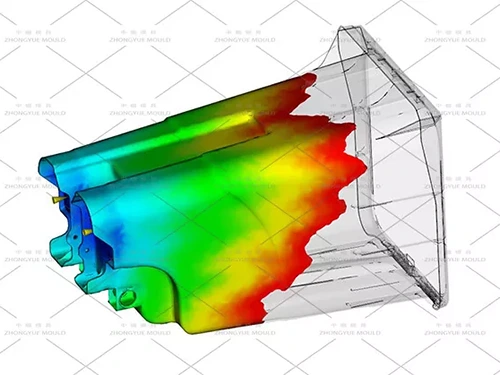

Moldflow Simulation (Cooling + Fill + Warp) — Verify fill pattern (top-gated HDPE flows downward gravity-aided), cooling uniformity with BeCu insert spec., predicted ovality & top-flange warp on tall barrel.

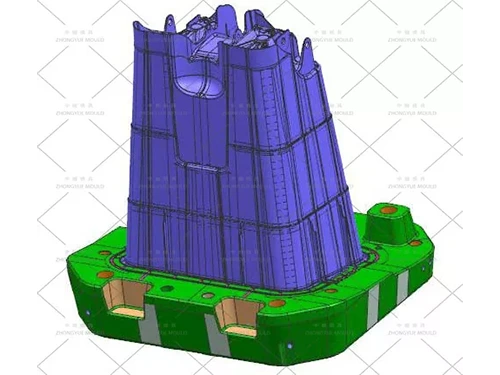

3D Mold Design Approval — Full assembly with cooling layout (central baffle + BeCu spec.), hot runner / sprue bush detail, deep-core vent pin / porous steel zone, wheel-recess slide/insert definition, stripper-ring ejector system.

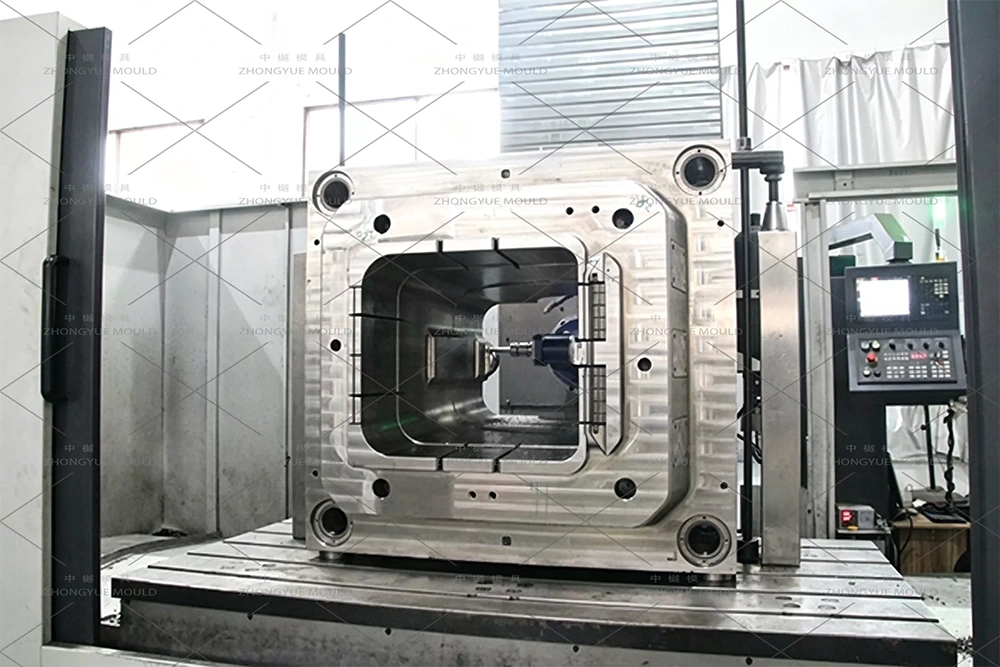

Precision Machining — Large-format high-speed CNC rough/finish cavity, deep-hole drilling for cooling baffle, BeCu insert fitting with thermal contact verification, H13 slide nitriding & hand-fitting, core/cavity SPI B1/B2 polish or light VDI etch.

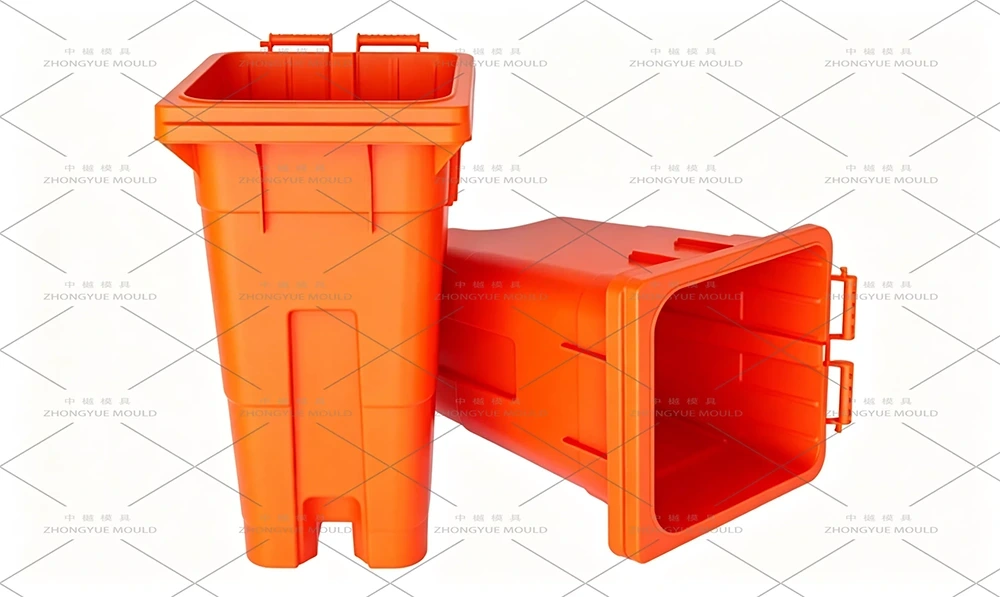

T1 Trial & Correction — Run on in-house large-tonnage machine; check barrel ovality, top-flange flatness, wall thickness scan, gate-vestige trim, cooling cycle; supply trial video + sample bin + CMM report.

Final Packaging & Shipment — Fumigation-free heavy-duty case, mold operation manual, spare parts list (ejector pins, water nozzles, sprue bush, slide spring, BeCu insert available as consumable), heat treatment & steel certs.

Why Choose ZHONGYUE MOULD for Your Outdoor Dust Bin Mould?

Large Commodity Mold Capability — Rattan bins, crates, chairs, pallets & outdoor dust bins (30L–240L) built in-house with 5-axis CNC & deep-hole drill

In-house DFM & Moldflow (Cooling + Warp) — Optimize HDPE/PP shrinkage, deep-core venting & BeCu cooling location before steel cutting; verify lid-seat flatness & barrel straightness

Hot Runner & Deep-Cavity Expertise — YUDO/SYNVENTIVE integration; BeCu insert cooling; sintered vent pins; stripper-ring + air-assist eject design

Strict QC & Transparent Progress — Weekly machining photos, T1 sample approval (ovality & flange flatness checked) before shipment

Export Experience — Molds shipped to Europe (EN840-compliant bin programs), North America, South America, Southeast Asia, Middle East

1-Year Mold Warranty + Spare Parts Supply (BeCu inserts, vent pins, slides springs, ejector pins)

Frequently Asked Questions — Outdoor Dust Bin (Trash Can) Mould

Q: Does this mold include the wheels and metal axle?

A: No. The body mold forms the bin barrel and the wheel-hub recess / axle slot (via slide or loose insert). Wheels (PP/HDPE with bearing) and galvanized steel axle are purchased components assembled post-molding — NOT injection molded in this tool.

Q: What material do you recommend — HDPE or PP?

A: HDPE (MFR 0.03–0.08, UV-stabilized, high ESCR) is industry standard for 120L/240L wheelie bins — excellent impact & stress-crack resistance outdoors. PP+UV is sometimes used for smaller 30L/60L curbside bins but less common for heavy-duty wheelie bins.

Q: Hot runner or direct sprue gate?

A: For 120L/240L HDPE bins we recommend direct sprue gating (machine nozzle contacts sprue bush, no runner) or a 1–2 tip open hot runner (YUDO/SYNVENTIVE). Cold runner is only advisable for small 30L/60L bins. Sequential valve gate is unnecessary — top-gated HDPE fills downwards.

Q: Can you also quote the matching lid mold?

A: Yes — we quote the outdoor bin body as 1×1 cavity and the lid as 1×1 or 2-cavity mold (shorter cycle). Color-coded recycling lids (different colors) may share one lid mold & just change MB — we can confirm.

Q: What do you need for a quotation?

A: 2D drawing (PDF/DWG) + 3D model (STP/IGS/X_T) OR clear photos with dimensions (capacity, top/bottom Ø or L×W, height, wall thickness, weight), target material (HDPE grade / PP+UV), annual volume, and your injection machine platen/tie-bar/clamp data (especially for 120L/240L).

Request a Quote for Your Plastic Outdoor Dust Bin Mould

Send your outdoor dust bin 2D drawing + 3D model (or sample photos with detailed dimensions & capacity) and project requirements. Tell us if you also need the matching lid mold. ZHONGYUE MOULD will provide a free DFM review + Moldflow cooling/warp analysis summary + formal quotation within 24–48 working hours.

Contact us now to start your Outdoor Trash Can / Wheelie Bin Body Injection Mold project!
